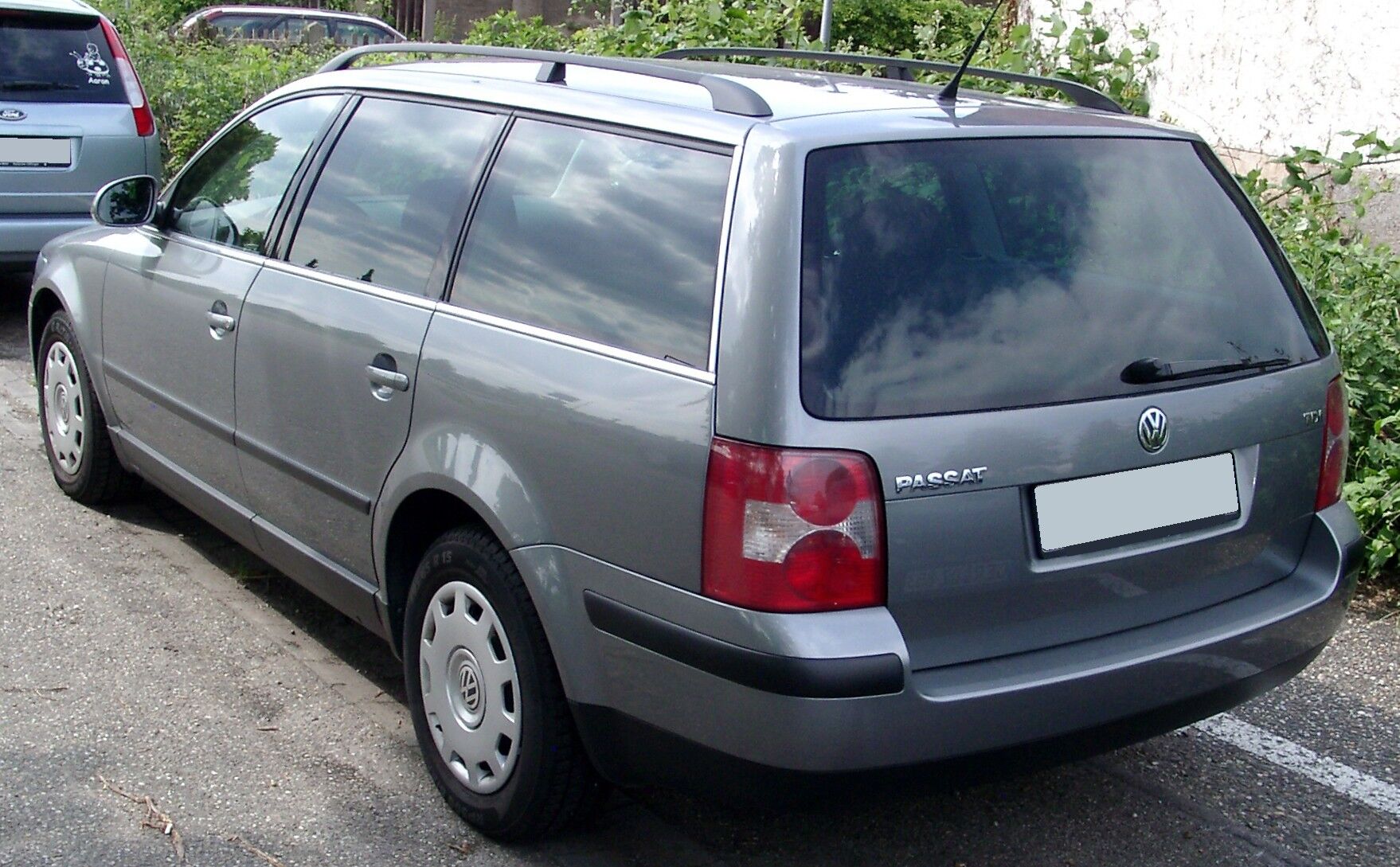

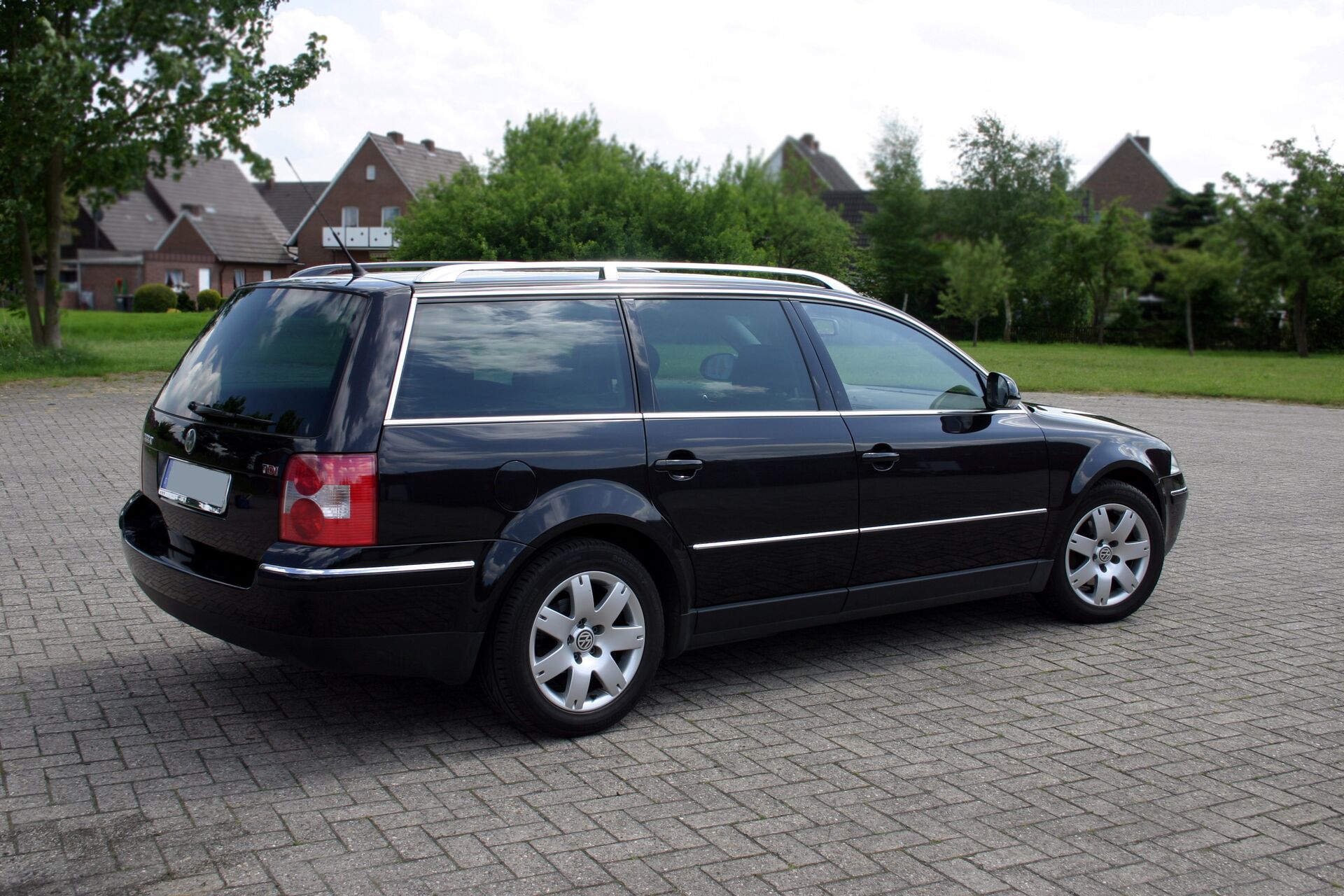

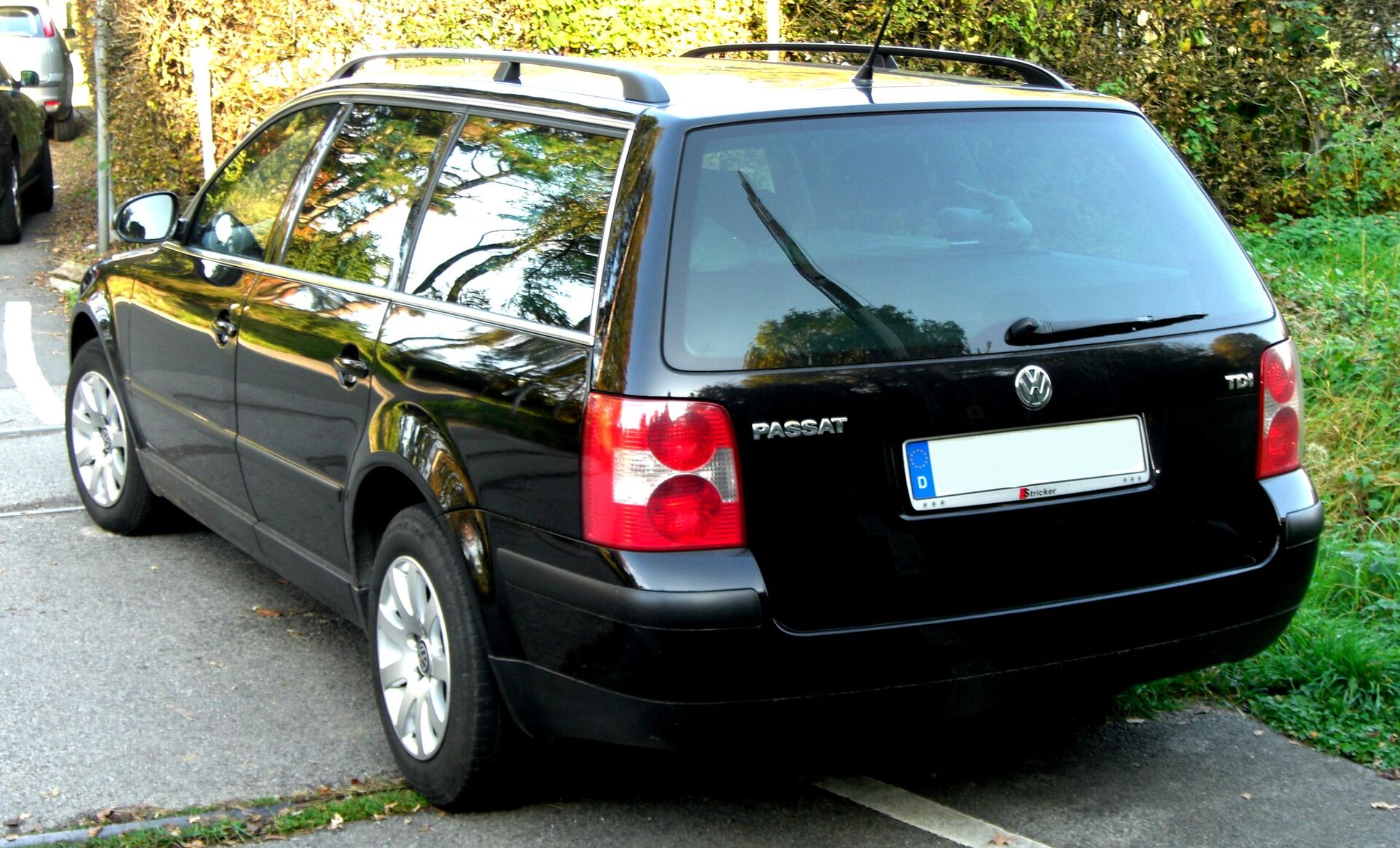

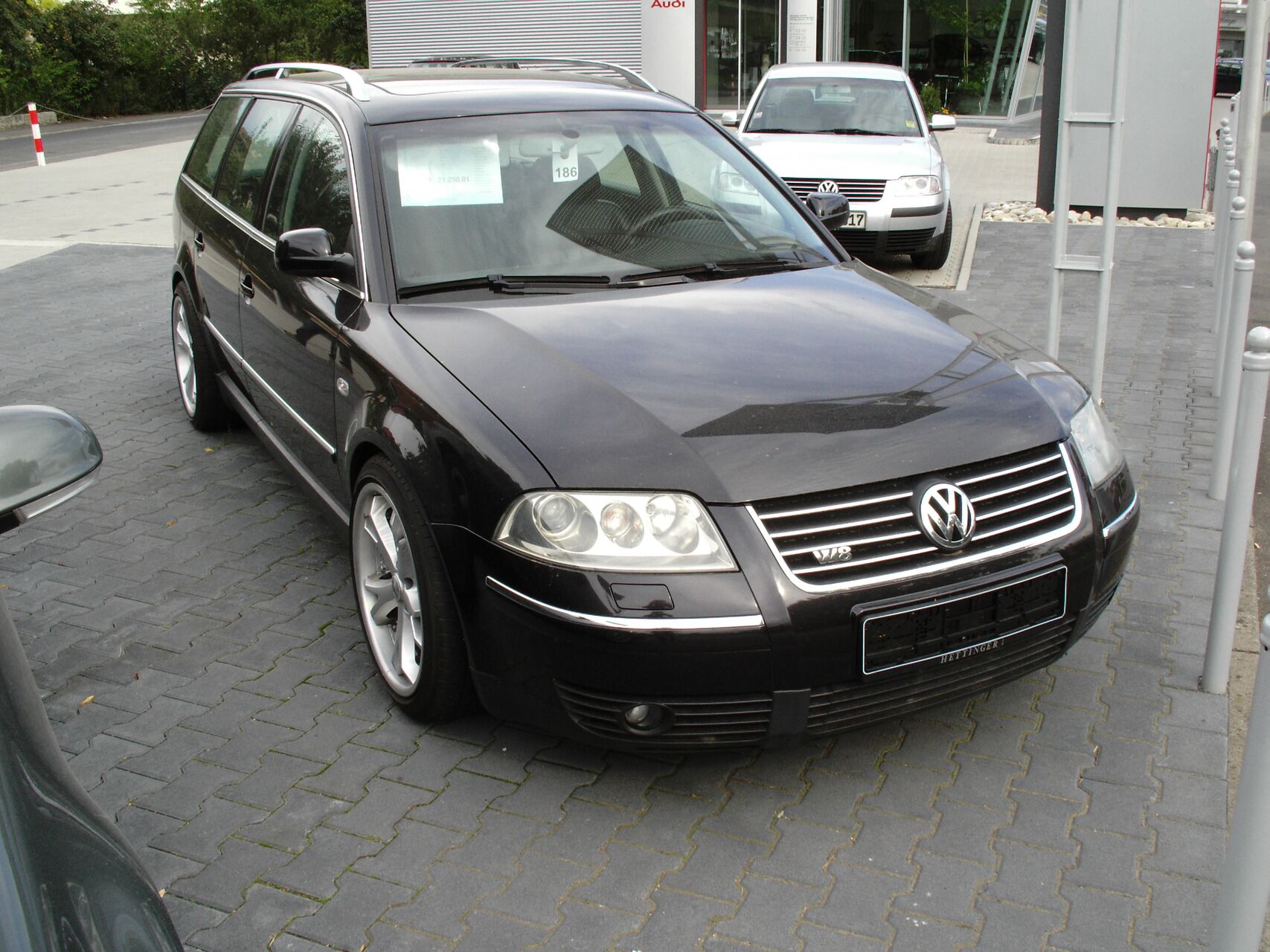

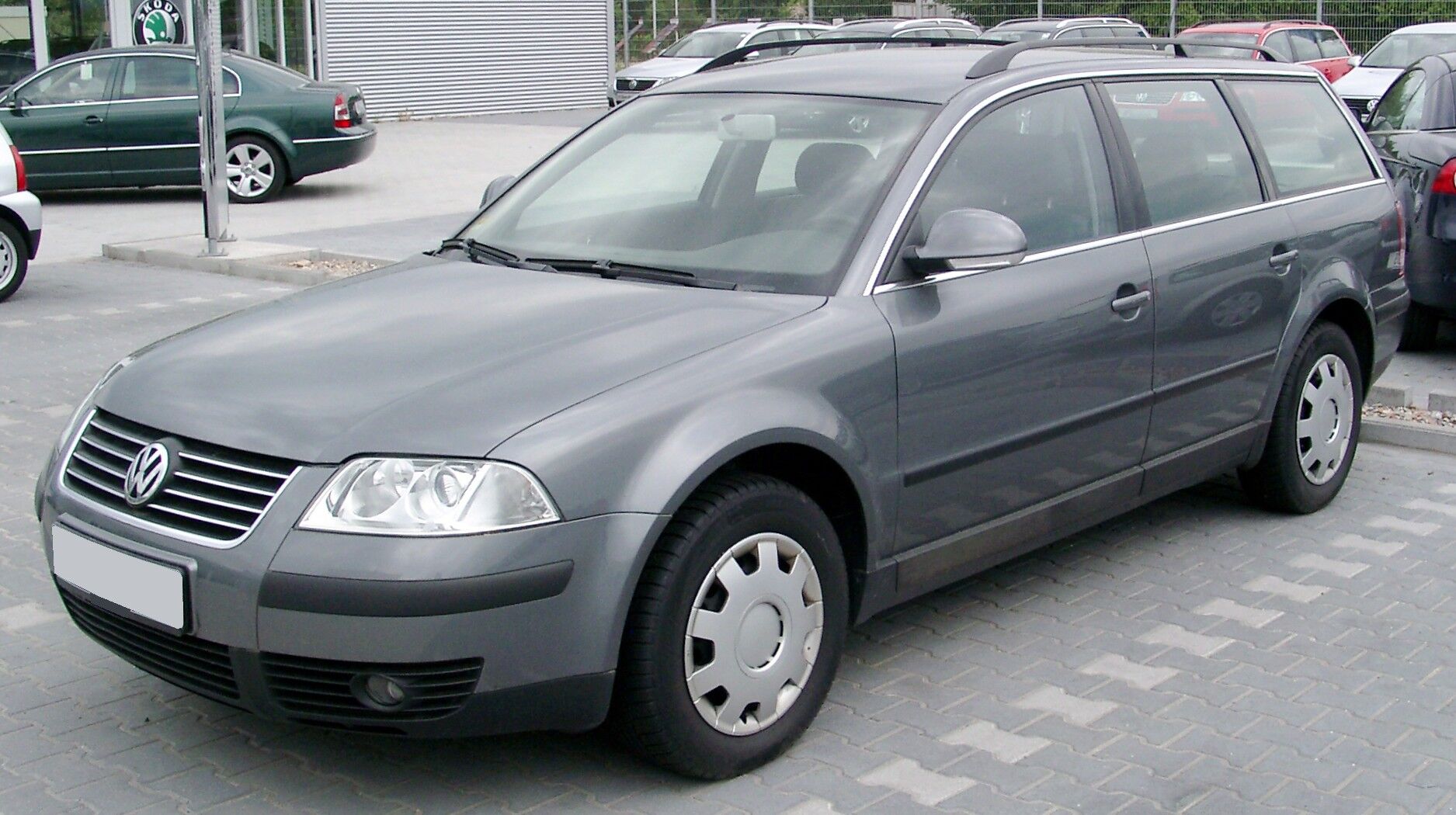

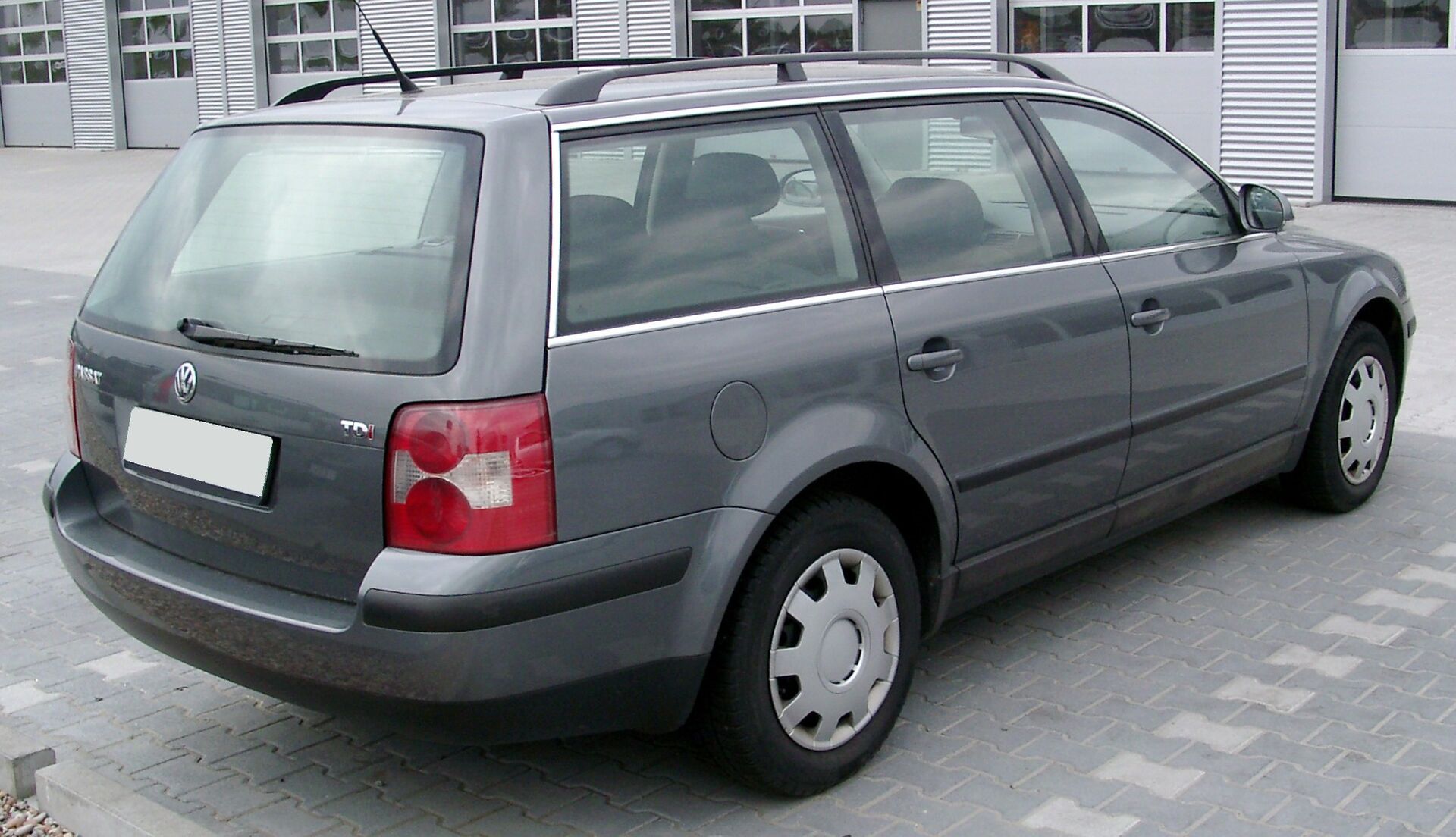

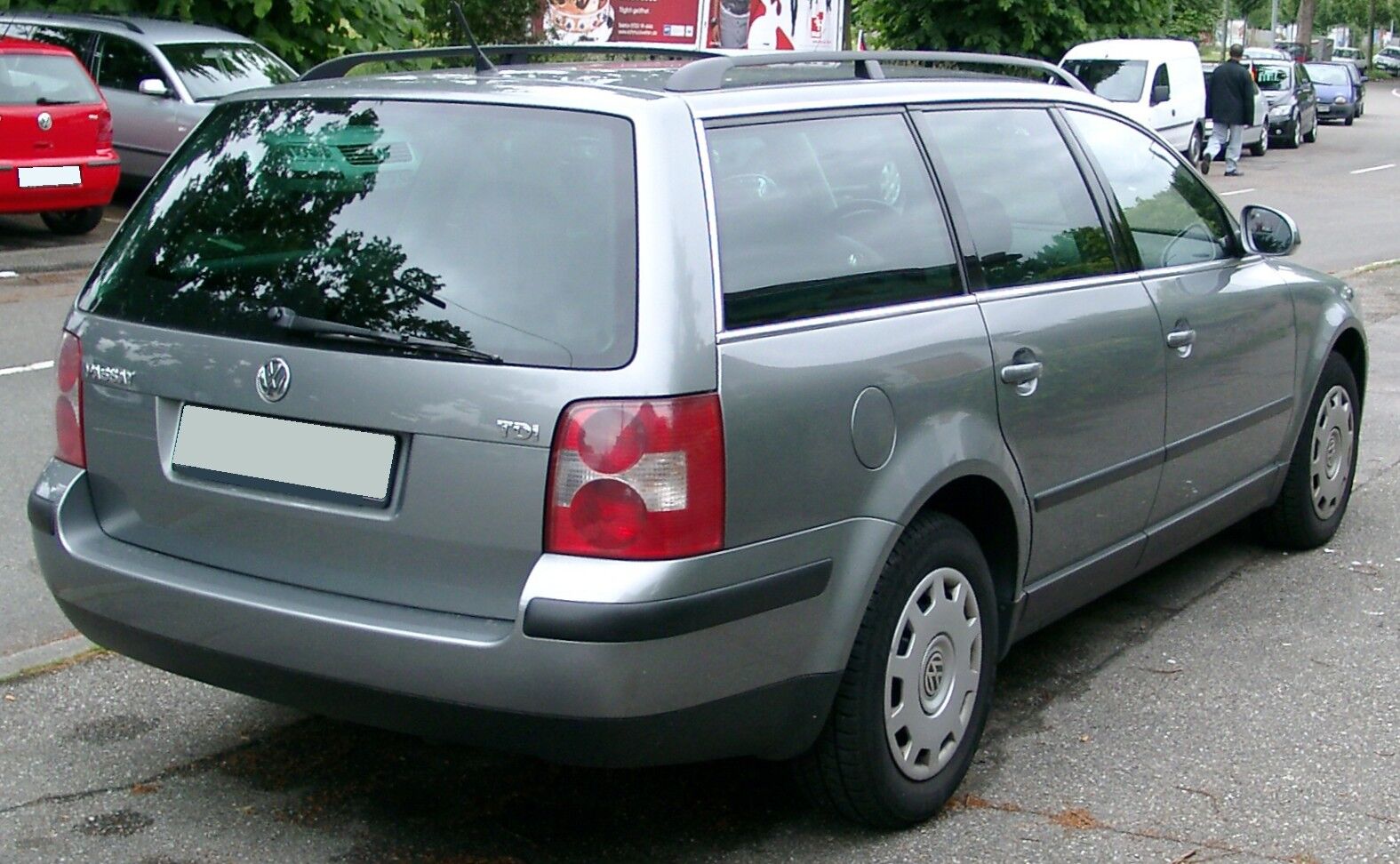

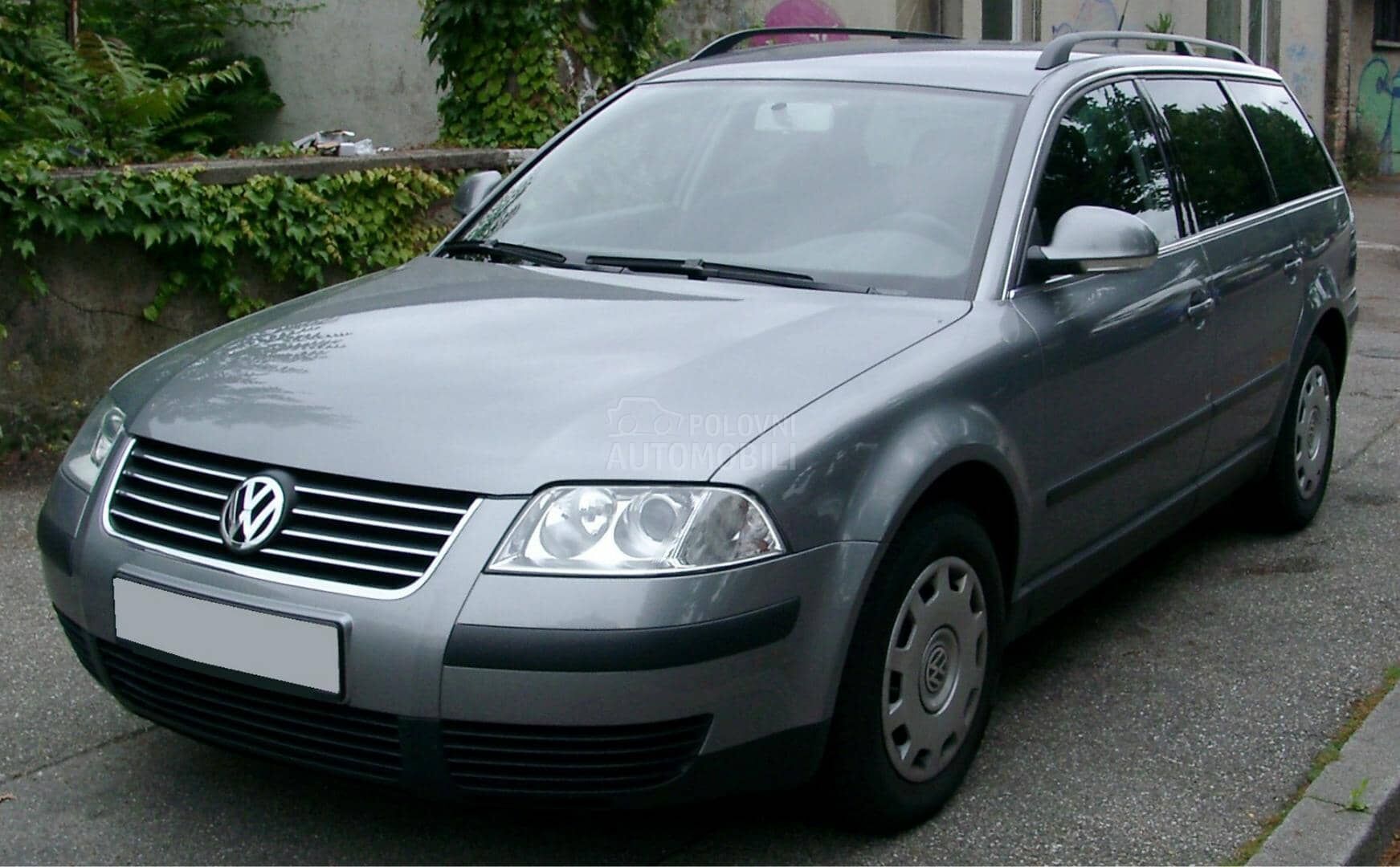

Volkswagen Passat Variant (B5.5) 1.9 TDI (130 Hp) 4MOTION Specs
Volkswagen Passat Variant (B5.5) 1.9 TDI (130 Hp) 4MOTION has been in production since 2000 - 2005. Cars comes in Station wagon (estate) body types and can be suited with Diesel engine types with a volume of 1.9L liters, engines produces a power of 130 Hp. The overall dimensions of the car are 4682x1746x1498 mm, and the weight is from 1749 kg.
General data Generation Passat Variant (B5.5) Modification 1.9 TDI (130 Hp) 4MOTION Start of production 2000 year End of production 2005 year Powertrain Architecture Internal Combustion engine Body type Station wagon (estate) Seats 5 Doors 5 Fuel Type Diesel Model AVF Fuel consumption (economy), emissions Fuel consumption - urban 8.6 l/100 km Fuel consumption - extra urban 5.5 l/100 km Fuel consumption - combined 6.6 l/100 km CO2 emissions 178 g/km Emission standard Euro 3 Performance specs Acceleration 0 - 100 km/h (0 - 62 mph) 10.7 sec Maximum speed 197 km/h Weight-to-power ratio 13.5 kg/Hp, 74.3 Hp/tonne Engine technical data Power 130 Hp @ 4000 rpm. Power per litre 68.6 Hp/l Torque 310 Nm @ 1900 rpm. Engine location Front, Longitudinal Engine displacement 1896 cm3 Number of cylinders 4 Position of cylinders Inline Cylinder Bore 79.5 mm Piston Stroke 95.5 mm Compression ratio 19 Number of valves per cylinder 2 Fuel System Pump-nozzle (Unit Injector) Engine aspiration Turbocharger, Intercooler Valvetrain SOHC Engine oil capacity 4 l Coolant 7 l Power Hydraulic Steering Suspension and brakes specs Drivetrain Architecture The Internal combustion engine (ICE) permanently drives the four wheels of the vehicle. Drive wheel All wheel drive (4x4) Number of Gears (manual transmission) 6 Front suspension Independent multi-link, Transverse stabilizer Rear suspension Double wishbone, Transverse stabilizer Front brakes Ventilated discs Rear brakes Disc Assisting systems ABS (Anti-lock braking system) Steering type Steering rack and pinion Tires size 195/65 R15 Wheel rims size 6J x 15 Dimensions Length 4682 mm Width 1746 mm Height 1498 mm Wheelbase 2702 mm Minimum turning circle (turning diameter) 11.4 m Weights, volume and space Kerb Weight 1749 kg Max. weight 2160 kg Max load 411 kg Trunk (boot) space - minimum 450 l Trunk (boot) space - maximum 1545 l Fuel tank capacity 62 l Max. roof load 100 kg Permitted trailer load with brakes (12%) 1700 kg Permitted trailer load without brakes 750 kg Permitted towbar download 85 kg
