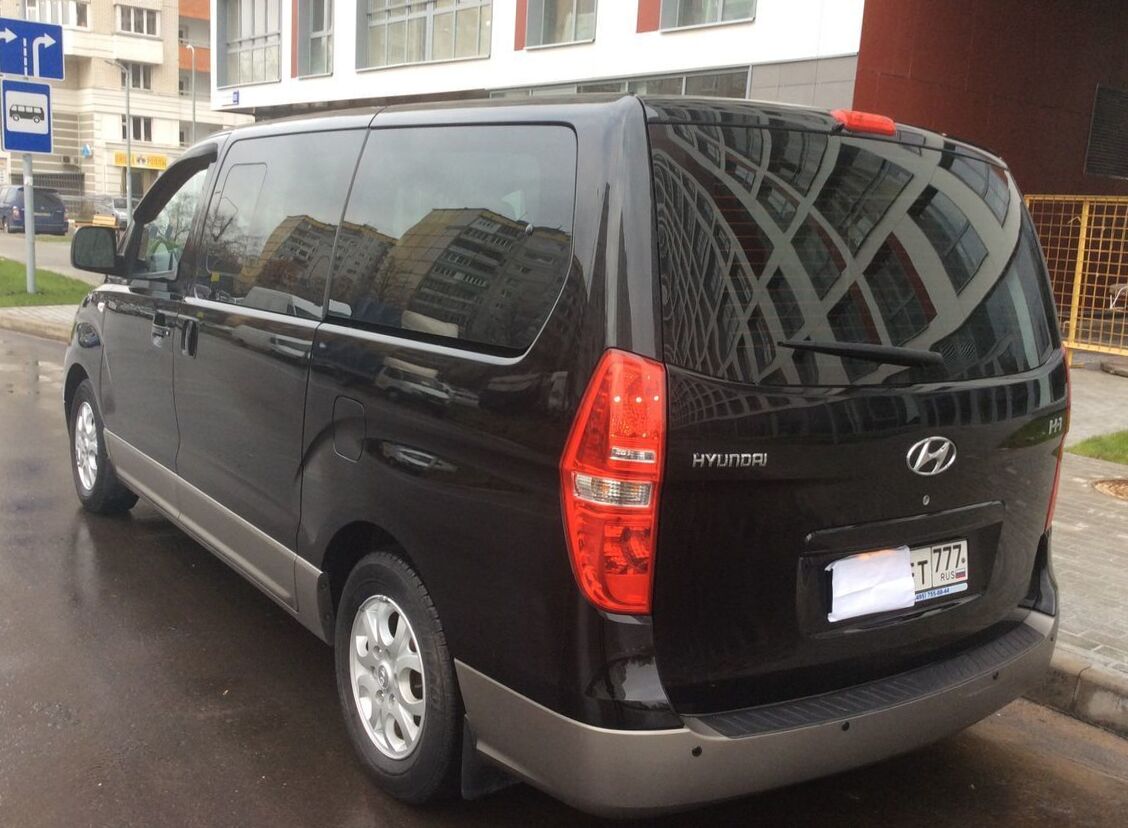

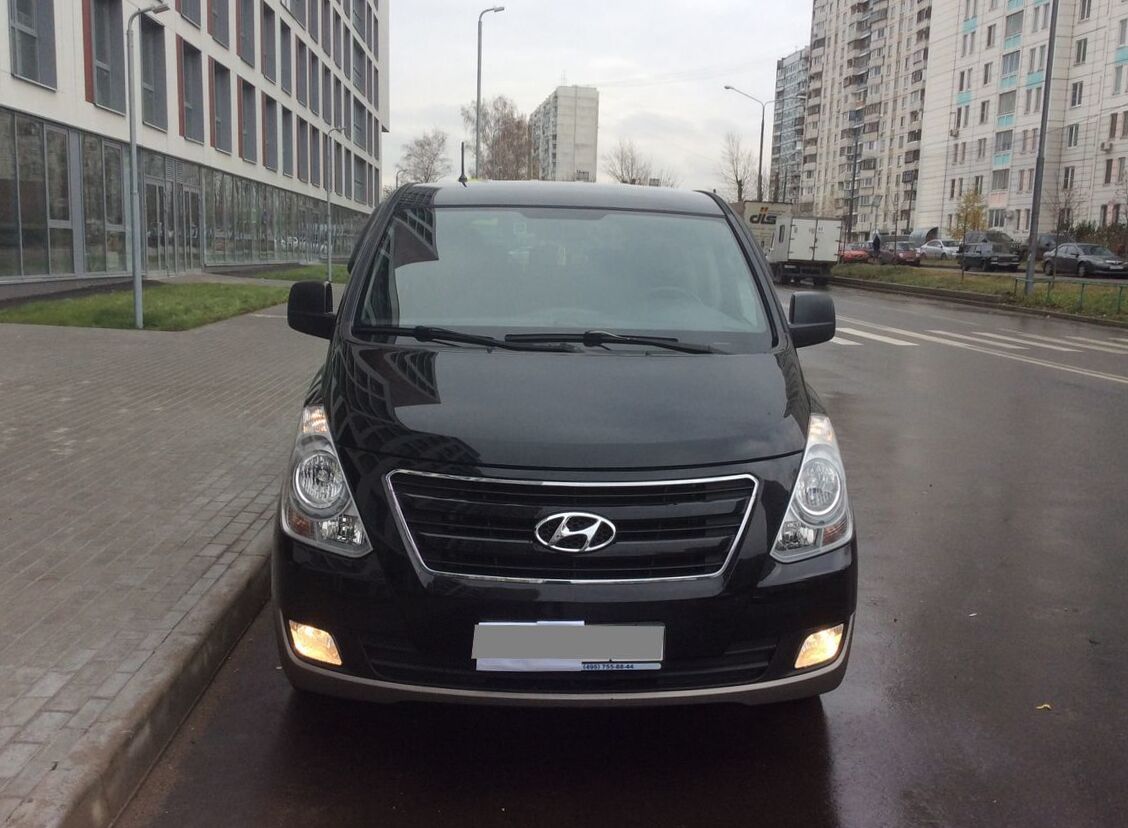

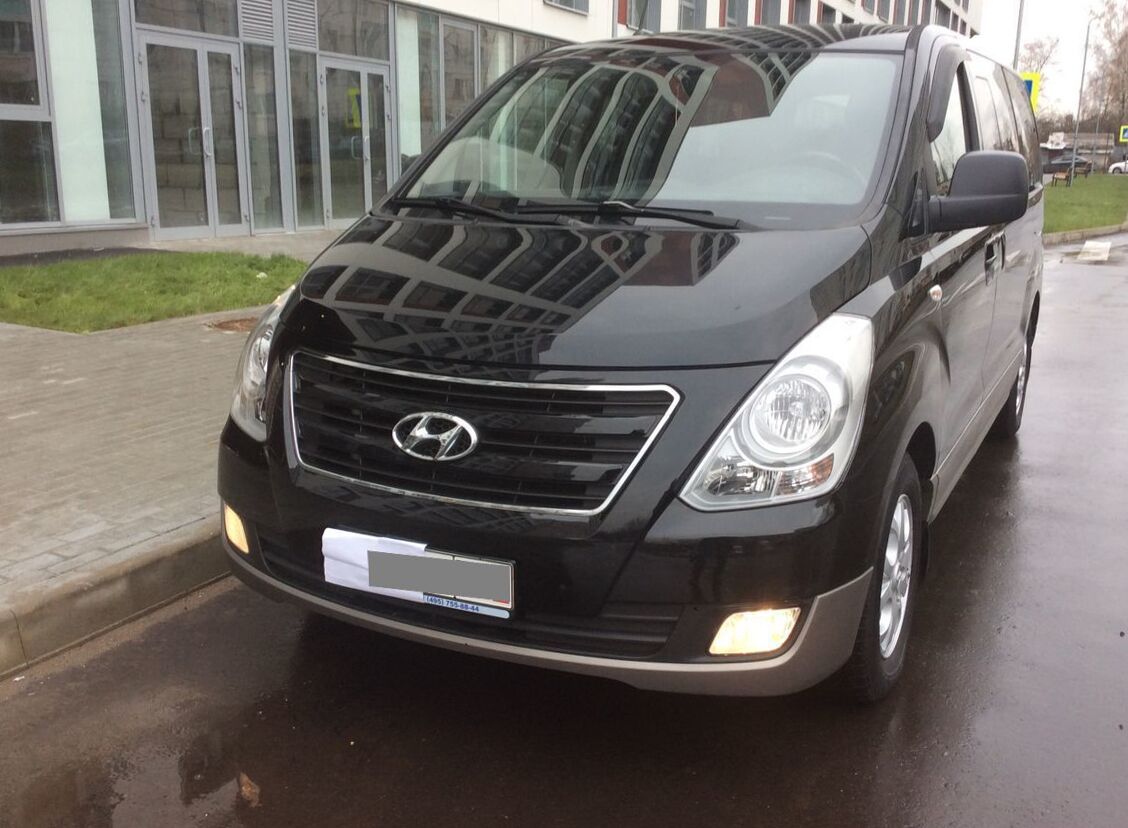

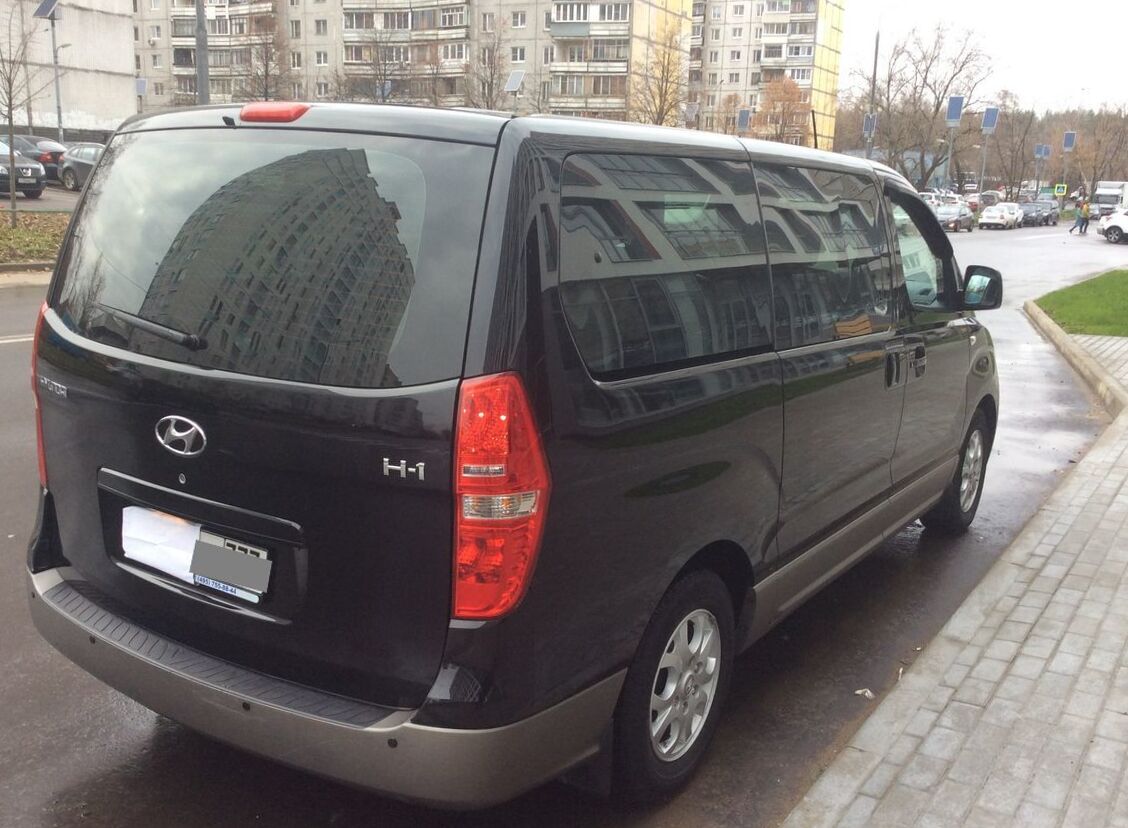

2014 Hyundai H1 II 2.5 CRDi AT Dynamic
Hyundai H1 Problems
Car do not want to start, batery ok, starter on...
2017, My car does not want to start. I tried to
jump start. All panel lights working and main ...
KMJWWH7WP5U631024 كود الصيانة &...
2004, في العزم وستهلك
الوقود ونظام التعليق
والكهرب...
Renseignement
2001, je viens d'acheter une voiture
Hyundai H1,c'est la premiere fois que
j'ai...
| Body type | Minivan |
|---|---|
| Power | 170 Hp |
| Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
| Color | black |
| Transmission Gearbox | Automatic |
| Fuel Type | Diesel |
| Drive wheel | FR or RR |
| Mileage | 35418 Miles |
| Vin | KMHWH81KBEU****81 |
| Price (out of date) | $23965 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2014 Hyundai H1 II? | Minivan, 8 Seats, 5 Doors |
| What is the fuel economy, Hyundai H1 Minivan 2014? | 8.5 l/100 km |
| How fast is the car, Hyundai H1 TQ 2014? | 183 km/h, 0-100 km/h: 14.5 sec |
| How much power, 2014 Hyundai H1 2.5 CRDi AT Dynamic? | 170 Hp |
| What is the engine size, Hyundai H1 II 2014 Minivan 2.5 CRDi AT Dynamic (170 Hp)? | 2.5L or 2497cm3 |
| How many gears, What type is the gearbox, 2014 Hyundai H1 Minivan 2.5 CRDi AT Dynamic (170 Hp)? | Automatic transmission 5 |
| What is the drivetrain, 2014 Hyundai H1 II? | Rear |
| How long is this vehicle, Hyundai H1 Minivan 2014? | 5125 mm |
| How wide is the vehicle, Hyundai H1 TQ 2014? | 1920 mm |
| What is the gross weigh, 2014 Hyundai H1 2.5 CRDi AT Dynamic? | 3030 kg |
| How much trunk (boot) space, Hyundai H1 II 2014 Minivan 2.5 CRDi AT Dynamic (170 Hp)? | 851 l |
Hyundai H1 II TQ 2.5 CRDi AT Dynamic (170 Hp) 2012, 2013, 2014, 2015 Specs
General information | |
|---|---|
| Complectation name | 2.5 CRDi AT Dynamic |
| Production start year | 2012 |
| Production end year | 2015 |
| Drive type | Rear |
| Frame type | Minivan |
| Transmission type | Automatic transmission 5 |
| Engine volume, cc | 2497 |
| Frame name | TQ |
| 0 to 100 time | 14.5 |
| Max speed | 183 |
| Clearance, mm | 190 |
| Manufacturing country | South Korea |
| Doors | 5 |
| Winter complectation | yes |
| Warranty | 5 years or 150,000 km |
Vehicle generation | |
| Generation name | TQ |
| Generation number | 2 |
| Production start year | 2007 |
| Production end year | 2015 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | D4CB |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 170 |
| Max power RPM, rpm | 3800 |
| Max power, hp (kWt) / rpm | 170 (125) / 3800 |
| Max torque, N*m | 392 |
| Max torque RPM, rpm | 2500 |
| Max torque, N*m (kg*m) / rpm | 392 (40) / 2500 |
| Engine additional info | Direct injection |
Fuel consumption | |
| City | 10.9 |
| Country side | 7.1 |
| Combined | 8.5 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5125 |
| Exterior width, mm | 1920 |
| Exterior height, mm | 1925 |
Interior dimensions | |
| Capacity | 8 |
| Seat rows | 3 |
Chassis dimensions | |
| Wheel base, mm | 3200 |
| Turning radius, m | 5.67 |
| Wheel spacing front | 1685 |
| Wheel spacing rear | 1660 |
Weight and permissible load | |
| Mass, kg | 2250 |
| Max capacity | 780 |
| Max. weight | 3030 |
Volumes | |
| Fuel tank capacity, l | 75 |
| Trunk volume | 851 |
Other | |
| Addinfo | High-capacity battery, fuel filter heater, optional cabin heater |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | yes |
| Disc | 16" |
Tires | |
| Front wheels | 215/70R16C |
| Rear wheels | 215/70R16C |
Brakes | |
| Front brake | Discs |
| Rear brake | Discs |
| Parking brake | Mechanical |
| Brake front search | 1 |
| Rear brake | 1 |
| Parking brake new first | Mechanical |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | no |
| Rain sensor | no |
Side mirrors | |
| Exterior mirrors in body color | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Sliding doors | yes |
| Door handles in body color | yes |

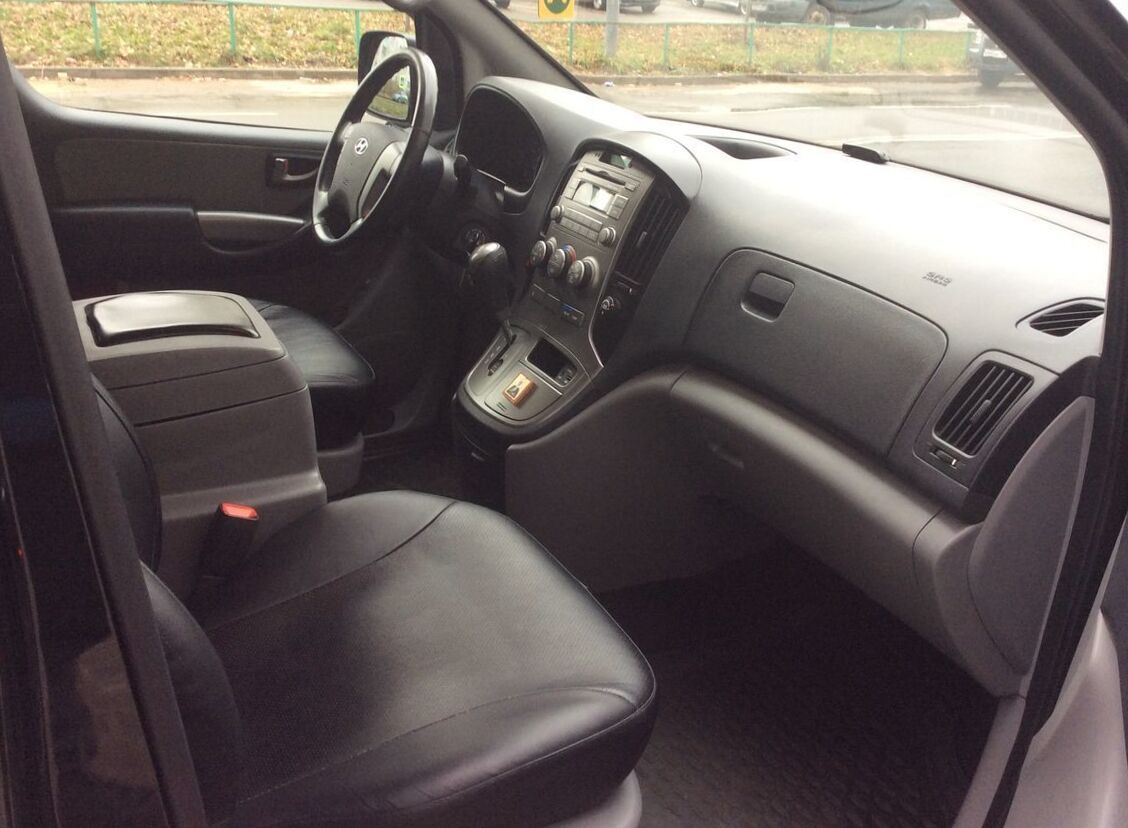

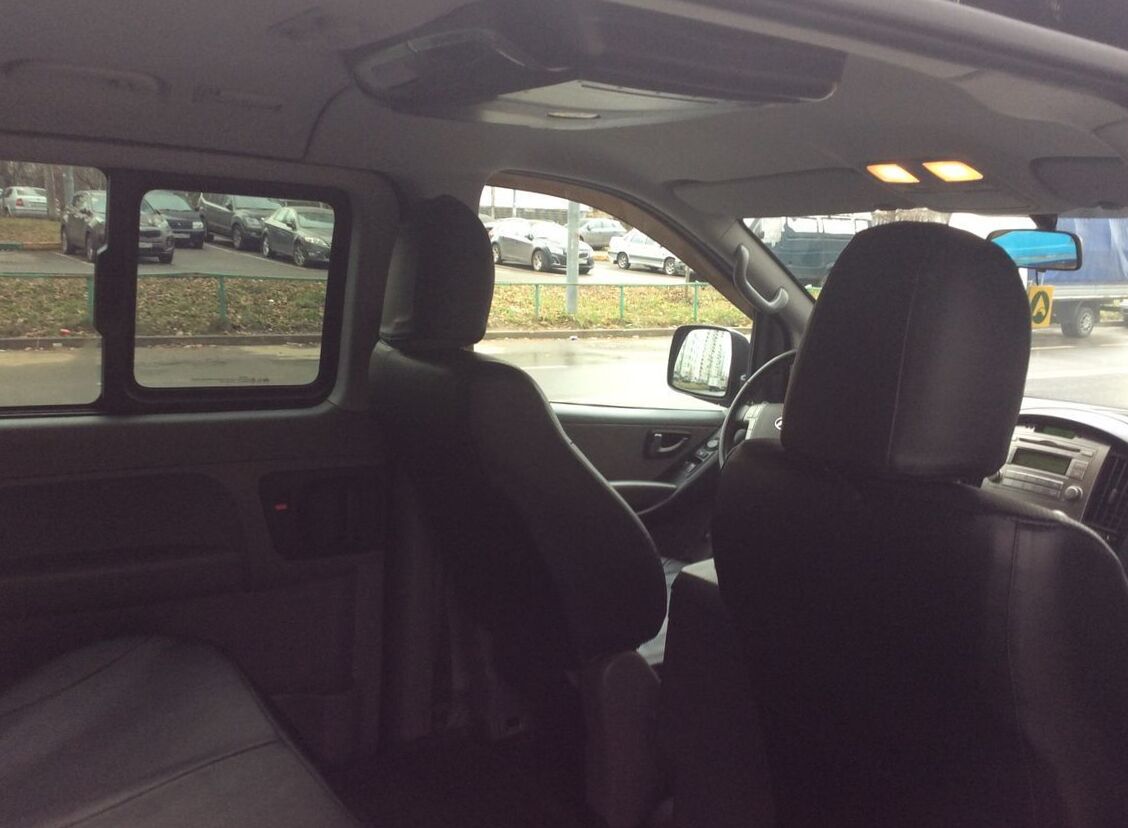

Interior | |

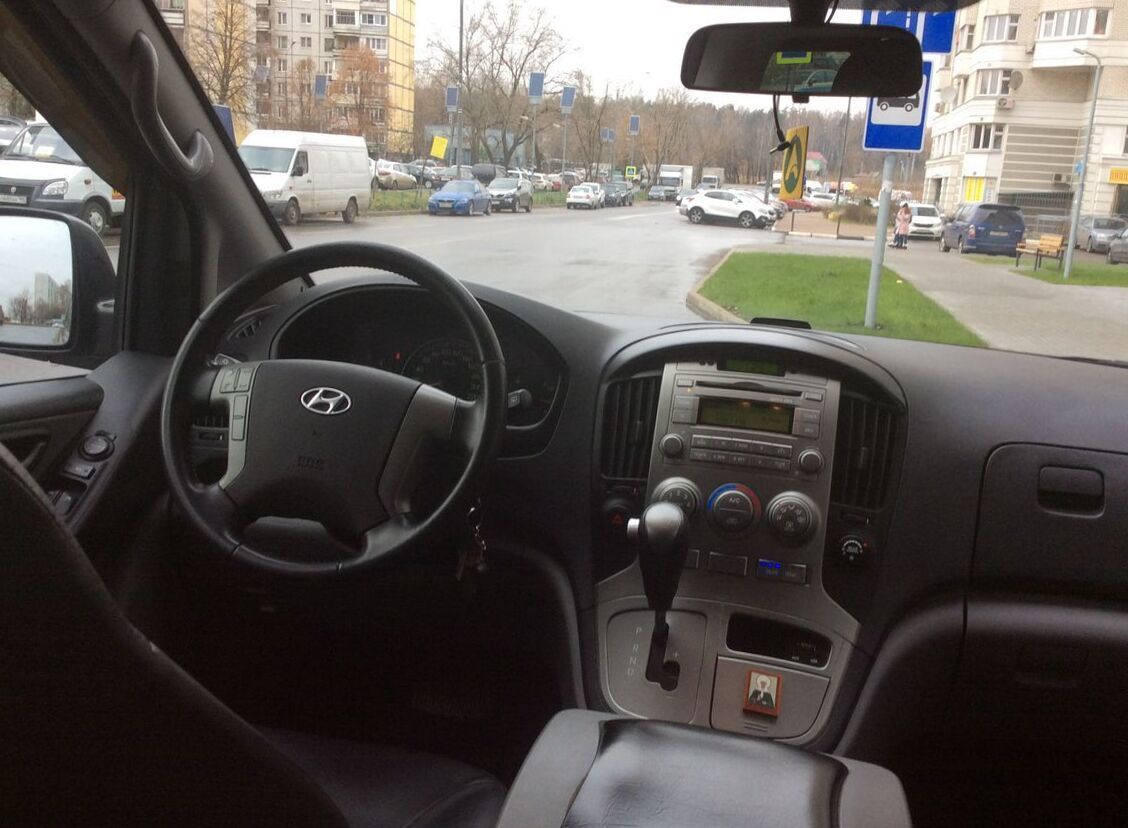

Steering wheel and center panel | |
| Leather winding | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
Interior design | |
| Cloth upholstery | yes |
Seats | |
| Front seats ajust | Height adjustment of the driver's seat |

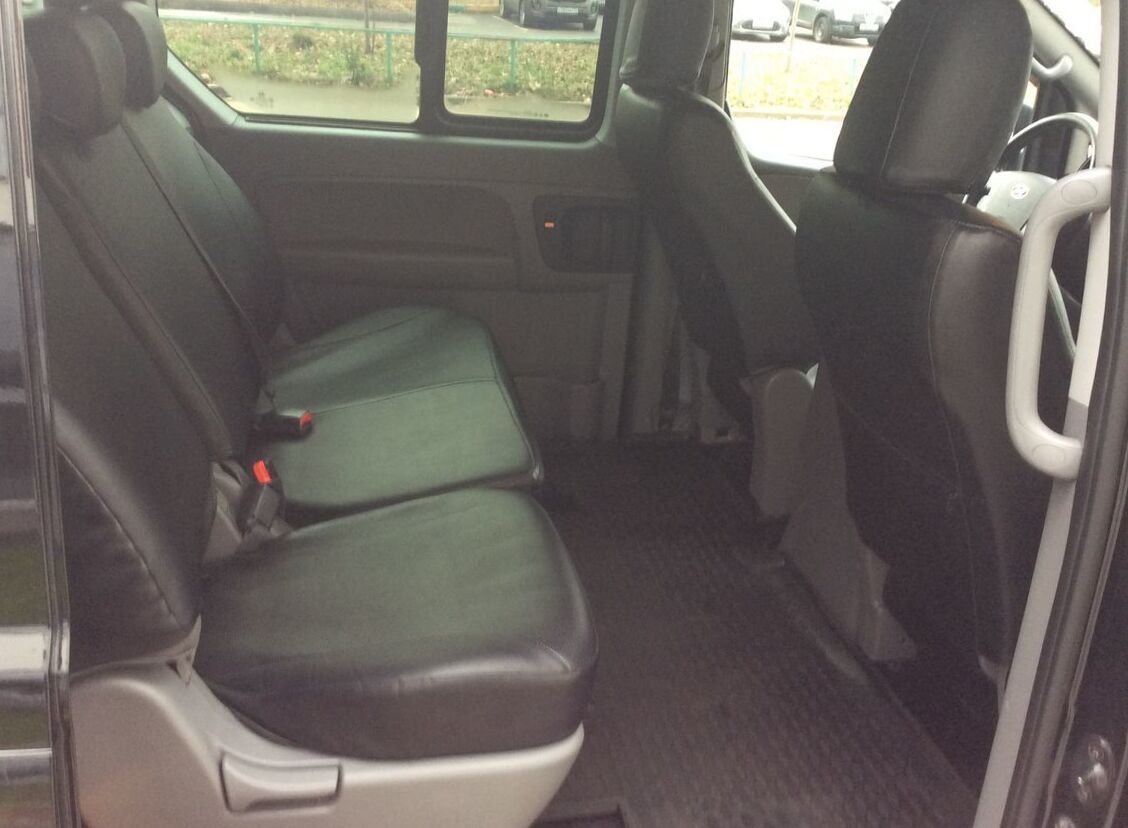

| 2nd row | 60/40 ratio fold seat |
| 3nd row | 60/40 ratio fold seat |
Electric interior package | |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
Additional interior equipment | |
| Smokers packet | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Safety belt pretensioner | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| ESP | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| MP3 Support | yes |
| Additional sound equipment | 2 DIN, 6 speakers, USB, AUX |
Additional amenities | |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
Driver Kit | |
| Spare tire | yes |
2014 Hyundai H1 II TQ 2.5 CRDi AT Dynamic (170 Hp) specs
|
