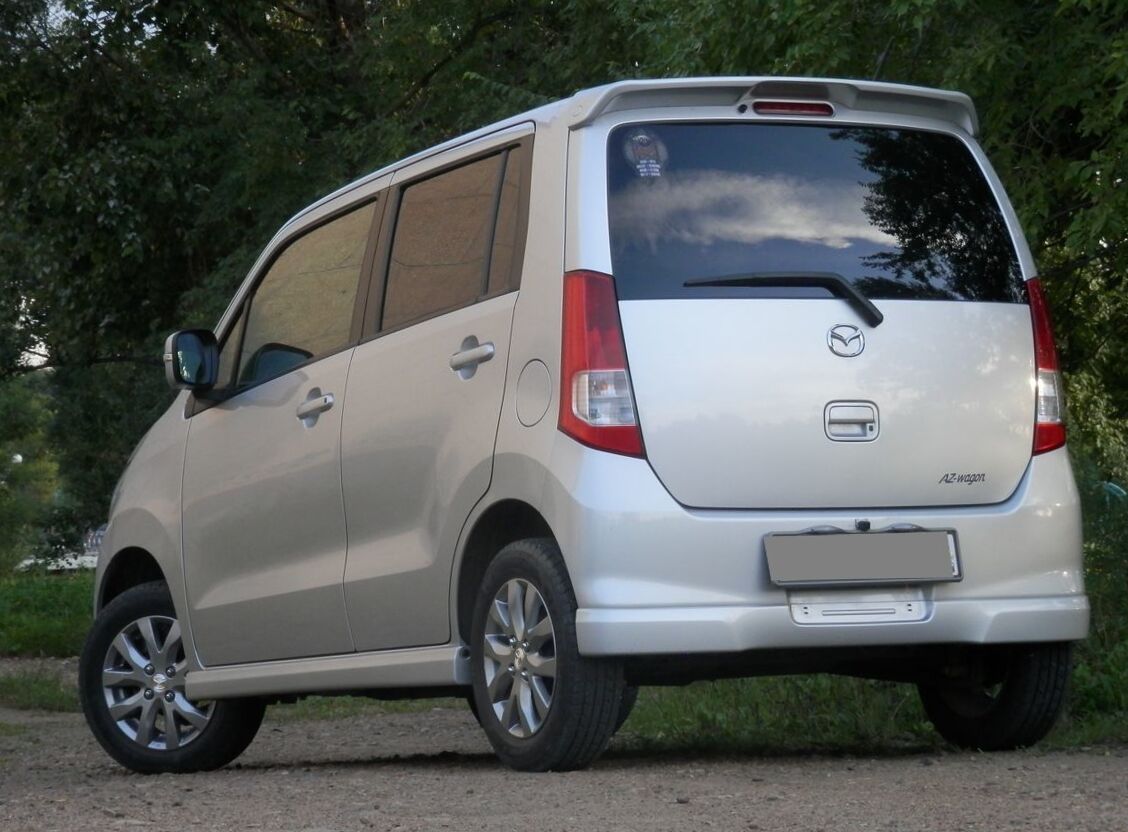

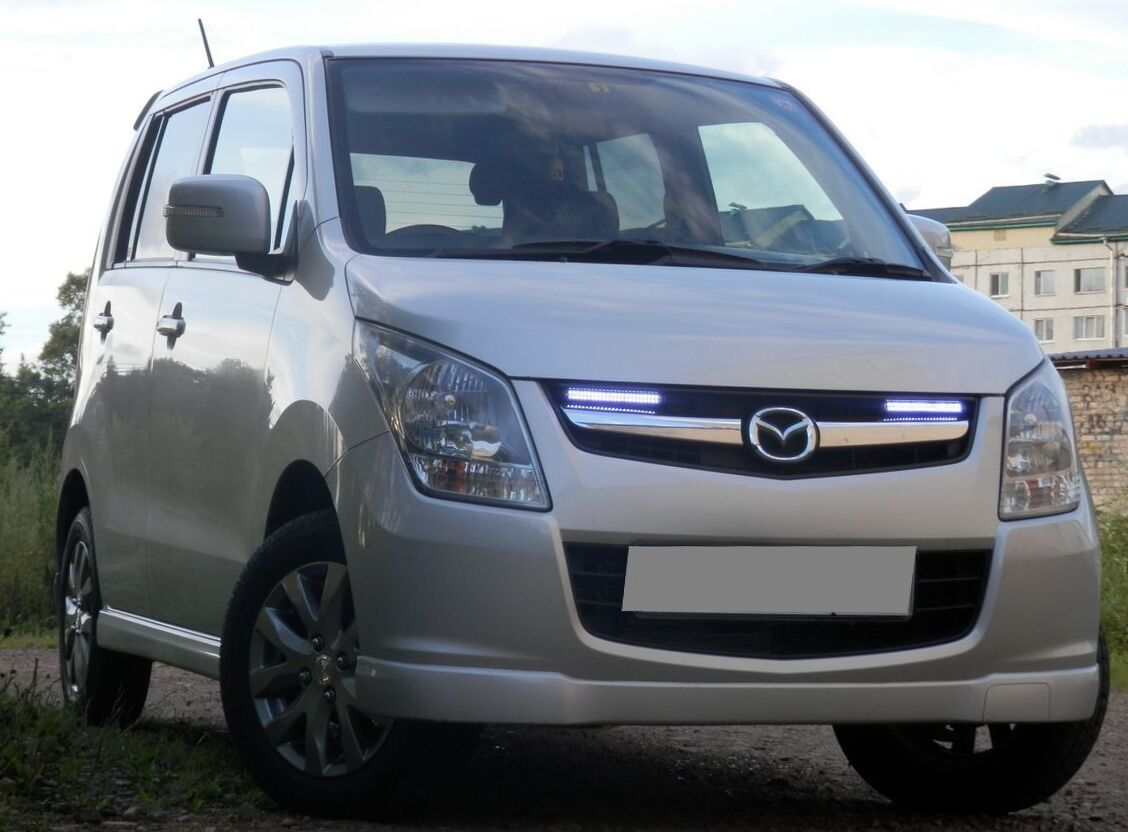

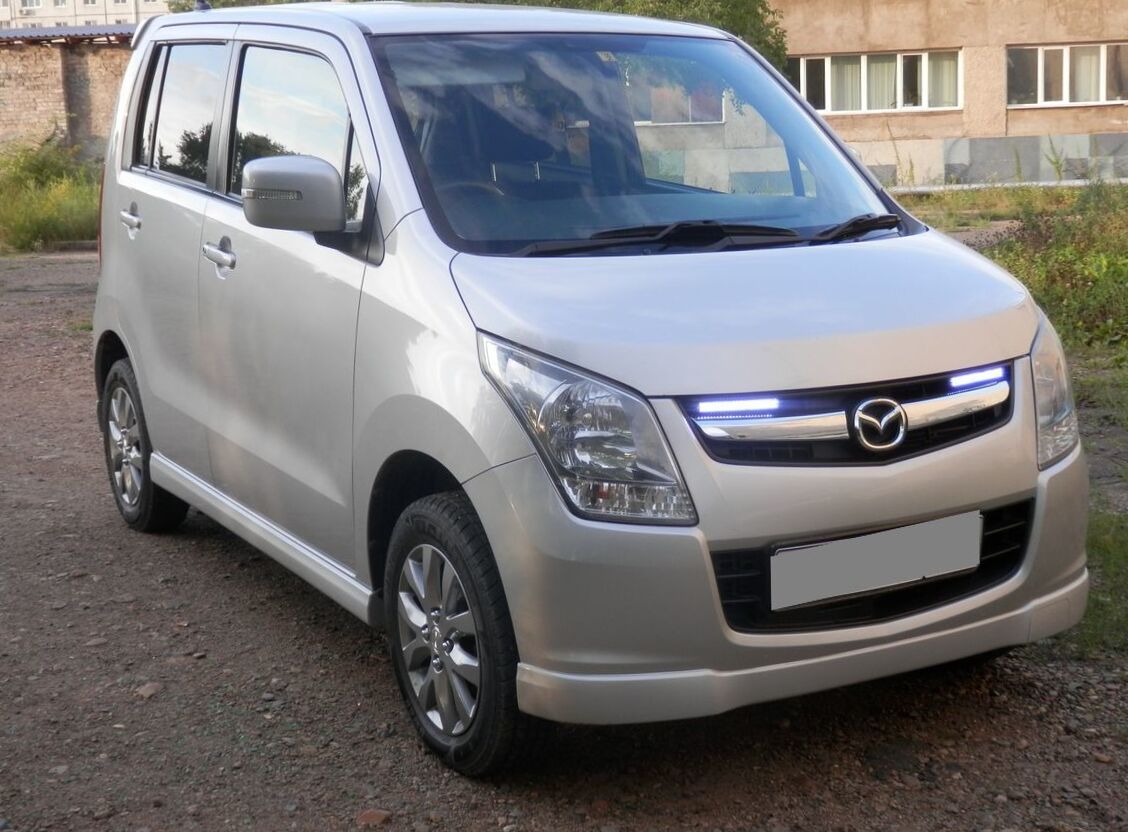

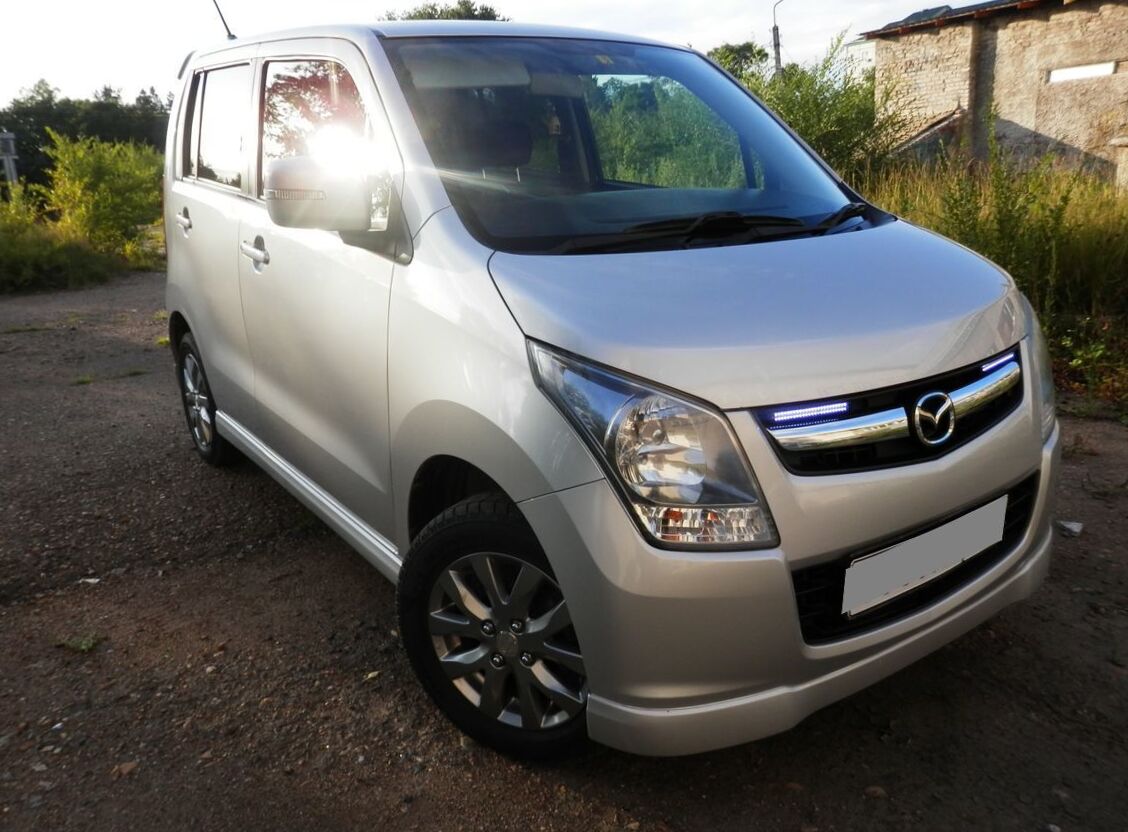

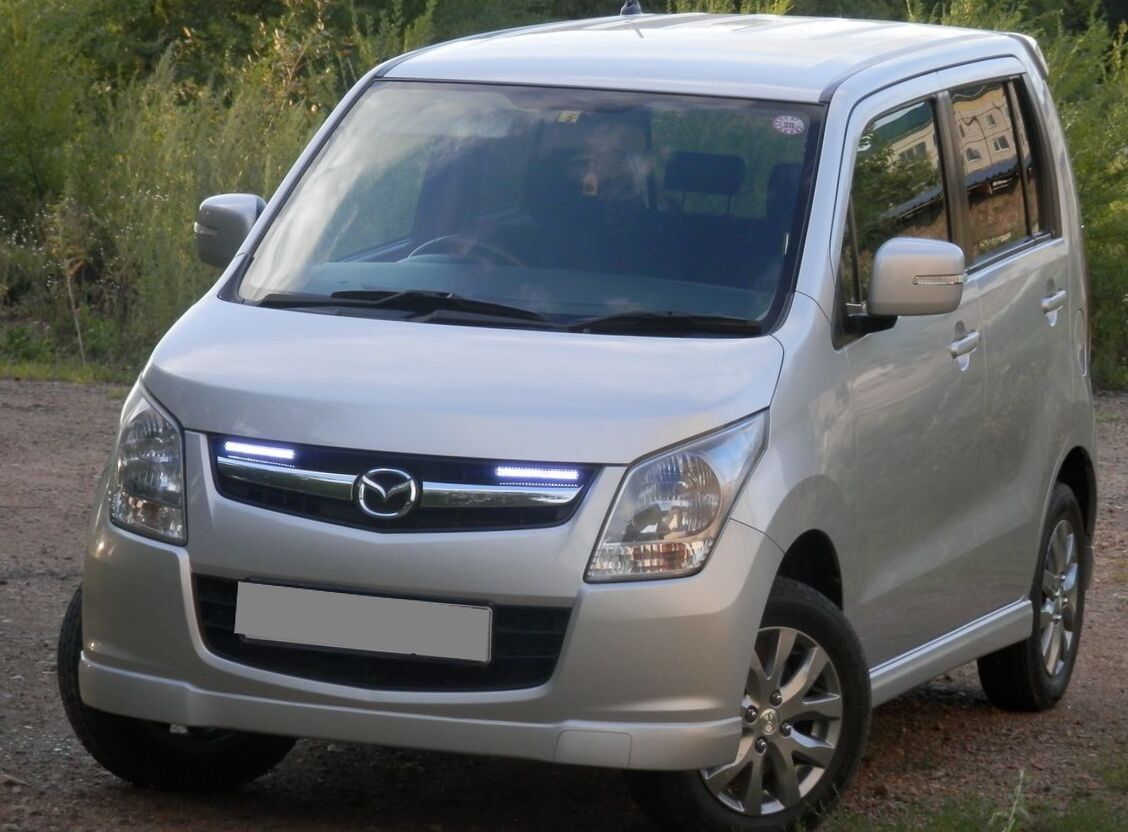

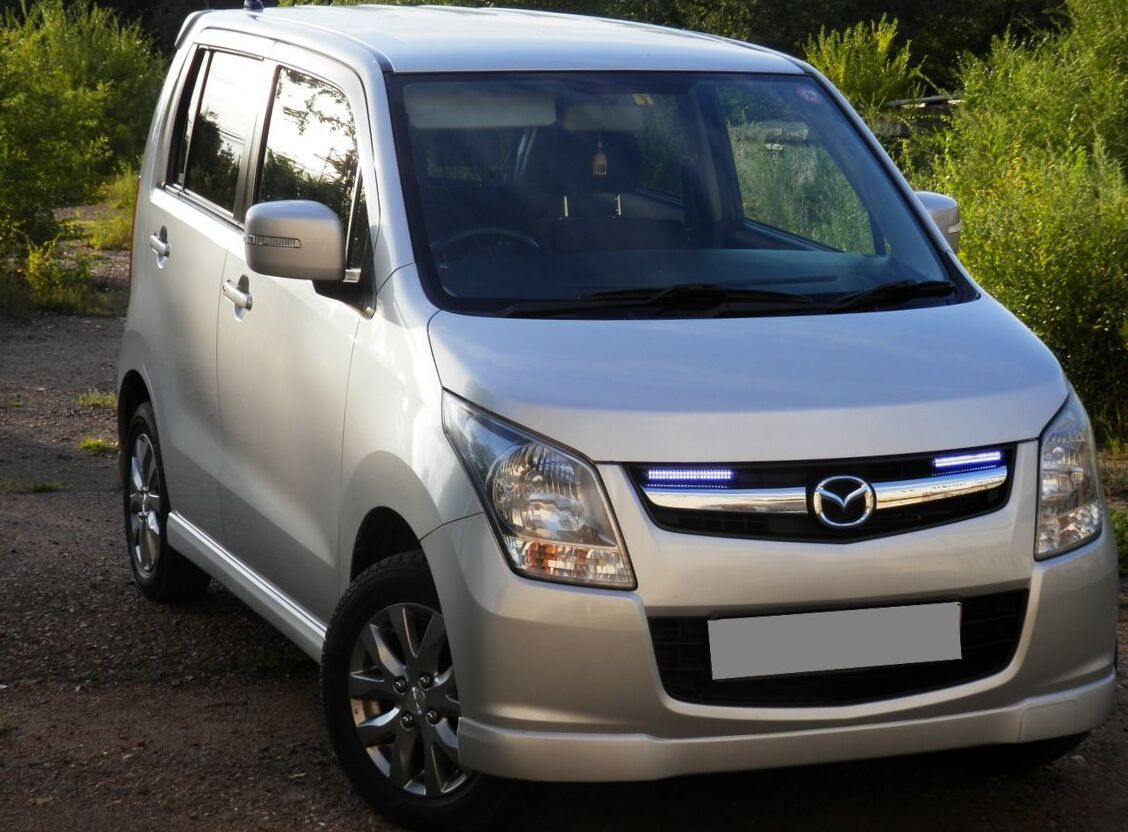

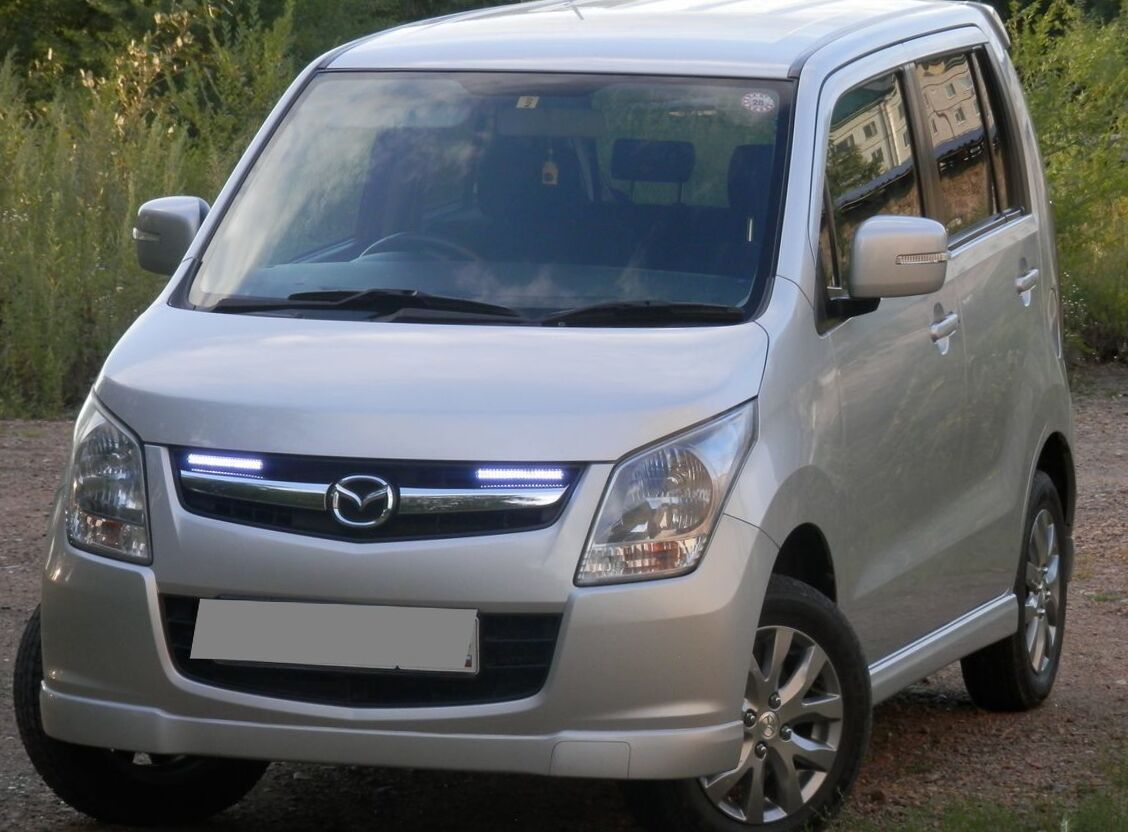

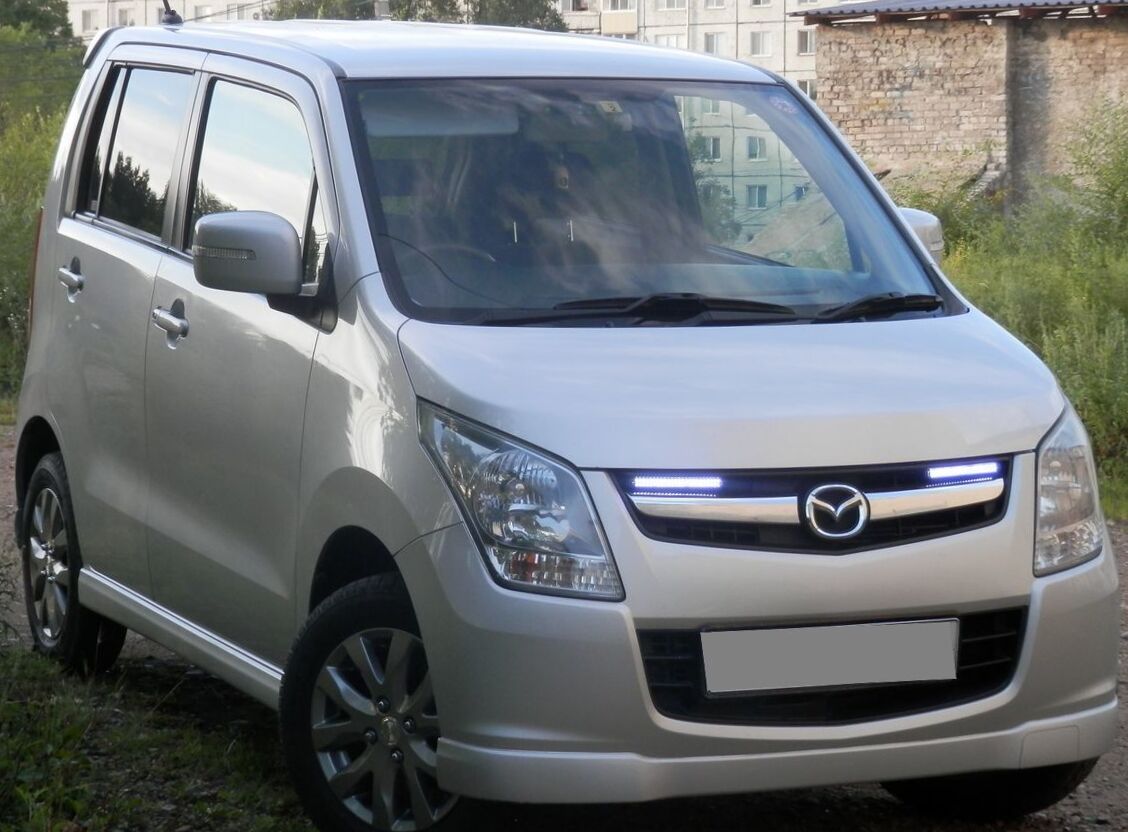

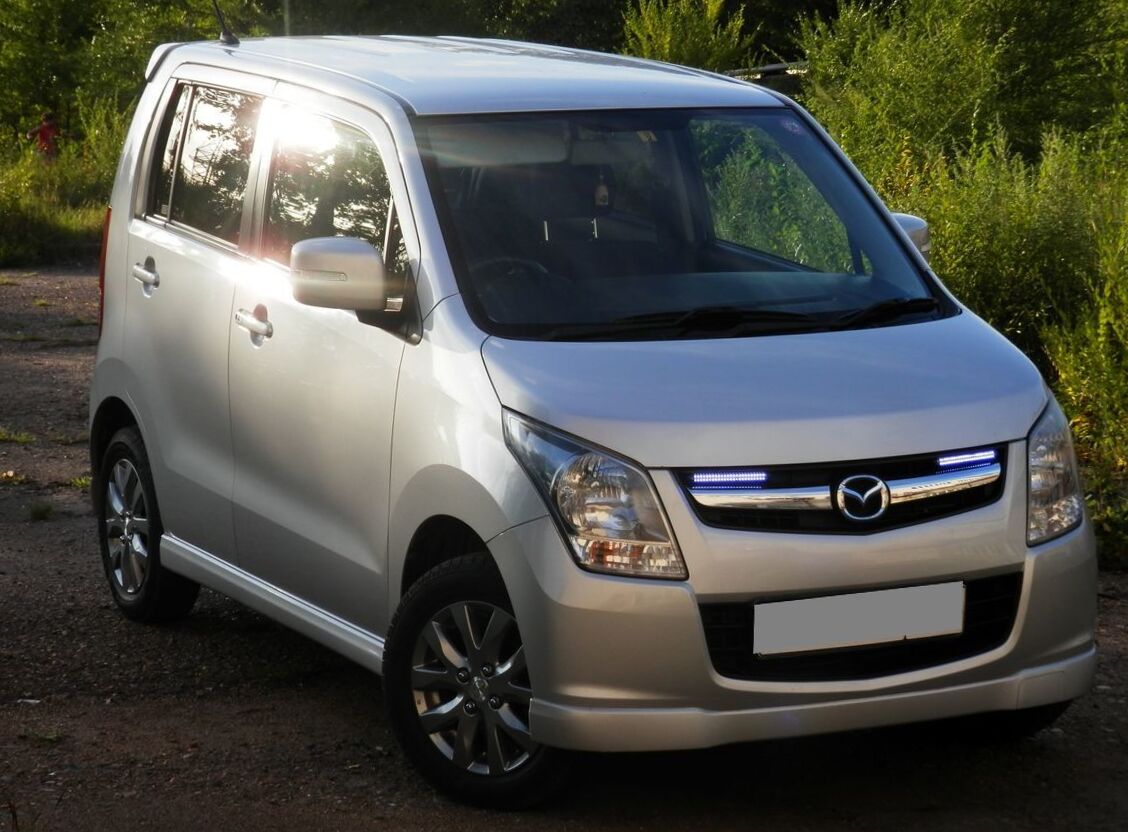

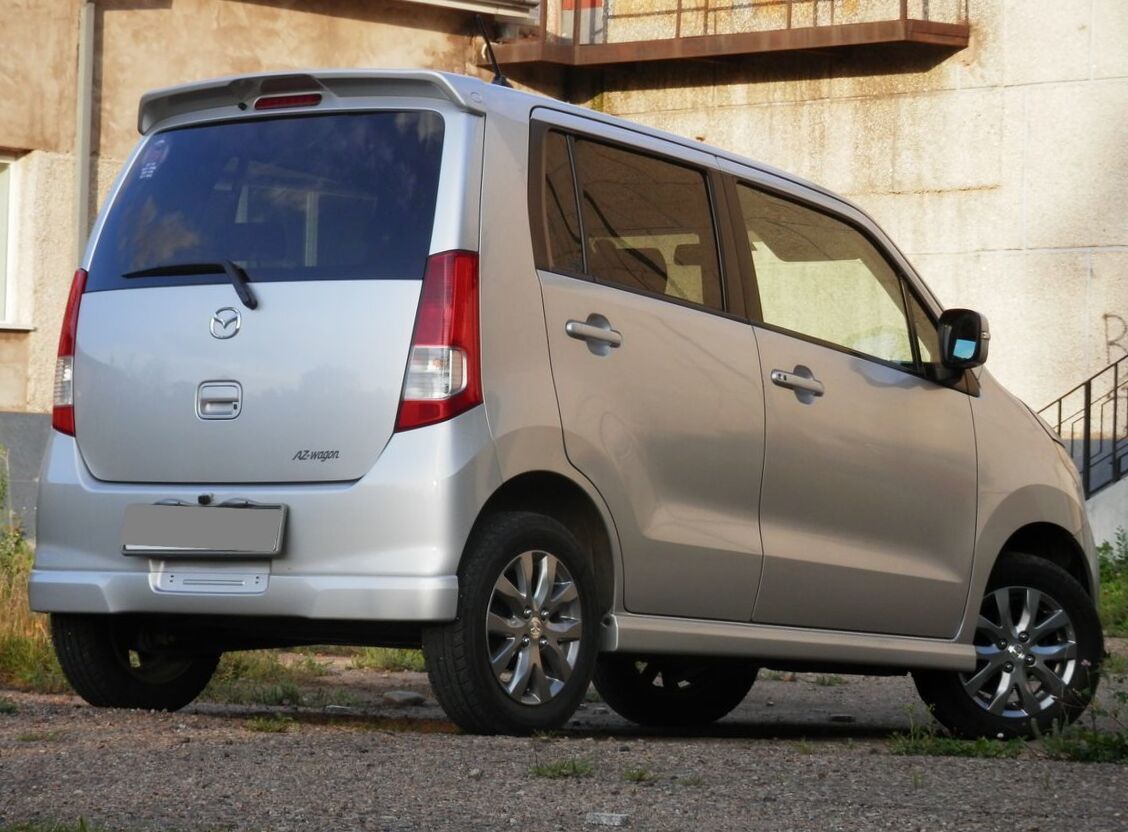

2011 Mazda AZ-Wagon IV 660 Custom Style XS Limited

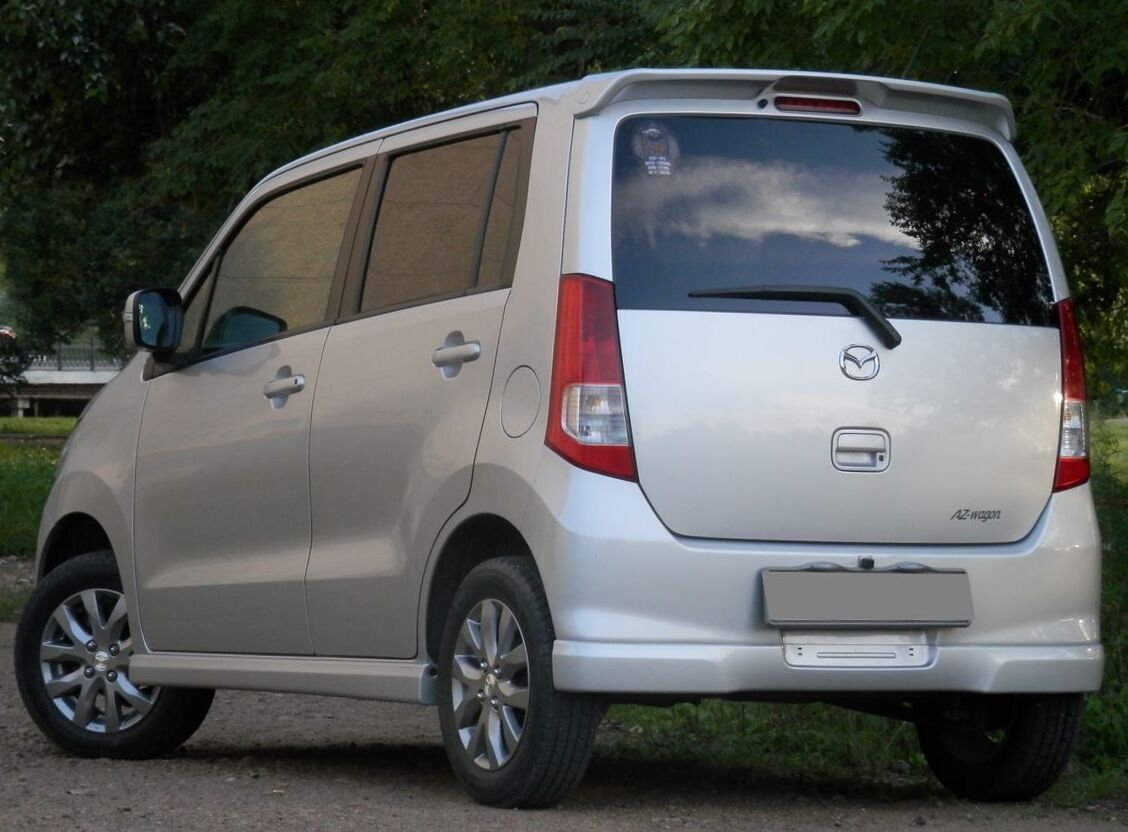

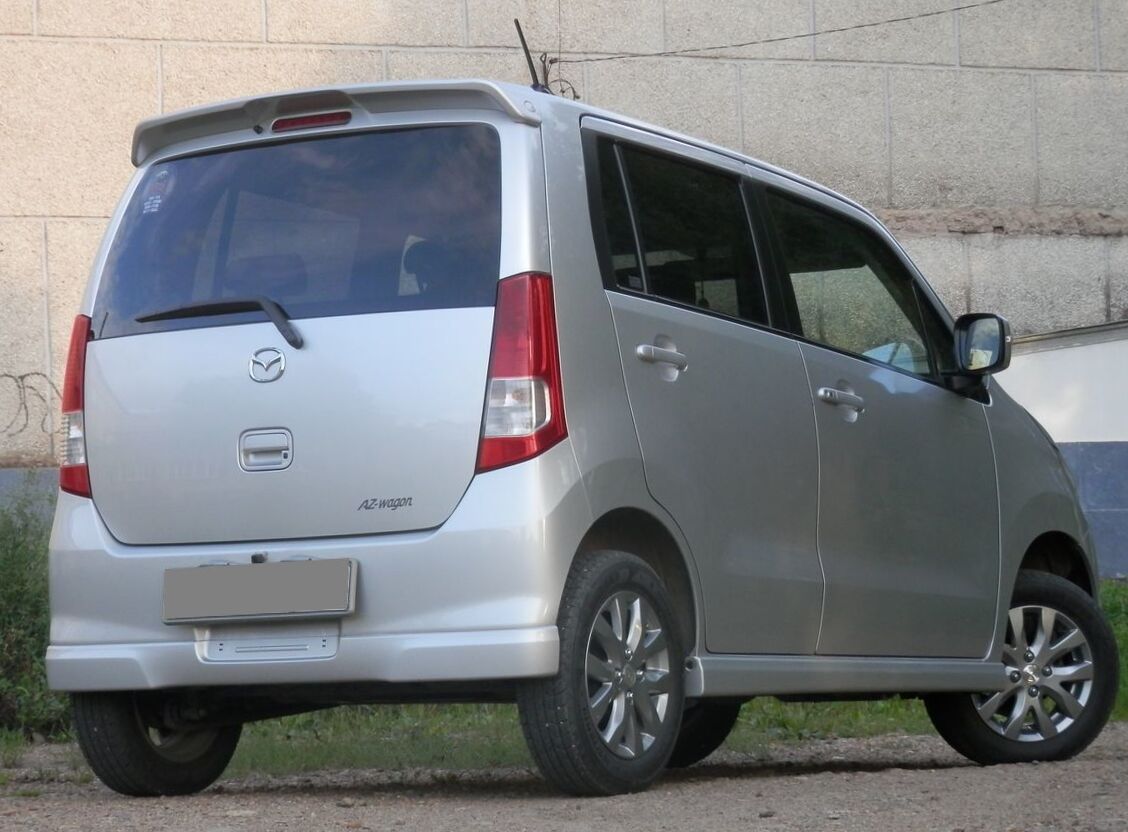

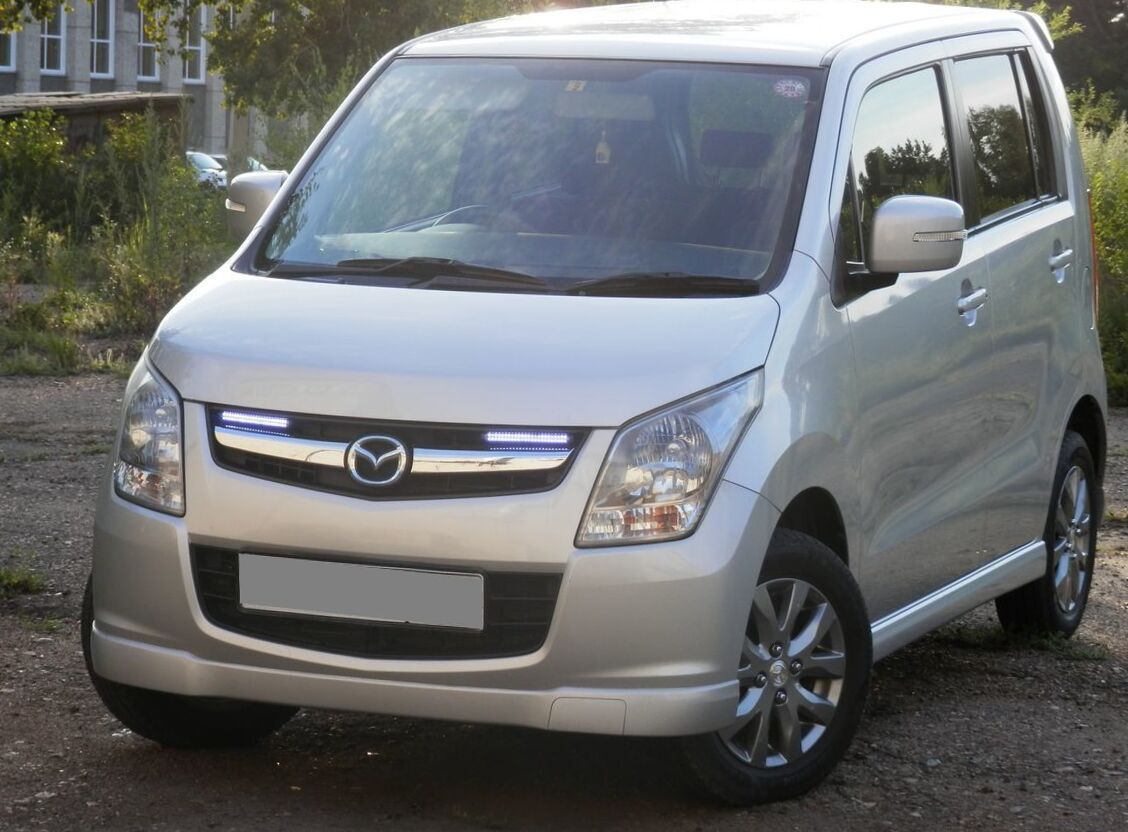

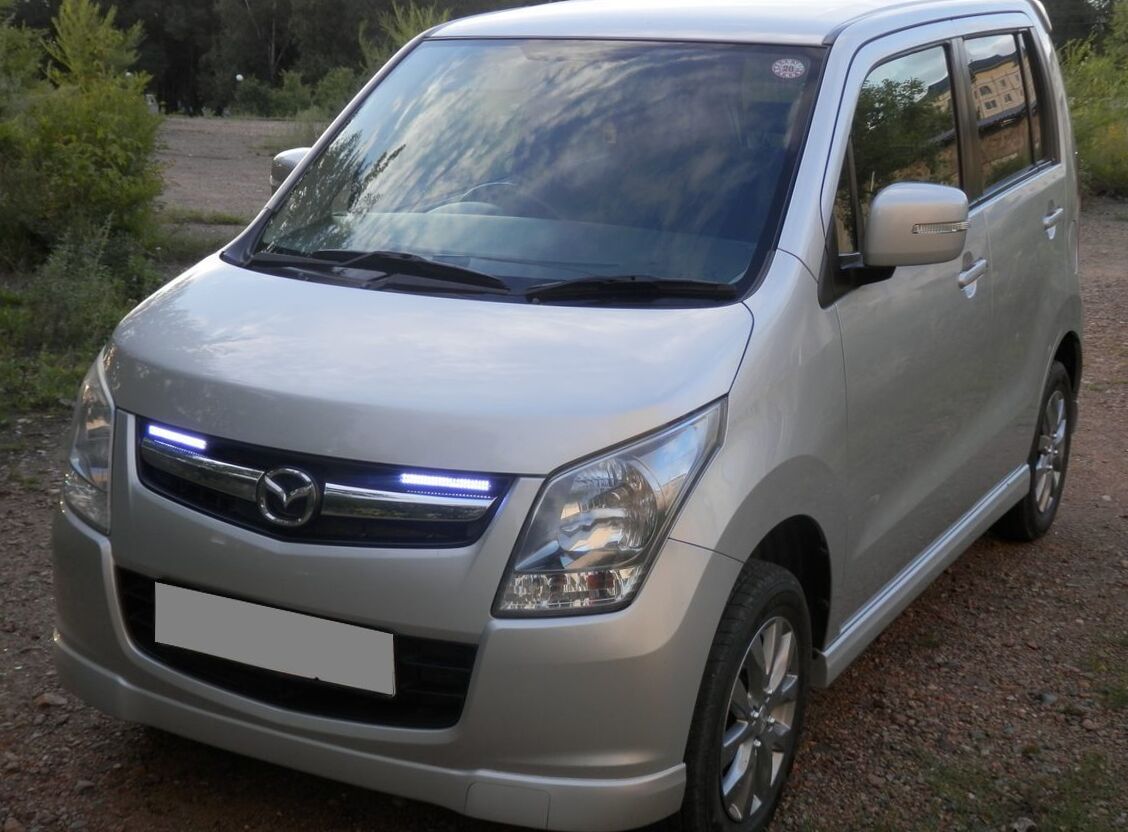

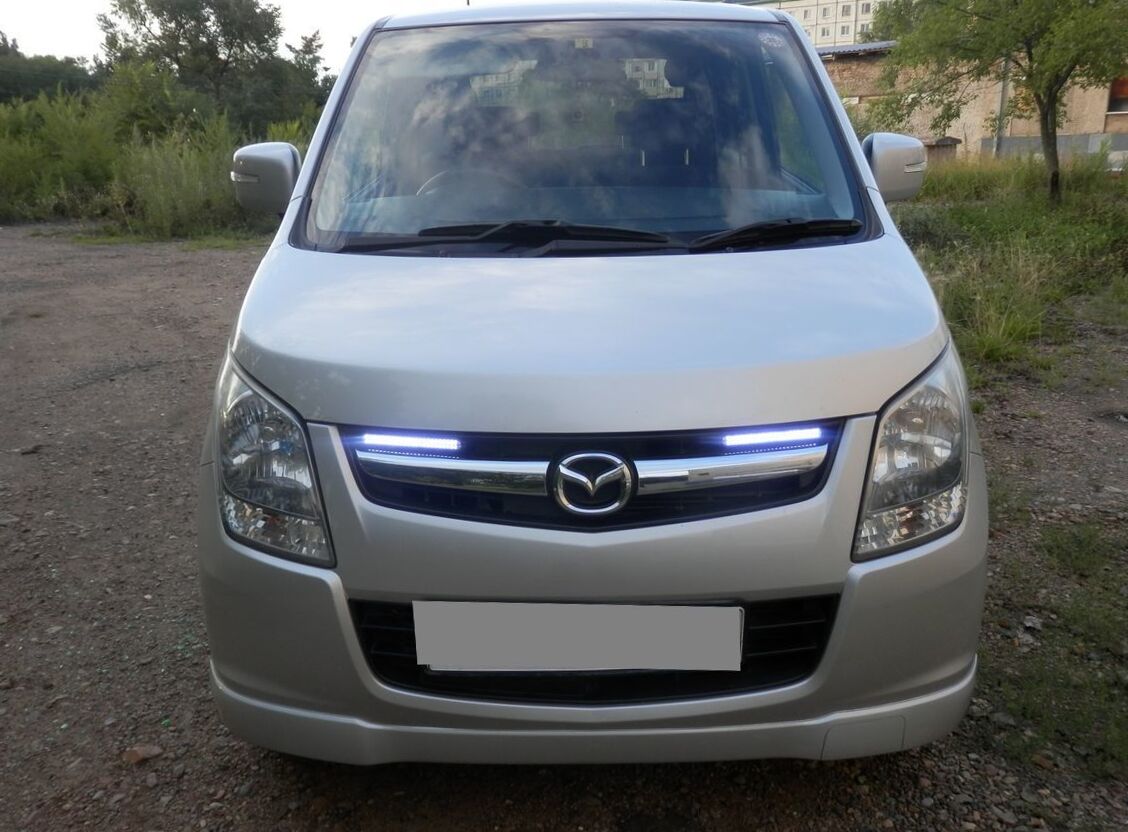

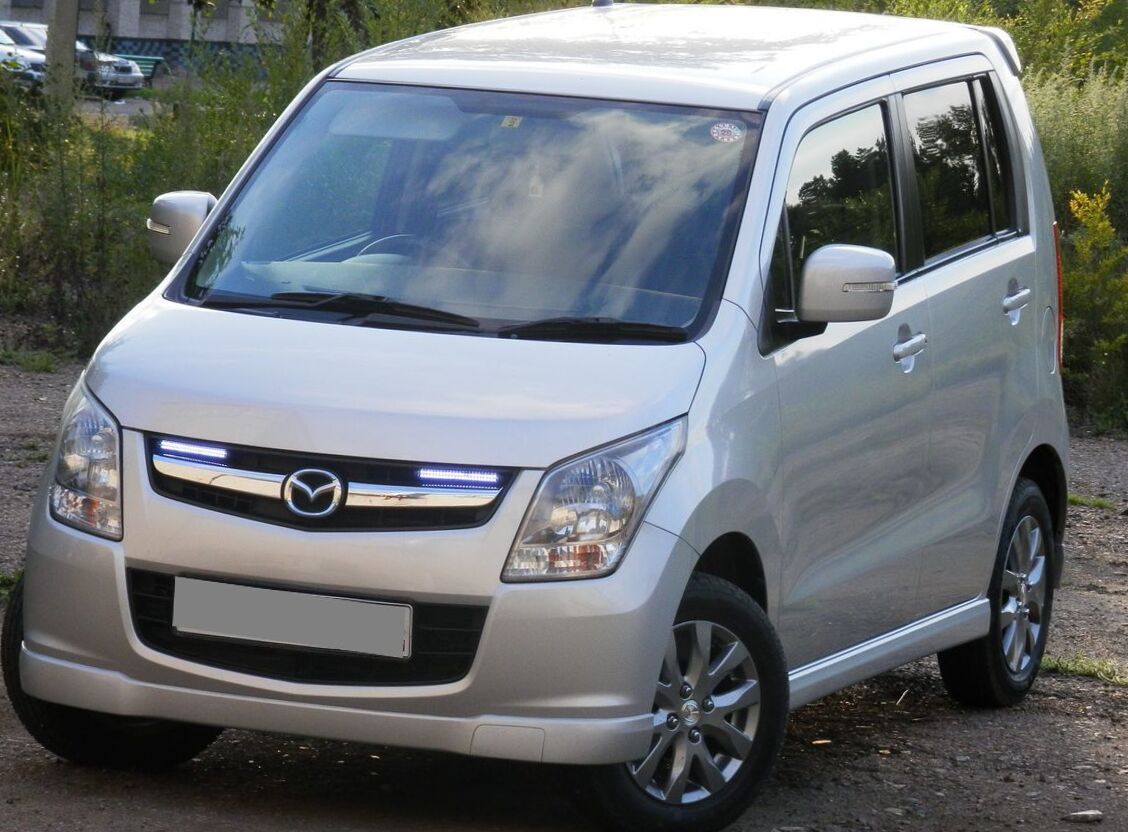

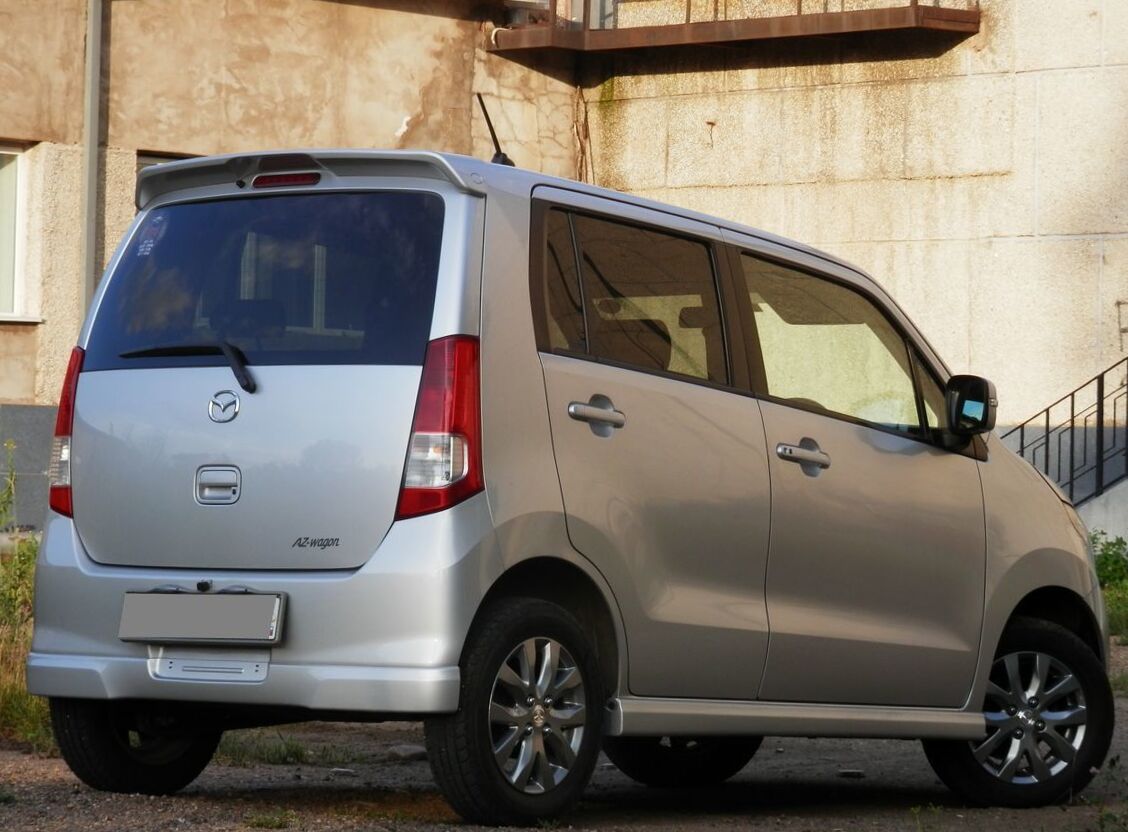

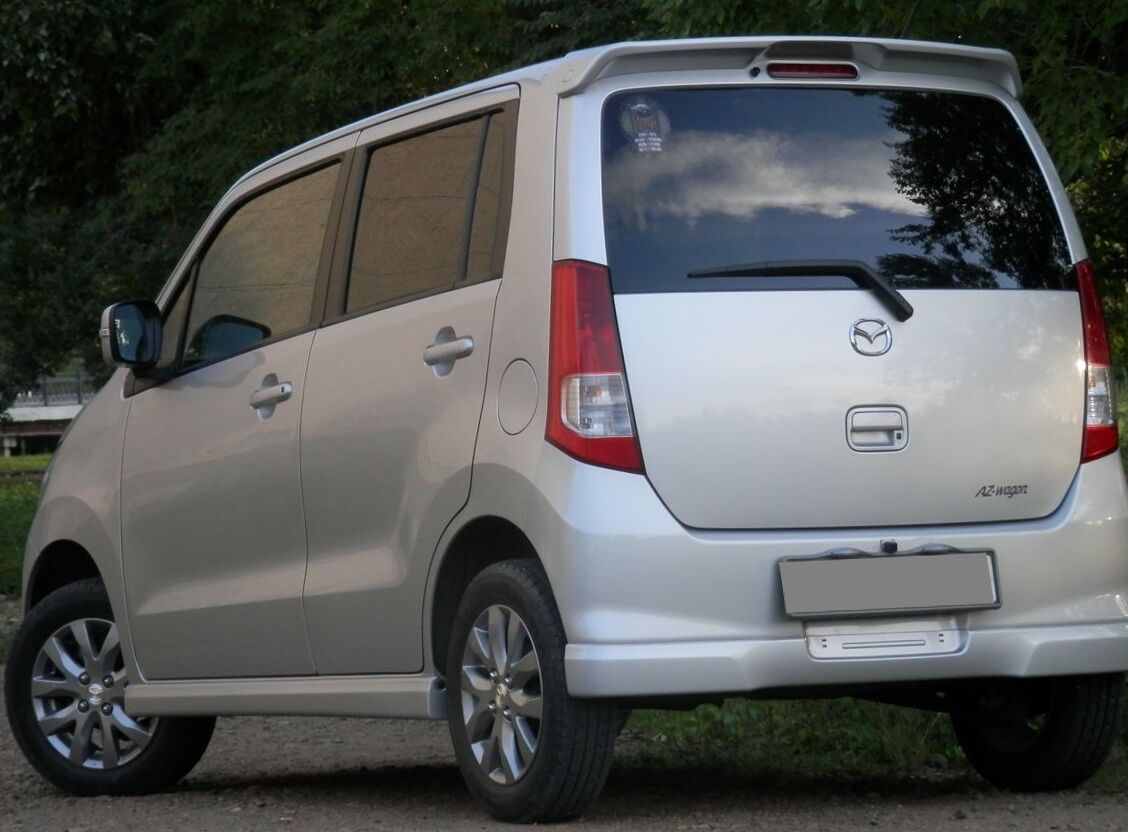

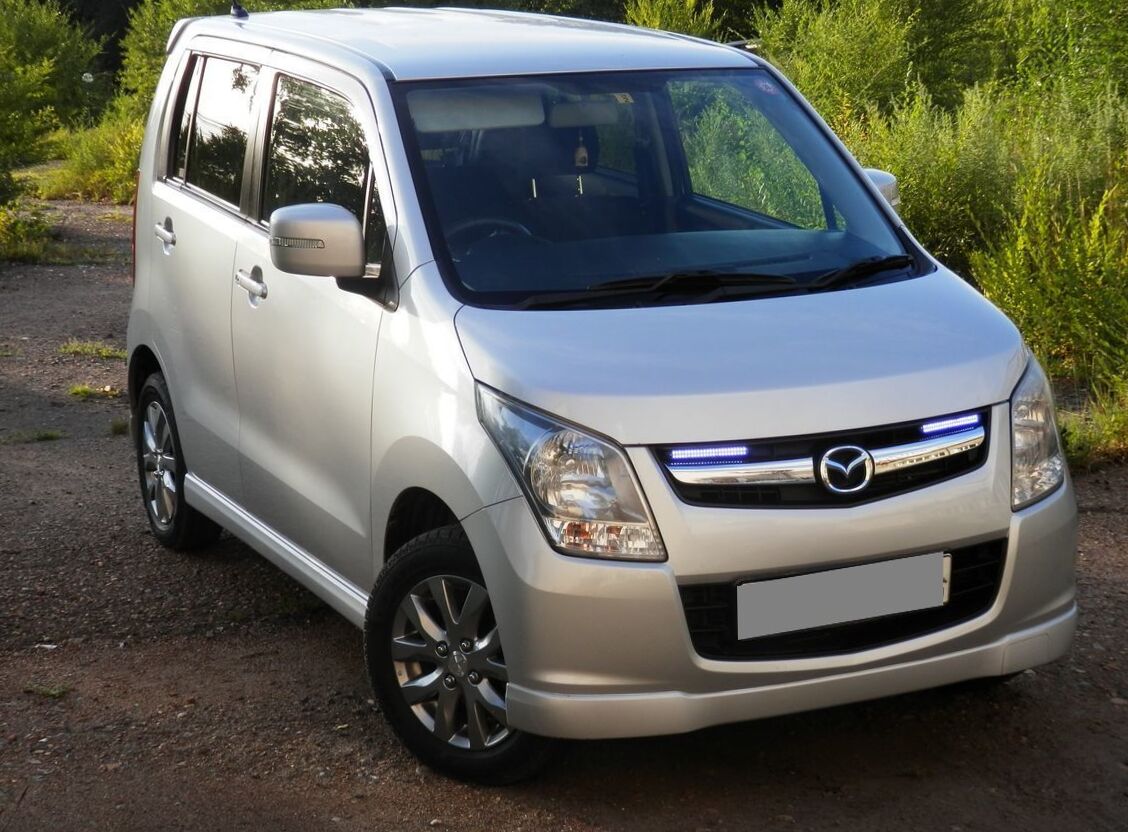

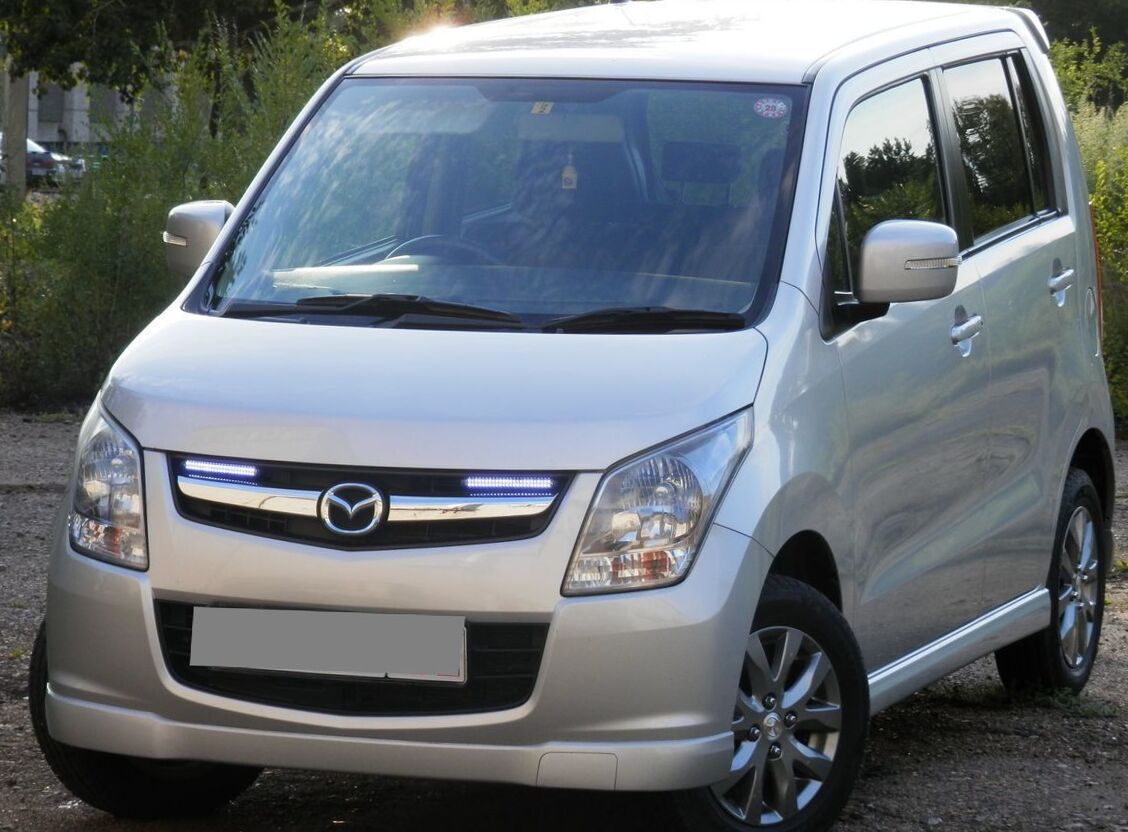

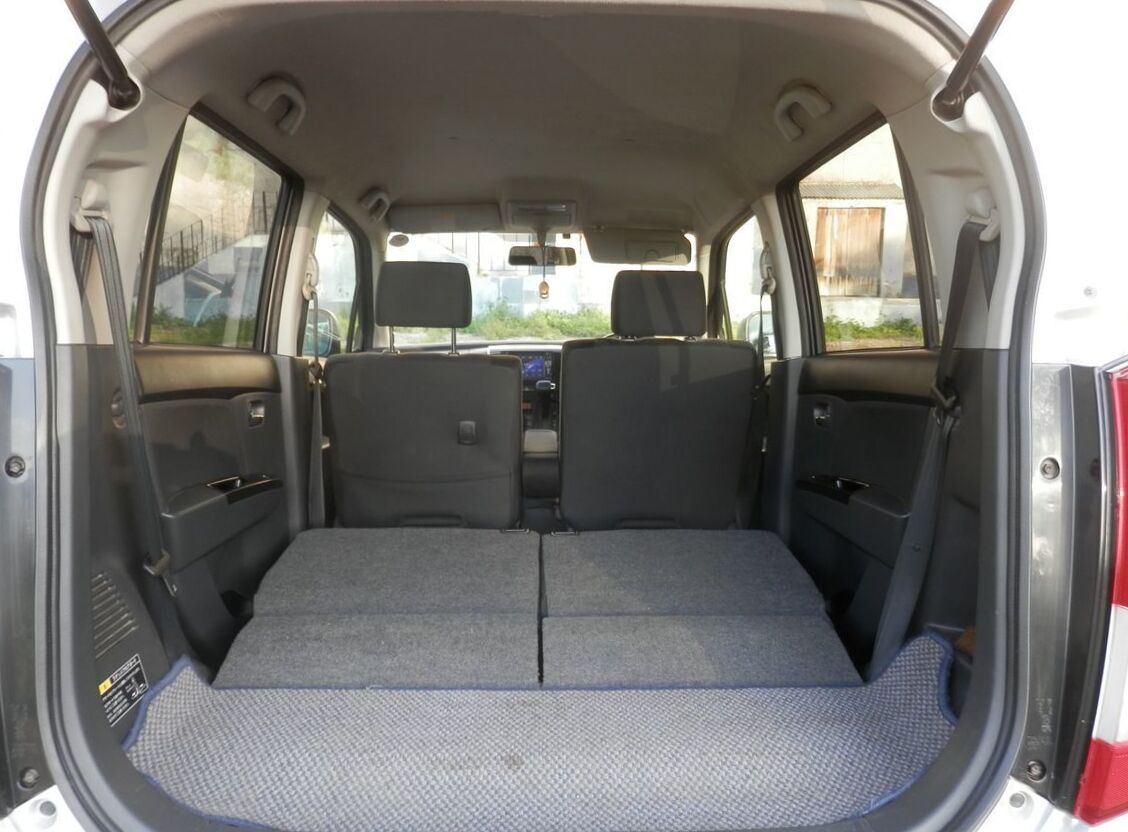

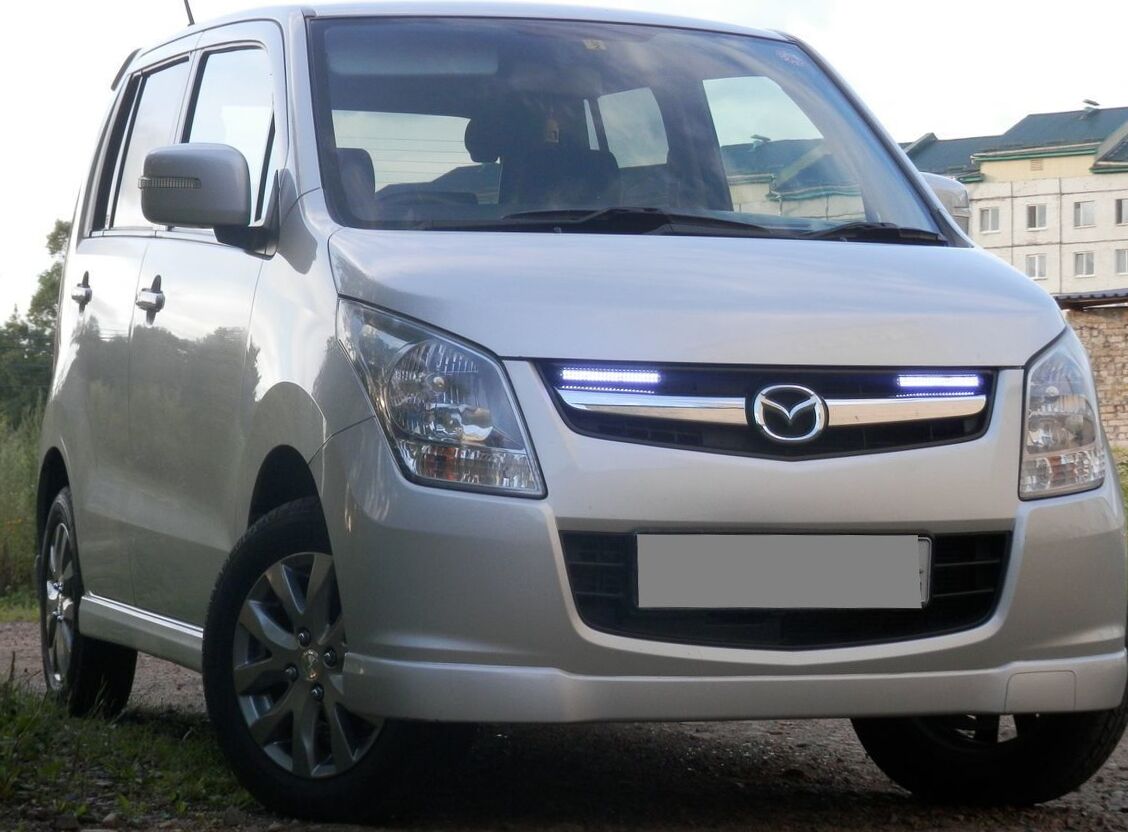

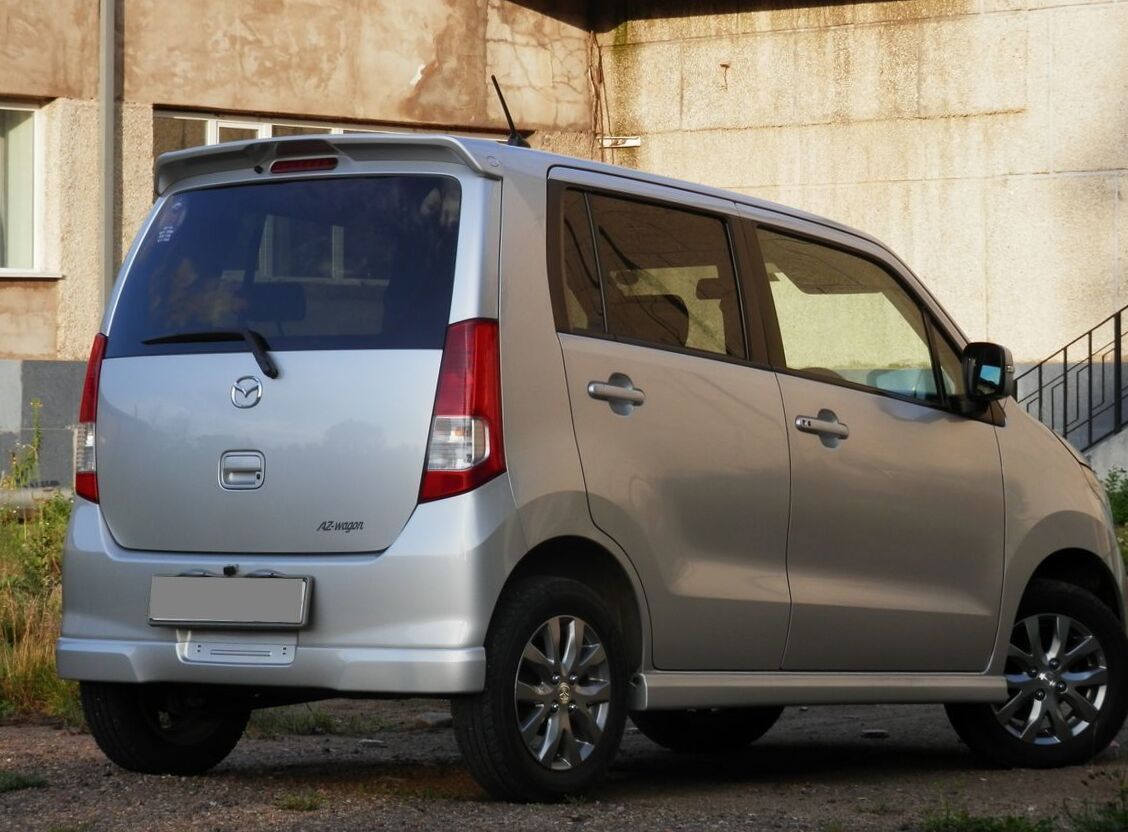

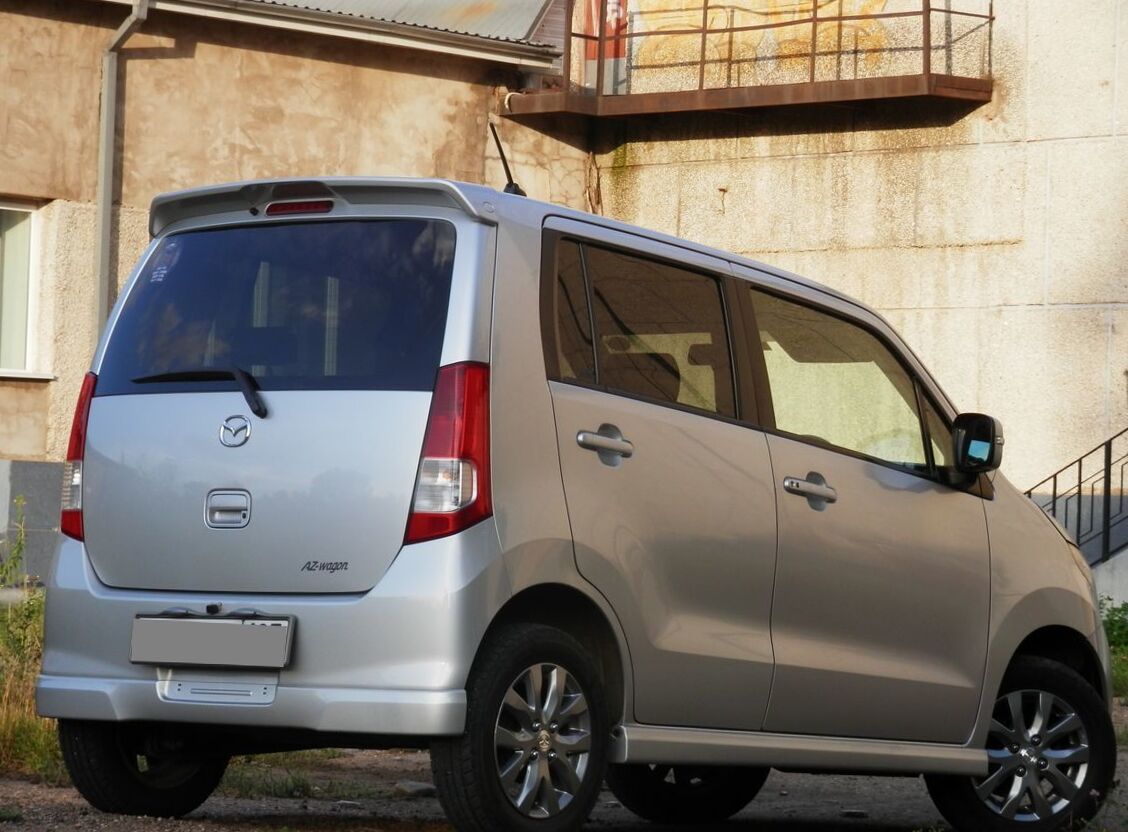

More photos of Mazda AZ-Wagon
| Body type | Hatchback |
|---|---|
| Power | 54 Hp |
| Engine Displacement | 700 cm3 or 0.7L or 42.7 cu-in |
| Color | silver |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 43495 Miles |
| Vin | MJ23S****48 |
| Price (out of date) | $4542 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2011 Mazda AZ-Wagon IV? | Hatchback, 4 Seats, 5 Doors |
| How much power, Mazda AZ-Wagon Hatchback 2011? | 54 Hp |
| What is the engine size, Mazda AZ-Wagon DBA-MJ23S 2011? | 0.7L or 658cm3 |
| How many gears, What type is the gearbox, 2011 Mazda AZ-Wagon 660 Custom Style XS Limited? | Variator |
| What is the drivetrain, Mazda AZ-Wagon IV 2011 Hatchback 660 Custom Style XS Limited (54 Hp)? | Front |
| How long is this vehicle, 2011 Mazda AZ-Wagon Hatchback 660 Custom Style XS Limited (54 Hp)? | 3395 mm |
| How wide is the vehicle, 2011 Mazda AZ-Wagon IV? | 1475 mm |
Mazda AZ-Wagon IV DBA-MJ23S 660 Custom Style XS Limited (54 Hp) 2011, 2012 Specs
General information | |
|---|---|
| Production start year | 2011 |
| Production end year | 2012 |
| Drive type | Front |
| Frame type | Hatchback |
| Transmission type | Variator |
| Engine volume, cc | 658 |
| Frame name | DBA-MJ23S |
| Clearance, mm | 155 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | no |
| Steering locaton | right |
Vehicle generation | |
| Generation name | MJ23 |
| Generation number | 4 |
| Production start year | 2008 |
| Production end year | 2012 |
Engine, transmission and steering specs | |

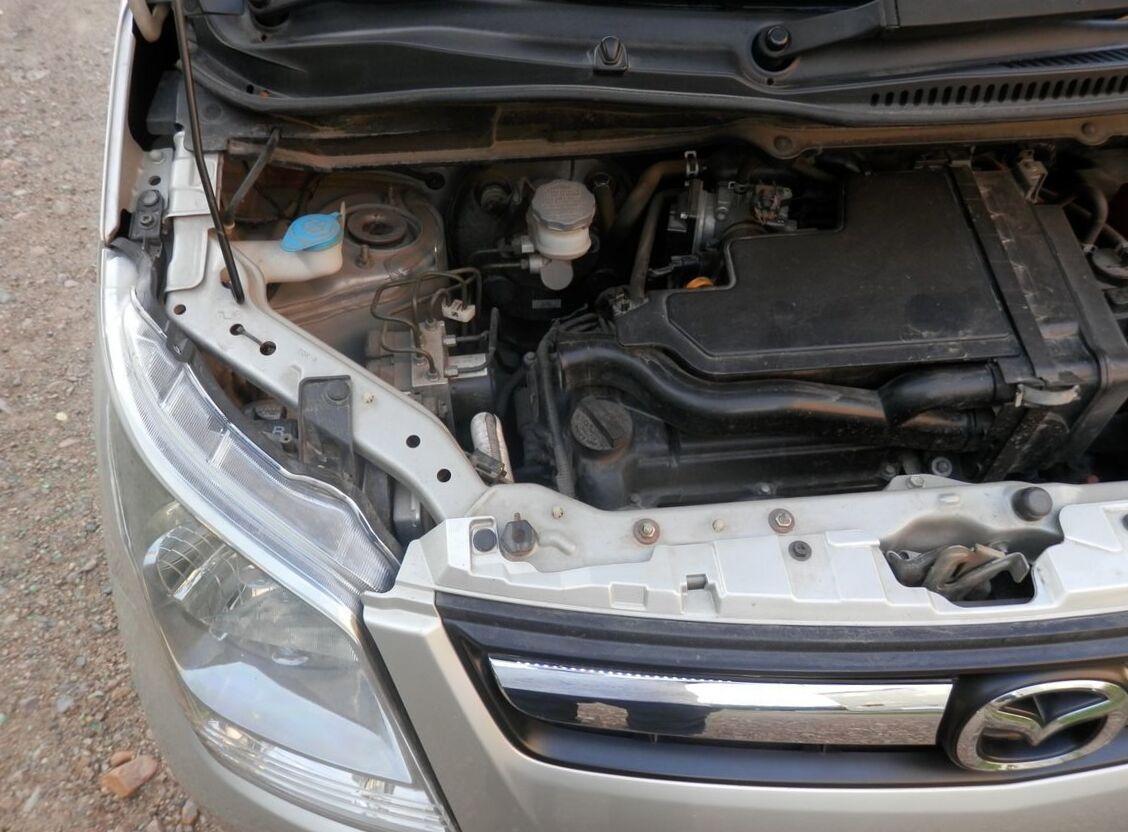

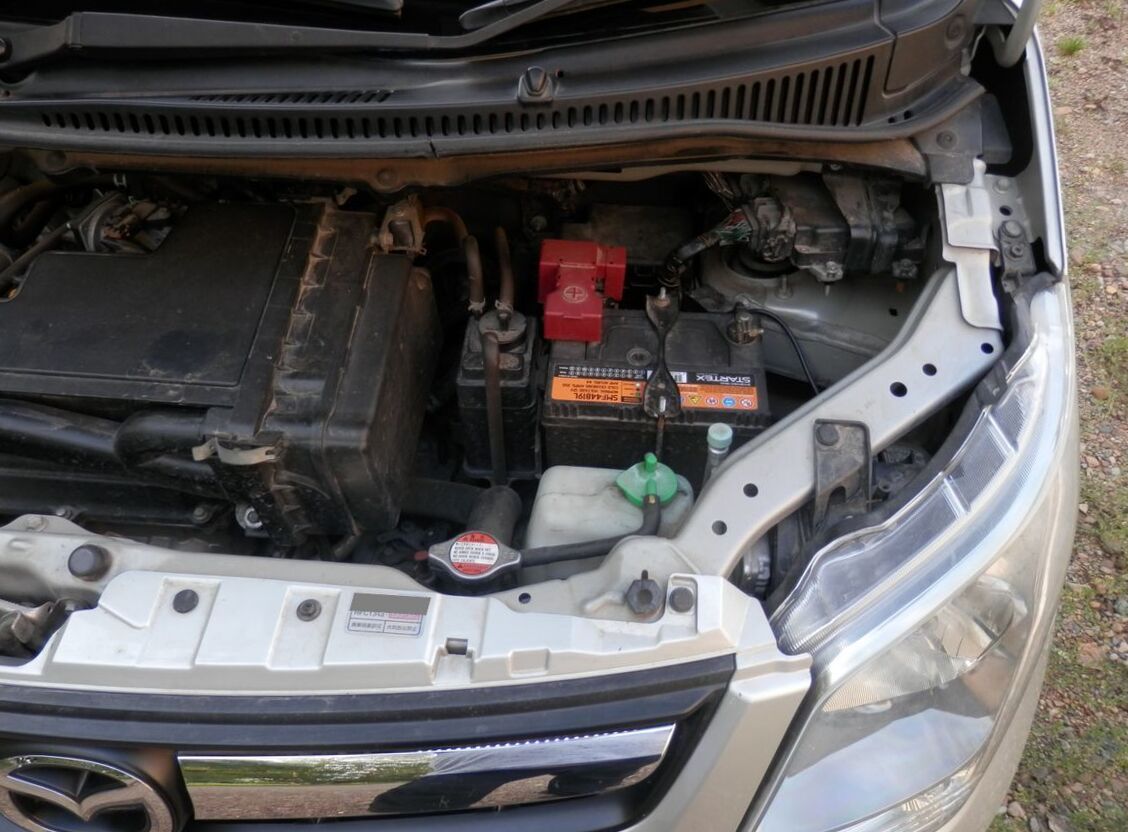

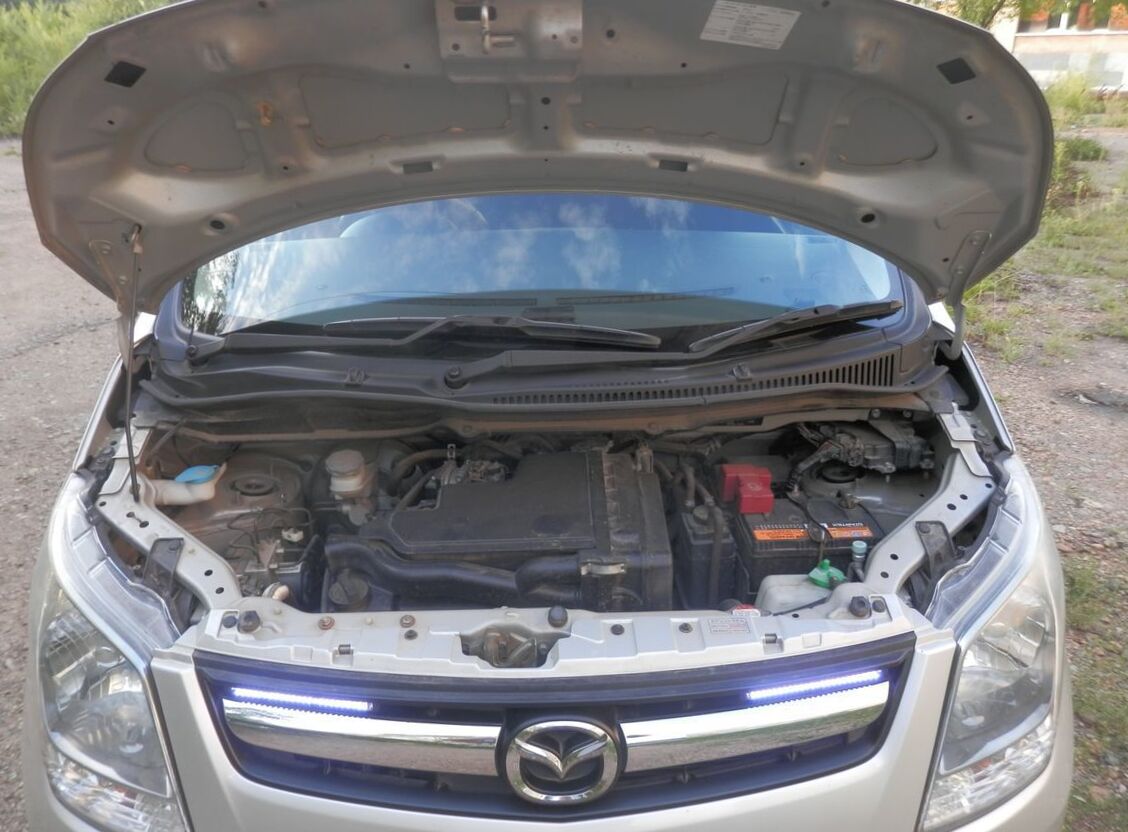

Engine specs | |
| Engine name | K6A |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 54 |
| Max power RPM, rpm | 6500 |
| Max power, hp (kWt) / rpm | 54(40)/6500 |
| Max torque, N*m | 63 |
| Max torque RPM, rpm | 3500 |
| Max torque, N*m (kg*m) / rpm | 63 (6.4) / 3500 |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 40?54?/6500 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 63?6.4?/3500 |
| Start stop system | no |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2010 fuel consumption standard +25% |
| Fuel consumption (10/15 mode), km/l | 23.5 |
| Fuel consumption (10/15 mode), l/100km | 4.3 |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3395 |
| Exterior width, mm | 1475 |
| Exterior height, mm | 1675 |
| Exterior size (L x W x H), mm | 3395x1475x1675?mm? |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | 2035x1295x1275?mm? |
| Interior length, mm | 2035 |
| Interior width, mm | 1295 |
| Interior height, mm | 1275 |
Chassis dimensions | |
| Wheel base, mm | 2400 |
| Turning radius, m | 4.4 |
| Front/rear axis length | -/-?mm? |
| Wheel spacing front | 1295 |
| Wheel spacing rear | 1290 |
Weight and permissible load | |
| Mass, kg | 860 |
Volumes | |
| Fuel tank capacity, l | 30 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Dependent, on longitudinal arms |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |

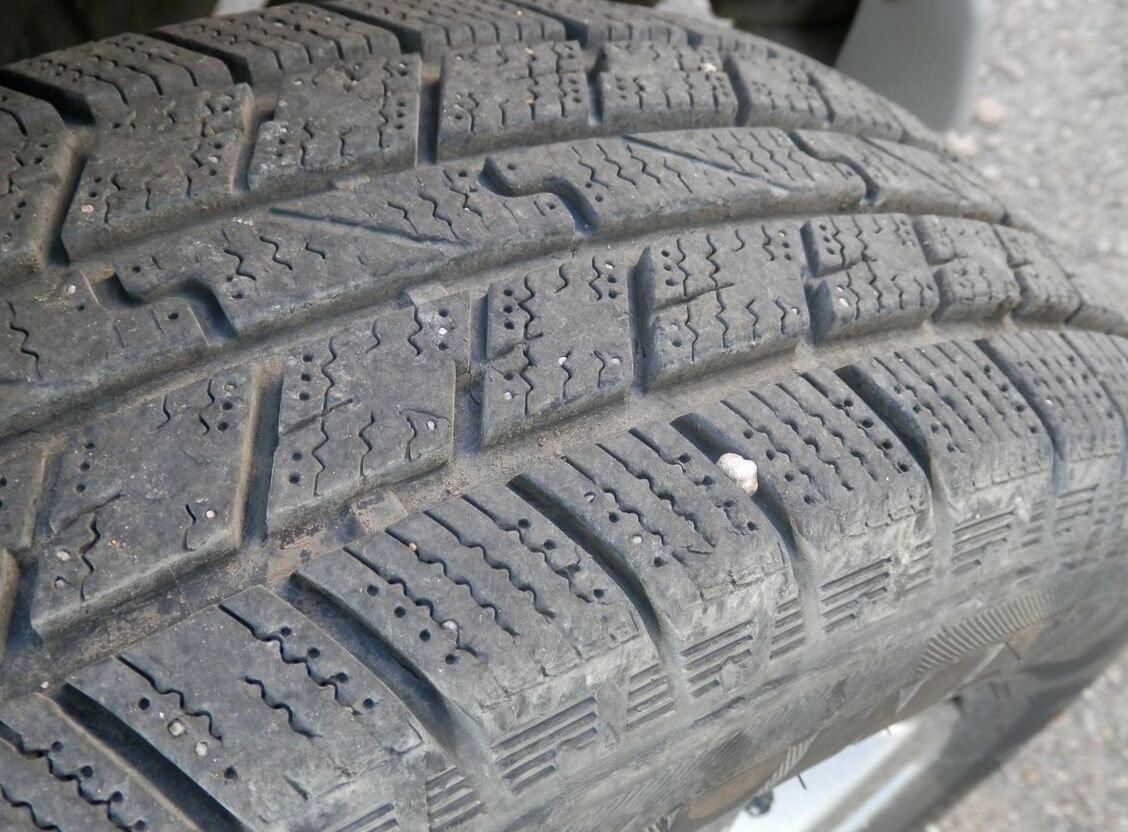

Tires | |
| Front wheels | 155/65R14 |
| Rear wheels | 155/65R14 |
| Run flat tires | no |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
Exterior | |
Headlights | |
| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |

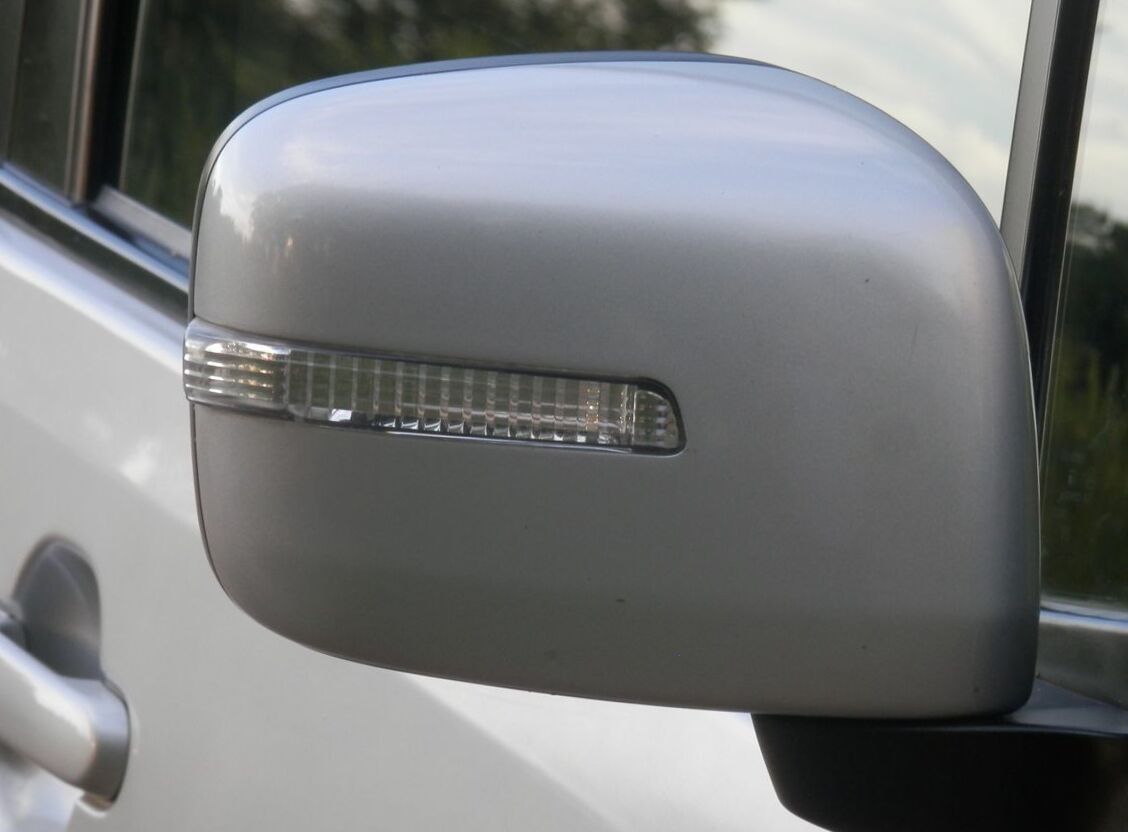

Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | yes |

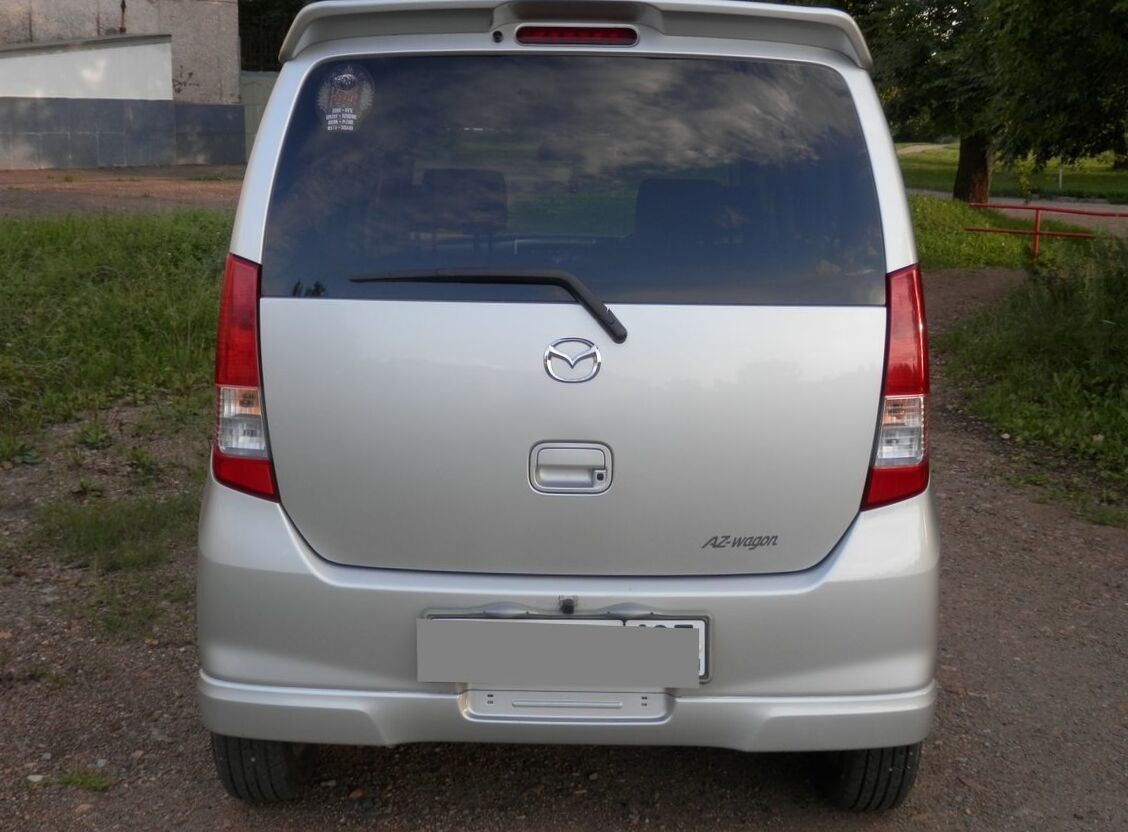

| Rear spoiler | yes |
Body color | |
| Colors | 1991 2731 2720 2733 2723 |
Interior | |

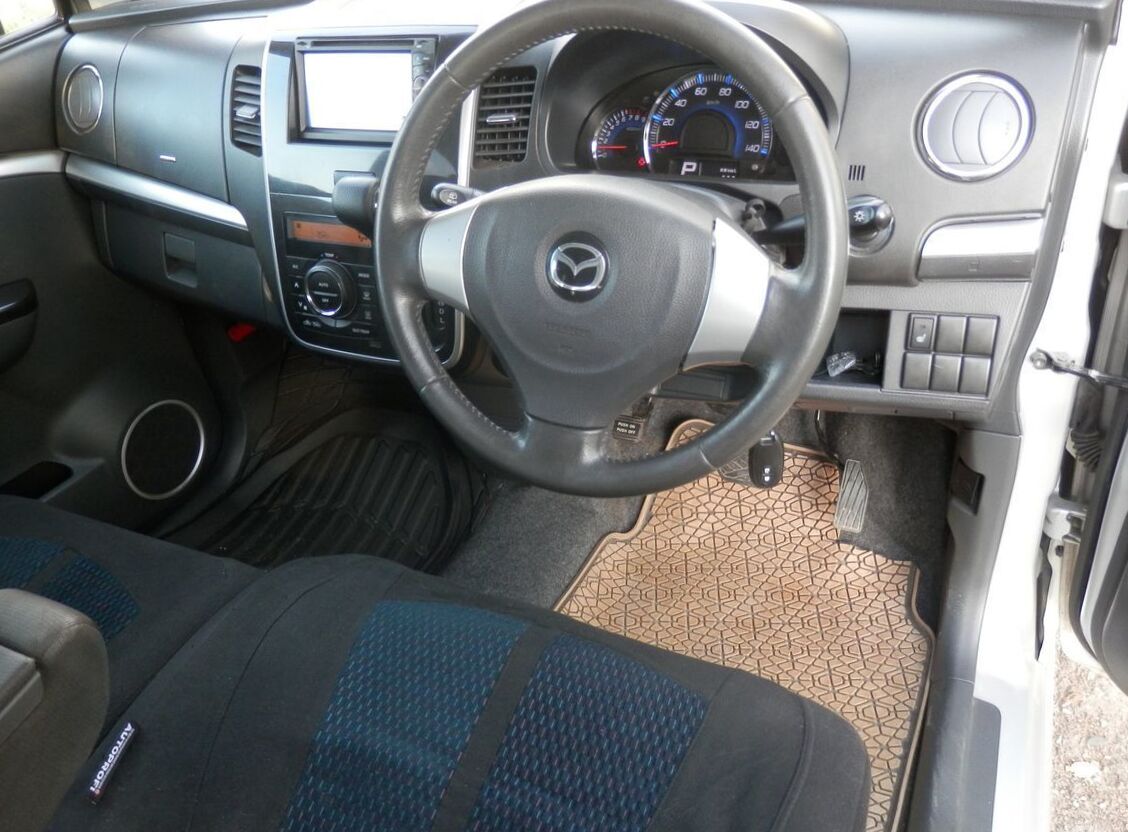

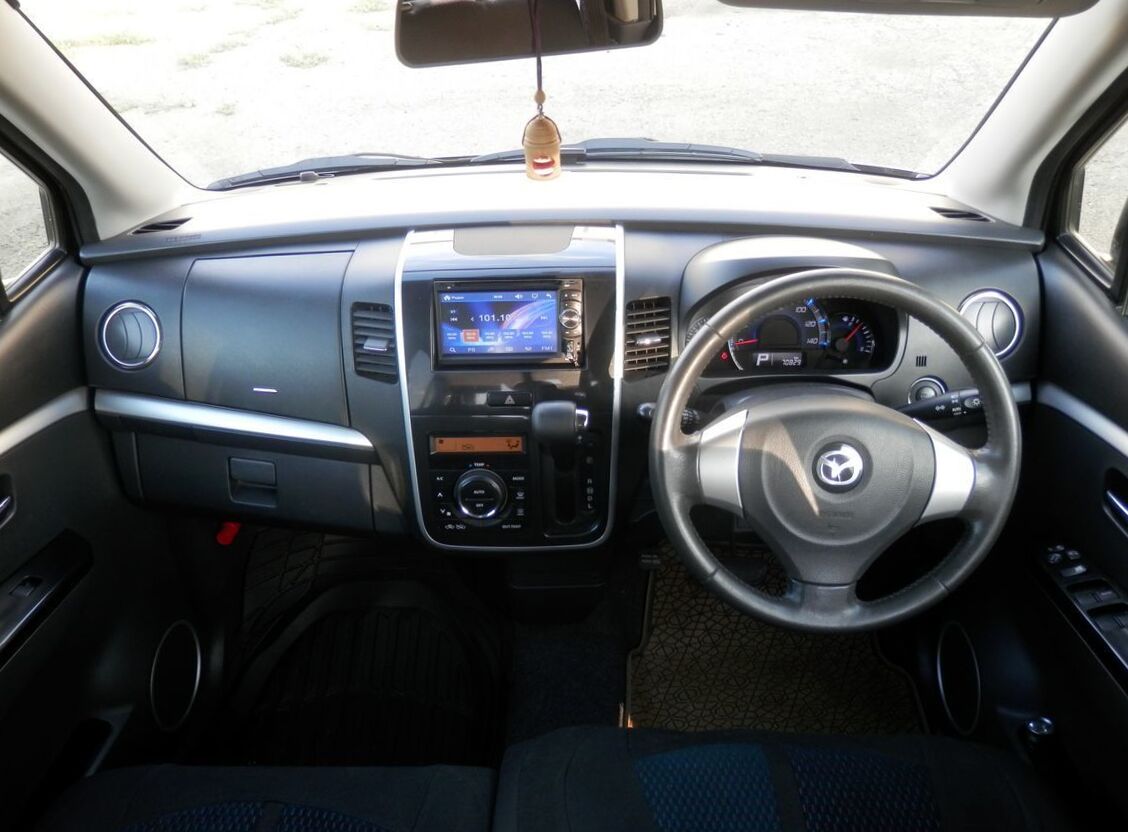

Steering wheel and center panel | |

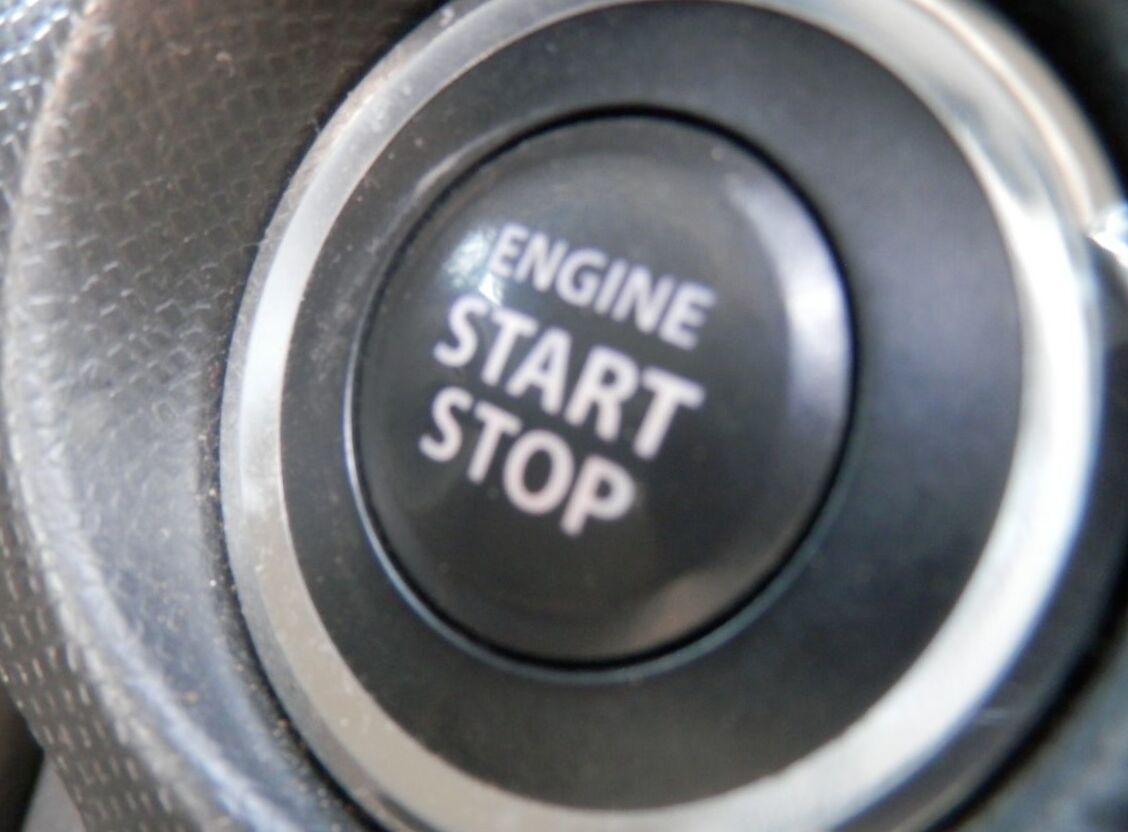

| Engine start button | yes |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |

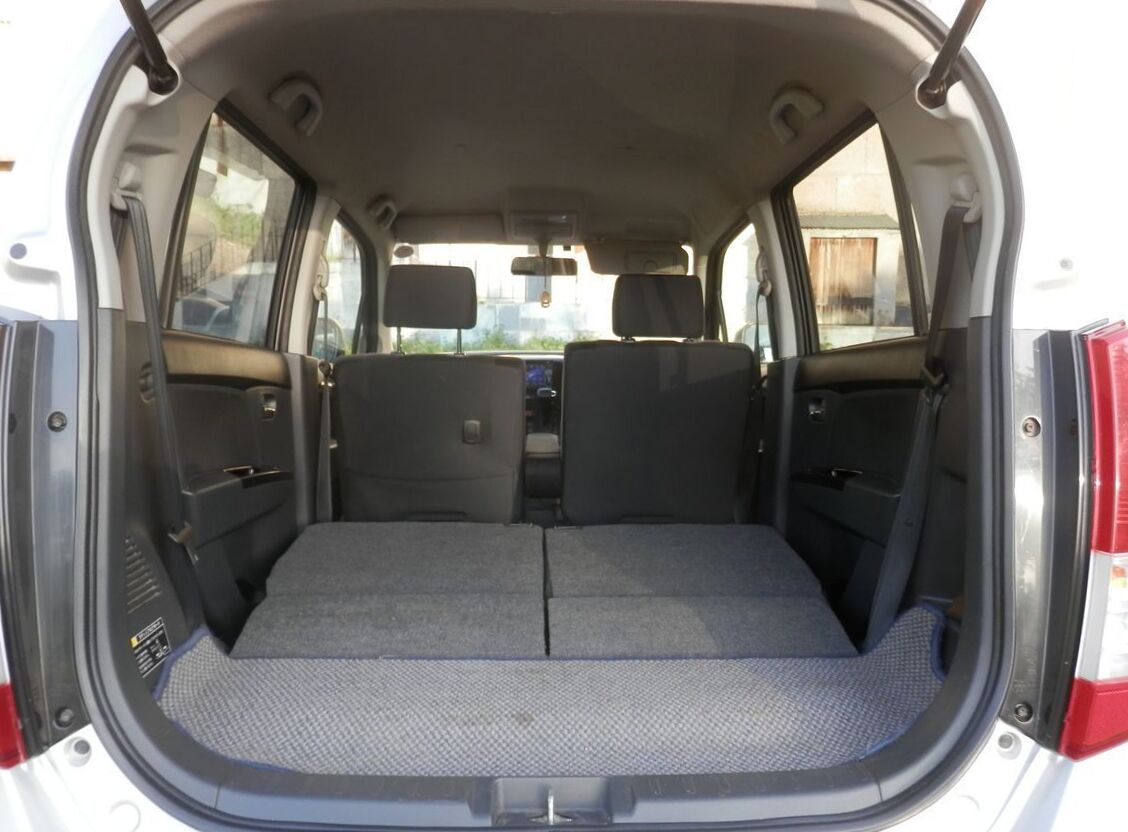

| 2nd row | foldable, backrest is indivisible |
| Seat lifter | yes |
| Full flat seats | yes |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | yes |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |

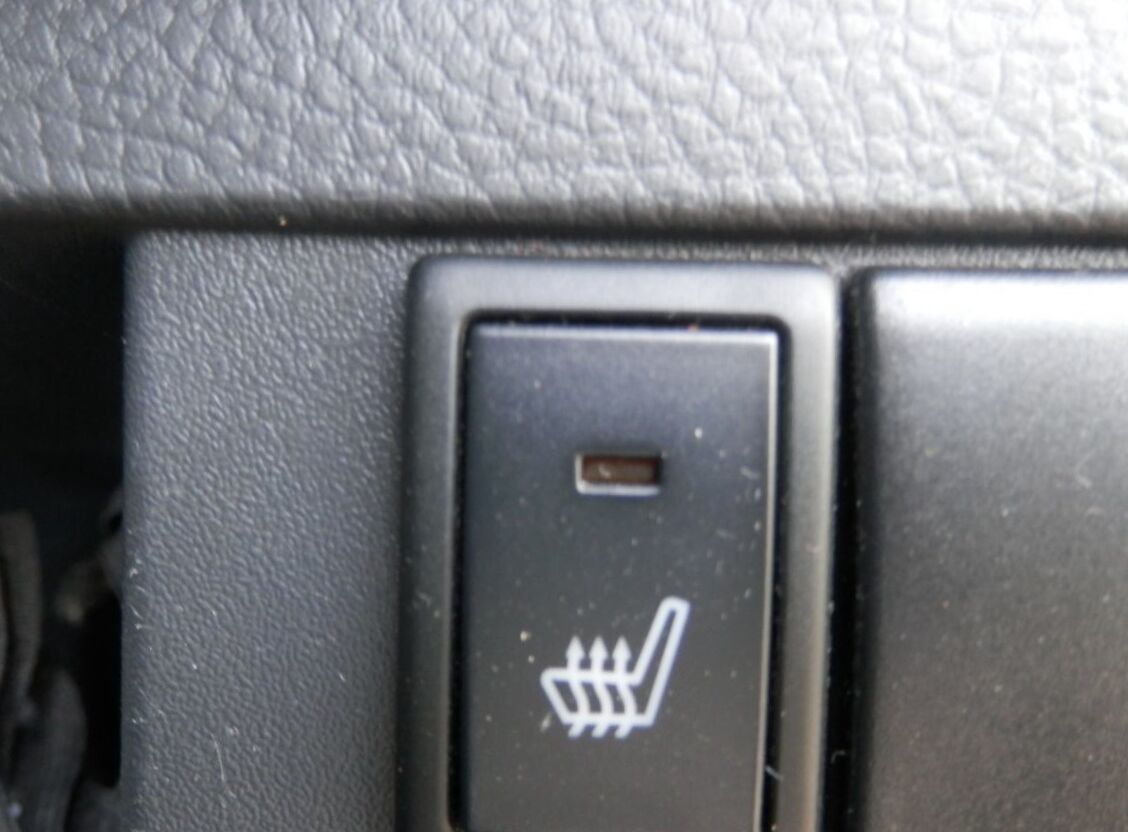

| Front seat heater | yes |
| Rear seats heater | no |
| Seat position memory | no |

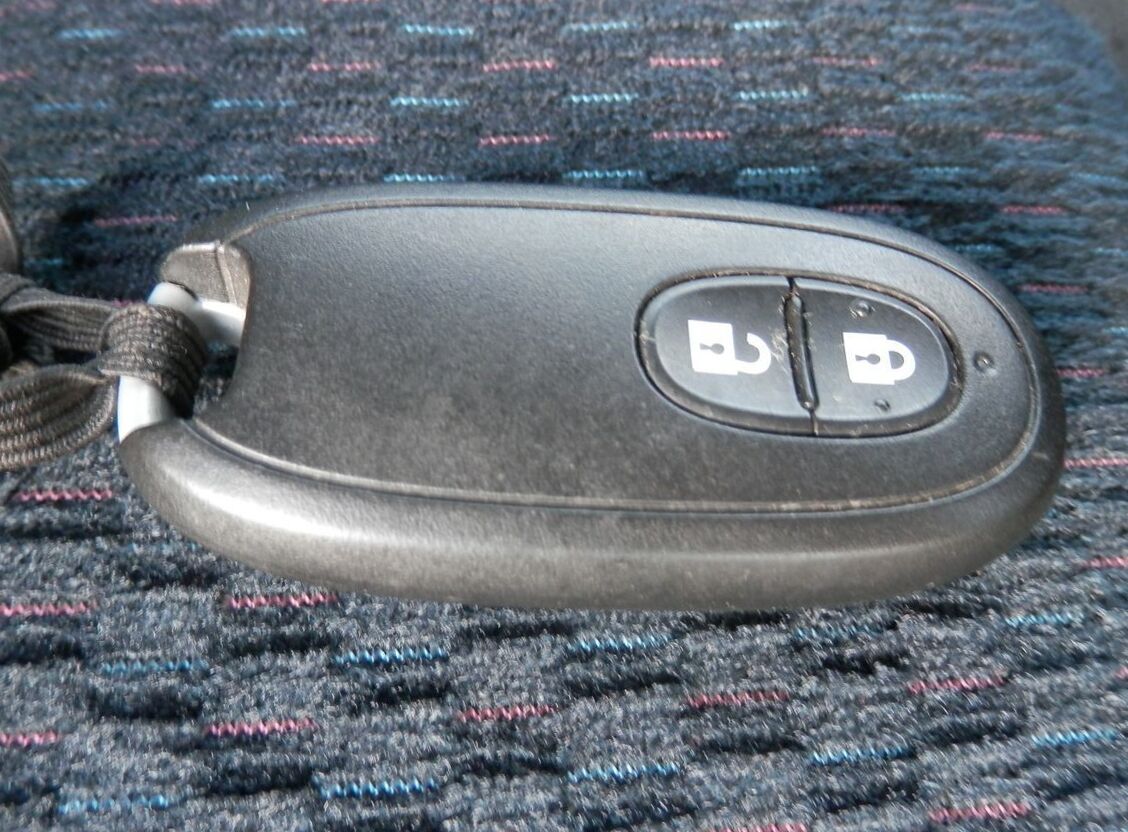

| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | no |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Traffic jam assist | no |
| Parking assist system | option |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | option |
Additional amenities | |
| Lagage box | yes |
| Etc | no |
Car safety | |
| Alarm system | yes |
| Security alarm | yes |
2011 Mazda AZ-Wagon IV DBA-MJ23S 660 Custom Style XS Limited (54 Hp) specs
|
The first generation of AZ-Wagon used the same 3-cylinder 657 cc engine as the Mazda Carol, and the turbo was optional as was all-wheel drive. The new 658 cc DOHC or SOHC engine replaced the old SOHC 657 cc in 1995. The design was refreshed in 2001. » Read More About Mazda AZ-Wagon |
