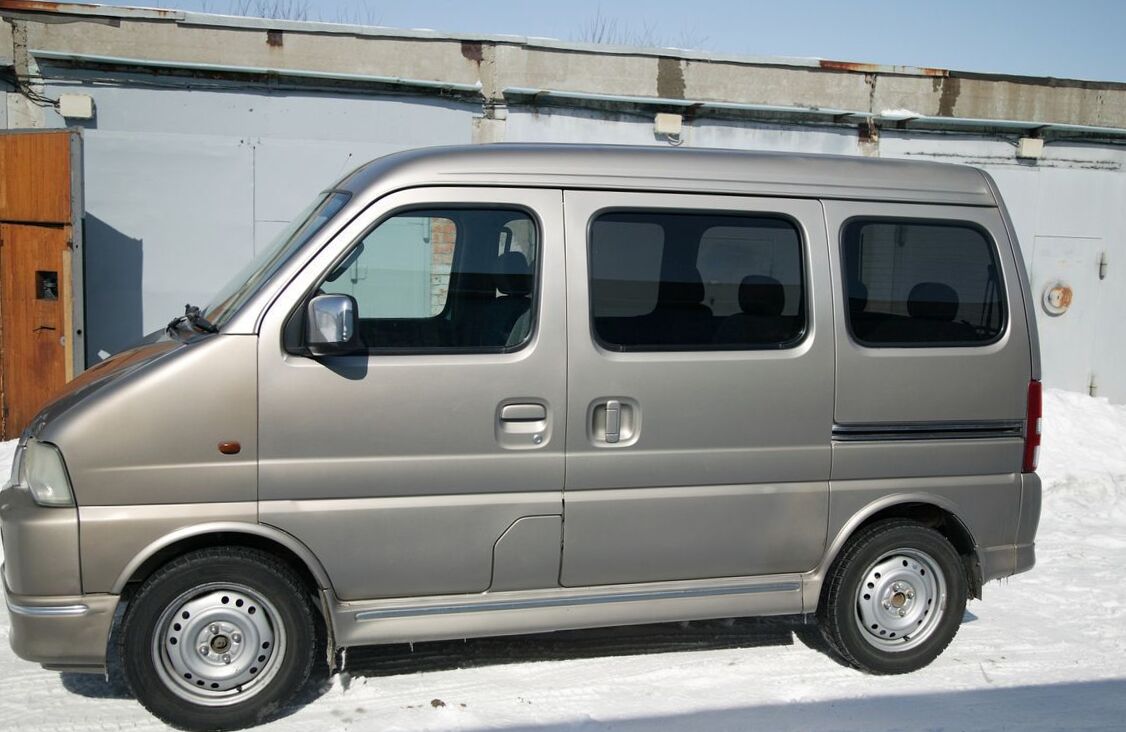

| Body type | Minivan |
|---|---|
| Power | 86 Hp |
| Engine Displacement | 1300 cm3 or 1.3L or 79.3 cu-in |
| Color | beige |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 162177 Miles |
| Vin | DA32W****88 |
| Price (out of date) | $3292 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2001 Suzuki Every IV? | Minivan, 7 Seats, 5 Doors |
| How much power, Suzuki Every Minivan 2001? | 86 Hp |
| What is the engine size, Suzuki Every LA-DA32W 2001? | 1.3L or 1298cm3 |
| How many gears, What type is the gearbox, 2001 Suzuki Every 1.3 XA? | Automatic transmission 4 |
| What is the drivetrain, Suzuki Every IV 2001 Minivan 1.3 XA (86 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2001 Suzuki Every Minivan 1.3 XA (86 Hp)? | 3710 mm |
| How wide is the vehicle, 2001 Suzuki Every IV? | 1505 mm |
Suzuki Every IV LA-DA32W 1.3 XA (86 Hp) 2001, 2002, 2003 Specs
General information | |
|---|---|
| Complectation name | 1.3 XA |
| Production start year | 2001 |
| Production end year | 2003 |
| Price of new car in Tokyo, yen | 1478000 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1298 |
| Frame name | LA-DA32W |
| Clearance, mm | 155 |
| Manufacturing country | Japan |
| Doors | 5 |
| Right hand drive | yes |
| Left hand drive | no |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | G13B |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 86 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 86 (63) / 6000 |
| Max torque, N*m | 115 |
| Max torque RPM, rpm | 3000 |
| Max torque, N*m (kg*m) / rpm | 115 (12) / 3000 |
| Valves per cylinder | 4 |
| Compression ratio | 9.5 |
| Bore, mm | 74 |
| Stroke, mm | 75.5 |
| Actuator valves | SOHC |
| LEV | E-LEV |
Fuel consumption | |
| Fuel consumption (10/15 mode), l/100km | 7.1 |
Transmission | |
| 1st gear ratio | 2.962 |
| 2nd gear ratio | 1.152 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.738 |
| Rear gear ratio | 2.819 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3710 |
| Exterior width, mm | 1505 |
| Exterior height, mm | 1900 |
Interior dimensions | |
| Capacity | 7 |

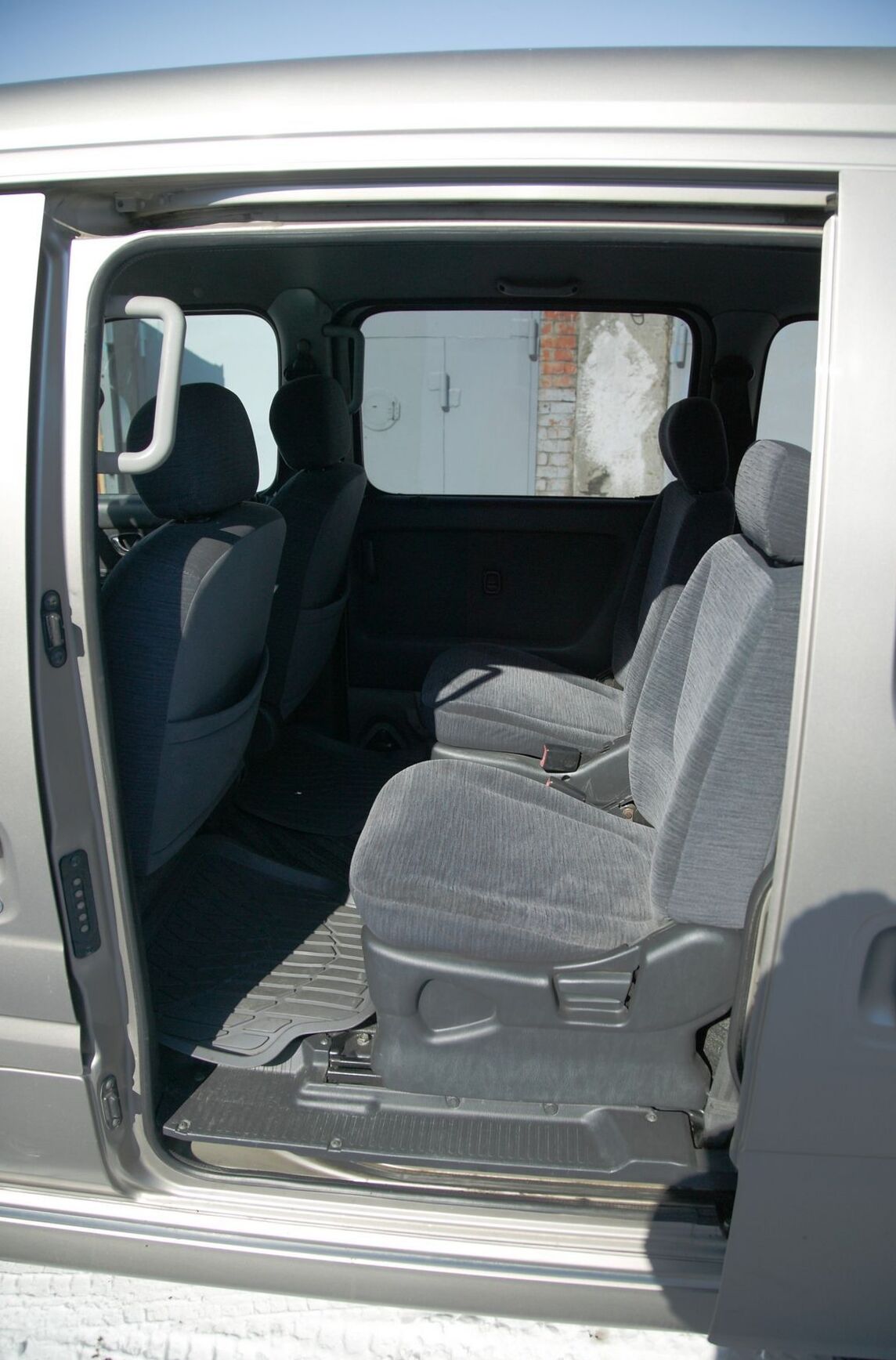

| Seat rows | 3 |
| Interior length, mm | 2370 |
| Interior width, mm | 1270 |
| Interior height, mm | 1350 |
Chassis dimensions | |
| Wheel base, mm | 2350 |
| Front axle length, mm | 1300 |
| Rear axle length, mm | 1310 |
| Turning radius, m | 4.5 |
| Wheel spacing front | 1300 |
| Wheel spacing rear | 1310 |
Weight and permissible load | |
| Mass, kg | 1050 |
Volumes | |
| Fuel tank capacity, l | 40 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | no |
| Rear suspension | Dependent, spring loaded |
| LSD | no |

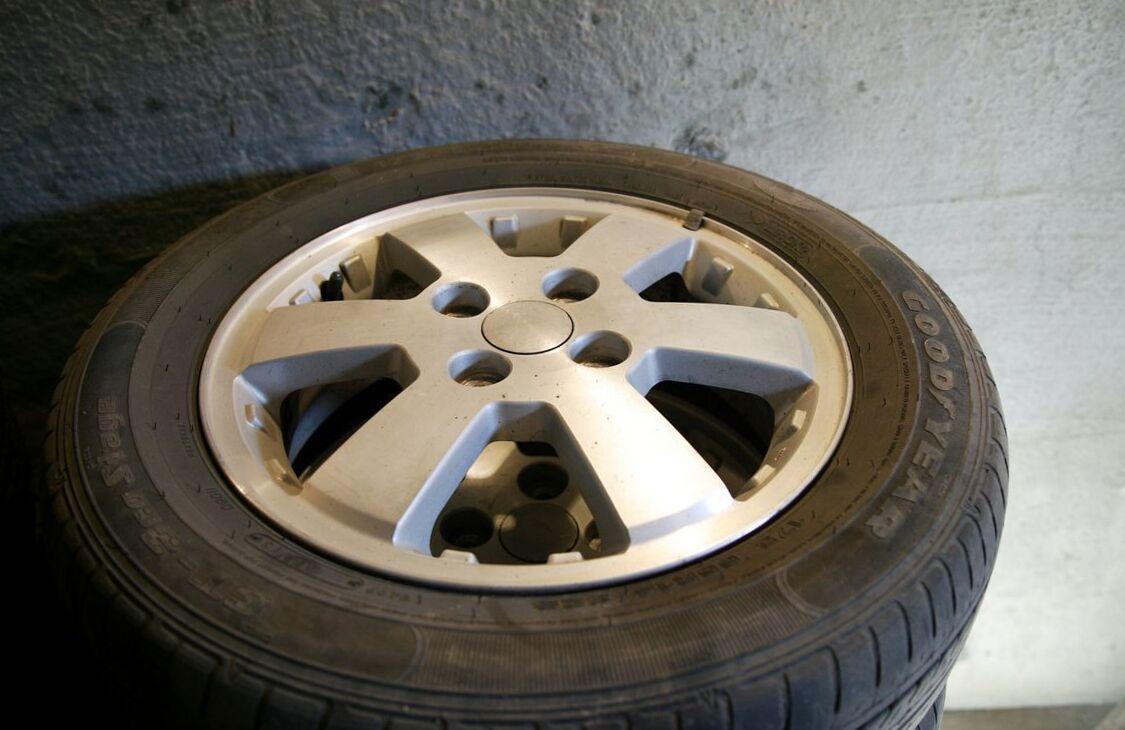

Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 165/65R14 79S |
| Rear wheels | 165/65R14 79S |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Additional stop light | no |
| Cornering lamps | no |

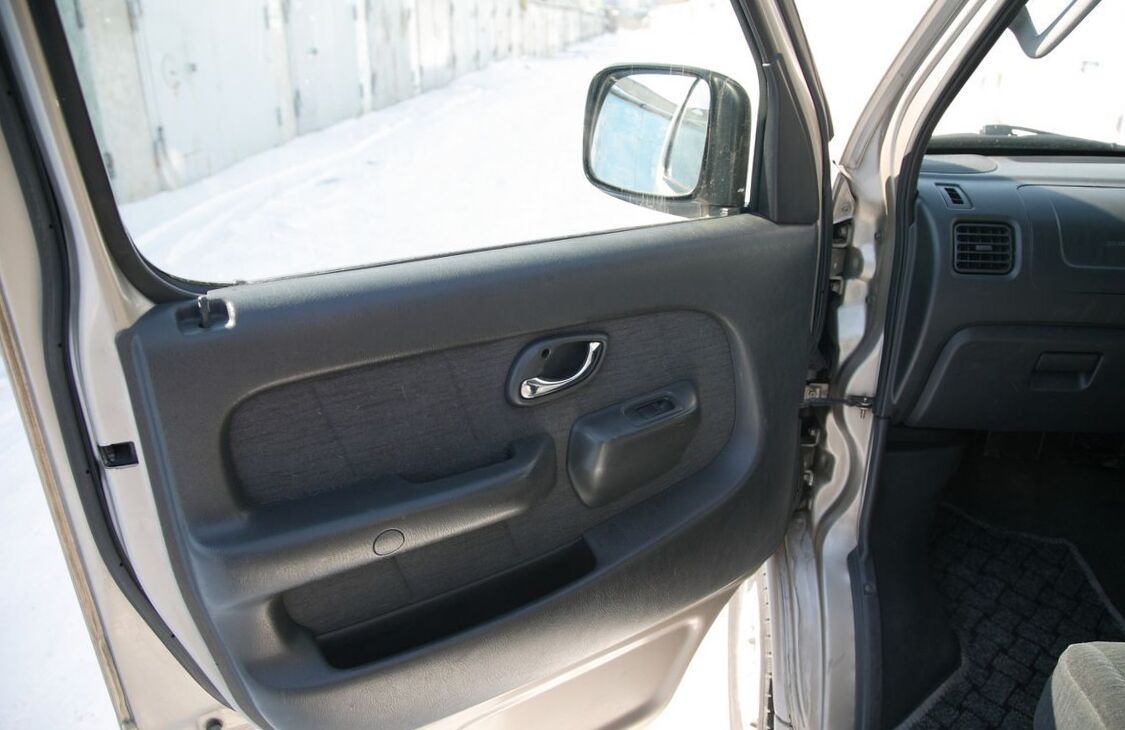

Side mirrors | |

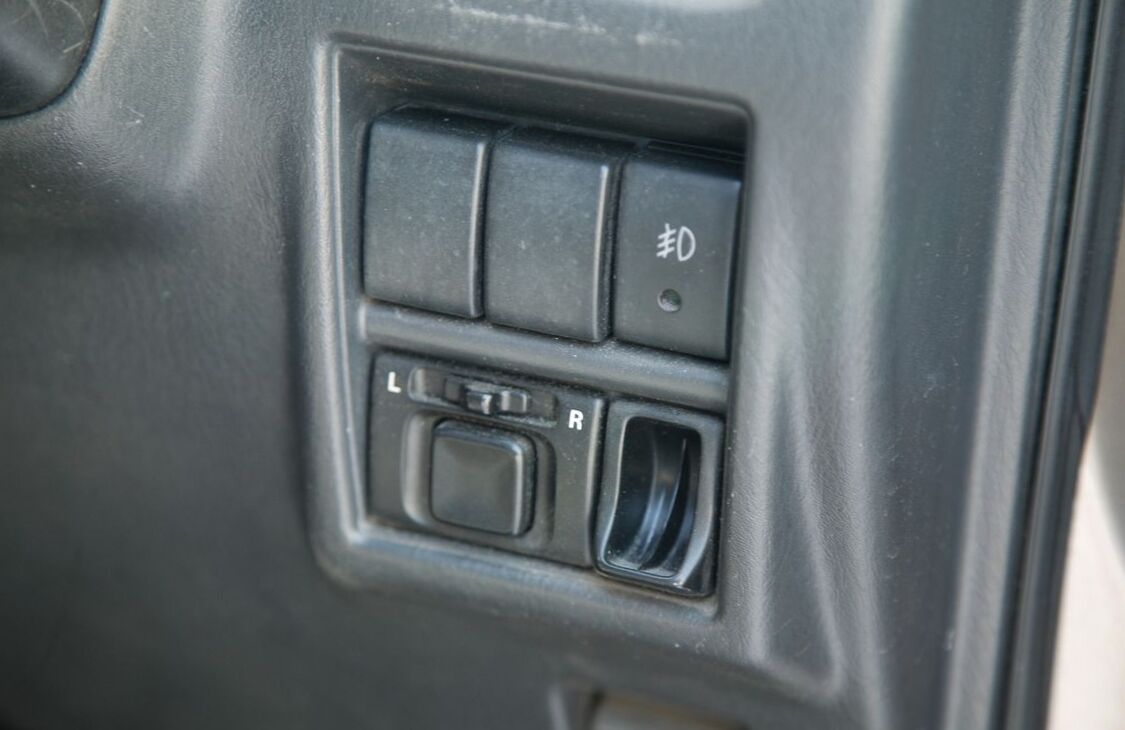

| Power adjustable door mirrors | yes |
Windows | |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Tilt sunroof | no |
| Twin sunroof | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
| Back wiper | yes |
Body color | |
| Colors | 35 |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | yes |
| Tachometer | yes |
Interior design | |
| Leather seat | no |
| Wood panel | no |

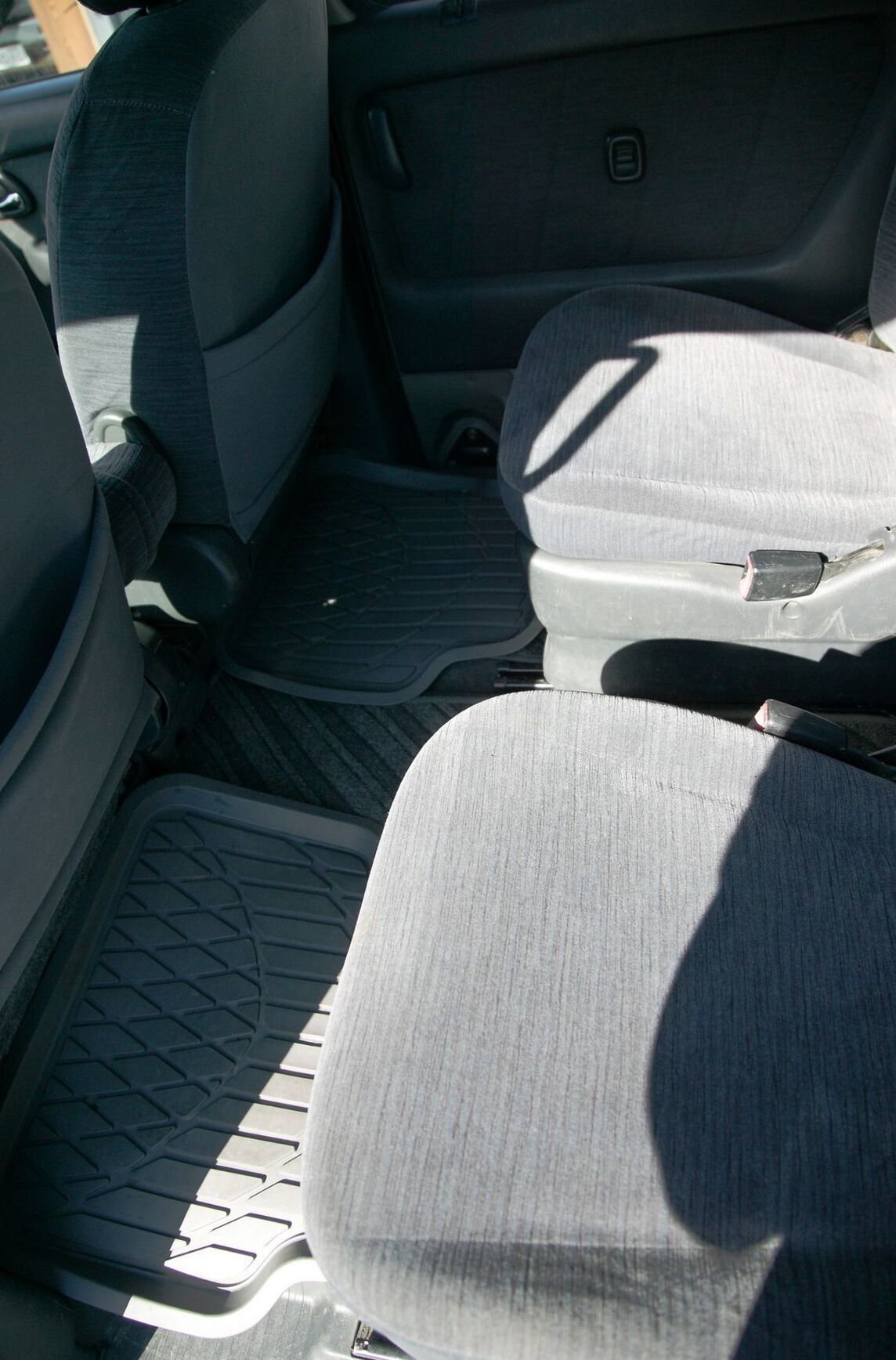

Seats | |
| Reclining seats | yes |
| Removable seats | no |
| Turning seats | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window | yes |
| Central power window control | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
Children safety | |
| Child car restraints | yes |
Active and passive safety | |
| Durable frame | yes |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | no |
| Twin conditioning system | no |
| Air purifier | no |

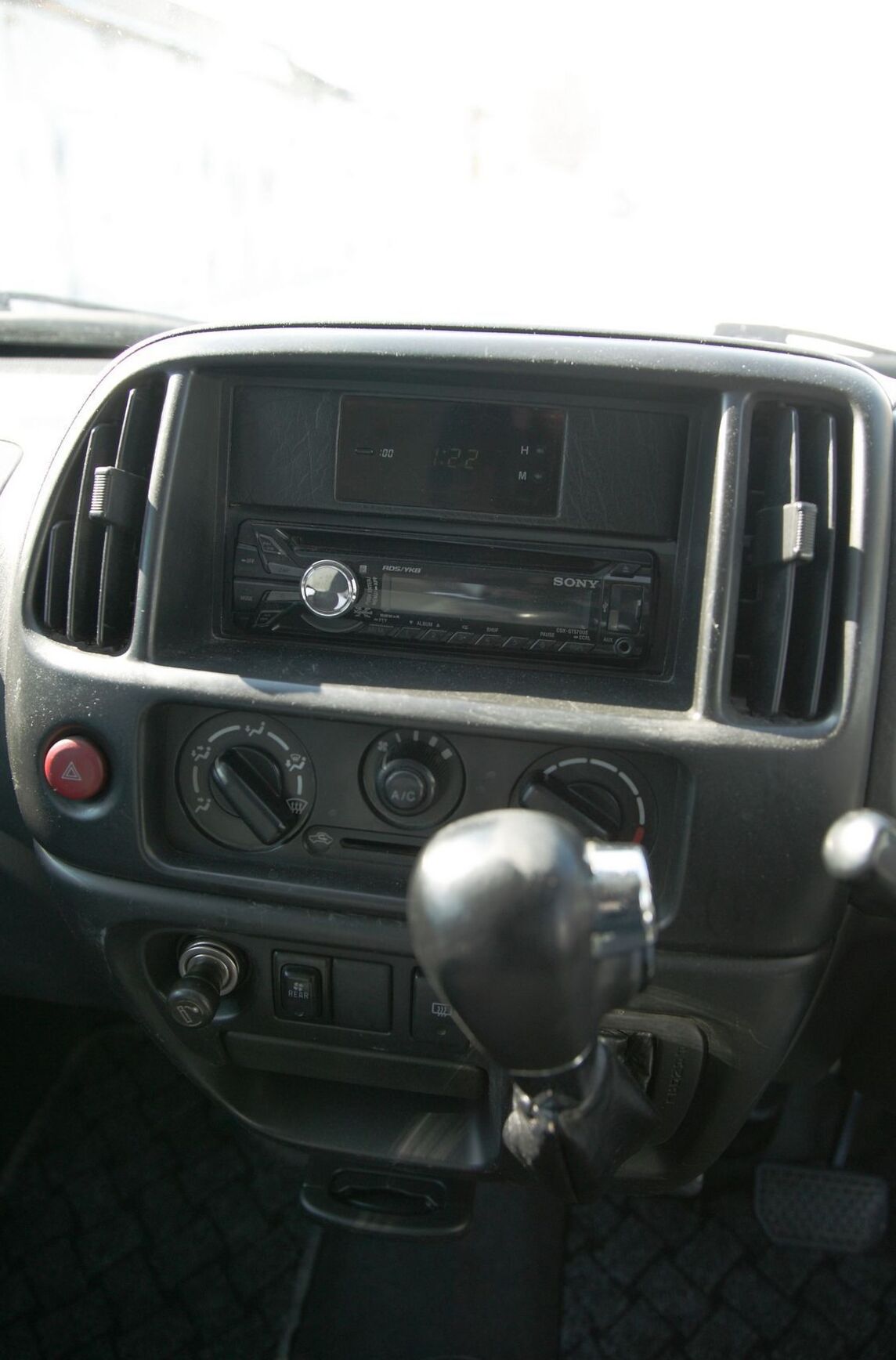

Audio systems | |
| Radio | yes |
| Autoreverse casette | yes |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
2001 Suzuki Every IV LA-DA32W 1.3 XA (86 Hp) specs
|
The Carry was constructed with a ladder frame architecture. The van version was a five-door, with dual sliding rear side doors; available as rear-wheel drive or four-wheel drive. Early models (1960-1970s) had a 360 or 450(export model)cc 2-cylinder, 2-stroke engine mounted horizontally underneath the load area. The starter and generator were combined and mounted directly on the front of the crankshaft. Later models had an 550, 660 and 800(export model)cc 3-cylinder, 4-stroke engines unconventionally mounted beneath the cab. In 1976 the ST20K was released.The "K" referred to the "trucklike" nature of the vehicle in that it had 3 drop sides as opposed to the utility version which had only a tailgate and formed sides.It had a 3 cylinder 539cc water cooled 2 stroke engine and a carrying capacity of 350kg (772lb).
