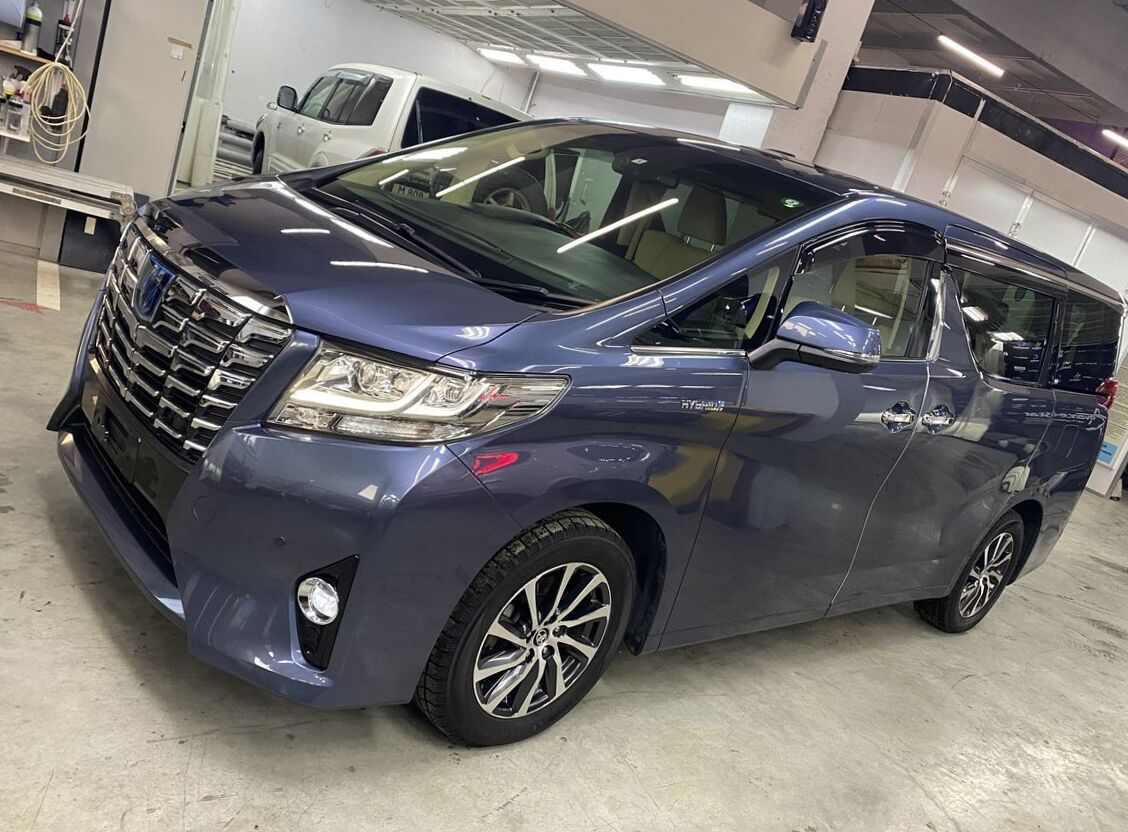

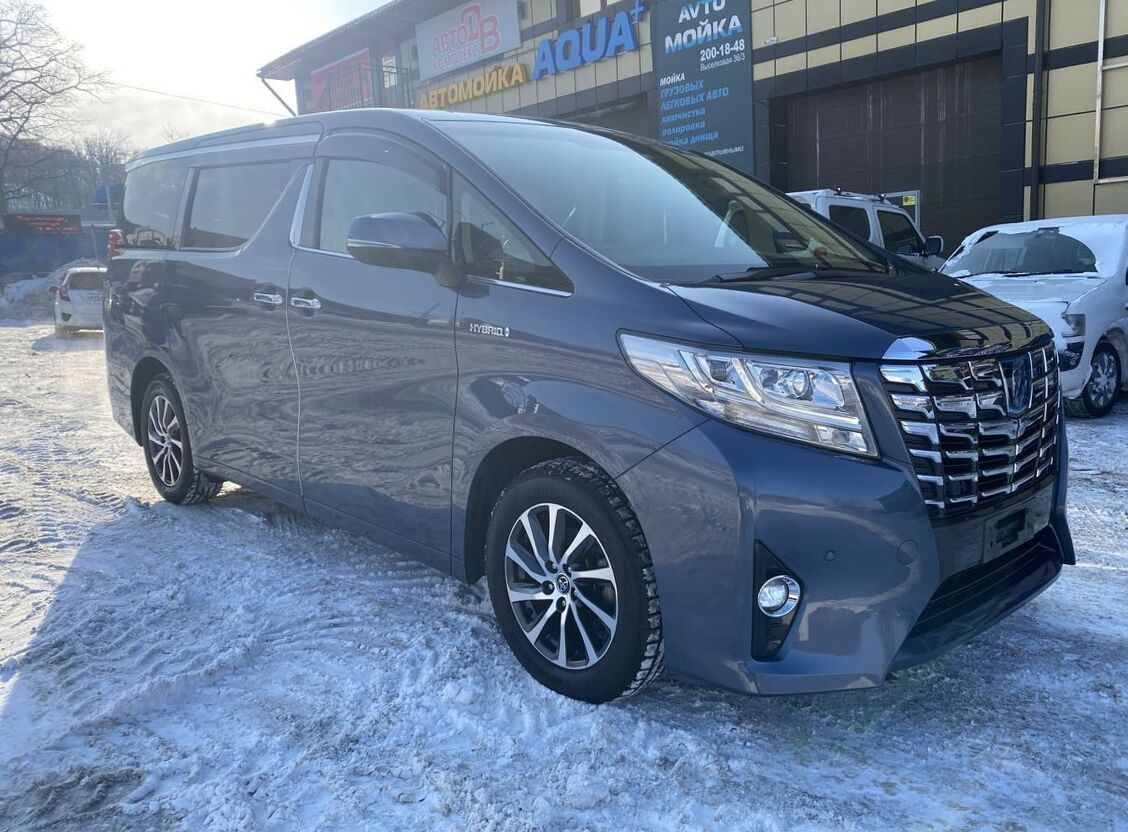

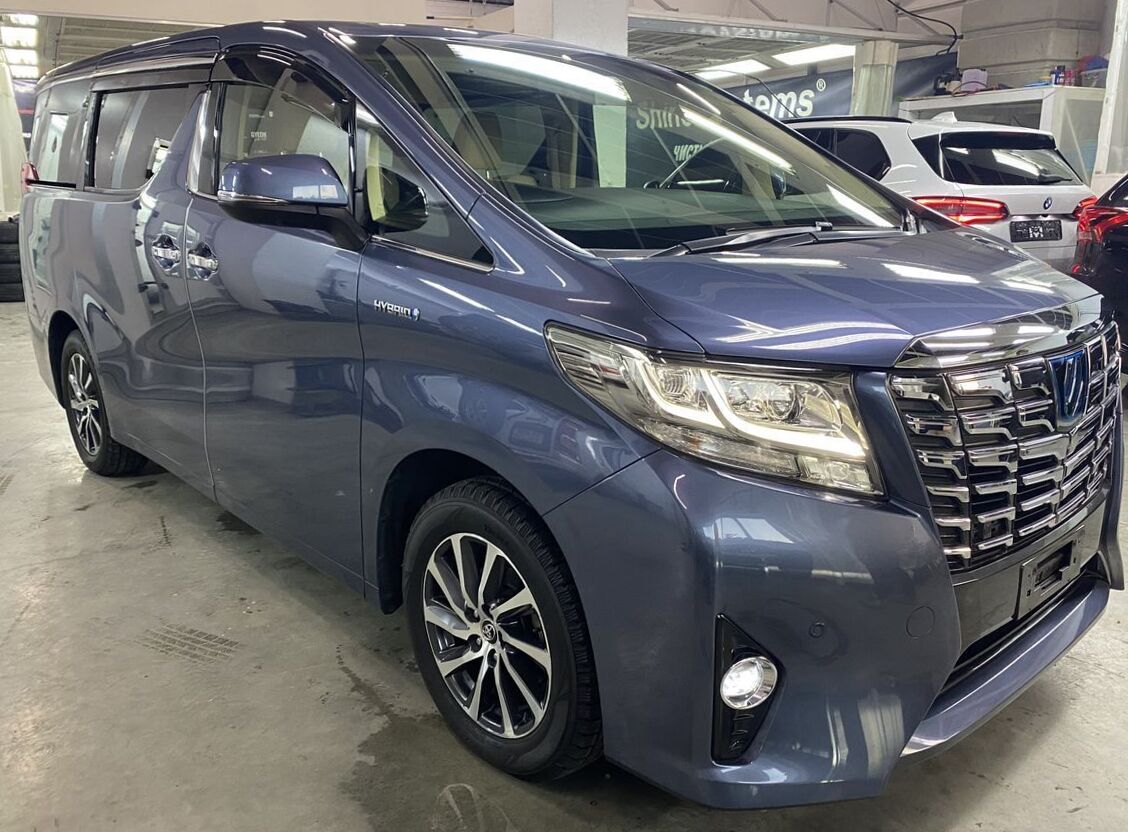

2016 Toyota Alphard III Hybrid 2.5 Executive Lounge 4WD
Toyota Alphard Problems
Alphard
2021, Why when engine idle for 30min engine
tarpet sound too loud… how to solve it??
Af...
Car dont break
2003, the car does not lock and the parking
lights stay on on the dashboard In driving it
is ...
Need help
2004, I parked the vehicle and went into a
spare shop. upon coming back check whether the
air...
Body type | Minivan |
---|---|
Power | 152 Hp |
Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
Color | blue |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | 4WD |
Mileage | 74564 Miles |
Vin | 067*** |
Price (out of date) | $38687 |
Frequently Asked Questions | |
---|---|
What is the body type, 2016 Toyota Alphard III? | Minivan, 7 Seats, 5 Doors |
What is the fuel economy, Toyota Alphard Minivan 2016? | 5.4 l/100 km |
How much power, Toyota Alphard DAA-AYH30W 2016? | 152 Hp |
What is the engine size, 2016 Toyota Alphard Hybrid 2.5 Executive Lounge 4WD? | 2.5L or 2493cm3 |
How many gears, What type is the gearbox, Toyota Alphard III 2016 Minivan Hybrid 2.5 Executive Lounge 4WD (152 Hp)? | Variator |
What is the drivetrain, 2016 Toyota Alphard Minivan Hybrid 2.5 Executive Lounge 4WD (152 Hp)? | All wheel drive (4x4) |
How long is this vehicle, 2016 Toyota Alphard III? | 4915 mm |
How wide is the vehicle, Toyota Alphard Minivan 2016? | 1850 mm |
Toyota Alphard III DAA-AYH30W Hybrid 2.5 Executive Lounge 4WD (152 Hp) 2015, 2016, 2017 Specs
General information | |
---|---|
Production start year | 2015 |
Production end year | 2017 |
Drive type | All wheel drive (4x4) |
Frame type | Minivan |
Transmission type | Variator |
Engine volume, cc | 2493 |
Frame name | DAA-AYH30W |
Clearance, mm | 165 |
Manufacturing country | Japan |
Doors | 5 |
Winter complectation | option |
Steering locaton | right |
Hybrid | yes |
Vehicle generation | |
Generation name | H30 |
Generation number | 3 |
Production start year | 2015 |
Production end year | 2017 |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | 2AR-FXE |
Fuel | Petrol (Gasoline) |
Engine type | 4 cylinder DOHC |
Has turbo | no |
Max power, hp | 152 |
Max power RPM, rpm | 5700 |
Max power, hp (kWt) / rpm | 152 (112) / 5700 |
Max torque, N*m | 206 |
Max torque RPM, rpm | 4800 |
Max torque, N*m (kg*m) / rpm | 206 (21) / 4800 |
Compression ratio | 12.5 |
Bore, mm | 90 |
Stroke, mm | 98 |
Engine additional info | VVT, electronic fuel injection system |
Eco type | 2005 emission regulation 75% reduction |
Start stop system | yes |
Electric Power | |
Electro Max power, (kWt) | 105 |
Electro Max torque, Nm | 270 |
Electro engine addition | 2 electric motors (front 105 kW, rear 50 kW) installed |
Fuel consumption | |
Achieve fuel efficiency standards | Compliance with 2015 fuel consumption standard +20% |
Combined | 5.4 |
Co2 emission | 126 |
Transmission | |
Shifter position | On the dashboard |
Manual mode | yes |
Steering | |
Power steering | no |
Electric power steering | yes |
Steereing gear type | Gear rail |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4915 |
Exterior width, mm | 1850 |
Exterior height, mm | 1950 |
Interior dimensions | |
Capacity | 7 |
Seat rows | 3 |
Interior length, mm | 3210 |
Interior width, mm | 1590 |
Interior height, mm | 1400 |
Chassis dimensions | |
Wheel base, mm | 3000 |
Front axle length, mm | 1600 |
Rear axle length, mm | 1595 |
Turning radius, m | 5.6 |
Wheel spacing front | 1600 |
Wheel spacing rear | 1595 |
Weight and permissible load | |
Mass, kg | 2220 |
Total weight | 2605 |
Volumes | |
Fuel tank capacity, l | 65 |
Suspension specs | |
Suspension specs | |
Front stabilizer | yes |
Front suspension | Independent, Spring McPherson |
Rear stablilizer | yes |
Rear suspension | Independent on double wishbones |
Air suspension | no |
Cenral diff lock | no |
Wheel rims | |
Aluminium wheel | yes |
Tires | |
Front wheels | 225/60R17 |
Rear wheels | 225/60R17 |
Brakes | |
Front brake | Ventilated discs |
Rear brake | Ventilated discs |
Parking brake | Electronic |
Brake front search | 1 |
Rear brake | 1 |
Parking brake new first | Electronic |
Exterior | |

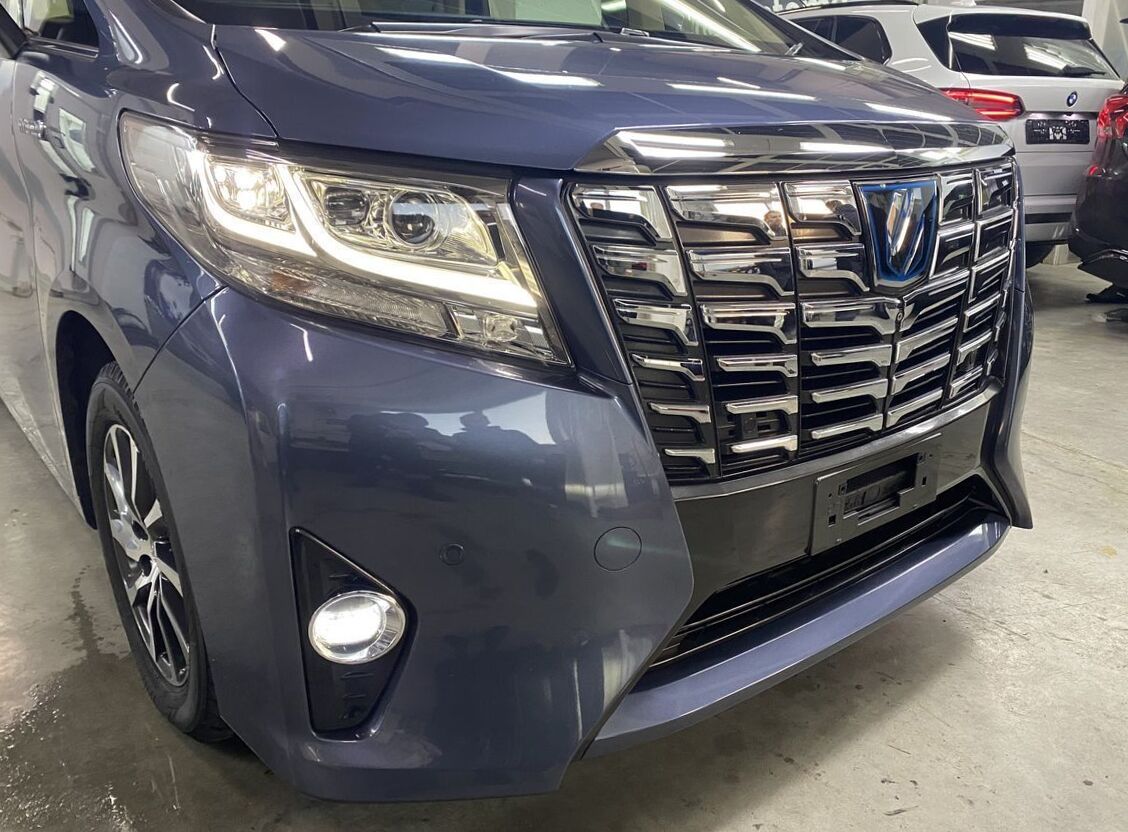

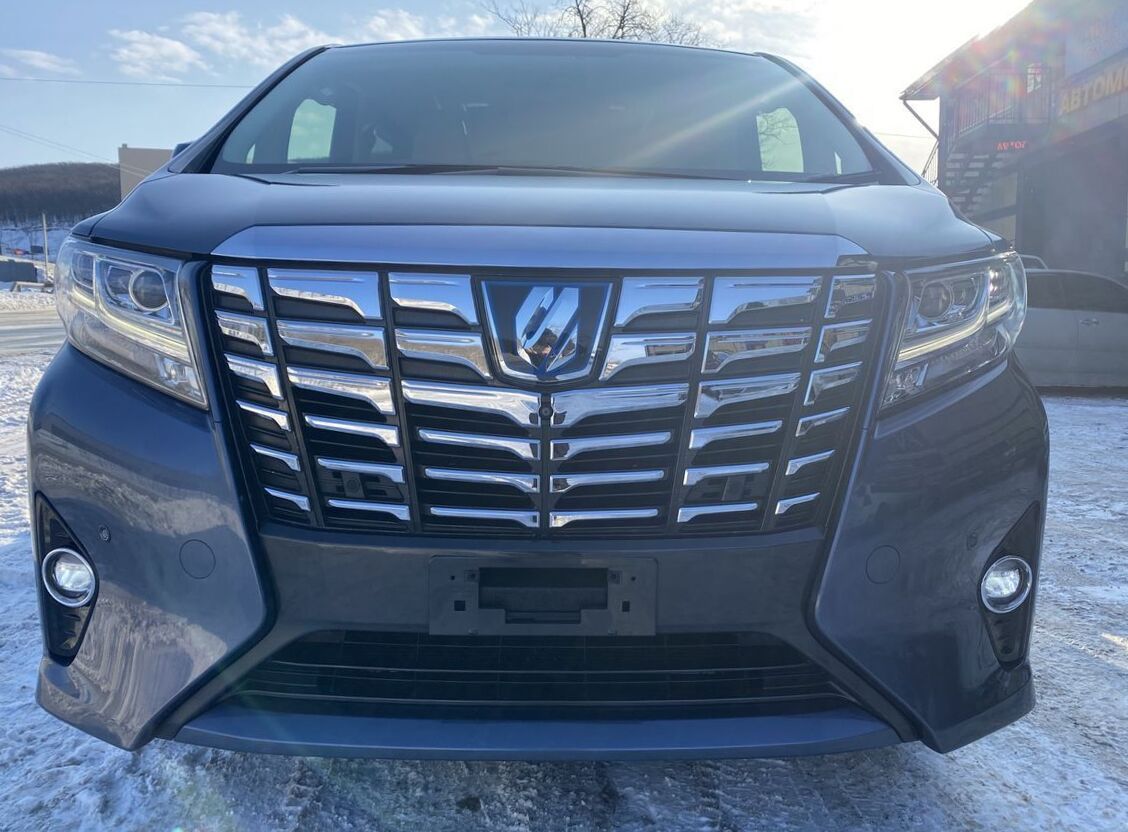

Headlights | |
Led lights | yes |
Diod head lights | yes |
Front fog lamps | yes |
Diod fog lights | yes |
Rear fog lamps | option |
Additional stop light | yes |
Light sensor | yes |
Rain sensor | yes |
Side mirrors | |
Exterior mirrors in body color | yes |
Side mirrors with repeaters indicators | yes |
Power adjustable door mirrors | yes |
autocorrected mirrors | yes |
Door mirrors heating | yes |
Doors | |
Sliding doors | yes |
Sliding electric door | no |
Sliding electric doors | yes |
Door easy closer | yes |
Chrome door handles | yes |
Power rear door | yes |
Trunk closer | yes |
Windows | |
Privacy glass | yes |
Ultraviolet glass protection | yes |
Rear glass heat | yes |
Roof | |

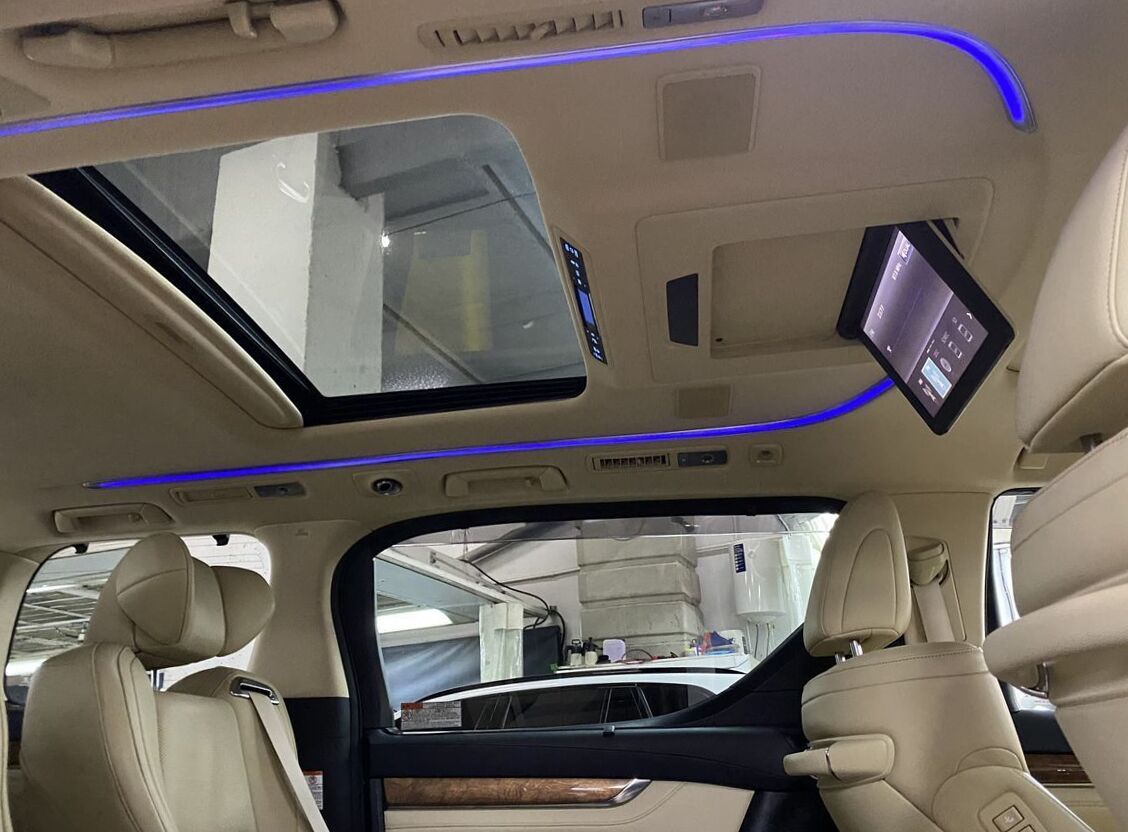

Twin sunroof | option |
Accessories | |
Front spoiler | no |
Rear spoiler | yes |
Back wiper | yes |
Rear mudflaps | yes |

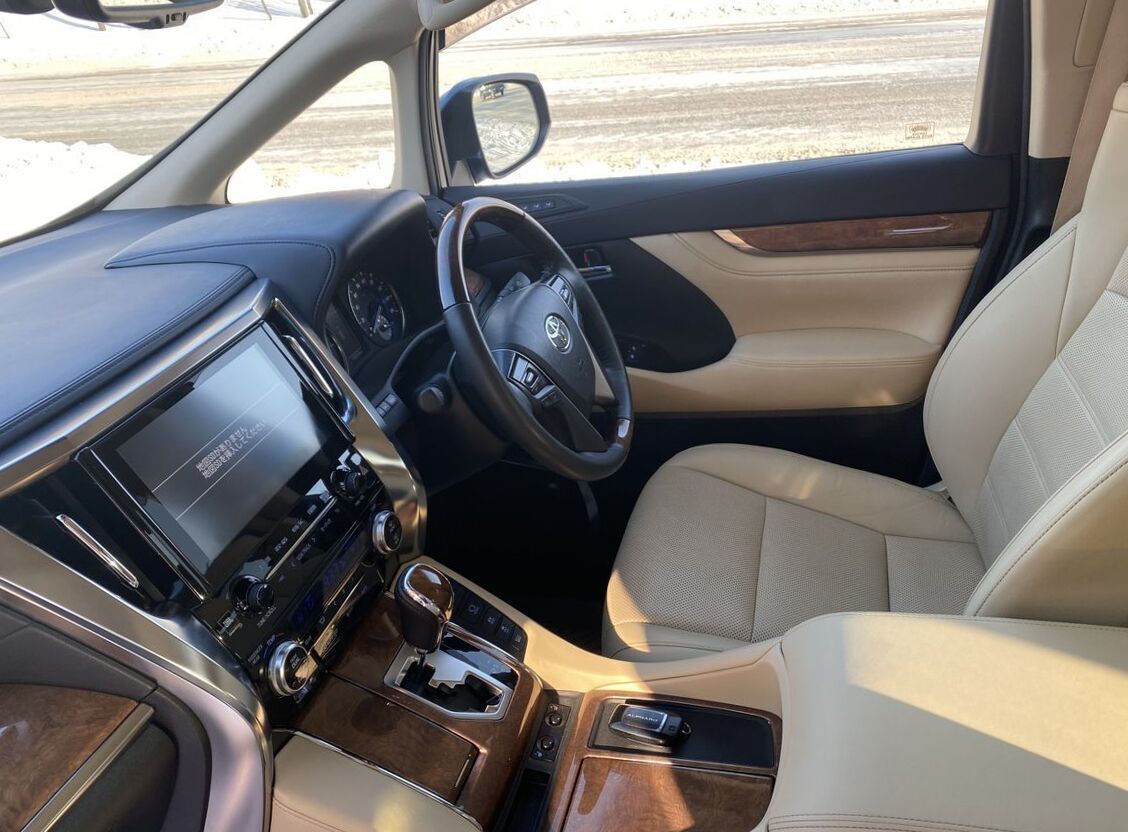

Interior | |

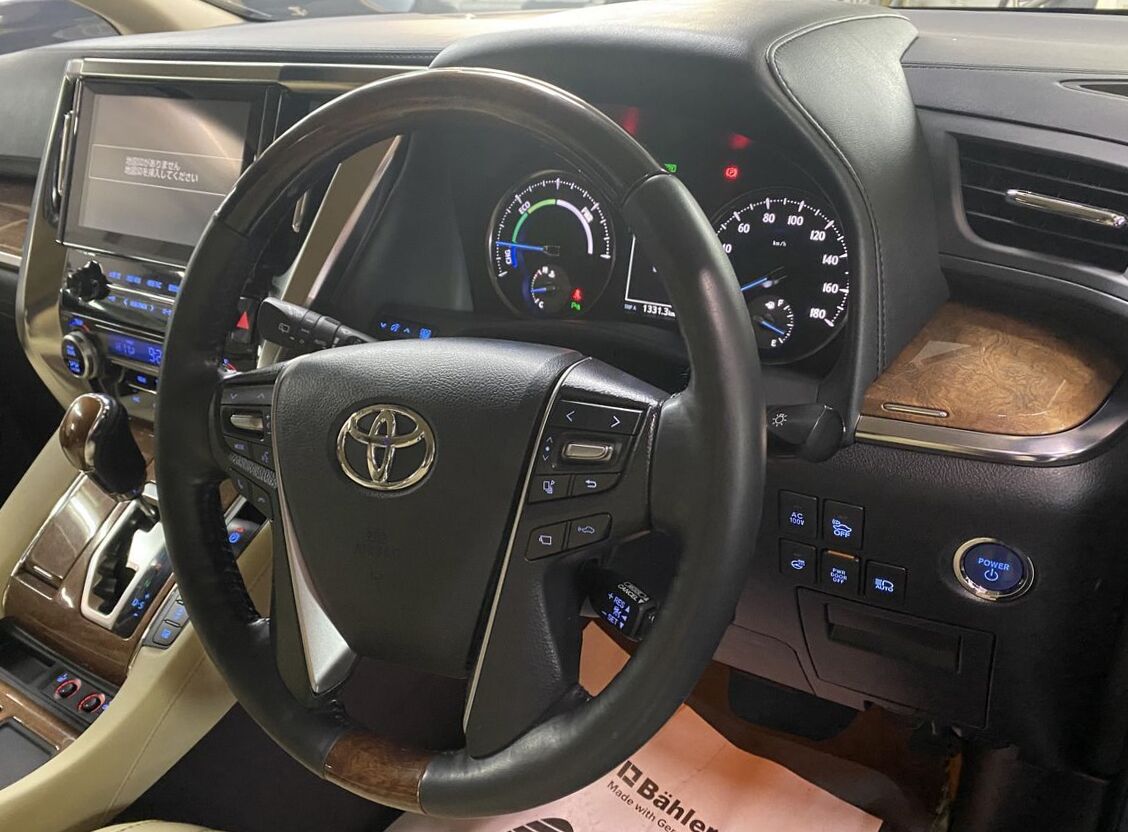

Steering wheel and center panel | |
Leather winding | yes |
Telescopic steering | yes |
Tilt steering | yes |
Audio control on steering wheel | yes |
Utility color display | 4.2" |

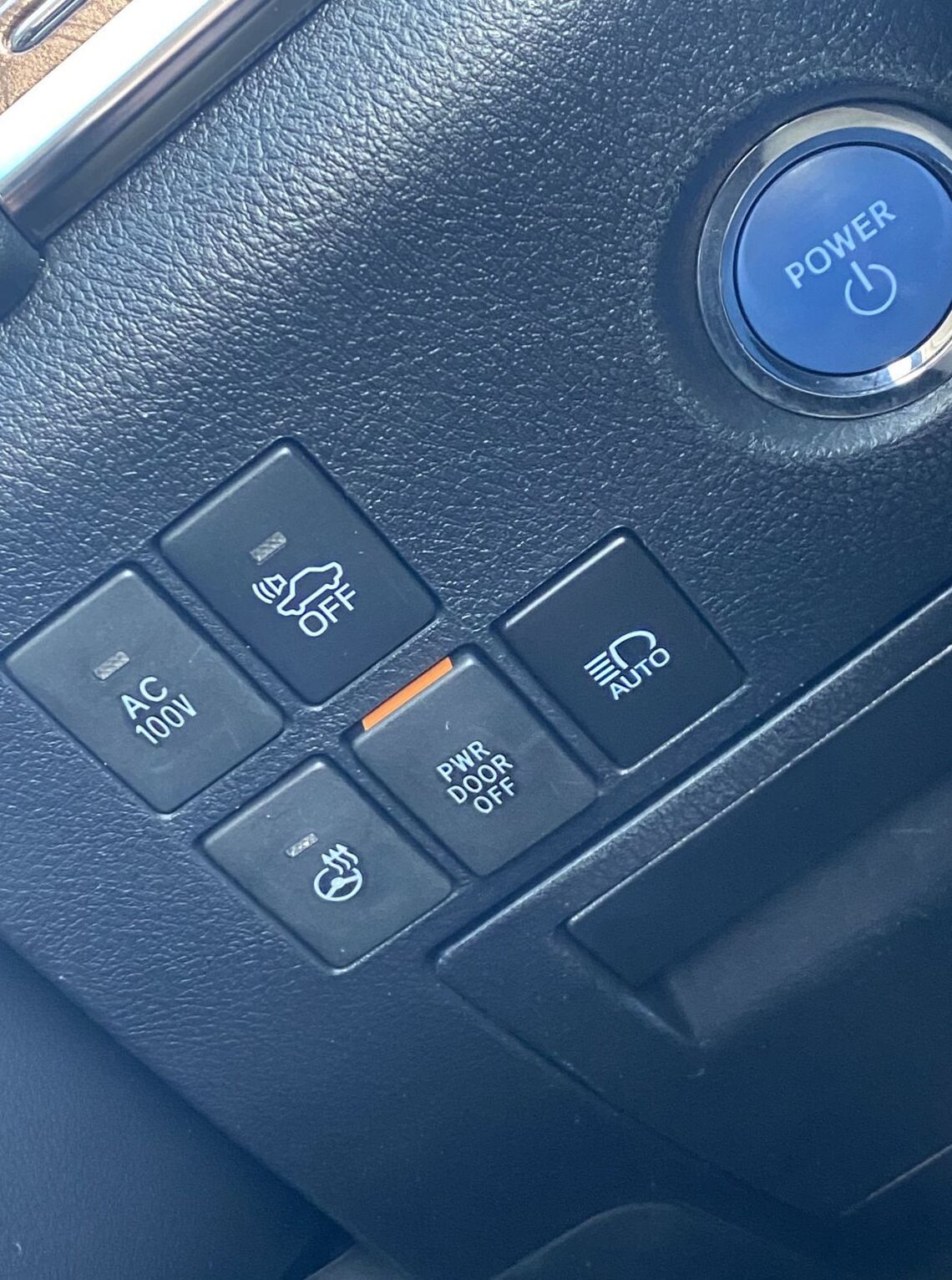

Engine start button | yes |
Interior design | |
Cloth upholstery | no |
Leather upholstery | yes |
Combined obivka Salon | no |

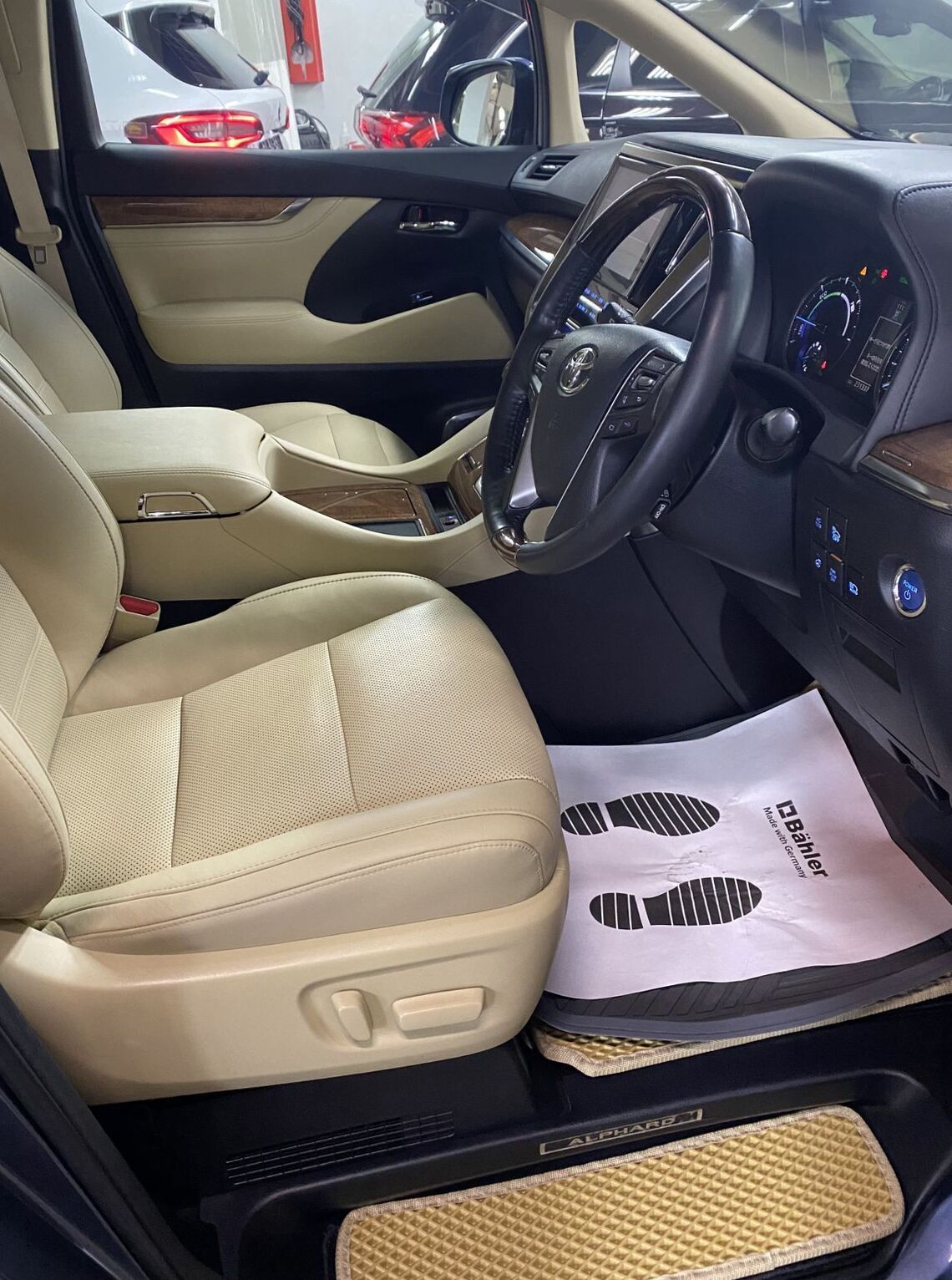

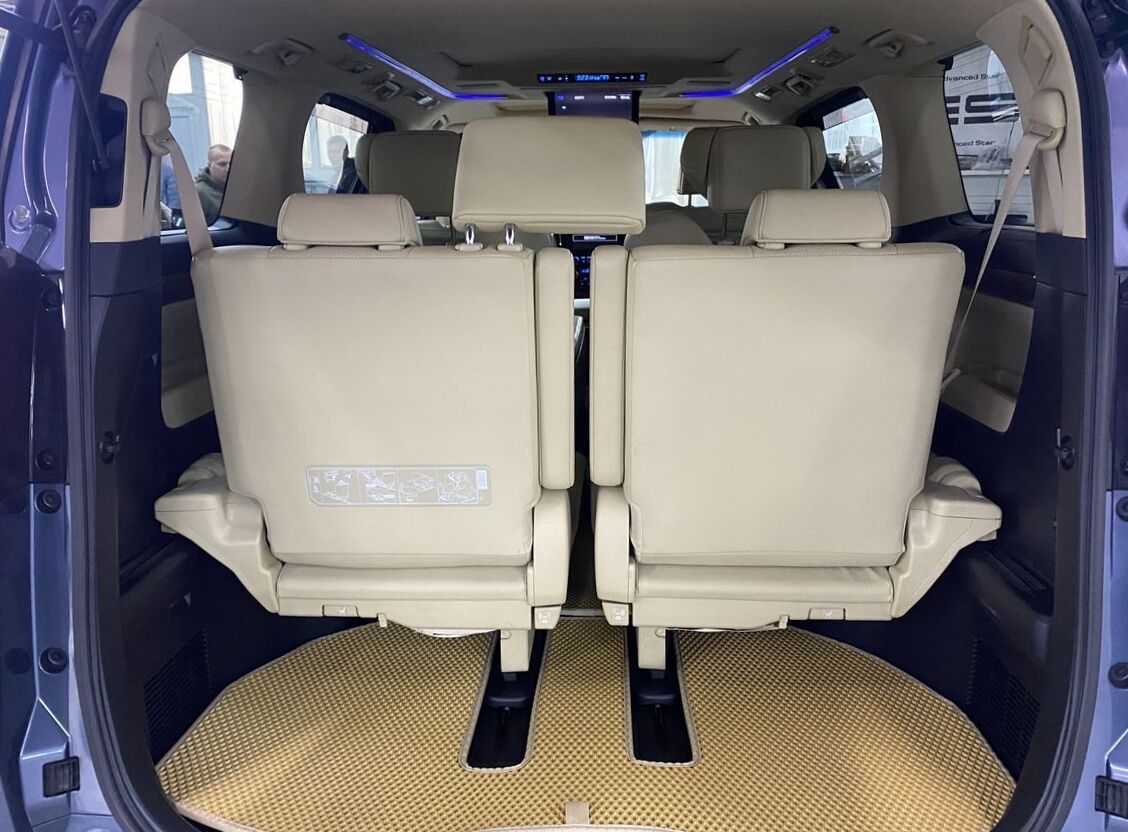

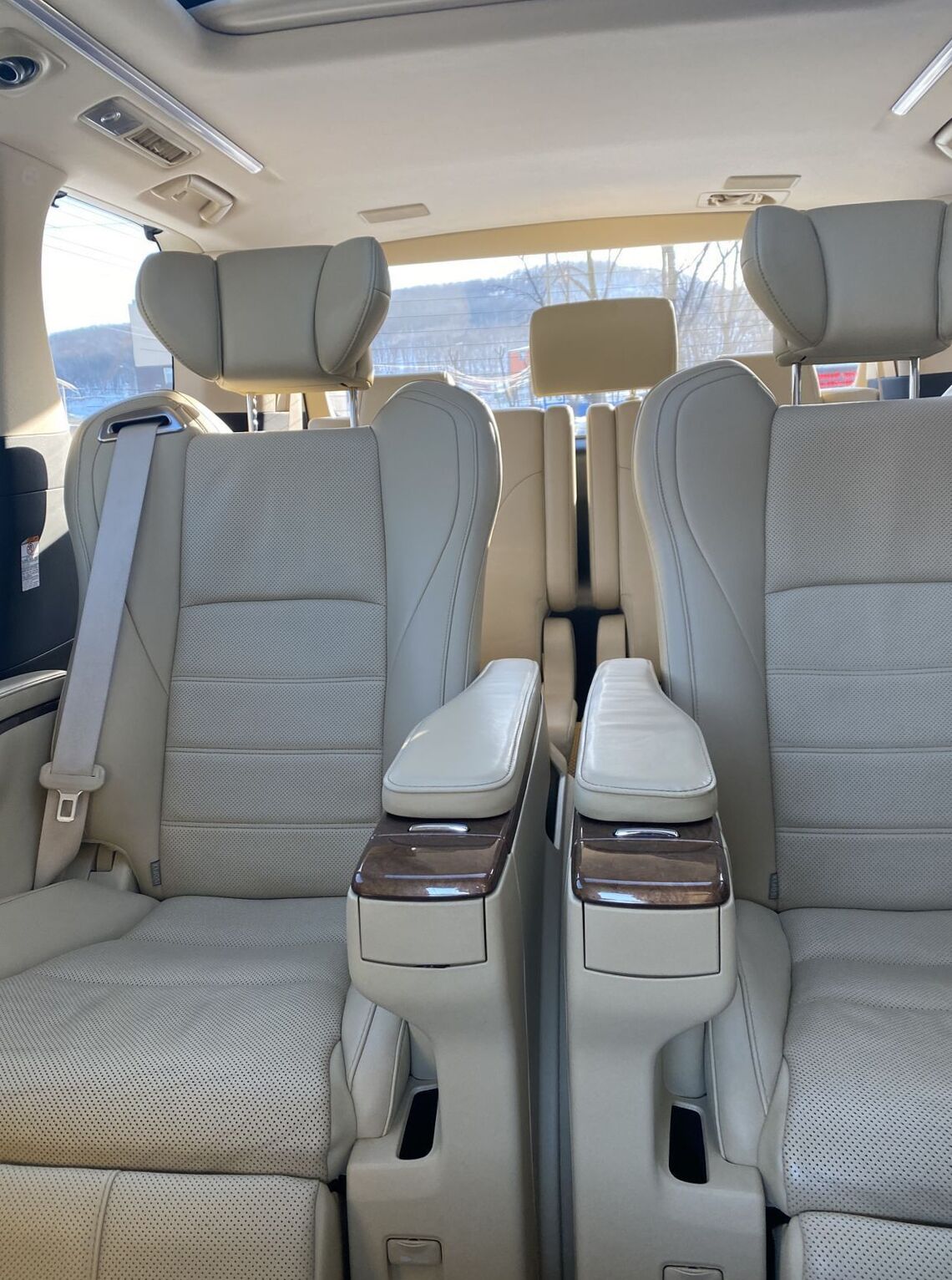

Seats | |
2nd row | two individual seats |
3nd row | 50/50 ratio fold seat |
Seat lifter | yes |

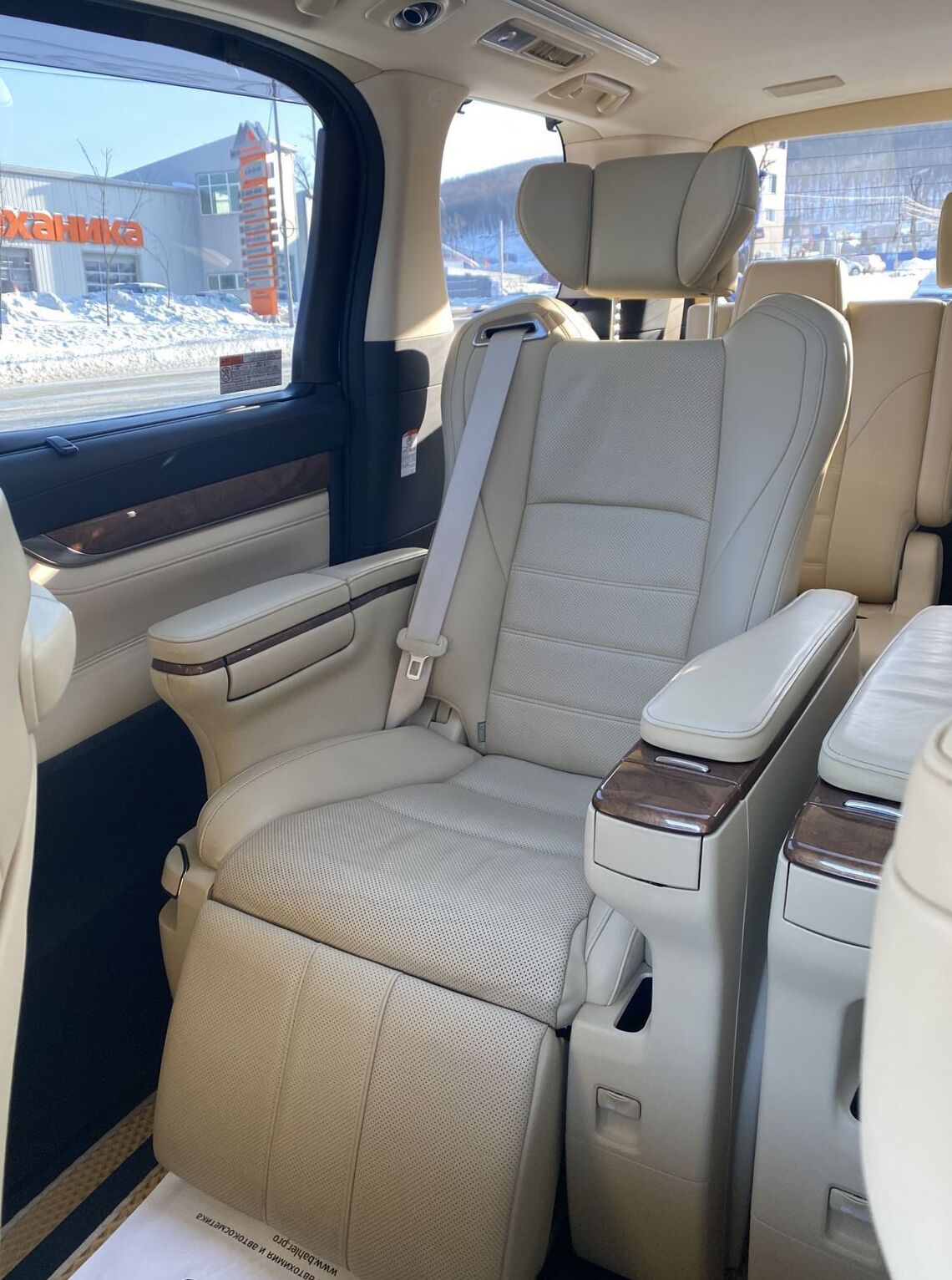

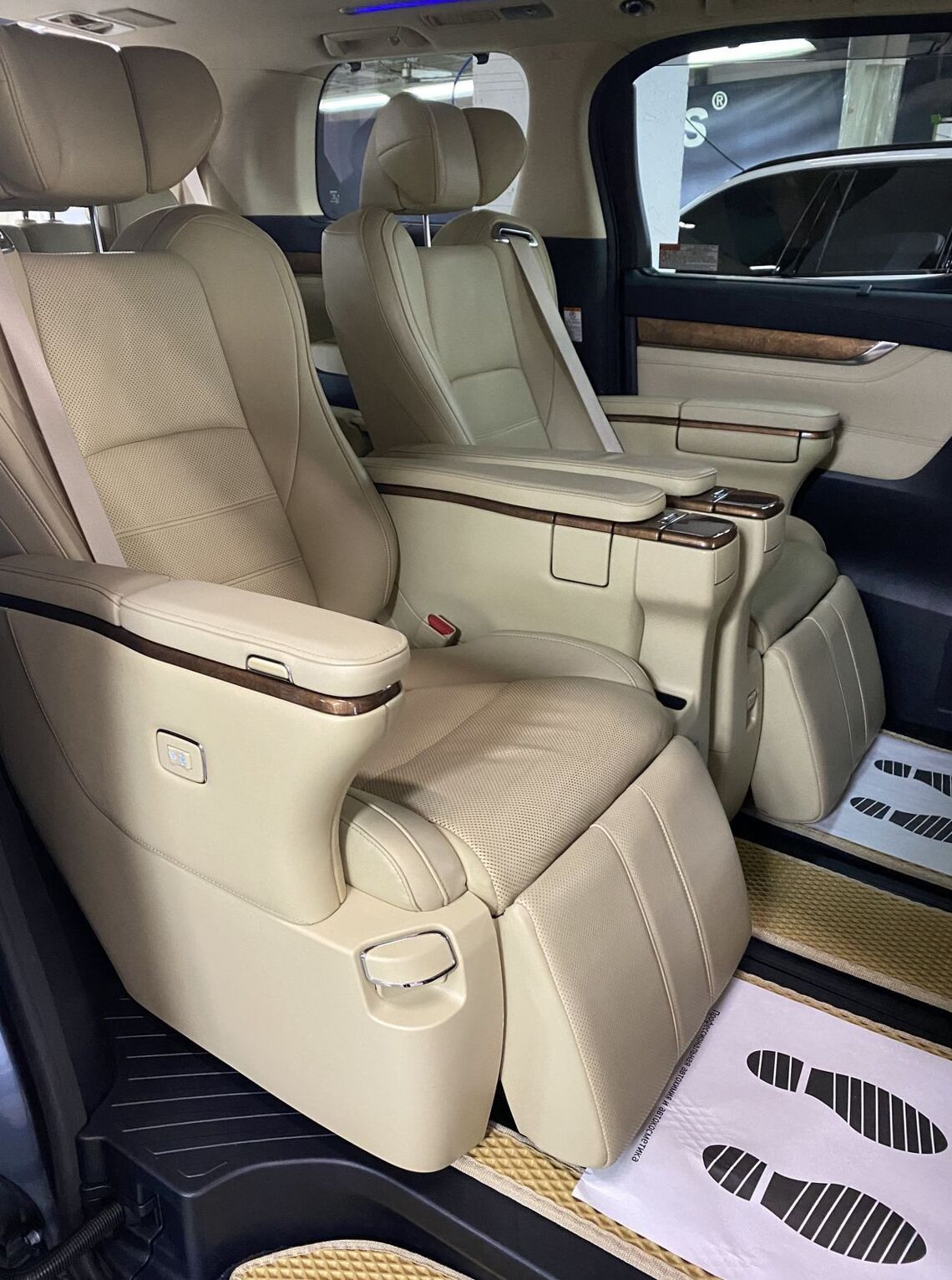

Ottoman seat | yes |
Headrests for seats | 7 |

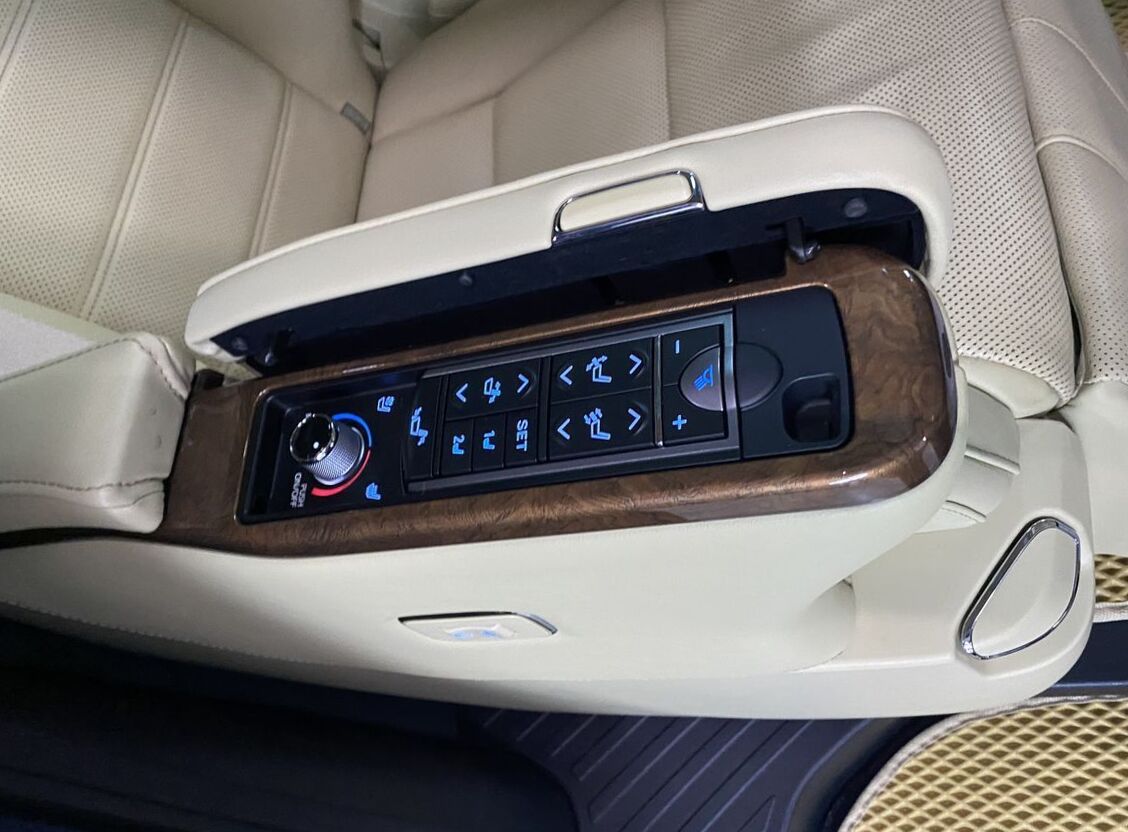

Separating armrest front | yes |
Separating armrest rear | yes |
Seats pockets | yes |
2nd row throught | yes |
Electric interior package | |
Power adjustable driver seat | yes |
Power ajustable front seat | yes |
Power ajustable back seat | yes |

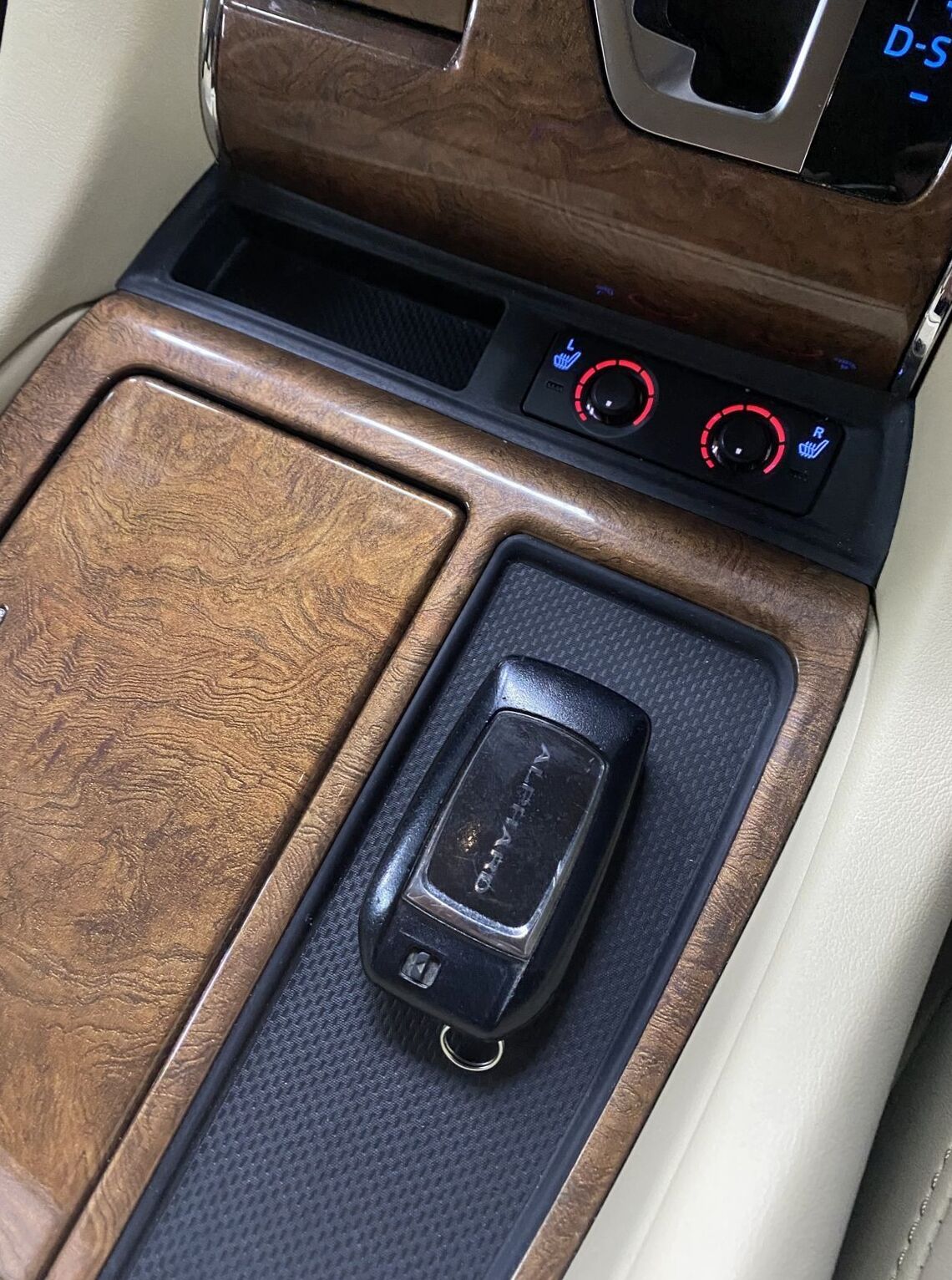

Front seat heater | yes |
Rear seats heater | yes |
Seat position memory | yes |
Centralized door lock | yes |
Keyless enter | yes |
Keyless | yes |

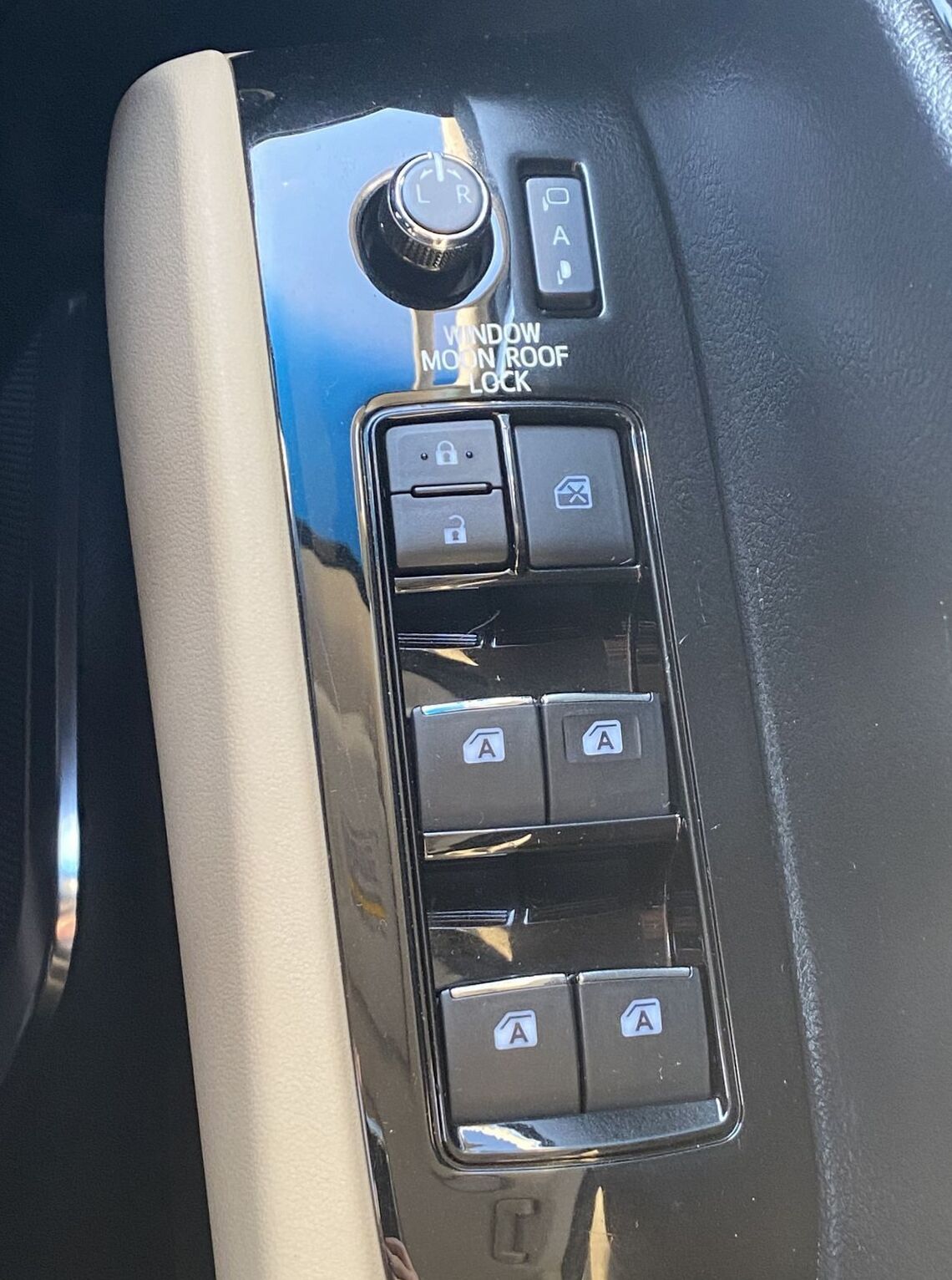

Power window front | yes |
Power window rear | yes |
Stearing wheel heater | yes |
Front sheeld electro heater | option |
Additional interior equipment | |
Holders for bottles in doors | yes |
AC plug | yes |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | yes |
Curtain airbags | yes |
Airbag for the driver's knees | yes |
Children safety | |
isofix bar | yes |
Active and passive safety | |
Active headrest | yes |
Electronic security and traffic control systems | |
ABS | yes |
Electronic Brake Distribution | yes |
Break assist | yes |
Automatic activation of alarm in emergency braking | yes |
ESP | yes |
traction control | yes |
Hill-start assist control system | yes |
Cruise control | yes |
Distance control system | yes |
Autolock doors | yes |
Control system of a headlight | yes |
Front sonar | yes |
Rear sonars | yes |
Intelligent parking assist | no |
Collision mitigation system | yes |
Amenity | |
Microclimate | |
Air conditioner | yes |
Part climat equipment | 3 zones |
Air filter | yes |
Audio systems | |
Radio | yes |
CD player | yes |
DVD-audio | yes |
Audio HDD | yes |
Hands free | yes |

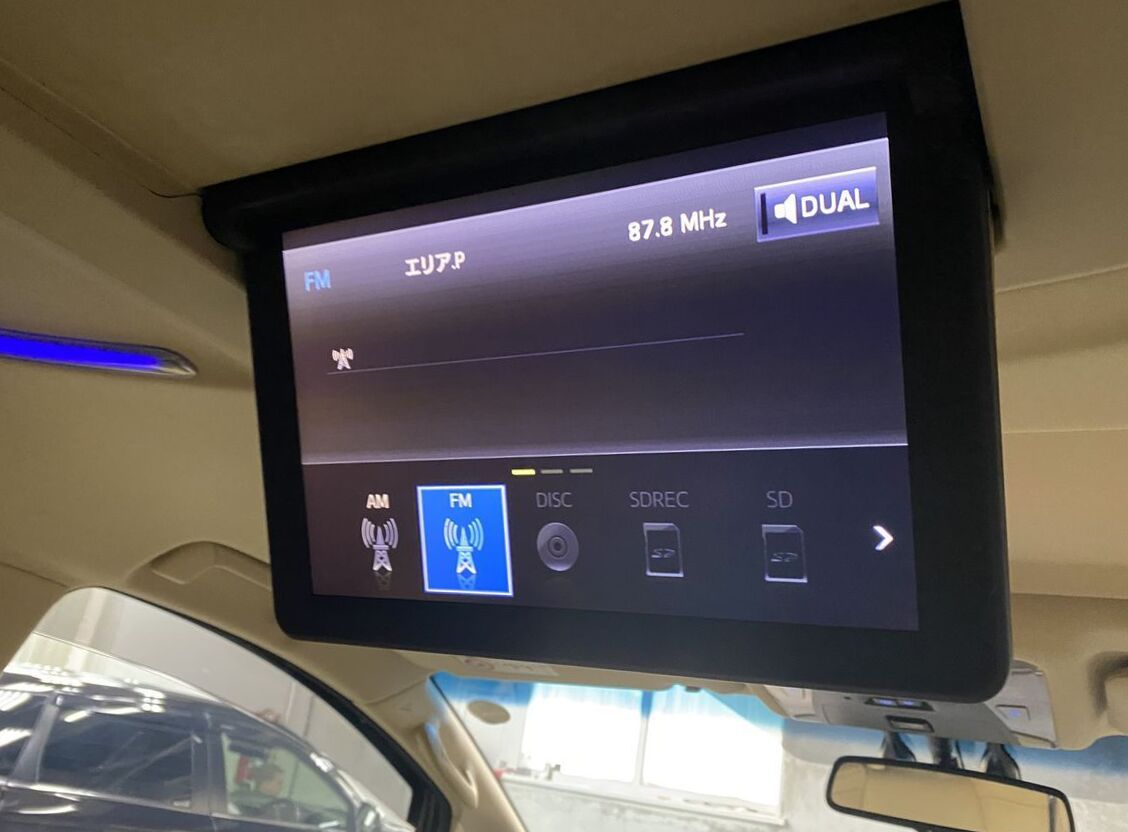

Rear entertainment system | yes |

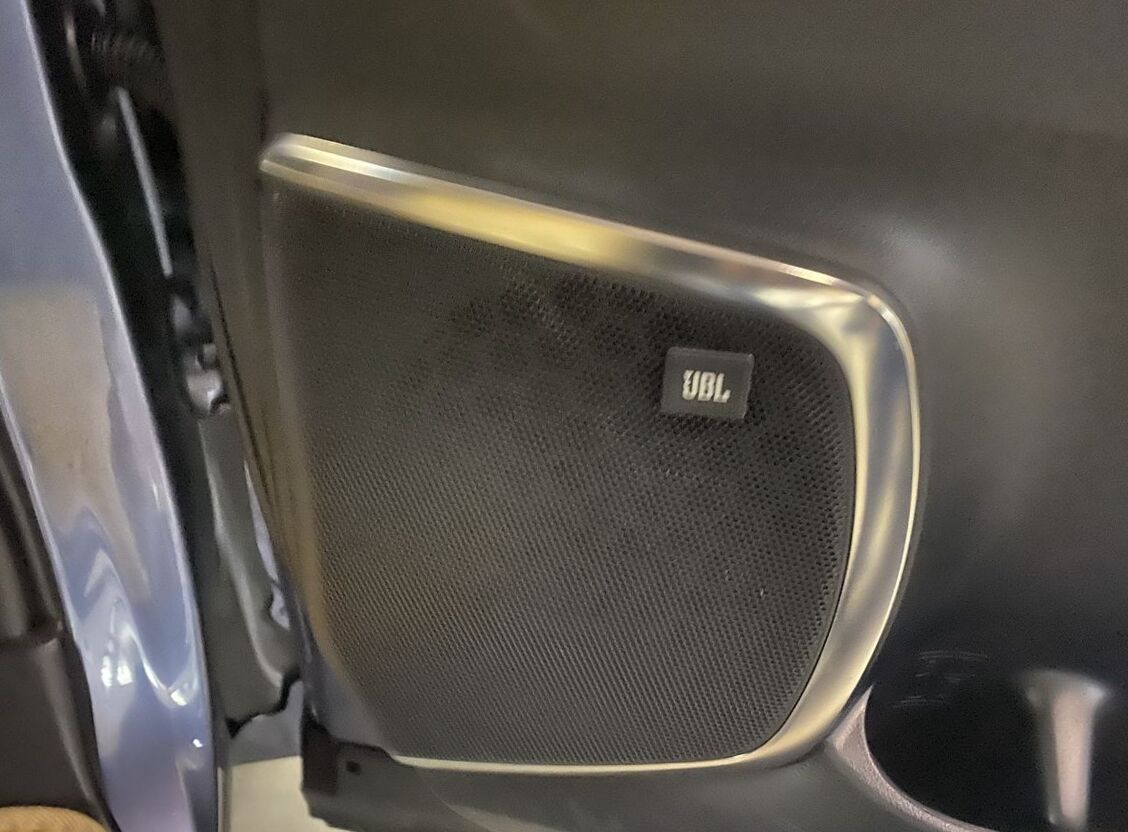

Additional sound equipment | JBL premium sound system (standard) |

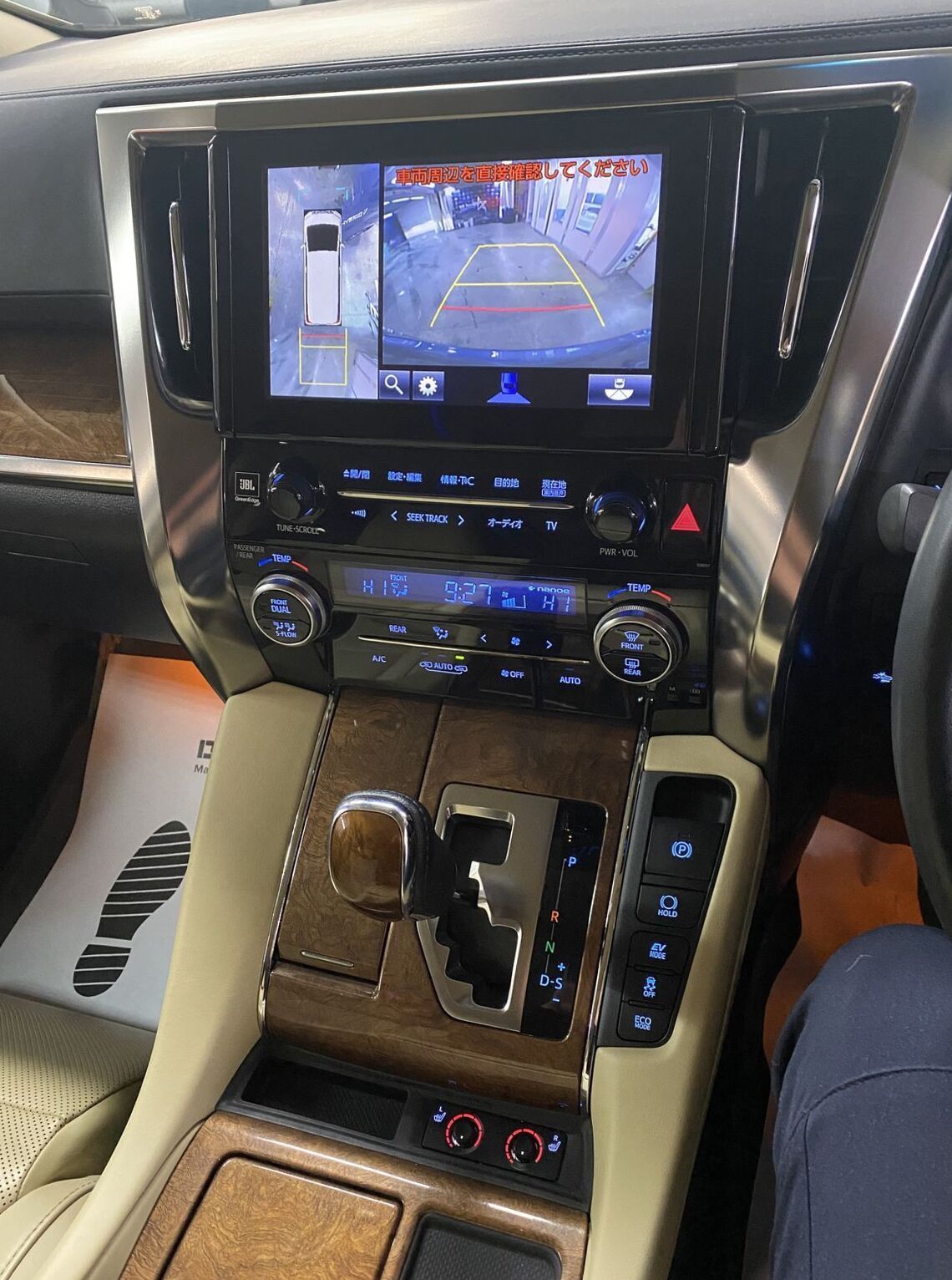

Navigation and video equipment | |
Full color LCD display | 9.2" |
Navigation system | yes |
Traffic jam assist | yes |
Parking assist system | yes |
Front monitor | yes |
Sides monitors | yes |
Back monitor | yes |
Additional amenities | |
Antidazzle rearview mirror | yes |
Mirrors in sunshields | yes |
Illumination in the cabin during landing | yes |
Lagage box | yes |
Onboard computer | yes |
Etc | yes |
Car safety | |
Alarm system | yes |
Security alarm | yes |
Driver Kit | |
Spare tyre small | option |
Jack | yes |
Balonnik | yes |
2016 Toyota Alphard III DAA-AYH30W Hybrid 2.5 Executive Lounge 4WD (152 Hp) specs
|
Toyota states its "E-Four electric 4WD system that regulates a rear-mounted, rear-wheel-propelling electric motor and coordinates electric power distribution to all four wheels. An ECB (Electrically Controlled Brake system) provides efficient wheel-by-wheel brake control." The full-size Alphard Hybrid MPV qualifies as an Ultra-Low Emissions Vehicle (ULEV), achieving levels 75% lower emissions than the Japanese government's 2000 benchmark. The 2.4-litre gasoline engine has been developed specifically for use in Toyota's hybrid systems and features a high-expansion ratio cycle that raises efficiency and reduces friction. In 2006, a Royal Lounge Alphard was introduced. It is a luxurious, four-seat version of the Alphard. The Alphard Hybrid uses "by-wire" technology that monitors brake pedal pressure and vehicle speed in order to calculate the optimum hydraulic pressure. By-wire works with the E-Four to maximize the collection of kinetic energy from braking for conversion into electric power. » Read More About Toyota Alphard |
