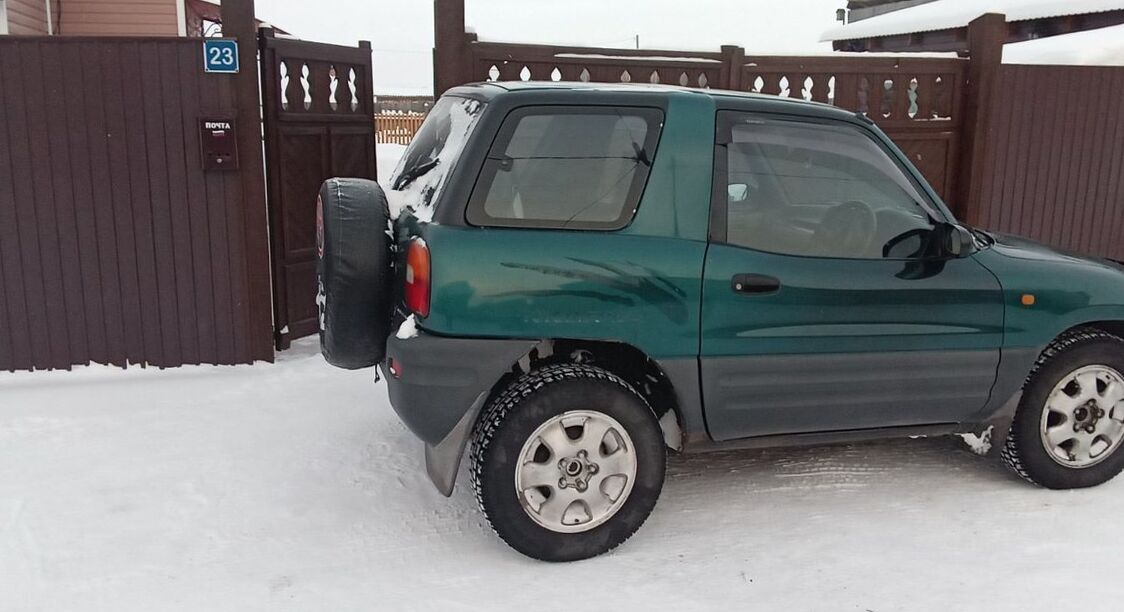

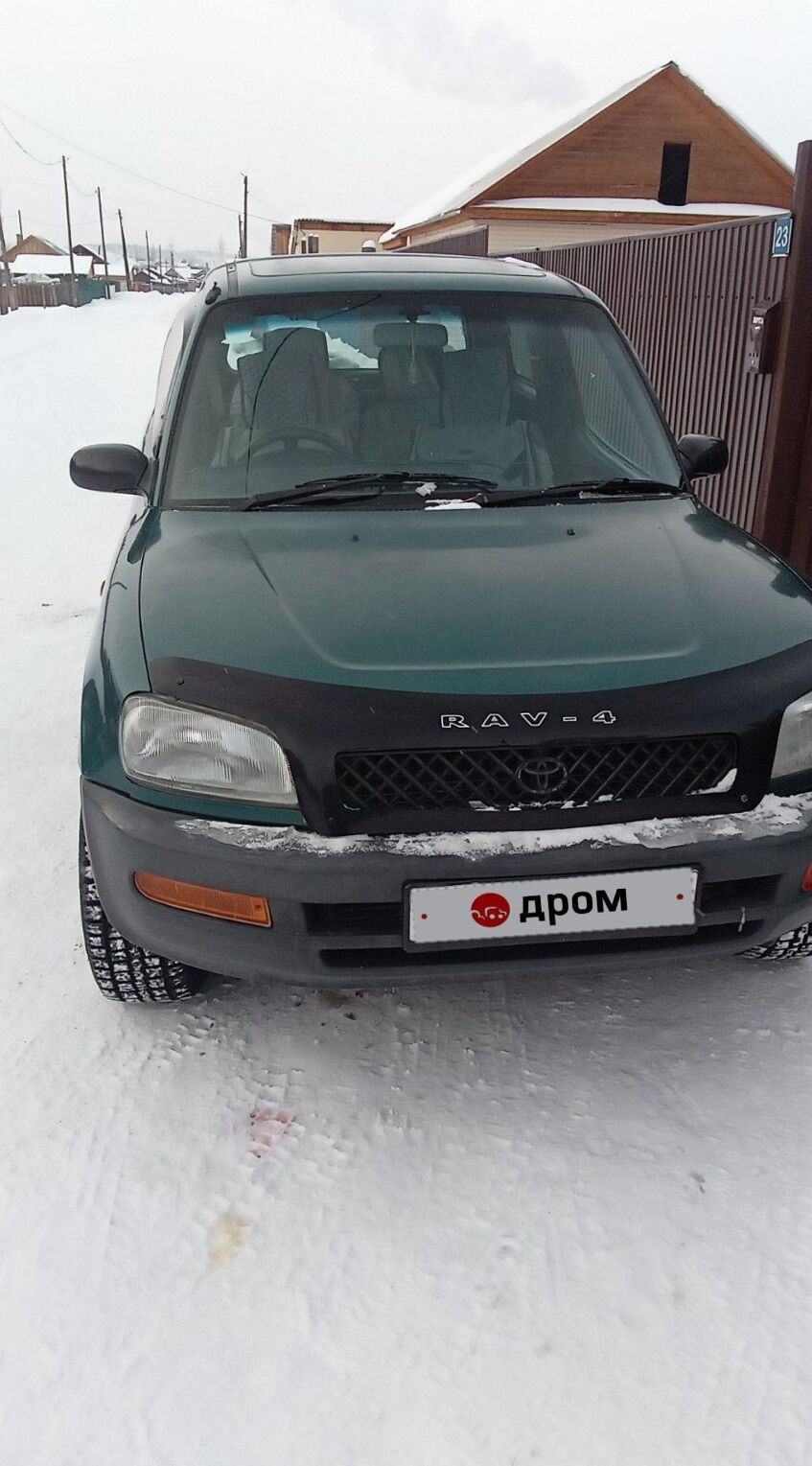

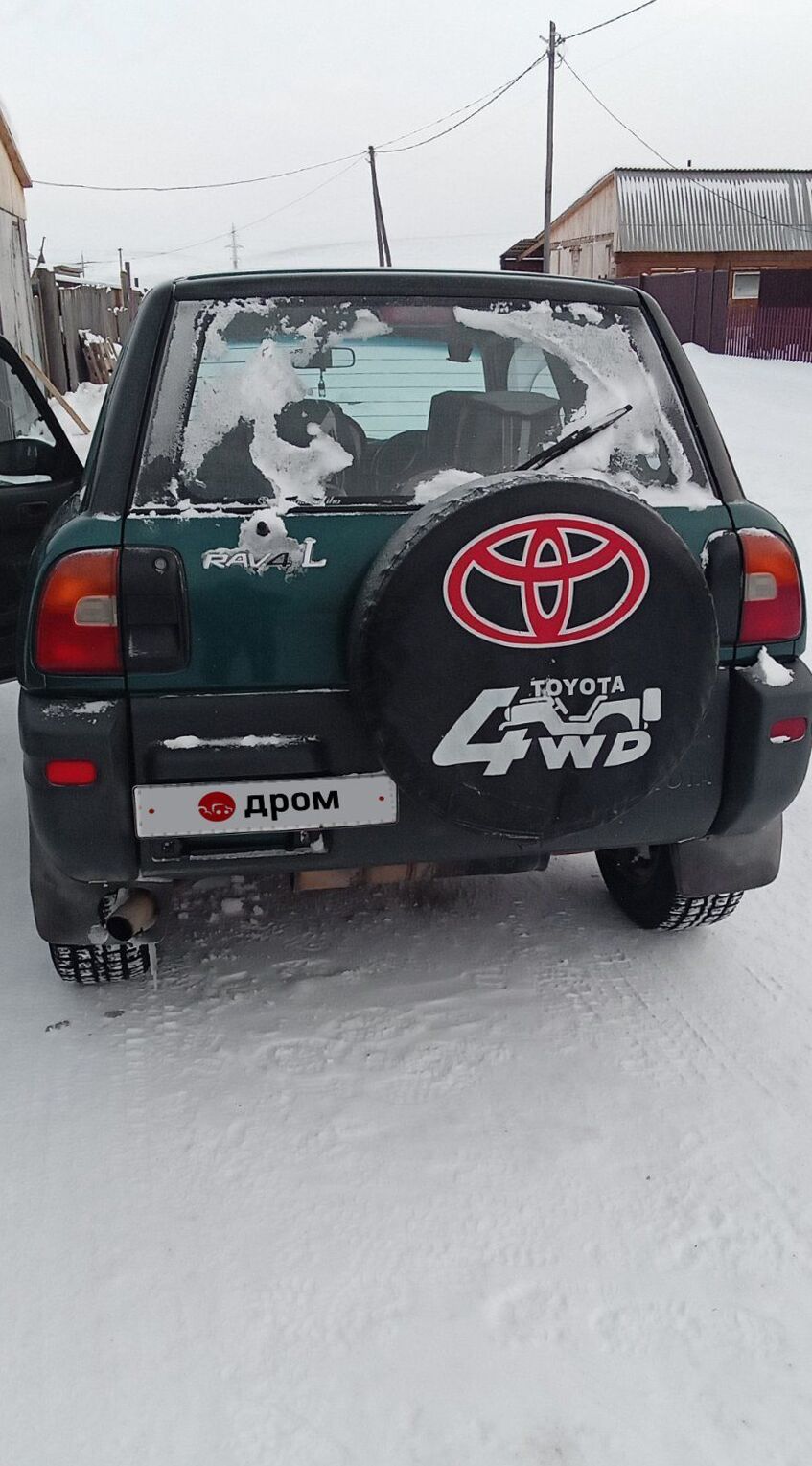

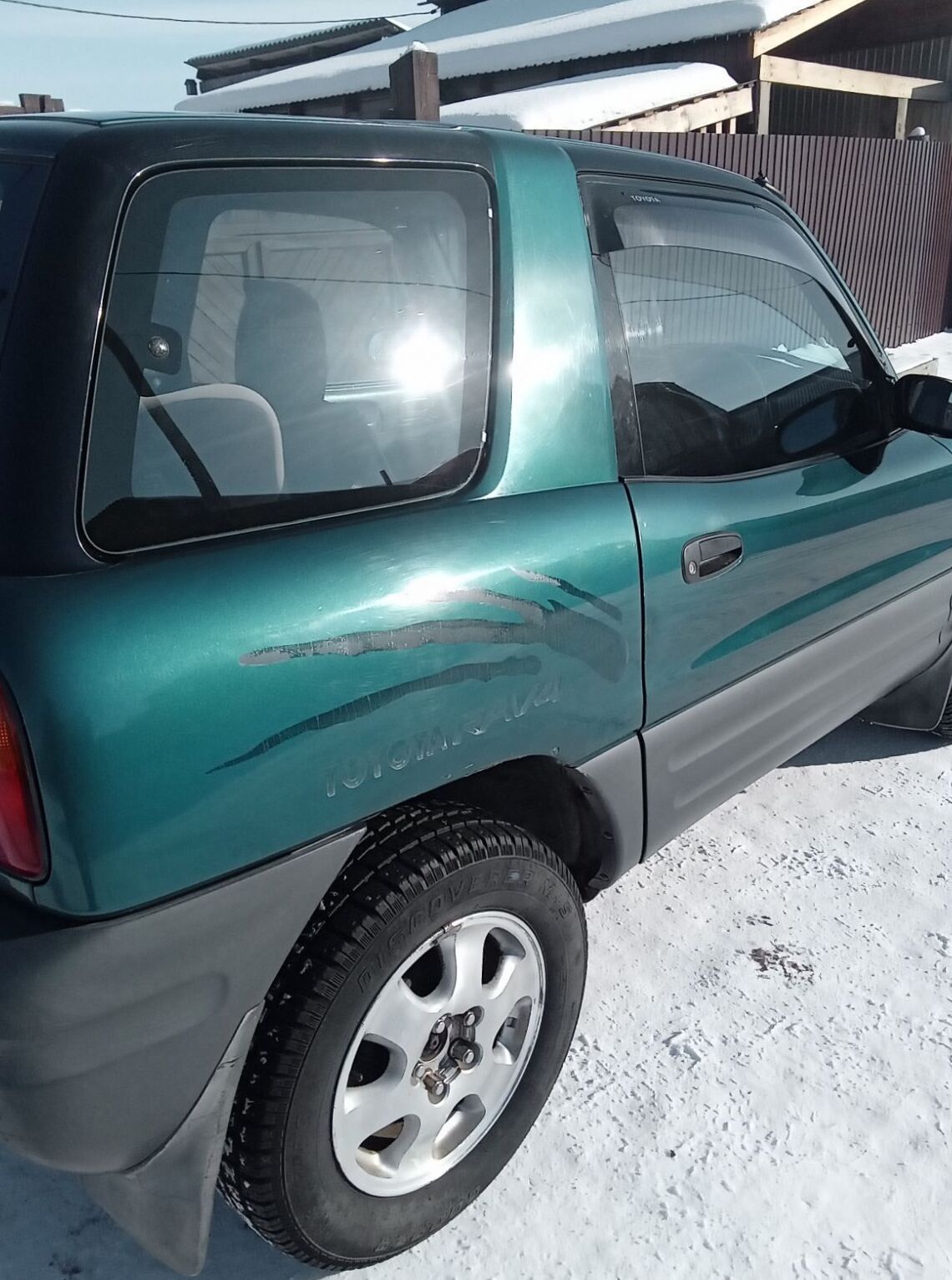

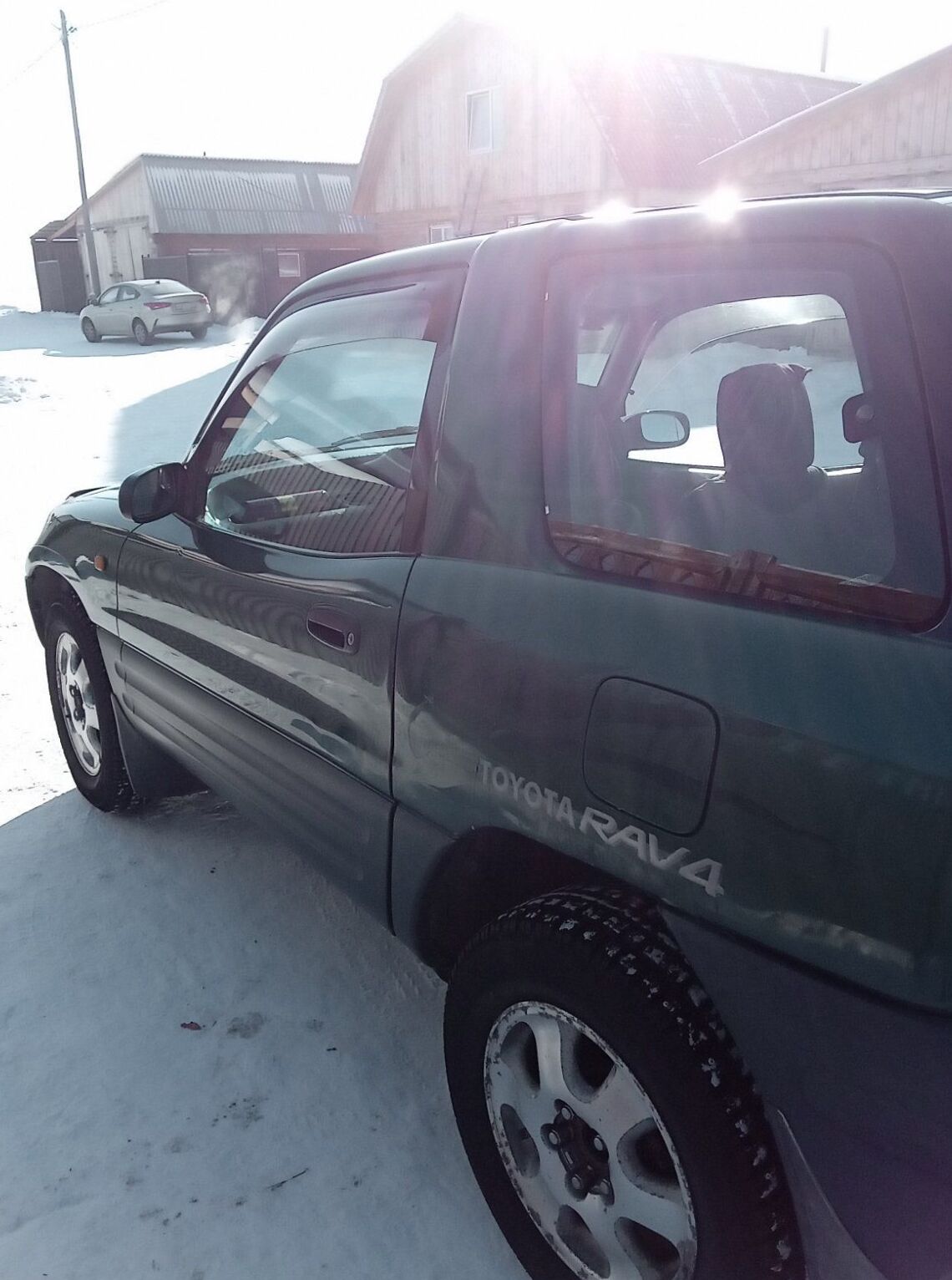

1993 Toyota RAV4 2.0 L
Toyota RAV4 Problems
Transmission noise after hitting a bump
1995, Noisy transmission gearbox after hitting
a bump. Transmission cut off after hitting bum...
Check engine light is on and 4x4 light is on
2009, Check engine light is on and 4x4 light is
on. Went to to start the car and they stayed o...
Transmission slips when cold. Have to warm up w...
2011, After sitting overnight on a cold day,
the car sometimes won't move because the
tra...
| Body type | SUV 3 Doors |
|---|---|
| Power | 135 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | green |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 140260 Miles |
| Vin | SXA100****95 |
| Price (out of date) | $3717 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Toyota RAV4 SUV 1993? | SUV, 4 Seats, 3 Doors |
| How much power, Toyota RAV4 E-SXA10G 1993? | 135 Hp |
| What is the engine size, 1993 Toyota RAV4 2.0 L? | 2L or 1998cm3 |
| How many gears, What type is the gearbox, Toyota RAV4 1993 SUV 2.0 L (135 Hp)? | Automatic transmission 4 |
| What is the drivetrain, 1993 Toyota RAV4 SUV 2.0 L (135 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, Toyota RAV4 SUV 1993? | 3695 mm |
| How wide is the vehicle, Toyota RAV4 E-SXA10G 1993? | 1695 mm |
Toyota RAV4 E-SXA10G 2.0 L (135 Hp) 1994, 1995, 1996 Specs
General information | |
|---|---|
| Complectation name | 2.0 L |
| Production start year | 1994 |
| Production end year | 1996 |
| Price of new car in Tokyo, yen | 1898000 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1998 |
| Frame name | E-SXA10G |
| Clearance, mm | 205 |
| Manufacturing country | Japan |
| Doors | 3 |
| Right hand drive | yes |
| Left hand drive | no |
Vehicle generation | |
| Generation name | XA10 |
| Generation number | 1 |
| Production start year | 1994 |
| Production end year | 1997 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | 3S-FE |
| Fuel | Petrol (Gasoline) |
| Engine type | water cooling 4 cylinder DOHC16 valve |
| Has turbo | no |
| Max power, hp | 135 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 135 (99) / 6000 |
| Max torque, N*m | 181 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 181 (18) / 4400 |
| Compression ratio | 9.5 |
| Bore, mm | 86 |
| Stroke, mm | 86 |
Fuel consumption | |
| Fuel consumption (10/15 mode), l/100km | 9.1 |
| Fuel consumption (60 km/h mode), l/100km | 5.6 |
Transmission | |
| 1st gear ratio | 2.81 |
| 2nd gear ratio | 1.549 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.734 |
| Rear gear ratio | 2.296 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3695 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1655 |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
| Interior length, mm | 1645 |
| Interior width, mm | 1435 |
| Interior height, mm | 1195 |
Chassis dimensions | |
| Wheel base, mm | 2200 |
| Front axle length, mm | 1460 |
| Rear axle length, mm | 1465 |
| Turning radius, m | 5 |
| Wheel spacing front | 1460 |
| Wheel spacing rear | 1465 |
Weight and permissible load | |
| Mass, kg | 1180 |
Volumes | |
| Fuel tank capacity, l | 58 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | no |
| Rear suspension | Independent on double wishbones |
| LSD | option |
Tires | |
| Front wheels | 215/70R16 |
| Rear wheels | 215/70R16 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | no |
| Rear fog lamps | no |
| Additional stop light | yes |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | yes |
Windows | |
| Ultraviolet glass protection | yes |

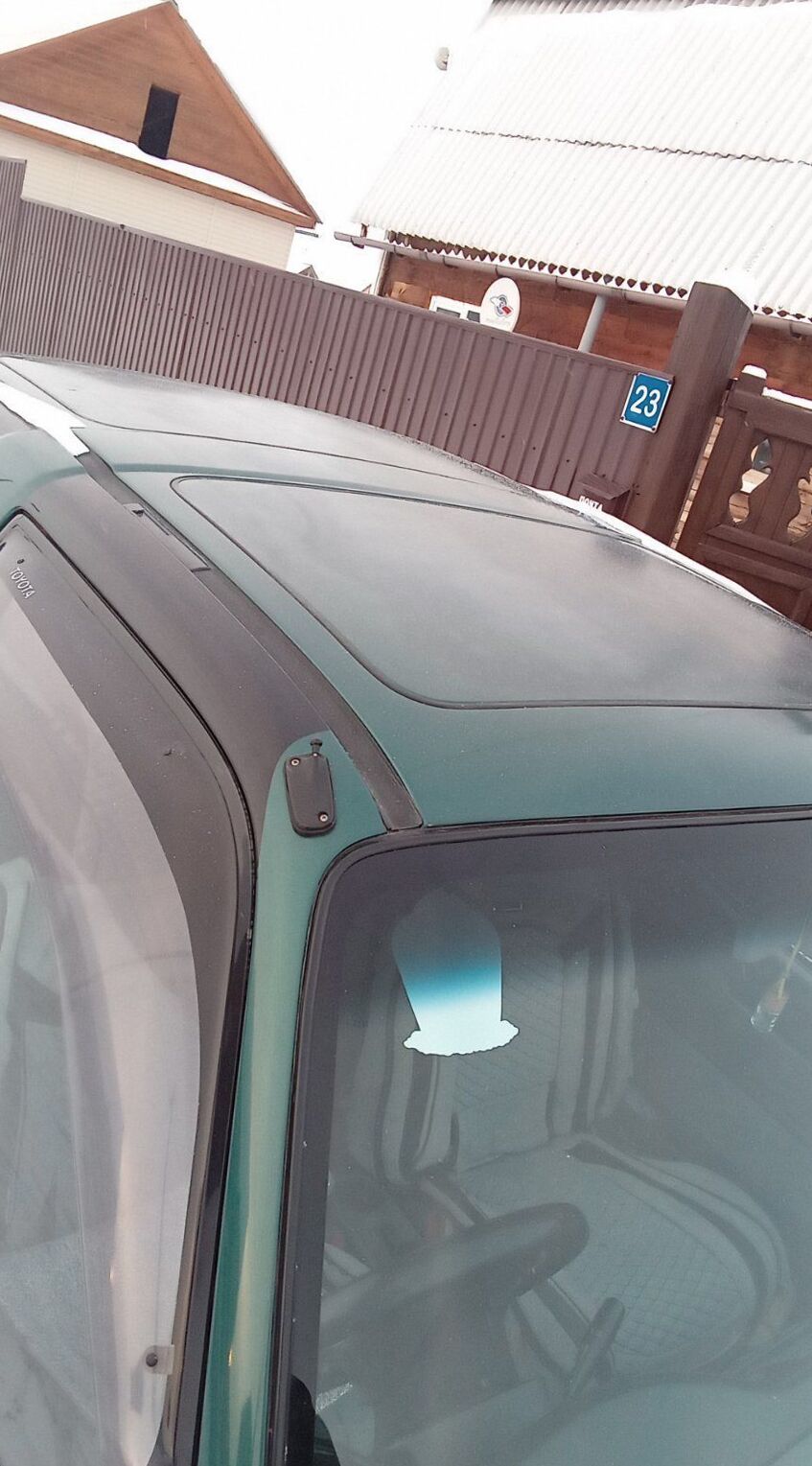

Roof | |
| Sunroof | no |
| Tilt sunroof | no |
| Twin sunroof | option |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
| Back wiper | yes |
Body color | |
| Colors | 25 8 12 2010 |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | no |

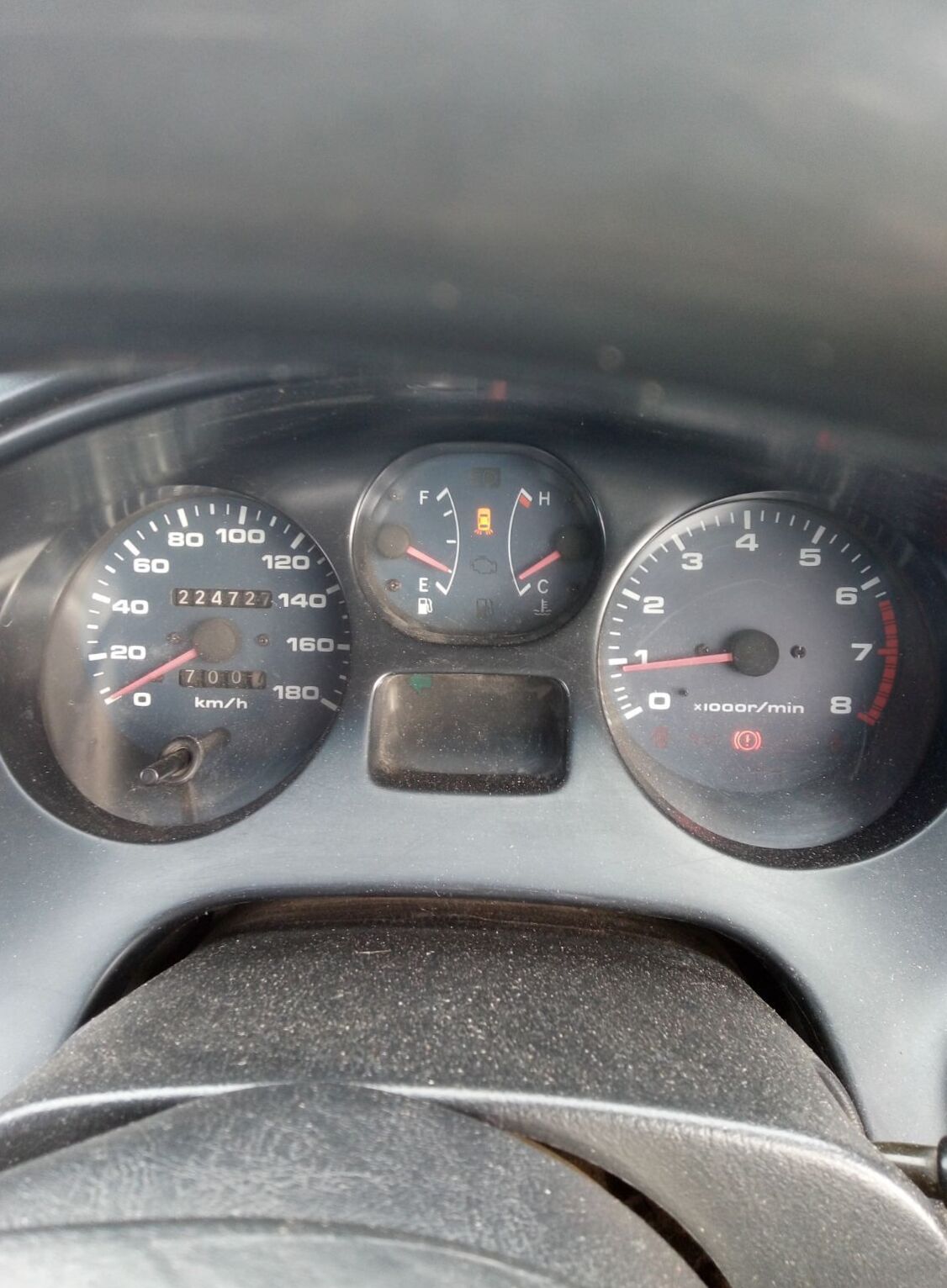

| Tachometer | yes |
Interior design | |
| Leather seat | no |
| Wood panel | no |
Seats | |
| Reclining seats | yes |
| Removable seats | yes |
| Turning seats | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | no |
| Power window | yes |
| Central power window control | no |
Safety | |
Airbags | |
| Drivers airbag | option |
| Passengers airbag | no |
| Side airbag | no |
Children safety | |
| Child car restraints | yes |
Active and passive safety | |
| Durable frame | no |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | no |
| Safety belt limiter | no |
Electronic security and traffic control systems | |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | no |
| Twin conditioning system | no |
| Air purifier | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | option |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |

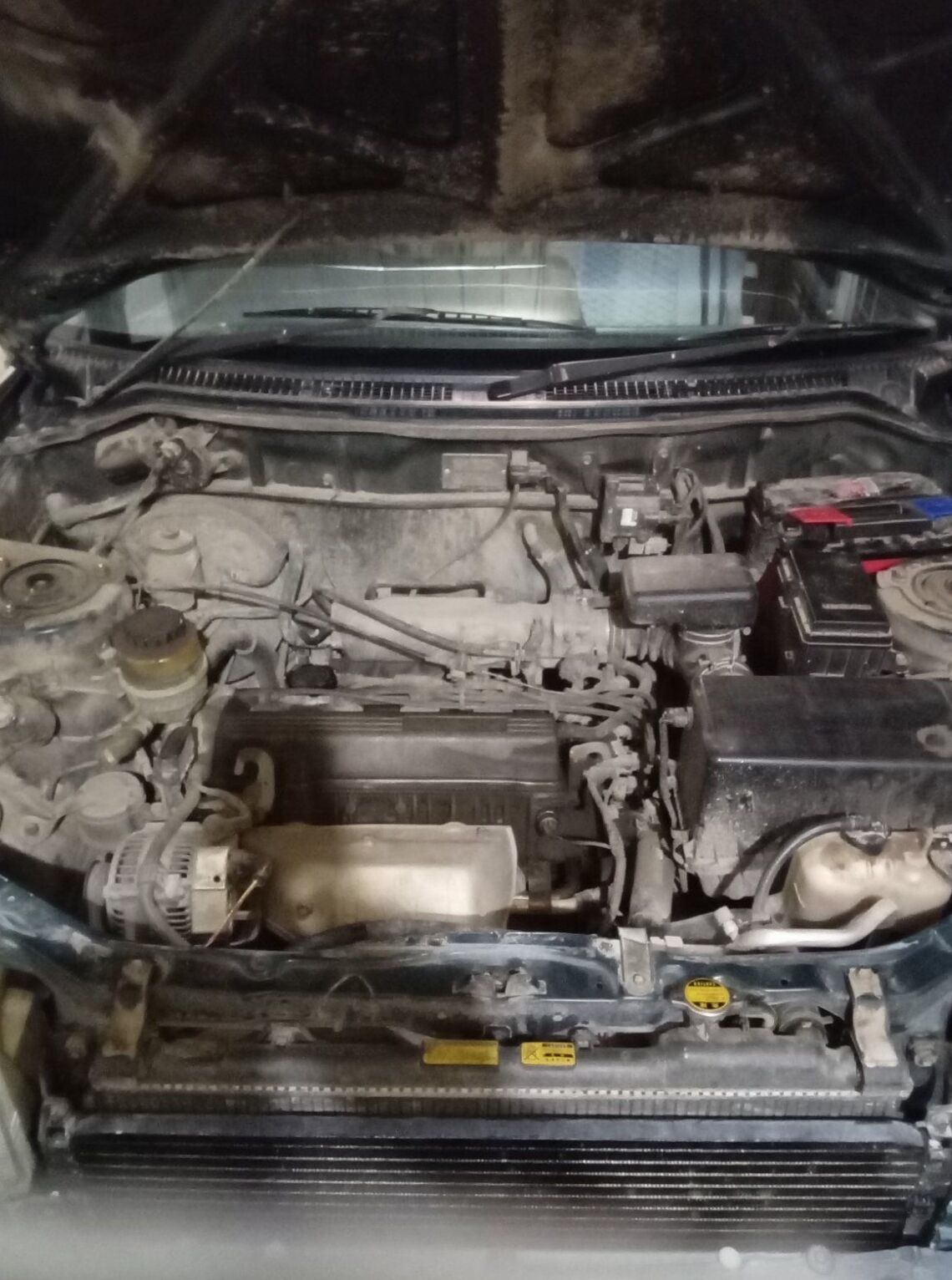

The Rav4 is available in a 2 door soft top or a 5 door hard top with front or 4 wheel drive. Under the hood is a 2.0-liter DOHC 16-valve 4-in-line with 127 hp with choice of a 5 speed manual or 4 speed automatic transmission.
1993 Toyota RAV4 E-SXA10G 2.0 L (135 Hp) specs
|
The RAV4 was originally based on the Corolla platform, and was offered in both two and four-door versions. In the US, a 2.0L straight-4 producing 120hp (89kW) was offered. Both Front wheel drive and Four-wheel drive were available, and the RAV4 could be had with either a five-speed manual or four-speed automatic transmission. In 1998, the RAV4 was slightly restyled on the front and rear fascias, and a soft-top two-door was made available exclusively in the US market. Horsepower was increased slightly to 127. In 1999, the two-door hardtop was dropped from the American lineup, leaving the 4-door and soft-top models. One interesting version, the RAV4 EV, was an all-electric 'zero-emission' model offered for sale in small quantities in California. These models came with a 60,000-mile (97,000km) battery warranty, and the vehicles still command high prices on the used-car market. One sold in 2006 on eBay for over US$50,000. A significant criticism of the gasoline-powered first generation RAV4s, often called '4.1s', was that they were underpowered, and had relatively poor fuel economy via their 3SFE engines that were designed for earlier Camrys and 1987-1989 Toyota Celica GT, 1990-1993 S-R and Z-R, as well as 1994-1999 SS-I. Later generations of RAV4s, the so-called '4.2s' and '4.3s', have addressed this concern. » Read More About Toyota RAV4 |
