2007 Toyota Town Ace III 1.8 DX low floor high roof 4WD (5 door 6 seat)
Toyota Town Ace Problems
Rear washer installation
1996, If you have a photo and or diagram of
installation of rear panel, rhs, of washer
bottle...
Multifunction warning lamp
2011, multifunction warning lamp on dashboard
what is the cause of that on constantly by
flash...
Transmission problem
1991, Transmission not changing gear to 4 &
5 at high rev but changes gear perfectly from ...
| Body type | Minivan |
|---|---|
| Power | 82 Hp |
| Engine Displacement | 1800 cm3 or 1.8L or 109.8 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 109982 Miles |
| Vin | KR520****42 |
| Price (out of date) | $3225 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2007 Toyota Town Ace III? | Minivan, 6 Seats, 5 Doors |
| How much power, Toyota Town Ace Minivan 2007? | 82 Hp |
| What is the engine size, Toyota Town Ace GK-CR52V 2007? | 1.8L or 1781cm3 |
| How many gears, What type is the gearbox, 2007 Toyota Town Ace 1.8 DX low floor high roof 4WD (5 door 6 seat)? | Automatic transmission 4 |
| What is the drivetrain, Toyota Town Ace III 2007 Minivan 1.8 DX low floor high roof 4WD (5 door 6 seat) (82 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2007 Toyota Town Ace Minivan 1.8 DX low floor high roof 4WD (5 door 6 seat) (82 Hp)? | 4475 mm |
| How wide is the vehicle, 2007 Toyota Town Ace III? | 1695 mm |
Toyota Town Ace III GK-CR52V 1.8 DX low floor high roof 4WD (5 door 6 seat) (82 Hp) 2005, 2006, 2007, 2008 Specs
General information | |
|---|---|
| Production start year | 2005 |
| Production end year | 2008 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1781 |
| Frame name | GK-CR52V |
| Clearance, mm | 185 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
Vehicle generation | |
| Generation name | R40, R50 |
| Generation number | 3 |
| Production start year | 1996 |
| Production end year | 2008 |
Engine, transmission and steering specs | |
Engine specs | |

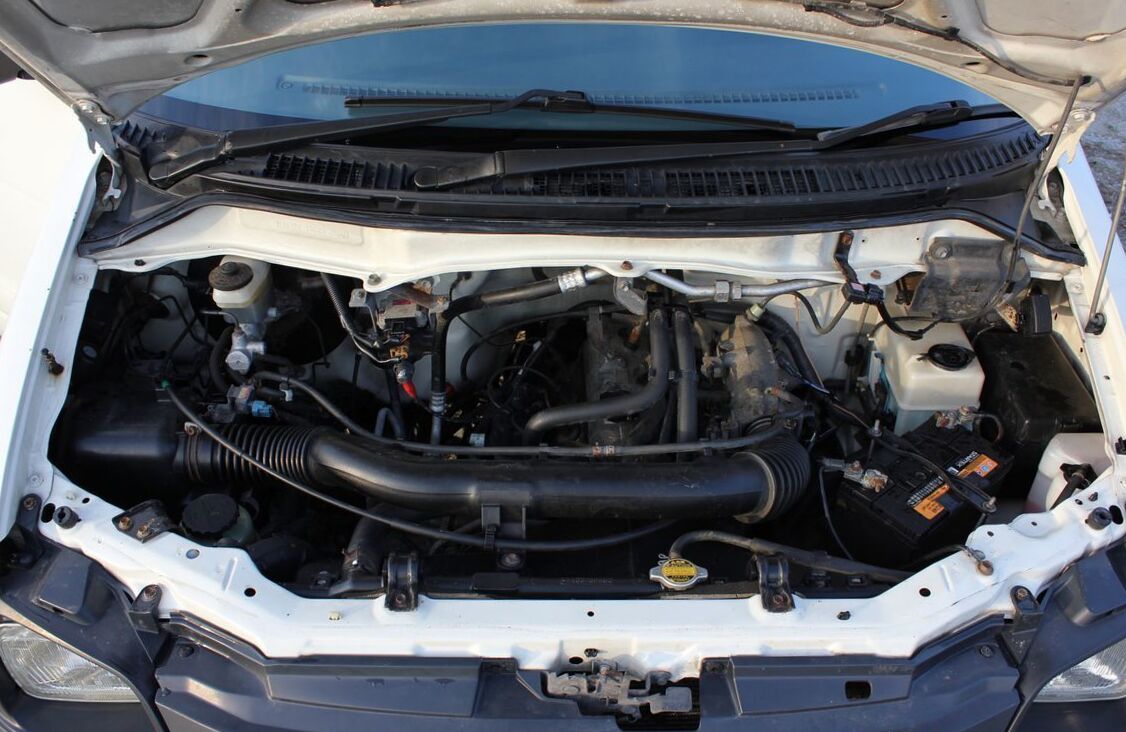

| Engine name | 7K-E |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Max power, hp | 82 |
| Max power RPM, rpm | 4800 |
| Max power, hp (kWt) / rpm | 82(60)/4800 |
| Max torque, N*m | 142 |
| Max torque RPM, rpm | 2800 |
| Max torque, N*m (kg*m) / rpm | 142 (14.5) / 2800 |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 60?82?/4800 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 142?14.5?/2800 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 9.4 |
| Fuel consumption (10/15 mode), l/100km | 10.6 |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4475 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1990 |
| Exterior size (L x W x H), mm | 4475x1695x1990?mm? |
Interior dimensions | |
| Capacity | 6 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | -x-x-?mm? |
Chassis dimensions | |
| Wheel base, mm | 2715 |
| Front axle length, mm | 1455 |
| Rear axle length, mm | 1445 |
| Turning radius, m | 5.7 |
| Front/rear axis length | 1455/1445?mm? |
| Wheel spacing front | 1455 |
| Wheel spacing rear | 1445 |
Weight and permissible load | |
| Mass, kg | 1410 |
| Total weight | 2325 |
| Max capacity | 750 |
Volumes | |
| Fuel tank capacity, l | 55 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent on double wishbones |
| Rear suspension | Dependent, multilever |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | no |
| Magnesium wheels | no |
Tires | |

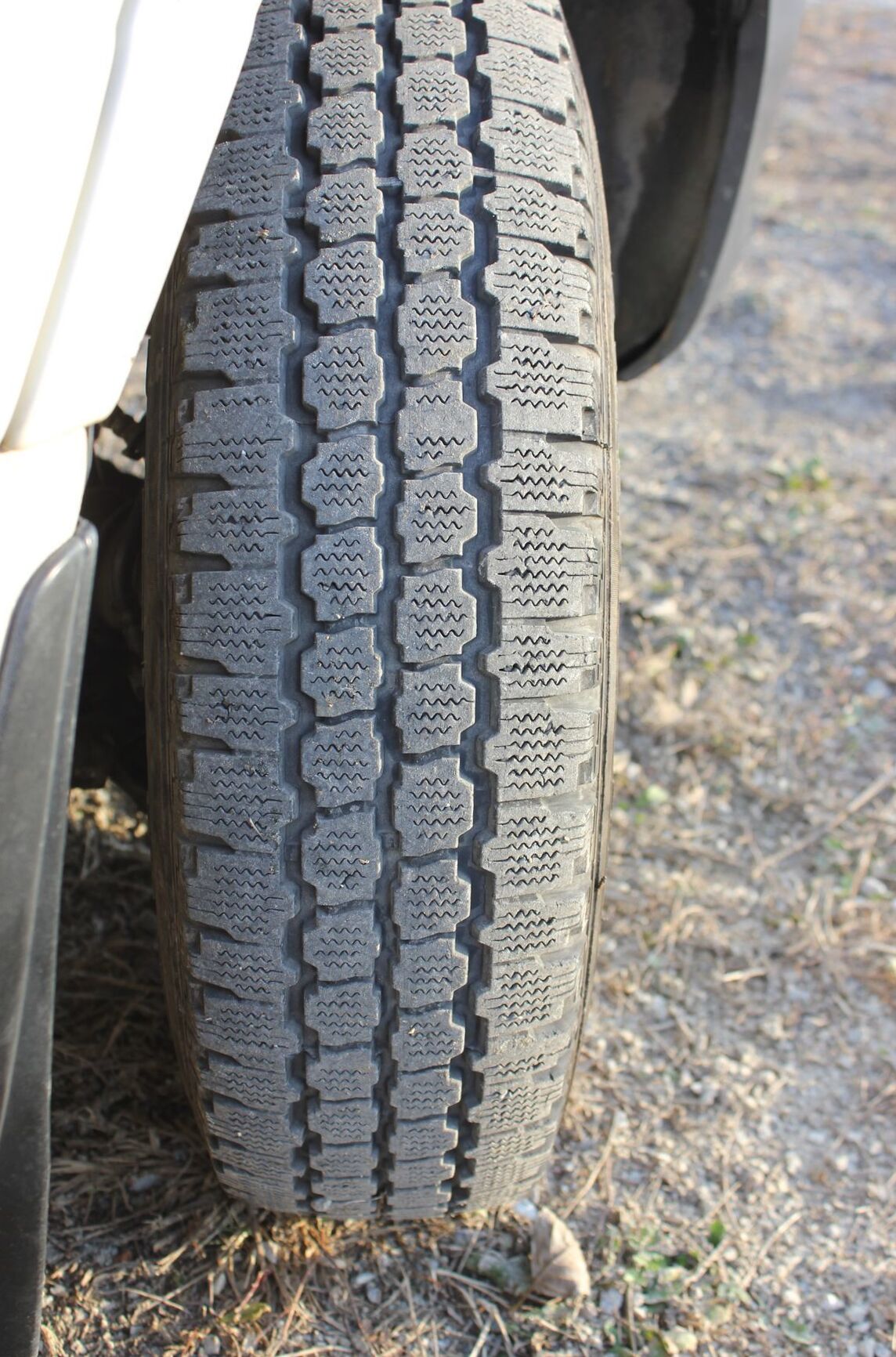

| Front wheels | 175R14-6PRLT |
| Rear wheels | 175R14-8PRLT |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Head lights washer | no |
| Front fog lamps | no |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | yes |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | no |
| Ultraviolet glass protection | no |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
Body color | |
| Colors | 1300 |
Interior | |
Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |
| 2nd row | foldable, backrest is indivisible |
| 3nd row | no |
| Seat lifter | no |
| Full flat seats | no |
| Removable seats | no |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | yes |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | no |
| Power window | no |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | option |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | no |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | no |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | no |
| Odor absorber | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | no |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Traffic jam assist | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | no |
Additional amenities | |
| Lagage box | no |
| Etc | no |
Car safety | |
| Alarm system | no |
| Security alarm | no |
2007 Toyota Town Ace III GK-CR52V 1.8 DX low floor high roof 4WD (5 door 6 seat) (82 Hp) specs
|
The left-hand drive Toyota Van for the USA market has a lot in common with the TownAce, but did not have all the luxury options, 4WD or the diesel engine. When the TownAce models became available as grey market exports they became popular in UK, where new Spacecruisers had been sold for many years. A 10-year old TownAce was an attractive option for a reliable, cheap MPV with many luxury features - such as aircon/ climate control and automatic transmission. The 2CT diesel engine is low powered but offers 30+ mpg (less than 10 L per 100 km). Large numbers were also exported to Russia and clusters are found in many other countries including Sri Lanka, Pakistan, Bangladesh, Tanzania etc. UK grey import TownAce owners ran into two main issues — the need to keep the engine's ageing cooling system well-maintained and the lack of manuals or other documentation for doing any DIY repairs or maintenance. Websites and forums emerged to solve these problems and Toyota GB provided good support with supply of spare parts even though new TownAces had never been sold in UK. It happened that Toyota had produced a good repair manual (RM025E) for the 2CT diesel engine and Autodata had published a comprehensive TownAce manual, but only in Russian. Other information was gleaned from manuals for the related Toyota Van sold in USA and the Toyota Tarago sold in Australia. » Read More About Toyota Town Ace |
