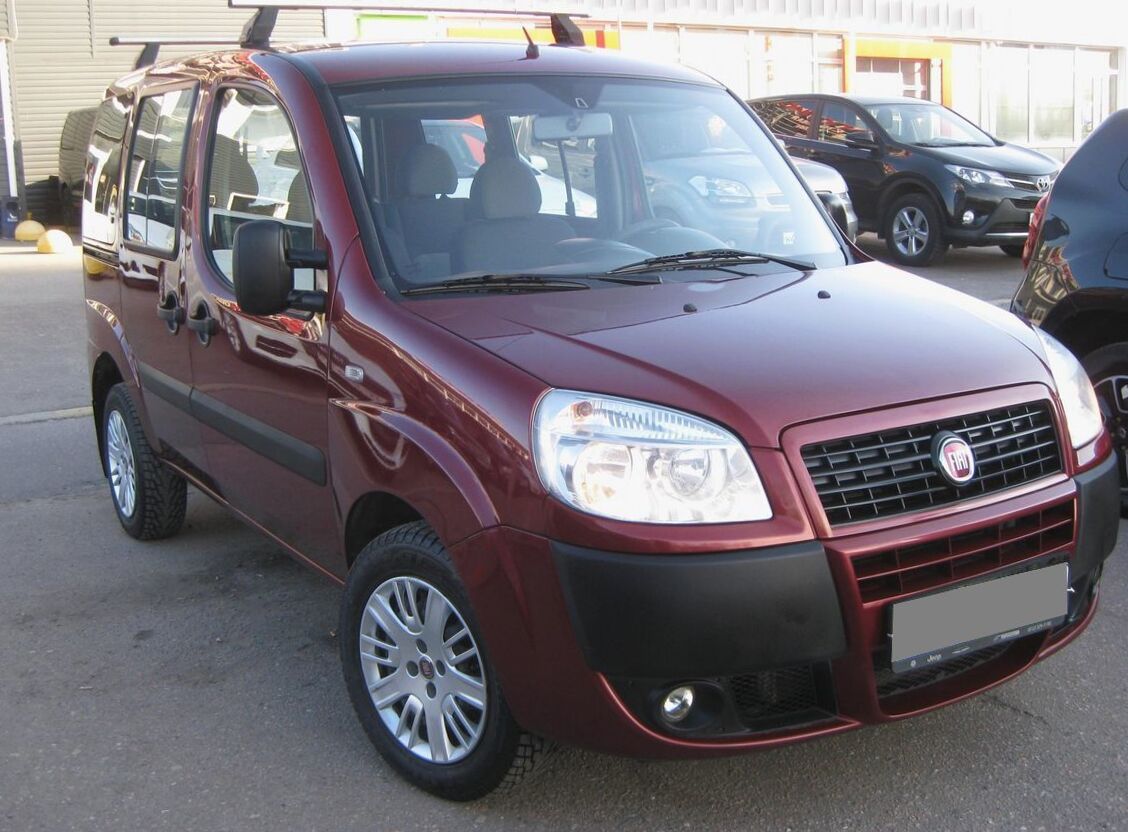

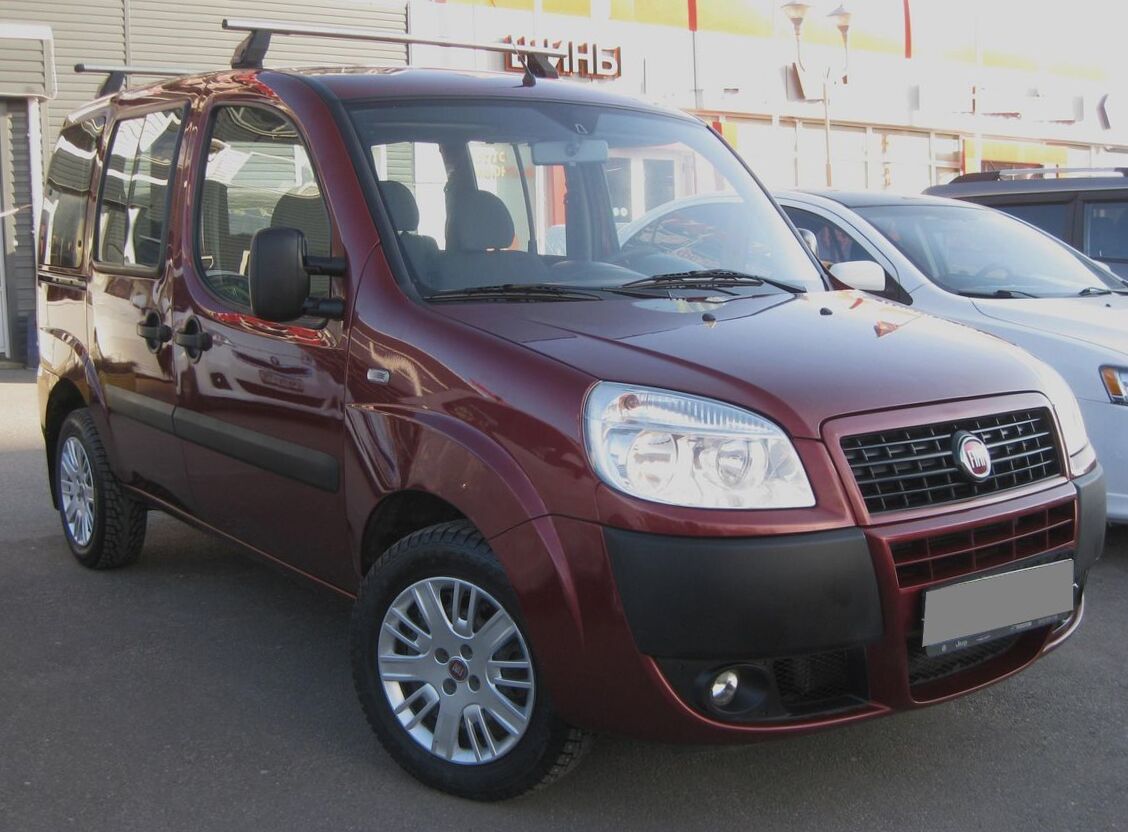

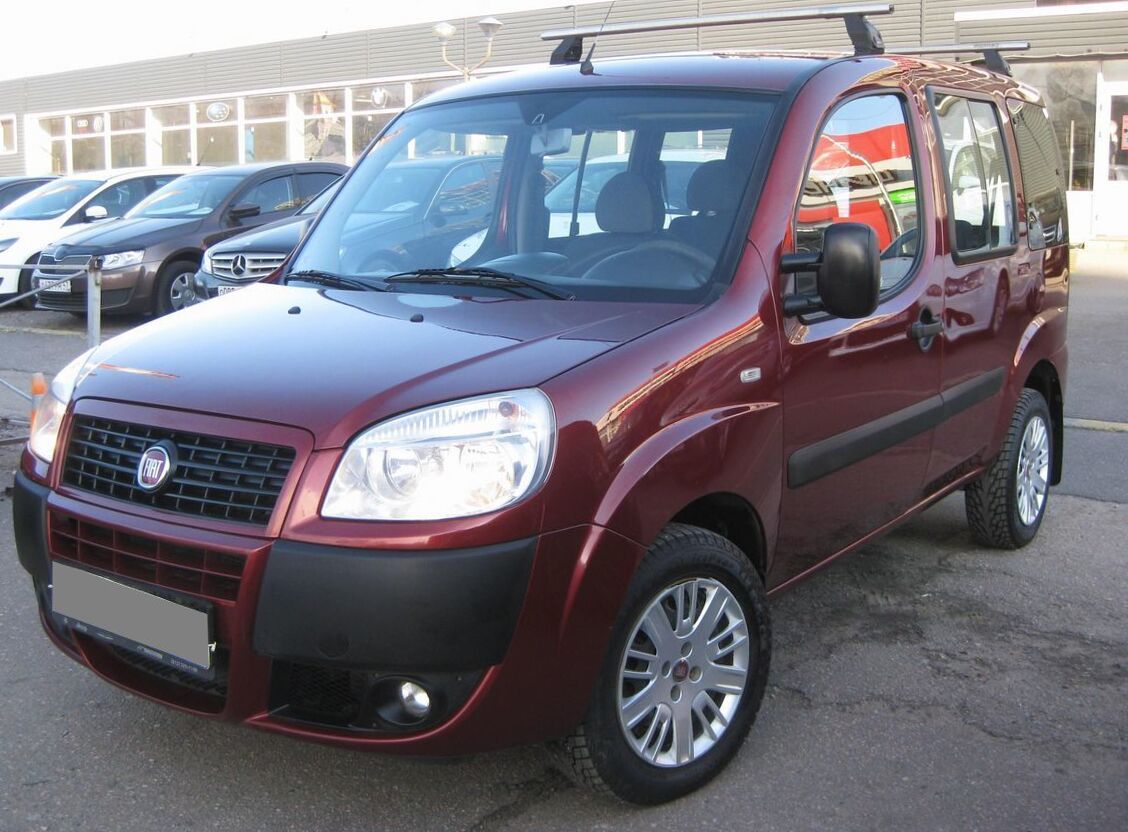

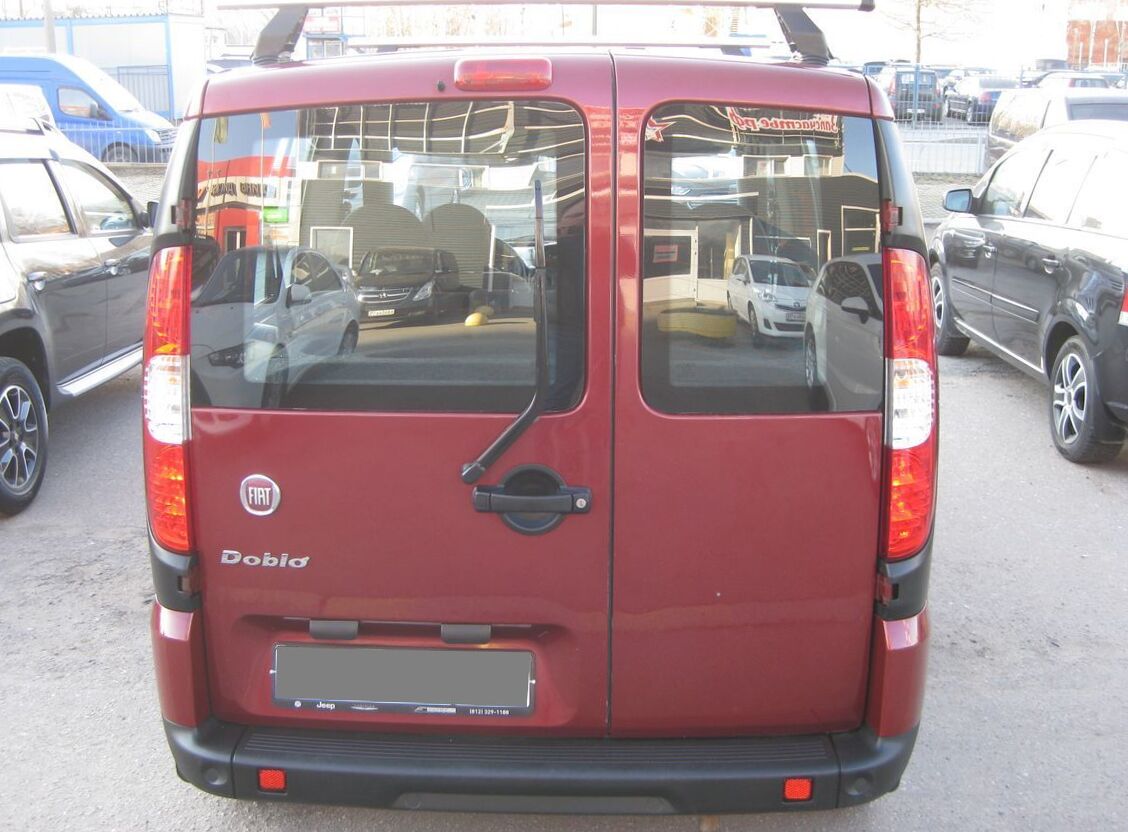

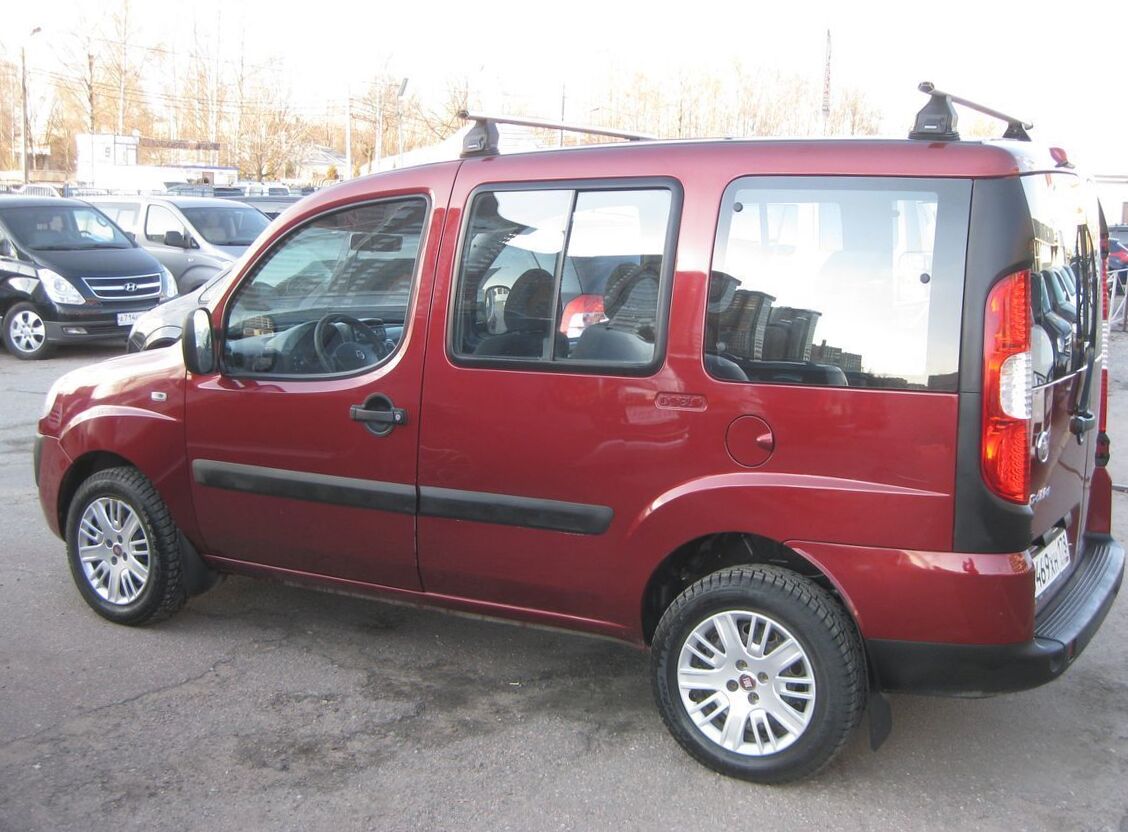

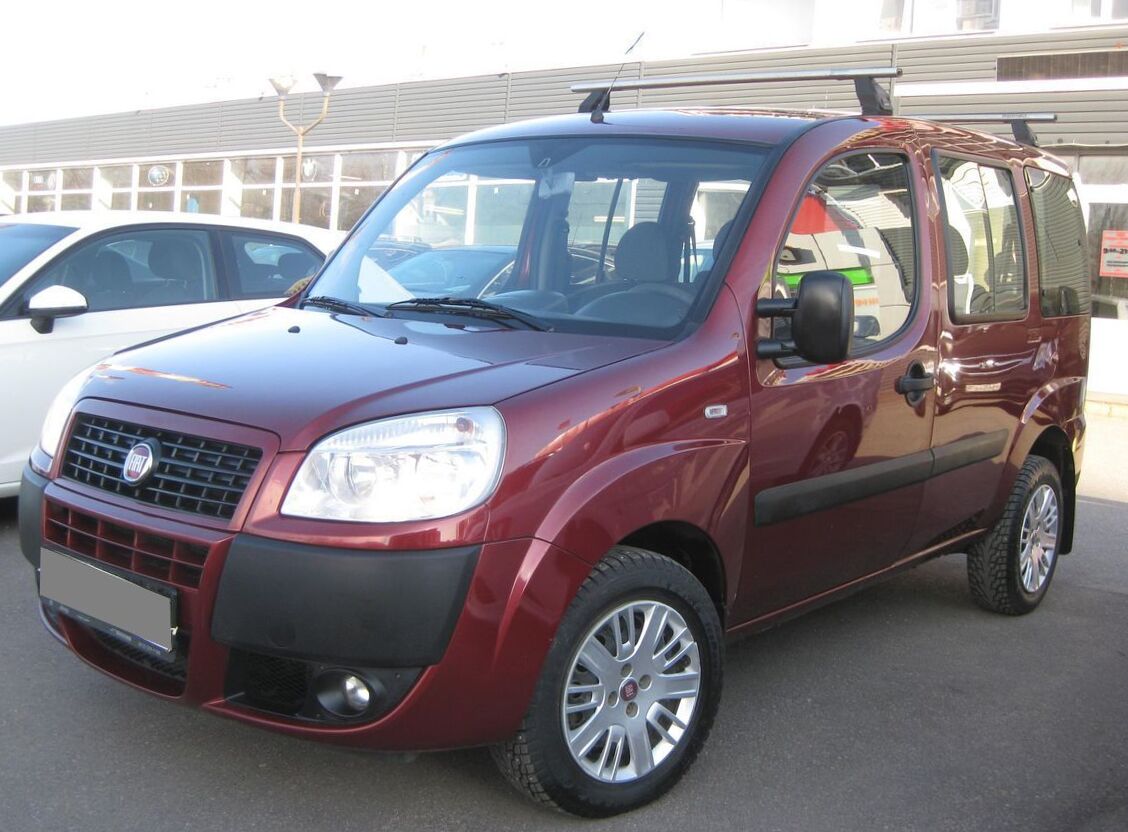

2015 Fiat Doblo 1.4 MT Active+
Fiat Doblo Problems
Clutch slave cylinder failiure twice with in a...
2010, fiat doblo 1.6 diesel - clutch slave
cylinder failed - burst its seals - then a new
one ...
Clutch slave cylinder failiure twice with in a...
2010, fiat doblo 1.6 diesel - clutch slave
cylinder failed - burst its seals - then a new
one ...
| Body type | Minivan |
|---|---|
| Power | 77 Hp |
| Engine Displacement | 1400 cm3 or 1.4L or 85.4 cu-in |
| Color | claret |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 61674 Miles |
| Vin | 086*** |
| Price (out of date) | $6417 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Fiat Doblo Minivan 2015? | Minivan, 5 Seats, 4 Doors |
| What is the fuel economy, Fiat Doblo 223 2015? | 7.4 l/100 km |
| How fast is the car, 2015 Fiat Doblo 1.4 MT Active+? | 148 km/h |
| How much power, Fiat Doblo 2015 Minivan 1.4 MT Active+ (77 Hp)? | 77 Hp |
| What is the engine size, 2015 Fiat Doblo Minivan 1.4 MT Active+ (77 Hp)? | 1.4L or 1368cm3 |
| How many gears, What type is the gearbox, Fiat Doblo Minivan 2015? | 5 speed Manual |
| What is the drivetrain, Fiat Doblo 223 2015? | Front |
| How long is this vehicle, 2015 Fiat Doblo 1.4 MT Active+? | 4253 mm |
| How wide is the vehicle, Fiat Doblo 2015 Minivan 1.4 MT Active+ (77 Hp)? | 1722 mm |
| What is the gross weigh, 2015 Fiat Doblo Minivan 1.4 MT Active+ (77 Hp)? | 1830 kg |
| How much trunk (boot) space, Fiat Doblo Minivan 2015? | 750 l |
Fiat Doblo 223 1.4 MT Active+ (77 Hp) 2012, 2013, 2014, 2015, 2016 Specs
General information | |
|---|---|
| Complectation name | 1.4 MT Active+ |
| Production start year | 2012 |
| Production end year | 2016 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1368 |
| Frame name | 223 |
| Max speed | 148 |
| Clearance, mm | 160 |
| Manufacturing country | Turkey |
| Doors | 4 |
| Warranty | 2 years regardless of mileage |
Vehicle generation | |
| Generation name | 223 |
| Generation number | 1 |
| Facelift number | 1 |
| Production start year | 2005 |
| Production end year | 2016 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | 843 A1.000 |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 77 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 77 (57) / 6000 |
| Max torque, N*m | 115 |
| Max torque RPM, rpm | 3000 |
| Max torque, N*m (kg*m) / rpm | 115 (12) / 3000 |
| Valves per cylinder | 2 |
| Compression ratio | 11.1 |
| Bore, mm | 72 |
| Stroke, mm | 84 |
| Engine additional info | SOHC, distributed injection |
| Eco type | Euro-4 |
| Start stop system | no |
Fuel consumption | |
| City | 9.2 |
| Country side | 6.3 |
| Combined | 7.4 |
| Co2 emission | 174 |
Steering | |
| Power steering | yes |
| Electric power steering | no |
Battery and alternator | |
| Battery volume | 60 |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4253 |
| Exterior width, mm | 1722 |
| Exterior height, mm | 1818 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2583 |
| Turning radius, m | 5.2 |
| Wheel spacing front | 1514 |
| Wheel spacing rear | 1505 |
| Front overhang | 833 |
| Rear overhang | 837 |
Weight and permissible load | |
| Mass, kg | 1230 |
| Max capacity | 600 |
| Max. weight | 1830 |
| Trailer max weight wobrakes | 500 |
| Trailer max weight wbrakes | 1000 |
Volumes | |
| Fuel tank capacity, l | 60 |

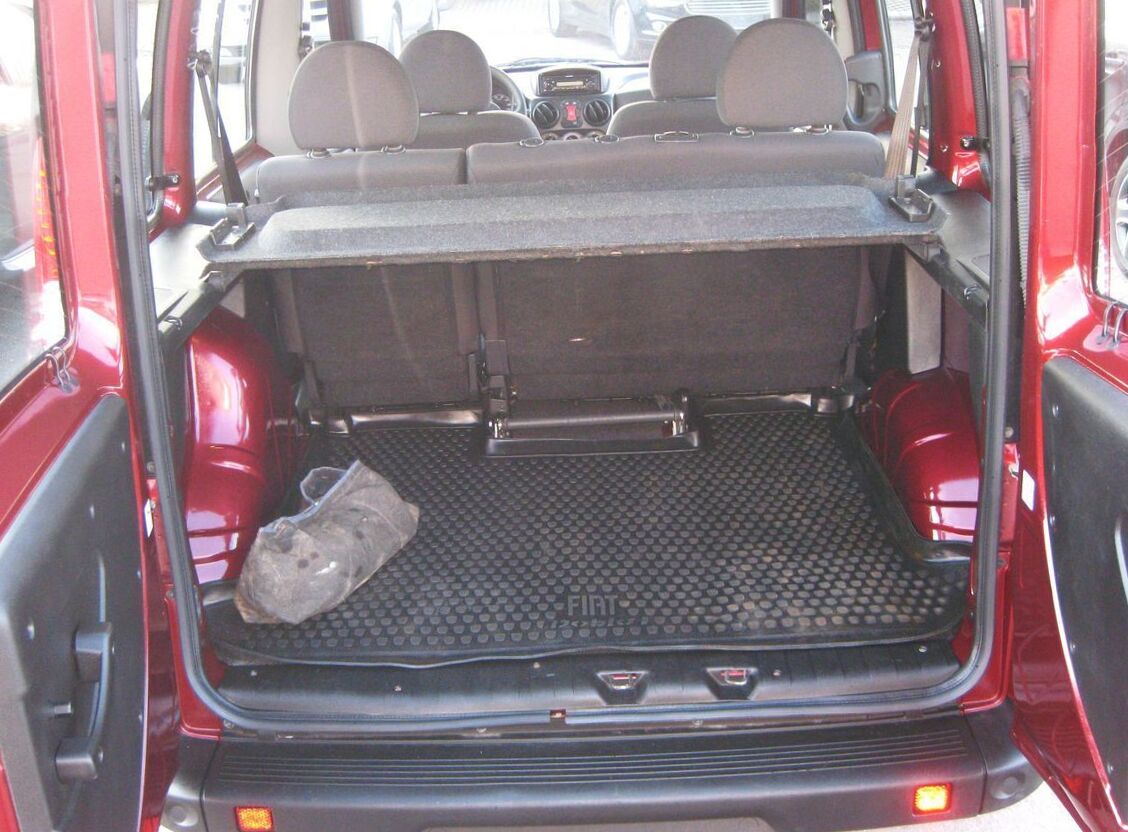

| Trunk volume | 750 |
Other | |
| Addinfo | Protective side moldings, trunk mat |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | no |
| Rear suspension | Semi-independent, torsion bar |
Wheel rims | |
| Aluminium wheel | no |
| Disc | 15" |
Tires | |
| Front wheels | 185/65 R15 |
| Rear wheels | 185/65 R15 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Additional stop light | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |

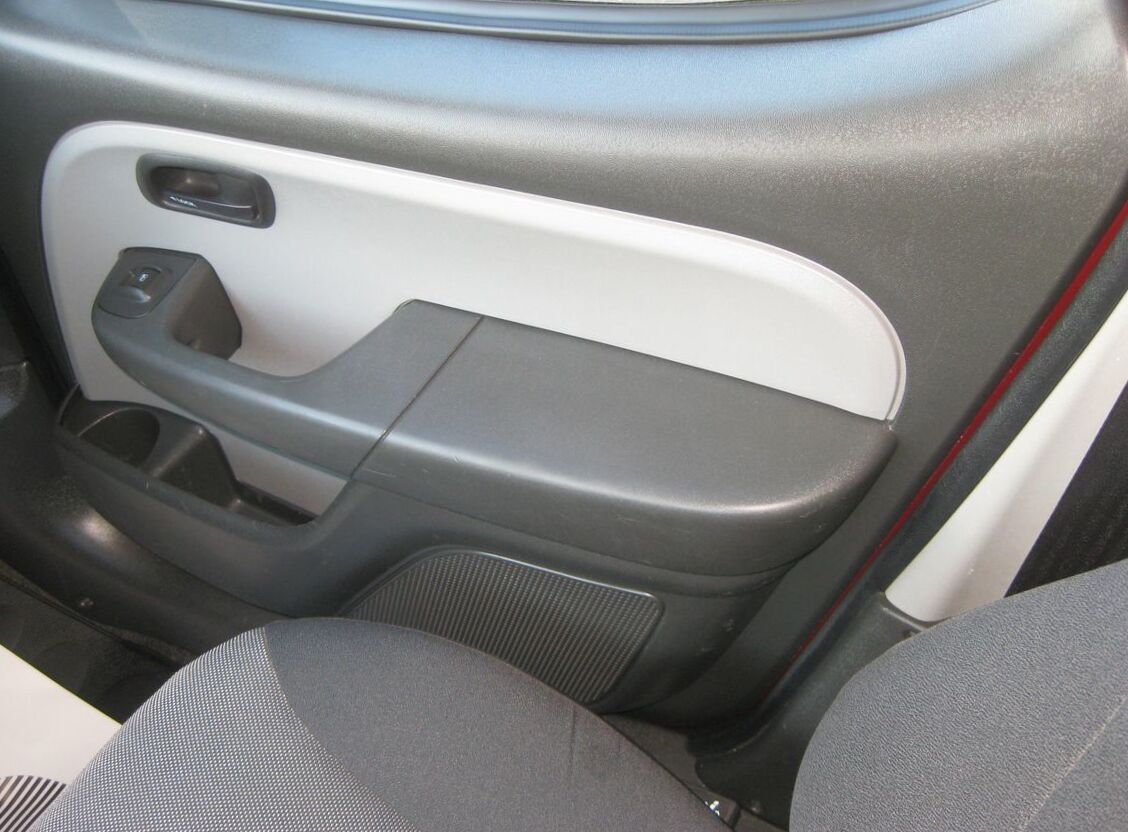

Doors | |
| Side sliding door | yes |
| Sliding doors | option |
| Door handles in body color | no |
Windows | |
| Privacy glass | option |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | no |
Accessories | |
| Roof rail | no |
| Bumpers | Painted in body color with grille frame |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |

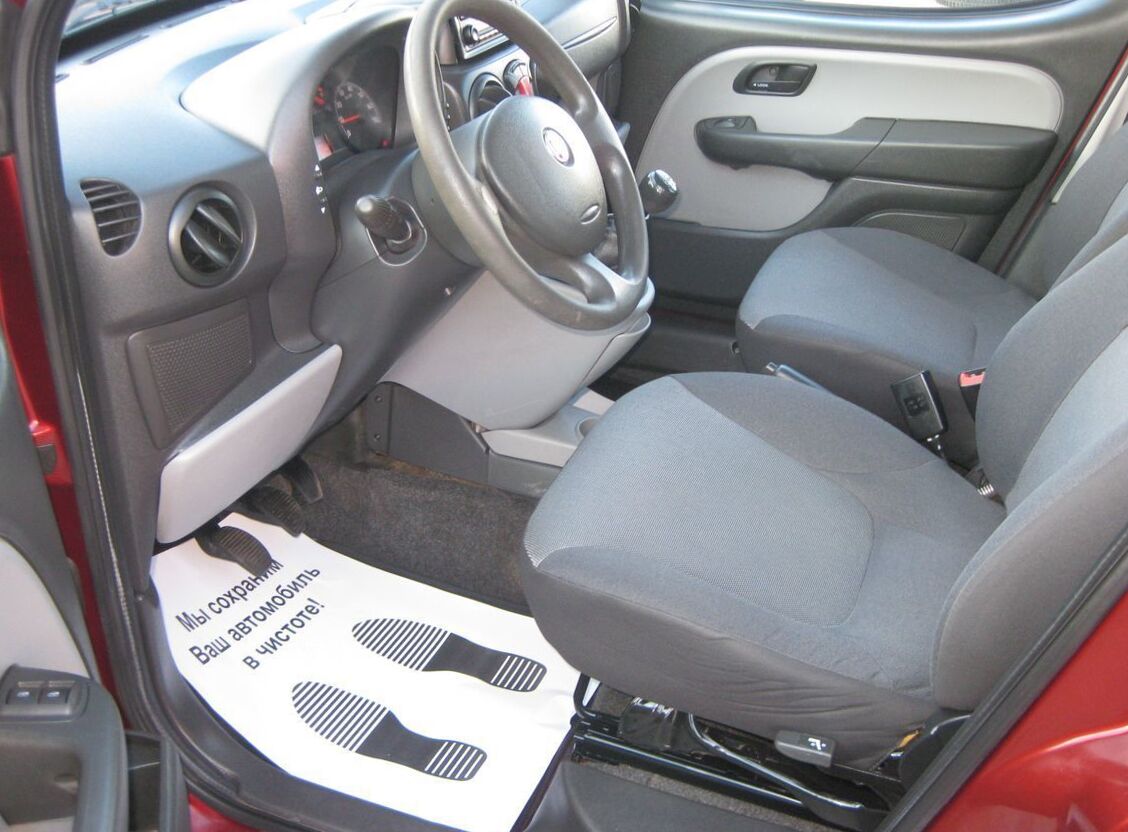

Interior | |

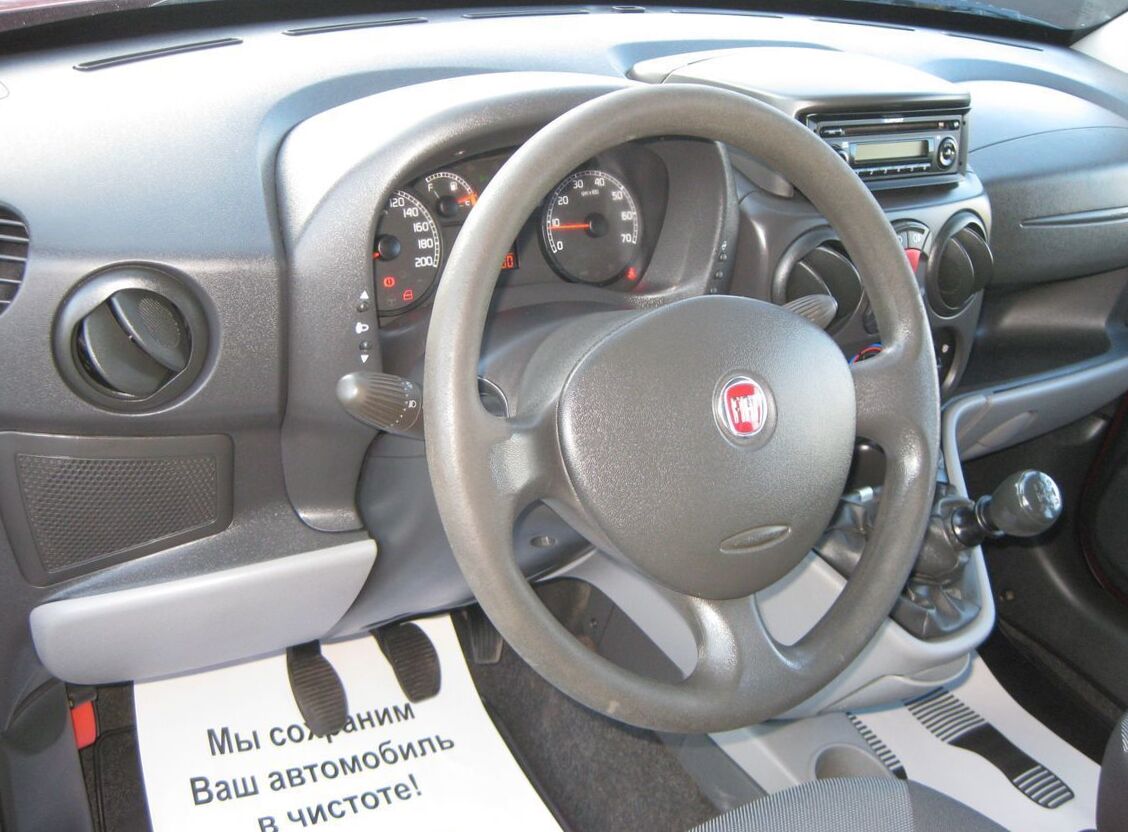

Steering wheel and center panel | |
| Leather winding | no |
| Adjustable steering | yes |
| Telescopic steering | no |
| Tilt steering | yes |
| Audio control on steering wheel | no |
| Tachometer | yes |
| Env temp | yes |
Interior design | |

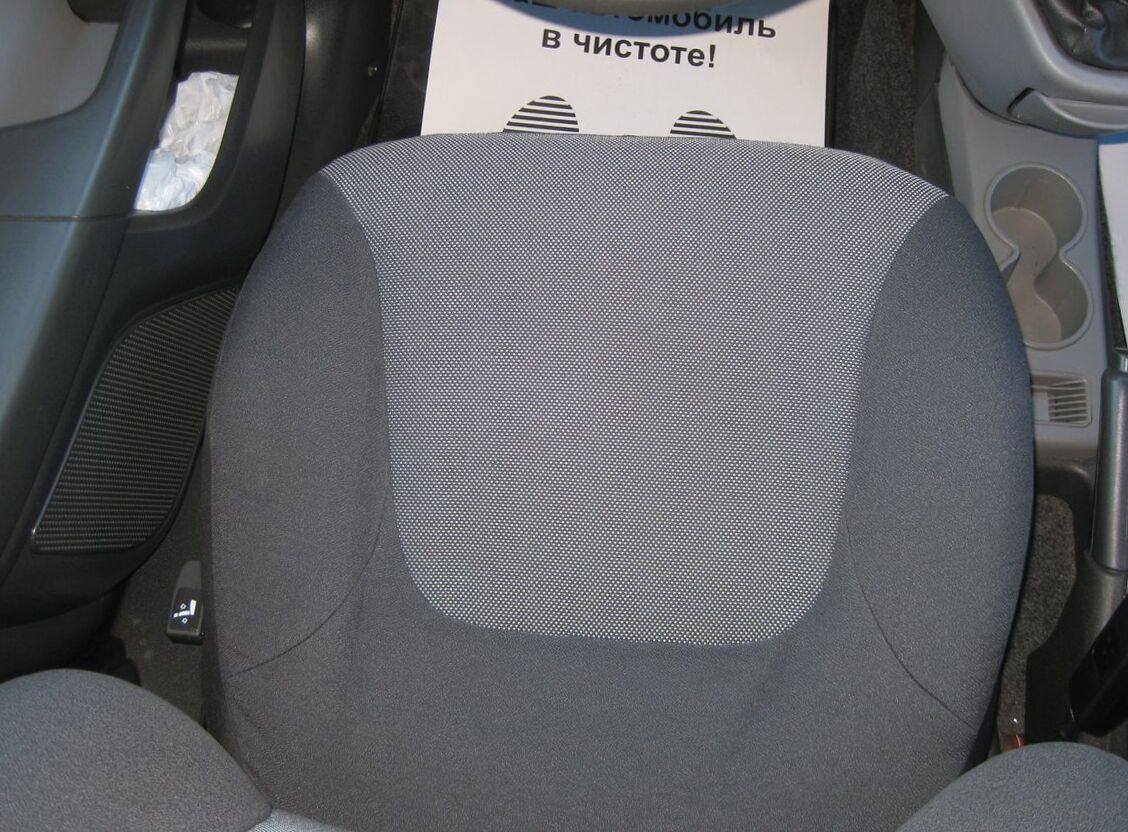

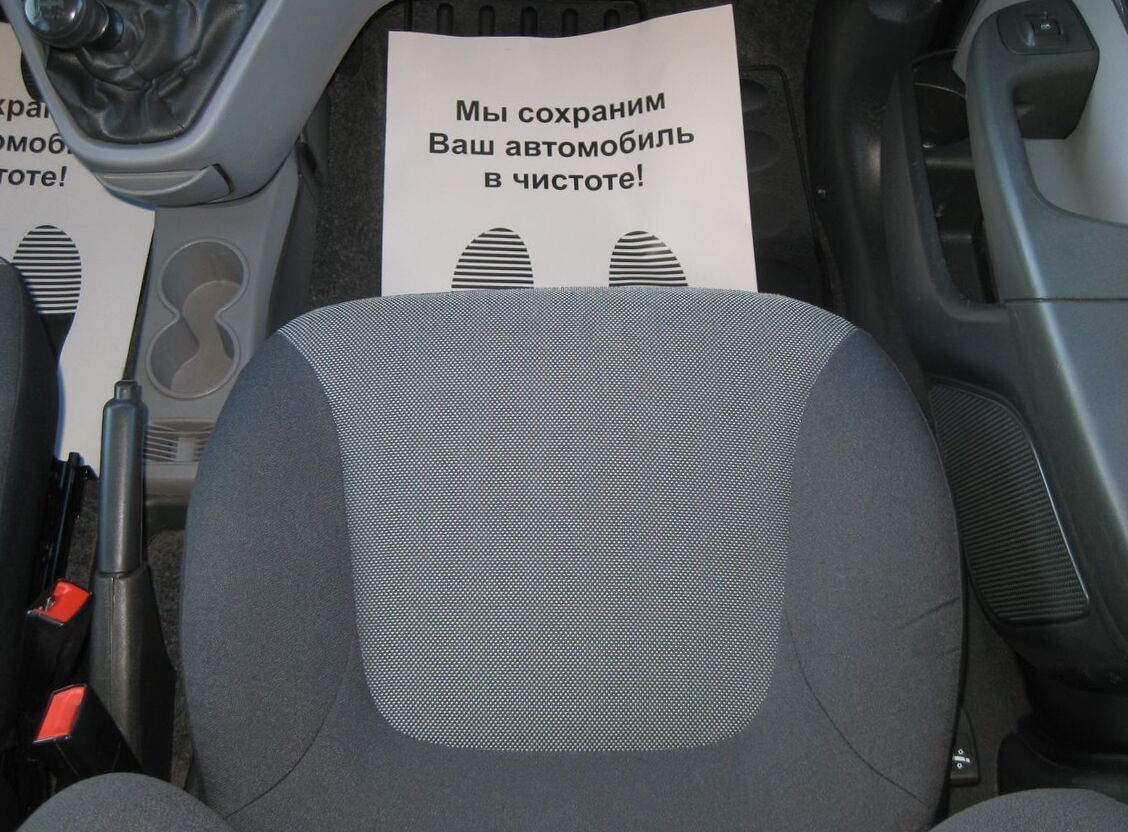

| Cloth upholstery | yes |
| Leather upholstery | no |
Seats | |
| Front seats ajust | Four-way adjustable front seats |

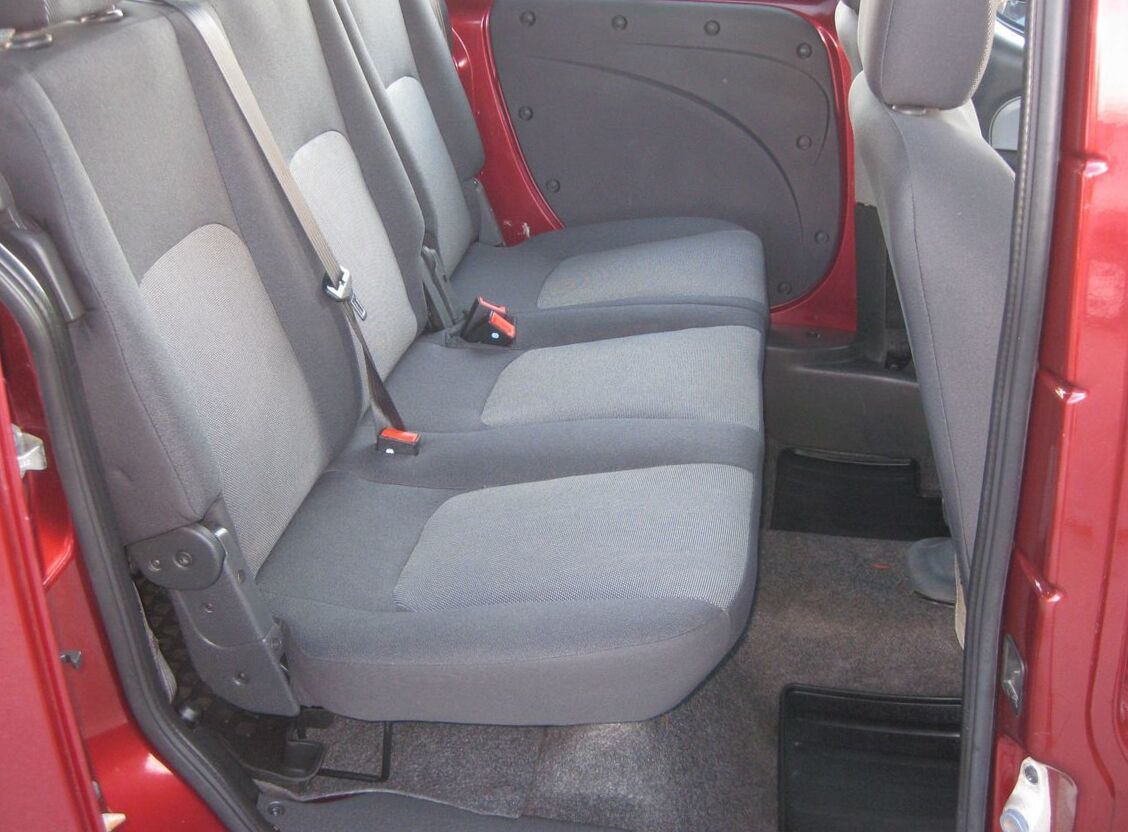

| 2nd row | 60/40 ratio fold seat |
| Loin reliance | option |
| Headrests for seats | 5 |
| Separating armrest front | option |
| Separating armrest rear | no |
| Seats pockets | option |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Front seat heater | option |
| Centralized door lock | yes |
| Keyless enter | option |

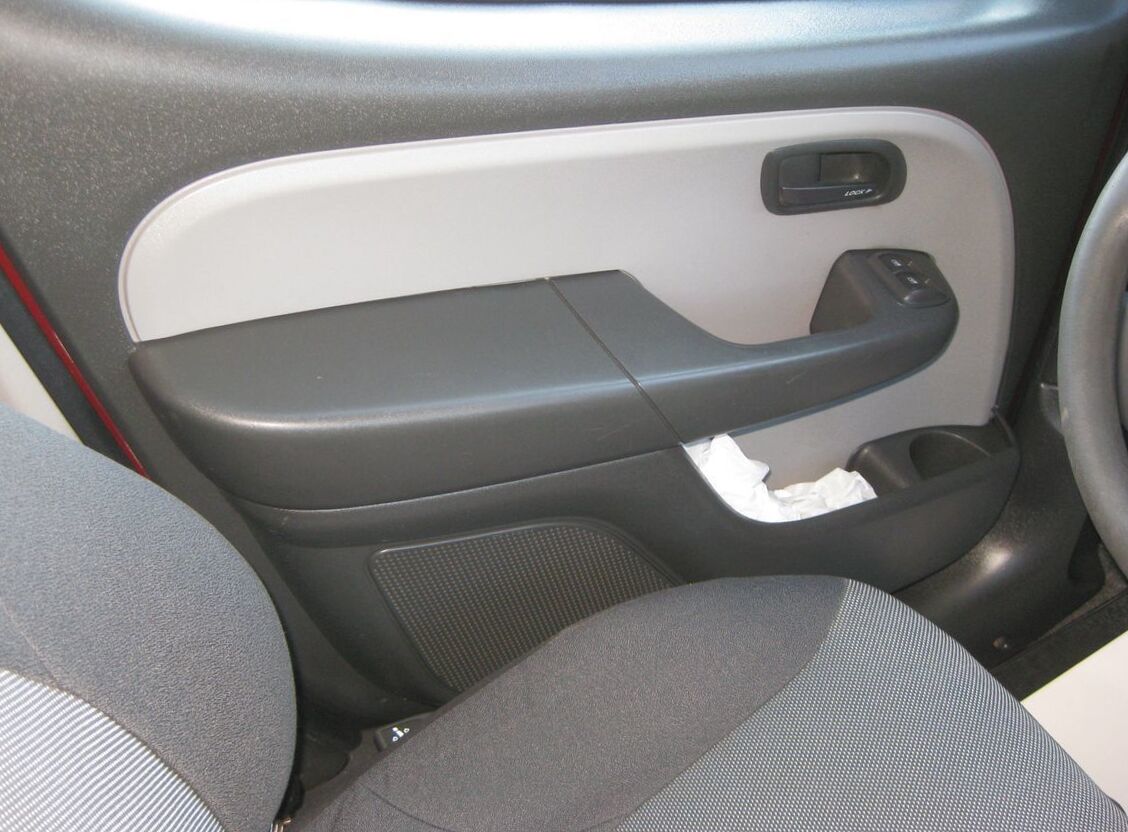

| Power window front | yes |
| Power window rear | no |
Additional interior equipment | |
| Smokers packet | yes |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
Children safety | |
| isofix bar | option |
Active and passive safety | |
| Glonass | no |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| ESP | no |
| Cruise control | no |
| Autolock doors | no |
| System tire pressure monitoring | no |
| Front sonar | no |
| Rear sonars | no |
Amenity | |
Microclimate | |

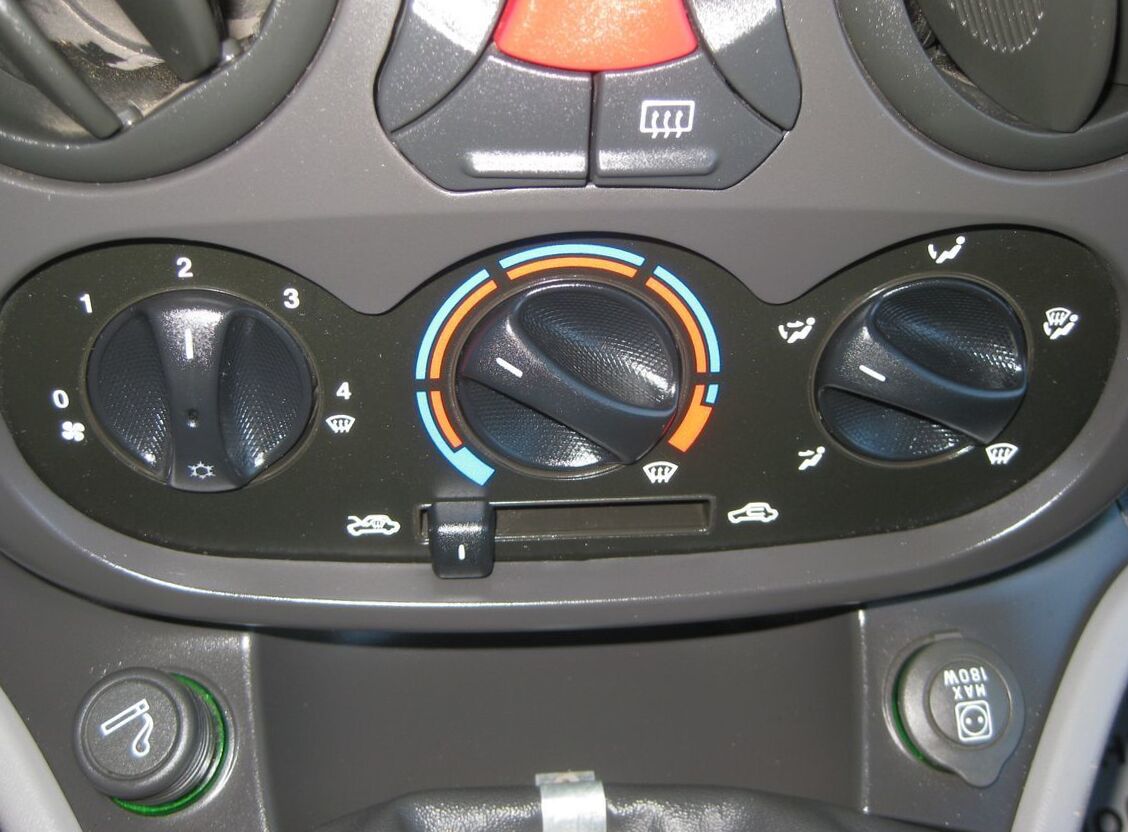

| Air conditioner | option |
| Automatic air conditioning | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| MP3 Support | option |
| Hands free | no |
| Additional sound equipment | audio equipment, 6 speakers |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
Additional amenities | |
| Mirrors in sunshields | yes |
| Blind in luggage compartment | yes |
| Onboard computer | yes |
| Light | Central interior lighting; luggage compartment lighting, reading lights front and rear |
Car safety | |
| Immobilizer | yes |
| Security alarm | no |
Driver Kit | |
| Spare tire | yes |
| Spare tyre small | no |
2015 Fiat Doblo 223 1.4 MT Active+ (77 Hp) specs
|
The Doblò carries a payload of up to 730kg (1609lb), with an interior volume of 3.2cubic metres (110cuft). It is manufactured by Fiat's Tofaş subsidiary factory in Bursa, Turkey, in Brazil since 2002 and in Russia and Vietnam. Turkish models have an engine range that includes a 1.4-litre petrol, a 1.9-litre MultiJet, and a 16-valve 1.3-litre MultiJet. In North Korea Pyonghwa Motors produces Doblò branded as its own name Ppeokkugi. The Doblò was restyled in autumn 2005 with modifications to the front and rear light groups, and the total design of the front part. Brazilian Doblós were available with two 16-valve petrol engines, a 1.3-litre Fire and a 1.6-litre Torque. Currently, the only engine available in Brazil is an 8-valve 1.8-litre Powertrain petrol, supplied by General Motors. In 2003 Fiat Brazil introduced 4x4 version called Fiat Doblò Adventure, with straight-4 Powertrain 1800 cc engine. It has revised exterior look with bigger bumpers and mouldings and raised ride height 6cm (2.4in) and spare wheel on the rear. » Read More About Fiat Doblo |
