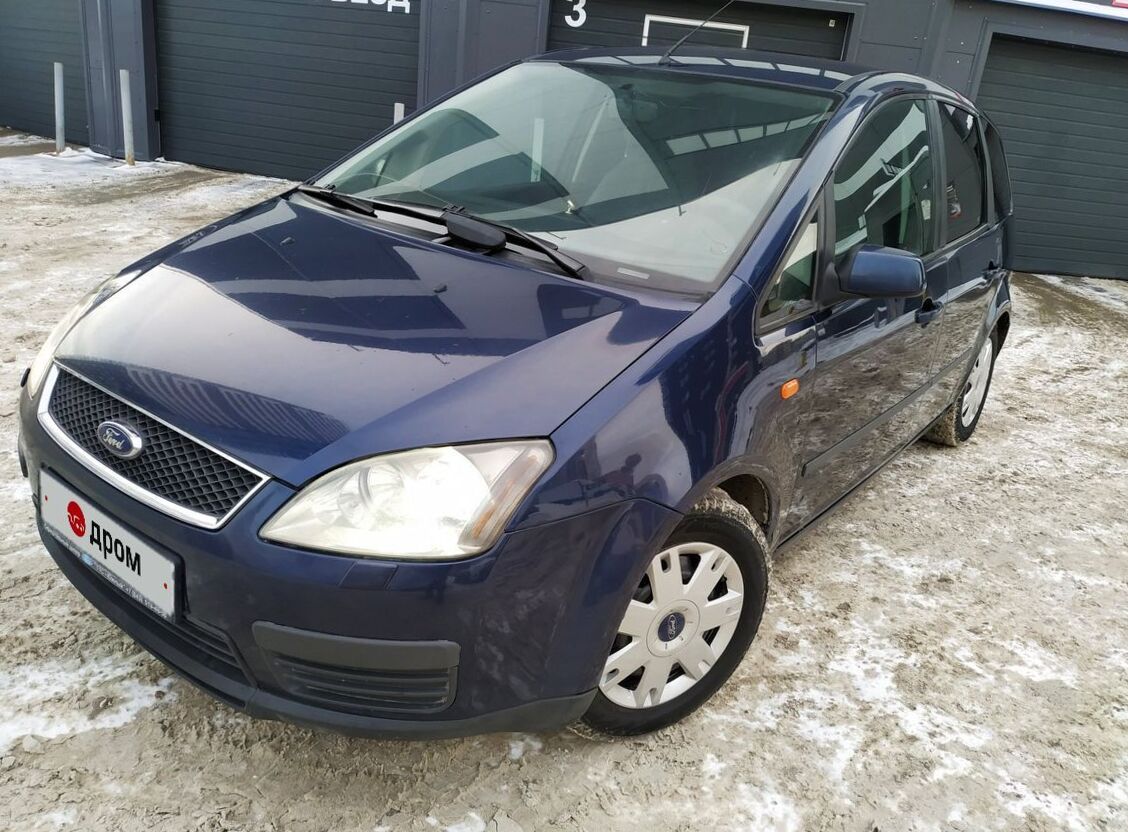

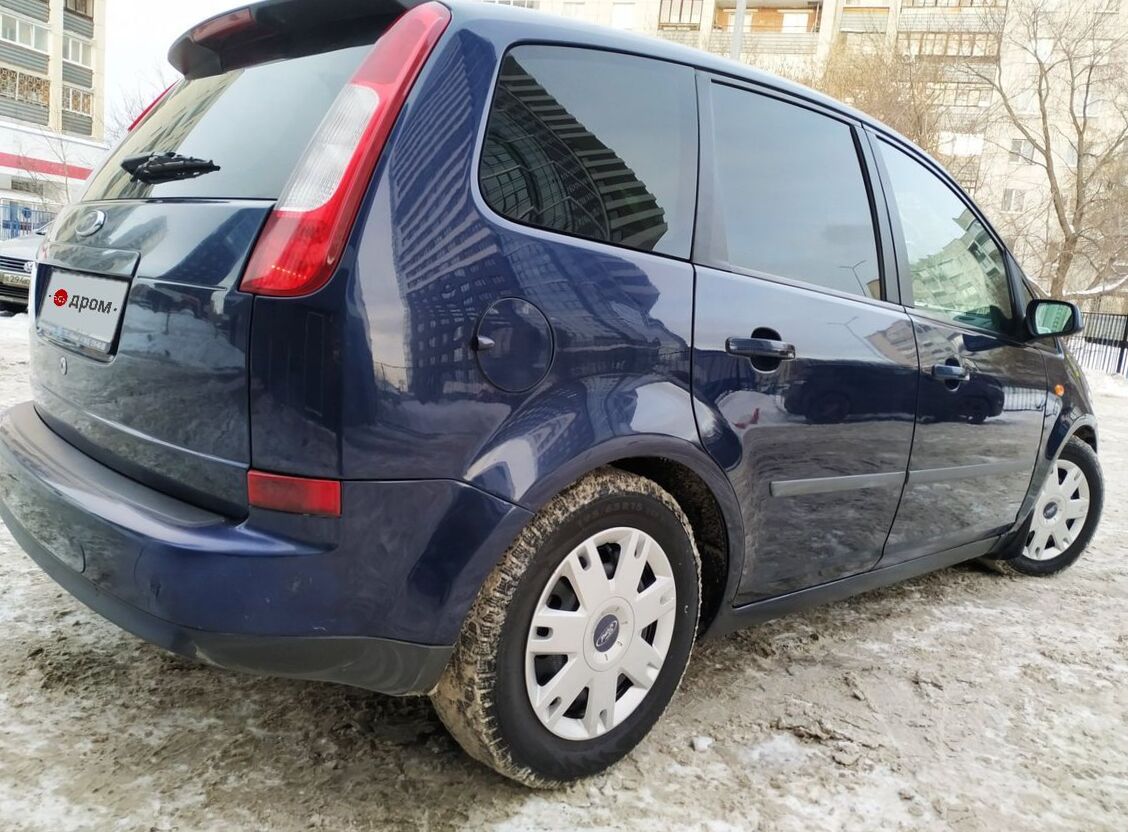

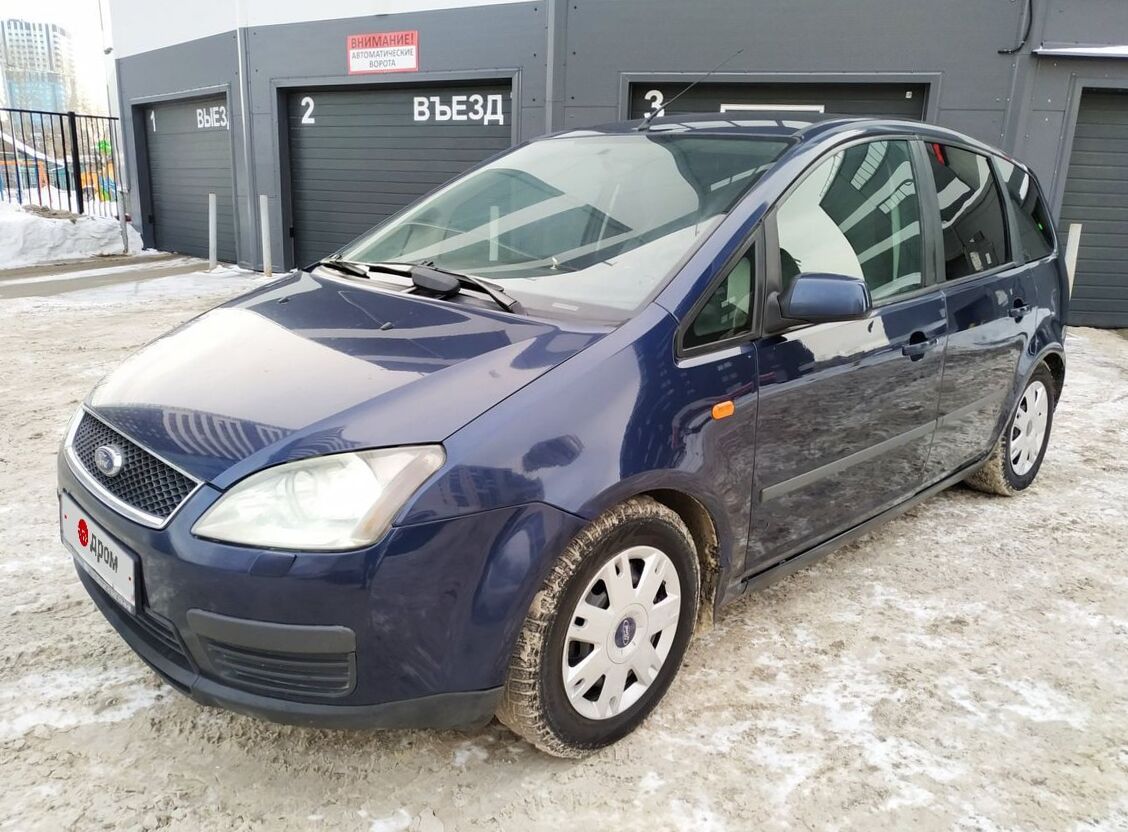

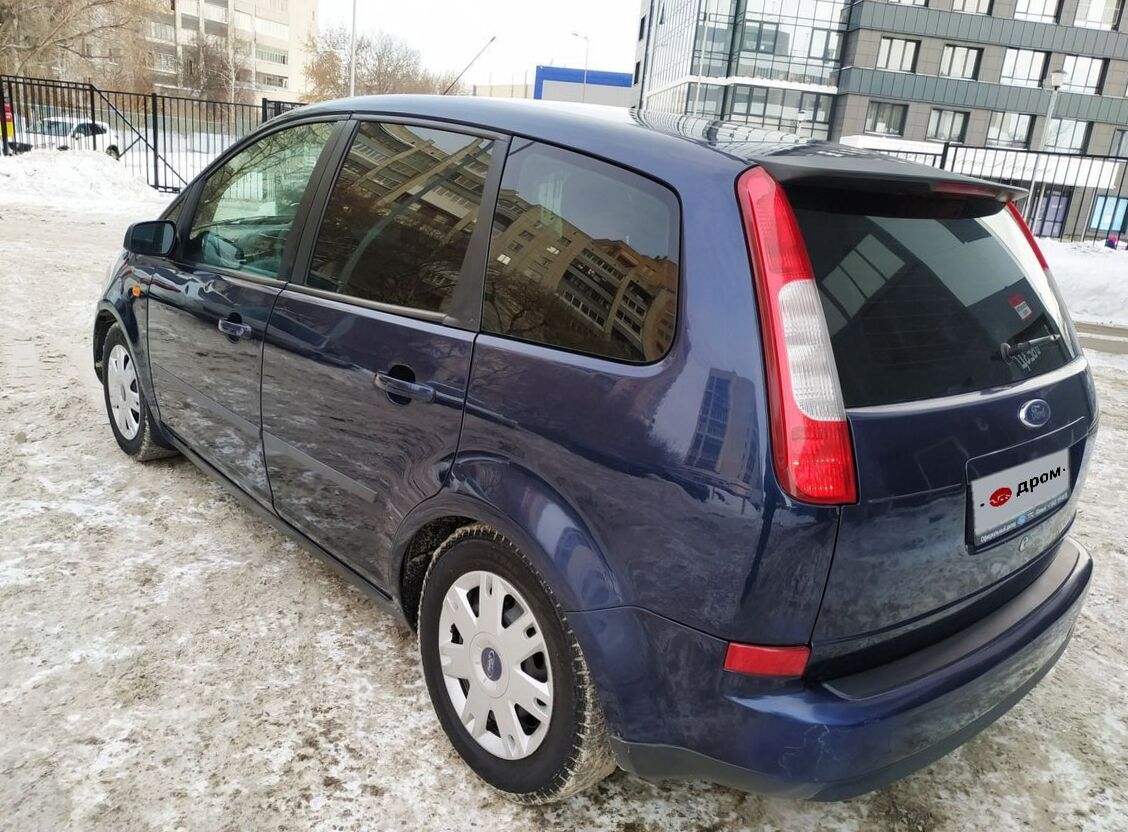

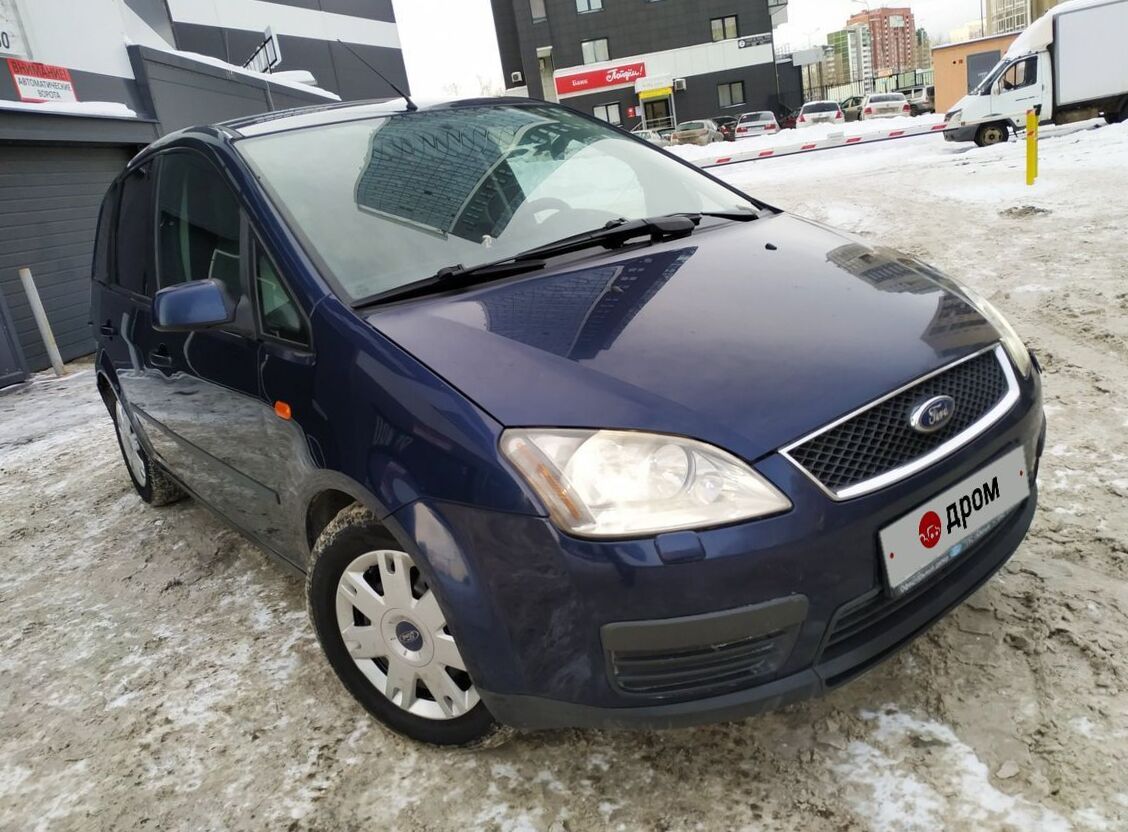

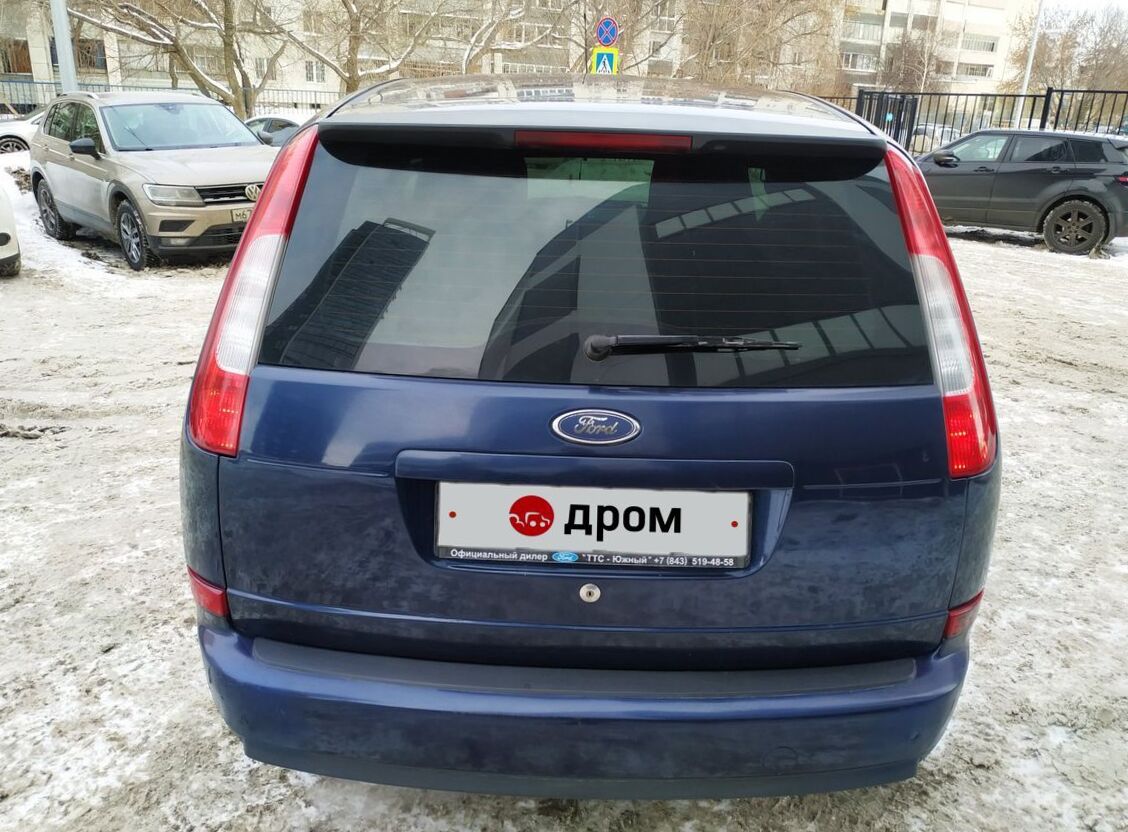

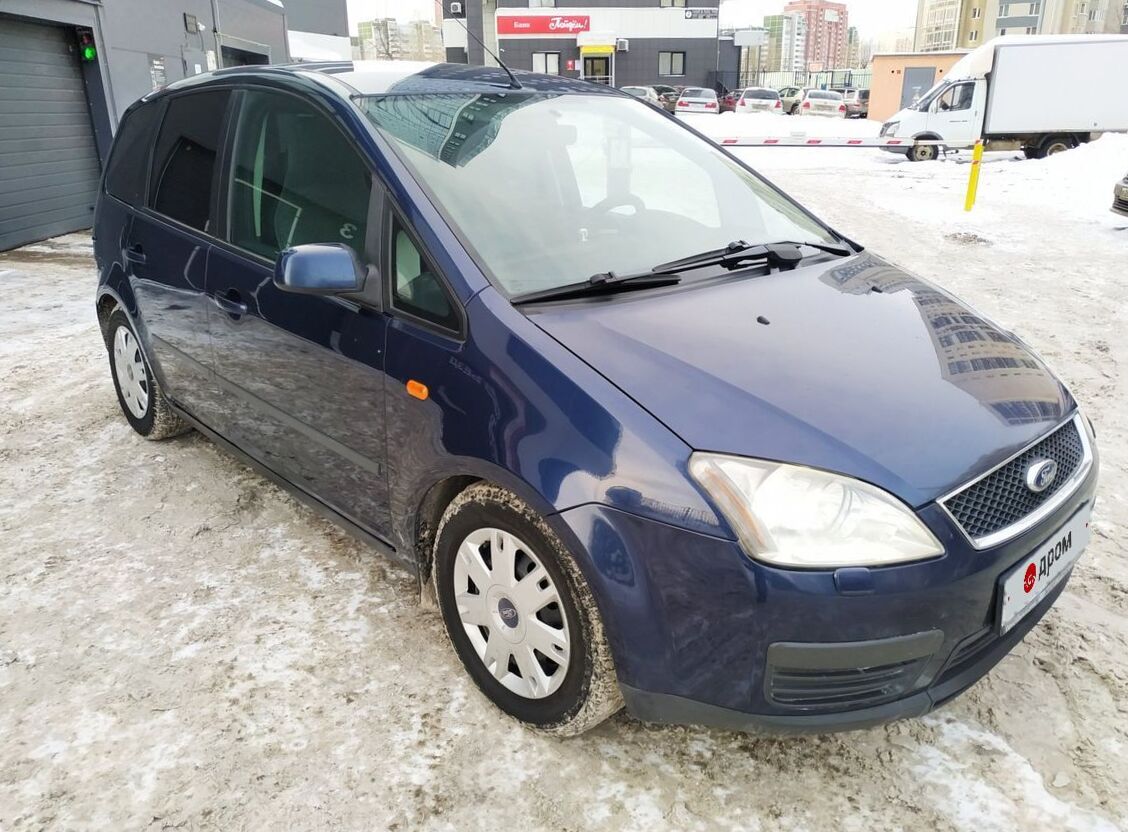

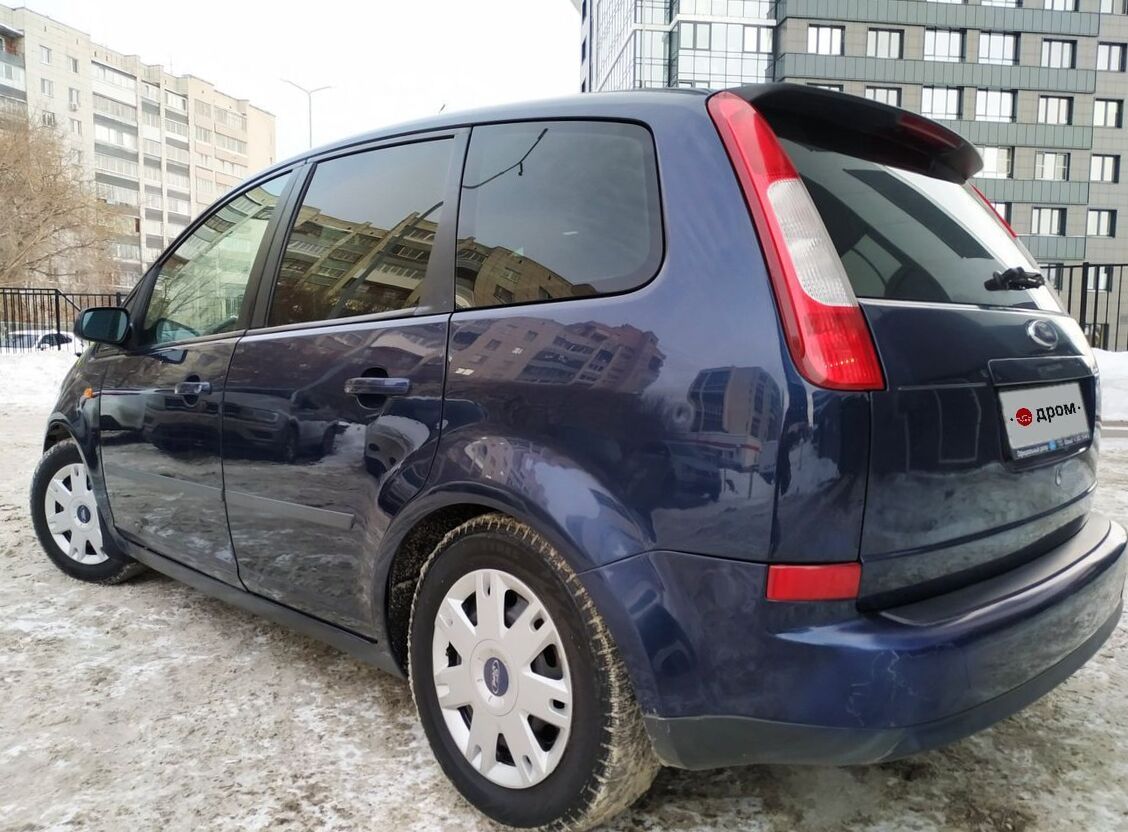

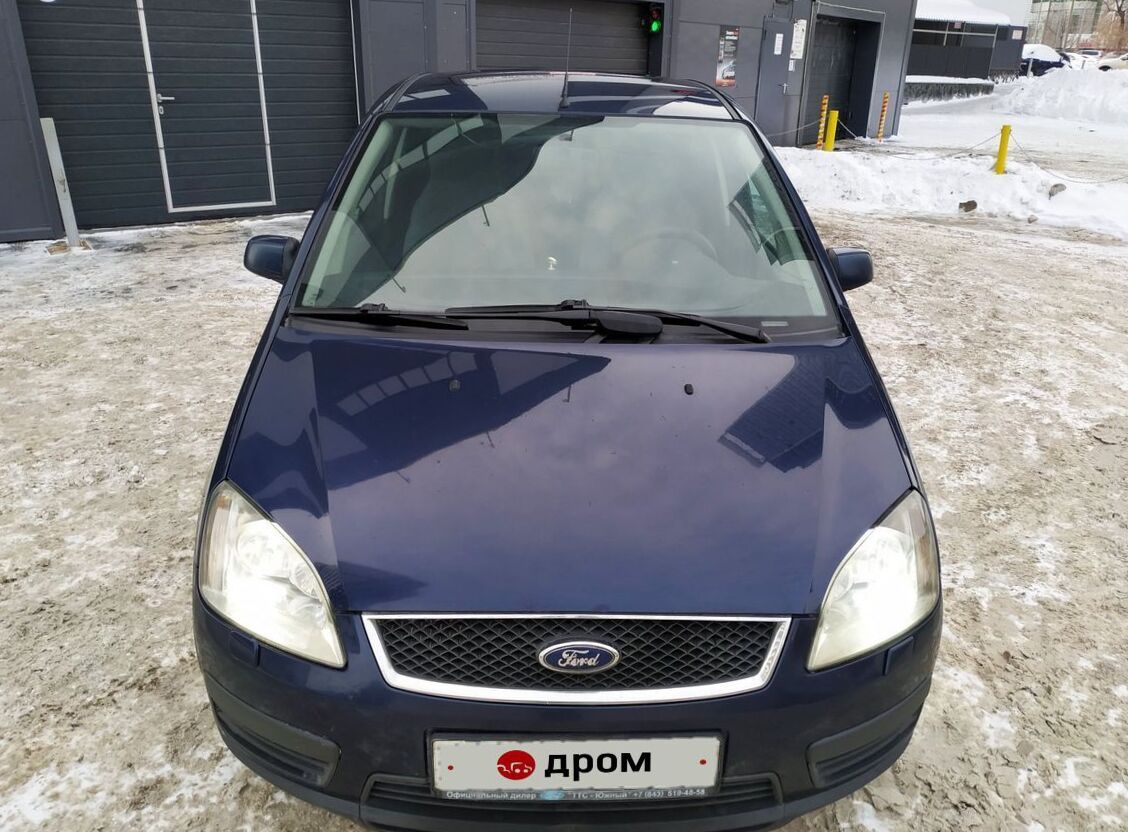

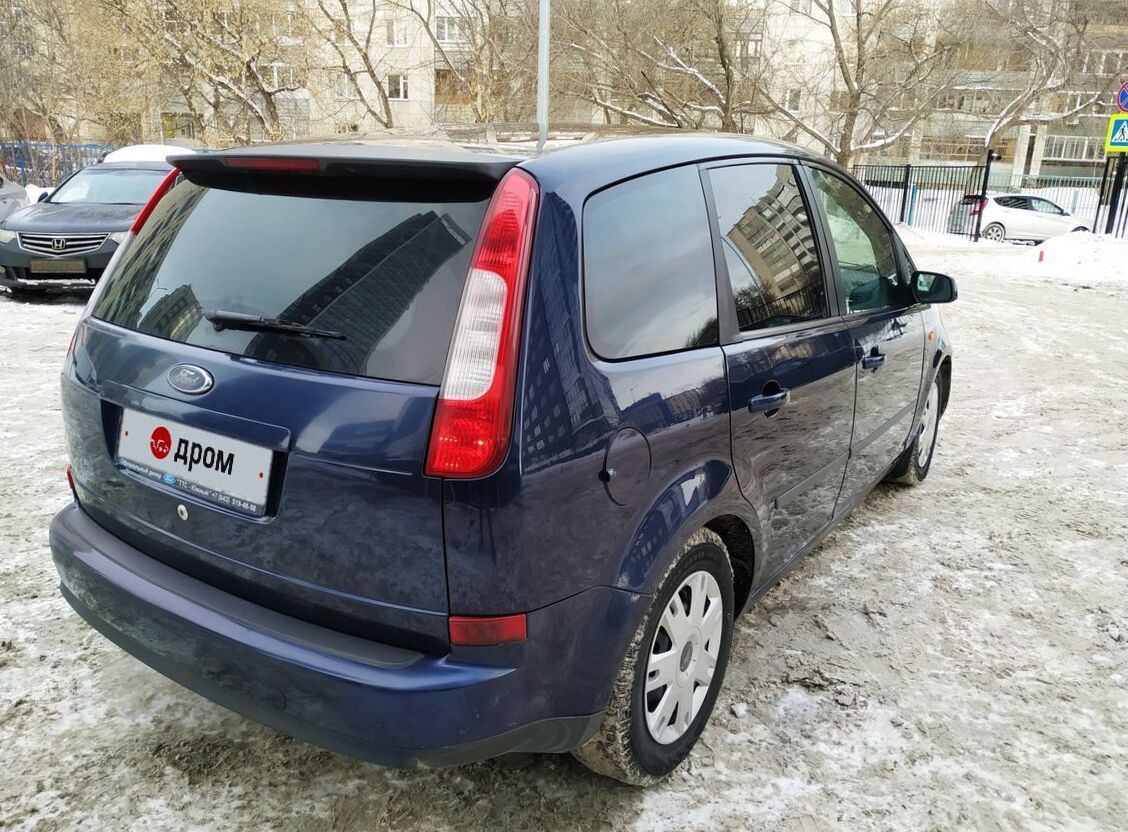

2003 Ford C-MAX 1.8 MT Trend
| Body type | Minivan |
|---|---|
| Power | 125 Hp |
| Engine Displacement | 1800 cm3 or 1.8L or 109.8 cu-in |
| Color | blue |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 155342 Miles |
| Vin | WF0MXXGCDM3****48 |
| Price (out of date) | $3006 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Ford C-MAX Minivan 2003? | Minivan, 5 Seats, 5 Doors |
| What is the fuel economy, Ford C-MAX C214 2003? | 7.1 l/100 km |
| How fast is the car, 2003 Ford C-MAX 1.8 MT Trend? | 193 km/h, 0-100 km/h: 10.8 sec |
| How much power, Ford C-MAX 2003 Minivan 1.8 MT Trend (125 Hp)? | 125 Hp |
| What is the engine size, 2003 Ford C-MAX Minivan 1.8 MT Trend (125 Hp)? | 1.8L or 1798cm3 |
| How many gears, What type is the gearbox, Ford C-MAX Minivan 2003? | 5 speed Manual |
| What is the drivetrain, Ford C-MAX C214 2003? | Front |
| How long is this vehicle, 2003 Ford C-MAX 1.8 MT Trend? | 4333 mm |
| How wide is the vehicle, Ford C-MAX 2003 Minivan 1.8 MT Trend (125 Hp)? | 1825 mm |
| What is the gross weigh, 2003 Ford C-MAX Minivan 1.8 MT Trend (125 Hp)? | 1910 kg |
| How much trunk (boot) space, Ford C-MAX Minivan 2003? | 460 l |
Ford C-MAX C214 1.8 MT Trend (125 Hp) 2003, 2004, 2005, 2006, 2007 Specs
General information | |
|---|---|
| Production start year | 2003 |
| Production end year | 2007 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1798 |
| Frame name | C214 |
| 0 to 100 time | 10.8 |
| Max speed | 193 |
| Clearance, mm | 160 |
| Manufacturing country | Germany |
| Doors | 5 |
| Winter complectation | no |
Vehicle generation | |
| Generation name | C214 |
| Generation number | 1 |
| Production start year | 2003 |
| Production end year | 2007 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | Q7DA, QQDA, QQDB |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 125 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 125 (92) / 6000 |
| Max torque, N*m | 165 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 165 (17) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 10.8 |
| Bore, mm | 83 |
| Stroke, mm | 83.1 |
| Actuator valves | DOHC |
| Engine additional info | Injector |
| Eco type | Euro-4 |
Fuel consumption | |
| City | 9.7 |
| Country side | 5.7 |
| Combined | 7.1 |
| Co2 emission | 172 |
Transmission | |
| 1st gear ratio | 3.417 |
| 2nd gear ratio | 2.136 |
| 3rd gear ratio | 1.483 |
| 4th fear ratio | 1.114 |
| 5th gear ratio | 0.854 |
| Rear gear ratio | 3.462 |
| Main gear ratio | 4.06 |
Steering | |
| Power steering | no |
| Electro-hydraulic power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4333 |
| Exterior width, mm | 1825 |
| Exterior height, mm | 1560 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2640 |
| Turning radius, m | 5.35 |
| Wheel spacing front | 1535 |
| Wheel spacing rear | 1531 |
| Front overhang | 871 |
| Rear overhang | 822 |
Weight and permissible load | |
| Mass, kg | 1300 |
| Max capacity | 610 |
| Max. weight | 1910 |
Volumes | |
| Fuel tank capacity, l | 55 |

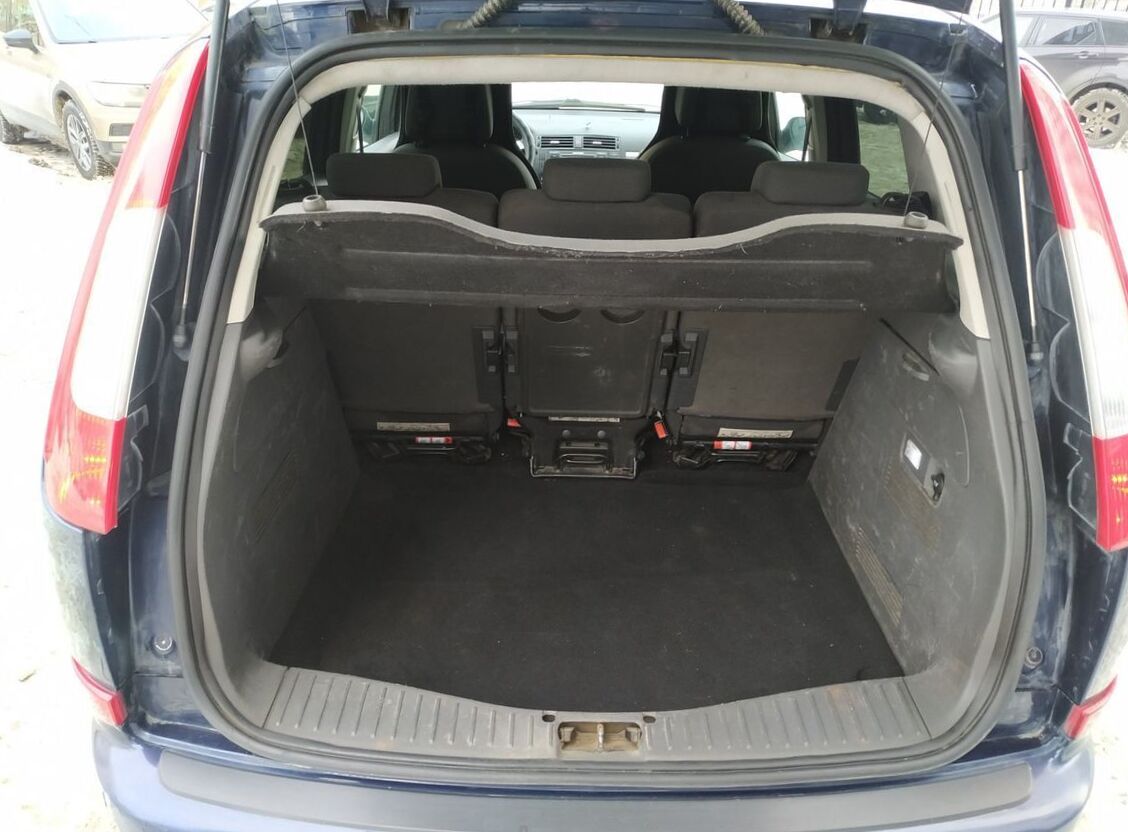

| Trunk volume | 460 |
Other | |
| Aerodynamic drag | 0.31 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, spring multi-link |
| Sport suspension | option |
Wheel rims | |
| Aluminium wheel | option |
| Front wheel disk | 16X6.5J |
| opt. | 17X6.5J |
| Rear wheel disk | 16X6.5J |
| opt. | 17X6.5J |
Tires | |
| Front wheels opt. | 205/50 R17 |
| Front wheels | 205/55 R16 |
| Rear wheels | 205/55 R16 |
| Rear wheels opt. | 205/50 R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake new first | manual |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Bixenon | option |
| Head lights washer | option |
| Front fog lamps | option |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | no |
| Rain sensor | no |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | option |
Doors | |
| Door handles in body color | yes |
Windows | |
| Privacy glass | option |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | option |
| Panoramic roof | option |
Accessories | |
| Rear spoiler | yes |
| Bumpers | painted in body color |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |

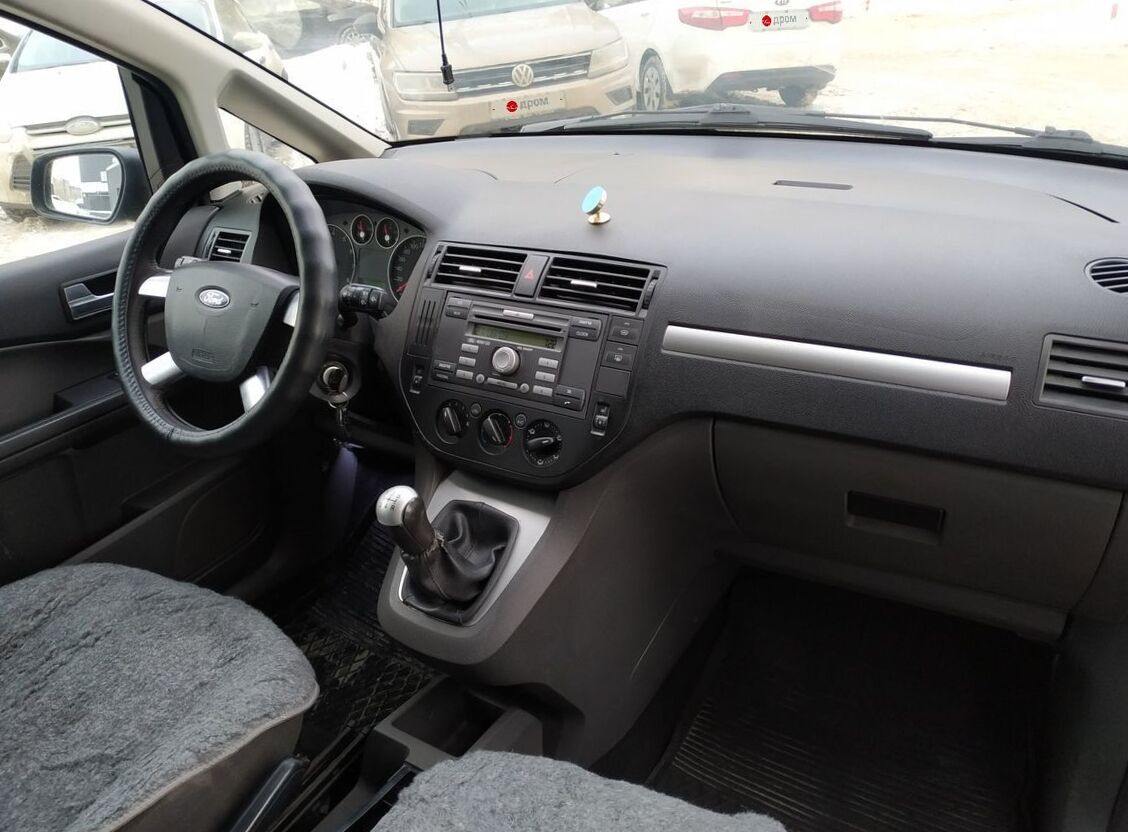

Interior | |

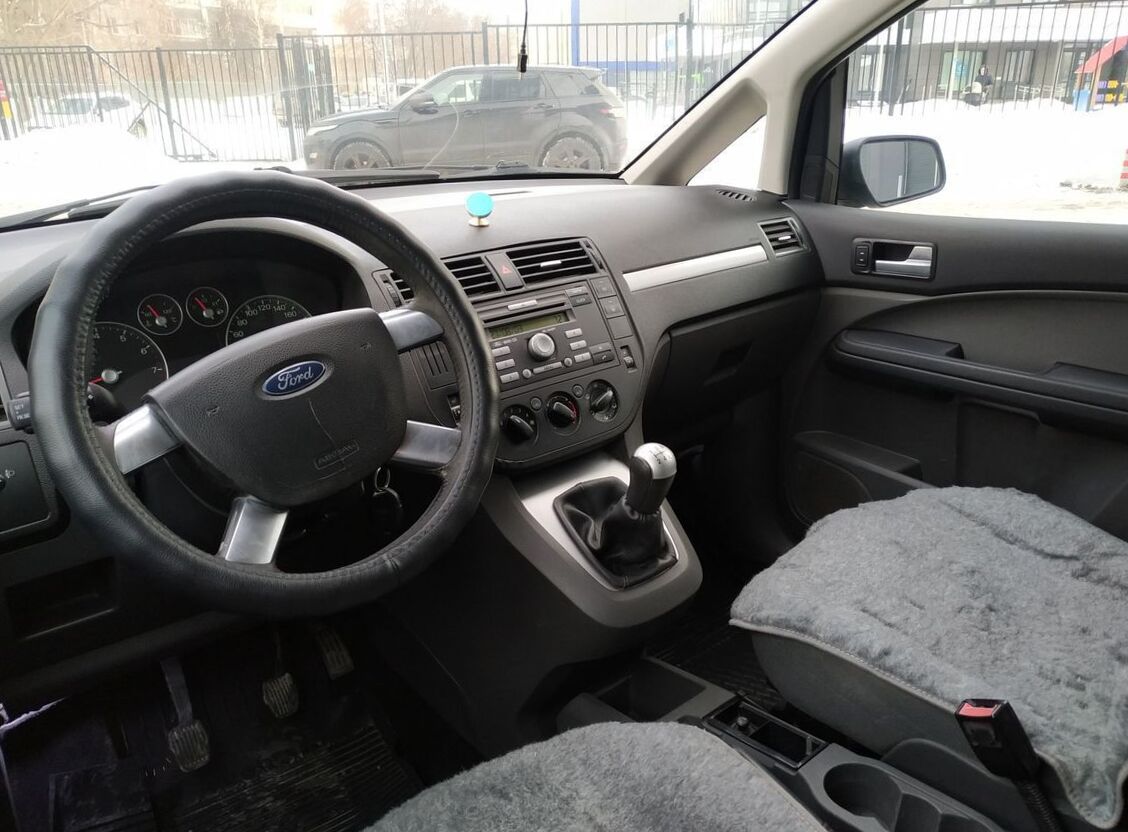

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | option |

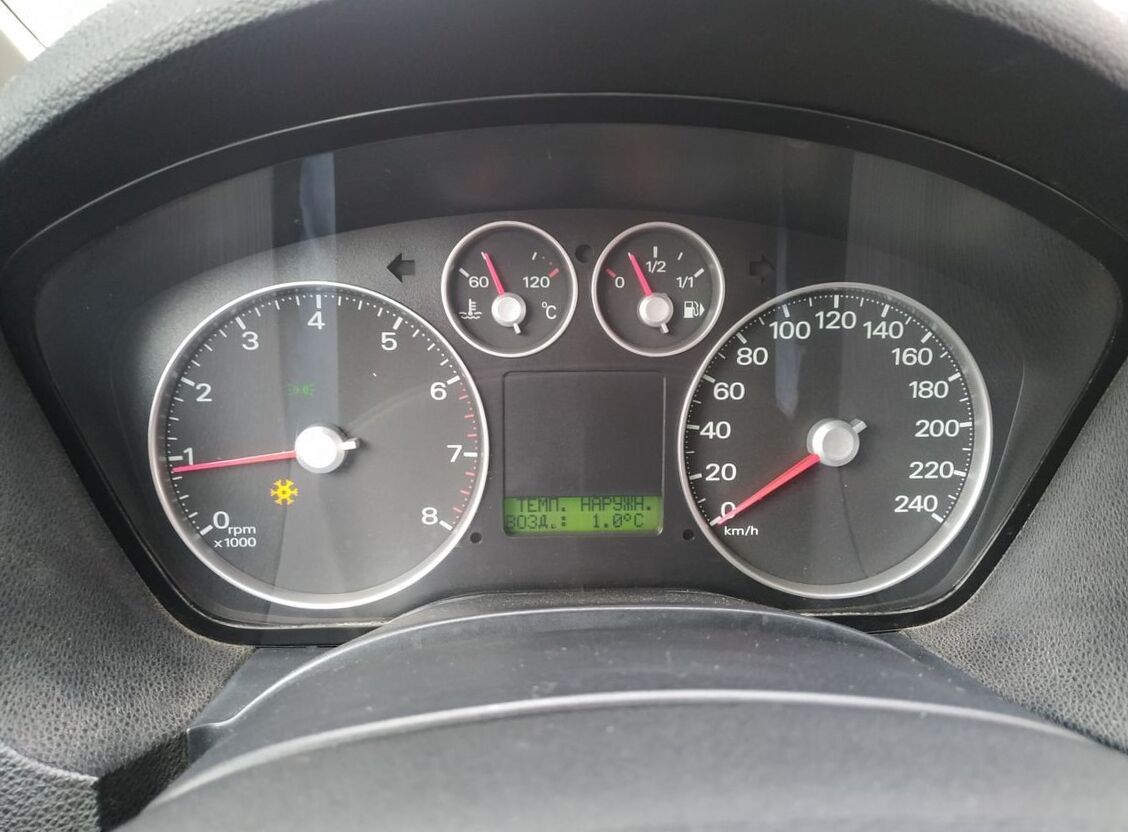

| Tachometer | yes |
| Env temp | yes |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |
| Combined obivka Salon | option |
| Panels | aluminum inserts |
Seats | |
| Bucket seat | option |
| Front seats ajust | In 6 directions. |

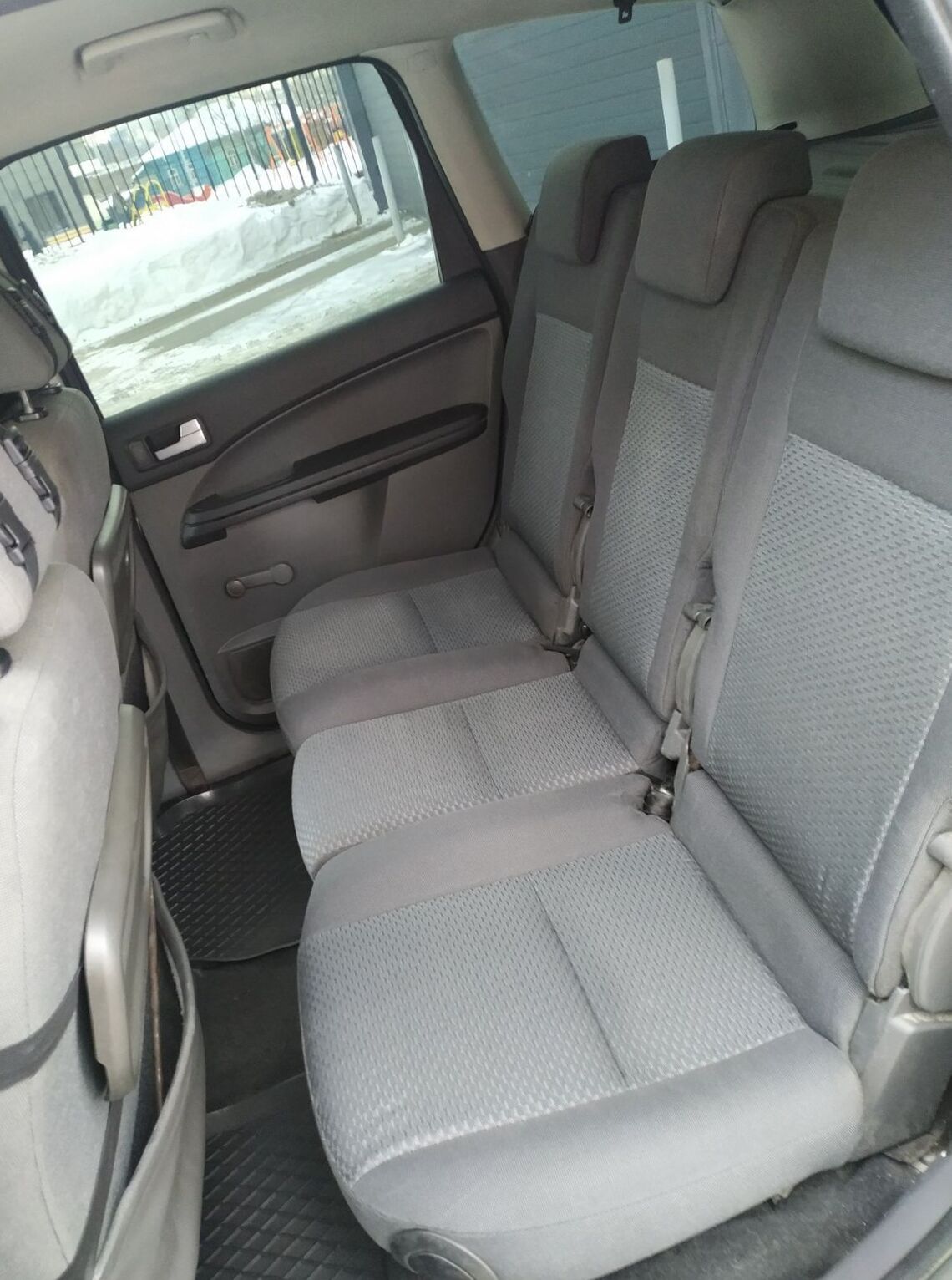

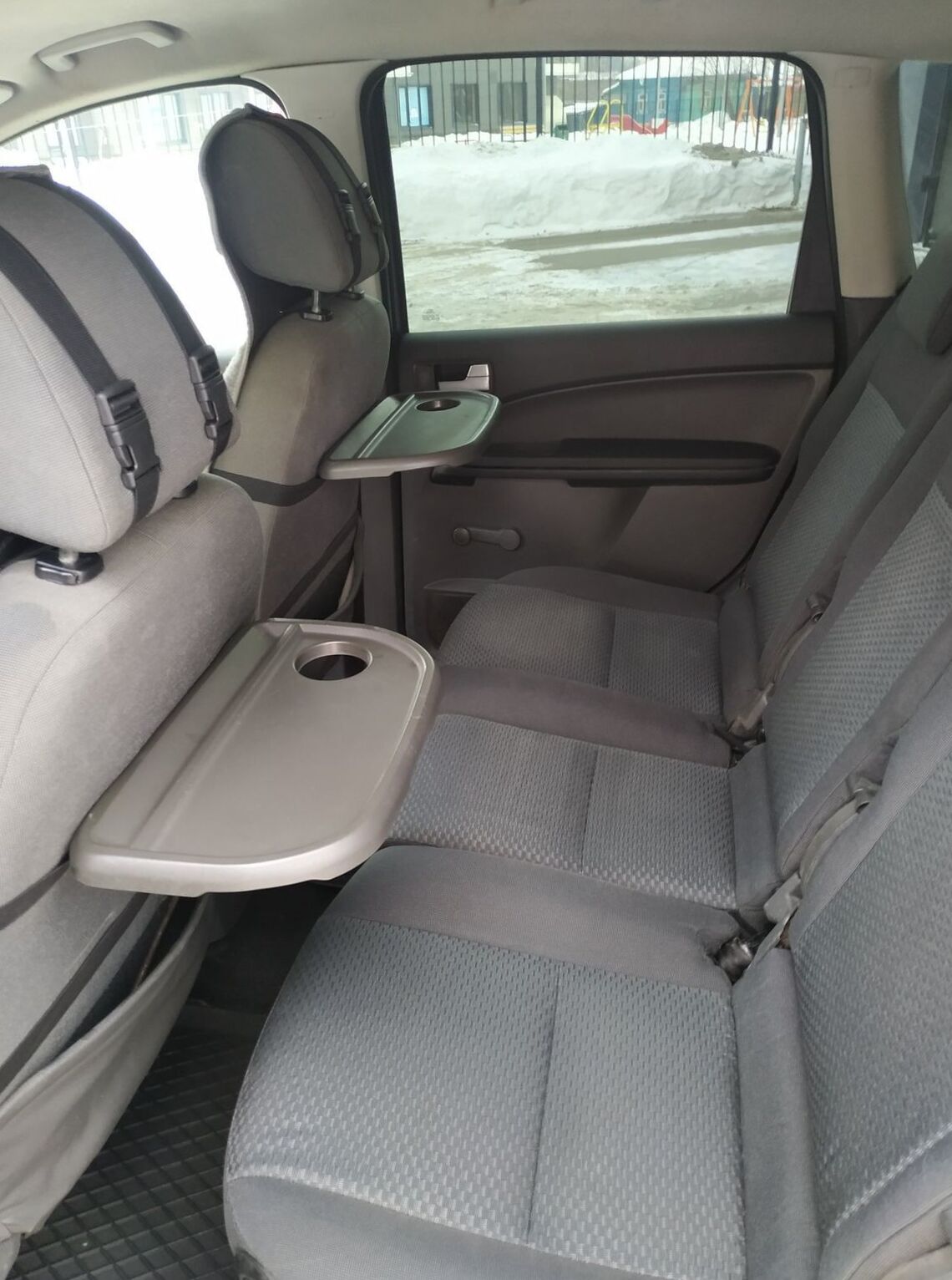

| 2nd row | three individual seats |
| Loin reliance | option |
| Seat lifter | yes |
| Separating armrest front | option |
| Separating armrest rear | option |
| Seats pockets | yes |
| Mats | option |
Electric interior package | |
| Power adjustable driver seat | option |
| Power ajustable front seat | no |
| Front seat heater | option |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | option |
| Power window front | yes |
| Power window rear | option |
| Injectors heat | option |
Additional interior equipment | |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | option |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Cruise control | option |
| Function "Take me home" | option |
| Front sonar | option |
| Rear sonars | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | option |
| Part climat equipment | 2 zones (optional) |
| Air filter | yes |
Audio systems | |
| Radio | option |
| Autoreverse casette | option |
| CD player | option |
| CD changer | option |
| MP3 Support | option |
| Hands free | option |
| Additional sound equipment | Audio Prep |
| Additional sound equipment opt. | 6 speakers, AUX |
Navigation and video equipment | |
| Full color LCD display | no |
| Full color LCD display (option) | 7" touchscreen |
| Navigation system | option |
Additional amenities | |
| Antidazzle rearview mirror | option |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
| Security alarm | option |
Driver Kit | |
| Spare tyre small | option |
2003 Ford C-MAX C214 1.8 MT Trend (125 Hp) specs
|
In December 2006, the facelifted version of the C-Max was revealed at the 2006 Bologna Motor Show and went on sale in late spring 2007. The facelift brought the car in line with Ford's 'Kinetic Design' design language, evidenced through its twin trapezoidal grilles, large wheelarches and angular headlights. However, as the car does not have a bodyshell originally designed for 'Kinetic Design,' Ford officially states that the car contains only 'elements' of the design language. It seats five passengers and has a large amount of cargo space, which can be increased by folding the rear seats flat. Some models feature diagonally sliding outer rear seats. It also shares the control blade independent rear suspension from the Focus. The available engines are the same as the Focus — the petrol versions are the 1.6L, 1.8L and 2.0L aluminium Duratec, and the 1.8L Duratec Flexifuel, which runs on E85 bioethanol or petrol, while the diesel engines are the PSA-developed Duratorq 66kW (90hp) and 85kW (109hp) 1.6 (1560cc)L, Ford's own Lynx Duratorq 1.8L 85kW (115hp), and the PSA-designed 100kW (136hp) 2.0L. » Read More About Ford C-MAX |
