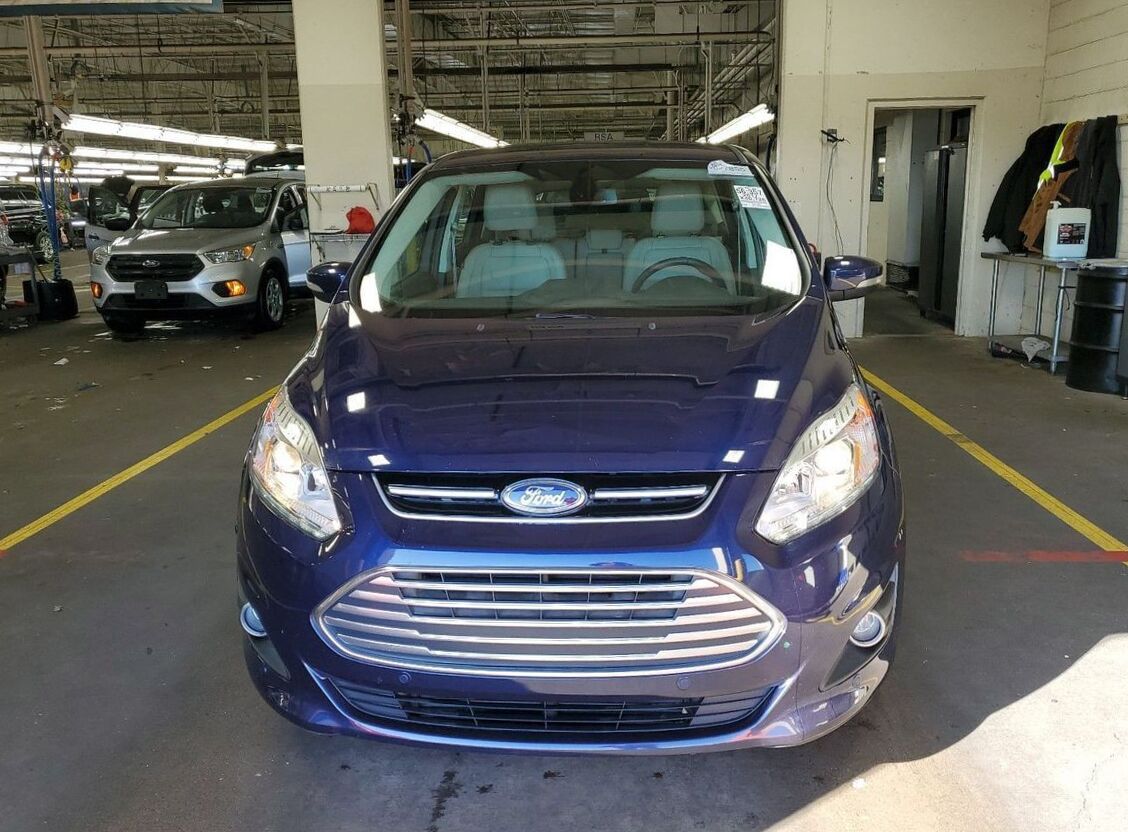

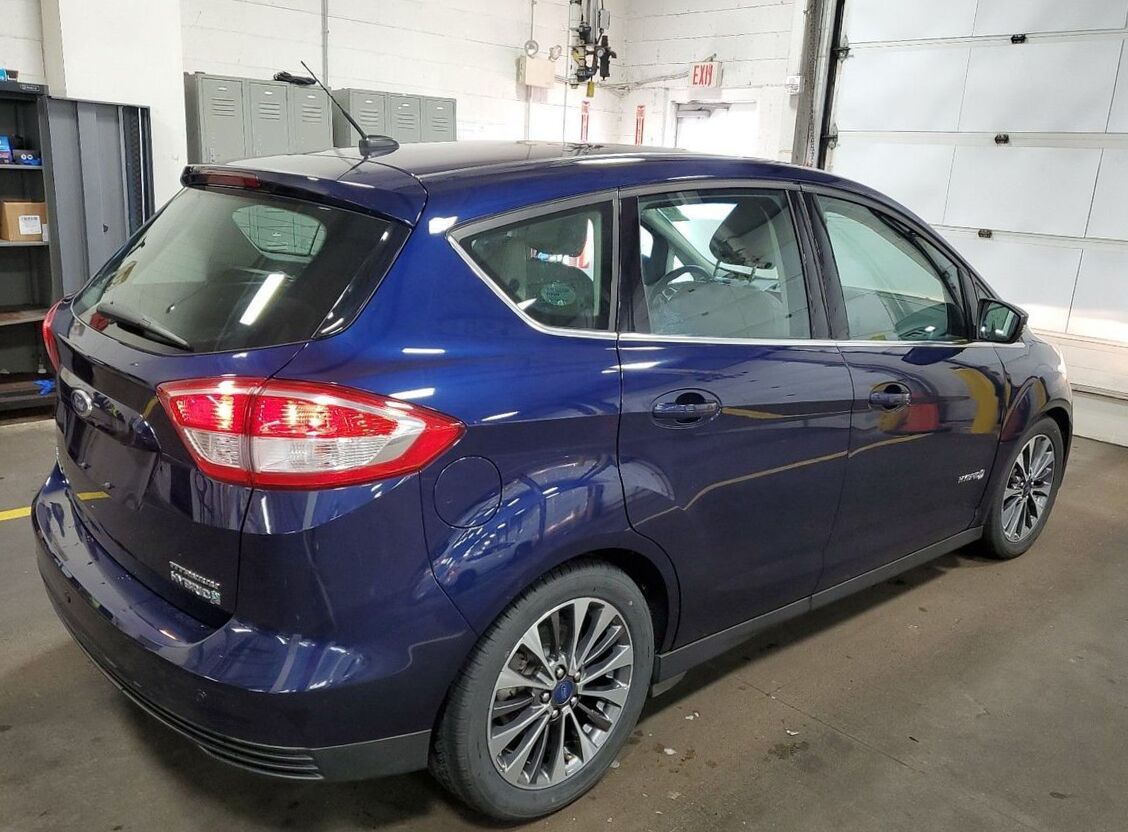

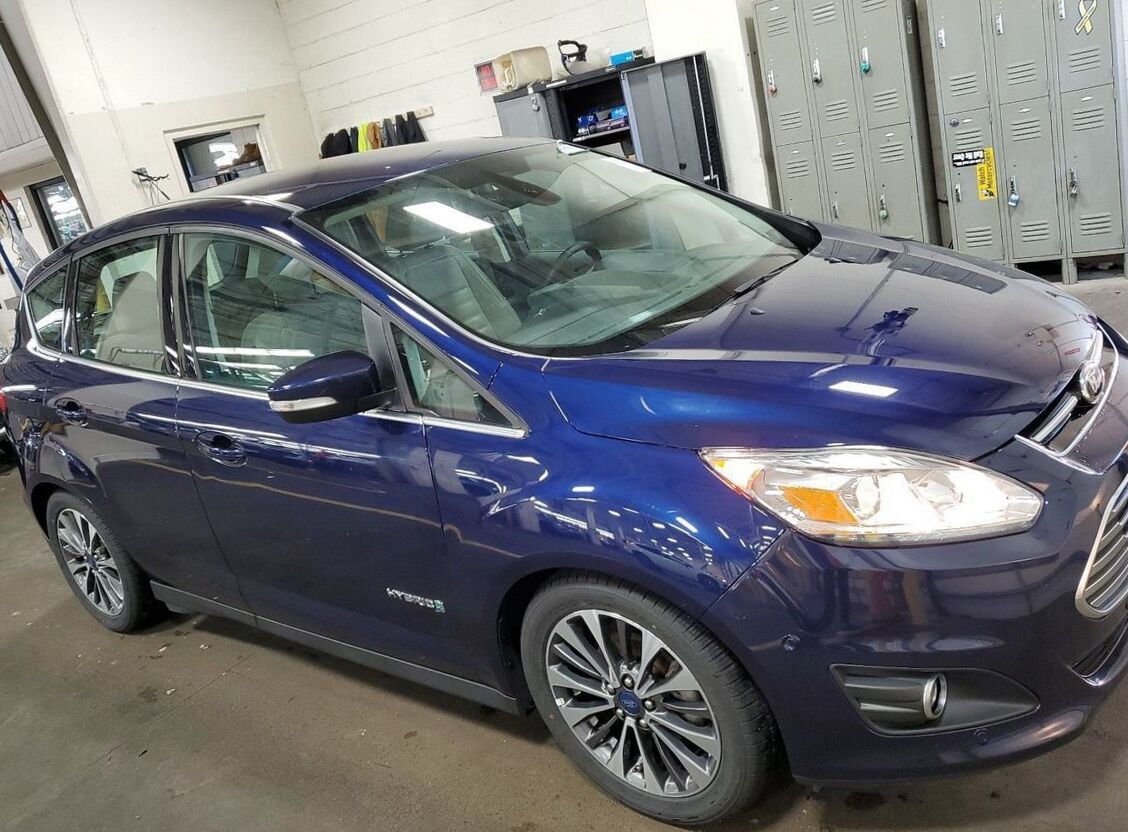

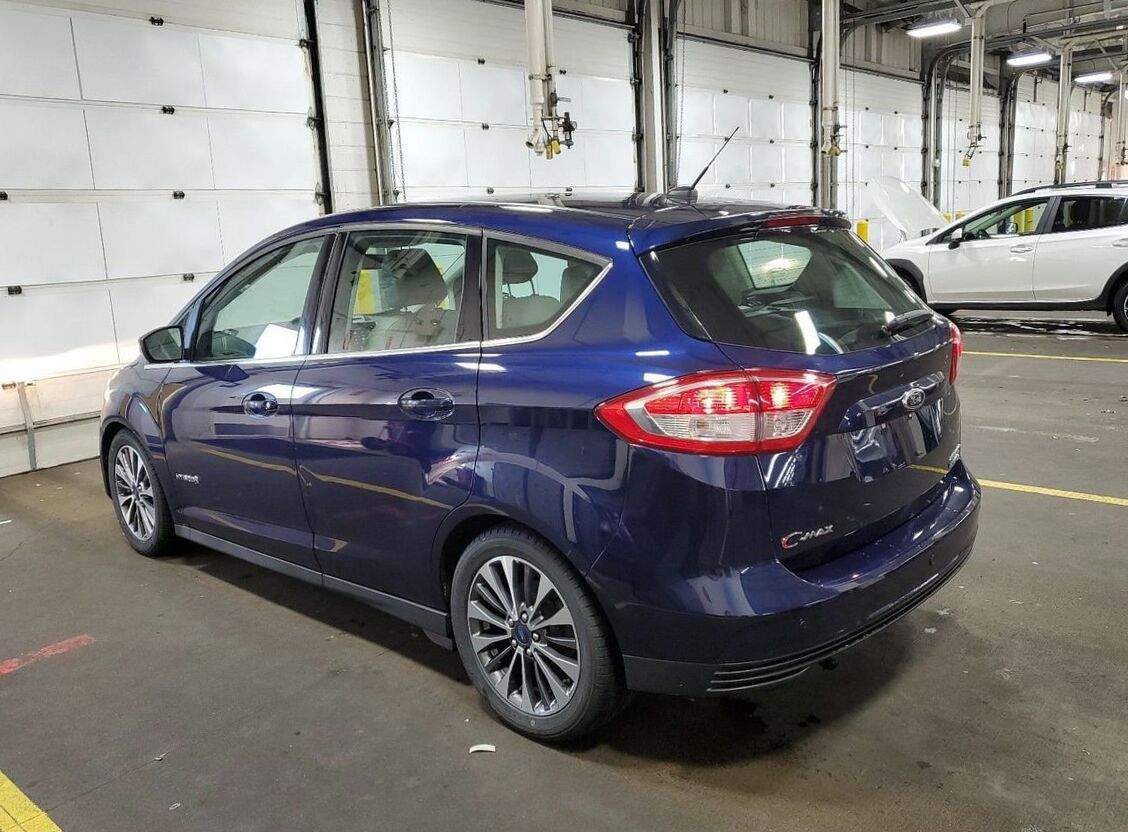

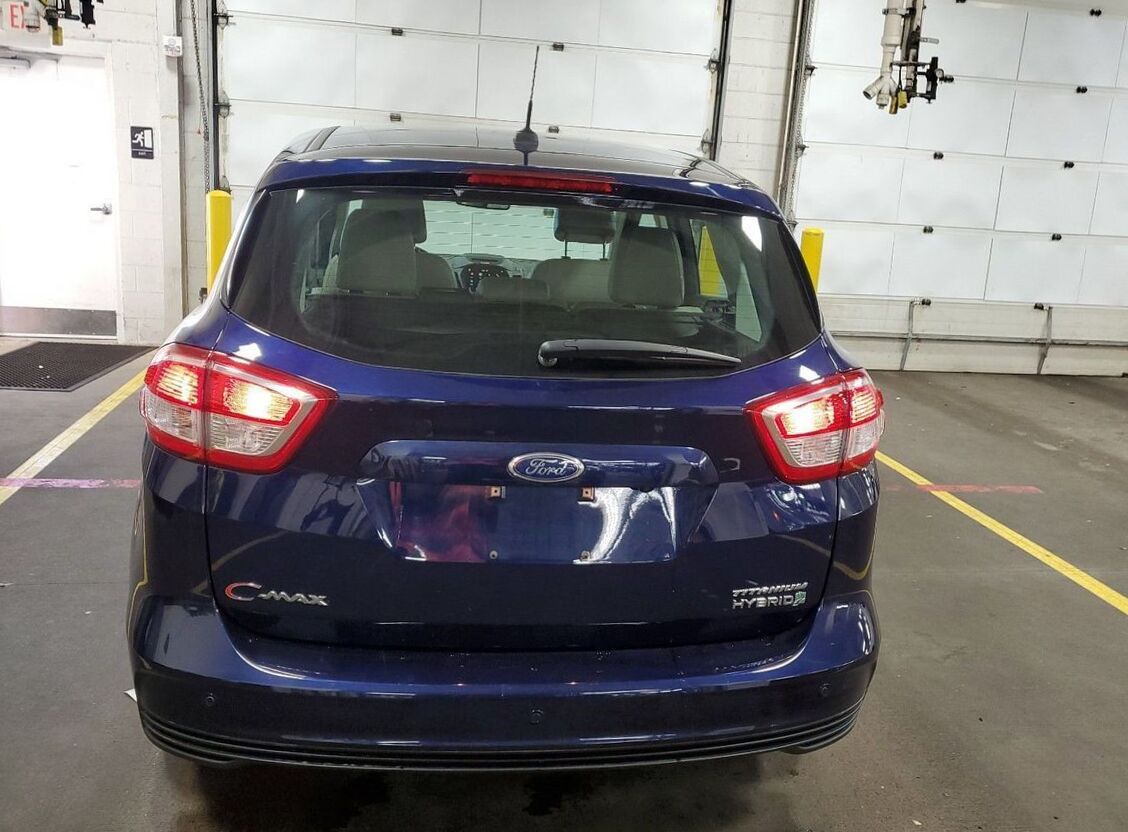

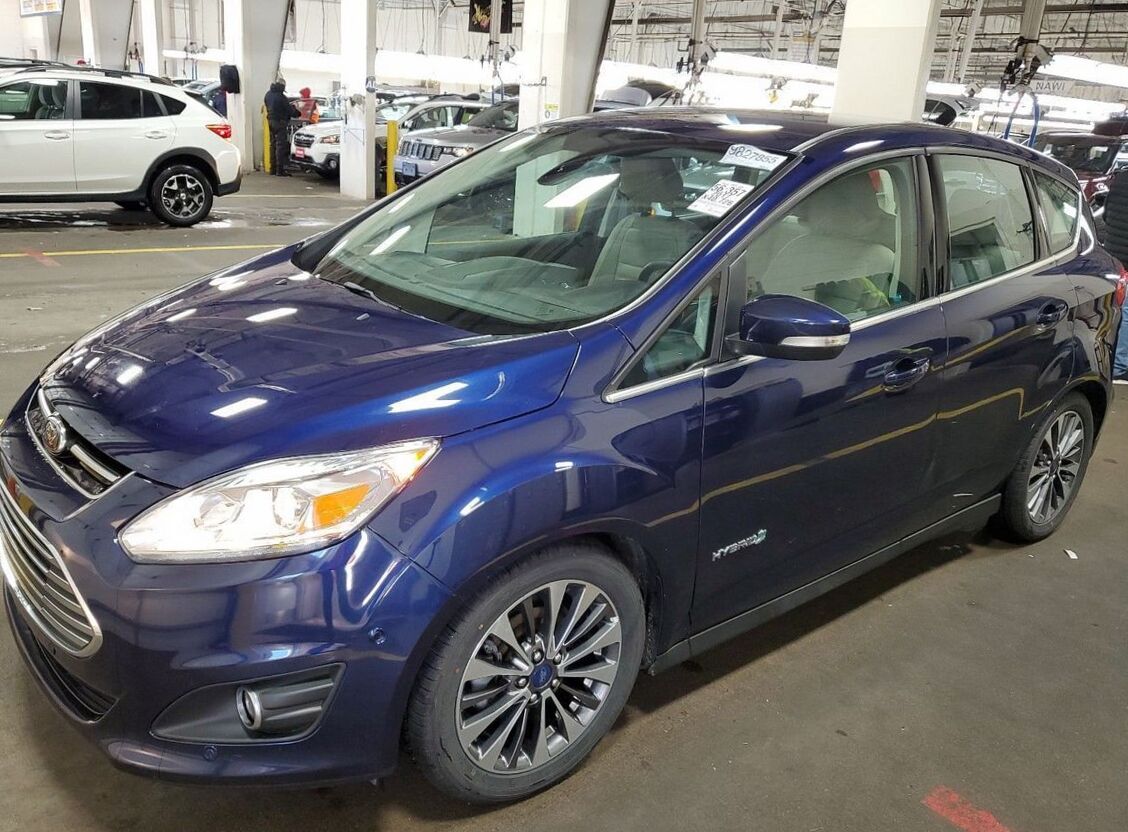

2017 Ford C-MAX II 2.0 CVT Energi Titanium
| Body type | Minivan |
|---|---|
| Power | 141 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 39767 Miles |
| Vin | 1FADP5AU1HL****25 |
| Price (out of date) | $15260 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2017 Ford C-MAX II? | Minivan, 5 Seats, 5 Doors |
| What is the fuel economy, Ford C-MAX Minivan 2017? | 2.7 l/100 km |
| How fast is the car, Ford C-MAX C344 2017? | 165 km/h |
| How much power, 2017 Ford C-MAX 2.0 CVT Energi Titanium? | 141 Hp |
| What is the engine size, Ford C-MAX II 2017 Minivan 2.0 CVT Energi Titanium (141 Hp)? | 2L or 1999cm3 |
| How many gears, What type is the gearbox, 2017 Ford C-MAX Minivan 2.0 CVT Energi Titanium (141 Hp)? | Variator |
| What is the drivetrain, 2017 Ford C-MAX II? | Front |
| How long is this vehicle, Ford C-MAX Minivan 2017? | 4409 mm |
| How wide is the vehicle, Ford C-MAX C344 2017? | 1828 mm |
| How much trunk (boot) space, 2017 Ford C-MAX 2.0 CVT Energi Titanium? | 544 l |
Ford C-MAX II C344 2.0 CVT Energi Titanium (141 Hp) 2017 Specs
General information | |
|---|---|
| Complectation name | 2.0 CVT Energi Titanium |
| Production start year | 2017 |
| Production end year | 2017 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Variator |
| Engine volume, cc | 1999 |
| Frame name | C344 |
| Max speed | 165 |
| Clearance, mm | 144 |
| Manufacturing country | Spain |
| Doors | 5 |
| Hybrid | yes |
| Warranty | 3 years or 36,000 miles |
Engine, transmission and steering specs | |
Engine specs | |

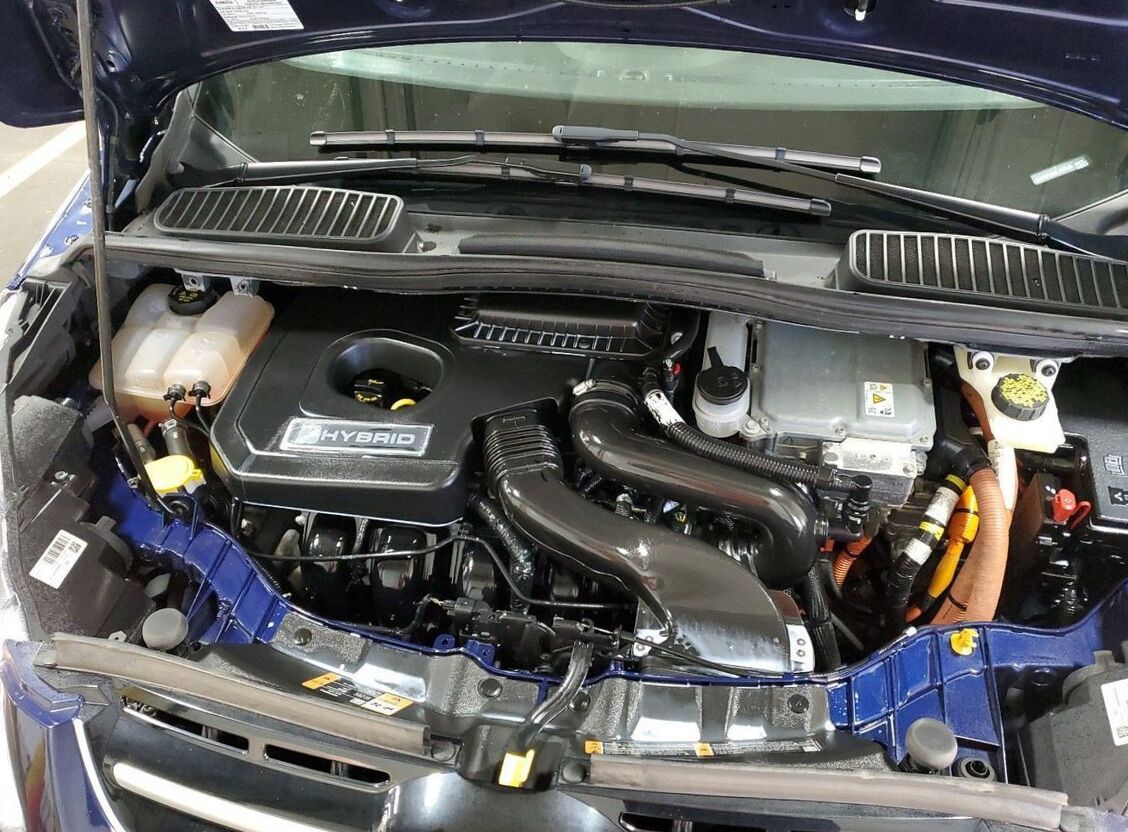

| Engine name | Duratec 20 Hybrid |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 141 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 141 (104) / 6000 |
| Max torque, N*m | 175 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 175 (18) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 12.3 |
| Bore, mm | 87.5 |
| Stroke, mm | 83.1 |
| Engine additional info | DOHC |
| LEV | AT-PZEV |
| Start stop system | no |
Electric Power | |
| charging time | 2.5 |
| Electric range in km | 30.5 |
| Electro Max power, (kWt) | 88 |
| Electro Max torque, Nm | 240 |
| Gross capacity of battery in kWh | 7.6 |
Fuel consumption | |
| City | 2.5 |
| Country side | 2.9 |
| Combined | 2.7 |
Transmission | |
| Main gear ratio | 2.57 |
Steering | |
| Power steering | no |
| Electric power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4409 |
| Exterior width, mm | 1828 |
| Exterior height, mm | 1620 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2648 |
| Turning radius, m | 5.7 |
| Wheel spacing front | 1537 |
| Wheel spacing rear | 1534 |
Weight and permissible load | |
| Mass, kg | 1750 |
Volumes | |
| Fuel tank capacity, l | 53 |

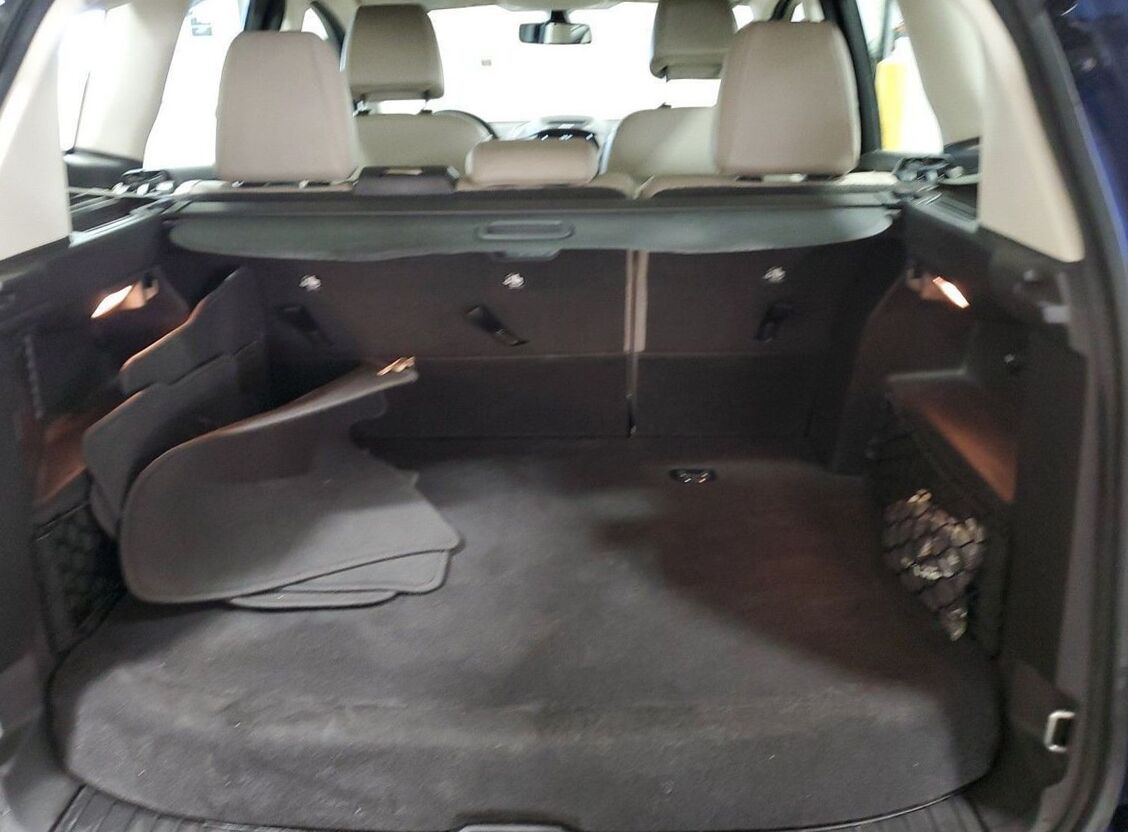

| Trunk volume | 544 |
Other | |
| Aerodynamic drag | 0.3 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |
Wheel rims | |
| Aluminium wheel | yes |
| Front wheel disk | 17X7J |
| Rear wheel disk | 17X7J |
Tires | |
| Front wheels | 225/50 R17 |
| Rear wheels | 225/50 R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake | Electronic |
| Regenerative braking | yes |
| Parking brake new first | Electronic |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Bixenon | no |
| Diod head lights | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door handles in body color | yes |
| Power rear door | yes |
| Keyless rear door | yes |
Windows | |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | yes |
Accessories | |
| Rear spoiler | yes |
| Bumpers | painted in body color, chrome grille |
Body color | |
| Metallic paint Body | option |
Interior | |

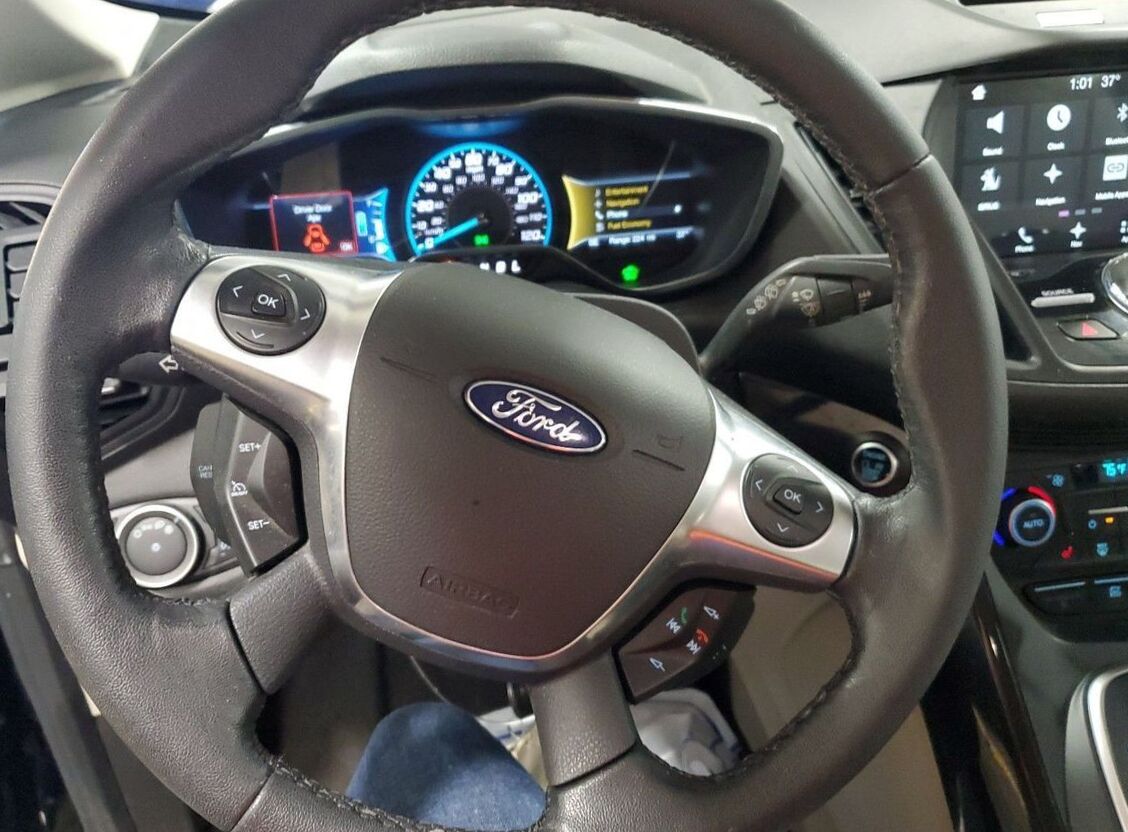

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Env temp | yes |
| Engine start button | yes |

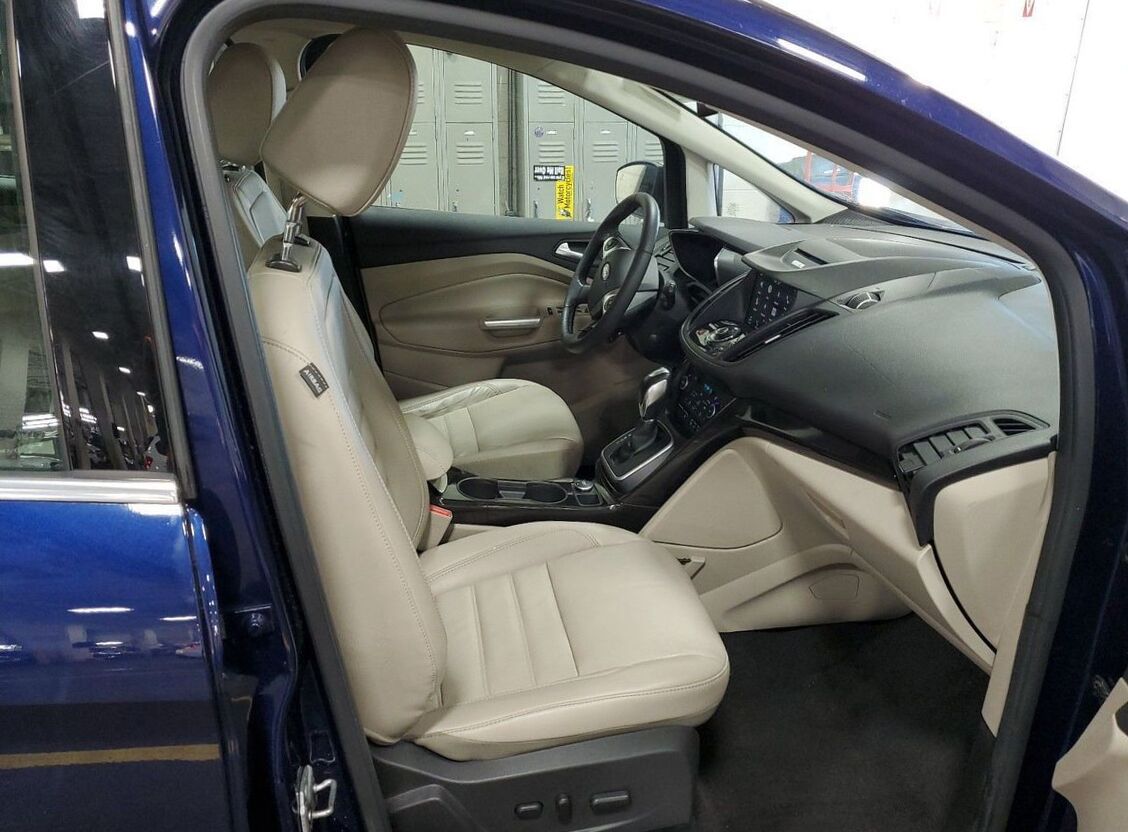

Interior design | |
| Cloth upholstery | no |

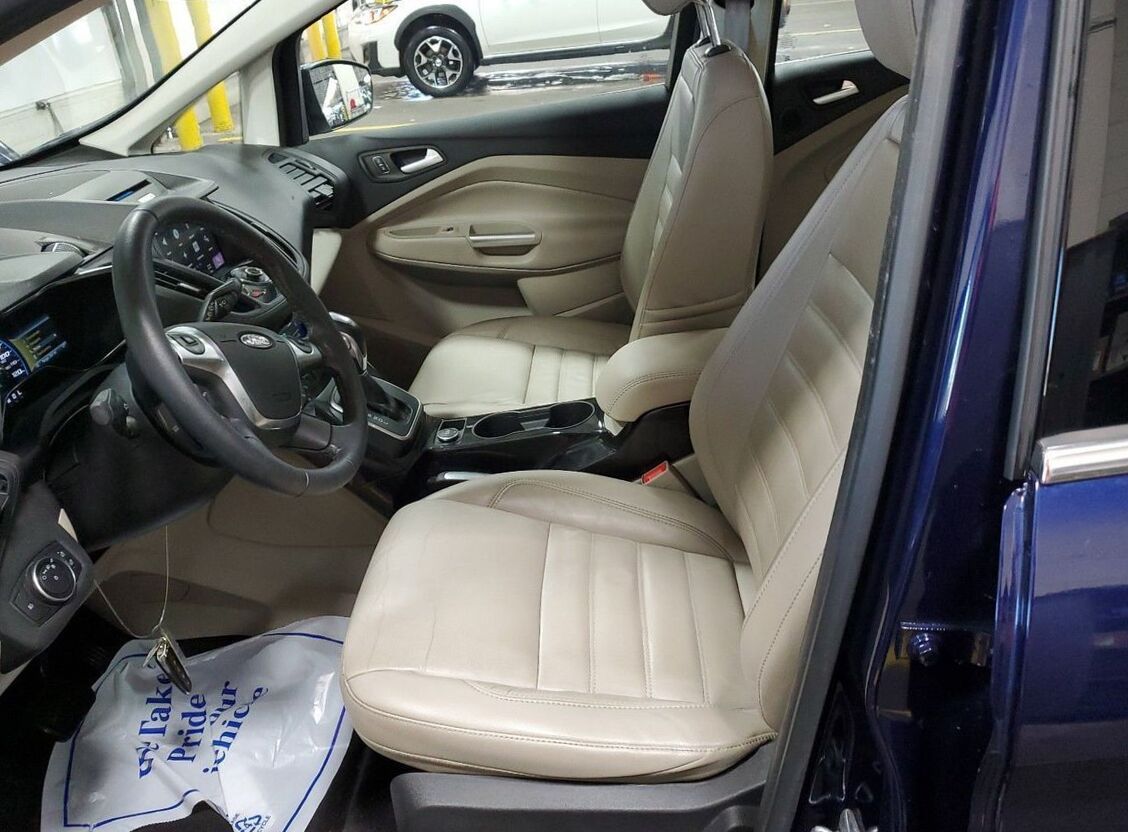

| Leather upholstery | yes |
| Combined obivka Salon | no |

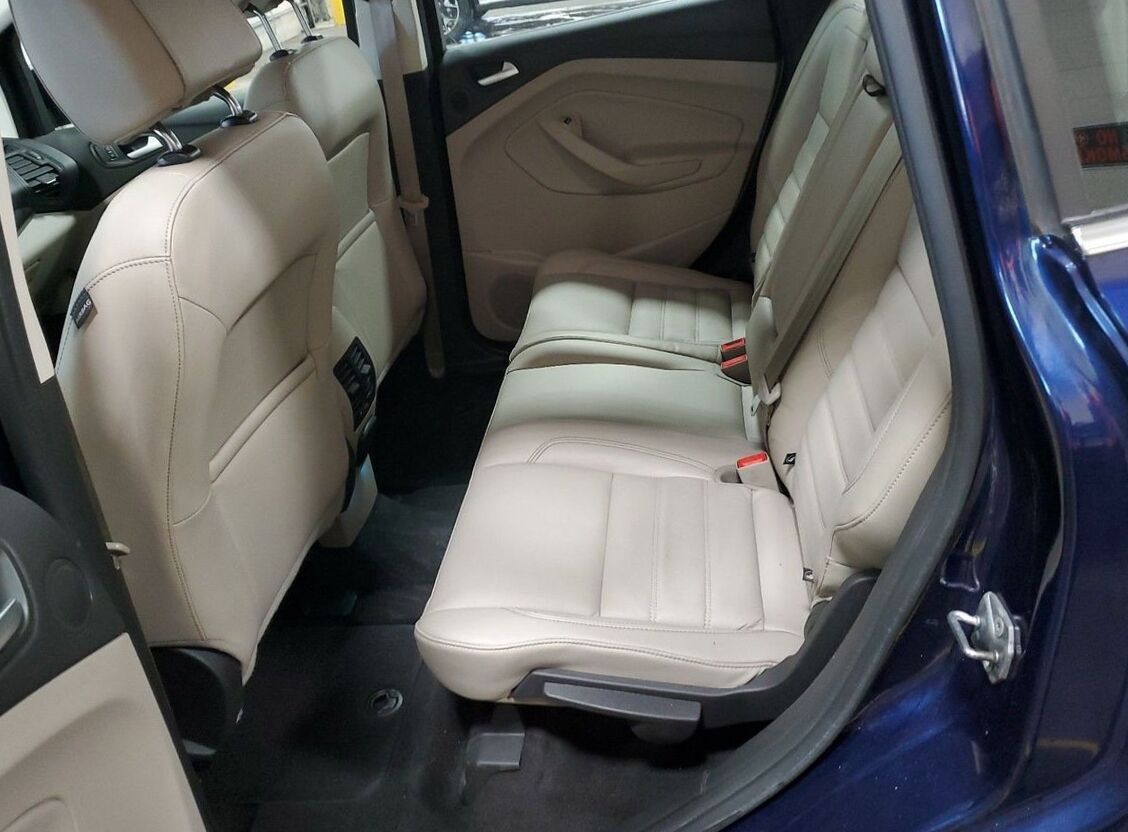

Seats | |
| Bucket seat | no |
| Front seats ajust | in 10 directions |
| 2nd row | 60/40 ratio fold seat |
| Loin reliance | yes |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
Electric interior package | |

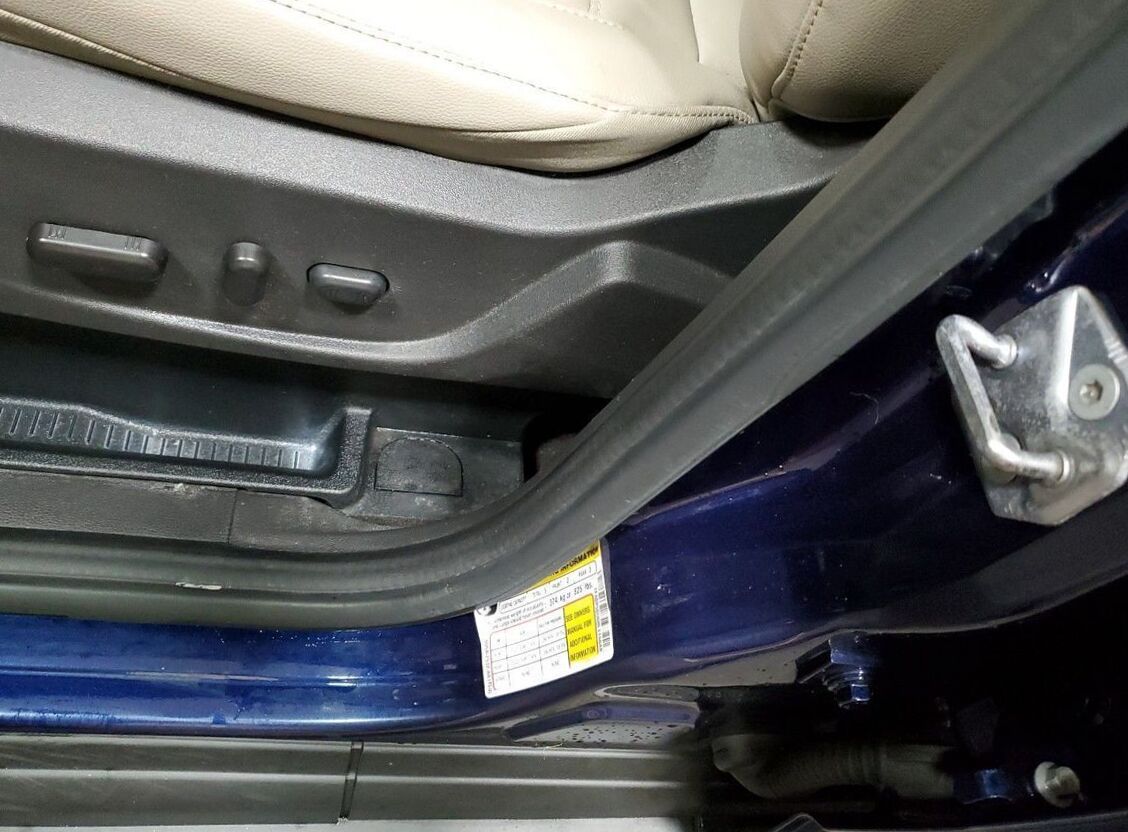

| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
| Injectors heat | no |
Additional interior equipment | |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
| Airbag for the driver's knees | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Damping Control System | yes |
| Cruise control | yes |
| Function "Take me home" | option |
| Dynamic cornering light | no |
| System tire pressure monitoring | no |
| Front sonar | yes |
| Rear sonars | yes |
| Intelligent parking assist | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Part climat equipment | 2 zones |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| MP3 Support | yes |
| Hands free | yes |
| Additional sound equipment | Sony� audio system, 9 speakers, USB, AUX |
Navigation and video equipment | |

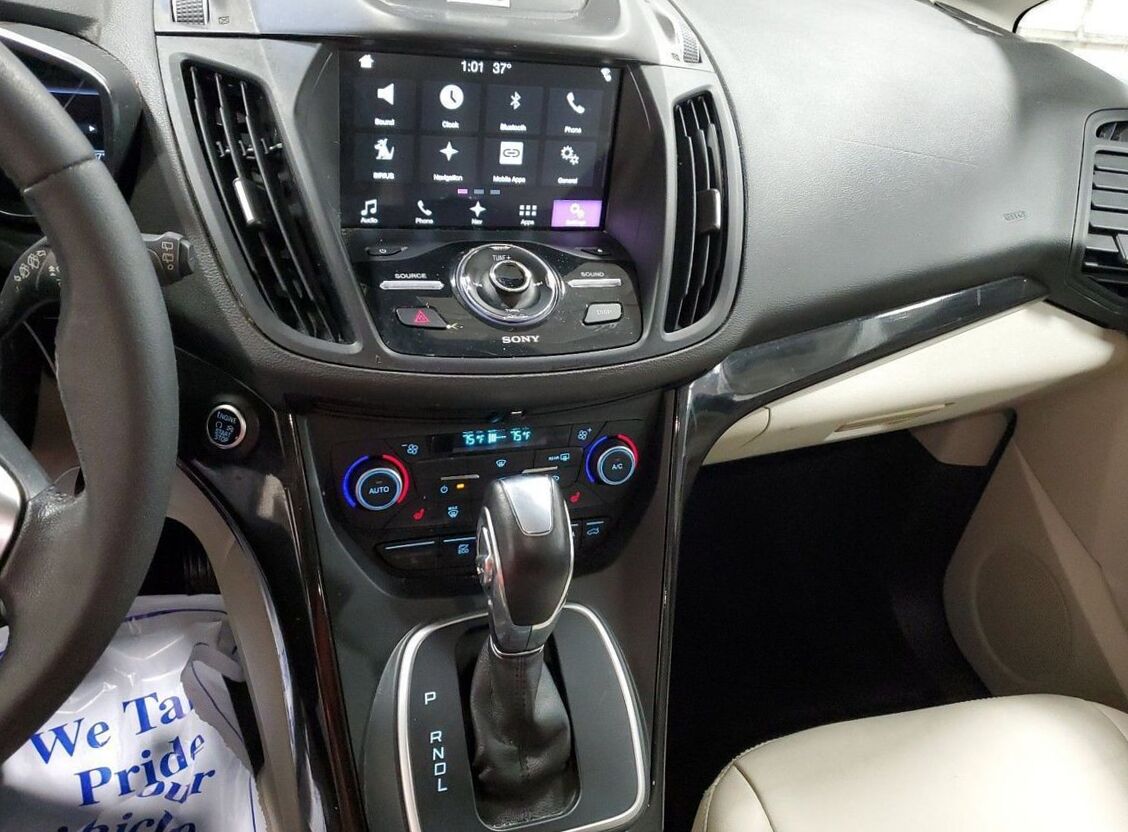

| Full color LCD display | 8" touchscreen |
| Navigation system | yes |
| Back monitor | yes |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Mirrors in sunshields | yes |
| Compass | yes |
| Blind in luggage compartment | yes |
| Onboard computer | yes |
| Light | Ambient Lighting |
Car safety | |
| Immobilizer | yes |
| Security alarm | yes |
2017 Ford C-MAX II C344 2.0 CVT Energi Titanium (141 Hp) specs
|
In December 2006, the facelifted version of the C-Max was revealed at the 2006 Bologna Motor Show and went on sale in late spring 2007. The facelift brought the car in line with Ford's 'Kinetic Design' design language, evidenced through its twin trapezoidal grilles, large wheelarches and angular headlights. However, as the car does not have a bodyshell originally designed for 'Kinetic Design,' Ford officially states that the car contains only 'elements' of the design language. It seats five passengers and has a large amount of cargo space, which can be increased by folding the rear seats flat. Some models feature diagonally sliding outer rear seats. It also shares the control blade independent rear suspension from the Focus. The available engines are the same as the Focus — the petrol versions are the 1.6L, 1.8L and 2.0L aluminium Duratec, and the 1.8L Duratec Flexifuel, which runs on E85 bioethanol or petrol, while the diesel engines are the PSA-developed Duratorq 66kW (90hp) and 85kW (109hp) 1.6 (1560cc)L, Ford's own Lynx Duratorq 1.8L 85kW (115hp), and the PSA-designed 100kW (136hp) 2.0L. » Read More About Ford C-MAX |
