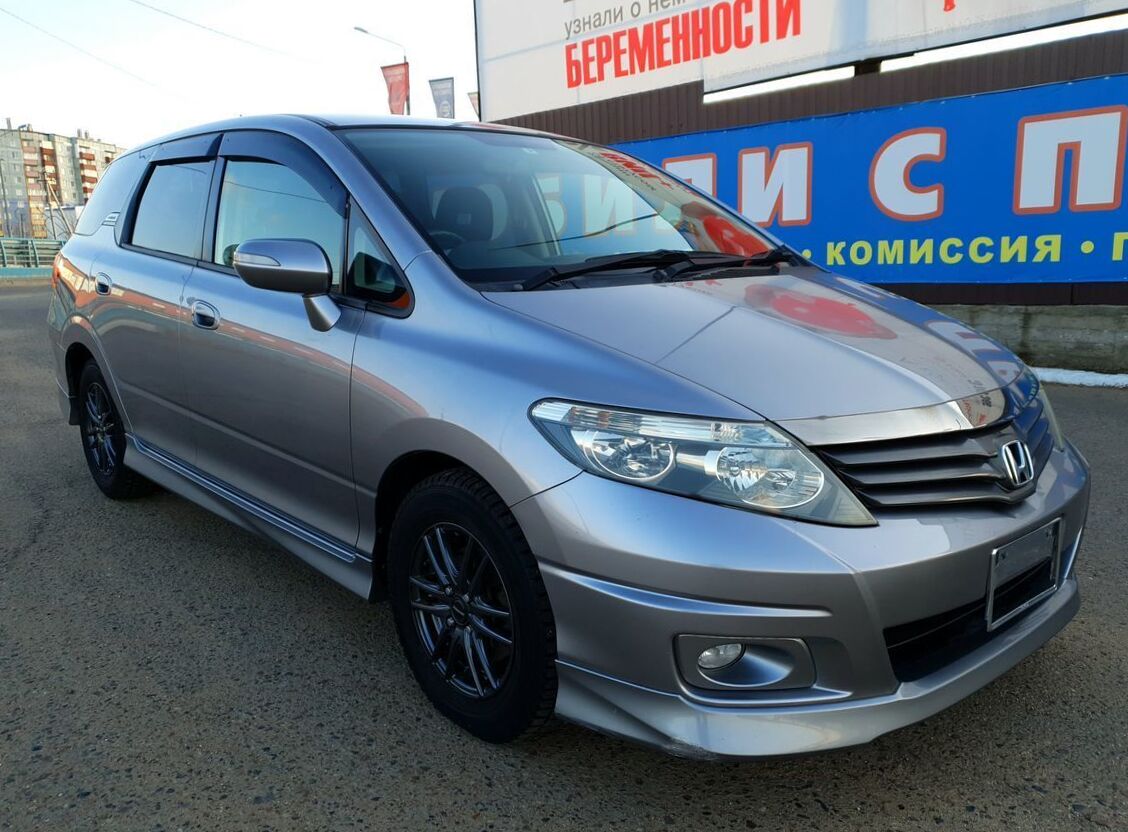

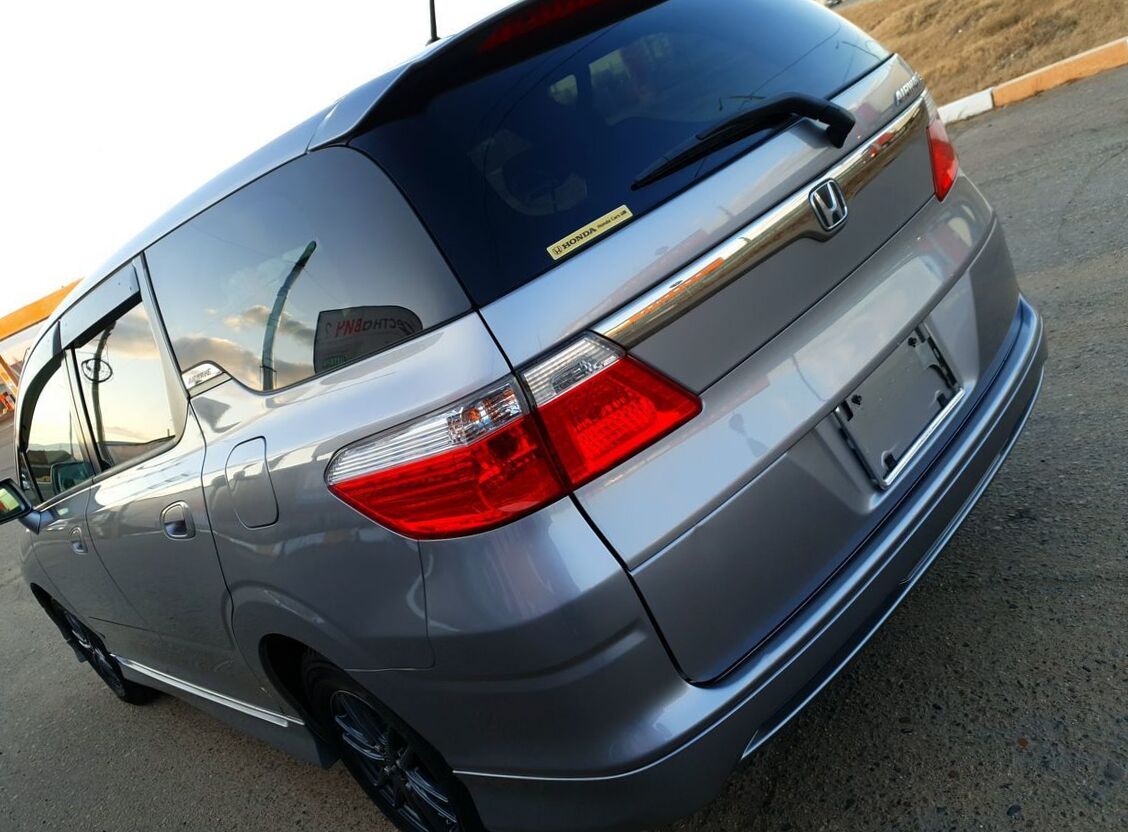

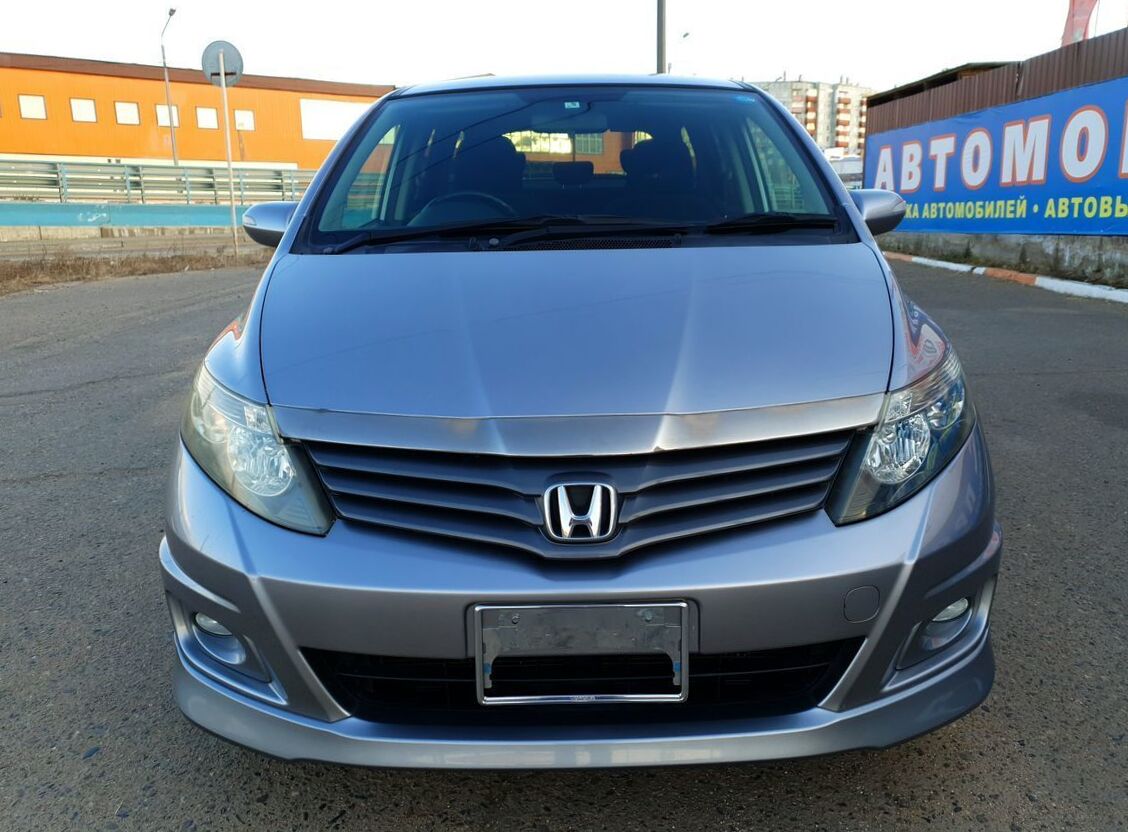

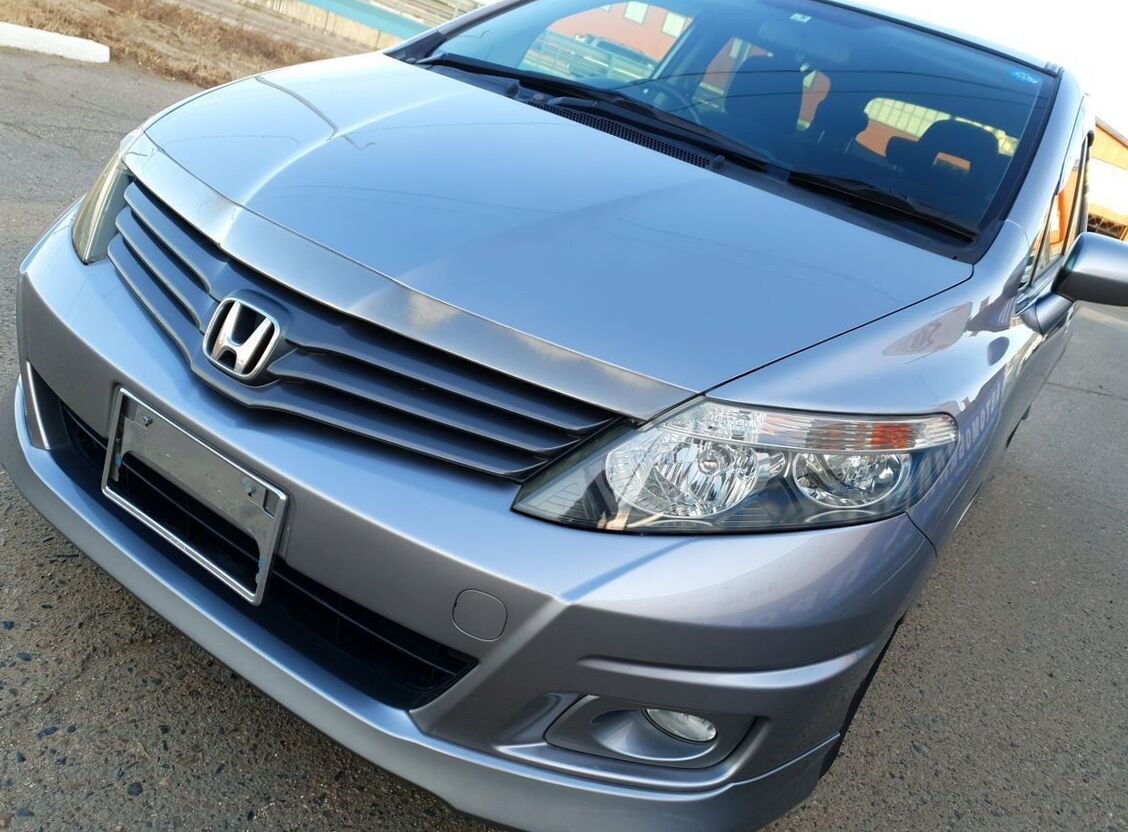

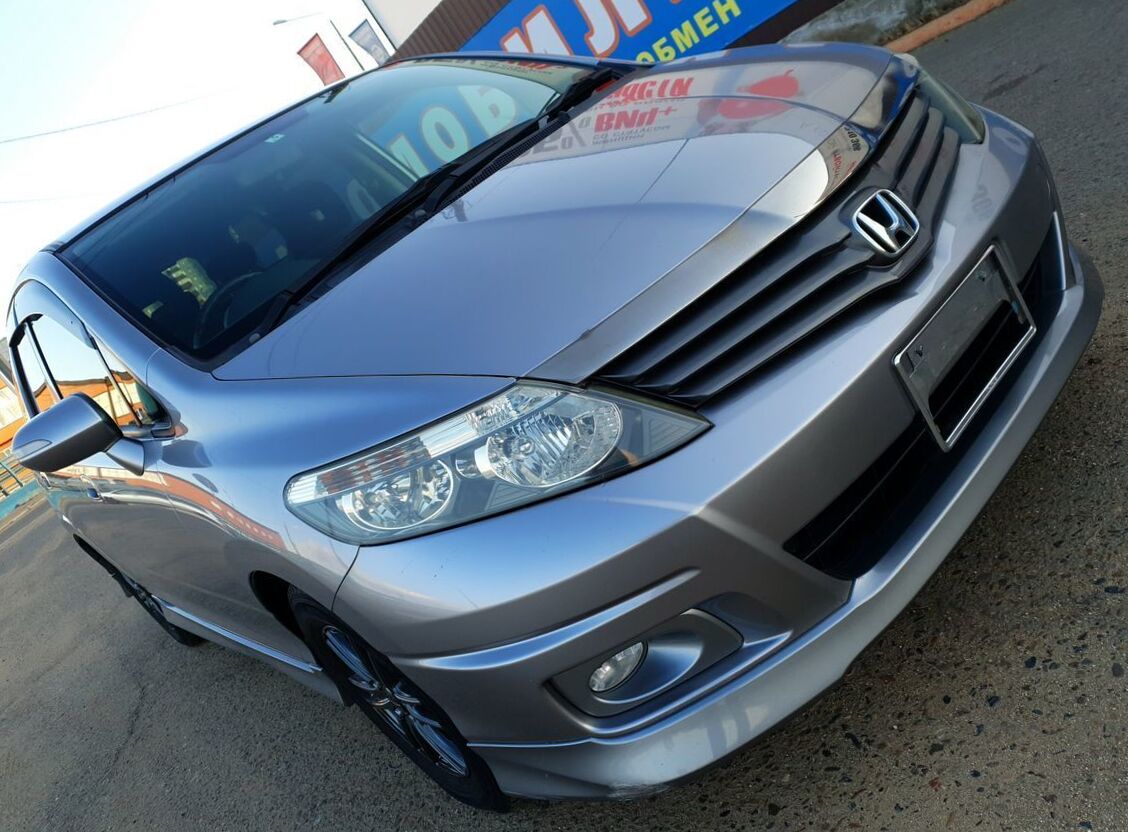

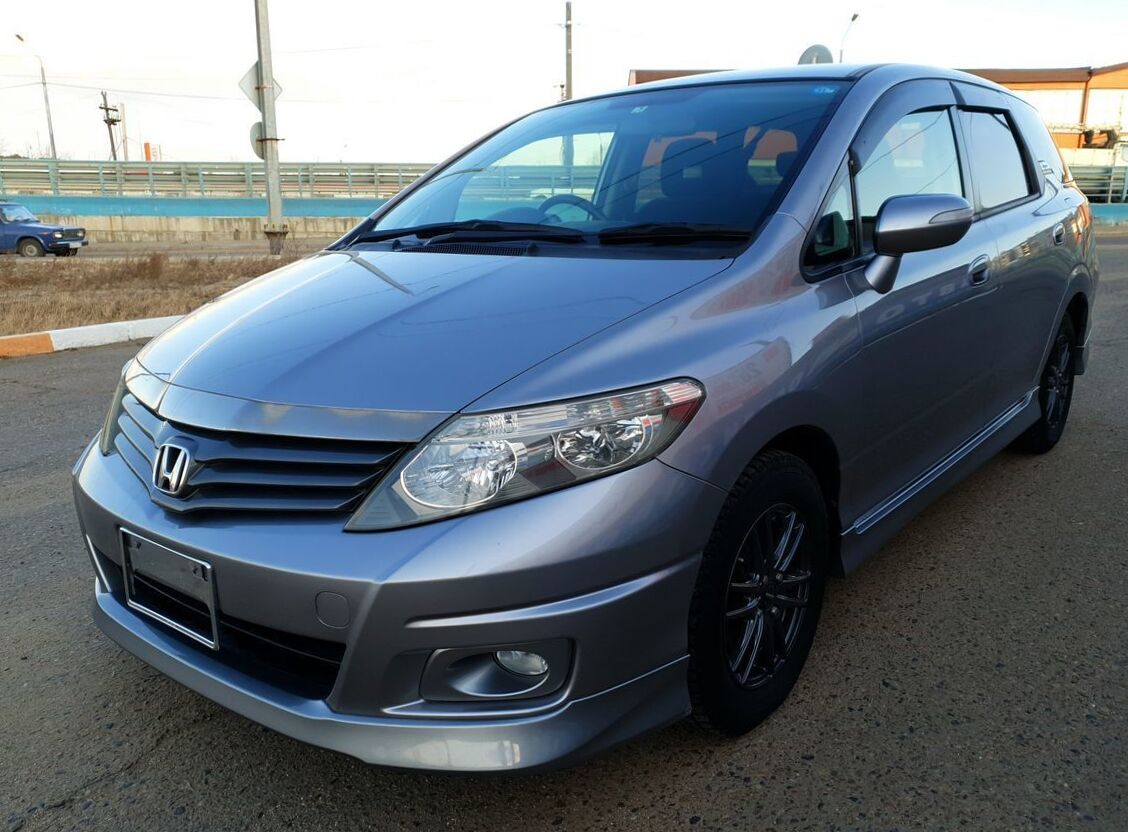

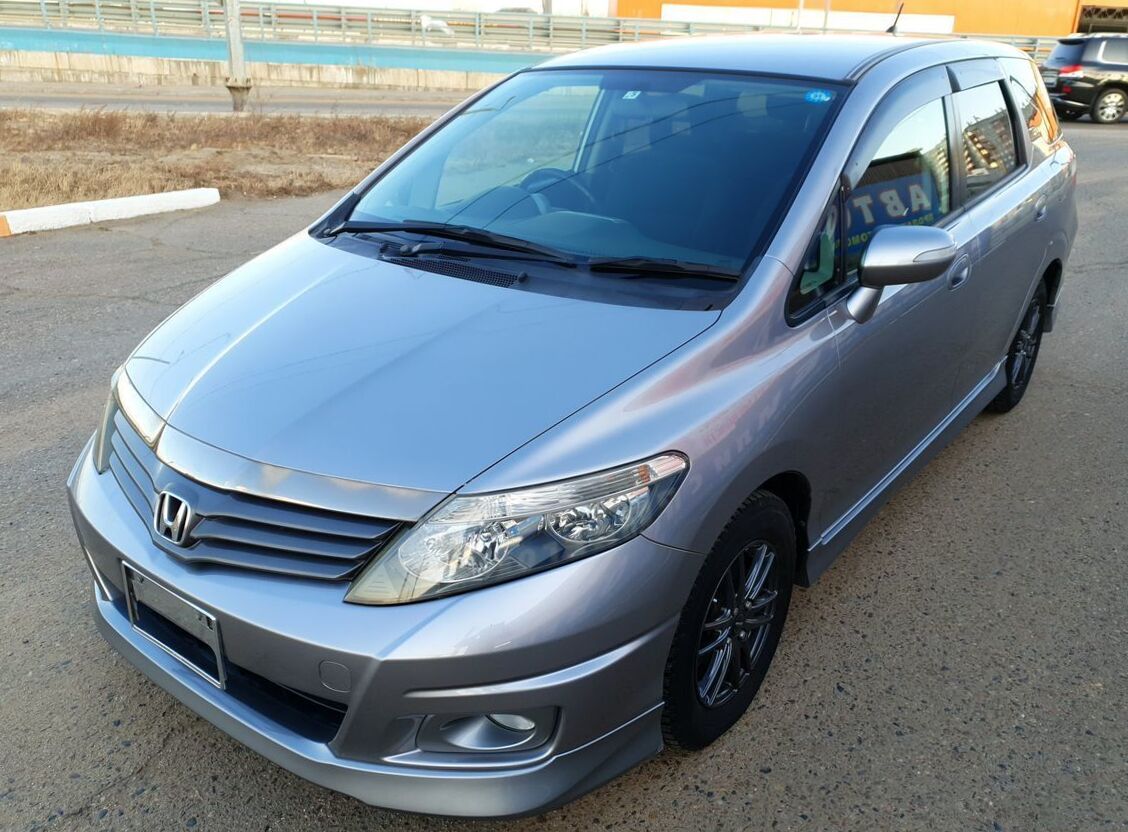

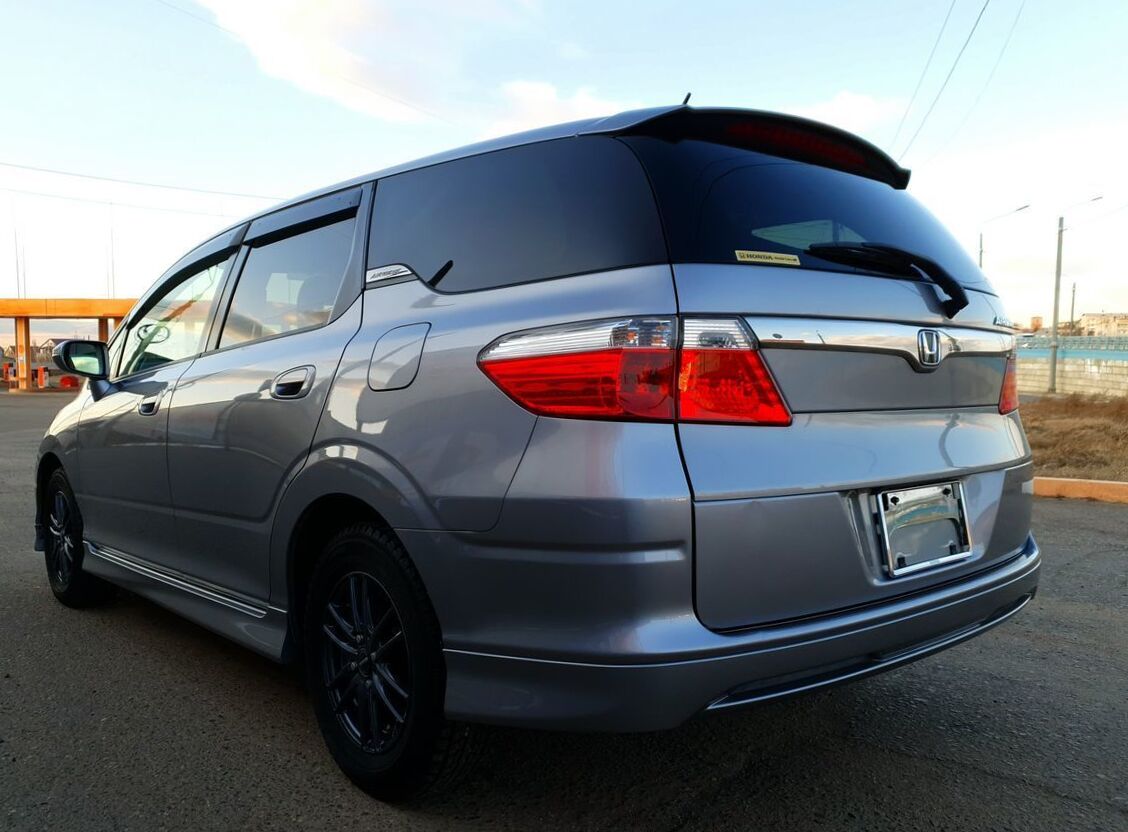

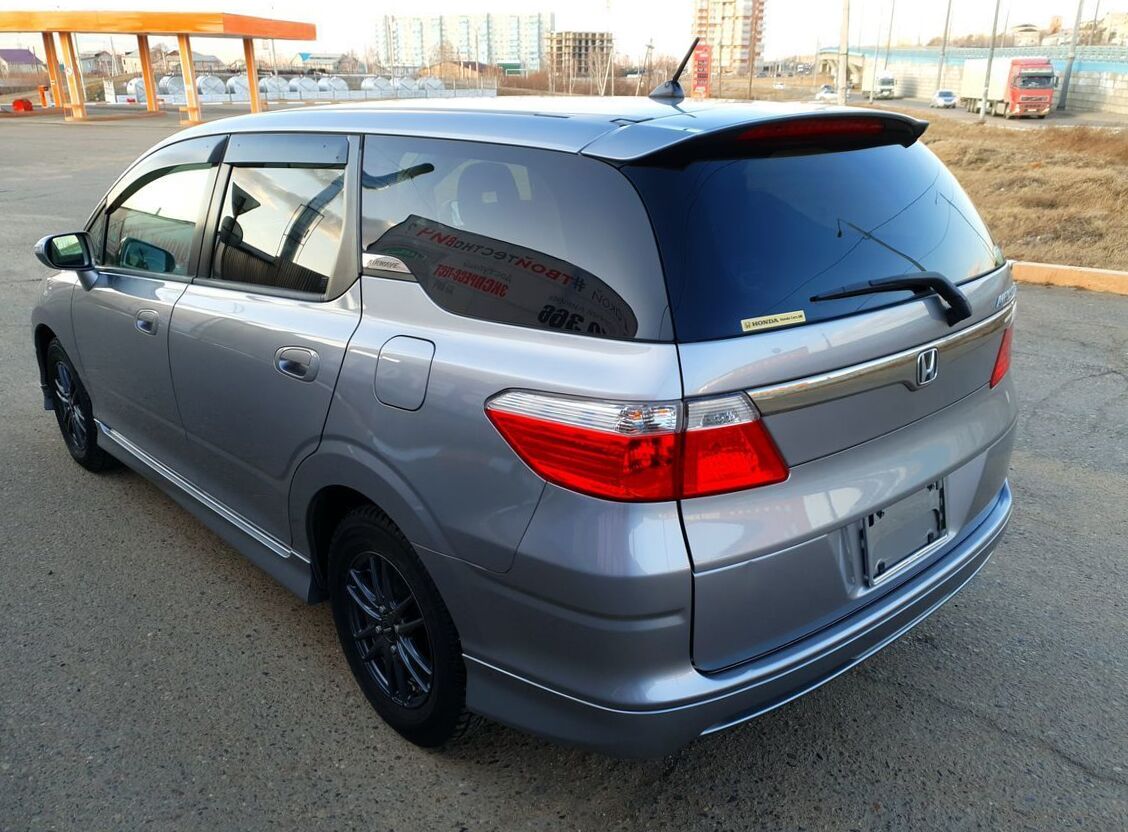

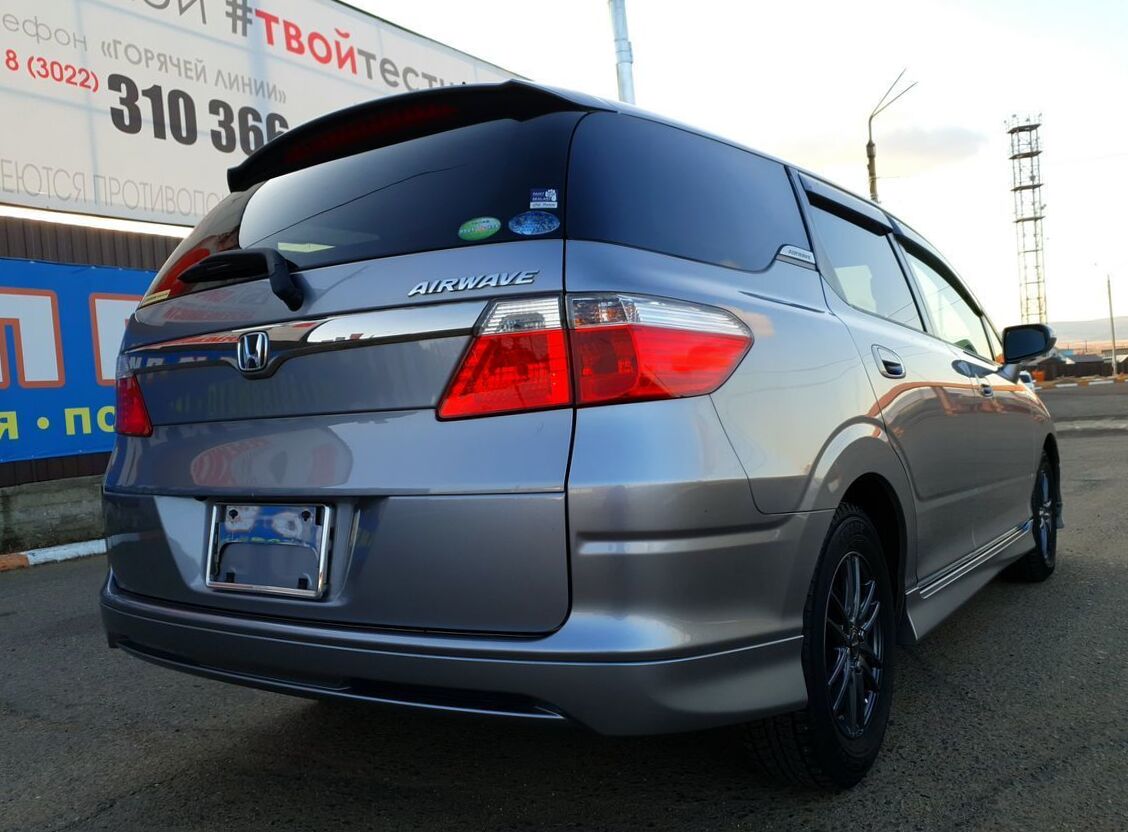

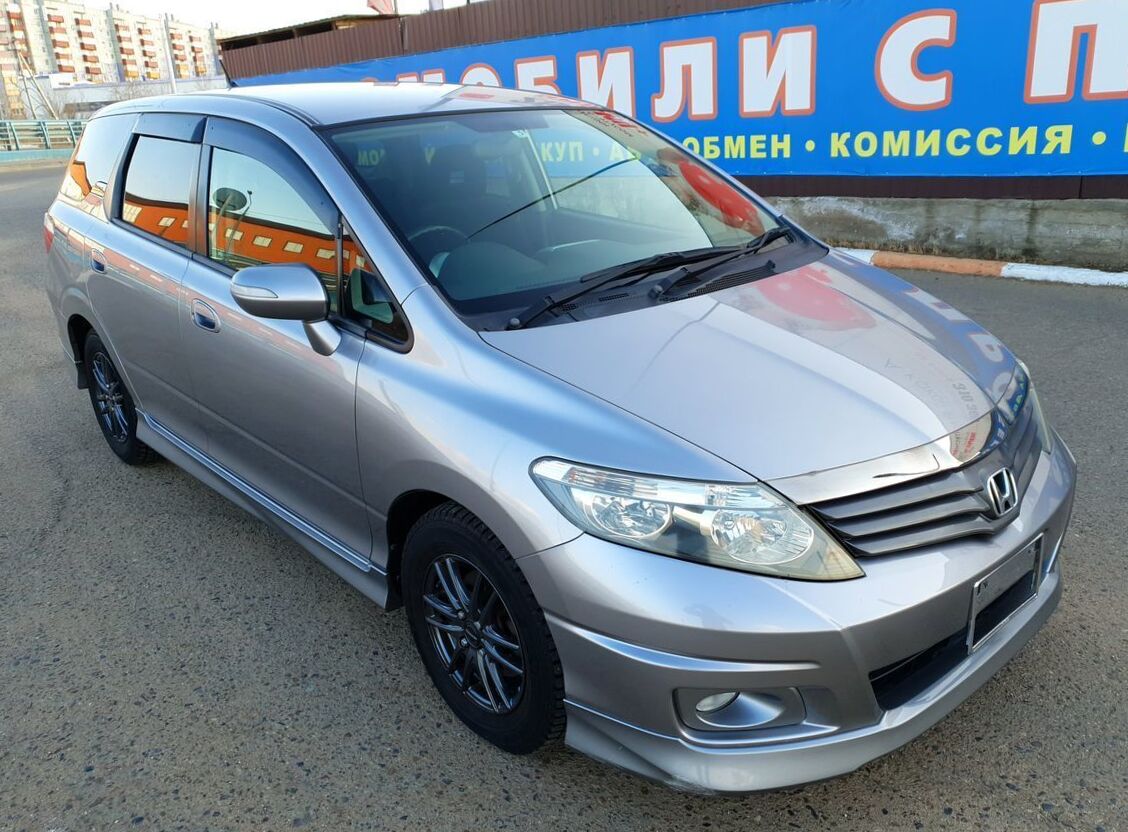

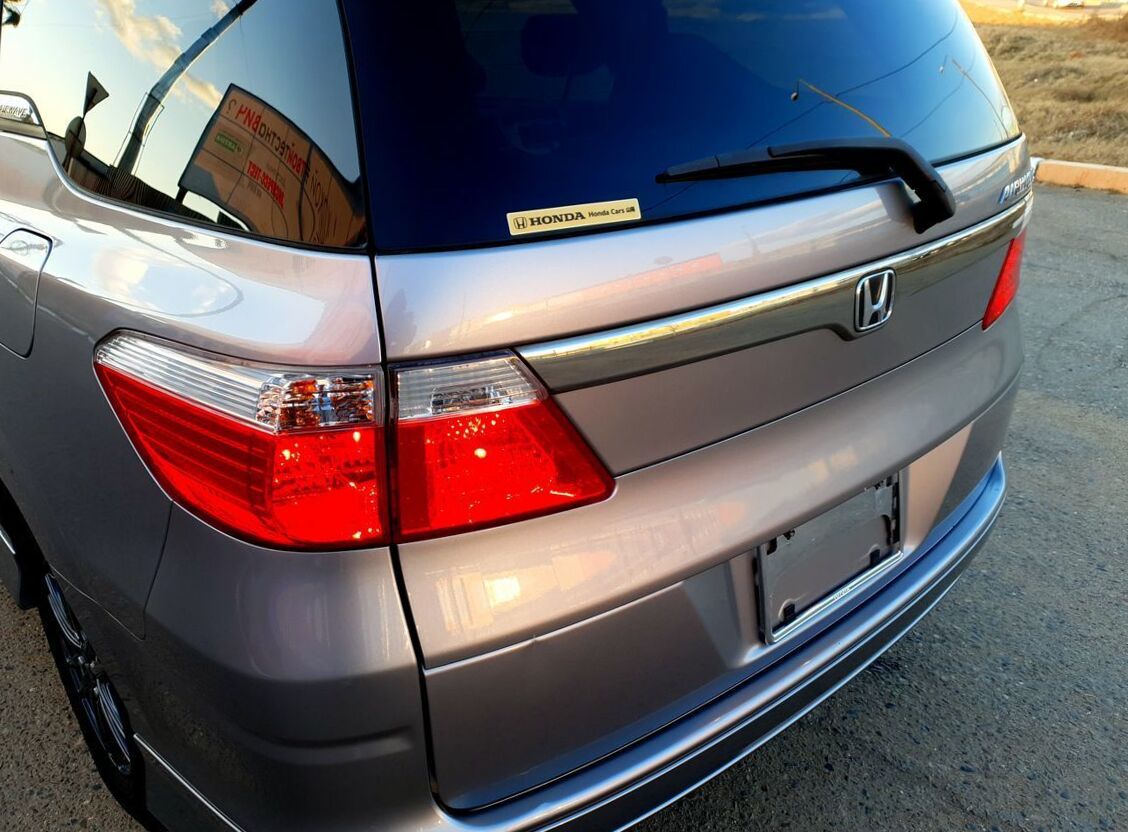

2009 Honda Airwave 1.5 M S package
Honda Airwave Problems
Car shakes when driving of, link knocking and s...
2006, Car shakes when driving of, link knocking
and slipping gears. When transmission cold has...
Transmission
2006, Car shakes when driving of, link knocking
and slipping gears. When transmission cold has...
Gear box
2012, The car stopped suddenly while I was
driving ,it does not reverse or drive but when
you ...
| Body type | Wagon |
|---|---|
| Power | 110 Hp |
| Engine Displacement | 1500 cm3 or 1.5L or 91.5 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 49709 Miles |
| Vin | GJ1-1****90 |
| Price (out of date) | $9204 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Honda Airwave Universal 2009? | Universal, 5 Seats, 5 Doors |
| How much power, Honda Airwave DBA-GJ1 2009? | 110 Hp |
| What is the engine size, 2009 Honda Airwave 1.5 M S package? | 1.5L or 1496cm3 |
| How many gears, What type is the gearbox, Honda Airwave 2009 Universal 1.5 M S package (110 Hp)? | Variator |
| What is the drivetrain, 2009 Honda Airwave Universal 1.5 M S package (110 Hp)? | Front |
| How long is this vehicle, Honda Airwave Universal 2009? | 4350 mm |
| How wide is the vehicle, Honda Airwave DBA-GJ1 2009? | 1695 mm |
Honda Airwave DBA-GJ1 1.5 M S package (110 Hp) 2008, 2009, 2010 Specs
General information | |
|---|---|
| Production start year | 2008 |
| Production end year | 2010 |
| Drive type | Front |
| Frame type | Universal |
| Transmission type | Variator |
| Engine volume, cc | 1496 |
| Frame name | DBA-GJ1 |
| Clearance, mm | 160 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | no |
| Steering locaton | right |
Vehicle generation | |
| Generation name | GJ |
| Generation number | 1 |
| Facelift number | 1 |
| Production start year | 2008 |
| Production end year | 2010 |
Engine, transmission and steering specs | |

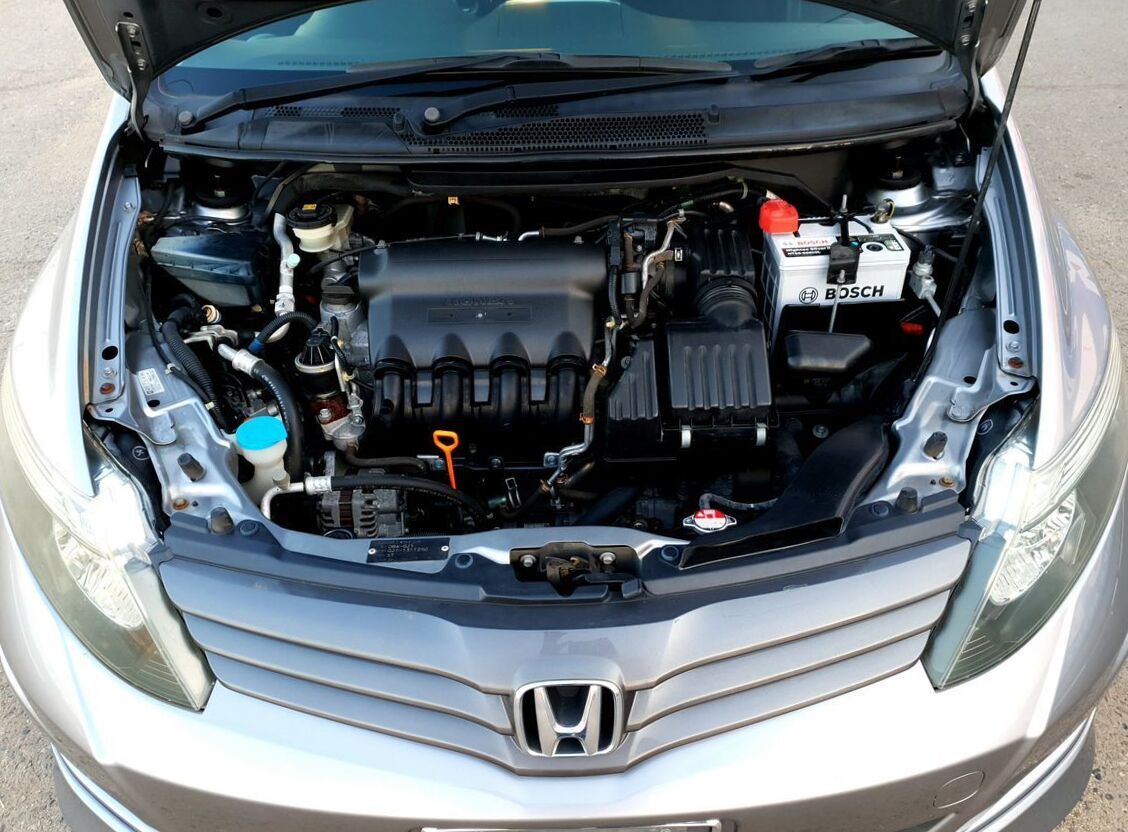

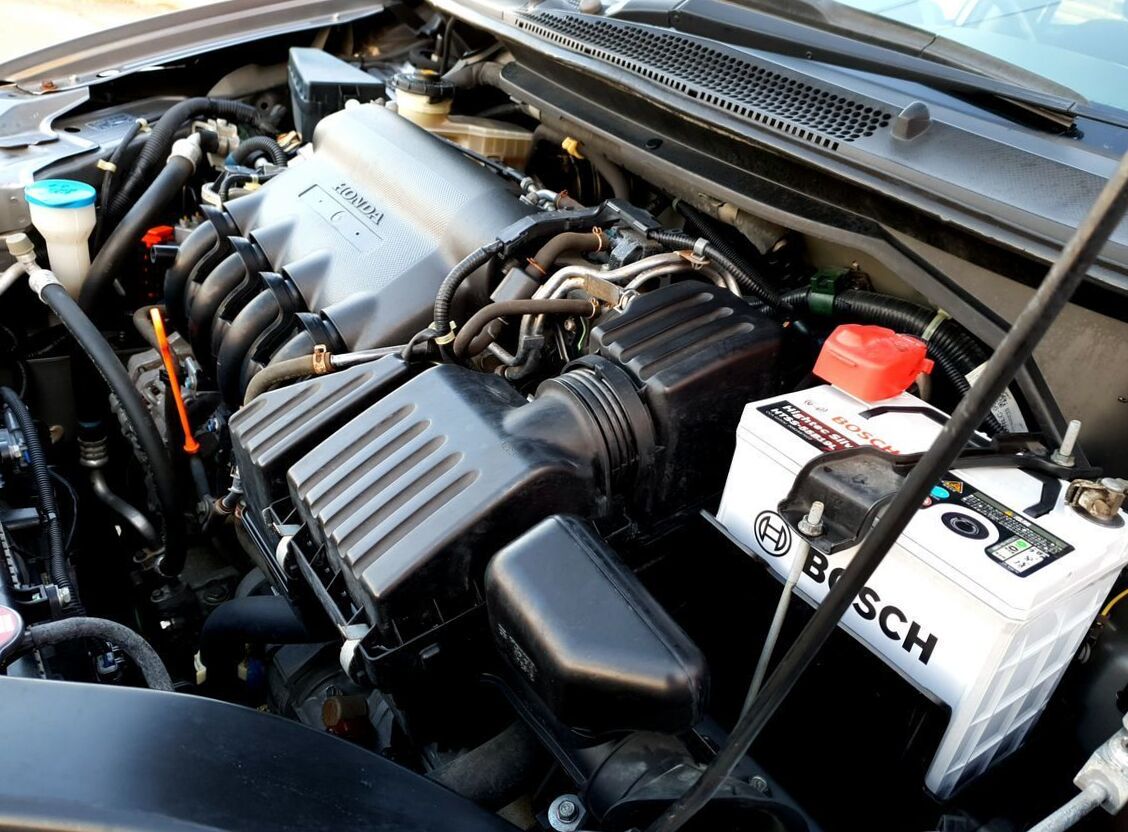

Engine specs | |

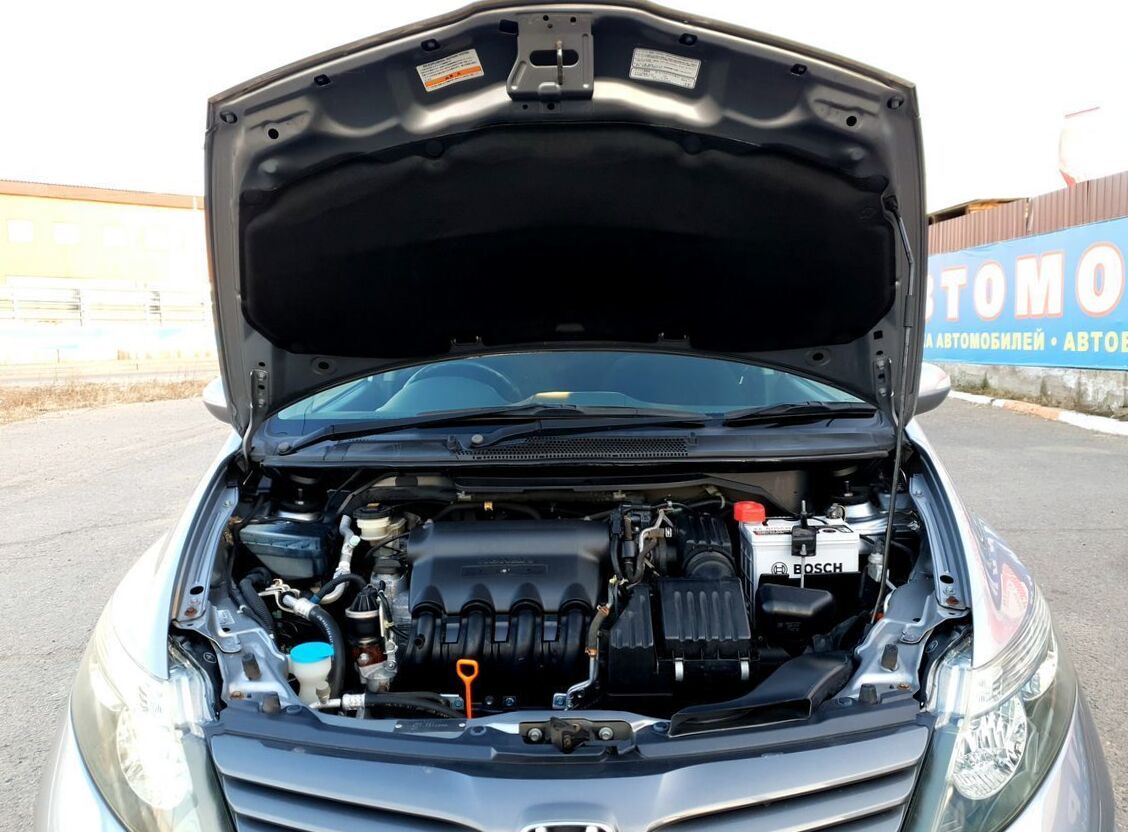

| Engine name | L15A |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 110 |
| Max power RPM, rpm | 5800 |
| Max power, hp (kWt) / rpm | 110(81)/5800 |
| Max torque, N*m | 143 |
| Max torque RPM, rpm | 4800 |
| Max torque, N*m (kg*m) / rpm | 143 (14.6) / 4800 |
| Actuator valves | SOHC |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 81?110?/5800 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 143?14.6?/4800 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 18 |
| Fuel consumption (10/15 mode), l/100km | 5.6 |
Transmission | |
| Shifter position | On the floor. |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4350 |
| Exterior width, mm | 1695 |
| Exterior height, mm | 1530 |
| Exterior size (L x W x H), mm | 4350x1695x1530?mm? |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior size (L x W x H), mm | 1930x1390x1250?mm? |
| Interior length, mm | 1930 |
| Interior width, mm | 1390 |
| Interior height, mm | 1250 |
Chassis dimensions | |
| Wheel base, mm | 2550 |
| Front axle length, mm | 1465 |
| Rear axle length, mm | 1455 |
| Turning radius, m | 5.1 |
| Front/rear axis length | 1465/1455?mm? |
| Wheel spacing front | 1465 |
| Wheel spacing rear | 1455 |
Weight and permissible load | |
| Mass, kg | 1160 |
Volumes | |
| Fuel tank capacity, l | 42 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | option |
| Magnesium wheels | no |
Tires | |
| Front wheels | 185/65R14 |
| Rear wheels | 185/65R14 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brakes equipment | no |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |

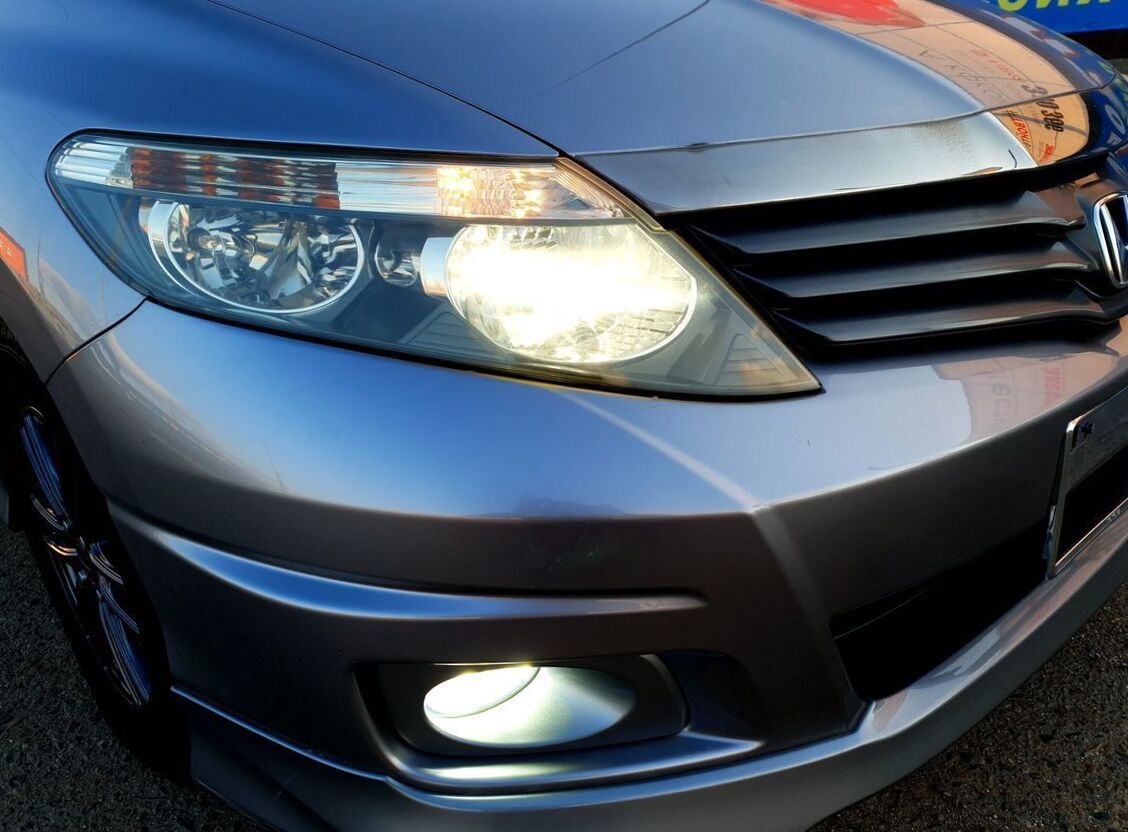

Headlights | |
| Xenon lamps | option |
| Head lights washer | no |
| Front fog lamps | no |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | no |
| Door easy closer | no |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | option |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | yes |
Body color | |
| Colors | 2591 2501 2499 394 2503 |
Interior | |
Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |
Seats | |
| Bucket seat | no |
| 2nd row | 60/40 ratio fold seat |
| 3nd row | no |
| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | yes |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | no |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | option |
| Autoreverse casette | no |
| CD player | option |
| DVD-audio | option |
| MD palyer | no |
| Audio HDD | option |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Optional navigation system | no |
| Traffic jam assist | option |
| Parking assist system | option |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | option |
Additional amenities | |

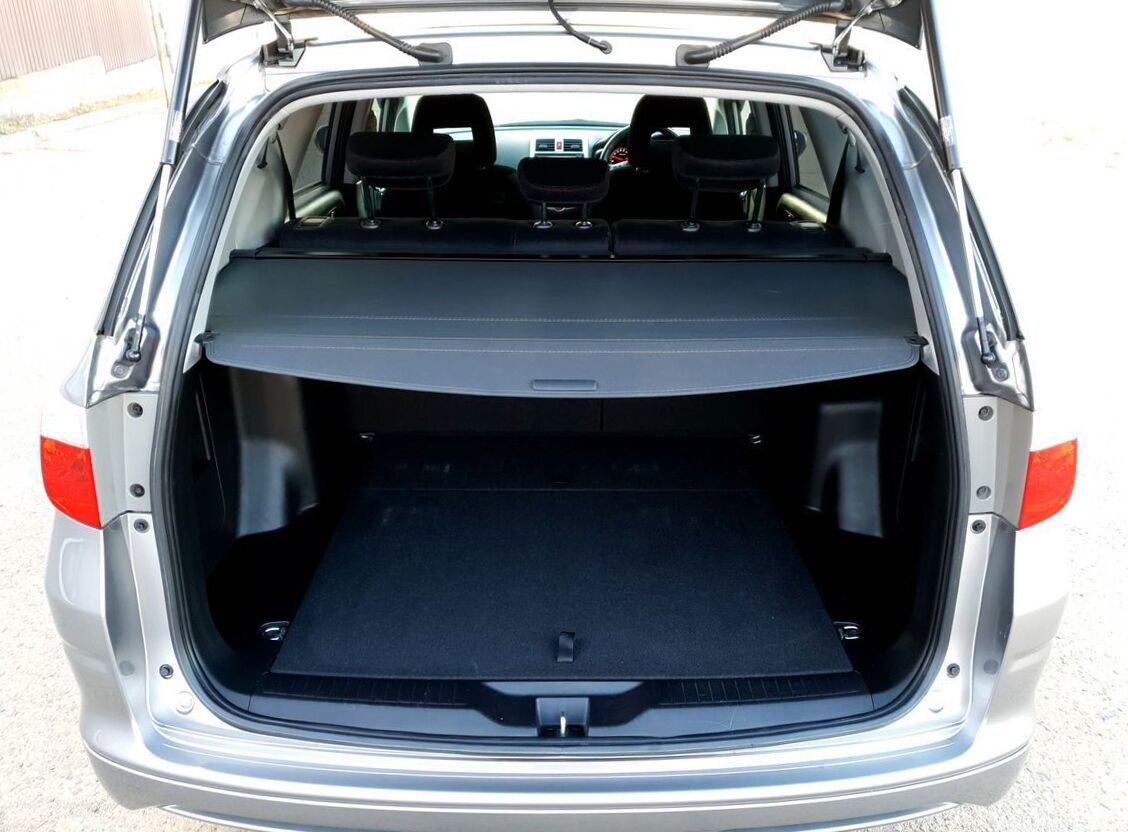

| Lagage box | yes |
| Etc | no |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
2009 Honda Airwave DBA-GJ1 1.5 M S package (110 Hp) specs
|

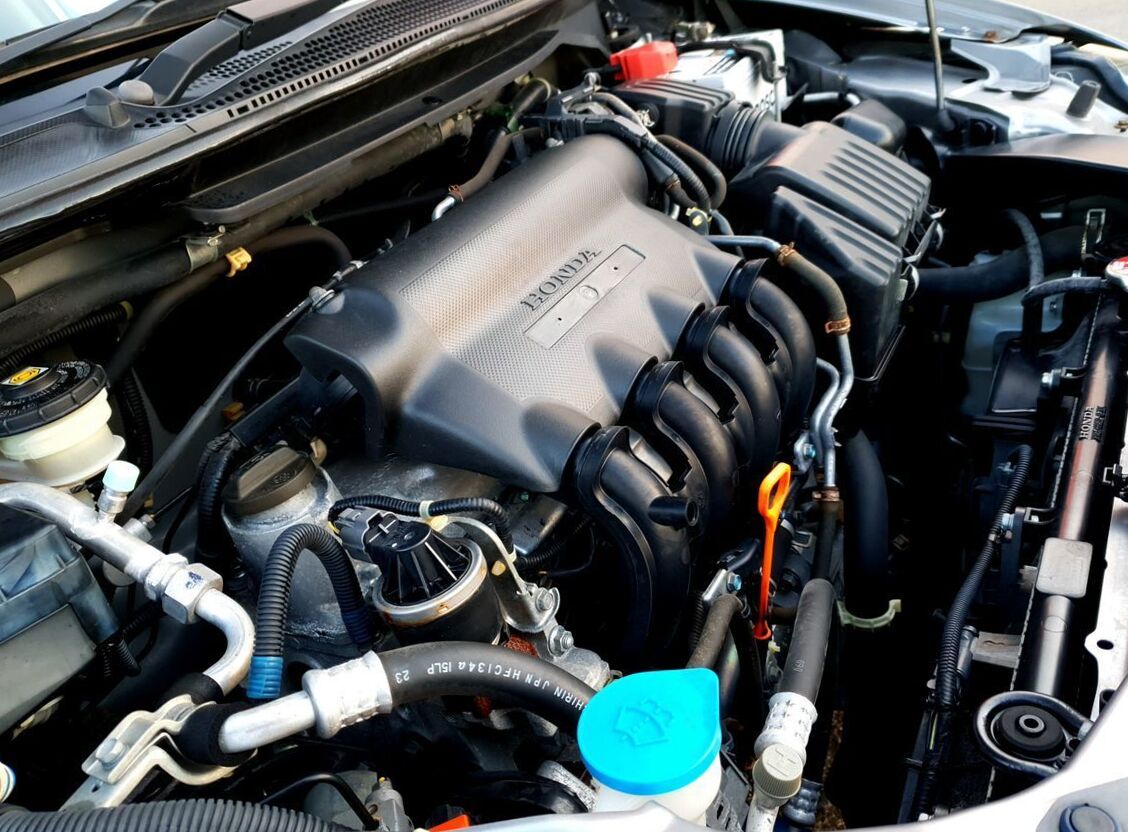

The Airwave is sold in two trim lines, the basic "G" model, and the well-equipped "L" model. Each of the trim lines has an optional panoramic glass sunroof that covers a large part of the roof. Each version of the car is available in either front-wheel drive or four-wheel drive. The current version of the Honda Partner panel van introduced on March 10, 2006 is now based upon the Airwave. Essentially a decontented version of the Airwave, it utilizes the L15A i-DSI engine (unlike the VTEC engine in the Airwave) mated to a five-speed automatic transmission identical to that found in the North American market Fit. The Airwave is powered by the largest version of Honda's L-series engine family, the 1496 cc 1.5L VTEC L15A gasoline engine. The engine produces a maximum output of 81kW (109hp) at 5800rpm and a maximum torque of 143Nm (105lb·ft) at 4800rpm. Two forms of a continuously variable automatic transmission (CVT) are available on the Airwave. The "G" trim line has a standard CVT of five-speed, while the "L" sports a CVT with seven-speed mode. This allows the driver to choose between the smooth, shiftless acceleration of a standard CVT, or the added option of shifting through seven computer-controlled "gears". » Read More About Honda Airwave |
