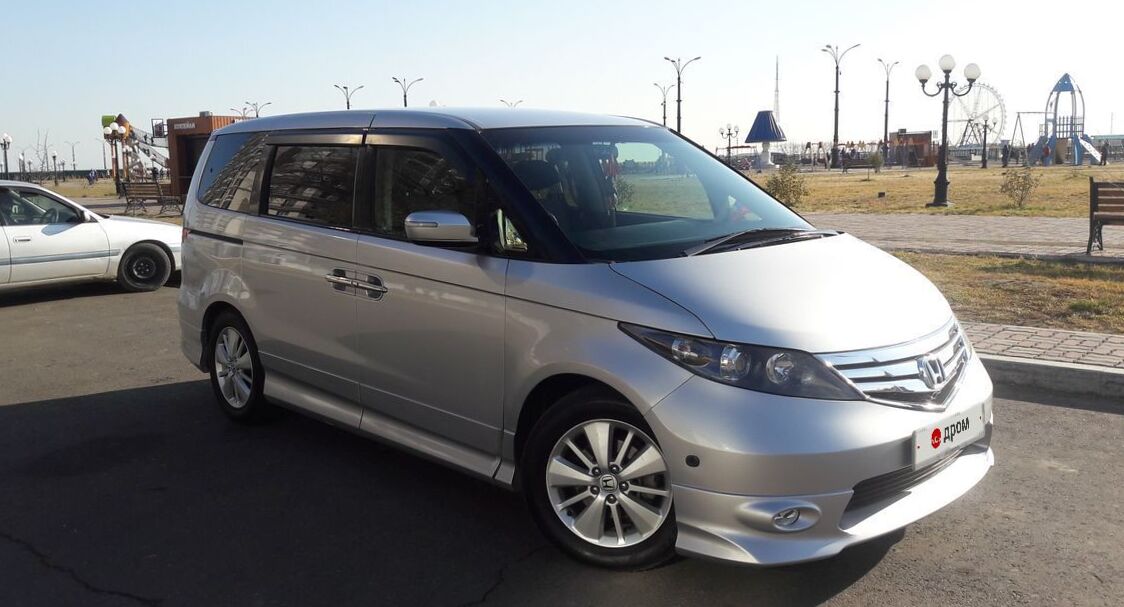

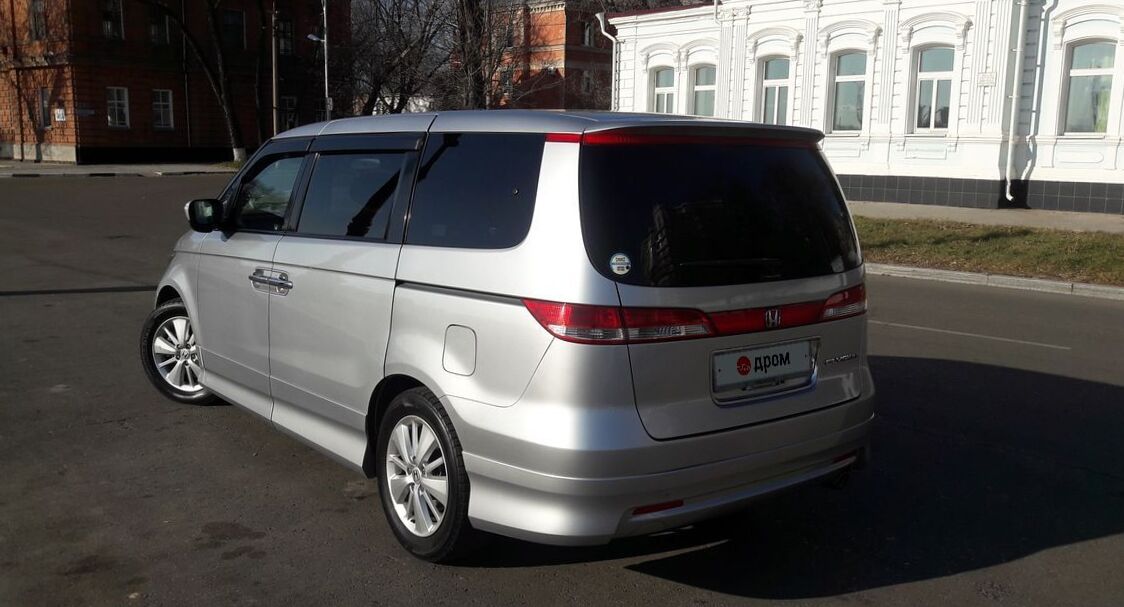

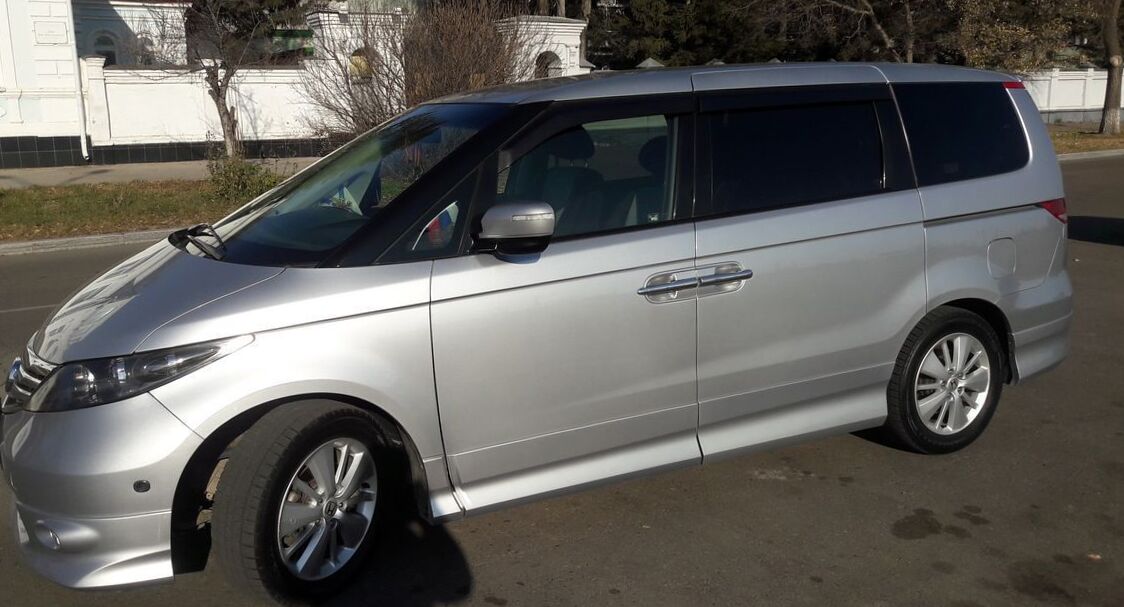

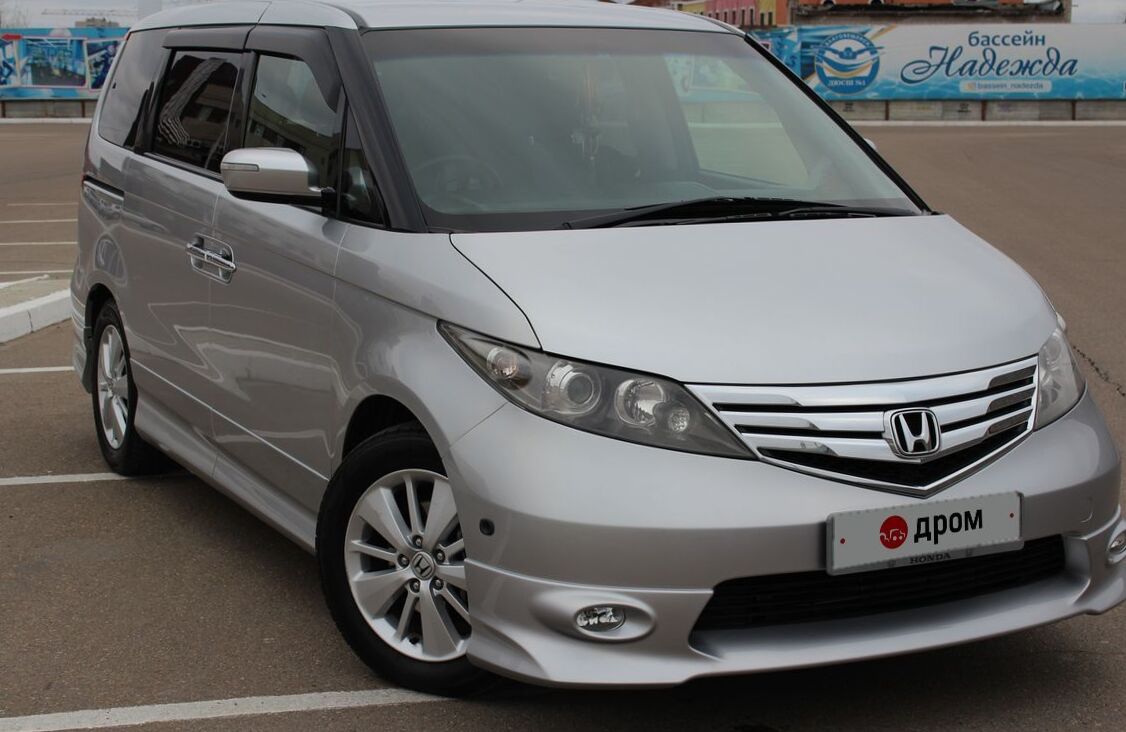

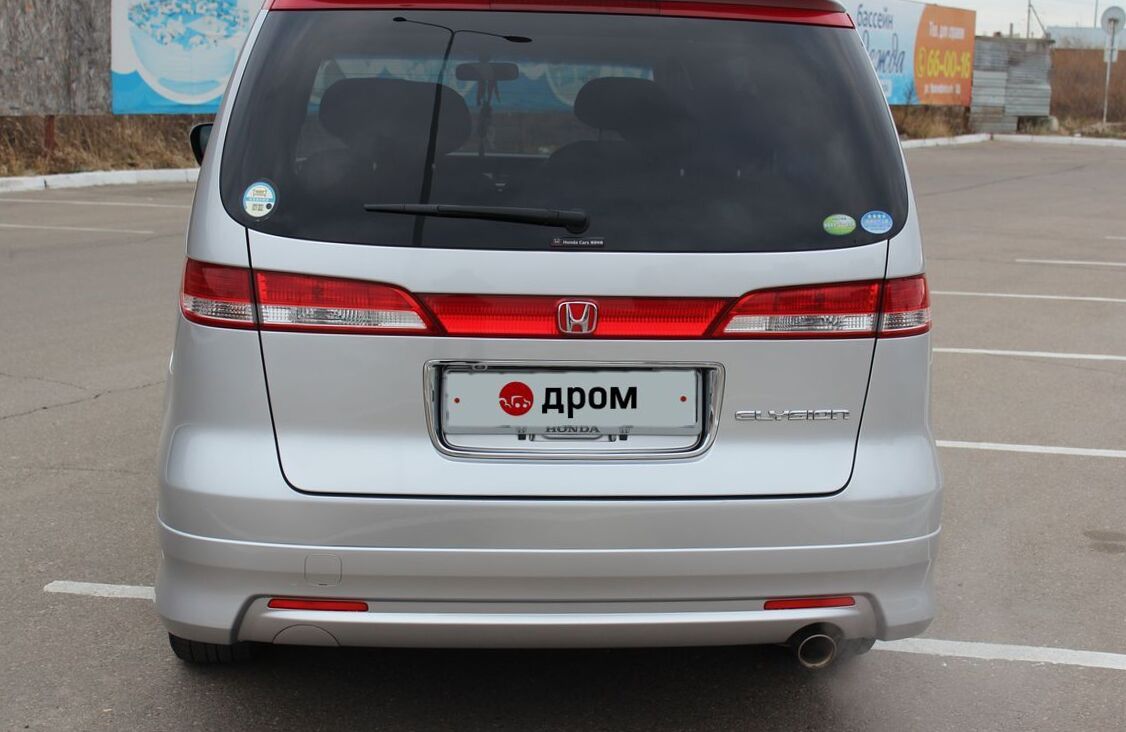

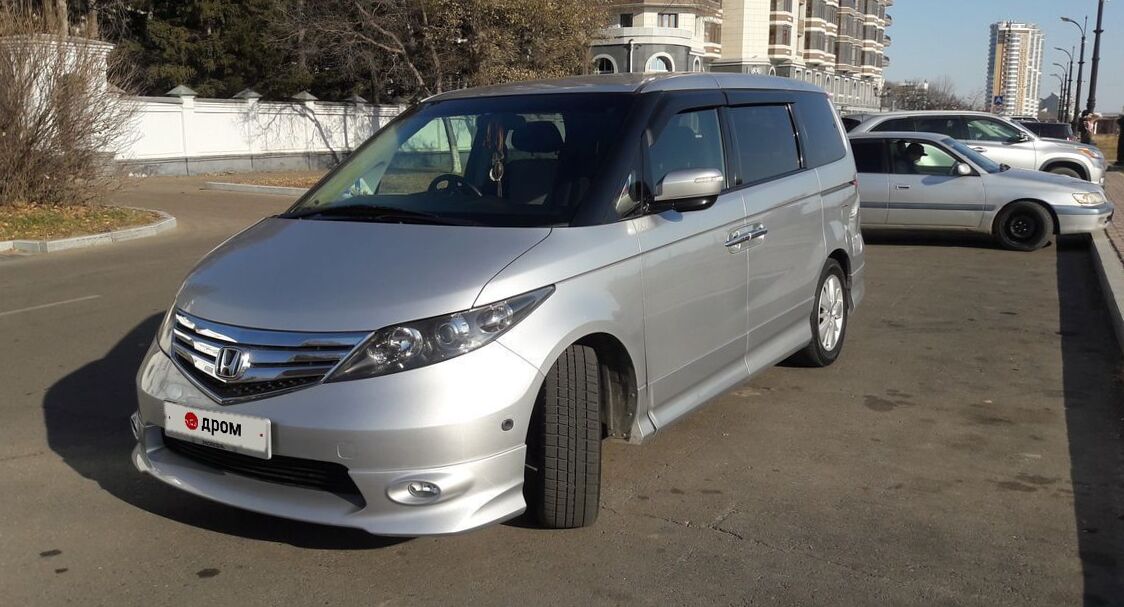

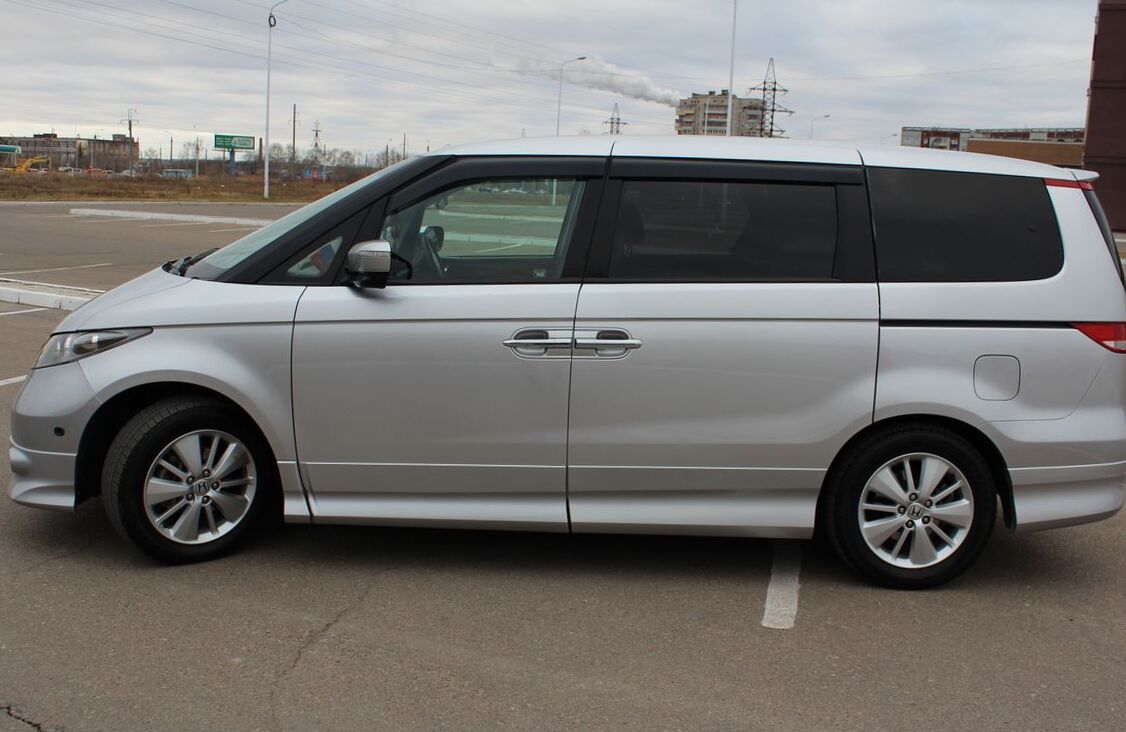

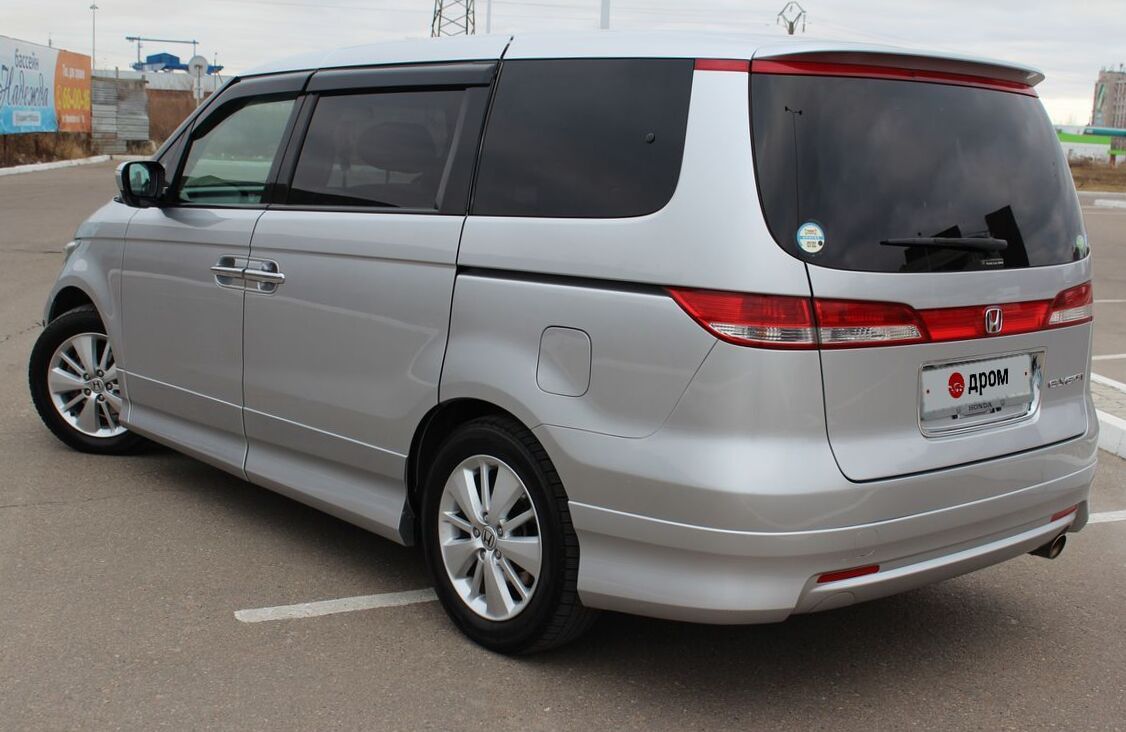

2009 Honda Elysion 2.4 G aero
Honda Elysion Problems
CMBS
2007, CMBS won't reset !! Dashboard
light stays on . Disconnect battery for few
minu...
Spare parts not available in Uganda
2006, The car spare parts like ball joint, tyre
load end, oxygen sensors, windsceen, left sl...
Spareparts not available
2015, No spare parts available in Uganda for
example for ball joint and door mirrors The
c...
| Body type | Minivan |
|---|---|
| Power | 160 Hp |
| Engine Displacement | 2400 cm3 or 2.4L or 146.4 cu-in |
| Color | gray |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 91962 Miles |
| Vin | RR1-1****83 |
| Price (out of date) | $11592 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Honda Elysion Minivan 2009? | Minivan, 8 Seats, 5 Doors |
| How much power, Honda Elysion DBA-RR1 2009? | 160 Hp |
| What is the engine size, 2009 Honda Elysion 2.4 G aero? | 2.4L or 2354cm3 |
| How many gears, What type is the gearbox, Honda Elysion 2009 Minivan 2.4 G aero (160 Hp)? | Automatic transmission 5 |
| What is the drivetrain, 2009 Honda Elysion Minivan 2.4 G aero (160 Hp)? | Front |
| How long is this vehicle, Honda Elysion Minivan 2009? | 4845 mm |
| How wide is the vehicle, Honda Elysion DBA-RR1 2009? | 1830 mm |
Honda Elysion DBA-RR1 2.4 G aero (160 Hp) 2009, 2010 Specs
General information | |
|---|---|
| Production start year | 2009 |
| Production end year | 2010 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | Automatic transmission 5 |
| Engine volume, cc | 2354 |
| Frame name | DBA-RR1 |
| Clearance, mm | 150 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | no |
| Steering locaton | right |
Vehicle generation | |
| Generation name | RR |
| Generation number | 1 |
| Facelift number | 2 |
| Production start year | 2008 |
| Production end year | 2013 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | K24A |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | no |
| Max power, hp | 160 |
| Max power RPM, rpm | 5500 |
| Max power, hp (kWt) / rpm | 160(118)/5500 |
| Max torque, N*m | 218 |
| Max torque RPM, rpm | 4500 |
| Max torque, N*m (kg*m) / rpm | 218 (22.2) / 4500 |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 118?160?/5500 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 218?22.2?/4500 |
| Start stop system | no |
Fuel consumption | |
| Fuel consumption (10/15 mode), km/l | 10.2 |
| Fuel consumption (10/15 mode), l/100km | 9.8 |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4845 |
| Exterior width, mm | 1830 |
| Exterior height, mm | 1790 |
| Exterior size (L x W x H), mm | 4845x1830x1790?mm? |
Interior dimensions | |
| Capacity | 8 |
| Seat rows | 3 |
| Interior size (L x W x H), mm | 2935x1580x1265?mm? |
| Interior length, mm | 2935 |
| Interior width, mm | 1580 |
| Interior height, mm | 1265 |
Chassis dimensions | |
| Wheel base, mm | 2900 |
| Front axle length, mm | 1590 |
| Rear axle length, mm | 1590 |
| Turning radius, m | 5.7 |
| Front/rear axis length | 1590/1590?mm? |
| Wheel spacing front | 1590 |
| Wheel spacing rear | 1590 |
Weight and permissible load | |
| Mass, kg | 1820 |
Volumes | |
| Fuel tank capacity, l | 70 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent on double wishbones |
| Rear suspension | Independent on double wishbones |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |
| Front wheels | 215/60R17 |
| Rear wheels | 215/60R17 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brakes equipment | no |
| Brake front search | 1 |
| Rear brake | 1 |
Exterior | |
Headlights | |
| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |
Side mirrors | |
| autocorrected mirrors | no |

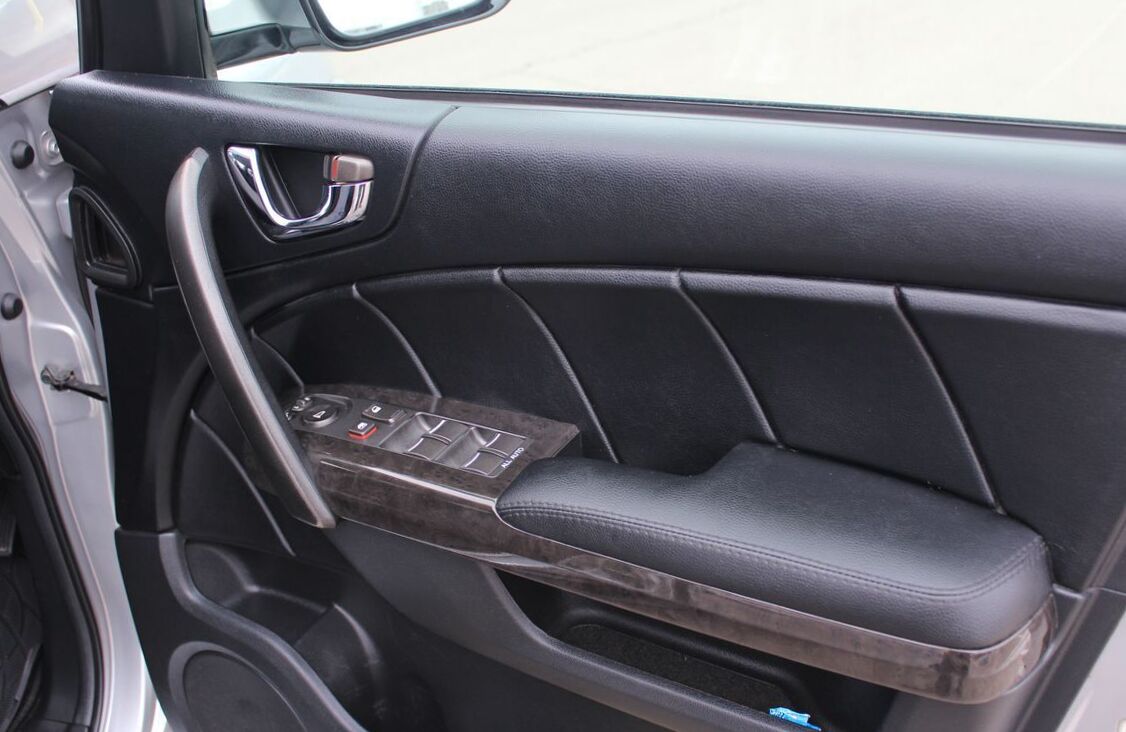

Doors | |
| Side sliding door | no |

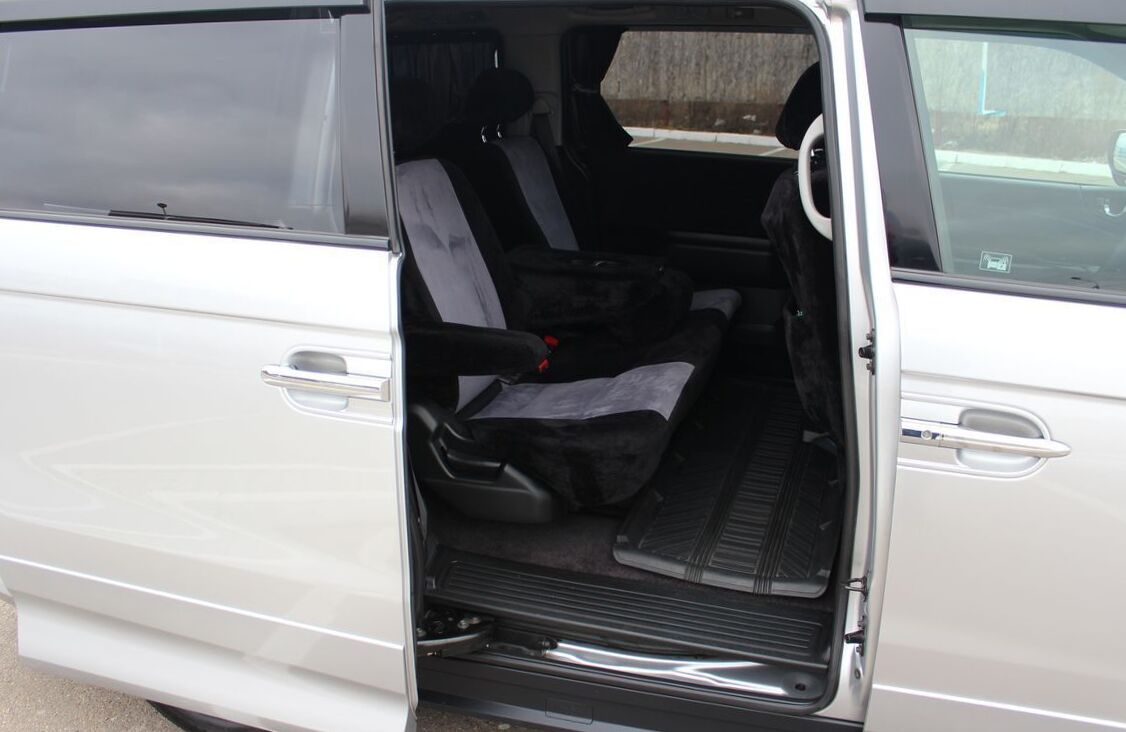

| Sliding doors | yes |

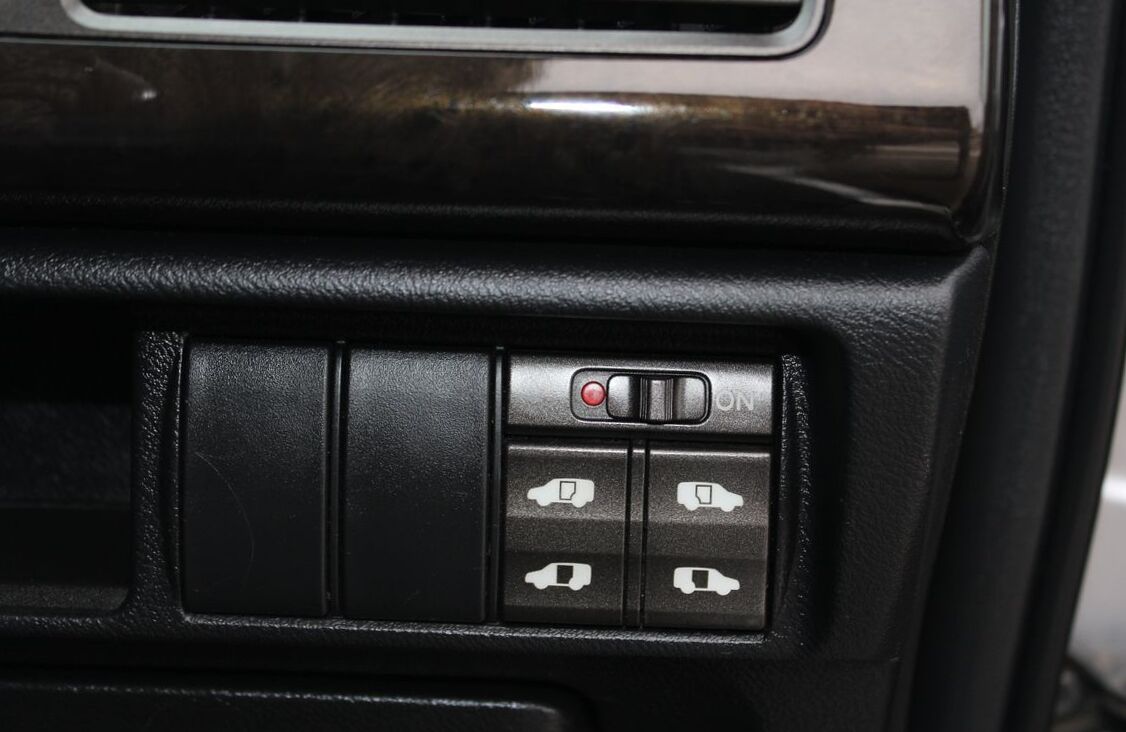

| Sliding electric door | yes |
| Sliding electric doors | option |
| Door easy closer | yes |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | yes |
| Rear spoiler | yes |
Body color | |
| Colors | 2491 2501 |
Interior | |

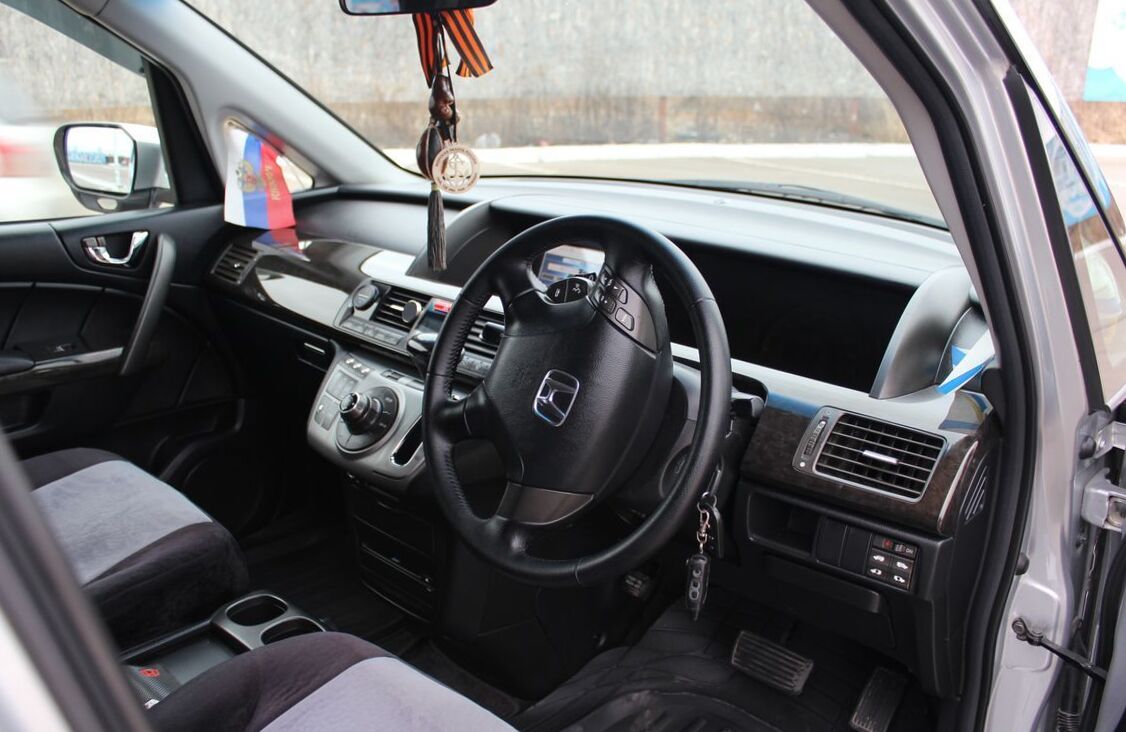

Steering wheel and center panel | |
| Engine start button | no |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |

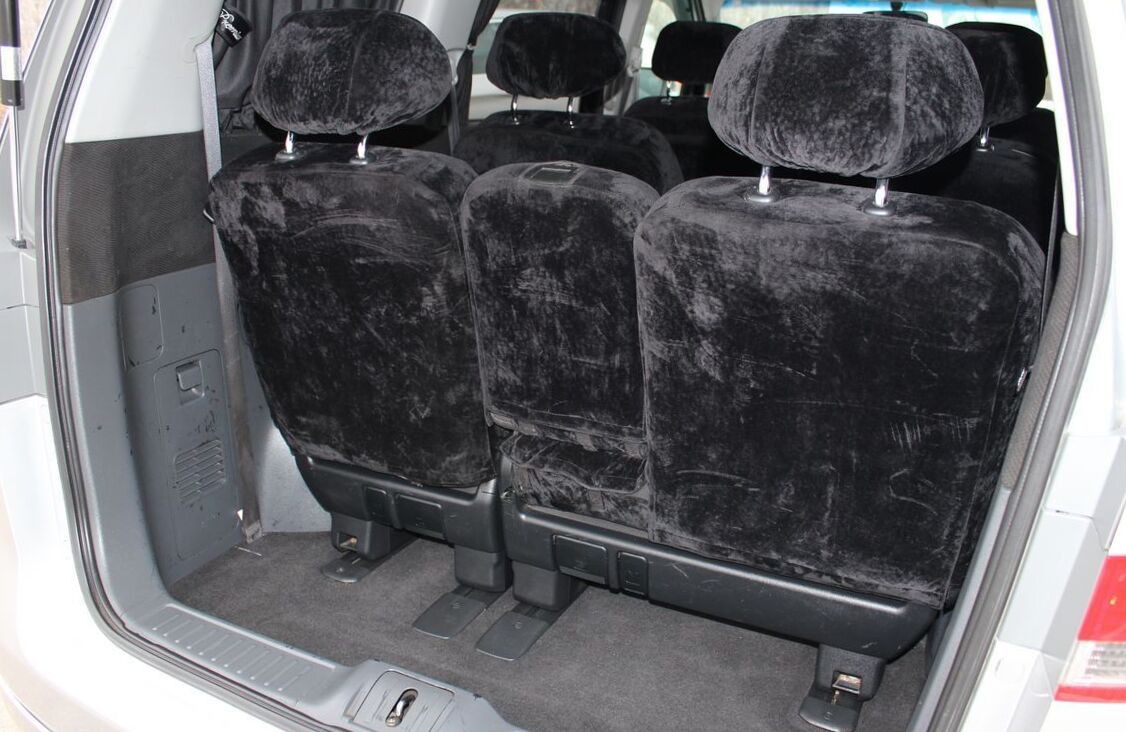

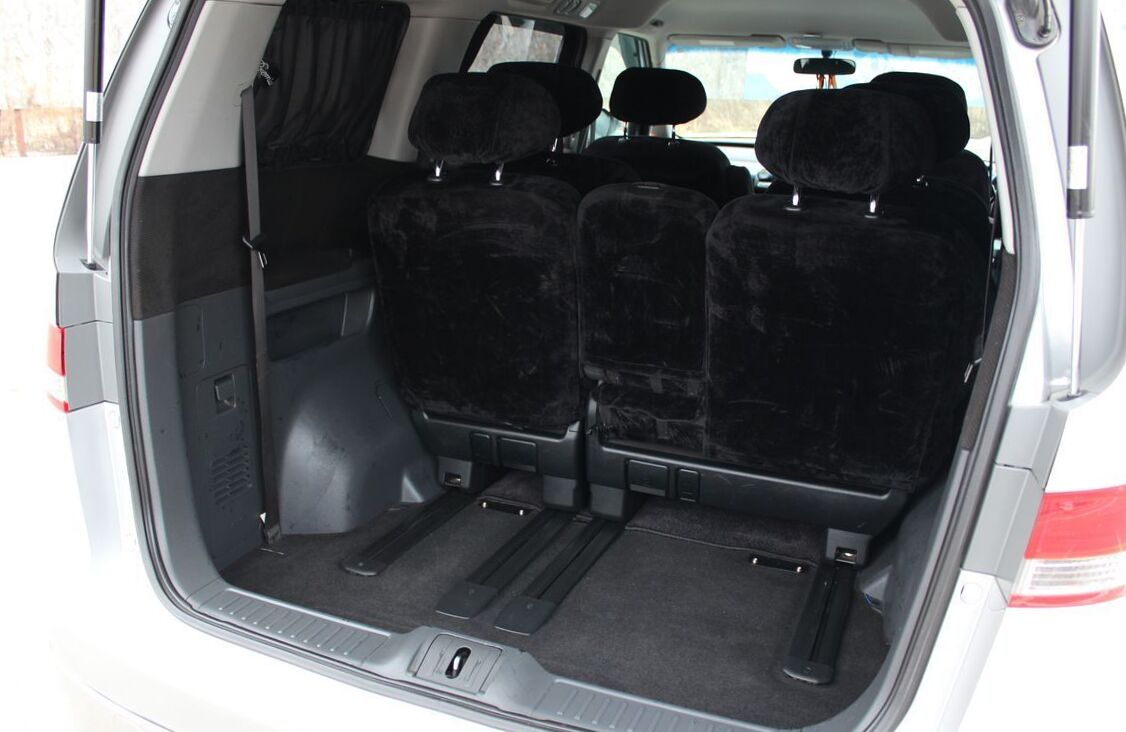

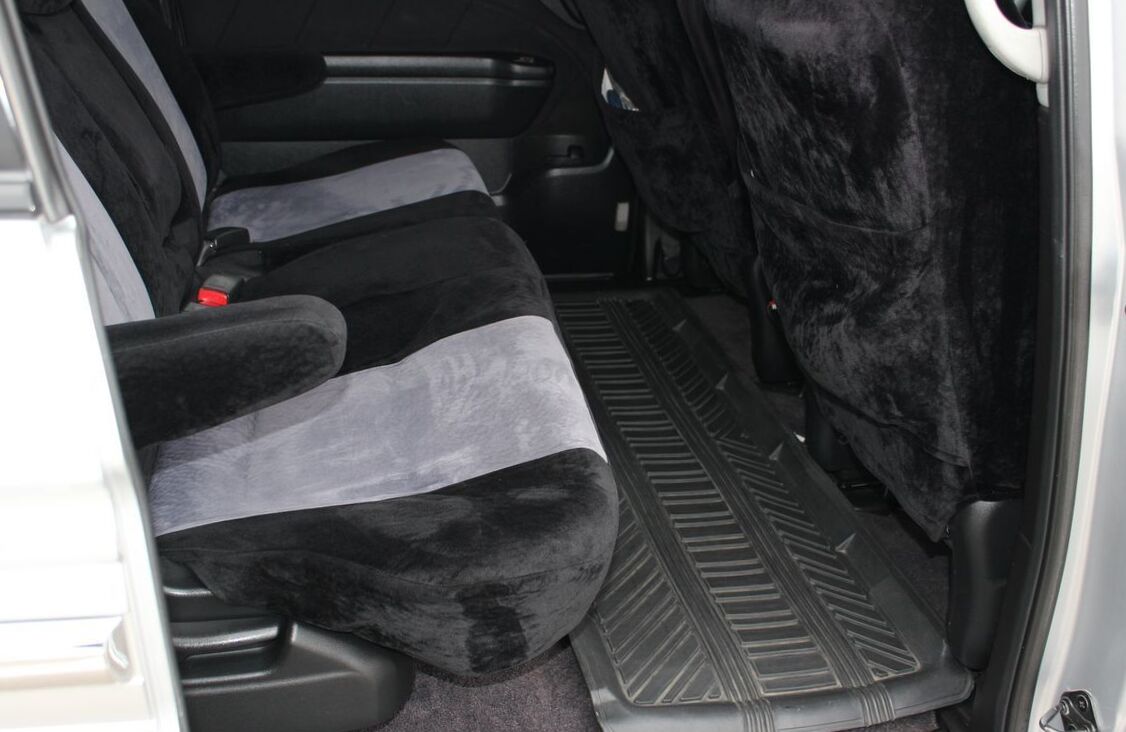

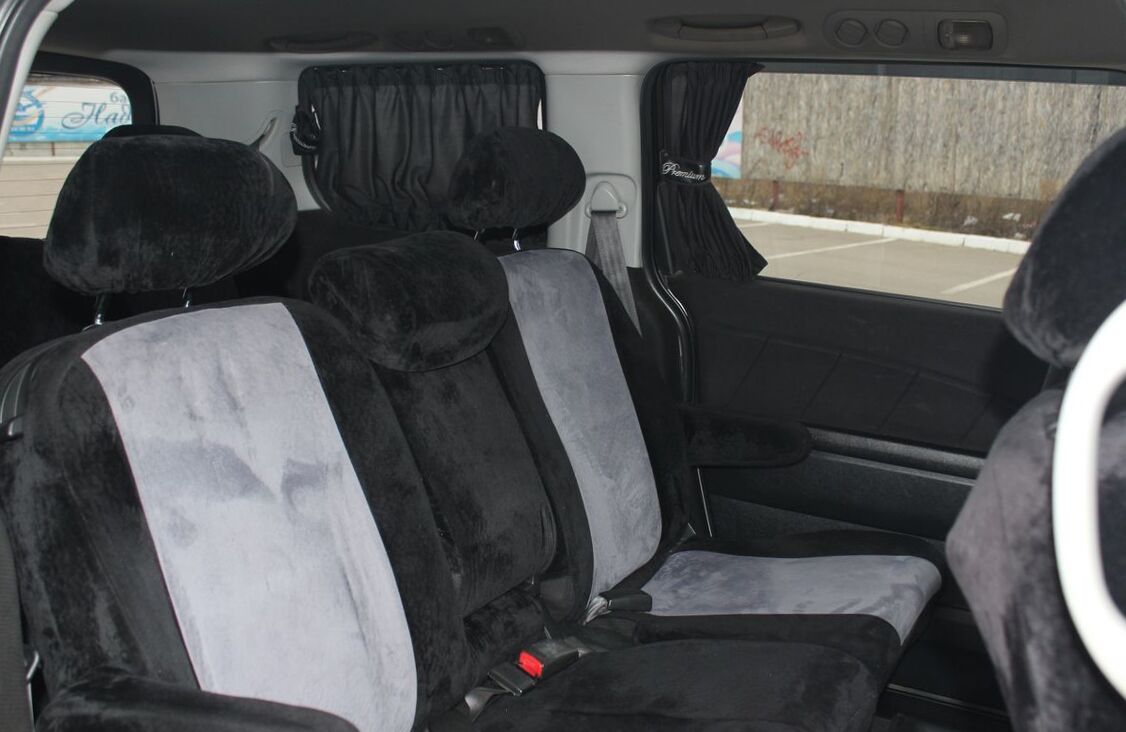

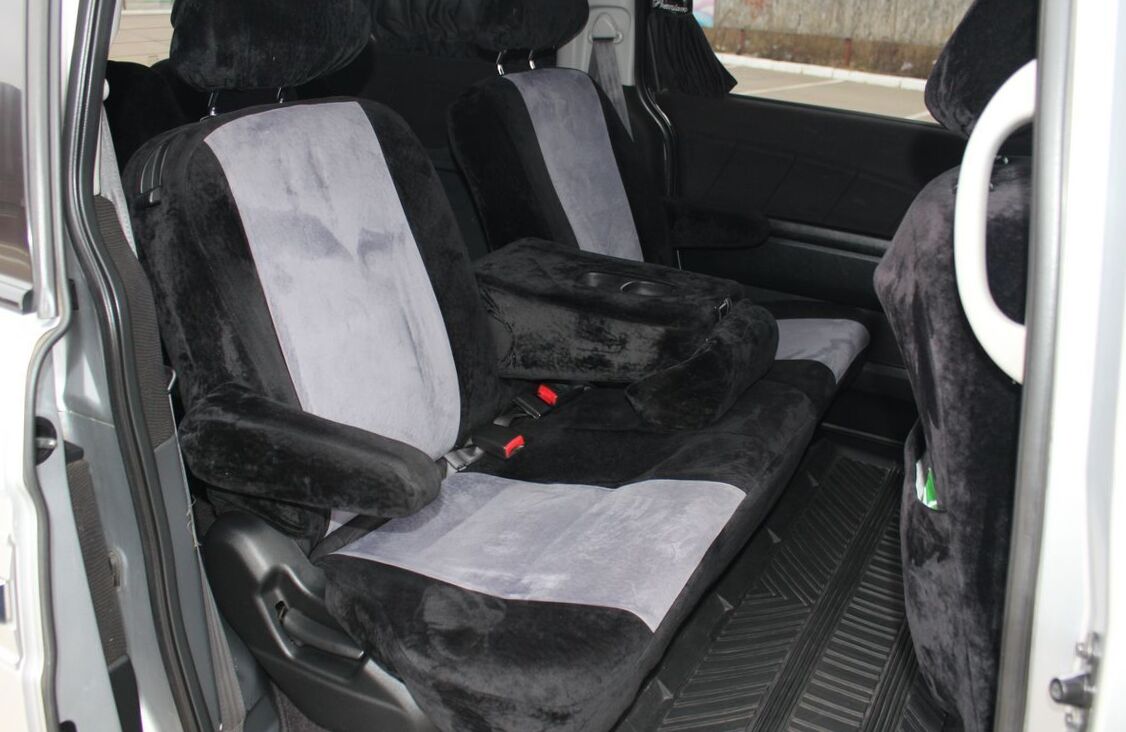

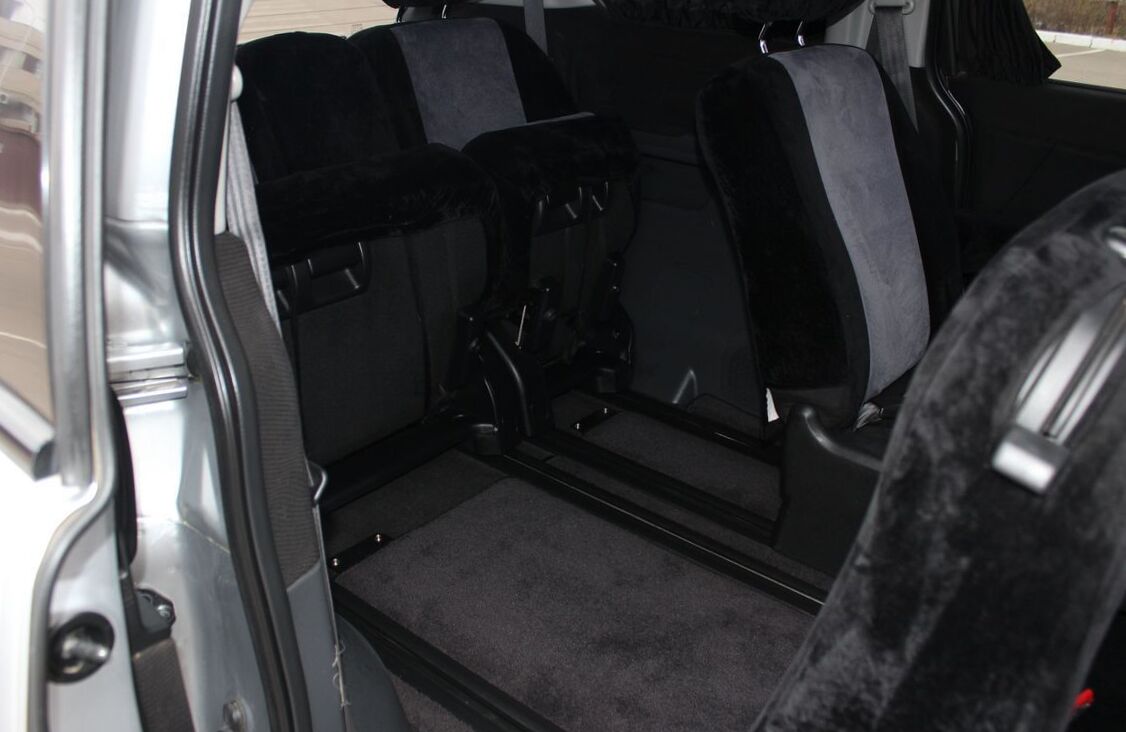

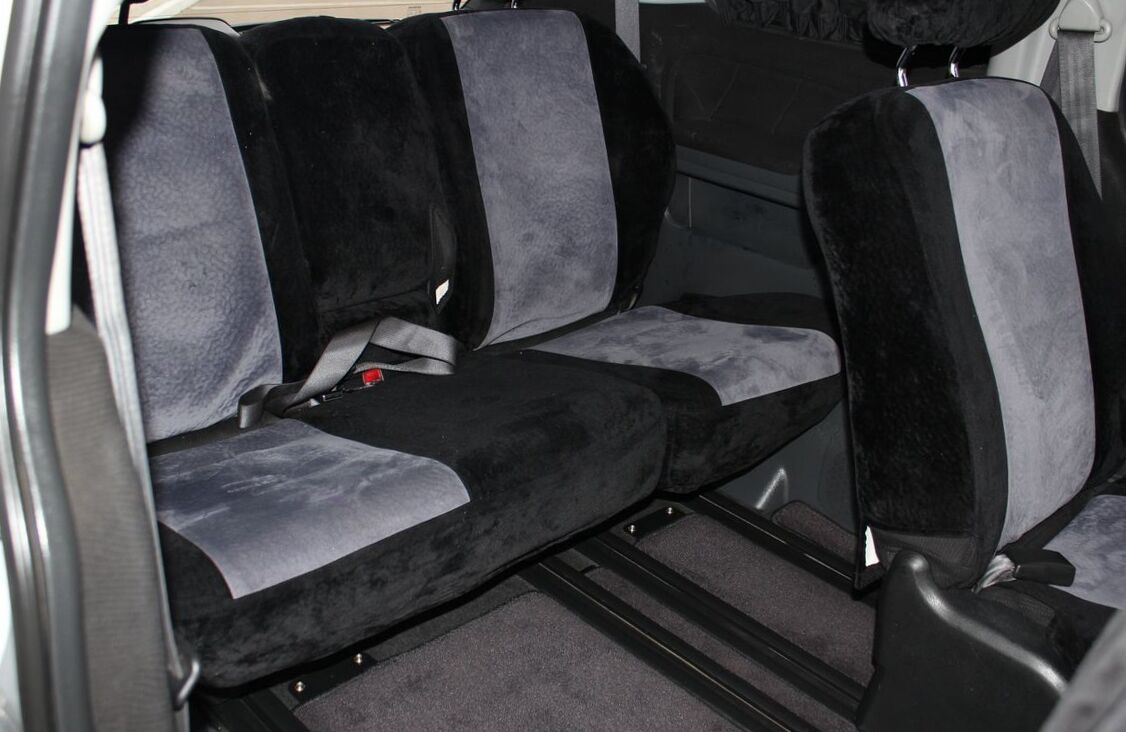

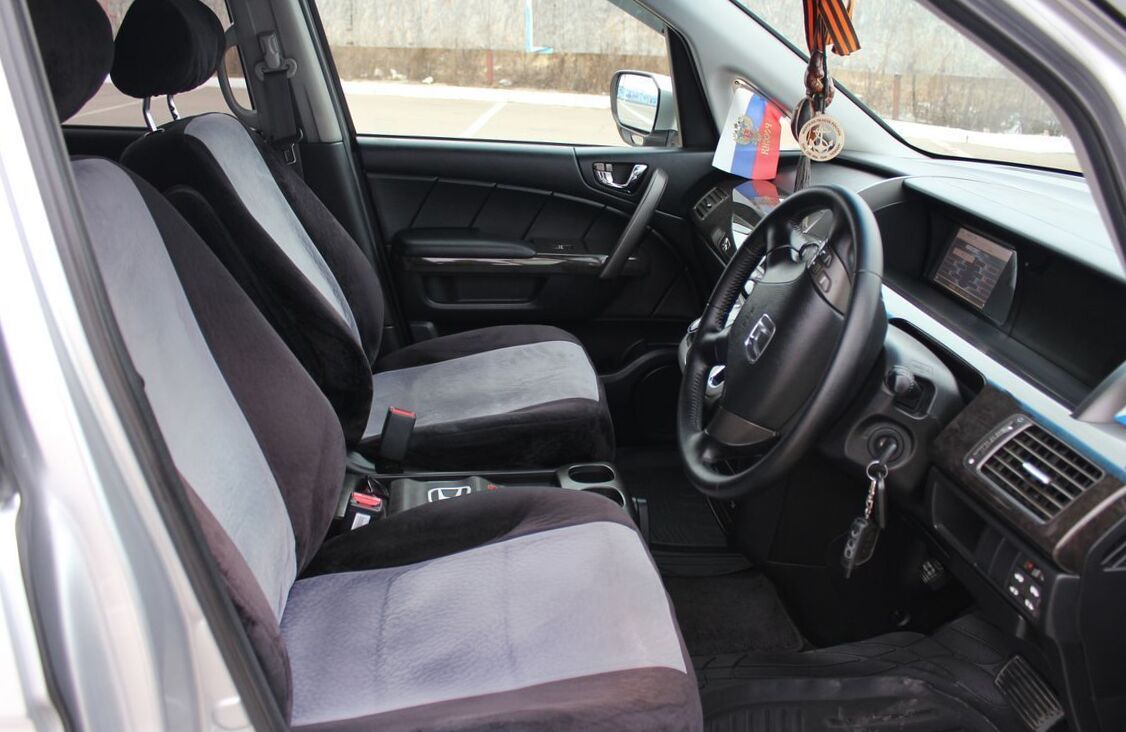

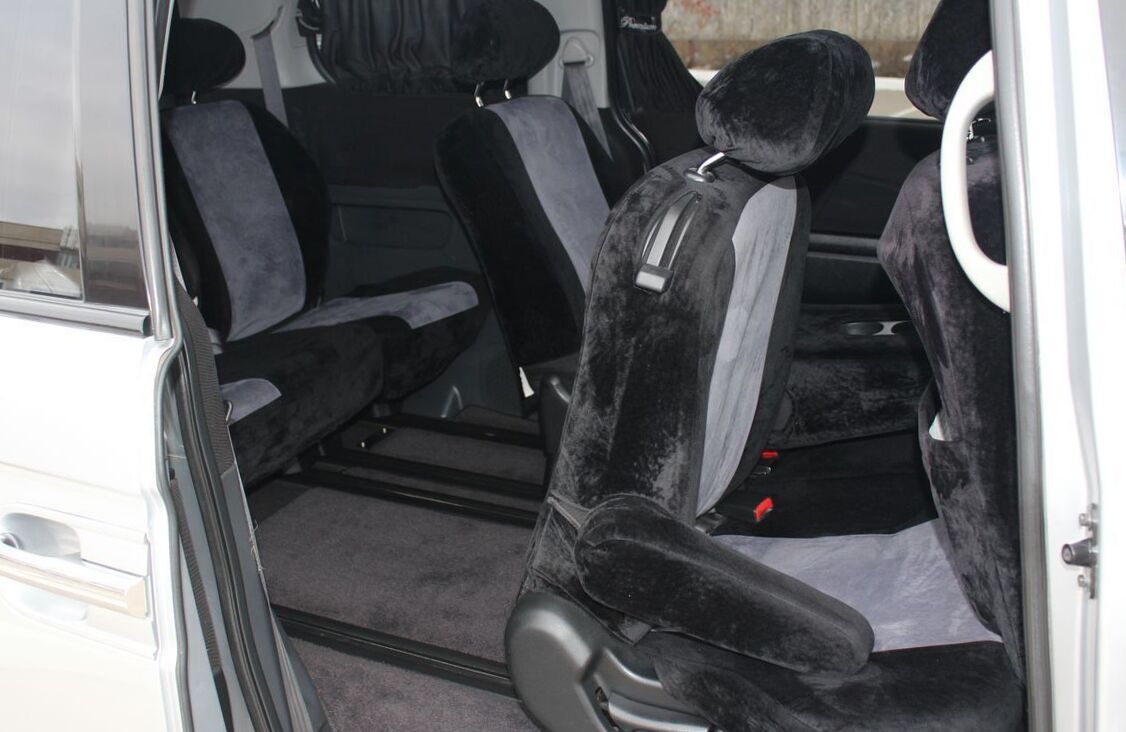

Seats | |
| Bucket seat | no |
| 2nd row | 60/40 ratio fold seat |
| 3nd row | 60/40 ratio fold seat |
| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | yes |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | yes |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | no |
| traction control | no |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | no |
| Autoreverse casette | no |
| CD player | no |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | no |
Additional amenities | |
| Lagage box | no |
| Etc | no |
Car safety | |
| Alarm system | yes |
| Security alarm | yes |
2009 Honda Elysion DBA-RR1 2.4 G aero (160 Hp) specs
|
Honda was inspired to name the vehicle the "Elysion" from the classical Greek word Elysium, or heaven. The Elysion appeared at the Tokyo Motor Show, on October 2003 as the "ASM", and was released for sale on 13 May 2004. A mild body restyle was introduced 29 September 2005, introducing an "Aero" and "VG Premium" trim level. 13 January 2006 saw the introduction of the "G Aero HDD Navi" and "VG HDD Navi Aero" edition. Another styling change was introduced 21 December 2006, including an interior update. The Elysion was offered with either the 2.4 L DOHC direct injection K24A with i-VTEC producing 160PS (117.7kW; 157.8bhp) or the 3.0 L SOHC J30A V6 i-VTEC producing 250PS (183.9kW; 246.6bhp). The V6 was also available with "VCM" or Variable Cylinder Management. The upper trim level "Prestige" model was available with the J35A V6 used in the Honda Legend, producing 300PS (220.6kW; 295.9bhp) and available AWD. Vehicles equipped with AWD had the same Legend engine, but the power was somewhat reduced to 279PS (205.2kW; 275.2bhp). This was more power than available in the Toyota Estima, which was quoted to be 280PS (205.9kW; 276.2bhp). » Read More About Honda Elysion |
