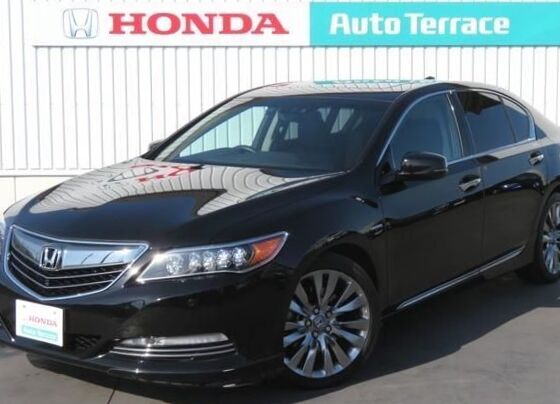

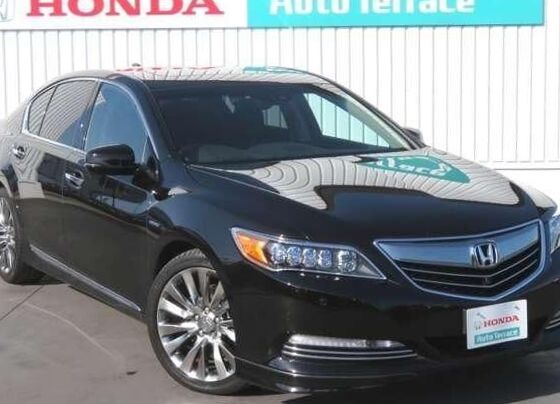

2016 Honda Legend V 3.5 4WD
More photos of Honda Legend
Honda Legend Problems
Éngine c35a5
2000, I need a complete engine of Honda Legend
manifactured in 2000. My engine is broken becau...
Timig chain problem
1992, i am find it difficult to set the timing
chain of the vehicle, i loosed the engine and i...
High fuel consumption
1993, The car has a problem of high fuel
consumption...
Honda Legend Problems
Éngine c35a5
2000, I need a complete engine of Honda Legend
manifactured in 2000. My engine is broken becau...
Timig chain problem
1992, i am find it difficult to set the timing
chain of the vehicle, i loosed the engine and i...
High fuel consumption
1993, The car has a problem of high fuel
consumption...
| Body type | Sedan |
|---|---|
| Power | 314 Hp |
| Engine Displacement | 3500 cm3 or 3.5L or 213.5 cu-in |
| Color | black |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 11184 Miles |
| Vin | KC2-110****87 |
| Price (out of date) | $37199 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2016 Honda Legend V? | Sedan, 5 Seats, 4 Doors |
| What is the fuel economy, Honda Legend Sedan 2016? | 5.95 l/100 km |
| How much power, Honda Legend DAA-KC2 2016? | 314 Hp |
| What is the engine size, 2016 Honda Legend 3.5 4WD? | 3.5L or 3471cm3 |
| How many gears, What type is the gearbox, Honda Legend V 2016 Sedan 3.5 4WD (314 Hp)? | Manual Transmission Automatically Shifted 7 |
| What is the drivetrain, 2016 Honda Legend Sedan 3.5 4WD (314 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2016 Honda Legend V? | 4995 mm |
| How wide is the vehicle, Honda Legend Sedan 2016? | 1890 mm |
| How much trunk (boot) space, Honda Legend DAA-KC2 2016? | 389 l |
Honda Legend V DAA-KC2 3.5 4WD (314 Hp) 2015, 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2015 |
| Production end year | 2018 |
| Drive type | All wheel drive (4x4) |
| Frame type | Sedan |
| Transmission type | Manual Transmission Automatically Shifted 7 |
| Engine volume, cc | 3471 |
| Frame name | DAA-KC2 |
| Clearance, mm | 145 |
| Manufacturing country | Japan |
| Doors | 4 |
| Steering locaton | right |
| Hybrid | yes |
Engine, transmission and steering specs | |

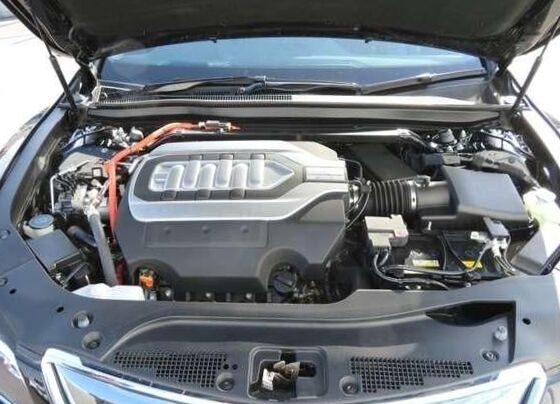

Engine specs | |
| Engine name | JNB |
| Fuel | High octane premium gasoline |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 314 |
| Max power RPM, rpm | 6500 |
| Max power, hp (kWt) / rpm | 314 (231) / 6500 |
| Max torque, N*m | 371 |
| Max torque RPM, rpm | 4700 |
| Max torque, N*m (kg*m) / rpm | 371 (38) / 4700 |
| Compression ratio | 11.5 |
| Bore, mm | 89 |
| Stroke, mm | 93 |
| Actuator valves | SOHC |
| Engine additional info | VVT, electronic fuel injection system |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | yes |
| Start stop system | yes |
Electric Power | |
| Electro Max power, (kWt) | 35 |
| Electro Max torque, Nm | 148 |
| Electro engine addition | 3 electric motors installed (1 front 35 kW, 2 rear 27 kW) |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2015 fuel consumption standard +20% |
| Combined | 5.95 |
| Co2 emission | 138 |
Transmission | |
| 1st gear ratio | 4.395 |
| 2nd gear ratio | 2.752 |
| 3rd gear ratio | 2.304 |
| 4th fear ratio | 1.546 |
| 5th gear ratio | 1.142 |
| 6th gear ratio | 0.842 |
| 7th gear ratio | 0.622 |
| Rear gear ratio | 3.663 |
| Shifter position | On the floor. |
| Manual mode | yes |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4995 |
| Exterior width, mm | 1890 |
| Exterior height, mm | 1480 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 2080 |
| Interior width, mm | 1540 |
| Interior height, mm | 1155 |
Chassis dimensions | |
| Wheel base, mm | 2850 |
| Front axle length, mm | 1630 |
| Rear axle length, mm | 1630 |
| Turning radius, m | 6 |
| Wheel spacing front | 1630 |
| Wheel spacing rear | 1630 |
Weight and permissible load | |
| Mass, kg | 1980 |
Volumes | |
| Fuel tank capacity, l | 57 |

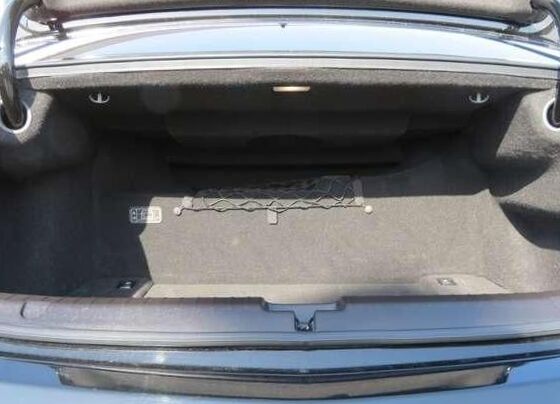

| Trunk volume | 389 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |

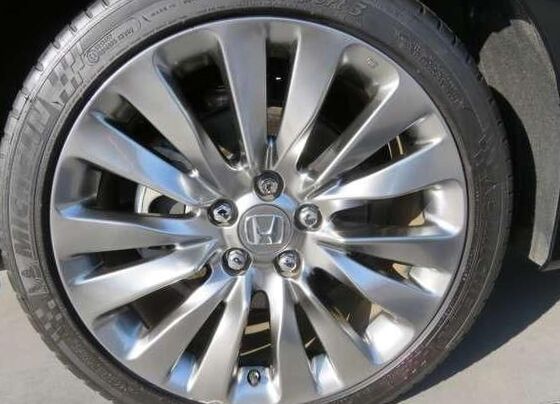

Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 245/40R19 |
| Rear wheels | 245/40R19 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake | Electronic |
| Brake front search | 1 |
| Rear brake | 1 |
| Parking brake new first | Electronic |
Exterior | |
Headlights | |

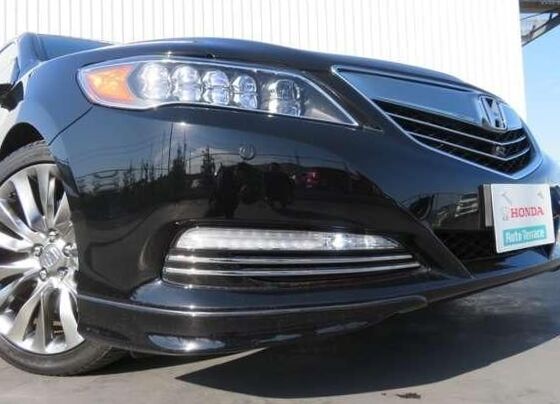

| Led lights | yes |
| Diod fog lights | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| autocorrected mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Power rear door | no |
| Trunk closer | no |
Windows | |
| Privacy glass | yes |
| Windshield top toning | yes |
| Ultraviolet glass protection | yes |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |

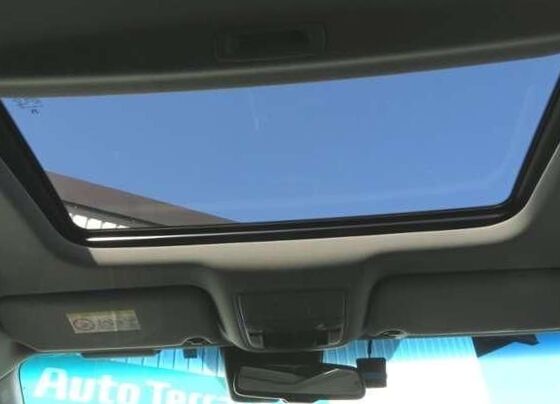

| Tilt sunroof | yes |

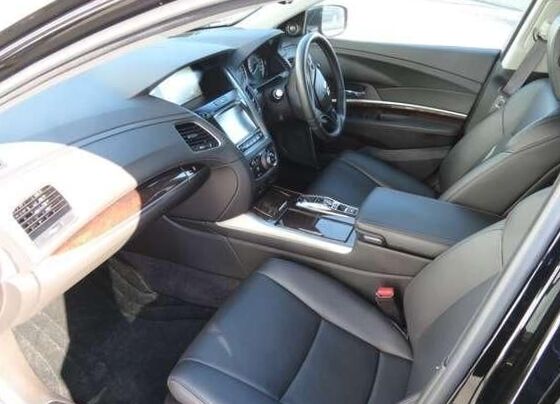

Interior | |
Steering wheel and center panel | |

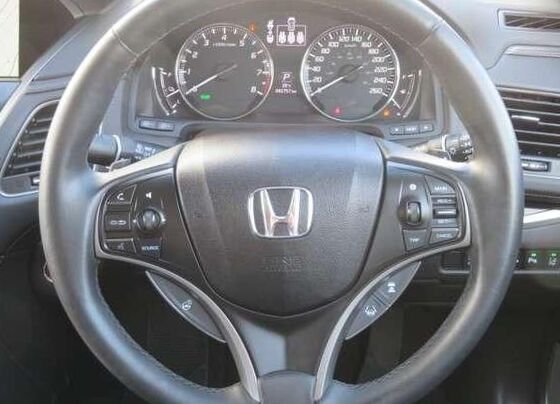

| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Utility color display | yes |
| Projective system of indications of a speedometer | yes |
| Env temp | yes |
| Engine start button | yes |
Interior design | |

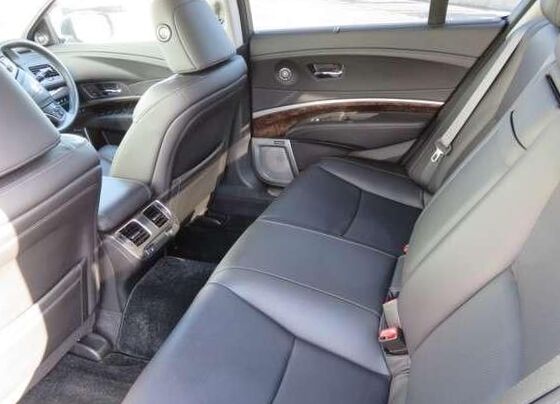

| Leather upholstery | yes |
| Wood panel | yes |
Seats | |
| Front seats ajust | in 8 directions |
| Loin reliance | yes |
| Seat lifter | yes |
| Headrests for seats | 5 |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |

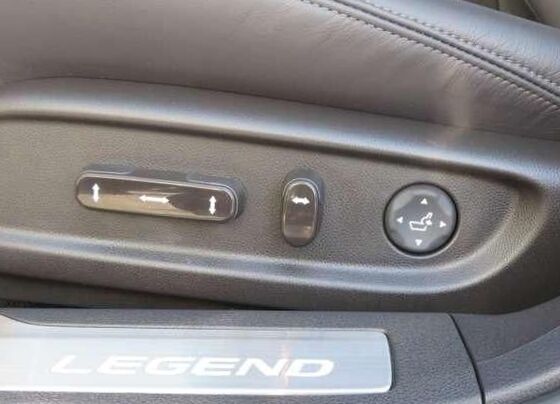

Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Front seat heater | yes |
| Front seats ventilation | yes |
| Rear seats heater | yes |
| Seat position memory | yes |
| Centralized door lock | yes |

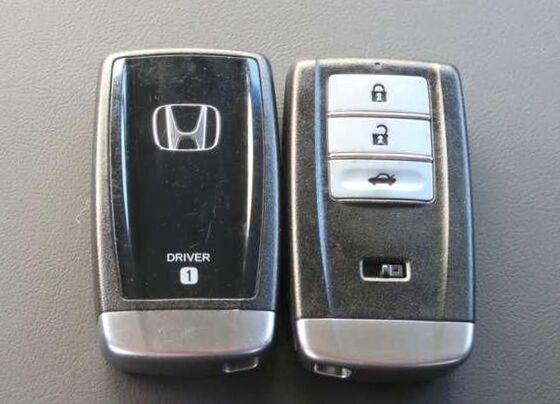

| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
| Stearing wheel heater | yes |
| Front sheeld electro heater | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
| Airbag for the driver's knees | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| SH-4WD | yes |
| Driving Dynamic Control | yes |
| Lane Keep Assist | yes |
| Cruise control | yes |
| Distance control system | yes |
| Autolock doors | yes |
| Control system of a headlight | yes |
| Blind zone monitoring | yes |
| Road sign recognition | yes |
| System tire pressure monitoring | yes |
| Front sonar | yes |
| Rear sonars | yes |
| Collision mitigation system | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Part climat equipment | 3 zones |
| Air filter | yes |

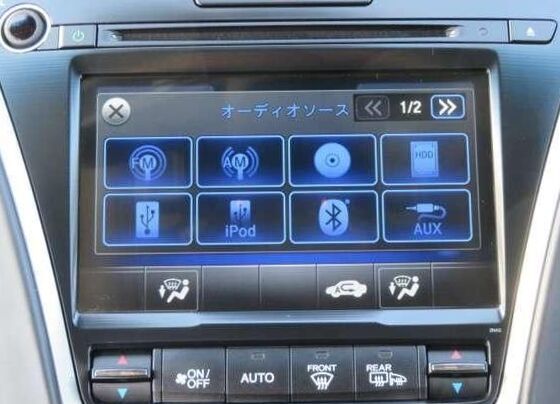

Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | yes |
| Audio HDD | yes |
| Hands free | yes |
| Additional sound equipment | Krell audio system |

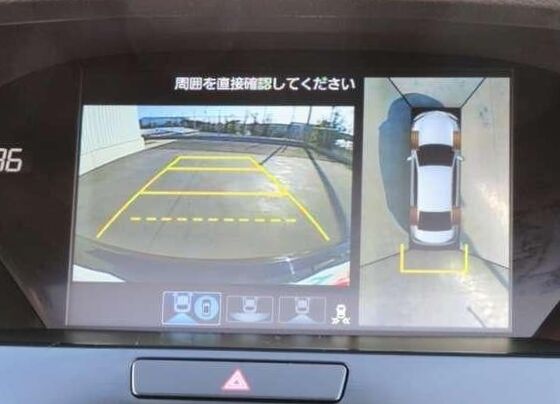

Navigation and video equipment | |
| Full color LCD display | yes |

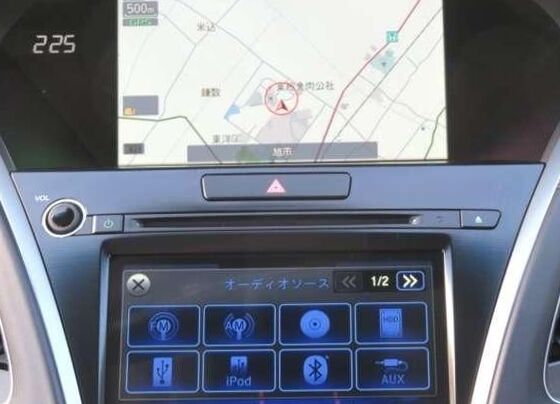

| Navigation system | yes |
| Traffic jam assist | yes |
| Parking assist system | yes |
| Front monitor | yes |
| Sides monitors | yes |
| Back monitor | yes |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Carkey memory | yes |
| Mirrors in sunshields | yes |
| Illumination in the cabin during landing | yes |
| Lagage box | yes |
| Onboard computer | yes |
| Etc | yes |
Car safety | |
| Alarm system | yes |
| Security alarm | yes |
2016 Honda Legend V DAA-KC2 3.5 4WD (314 Hp) specs
|
The Legend was initially a four-door sedan, with a two-door coupĂ© added later. It was the model which launched Honda's upscale Acura brand in the United States. Honda was inspired by the word "legend" to create the first Honda vehicle with a V6. The first and second-generation Honda Legend was known as the Acura Legend in North American markets from 1986-1995, and in 1996 the third-generation was renamed as the Acura RL, while the Legend name is still used in Japan and other markets. Honda introduced the Legend as a flagship sedan to compete with the JDM Nissan Cedric and Nissan Gloria twins, the Toyota Crown, and later the Mazda Luce, and Mitsubishi Debonair. Unlike the Nissan twins and the Crown, the Legend is not used for taxi service. In the USA, the Legend competed with larger rear wheel drive V8 sedans Lexus LS and the Infiniti Q45, however, the Legend was marketed towards the slightly smaller Executive car vehicles that include the BMW 5 series, Audi A6, Mercedes-Benz E-Class, and the Jaguar S-type. » Read More About Honda Legend |
