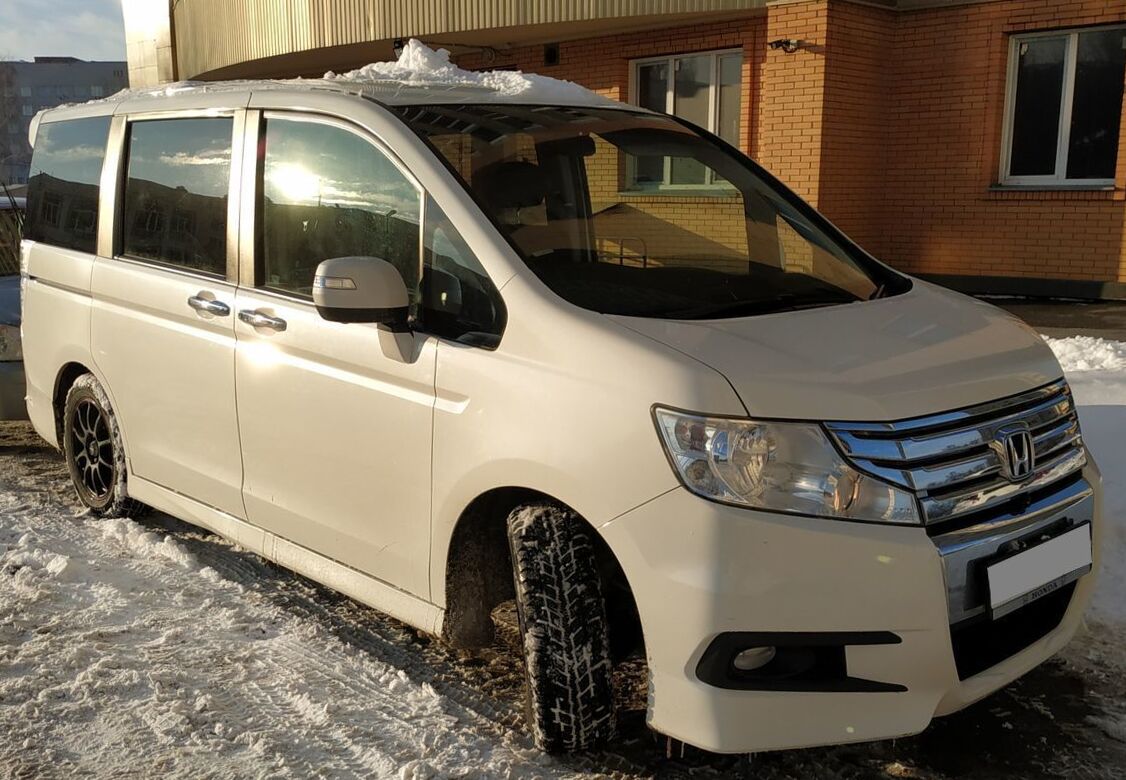

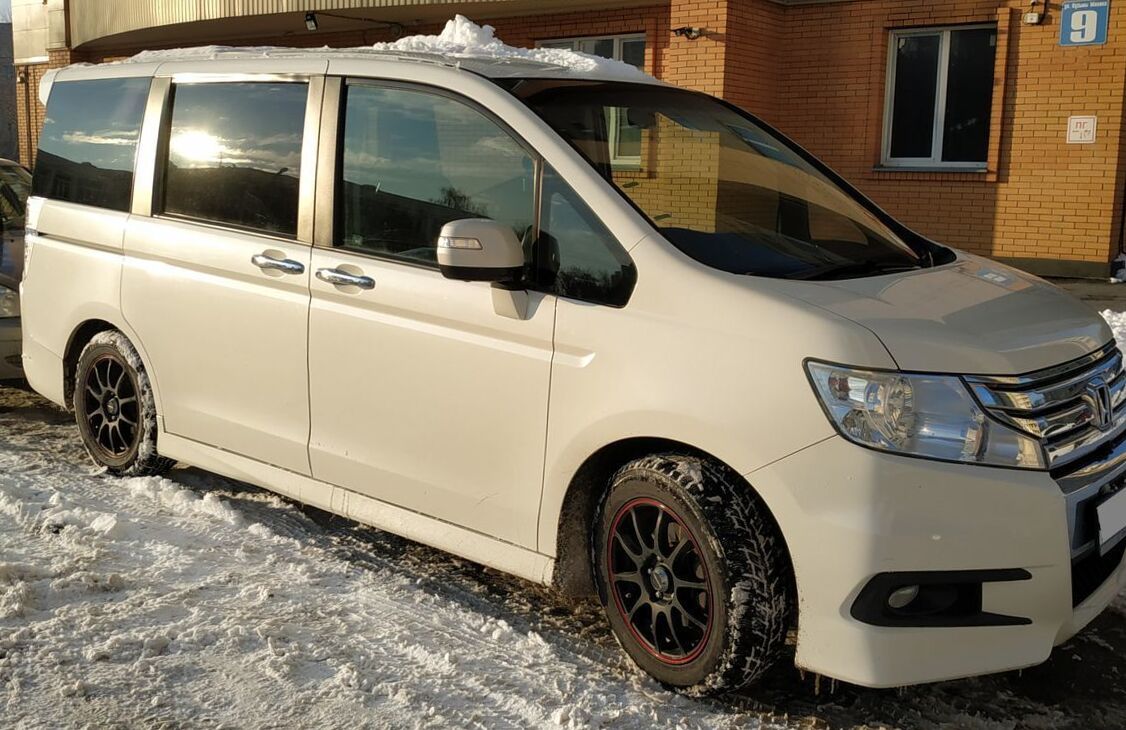

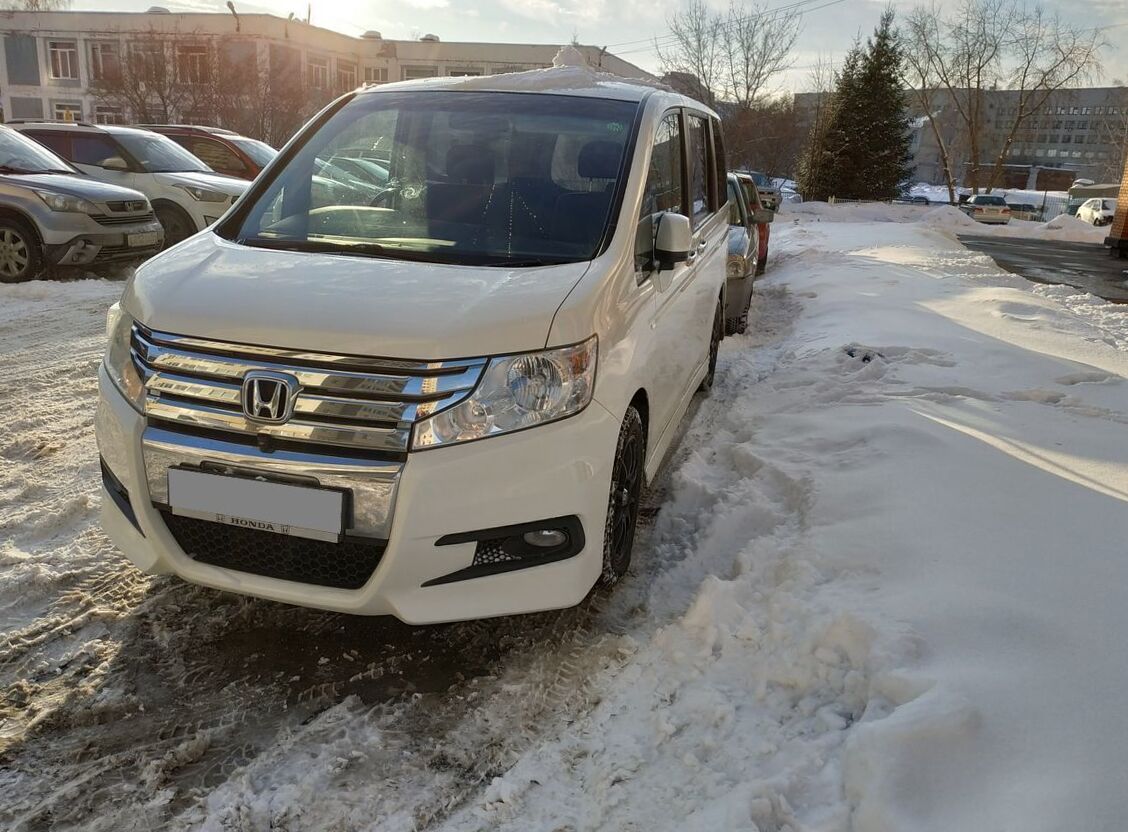

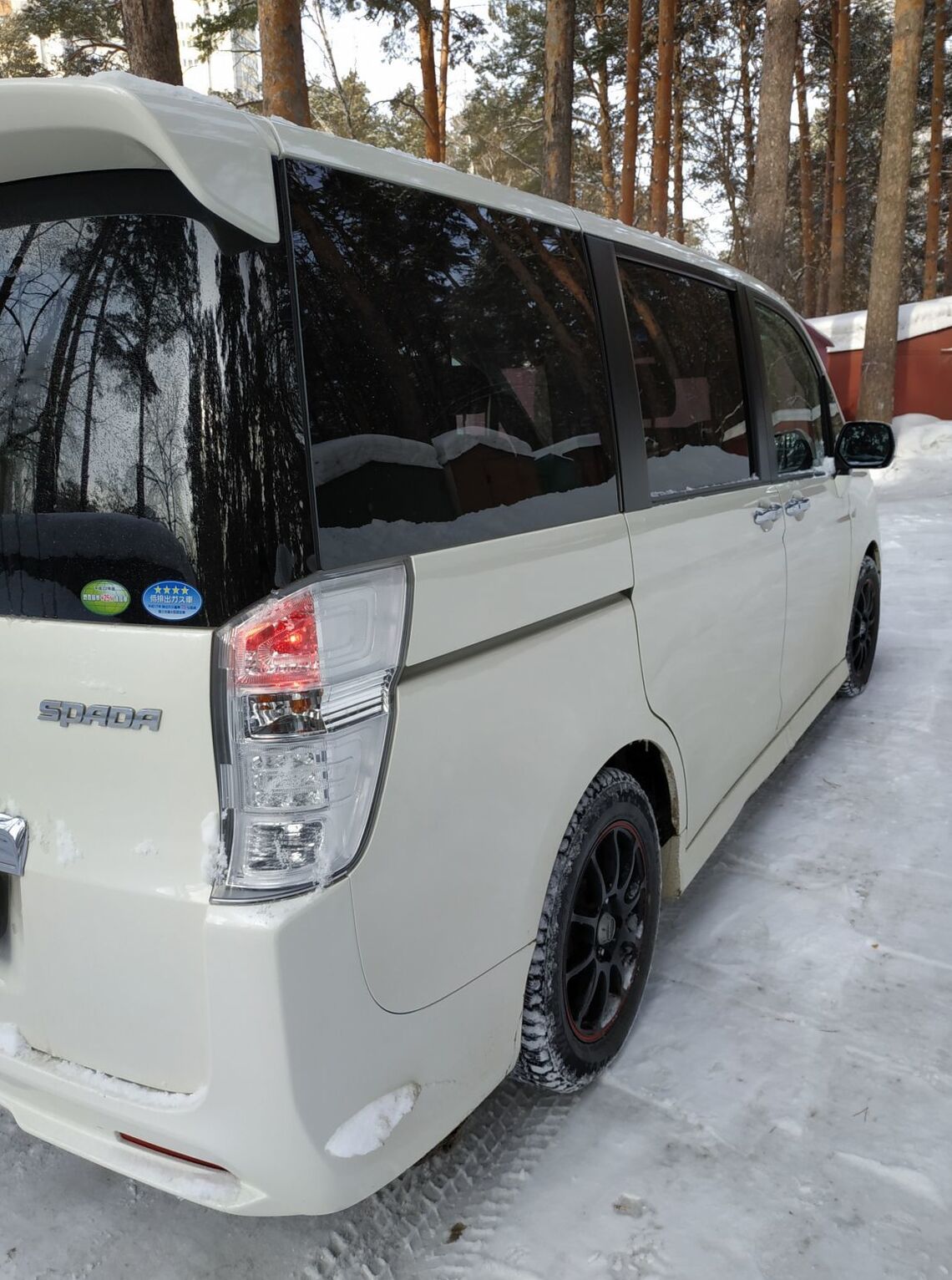

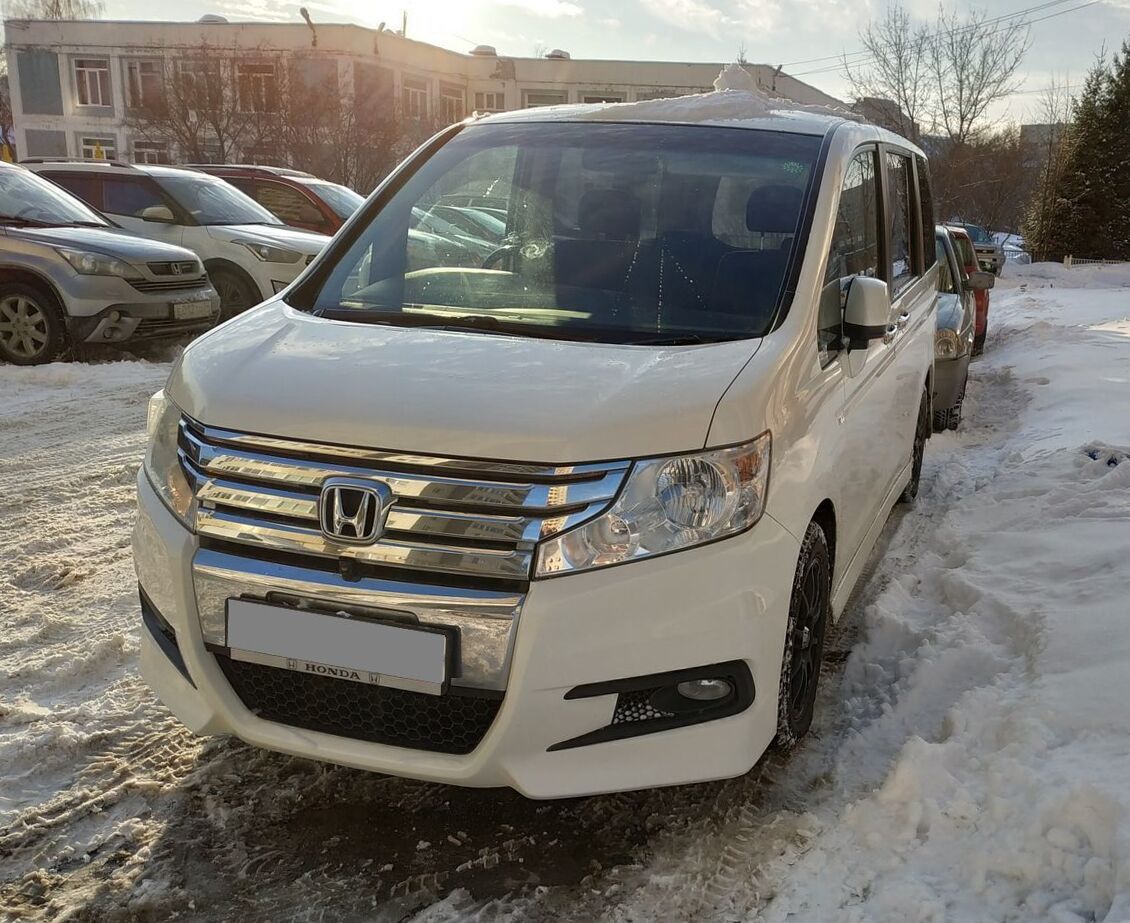

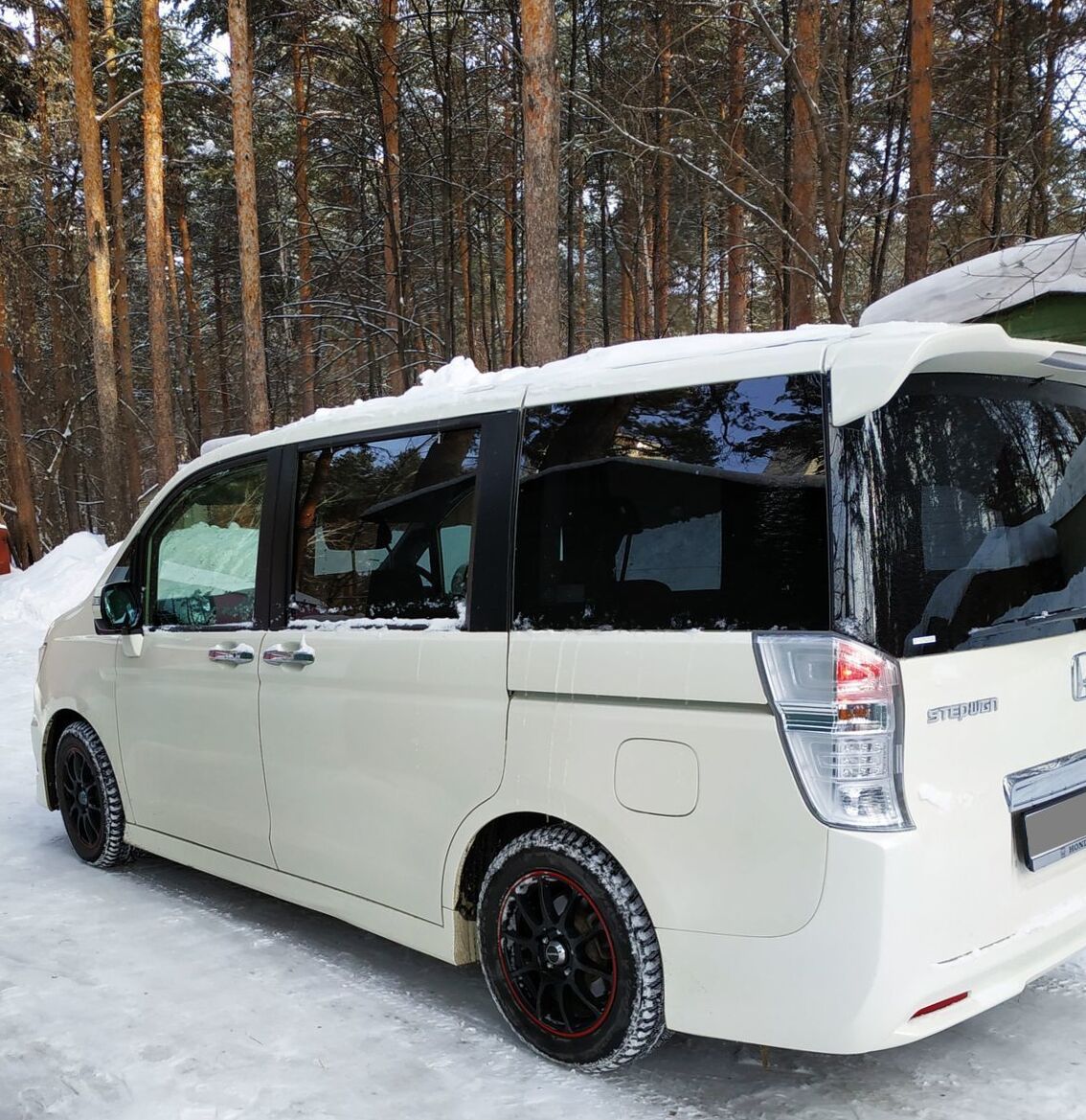

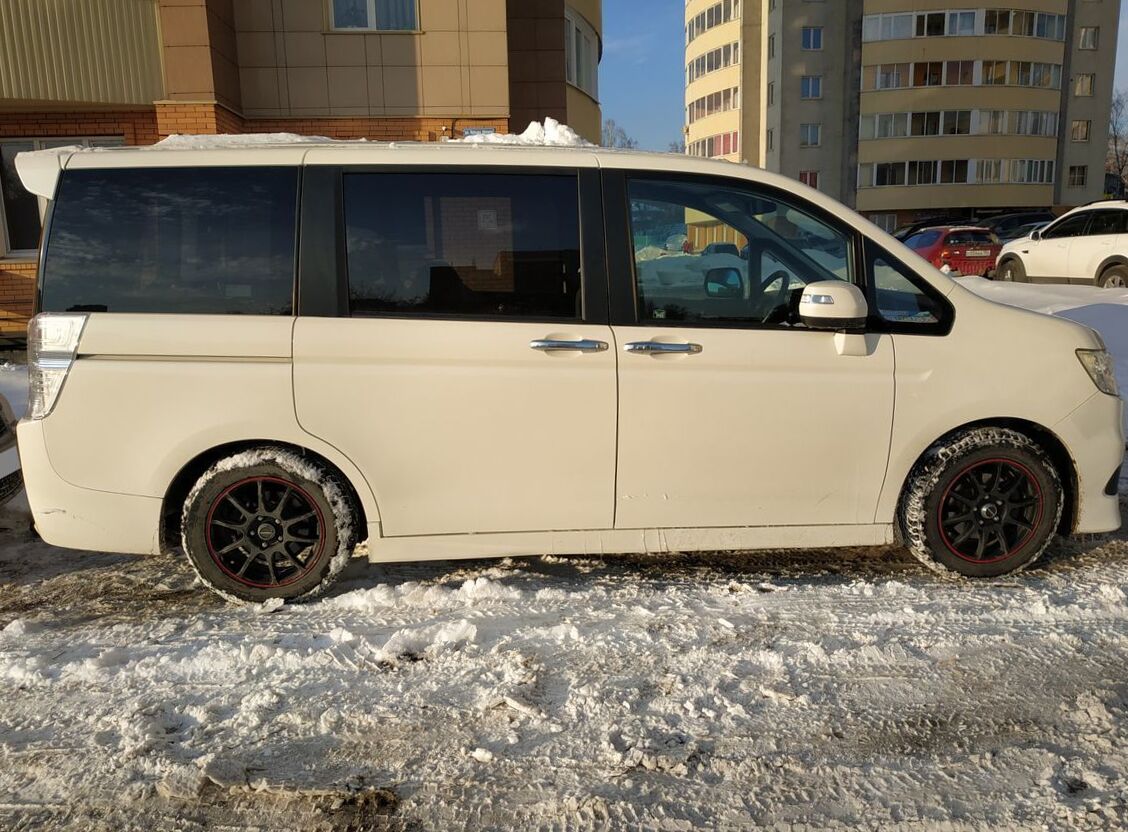

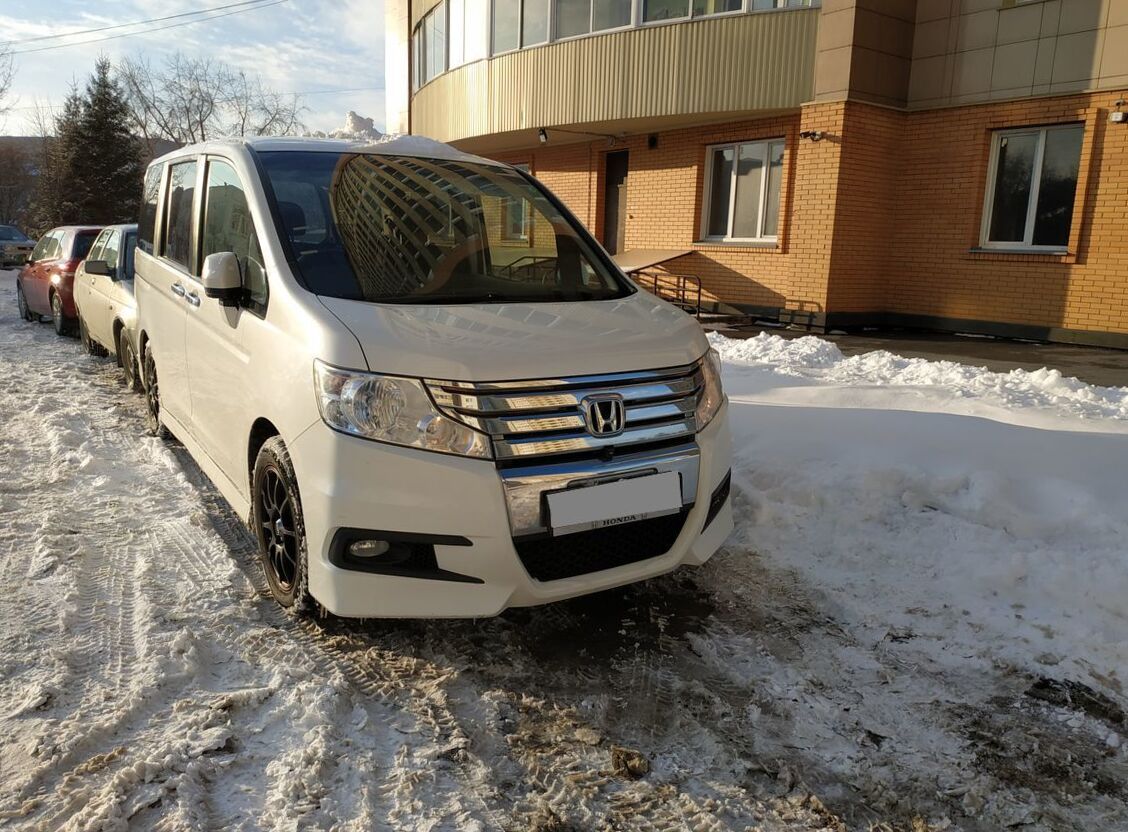

2010 Honda Stepwgn IV 2.0 spada Zi
More photos of Honda Stepwgn
Honda Stepwgn Problems
Engine wont keep running for more than 10 minut...
1997, starting car, no problem after 10 to
15mins driving it cuts out then won't
start up...
Car cut s out after warm and refuses to start f...
1998, starting car no problem after 10 mins
driving it cuts out then wont start up only
turnin...
Spare parts
2004, where can i get the spare parts (mounting
or moulding) for my honda stepwagon model 2004...
Honda Stepwgn Problems
Engine wont keep running for more than 10 minut...
1997, starting car, no problem after 10 to
15mins driving it cuts out then won't
start up...
Car cut s out after warm and refuses to start f...
1998, starting car no problem after 10 mins
driving it cuts out then wont start up only
turnin...
Spare parts
2004, where can i get the spare parts (mounting
or moulding) for my honda stepwagon model 2004...
Body type | Minivan |
---|---|
Power | 150 Hp |
Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
Transmission Gearbox | Automatic |
Fuel Type | Gasoline |
Drive wheel | FF |
Mileage | 82020 Miles |
Vin | RK5****46 |
Price (out of date) | $13439 |
Frequently Asked Questions | |
---|---|
What is the body type, 2010 Honda Stepwgn IV? | Minivan, 8 Seats, 5 Doors |
How much power, Honda Stepwgn Minivan 2010? | 150 Hp |
What is the engine size, Honda Stepwgn DBA-RK5 2010? | 2L or 1997cm3 |
How many gears, What type is the gearbox, 2010 Honda Stepwgn 2.0 spada Zi? | Variator |
What is the drivetrain, Honda Stepwgn IV 2010 Minivan 2.0 spada Zi (150 Hp)? | Front |
How long is this vehicle, 2010 Honda Stepwgn Minivan 2.0 spada Zi (150 Hp)? | 4690 mm |
How wide is the vehicle, 2010 Honda Stepwgn IV? | 1695 mm |
Honda Stepwgn IV DBA-RK5 2.0 spada Zi (150 Hp) 2009, 2010, 2011, 2012 Specs
General information | |
---|---|
Production start year | 2009 |
Production end year | 2012 |
Drive type | Front |
Frame type | Minivan |
Transmission type | Variator |
Engine volume, cc | 1997 |
Frame name | DBA-RK5 |
Clearance, mm | 155 |
Manufacturing country | Japan |
Doors | 5 |
Winter complectation | no |
Steering locaton | right |
Engine, transmission and steering specs | |
Engine specs | |
Engine name | R20A |
Fuel | Petrol (Gasoline) |
Engine type | In-line, 4-cylinder |
Has turbo | no |
Max power, hp | 150 |
Max power RPM, rpm | 6200 |
Max power, hp (kWt) / rpm | 150(110)/6200 |
Max torque, N*m | 193 |
Max torque RPM, rpm | 4200 |
Max torque, N*m (kg*m) / rpm | 193 (19.7) / 4200 |
Eco type | 2005 emission regulation 75% reduction |
Variable cylinder system | no |
Max power, kw (ps) / rpm | 110?150?/6200 |
Max torque, N*m (kg*m) / rpm (carsensor) | 193?19.7?/4200 |
Start stop system | no |
Fuel consumption | |
Fuel consumption (10/15 mode), km/l | 14 |
Fuel consumption (10/15 mode), l/100km | 7.1 |
Transmission | |
Shifter position | On the dashboard |
Manual mode | yes |
Steering | |
Power steering | no |
Electric power steering | yes |
Steereing gear type | Gear rail |
Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
Exterior length, mm | 4690 |
Exterior width, mm | 1695 |
Exterior height, mm | 1815 |
Exterior size (L x W x H), mm | 4690x1695x1815?mm? |
Interior dimensions | |
Capacity | 8 |
Seat rows | 3 |
Interior size (L x W x H), mm | 3095x1500x1395?mm? |
Interior length, mm | 3095 |
Interior width, mm | 1500 |
Interior height, mm | 1395 |
Chassis dimensions | |
Wheel base, mm | 2855 |
Front axle length, mm | 1470 |
Rear axle length, mm | 1460 |
Turning radius, m | 5.3 |
Front/rear axis length | 1470/1460?mm? |
Wheel spacing front | 1470 |
Wheel spacing rear | 1460 |
Weight and permissible load | |
Mass, kg | 1650 |
Volumes | |
Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
Front suspension | Independent, Spring McPherson |
Rear suspension | Semi-independent, torsion bar |
Sport suspension | no |
Low down | no |
Air suspension | no |
Cenral diff lock | no |
LSD | no |
4ws | no |

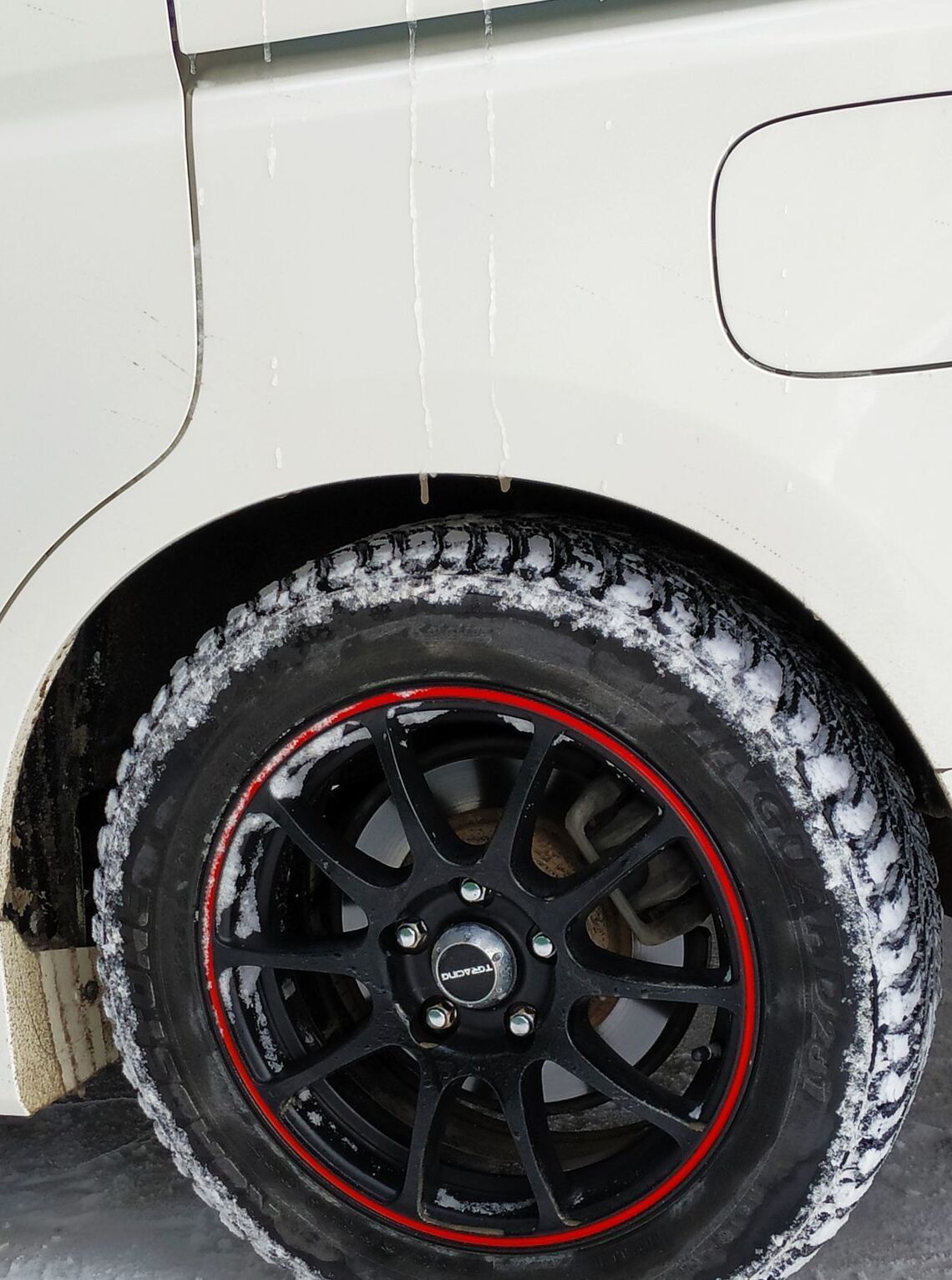

Wheel rims | |
Aluminium wheel | yes |
Magnesium wheels | no |
Tires | |
Front wheels | 205/60R16 |
Rear wheels | 205/60R16 |
Run flat tires | no |
Brakes | |
Front brake | Ventilated discs |
Rear brake | Discs |
Brakes equipment | no |
Brake front search | 1 |
Rear brake | 1 |
Exterior | |

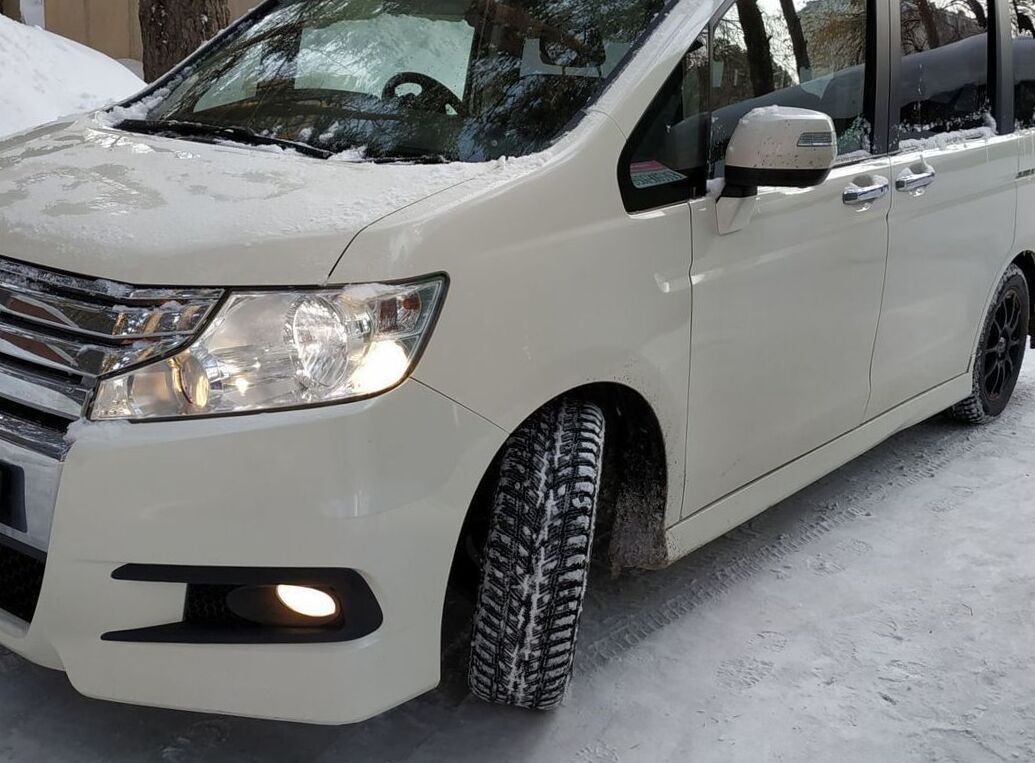

Headlights | |
Xenon lamps | yes |
Head lights washer | no |

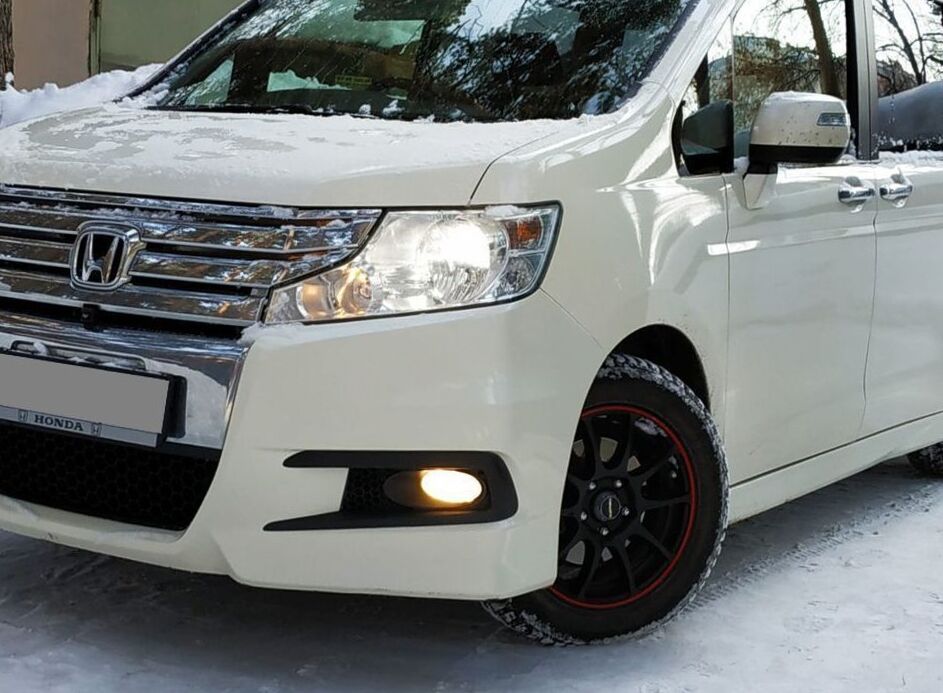

Front fog lamps | yes |
Rear fog lamps | no |
Rain sensor | no |
Side mirrors | |
autocorrected mirrors | no |
Doors | |
Side sliding door | no |
Sliding doors | no |
Sliding electric door | no |

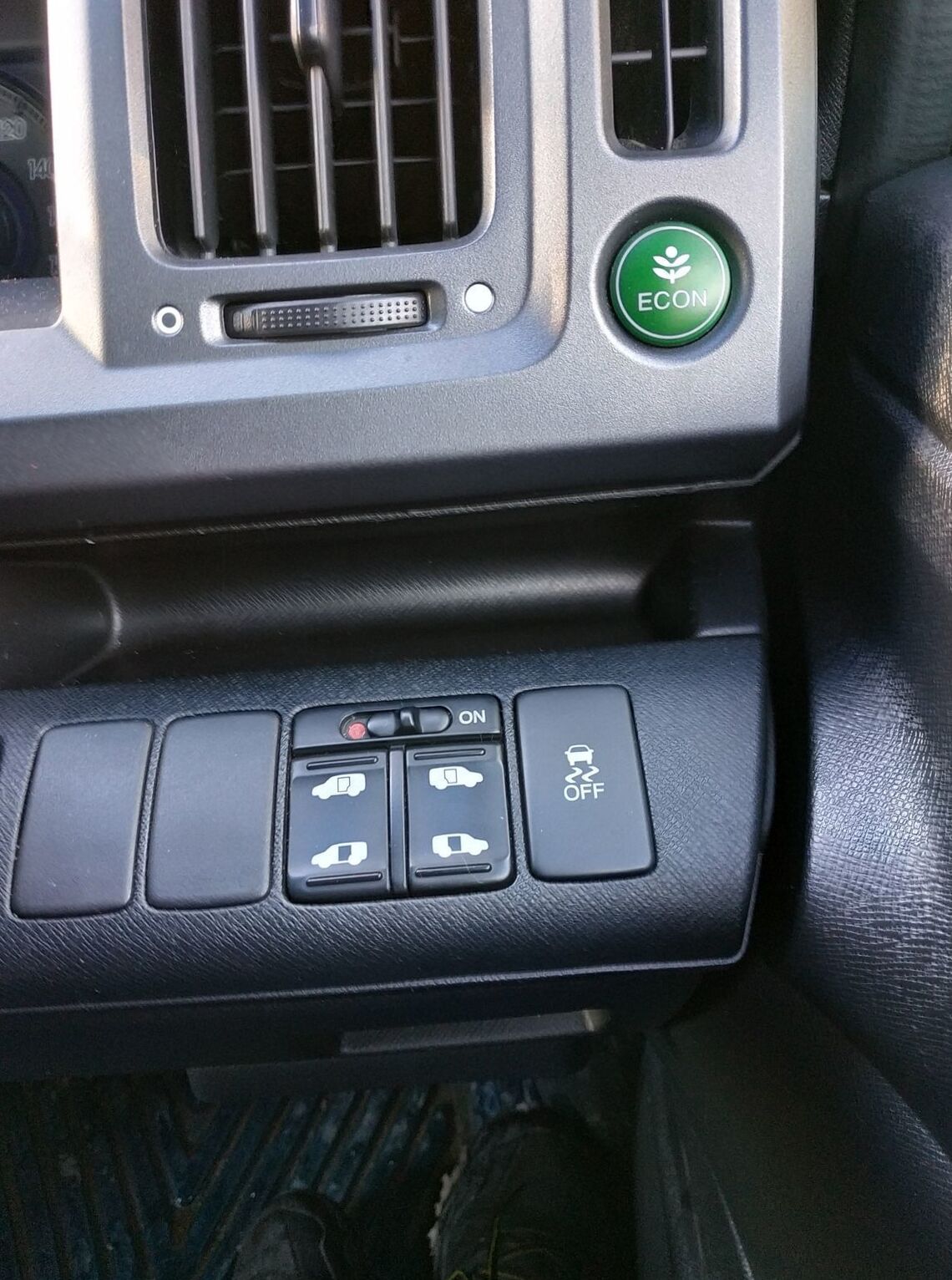

Sliding electric doors | yes |
Door easy closer | yes |
Power rear door | no |
Windows | |
Privacy glass | yes |
Ultraviolet glass protection | yes |
Roof | |
Sunroof | no |
Big sunroof | no |
T bar roof | no |
Roof equipment | no |
Targa roof | no |
Hard top | no |
Soft top | no |
Metal top | no |
Canvas top | no |
Accessories | |
Roof rail | no |
Front spoiler | yes |
Rear spoiler | yes |
Body color | |
Colors | 239 2502 2594 |
Interior | |
Steering wheel and center panel | |
Engine start button | yes |
Interior design | |
Water-repellent | no |
Leather seat | no |
Antibacterial repellent | no |

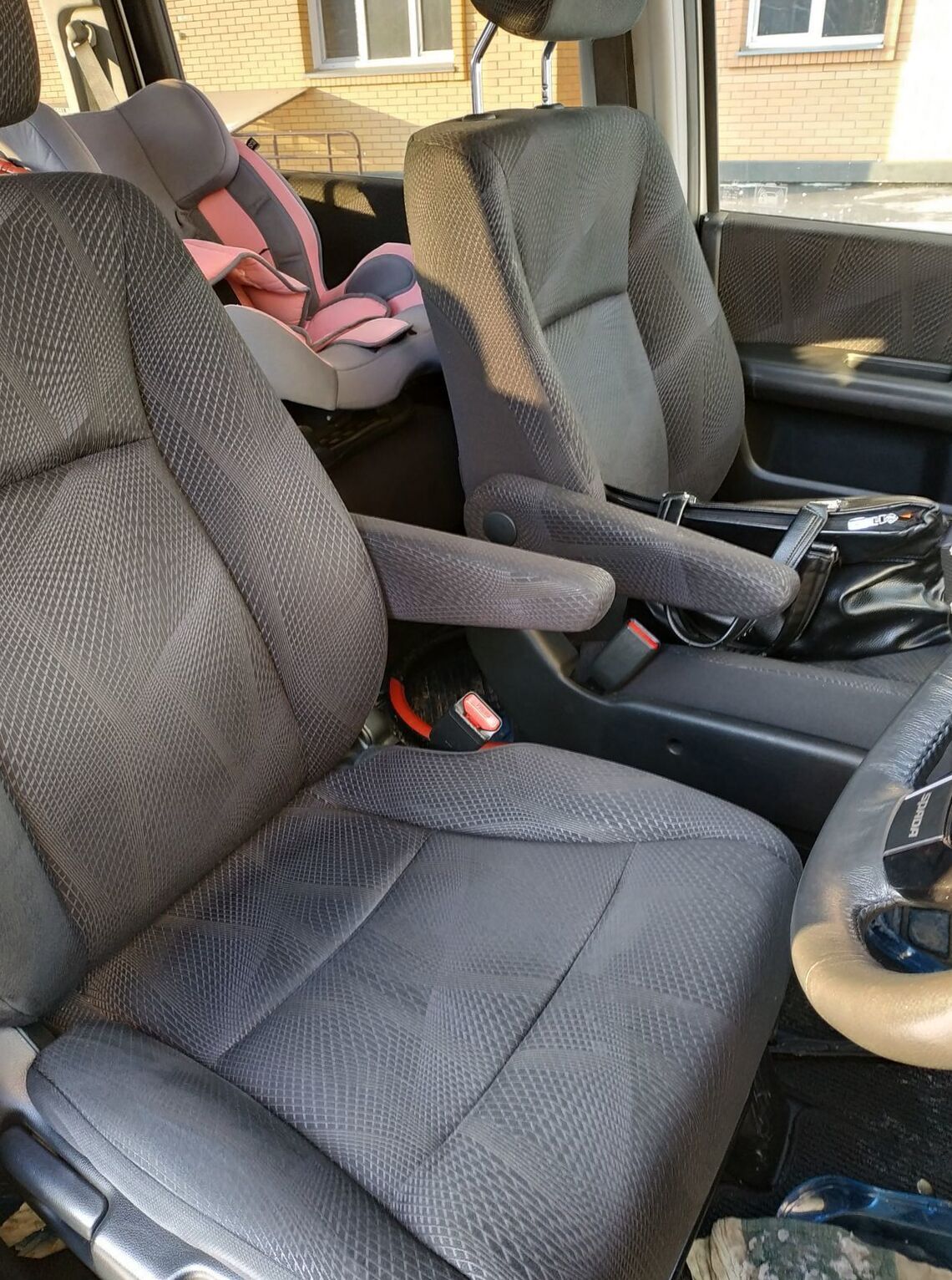

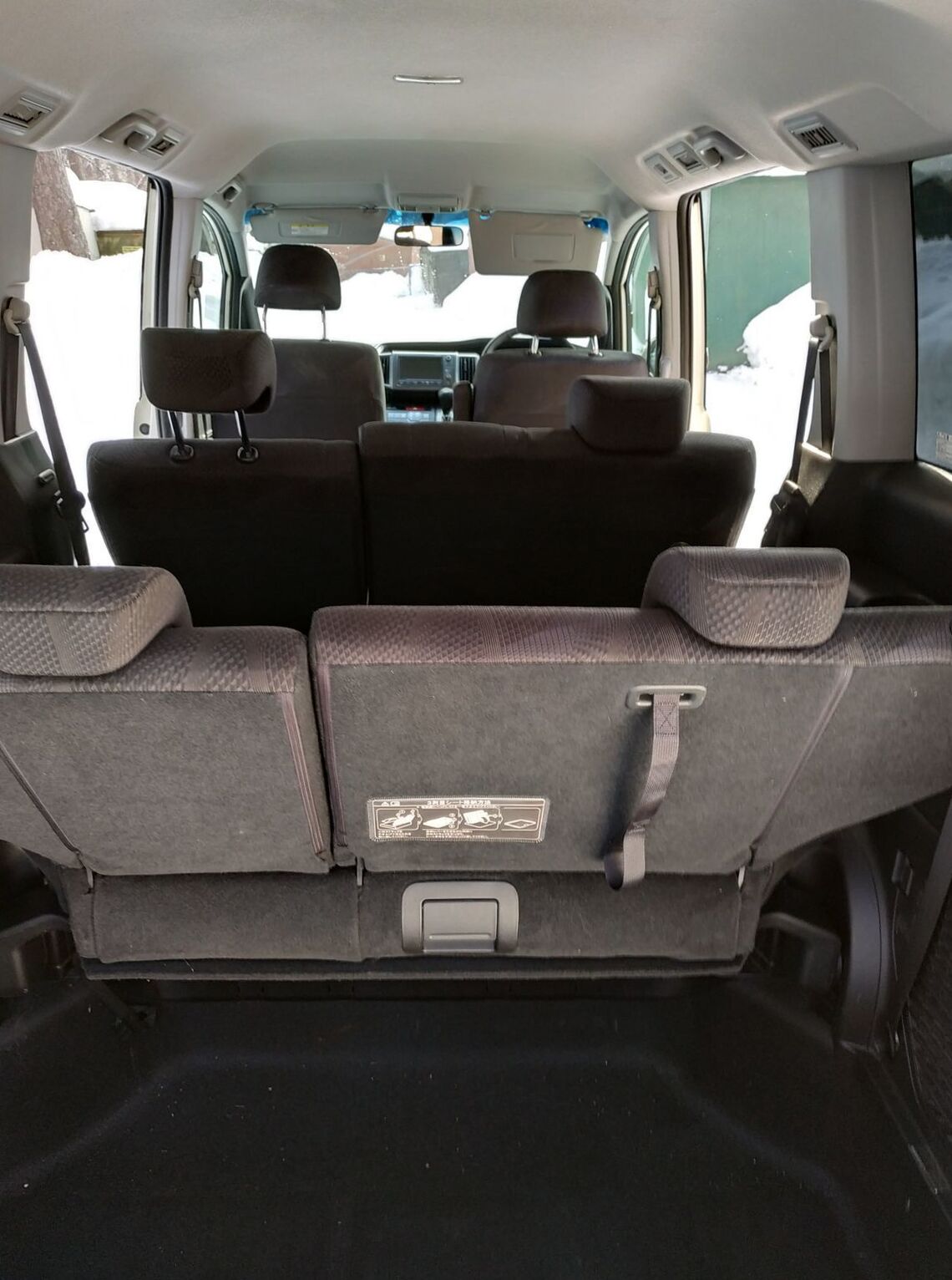

Seats | |
Bucket seat | no |

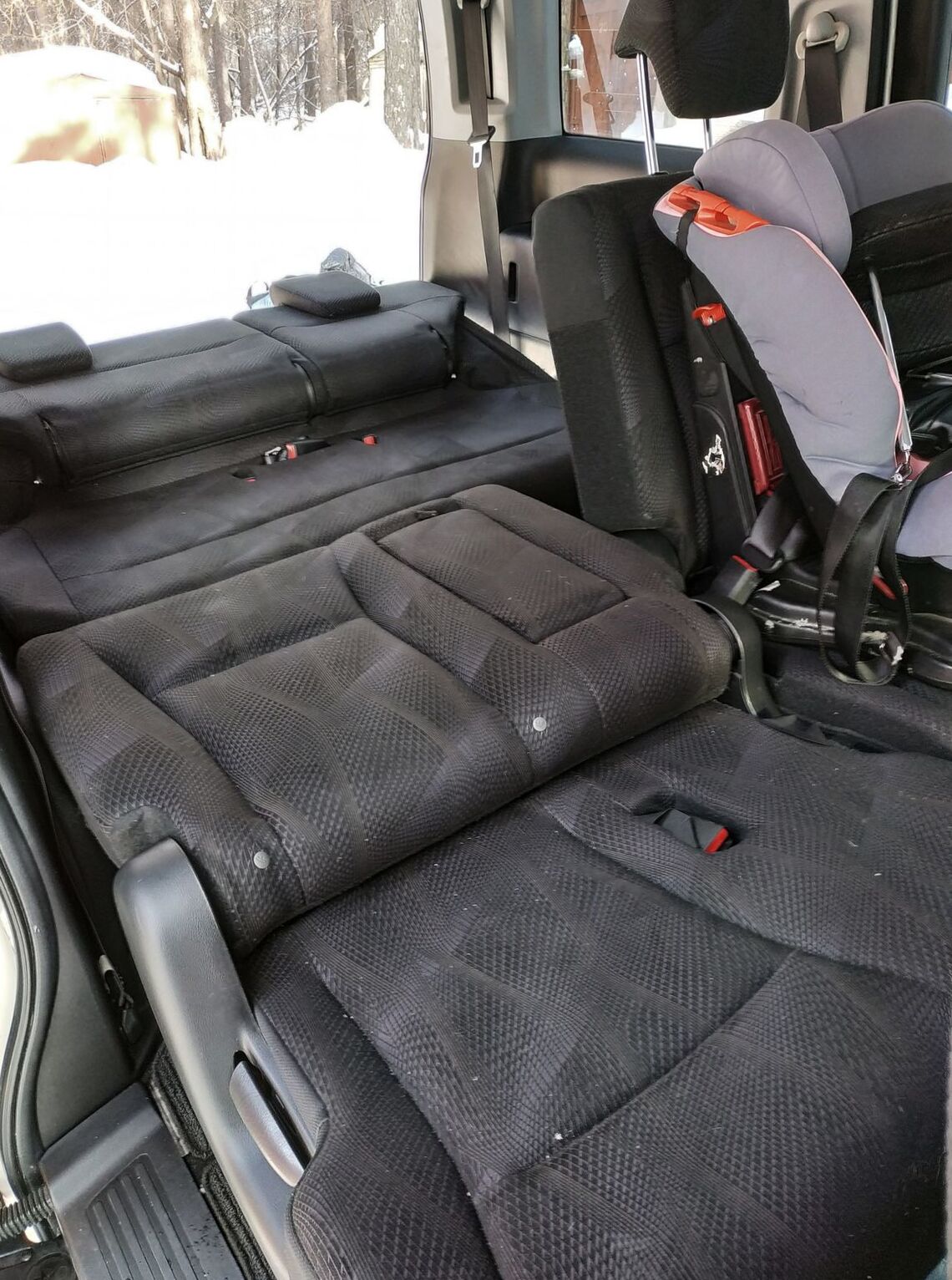

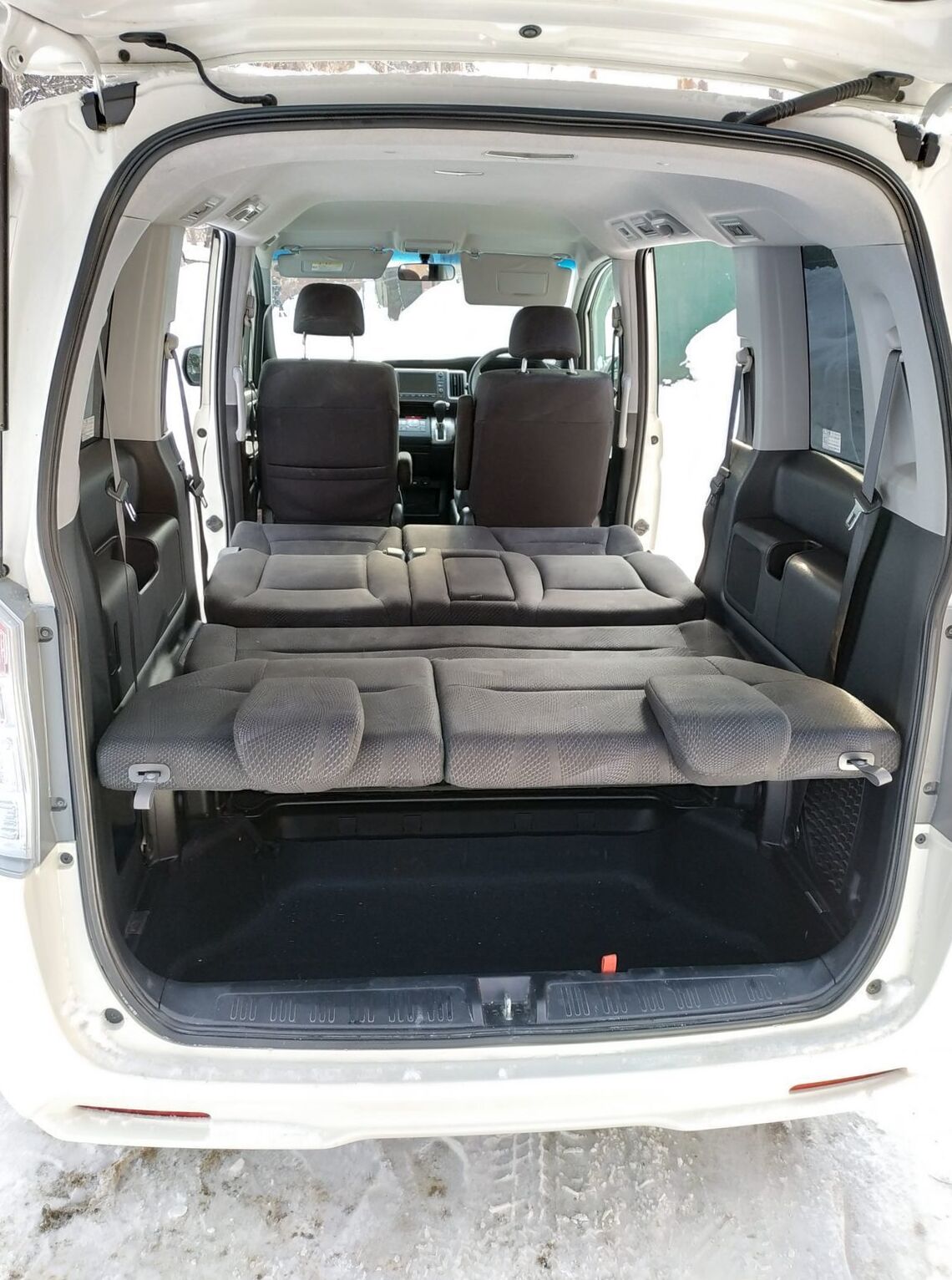

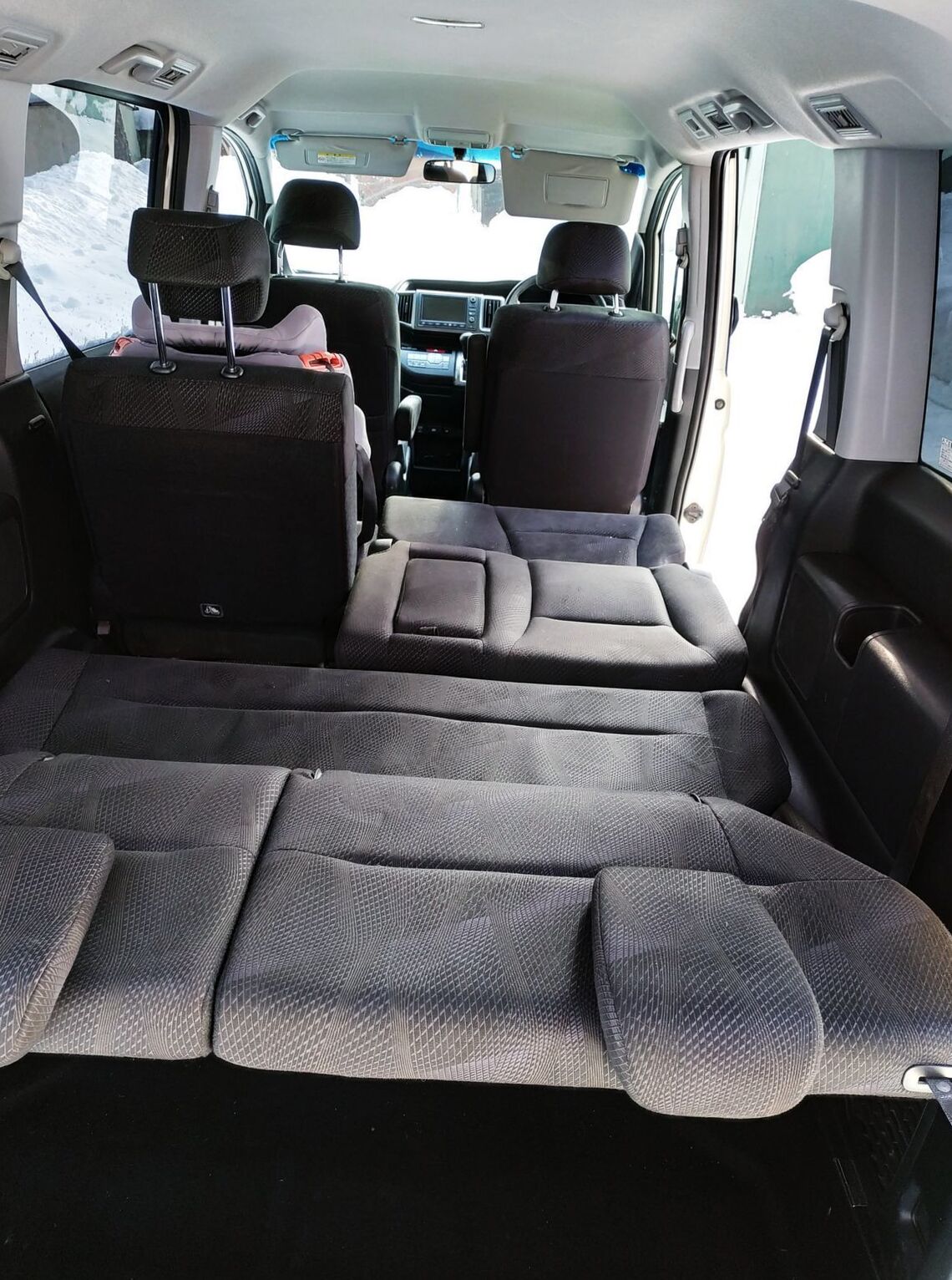

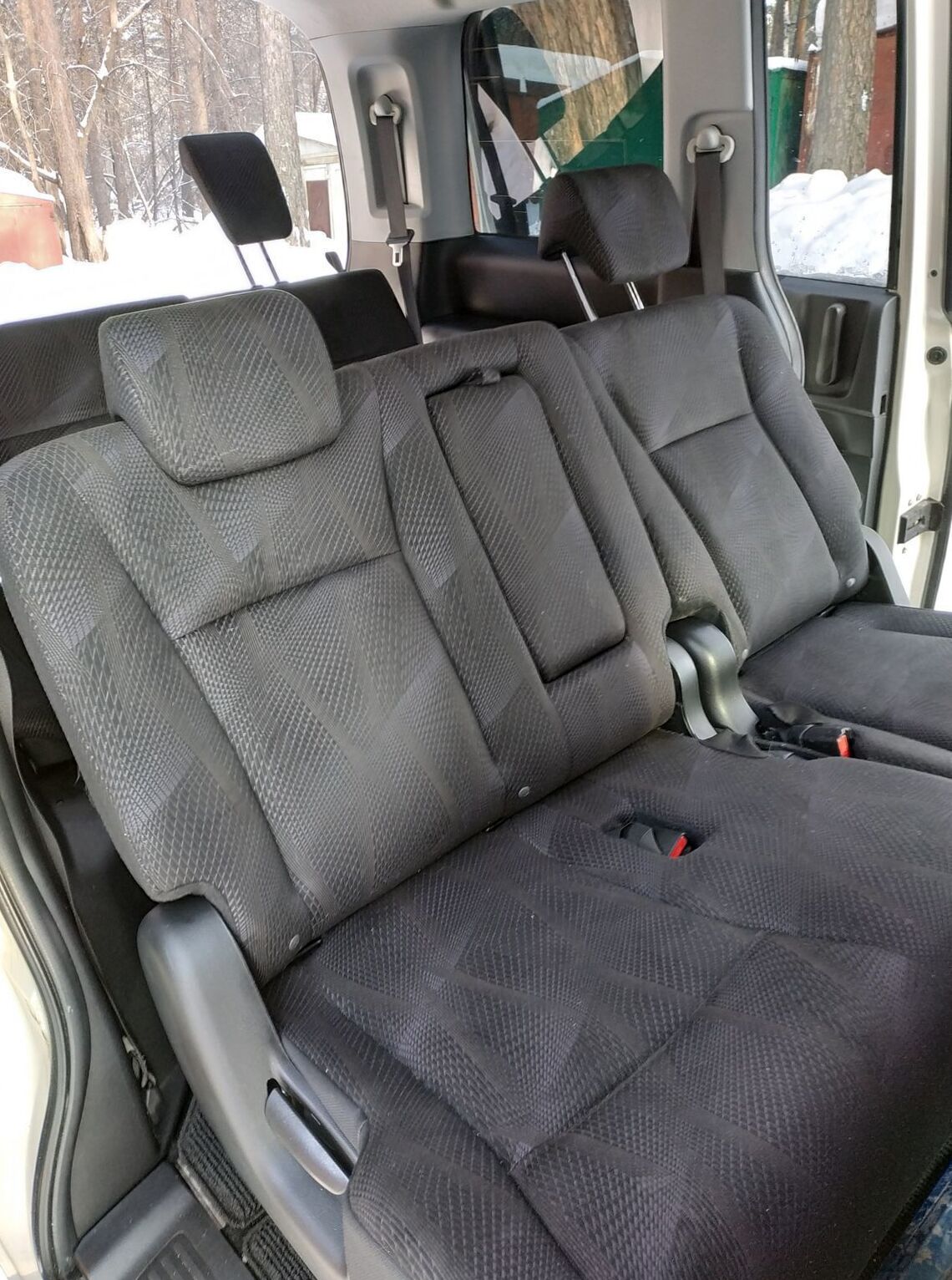

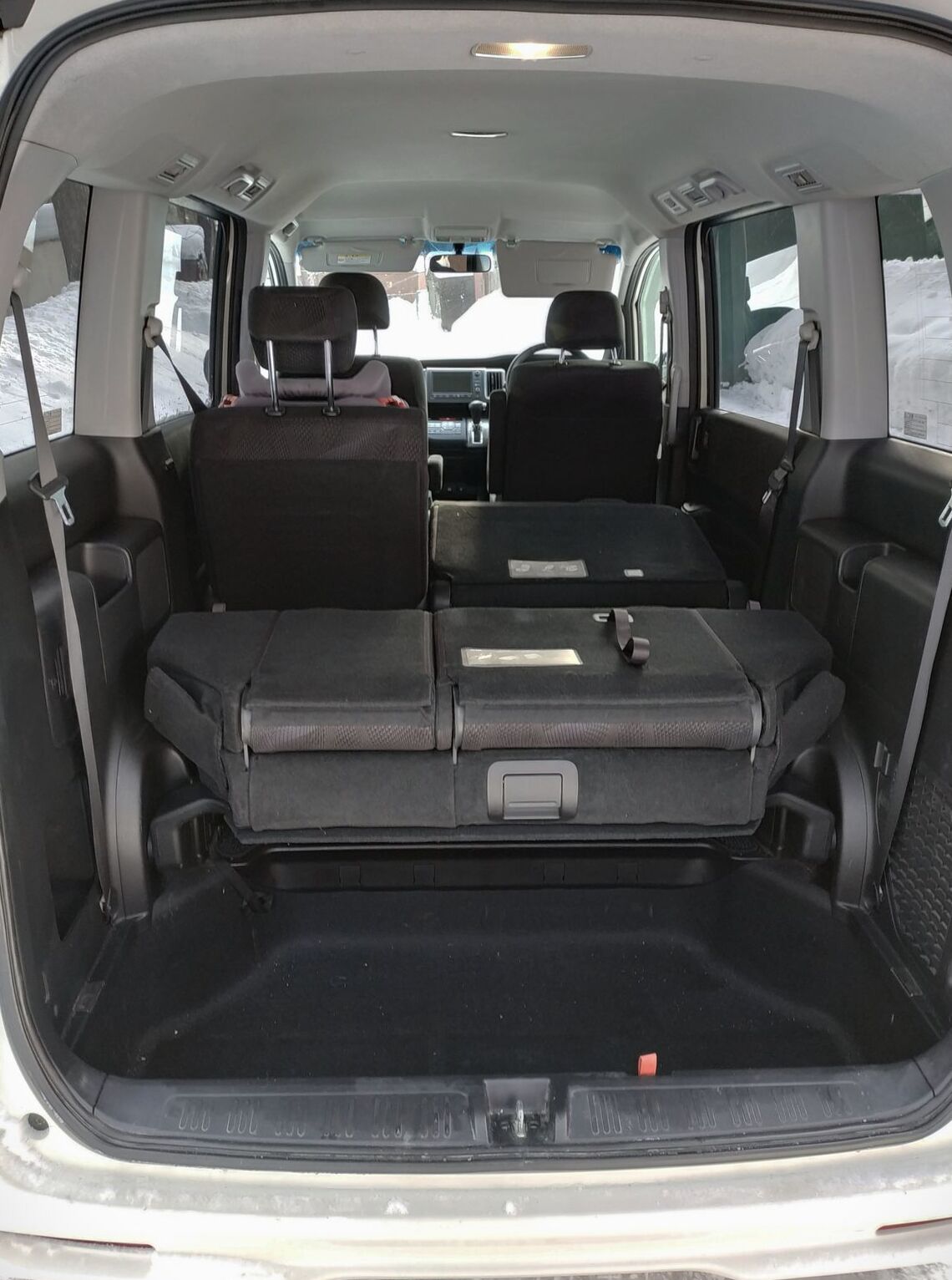

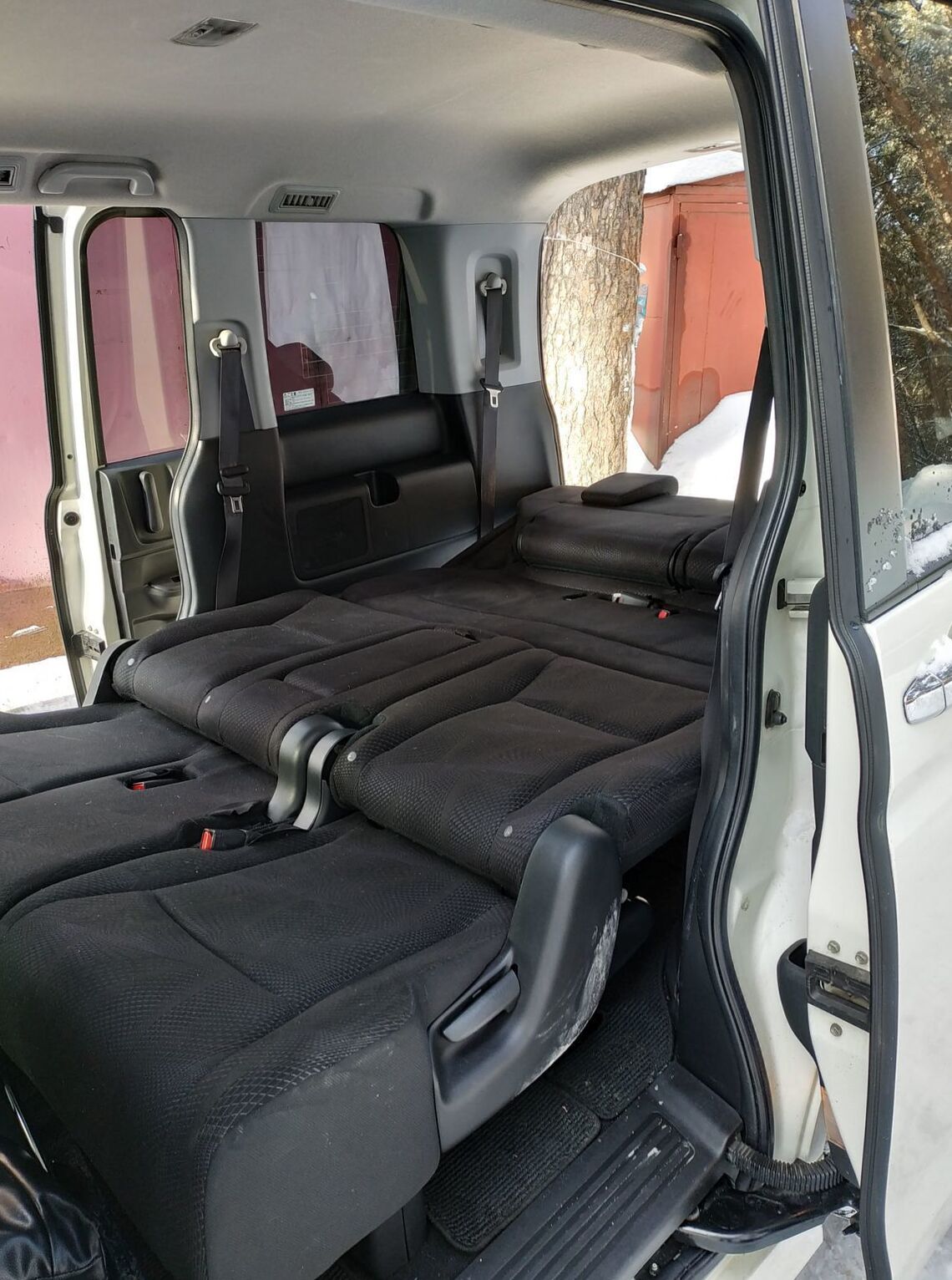

2nd row | 60/40 ratio fold seat |

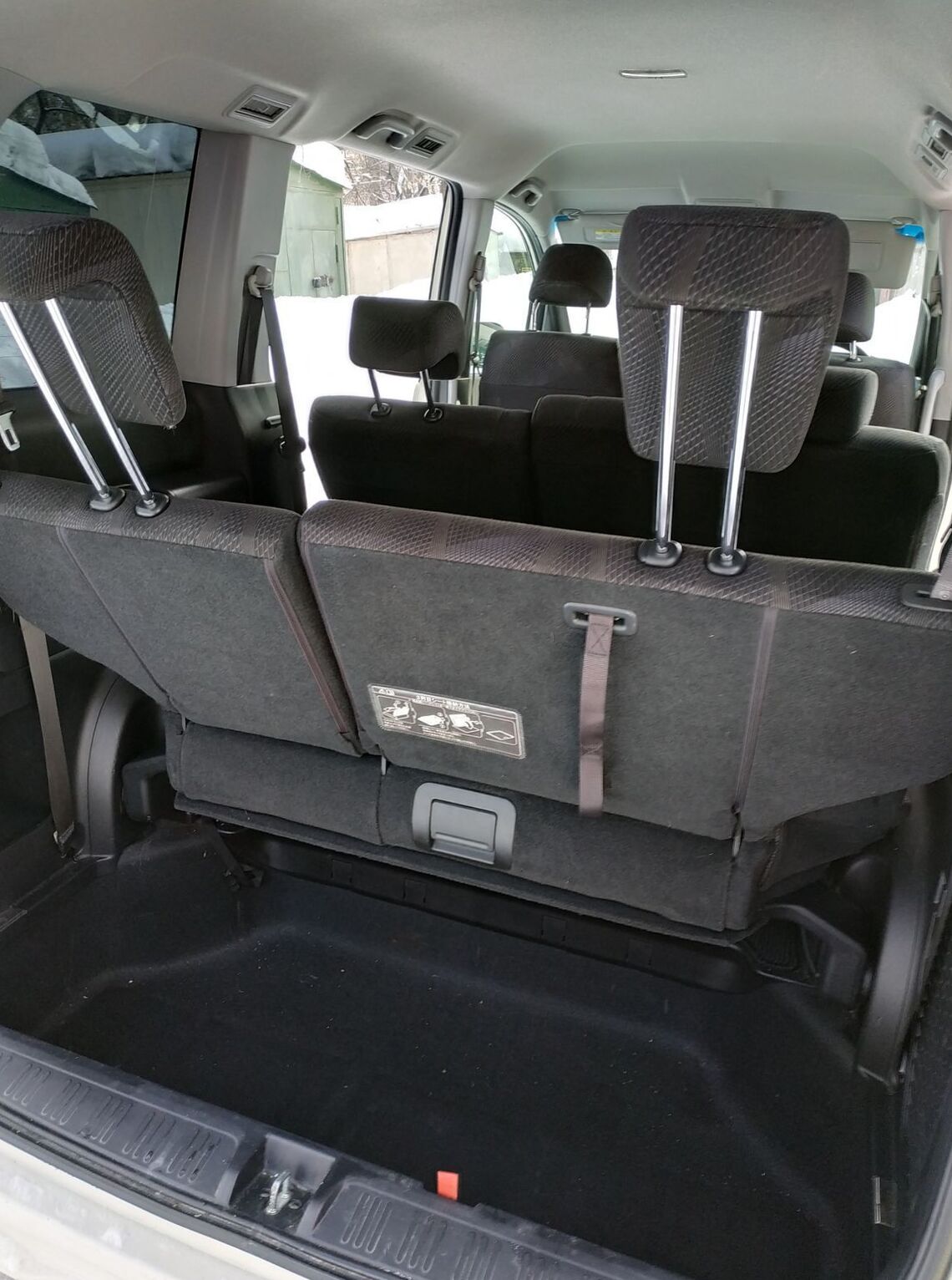

3nd row | 60/40 ratio fold seat |
Seat lifter | yes |
Full flat seats | no |
Removable seats | no |
Ottoman seat | no |
Front bench seat | no |
Walk throught | yes |
2nd row throught | no |
Electric interior package | |
Power adjustable driver seat | no |
Power ajustable front seat | no |
Adjustable 3rd row | no |
Front seat heater | no |
Rear seats heater | no |
Seat position memory | no |

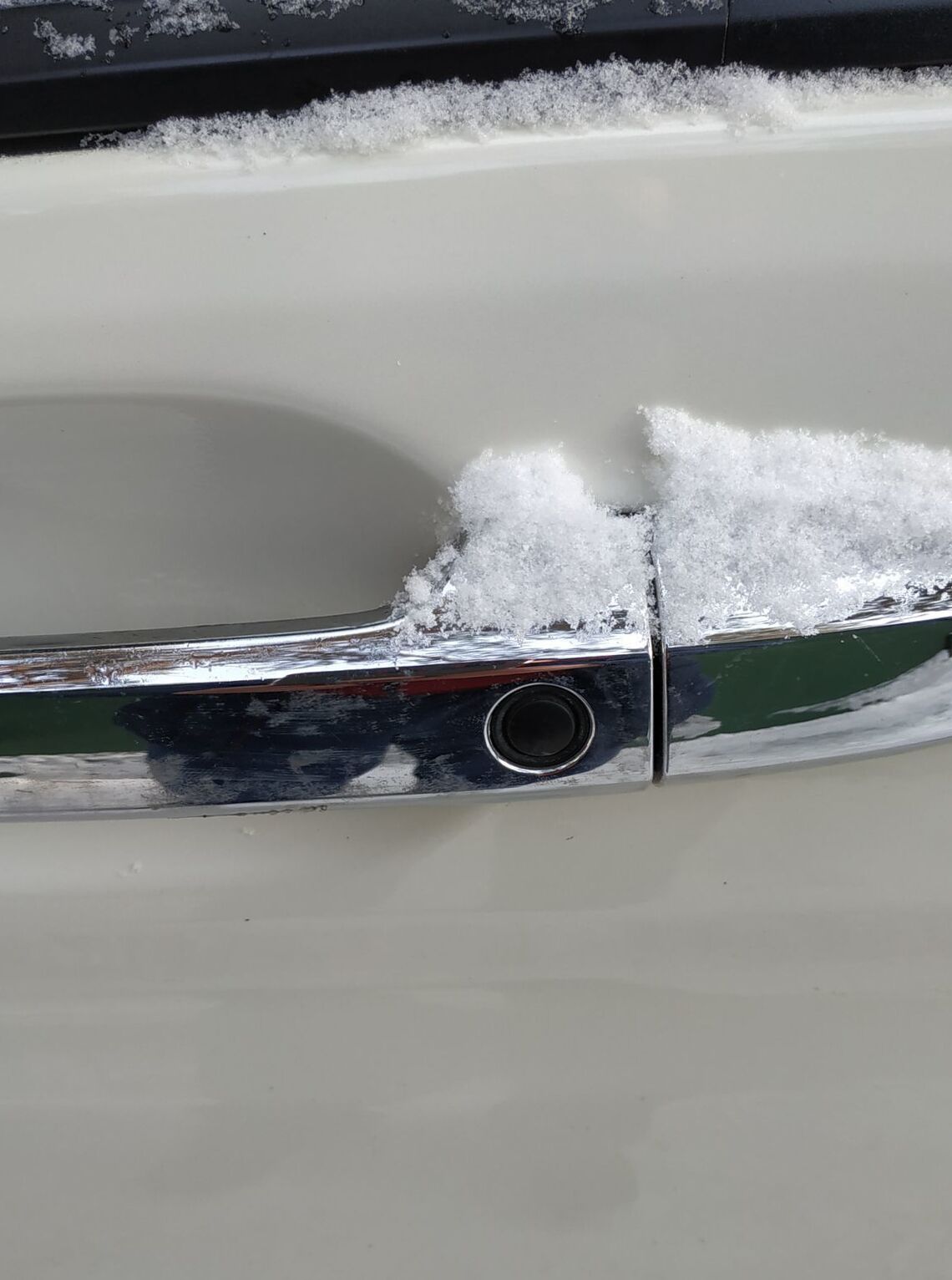

Keyless enter | yes |
Power window | yes |
Stearing wheel heater | no |
Additional interior equipment | |
AC plug | no |
Safety | |
Airbags | |
Drivers airbag | yes |
Passengers airbag | yes |
Side airbag | yes |
Curtain airbags | yes |
2 airbags | no |
Children safety | |
isofix bar | yes |
Build-in child seat | no |
Active and passive safety | |
Active headrest | yes |
Road Service | QQ call (option) |
Electronic security and traffic control systems | |
ABS | yes |
Break assist | yes |
ESP | yes |
traction control | yes |
Down hill assist | no |
AYC | no |
SH-4WD | no |
Lane Keep Assist | no |
Cruise control | yes |
Distance control system | yes |
Intelligent AFS | no |
Night vision | no |
Parktronic | no |
Intelligent parking assist | no |
Collision mitigation system | yes |
Amenity | |
Microclimate | |
Air conditioner | yes |
Air purifier | no |
Humidifier | no |
Air filter | yes |
Odor absorber | no |
Audio systems | |
Radio | yes |
Autoreverse casette | no |
CD player | yes |
DVD-audio | yes |
MD palyer | no |
Audio HDD | yes |
Speaker | yes |
Rear entertainment system | option |
Navigation and video equipment | |

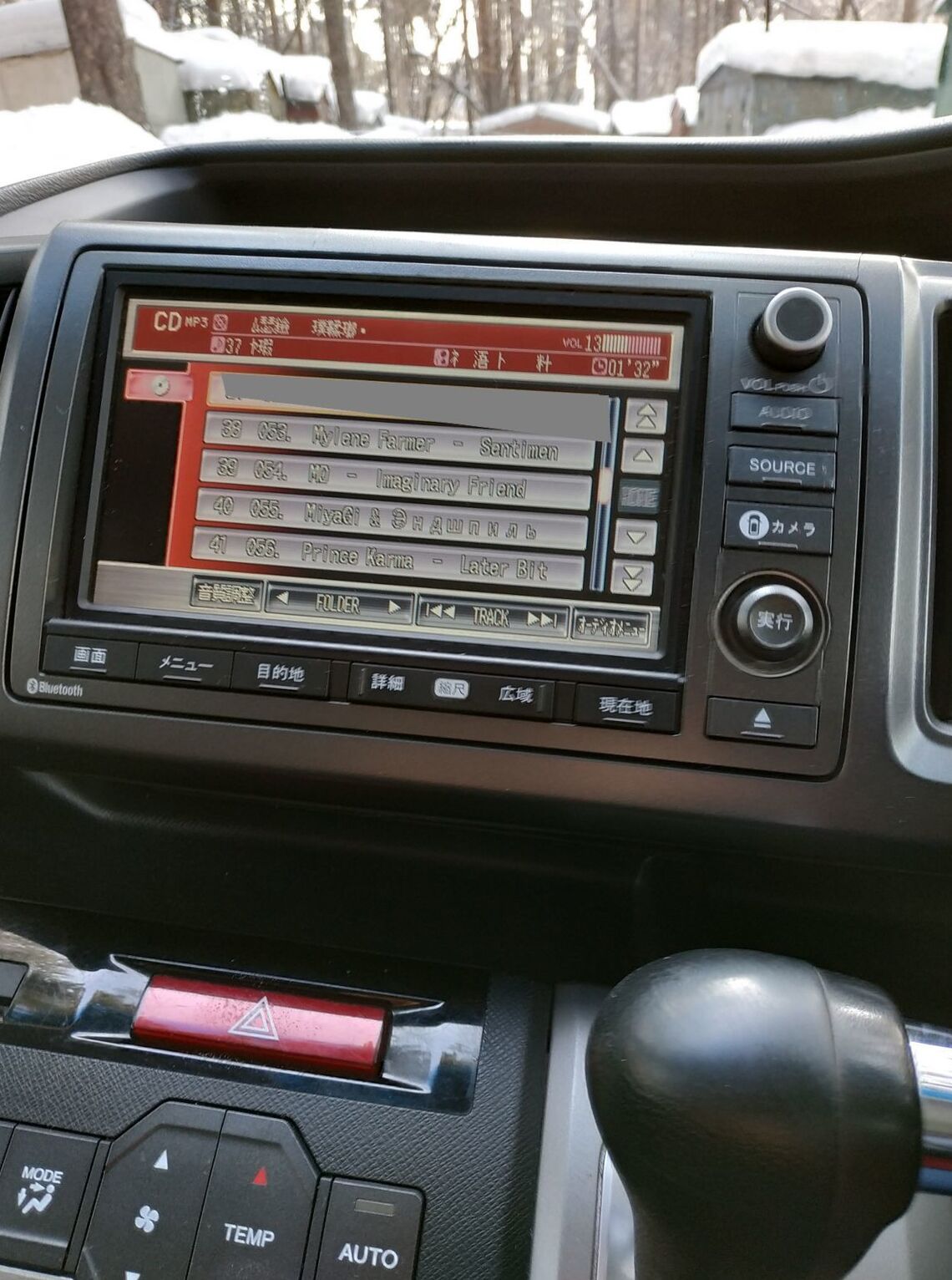

Full color LCD display | yes |

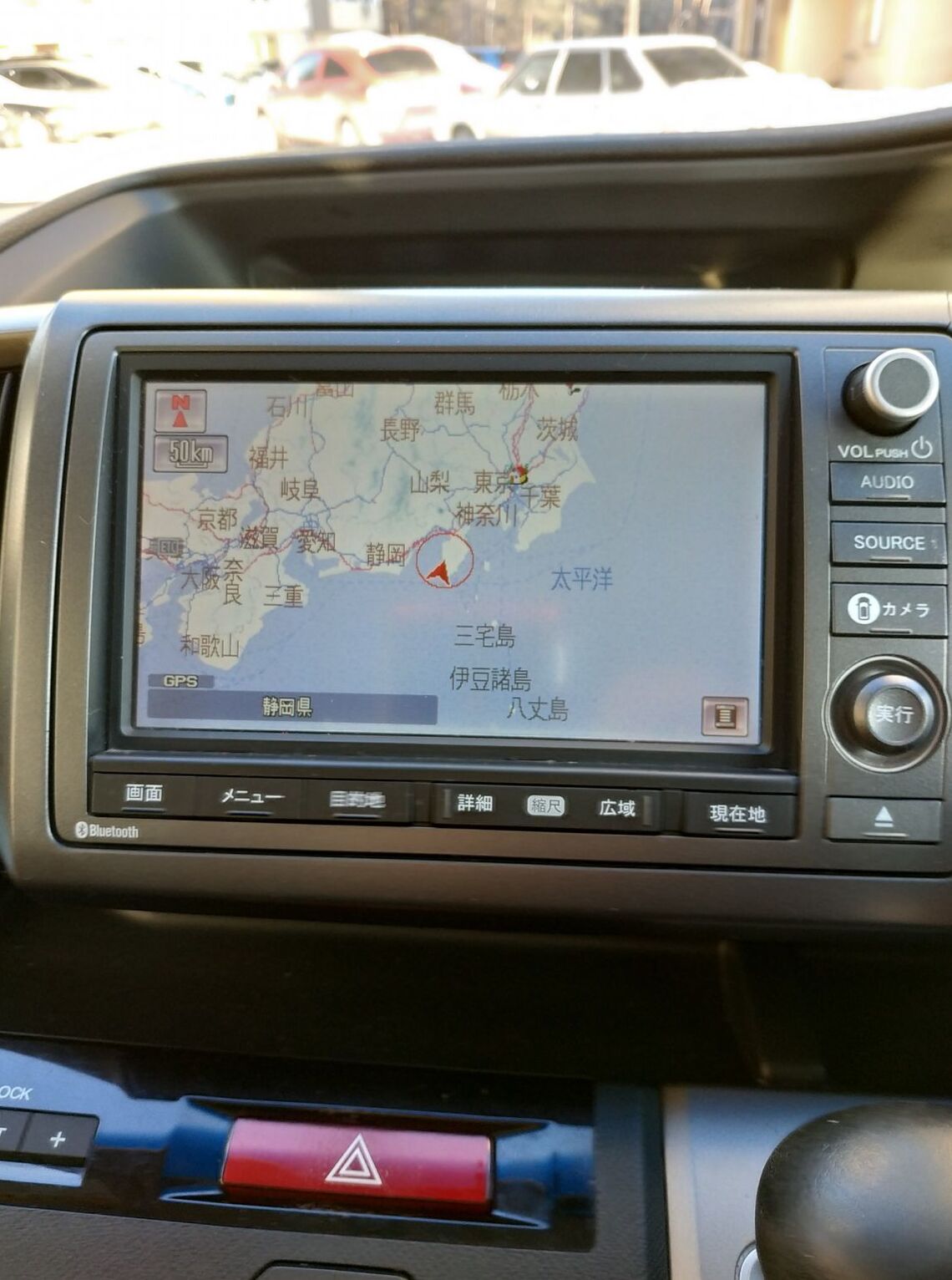

Navigation system | yes |
Optional navigation system | no |

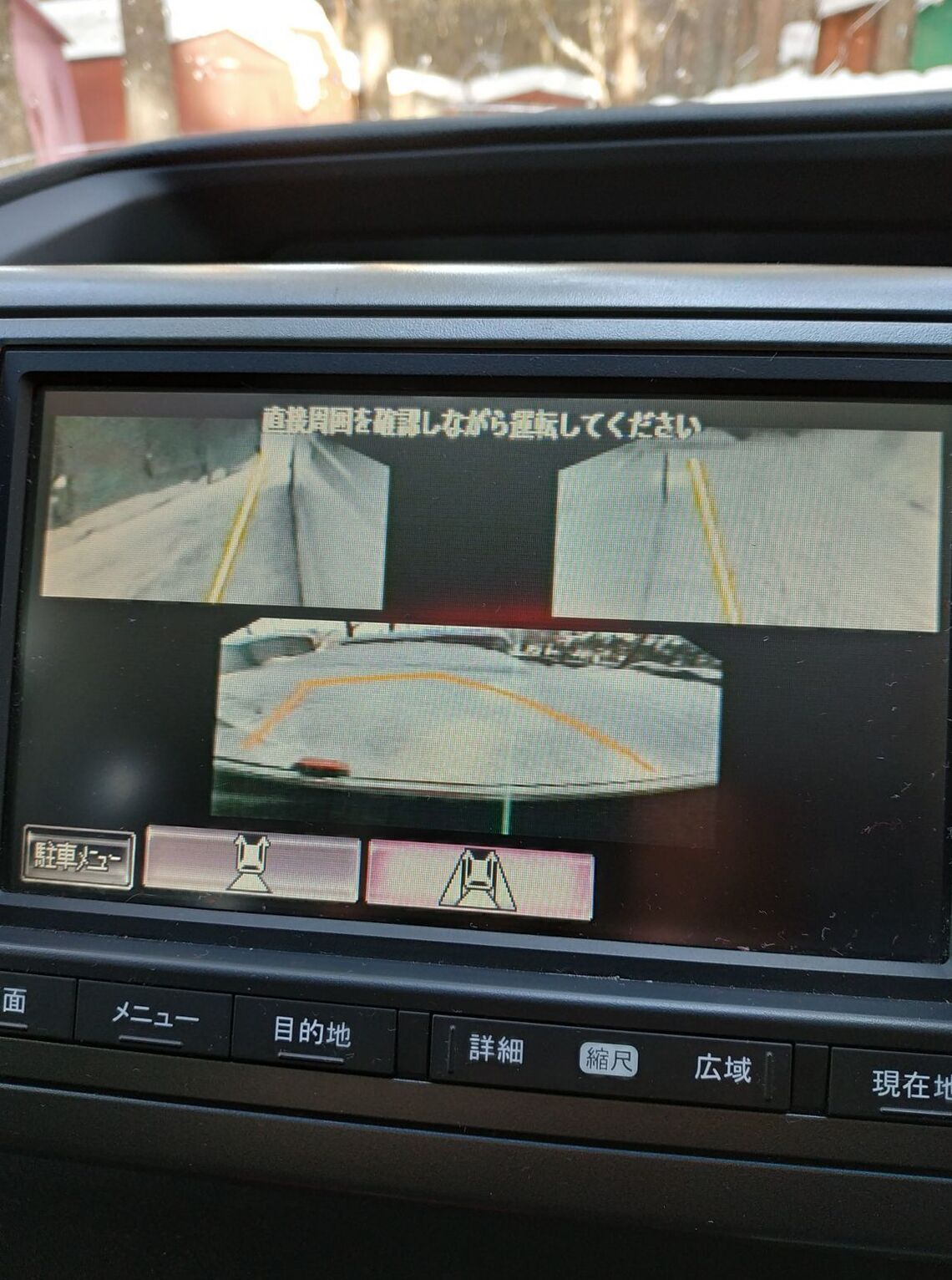

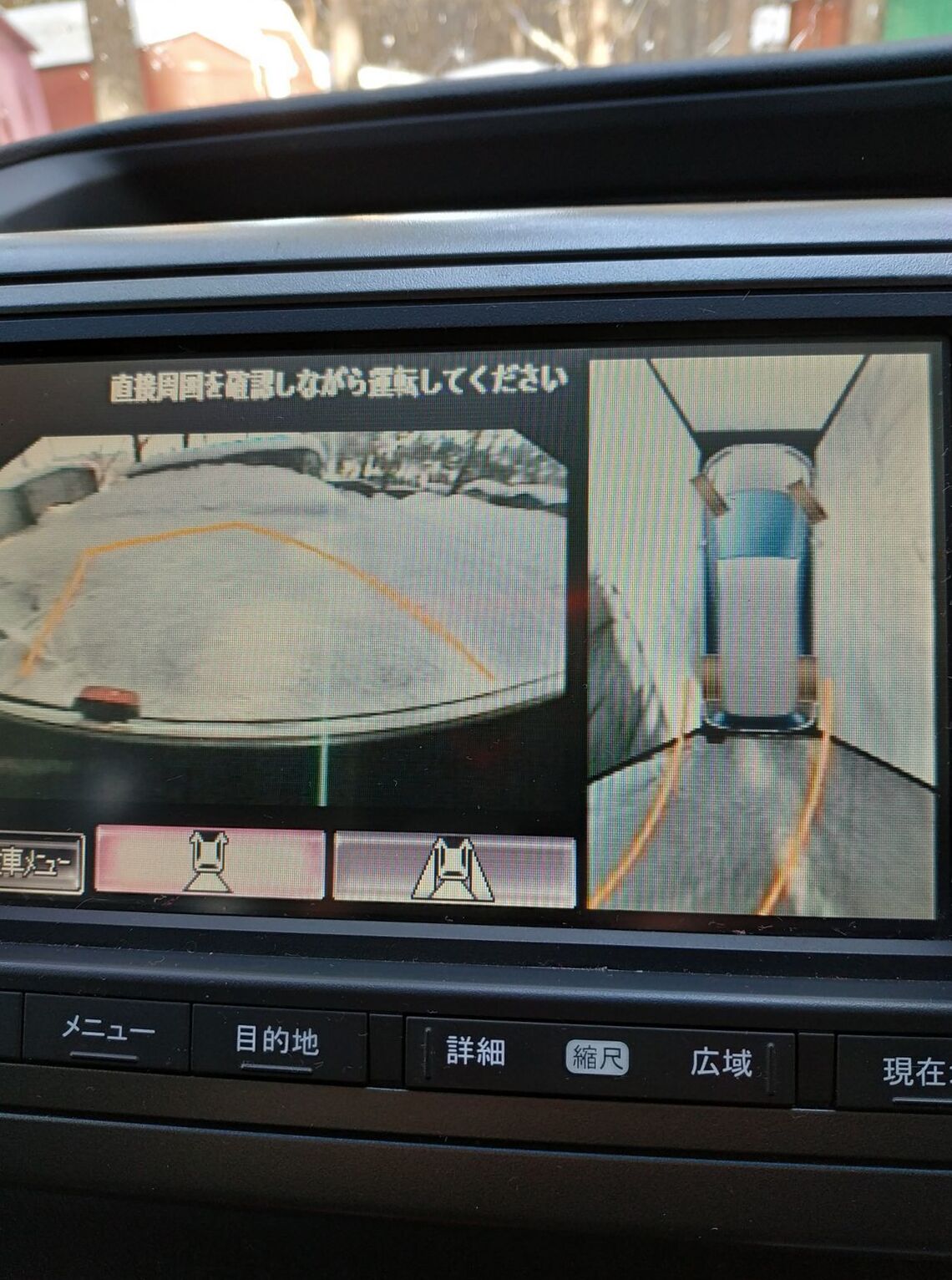

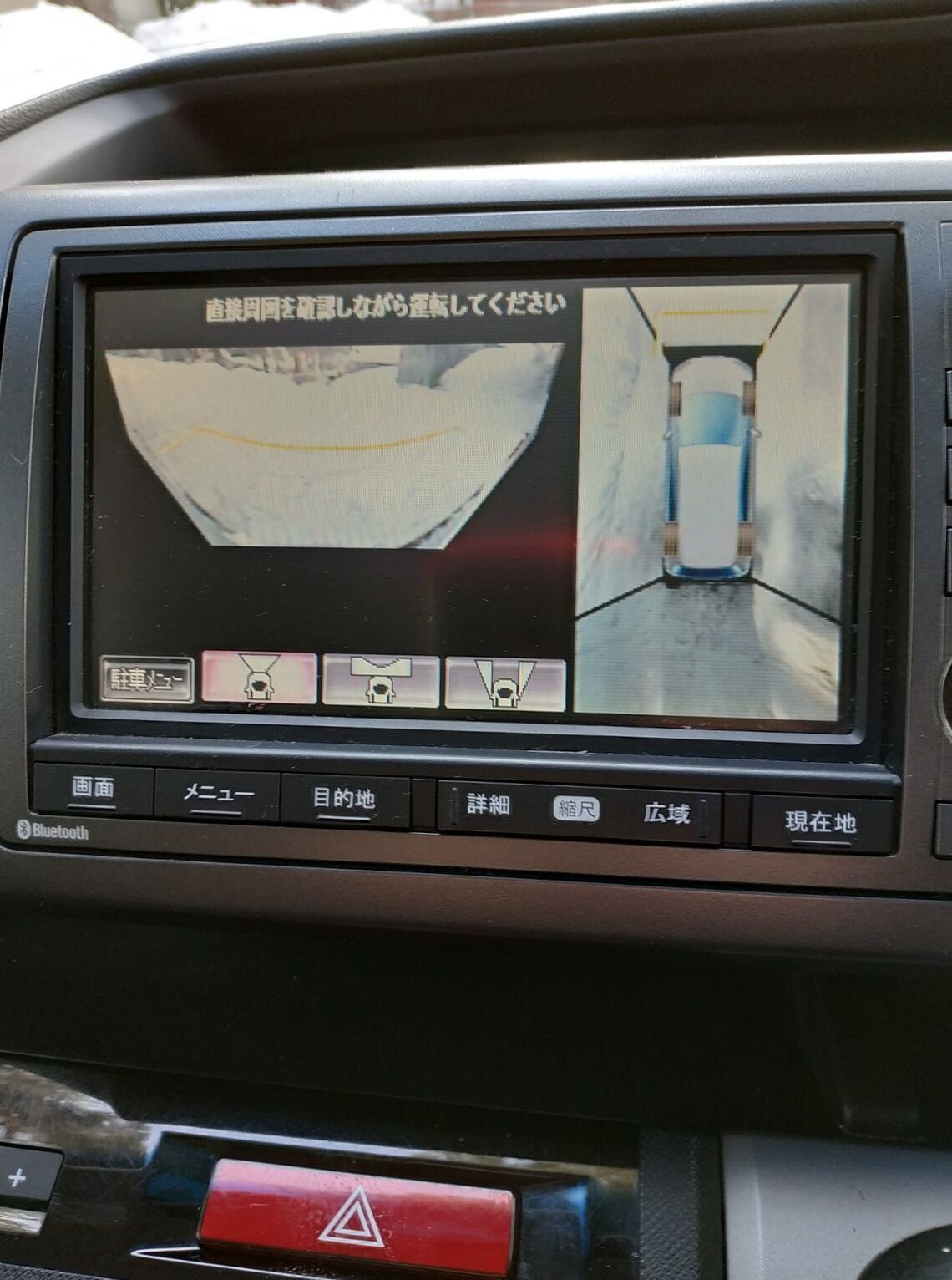

Parking assist system | yes |

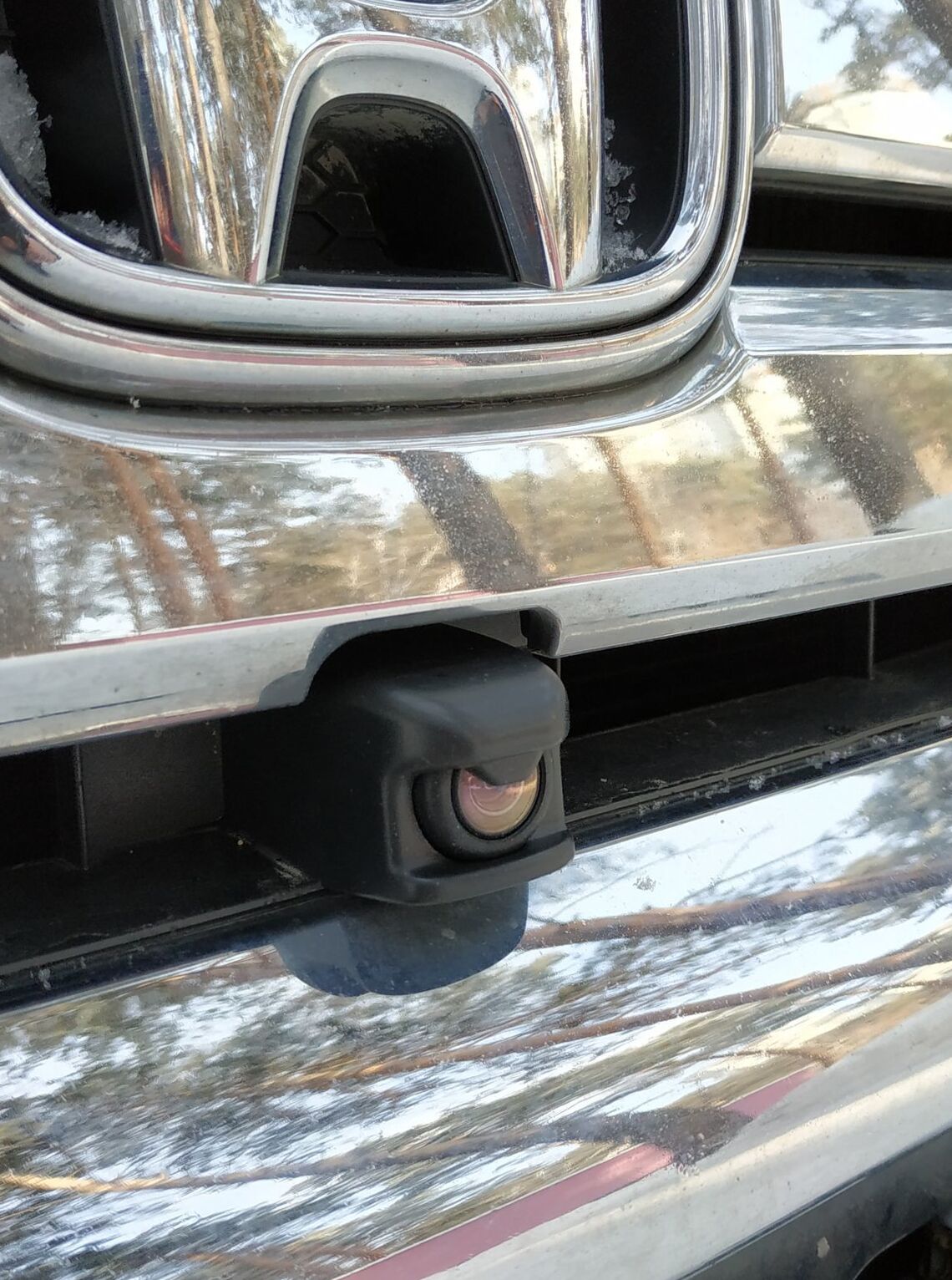

Front monitor | yes |

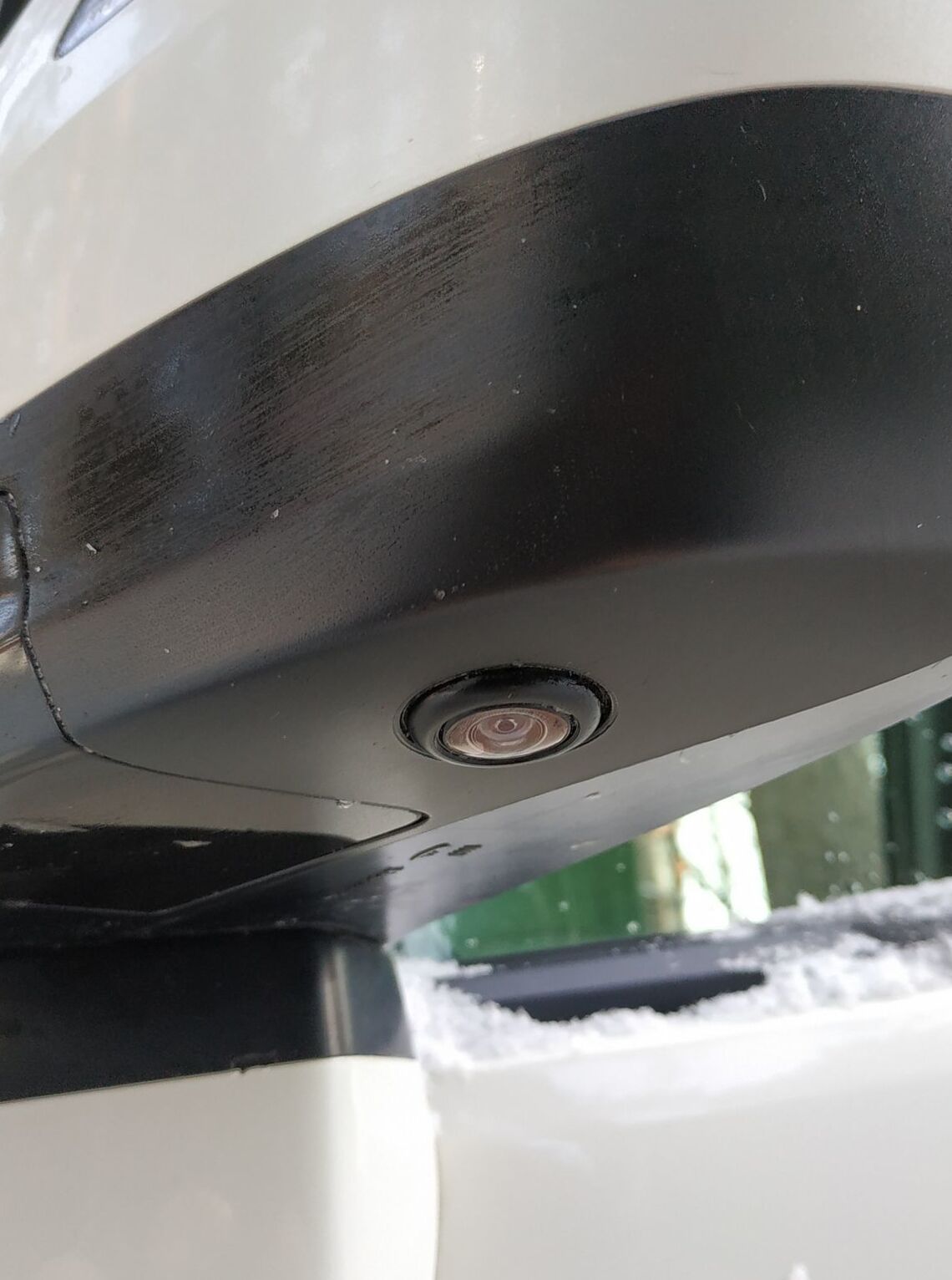

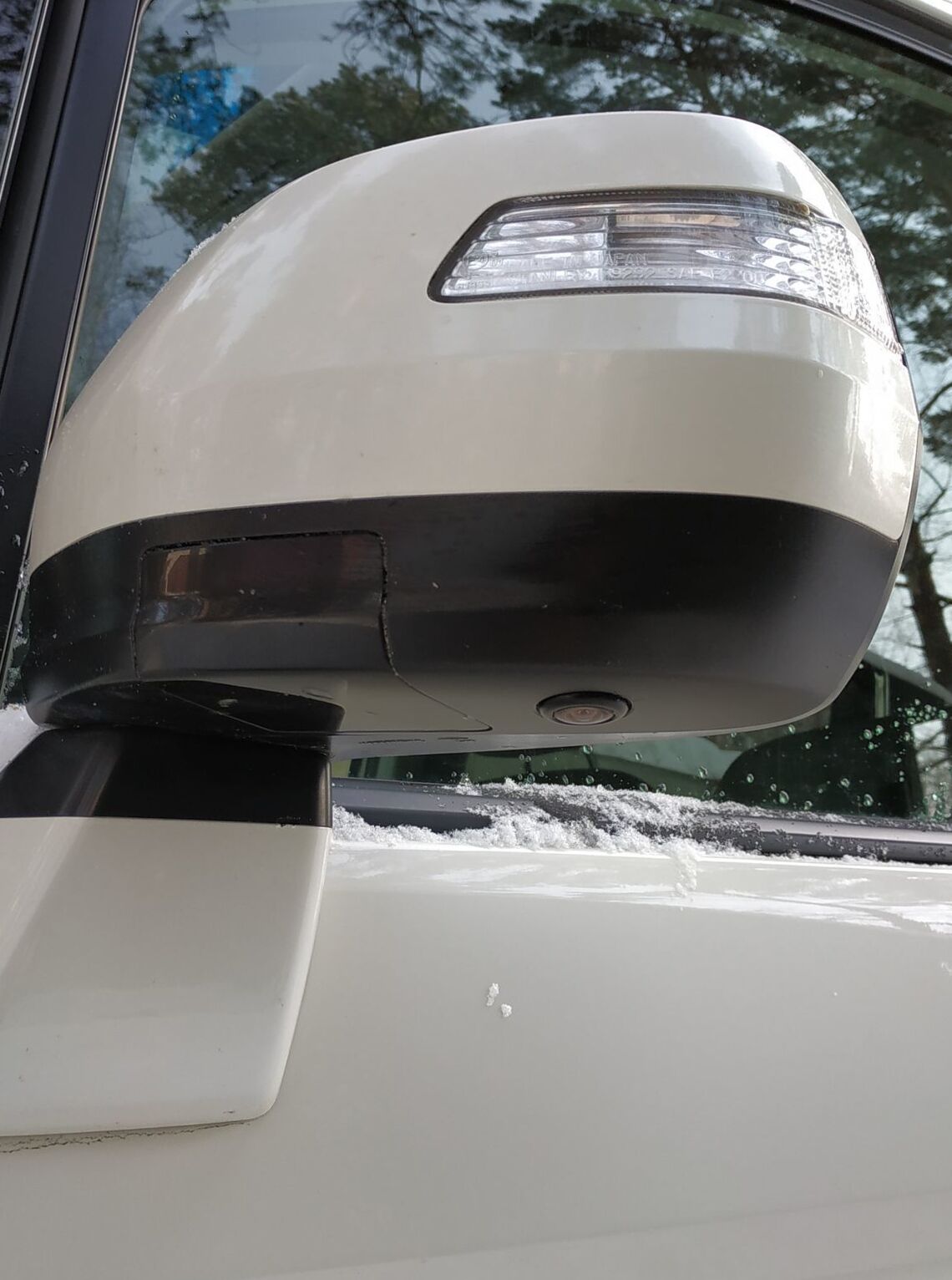

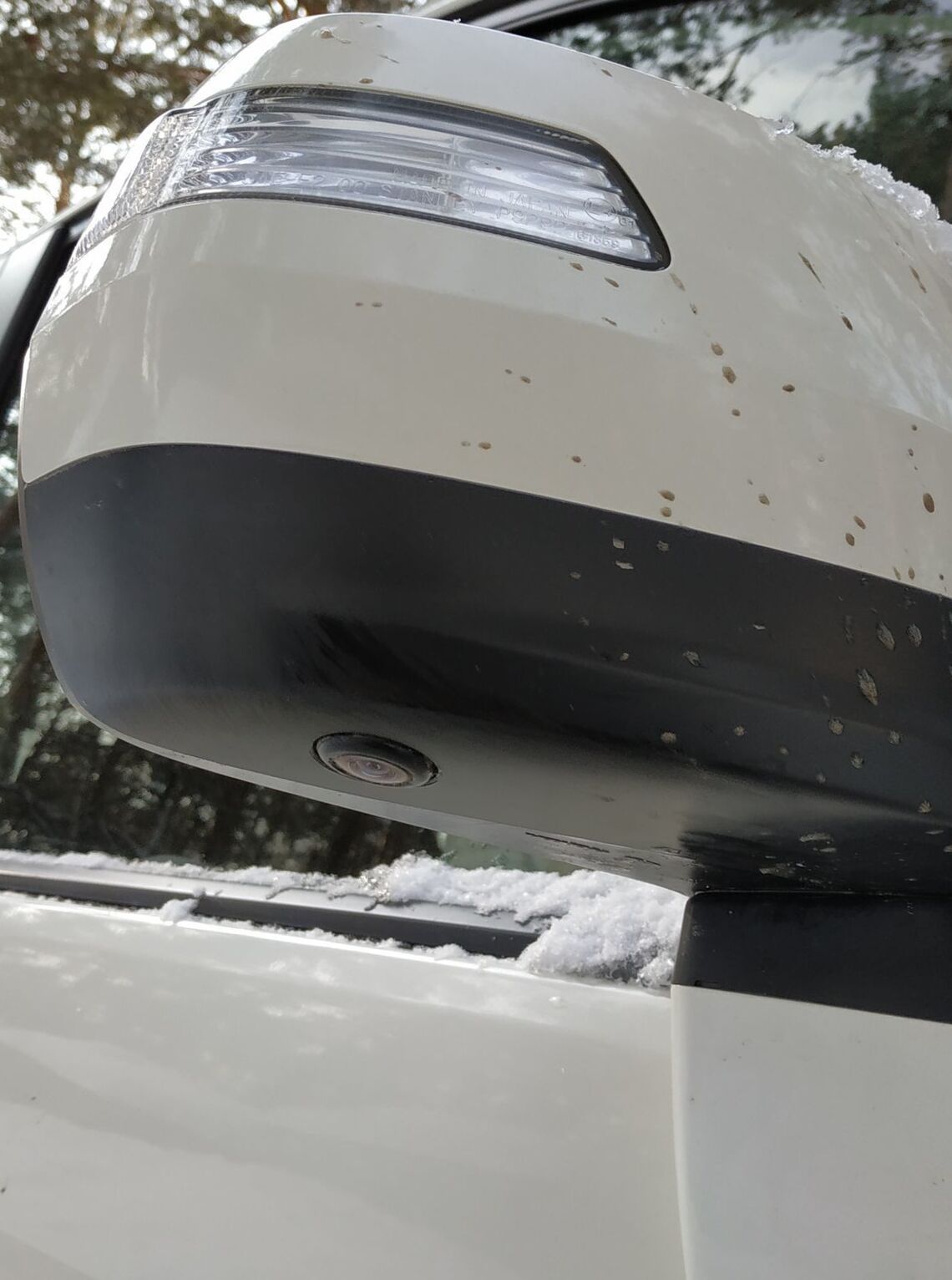

Sides monitors | yes |

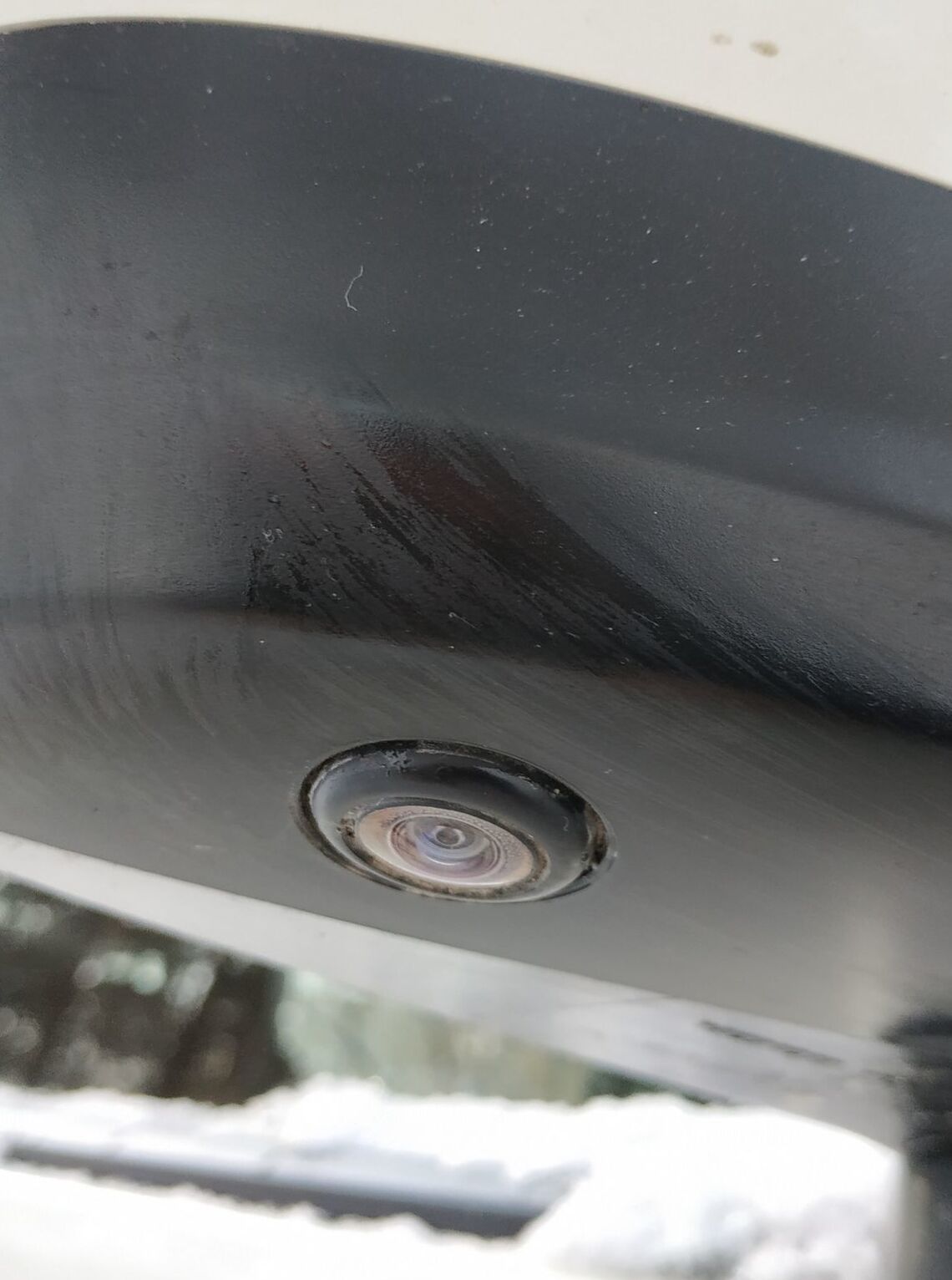

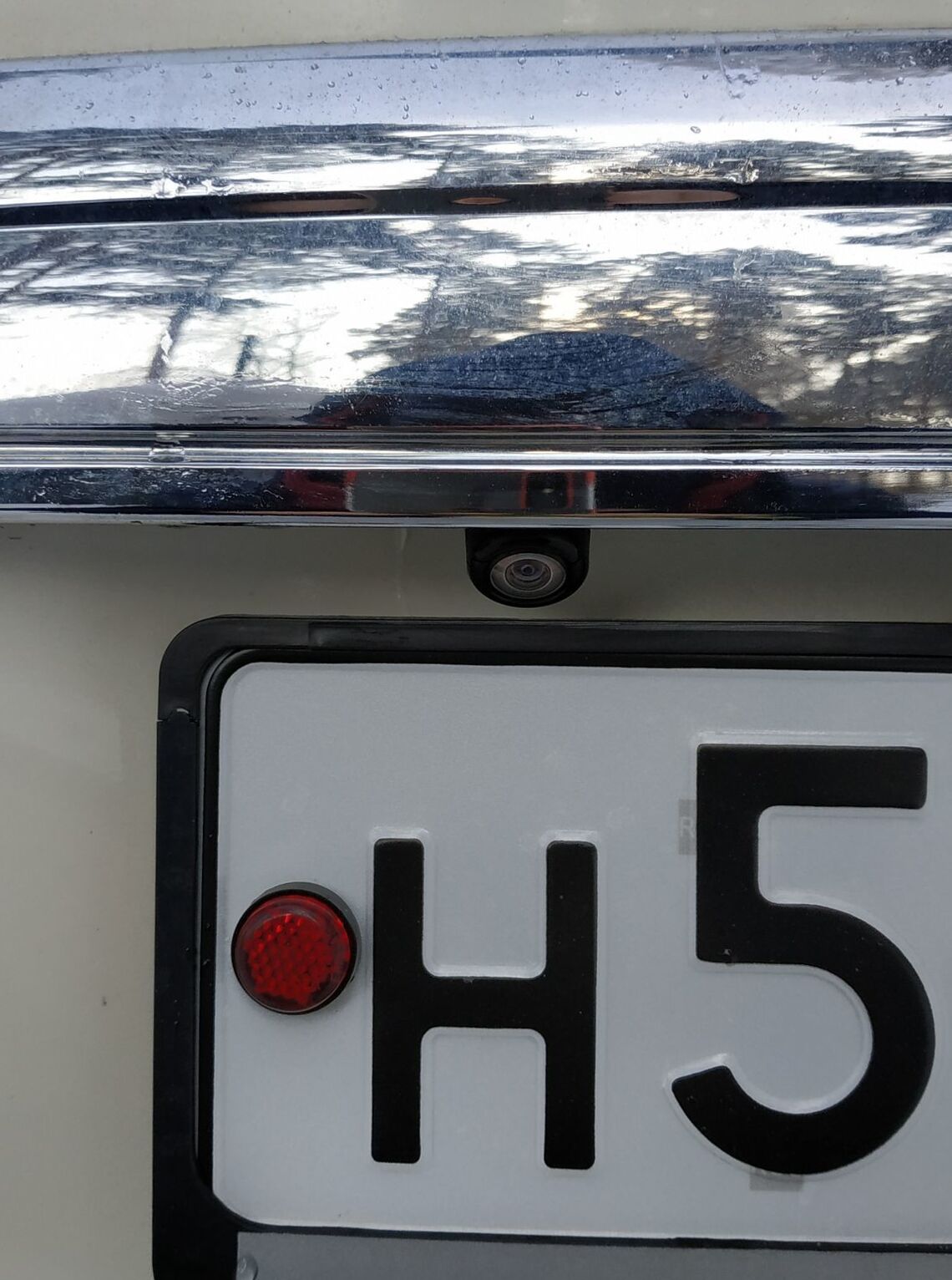

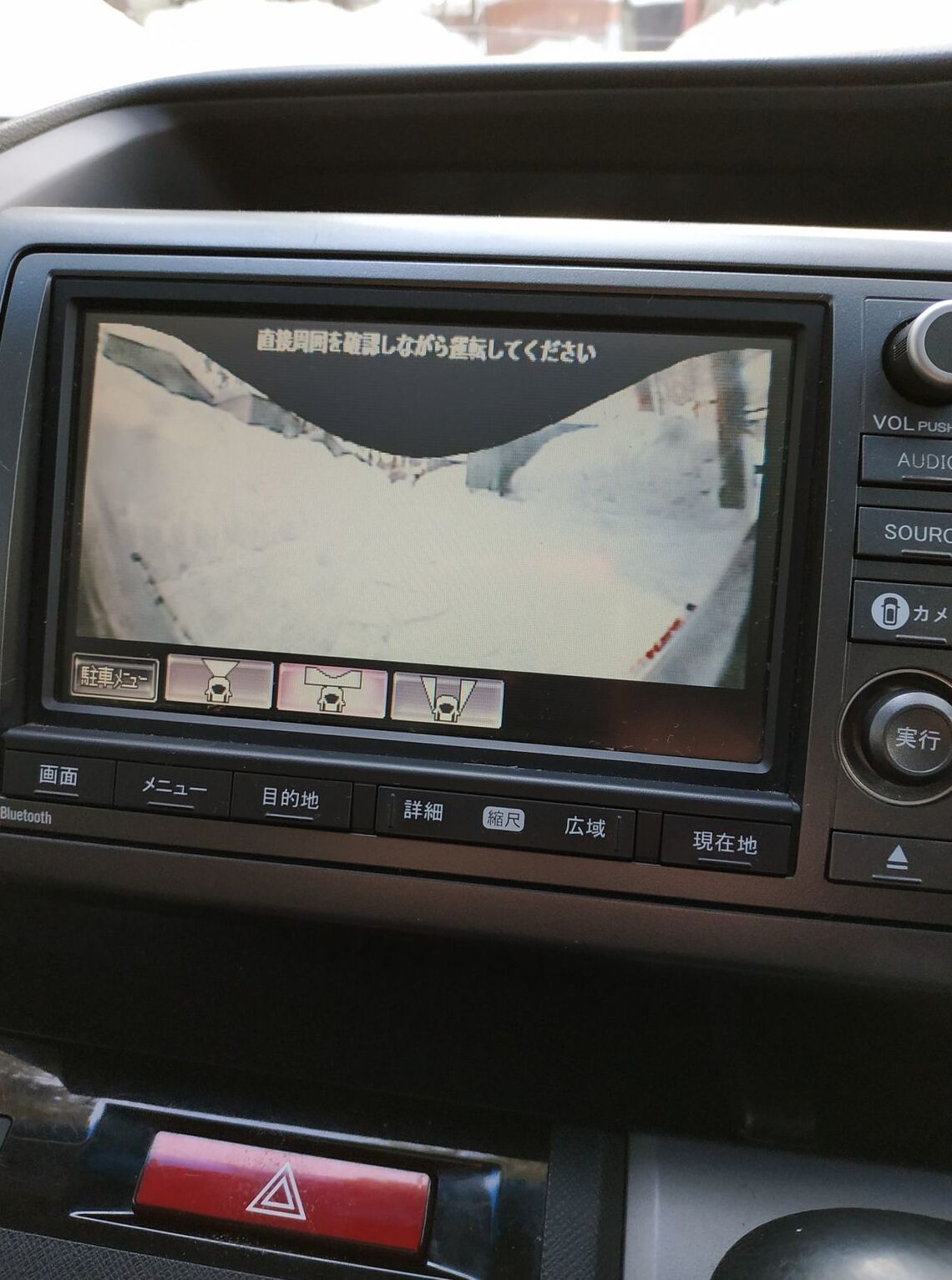

Back monitor | yes |
Additional amenities | |
Lagage box | no |
Etc | yes |
Car safety | |
Alarm system | yes |
Security alarm | yes |
2010 Honda Stepwgn IV DBA-RK5 2.0 spada Zi (150 Hp) specs
|
Direct translation from Japanese Wikipedia 1995 The Honda Step WGN appeared at the Tokyo Motor Show as the "F-MX". 1996 May 8 The Honda Step WGN emerged as one type of vehicle. At that time, Japan's commercial delivery vehicles based on the engine under the driver's seat, or cabover type were the Step WGN is based on the Civic FF layout of the floor and low - , A tool to find square style, low-price strategy such as the popular model in one sitting. Cars, splitting the extreme limit of its潔かった Step Van which is derived from that time, Japan, the "minivan" terms are still not in place "Commercial vehicles" reminiscent of "On the van | Meeting]]" to stop "Step Wagon". The English name "STEP WGN", a grade name "W", "G", "N" and "pleasure". Family assumes that the child has to rush out to prevent road-side, passenger side sliding door is only with the establishment. To improve profitability, cost reduction measures is to ensure that the [Ministry of Transport] (the current Ministry of Land, Infrastructure and Transport) to get the model to reduce the cost of the engines and transmissions to one type at a time Aperture, and vehicle design, the Civic divert from the leg, [[finite element method] analysis (FEM) by reducing the use of steel, panels and parts of the division's efforts to reduce press die, than to推し進めた. Moreover, the stiffness to ensure the right to設けずsliding doors, glass front door outside the window is fixed, welding mark the blindfold and the rear corner of the seal for Skipping work without a thick coating of resin Mall And a large [[taillights | RIAKONBIRANPU] in the corner of a body cover, for last year. As a byproduct, 〜 vehicle weight is 1530 kg and 1410, finished a lightweight. However,行過ぎたdesign the evils in the beginning, and low body stiffness, and arising out of [[steering] column and the brake] master cylinder (bulkhead) lack of rigidity of mounting a remote Friction cable size and lack of rigidity, mass itself due to lack of knobs, AT [[gearshift | SEREKUTAREBA] operations (a sense of discipline), and pointed to the poor. These are the configuration is close to CR-V is also true of the two cars are selling very well because a significant design changes are allowed, in part to improvement in the Appointed. Also, sales in the driver's seat airbag and ABS even treatment options, including the apparent strategy to rein in prices採ら. Therefore, the relationship between weight and type, options and dealer of the air-conditioner "N" The price of 1.848 million yen, very cheap, and the dealers get customers to contribute. Actual sales in (the dealer to reduce air-conditioning installation in) "N"は無くrecommend it, "draw" and "N" sales ratio is very low at around 5 percent. Sheet placed in the luggage compartment of emphasizing the "N" is a non-row seat for three basic, second column, 1:2 split of the rotating seats and sit face, collapsible three seats together, to expand cargo room, "Sheets Opens "Two types of選べた. "N" is a two-column sheet, "pop-sheet" and that only. All grades FF and the four-wheel-drive | 4 WD]] set up in the seat arrangement and combination-drive system, "W" and "G" in four models, "N" for two models, especially Grade with a simple expansion. Engine, CR-V's built-in the B20B- 2000cc DOHC only, torque for the slow response is pro-Step WGN In tune with the output to 125 PS is kept. 4WD mechanism is usually when the FF, in a circle and front-wheel rear-wheel drive power comes through the [four-wheel-drive formula standby # | standby ceremony], transfer the driving force "dual-pump "Is being used. Dual-pump "Viscous coupling" and linked to sudden compared to driving on snow is the one who dislike the direction. 1996 November On the platform (the car) | platform] to share with a total length reduced tall wagon, S-MX appeared. 1997 Aug. 25 Driver's seat and passenger seat SRS [[airbag] All of the taxis to and ABS as standard. Simultaneously, vehicle care, "Armas (ALMAS)" to launch. 1997 Dec. 15 G collard based on the type of bumpers, key remote control, privacy glass and equipped with "HOWAITI". The body color is white taffeta only settings. 1998 Aug. 27 G-only seats based on skin type, such as collard bumper-equipped "DERAKUSHI". 1999 May 20 On the face-lift (the car) # minor facelift (minor changes) | minor change] and the type of late. New Aero Parts SUPOTIGUREDO equipped with a "speedy", a special early-type car, "DERAKUSHI" to promote a catalog model. The appearance of the headlight design (of light above and below the 4 & MARUCHIRIFUREKUTA) and the rear [[license plate] mounting position of the tailgate garnish in the center will move to the bottom (However, in light No. 20 One to change). The operation system is, AT OD selector switch is to change the tuning knob and BARANSUUEITO mass was held operation, the operation of both improved slightly as well. 2000 March 23 2000 [[automobile exhaust gas regulations | emissions regulations] as well as to adapt the engine to increase output to 135 PS. Also, based on DERAKUSHI SURAIDODOAIJIKUROZA, sheet-only areas, [[wheel], only the headlights, CD / MD [[car audio | Audio], equipped with "Ultra". 2000 April 6 "Speedy" part of the equipment based on a simplified "Krafty". 2000 Nov. 30 G-based type of privacy glass, and equipped with a remote control key and ODIORESU "Goodie". The "Goodie" is the first and last special car.» Read More About Honda Stepwgn |
