1994 Nissan Cima II 4.1 limited L multi AV system


1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)
Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp)

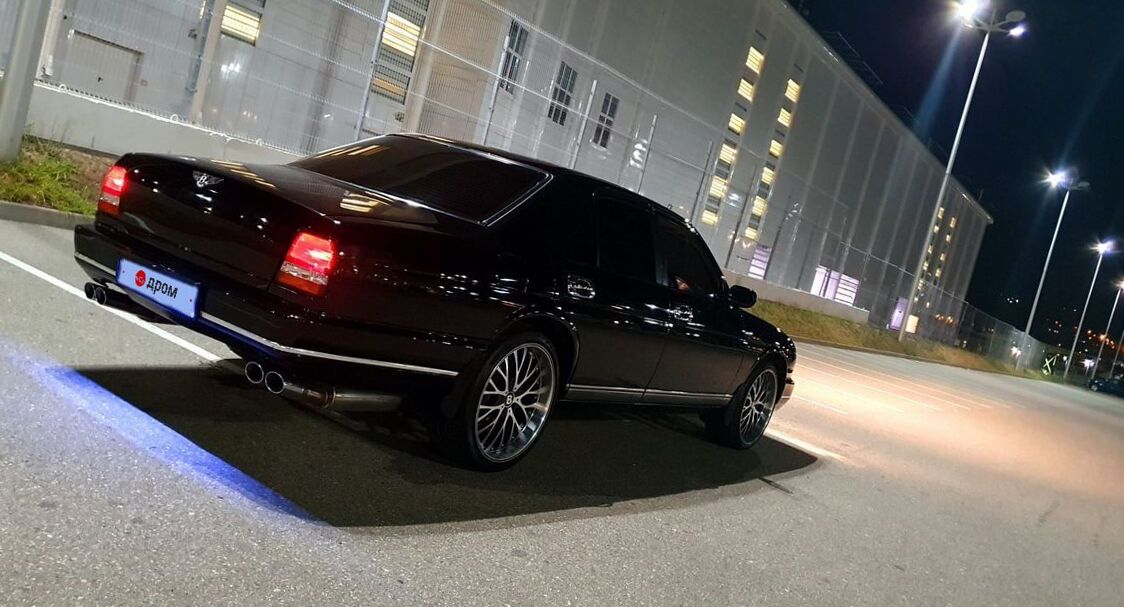

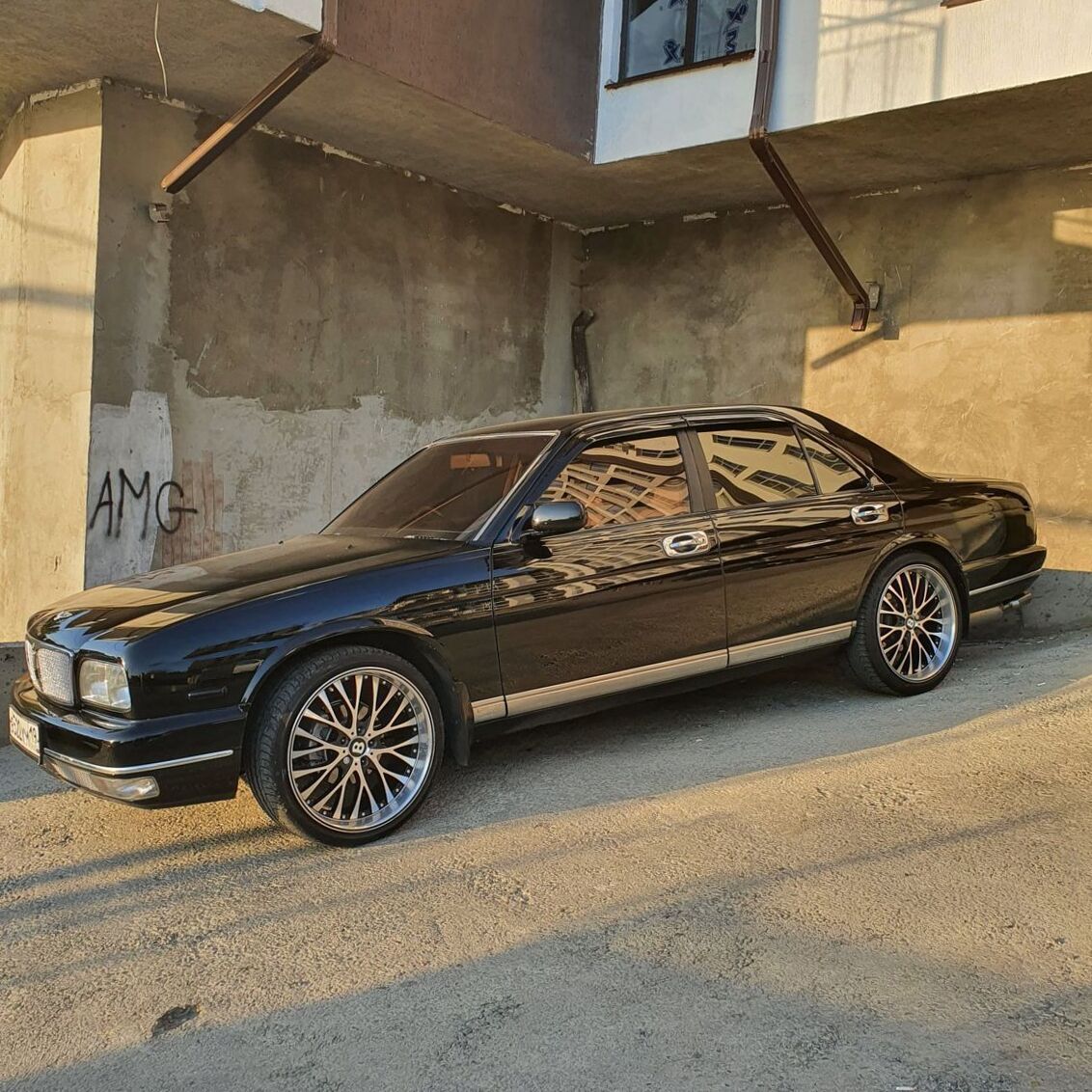

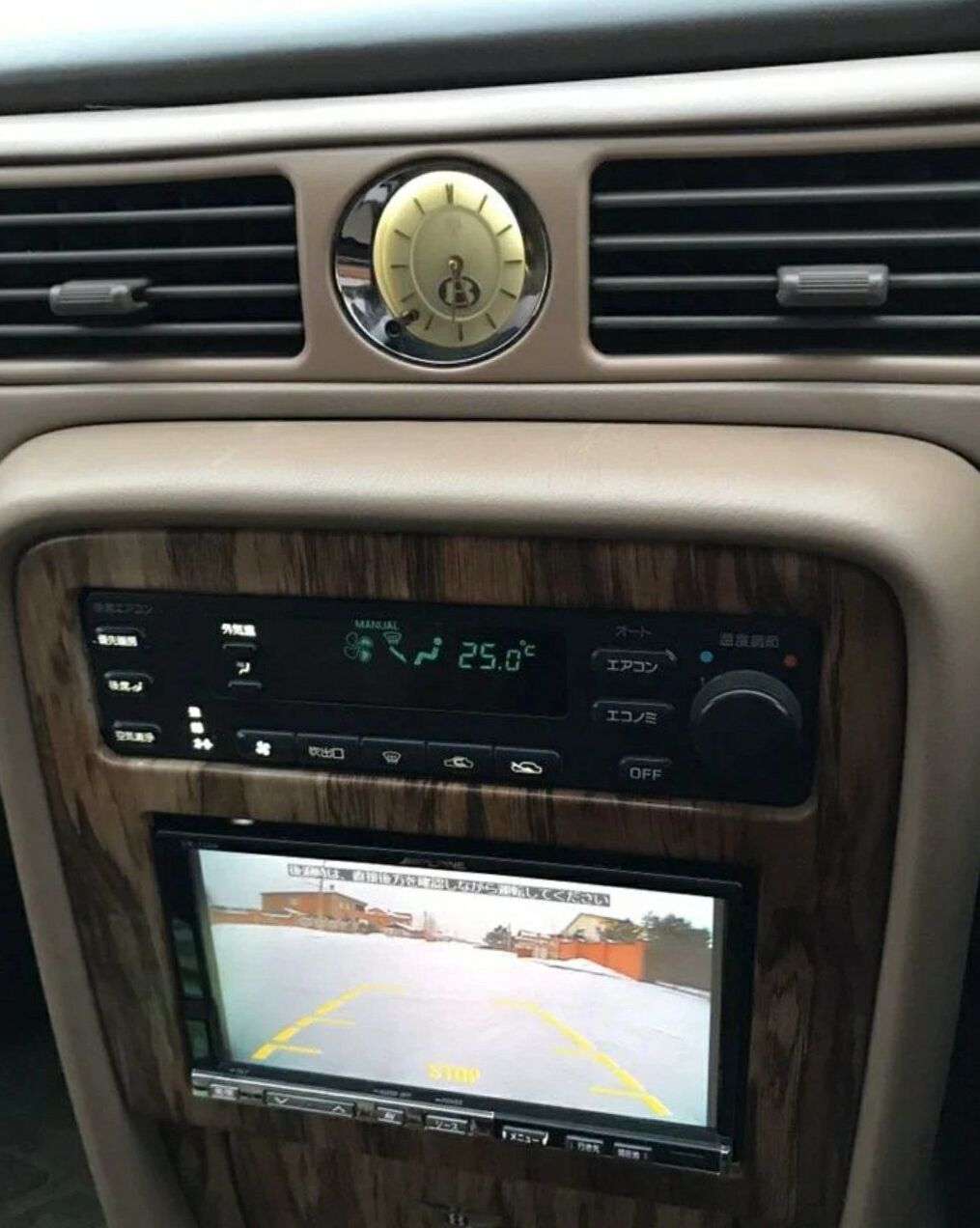

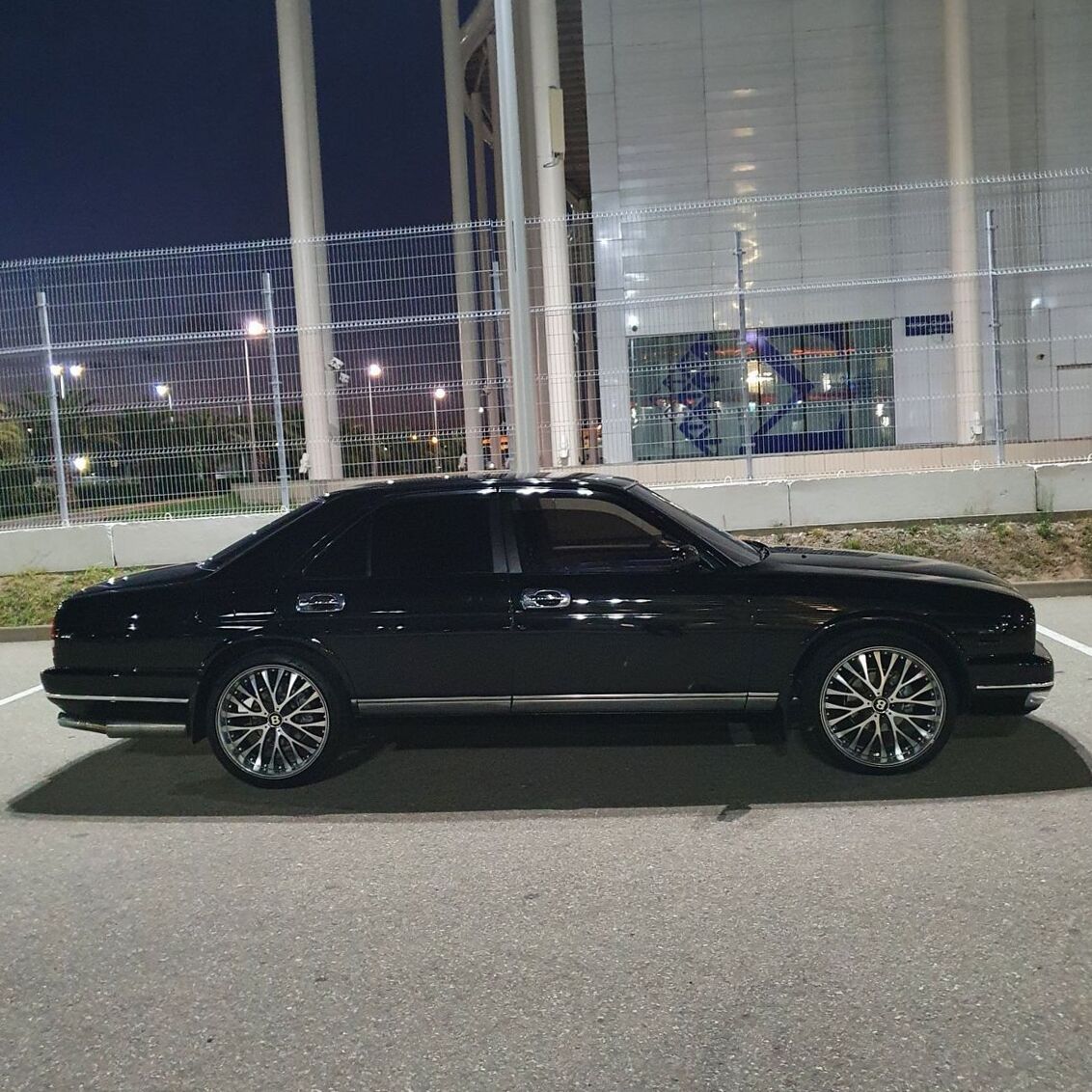

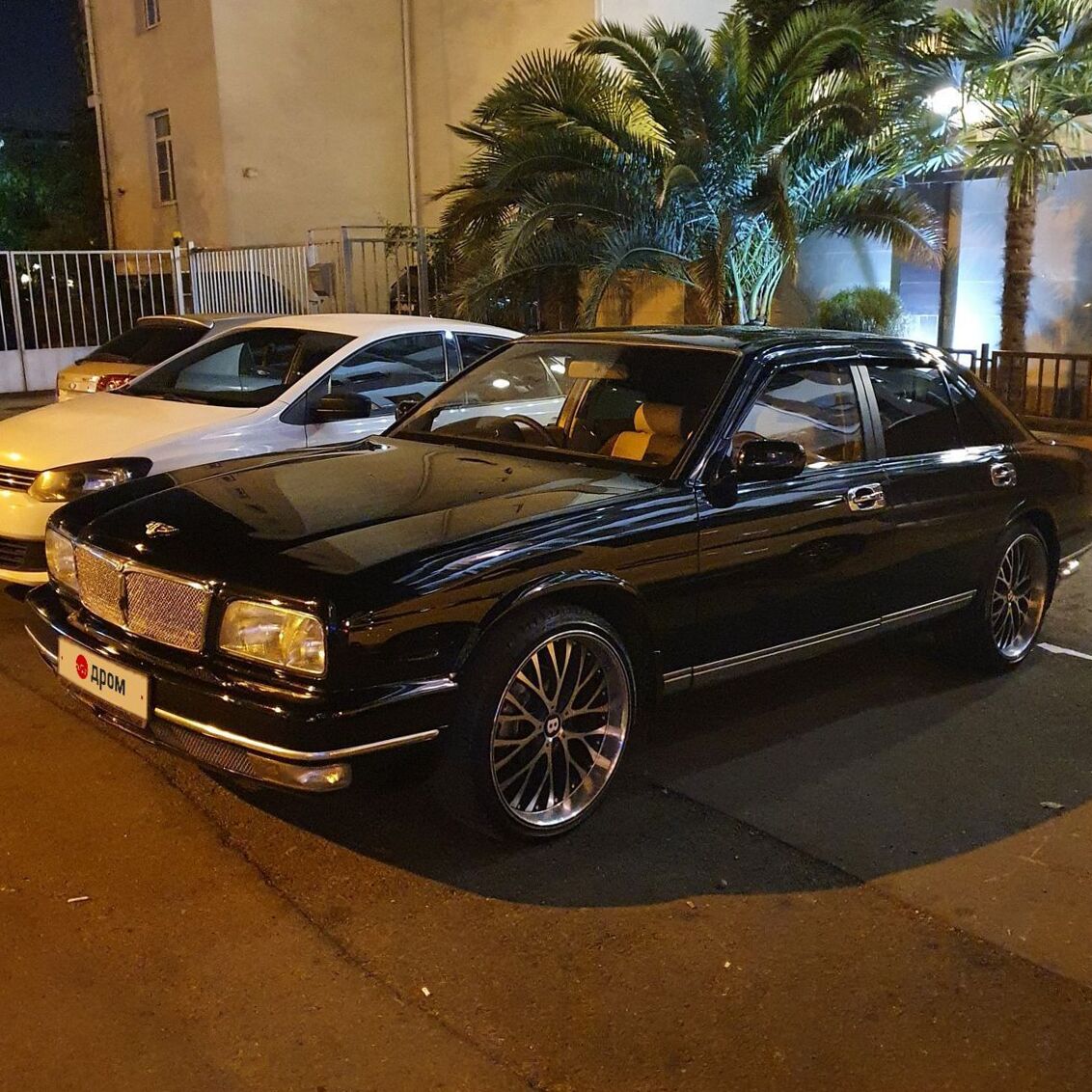

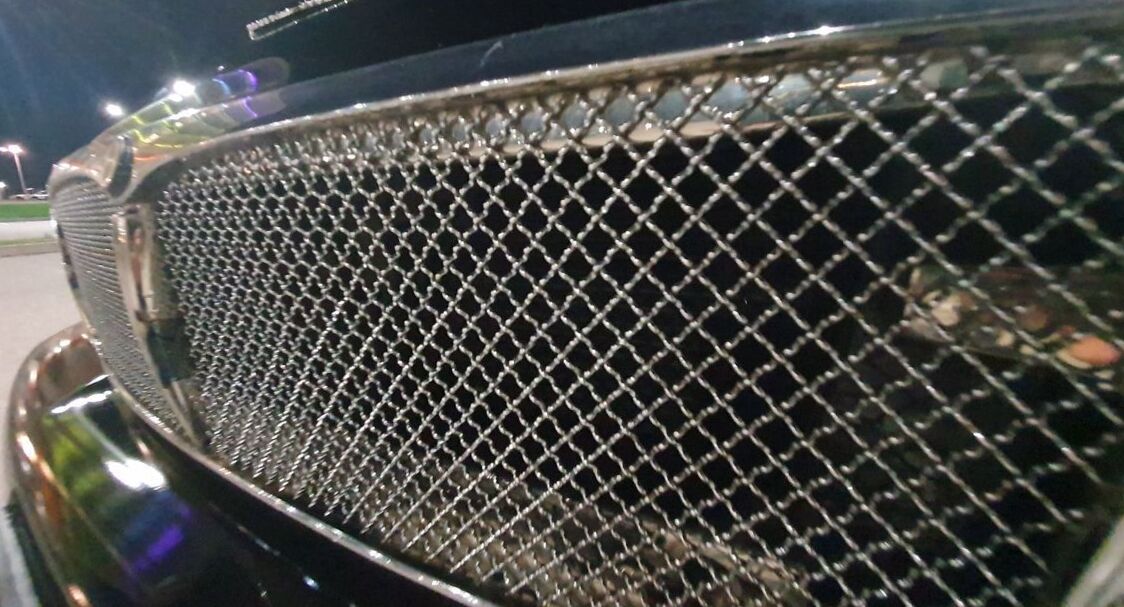

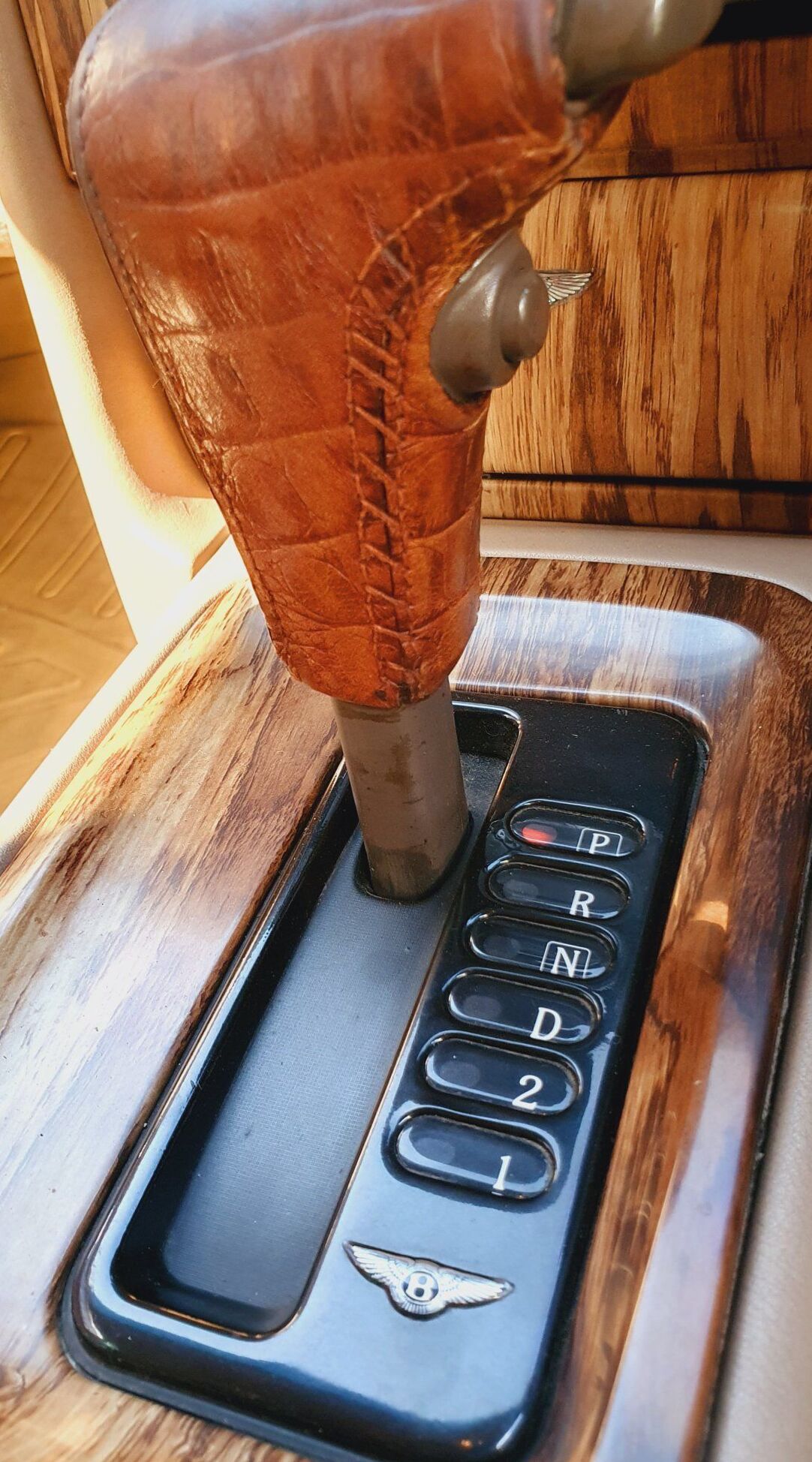

More photos of Nissan Cima

Nissan Cima Problems
Engine number
2001, hi i am looking for engine number as
well as type of spar plug thank you...
TCS
1993, my TCS light it's on all the time and i
do not know how to reset, plus i need to find
so...

Body typeSedan
Power270 Hp
Engine Displacement4100 cm3 or 4.1L or 250.1 cu-in
Colorblack
Transmission GearboxAutomatic
Fuel TypeGasoline
Drive wheelFR or RR
Mileage85127 Miles

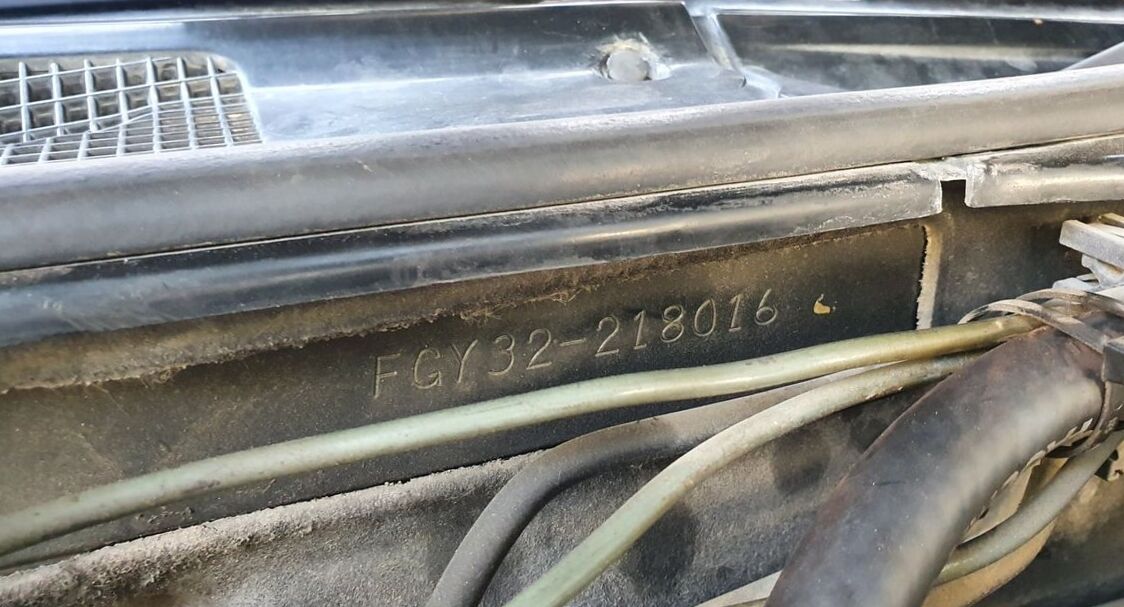

VinFGY32****16
Price (out of date)$6146

Frequently Asked Questions

What is the body type, 1994 Nissan Cima II?Sedan, 5 Seats, 4 Doors
How much power, Nissan Cima Sedan 1994?270 Hp
What is the engine size, Nissan Cima E-FGDY32 1994?4.1L or 4130cm3
How many gears, What type is the gearbox, 1994 Nissan Cima 4.1 limited L multi AV system?Automatic transmission 4
What is the drivetrain, Nissan Cima II 1994 Sedan 4.1 limited L multi AV system (270 Hp)?Rear
How long is this vehicle, 1994 Nissan Cima Sedan 4.1 limited L multi AV system (270 Hp)?4945 mm
How wide is the vehicle, 1994 Nissan Cima II?1780 mm

Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp) 1993, 1994, 1995 Specs

General information

Complectation name4.1 limited L multi AV system
Production start year1993
Production end year1995
Price of new car in Tokyo, yen6440000
Drive typeRear
Frame typeSedan
Transmission typeAutomatic transmission 4
Engine volume, cc4130
Frame nameE-FGDY32
Clearance, mm150
Manufacturing countryJapan
Doors4
Right hand driveyes
Left hand driveno

Vehicle generation

Generation nameY32
Generation number2
Facelift number1
Production start year1993
Production end year1996

Engine, transmission and steering specs

Engine specs

Engine nameVH41DE
FuelHigh octane premium gasoline
Engine typeV8
Has turbono
Max power, hp270
Max power RPM, rpm6000
Max power, hp (kWt) / rpm270 (199) / 6000
Max torque, N*m371
Max torque RPM, rpm4400
Max torque, N*m (kg*m) / rpm371 (38) / 4400
Valves per cylinder4
Compression ratio10.5
Bore, mm93
Stroke, mm76
Actuator valvesDOHC

Fuel consumption

Fuel consumption (10/15 mode), l/100km15.2
Fuel consumption (60 km/h mode), l/100km8

Steering

Power steeringyes

Dimensions

Frame dimensions

Exterior length, mm4945
Exterior width, mm1780
Exterior height, mm1420

Interior dimensions

Capacity5
Seat rows2
Interior length, mm1960
Interior width, mm1490
Interior height, mm1160

Chassis dimensions

Wheel base, mm2815
Front axle length, mm1500
Rear axle length, mm1500
Turning radius, m5.6
Wheel spacing front1500
Wheel spacing rear1500

Weight and permissible load

Mass, kg1820

Volumes

Fuel tank capacity, l80

Suspension specs

Suspension specs

Front stabilizerno
Front suspensionIndependent, Spring McPherson
Rear stablilizerno
Rear suspensionIndependent, spring multi-link
LSDyes

Wheel rims

Aluminium wheelyes

Tires

Front wheels215/65R15 96H
Rear wheels215/65R15 96H

Brakes

Front brakeVentilated discs
Rear brakeVentilated discs
Brake front search1
Rear brake1

Exterior

Headlights

Xenon lampsno
Front fog lampsyes
Rear fog lampsno
Additional stop lightyes
Cornering lampsyes

Side mirrors

Power adjustable door mirrorsyes

Windows

Ultraviolet glass protectionyes

Roof

Sunroofno
Tilt sunroofoption
Twin sunroofno

Accessories

Roof railno
Front spoilerno
Rear spoilerno
Back wiperno

Body color

Colors25 4 12 5 6 1429

Interior

Steering wheel and center panel

Leather windingyes
Telescopic steeringyes
Tilt steeringyes
Tachometeryes

Interior design

Leather seatoption
Wood panelyes

Seats

Reclining seatsno
Removable seatsno
Turning seatsno

Electric interior package

Power adjustable driver seatyes
Power ajustable front seatyes
Power ajustable back seatyes
Centralized door lockyes
Keyless enteryes
Power windowyes
Central power window controlno

Safety

Airbags

Drivers airbagyes
Passengers airbagoption
Side airbagno

Children safety

Child car restraintsyes

Active and passive safety

Durable frameno
Side impact baryes
3 point safety beltyes
Safety belt pretensioneryes
Safety belt limiterno

Electronic security and traffic control systems

Break assistno
traction controlyes
Cruise controlyes

Amenity

Microclimate

Coolerno
Automatic air conditioningyes
Twin conditioning systemyes
Air purifierno

Audio systems

Radioyes
Autoreverse casetteyes
CD playeryes
CD changerno
MD palyerno
MD changerno

Navigation and video equipment

Parking assist systemno


1994 Nissan Cima II E-FGDY32 4.1 limited L multi AV system (270 Hp) specs

The Nissan Cima is a large luxury sedan produced by Nissan Motor Co., Ltd. for the Japanese market. The car's name is derived from Spanish for "summit". The hood ornament uses an image of an acanthus leaf. The acanthus leaf was commonly used by classical Greeks to make a wreath for use as a crown.


The Cima eventually replaced the venerable Nissan Cedric / Nissan Gloria as Nissan's premier sedan, just below the limosiune Nissan President, on which the current Cima is mechanically related.

With info from the article for the Nissan Cima in the Japanese Wikipedia:

Up until 1989, the Japanese tax bracket dictated a division point at the car being 4700mm long, 1700mm wide, with a 2 liter engine. Both the Nissan Cedric/ Nissan Gloria and its archrival, the Toyota Crown were stretched to this very limit. When rumors came that Toyota was developing a larger, wider extension of the Crown, called the Crown Majesta Nissan acted hastily and could not get the wide version ready for the narrow version's launch in June 1987. The half-year gap in development, however, brought about many changes in design. This generation was manufactured as a 4 door hardtop, with no B-piller between the front and rear side glass windows.

The Y31 Cima is available with a 200 horsepower (149 kW) VG30DE or a 255 horsepower (190 kW) turbocharged VG30DET. The turbocharged version was especially popular, leading the media to coin the term "the Cima phenomenon". The Cedric Cima was sold at dealerships where the Nissan Laurel could be found in Japan, and the Gloria Cima was sold at Nissan dealerships that sold the Nissan Skyline. The Cima was available with an air suspension.
