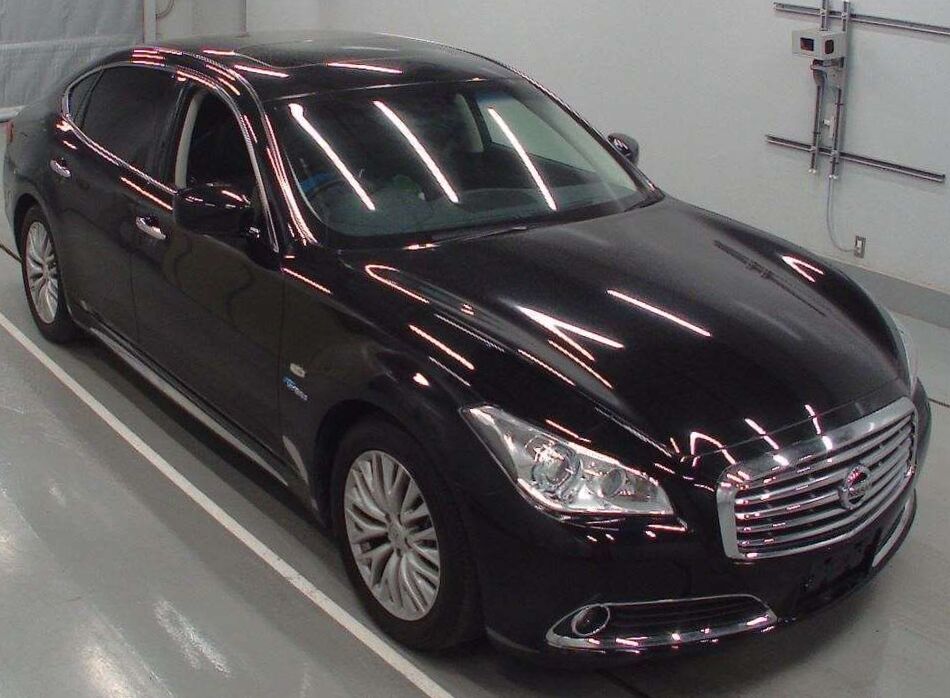

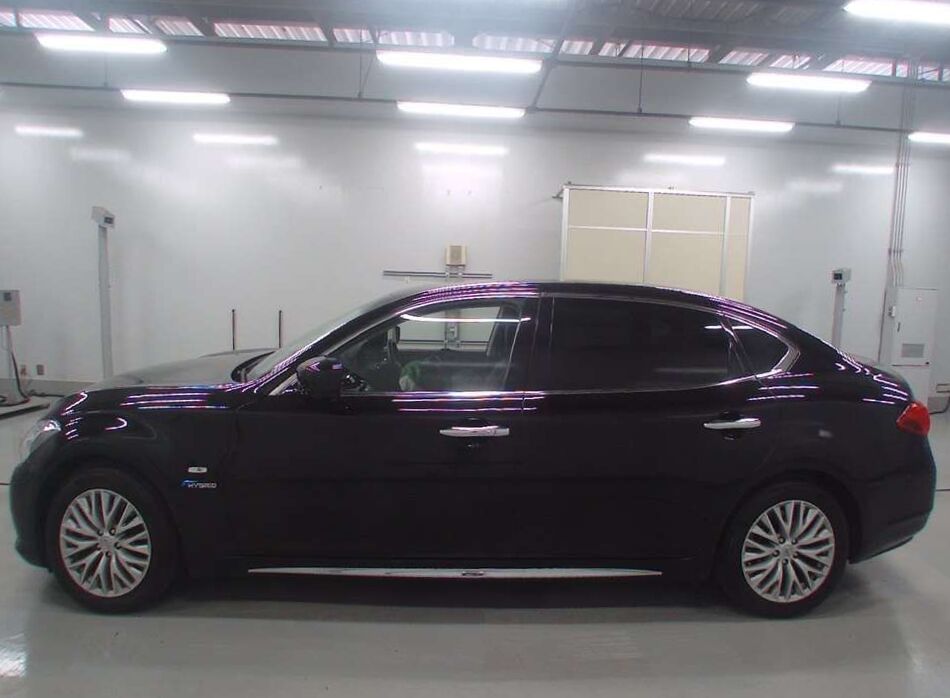

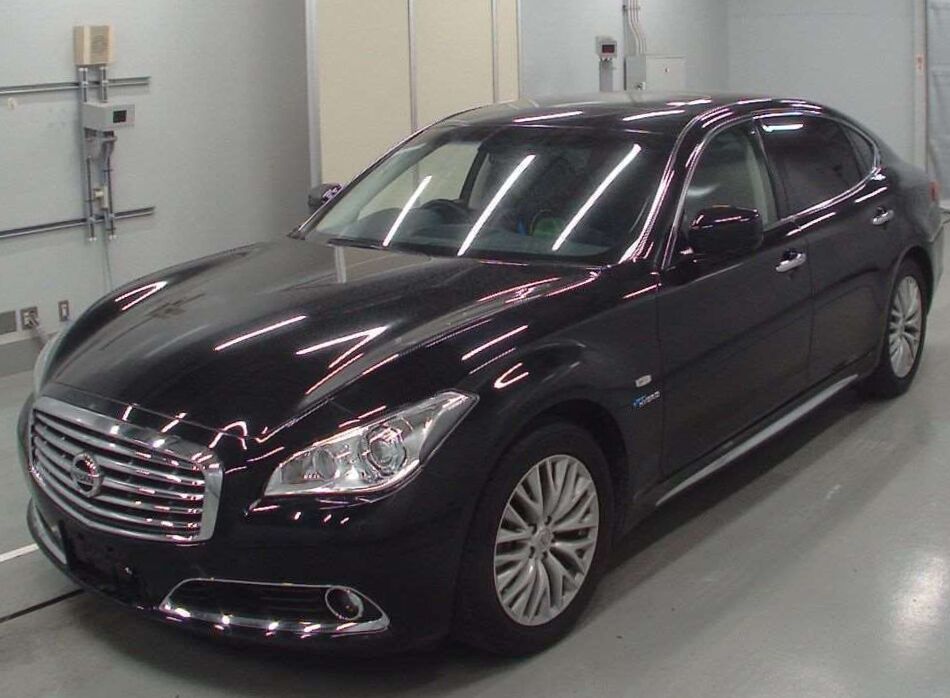

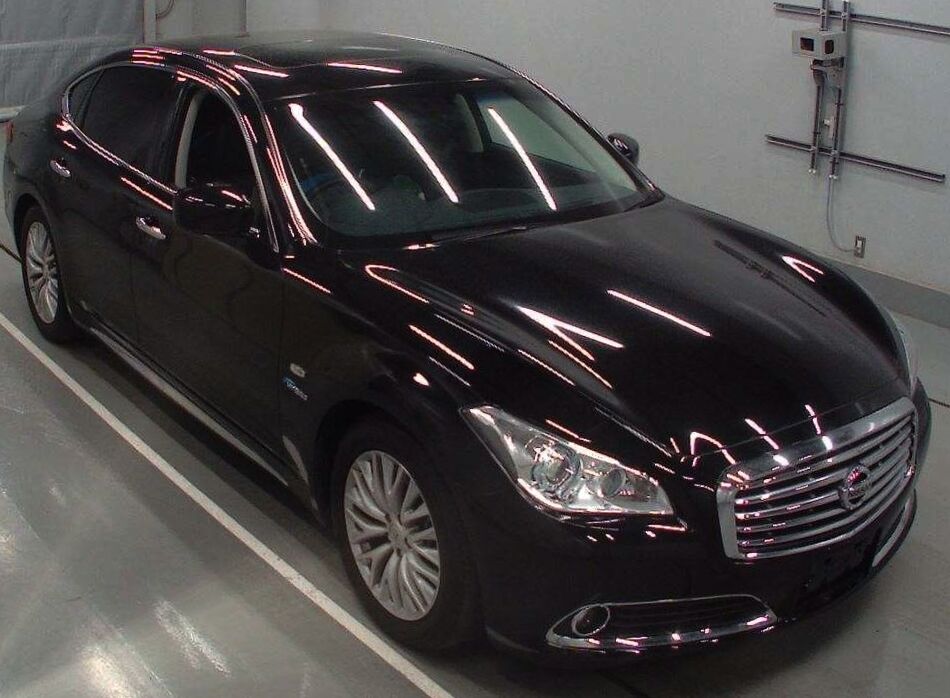

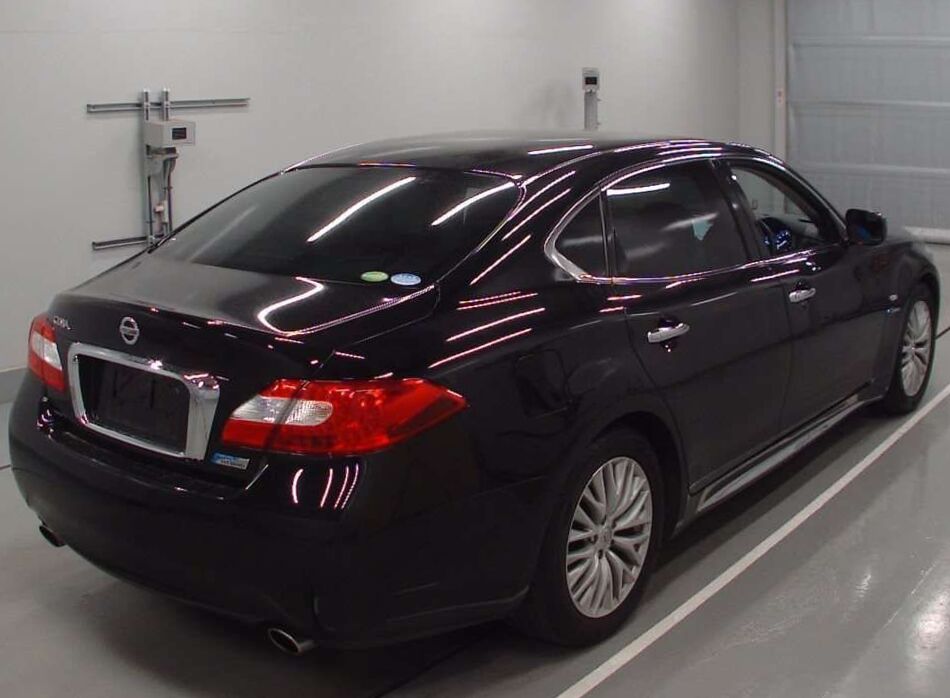

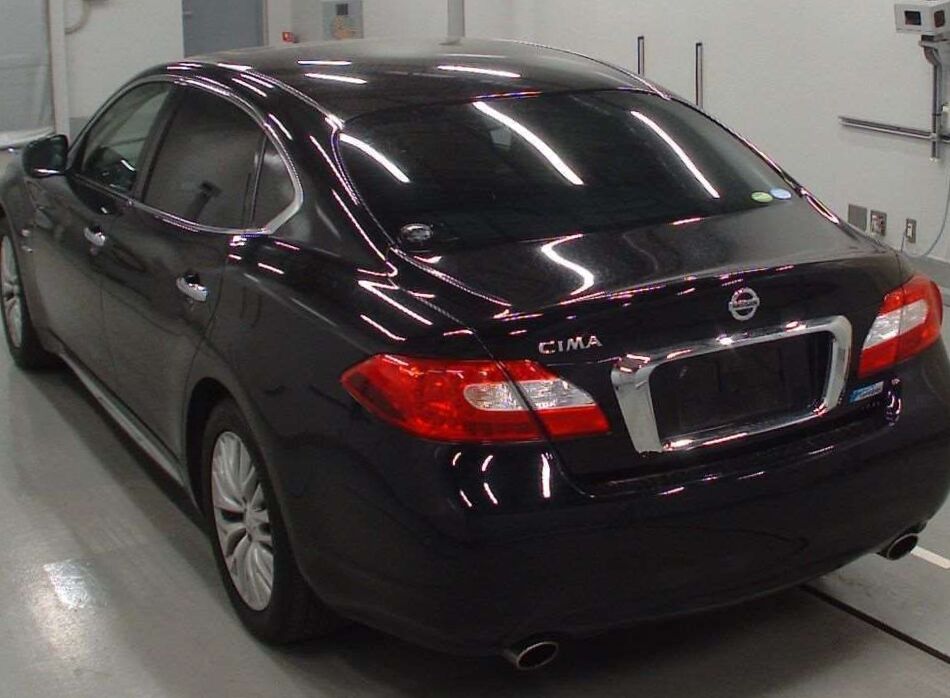

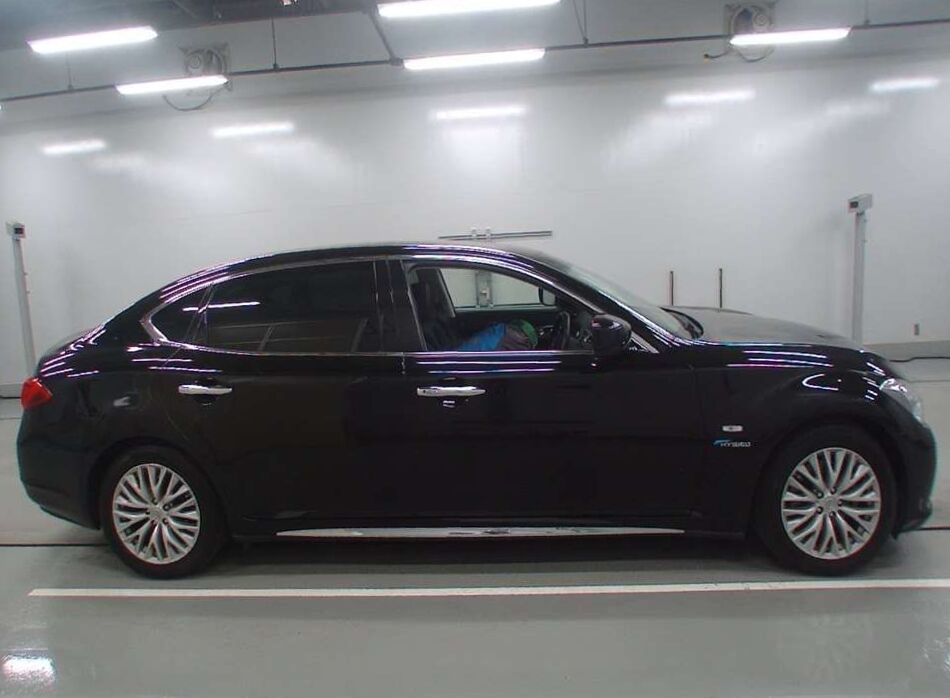

2016 Nissan Cima V 3.5
Nissan Cima Problems
Engine number
2001, hi i am looking for engine number as
well as type of spar plug thank you...
TCS
1993, my TCS light it's on all the time and i
do not know how to reset, plus i need to find
so...
| Body type | Sedan |
|---|---|
| Power | 306 Hp |
| Engine Displacement | 3500 cm3 or 3.5L or 213.5 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FR or RR |
| Mileage | 21747 Miles |
| Vin | 688*** |
| Price (out of date) | $26194 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2016 Nissan Cima V? | Sedan, 5 Seats, 4 Doors |
| What is the fuel economy, Nissan Cima Sedan 2016? | 6 l/100 km |
| How much power, Nissan Cima DAA-HGY51 2016? | 306 Hp |
| What is the engine size, 2016 Nissan Cima 3.5? | 3.5L or 3498cm3 |
| How many gears, What type is the gearbox, Nissan Cima V 2016 Sedan 3.5 (306 Hp)? | Automatic transmission 7 |
| What is the drivetrain, 2016 Nissan Cima Sedan 3.5 (306 Hp)? | Rear |
| How long is this vehicle, 2016 Nissan Cima V? | 5120 mm |
| How wide is the vehicle, Nissan Cima Sedan 2016? | 1845 mm |
Nissan Cima V DAA-HGY51 3.5 (306 Hp) 2012, 2013, 2014, 2015, 2016, 2017 Specs
General information | |
|---|---|
| Production start year | 2012 |
| Production end year | 2017 |
| Drive type | Rear |
| Frame type | Sedan |
| Transmission type | Automatic transmission 7 |
| Engine volume, cc | 3498 |
| Frame name | DAA-HGY51 |
| Clearance, mm | 155 |
| Manufacturing country | Japan |
| Doors | 4 |
| Winter complectation | yes |
| Steering locaton | right |
| Hybrid | yes |
Vehicle generation | |
| Generation name | Y51 |
| Generation number | 5 |
| Production start year | 2012 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | VQ35HR |
| Fuel | High octane premium gasoline |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 306 |
| Max power RPM, rpm | 6800 |
| Max power, hp (kWt) / rpm | 306 (225) / 6800 |
| Max torque, N*m | 350 |
| Max torque RPM, rpm | 5000 |
| Max torque, N*m (kg*m) / rpm | 350 (36) / 5000 |
| Compression ratio | 10.6 |
| Bore, mm | 95.5 |
| Stroke, mm | 81.4 |
| Actuator valves | DOHC |
| Engine additional info | electronic injection, VVT |
| Eco type | 2005 emission regulation 75% reduction |
| Start stop system | yes |
Electric Power | |
| Electro Max power, (kWt) | 50 |
| Electro Max torque, Nm | 270 |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2015 fuel consumption standard +20% |
| Combined | 6 |
Transmission | |
| 1st gear ratio | 4.783 |
| 2nd gear ratio | 3.102 |
| 3rd gear ratio | 1.984 |
| 4th fear ratio | 1.371 |
| 5th gear ratio | 1 |
| 6th gear ratio | 0.87 |
| 7th gear ratio | 0.775 |
| Rear gear ratio | 3.858 |
| Main gear ratio | 2.611 |
| Shifter position | On the floor. |
| Manual mode | yes |
Steering | |
| Power steering | no |
| Steereing gear type | Gear rail |
| Electro-hydraulic power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 5120 |
| Exterior width, mm | 1845 |
| Exterior height, mm | 1510 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 2240 |
| Interior width, mm | 1535 |
| Interior height, mm | 1185 |
Chassis dimensions | |
| Wheel base, mm | 3050 |
| Front axle length, mm | 1570 |
| Rear axle length, mm | 1565 |
| Turning radius, m | 5.8 |
| Wheel spacing front | 1570 |
| Wheel spacing rear | 1565 |
Weight and permissible load | |
| Mass, kg | 1930 |
| Total weight | 2205 |
Volumes | |
| Fuel tank capacity, l | 70 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear suspension | Independent, spring multi-link |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 245/50R18 |
| Rear wheels | 245/50R18 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
| Parking brake | Foot |
| Parking brake new first | Foot |
Exterior | |
Headlights | |
| Bixenon | yes |
| Front fog lamps | yes |
| Led backlights | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
| autocorrected mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door easy closer | yes |
| Trunk closer | yes |
Windows | |
| Privacy glass | yes |
| Windshield top toning | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | yes |
Interior | |

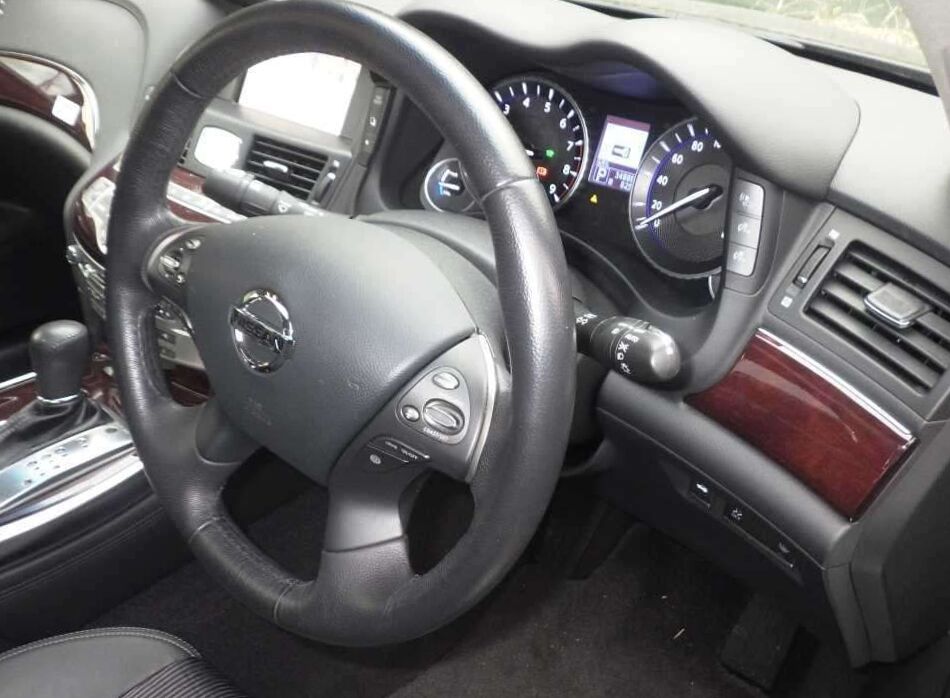

Steering wheel and center panel | |
| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Env temp | yes |
| Engine start button | yes |
Interior design | |
| Leather upholstery | option |
| Combined obivka Salon | yes |
| Antibacterial repellent | yes |

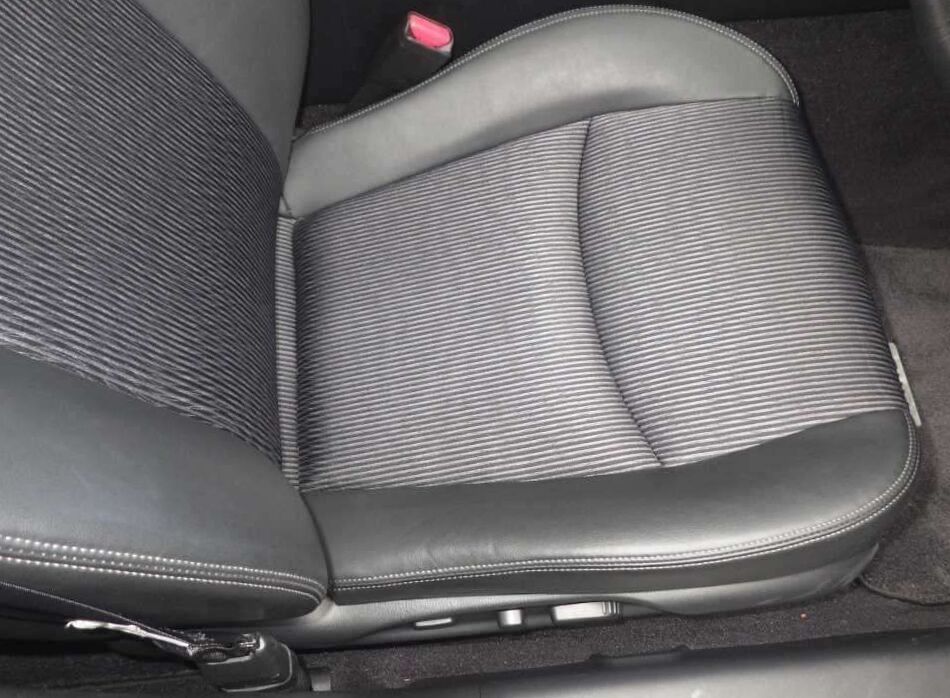

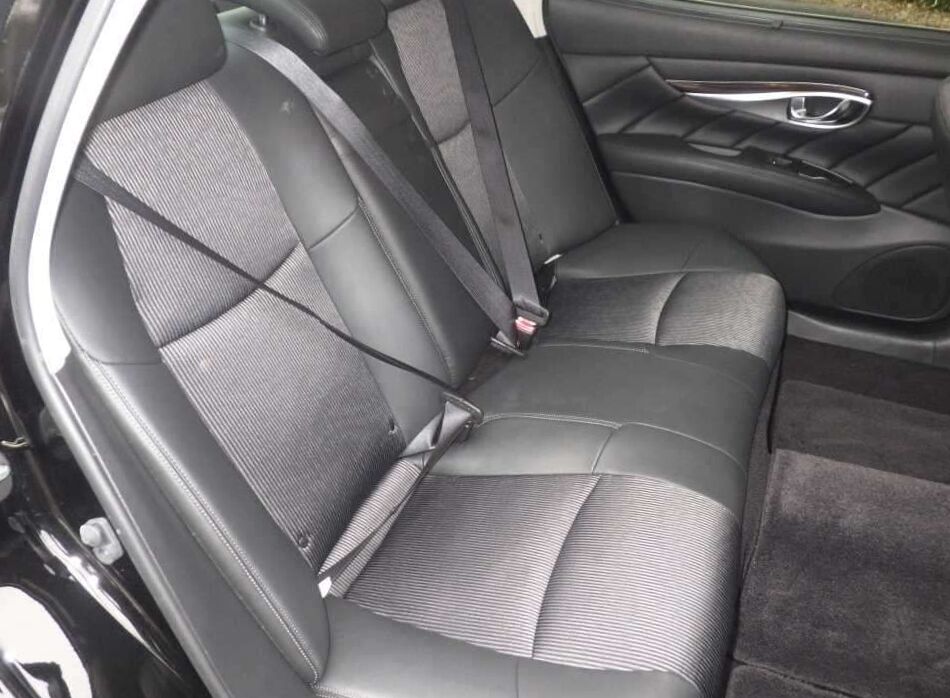

Seats | |
| Seat lifter | yes |
| Ottoman seat | yes |
| Headrests for seats | 5 |
| Separating armrest rear | yes |
| Seats pockets | yes |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | yes |
| Power ajustable back seat | no |
| Front seat heater | option |
| Front seats ventilation | option |
| Rear seats heater | option |
| Seat position memory | yes |
| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
Additional interior equipment | |
| Smokers packet | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | yes |
| Side impact bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Lane Keep Assist | yes |
| Cruise control | yes |
| Distance control system | yes |
| Autolock doors | yes |
| Intelligent AFS | yes |
| Blind zone monitoring | no |
| System tire pressure monitoring | yes |
| Front sonar | no |
| Rear sonars | no |
| Collision mitigation system | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Twin conditioning system | yes |
| Air purifier | yes |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| DVD-audio | yes |
| Audio HDD | yes |
| Hands free | yes |
| Rear entertainment system | option |
| Additional sound equipment | BOSE sound system (standard) |

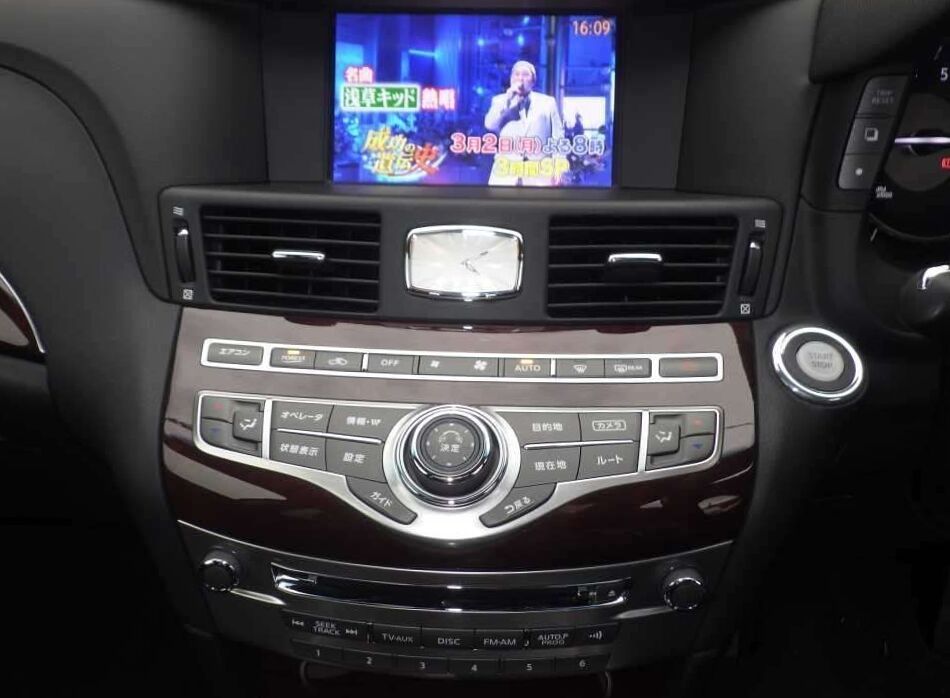

Navigation and video equipment | |
| Full color LCD display | 8" |
| Navigation system | yes |
| Parking assist system | yes |
| Front monitor | no |
| Sides monitors | yes |
| Back monitor | yes |
Additional amenities | |
| Carkey memory | yes |
| Mirrors in sunshields | yes |
| Illumination in the cabin during landing | yes |
| Etc | yes |
Car safety | |
| Alarm system | yes |
| Security alarm | yes |
Driver Kit | |
| Spare tyre small | yes |
2016 Nissan Cima V DAA-HGY51 3.5 (306 Hp) specs
|
The Cima eventually replaced the venerable Nissan Cedric / Nissan Gloria as Nissan's premier sedan, just below the limosiune Nissan President, on which the current Cima is mechanically related. With info from the article for the Nissan Cima in the Japanese Wikipedia: Up until 1989, the Japanese tax bracket dictated a division point at the car being 4700mm long, 1700mm wide, with a 2 liter engine. Both the Nissan Cedric/ Nissan Gloria and its archrival, the Toyota Crown were stretched to this very limit. When rumors came that Toyota was developing a larger, wider extension of the Crown, called the Crown Majesta Nissan acted hastily and could not get the wide version ready for the narrow version's launch in June 1987. The half-year gap in development, however, brought about many changes in design. This generation was manufactured as a 4 door hardtop, with no B-piller between the front and rear side glass windows. The Y31 Cima is available with a 200 horsepower (149 kW) VG30DE or a 255 horsepower (190 kW) turbocharged VG30DET. The turbocharged version was especially popular, leading the media to coin the term "the Cima phenomenon". The Cedric Cima was sold at dealerships where the Nissan Laurel could be found in Japan, and the Gloria Cima was sold at Nissan dealerships that sold the Nissan Skyline. The Cima was available with an air suspension. » Read More About Nissan Cima |
