| Body type | Minivan |
|---|---|
| Power | 240 Hp |
| Engine Displacement | 3500 cm3 or 3.5L or 213.5 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 50331 Miles |
| Vin | NE51****78 |
| Price (out of date) | $5417 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2009 Nissan Elgrand II? | Minivan, 8 Seats, 5 Doors |
| How much power, Nissan Elgrand Minivan 2009? | 240 Hp |
| What is the engine size, Nissan Elgrand CBA-NE51 2009? | 3.5L or 3498cm3 |
| How many gears, What type is the gearbox, 2009 Nissan Elgrand 3.5 350 Highway Star black Leather urban selection V 4WD? | Automatic transmission 5 |
| What is the drivetrain, Nissan Elgrand II 2009 Minivan 3.5 350 Highway Star black Leather urban selection V 4WD (240 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2009 Nissan Elgrand Minivan 3.5 350 Highway Star black Leather urban selection V 4WD (240 Hp)? | 4860 mm |
| How wide is the vehicle, 2009 Nissan Elgrand II? | 1815 mm |
Nissan Elgrand II CBA-NE51 3.5 350 Highway Star black Leather urban selection V 4WD (240 Hp) 2009, 2010 Specs
General information | |
|---|---|
| Production start year | 2009 |
| Production end year | 2010 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | Automatic transmission 5 |
| Engine volume, cc | 3498 |
| Frame name | CBA-NE51 |
| Clearance, mm | 145 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | yes |
| Steering locaton | right |
Vehicle generation | |
| Generation name | E51 |
| Generation number | 2 |
| Facelift number | 1 |
| Production start year | 2004 |
| Production end year | 2010 |
Engine, transmission and steering specs | |
Engine specs | |

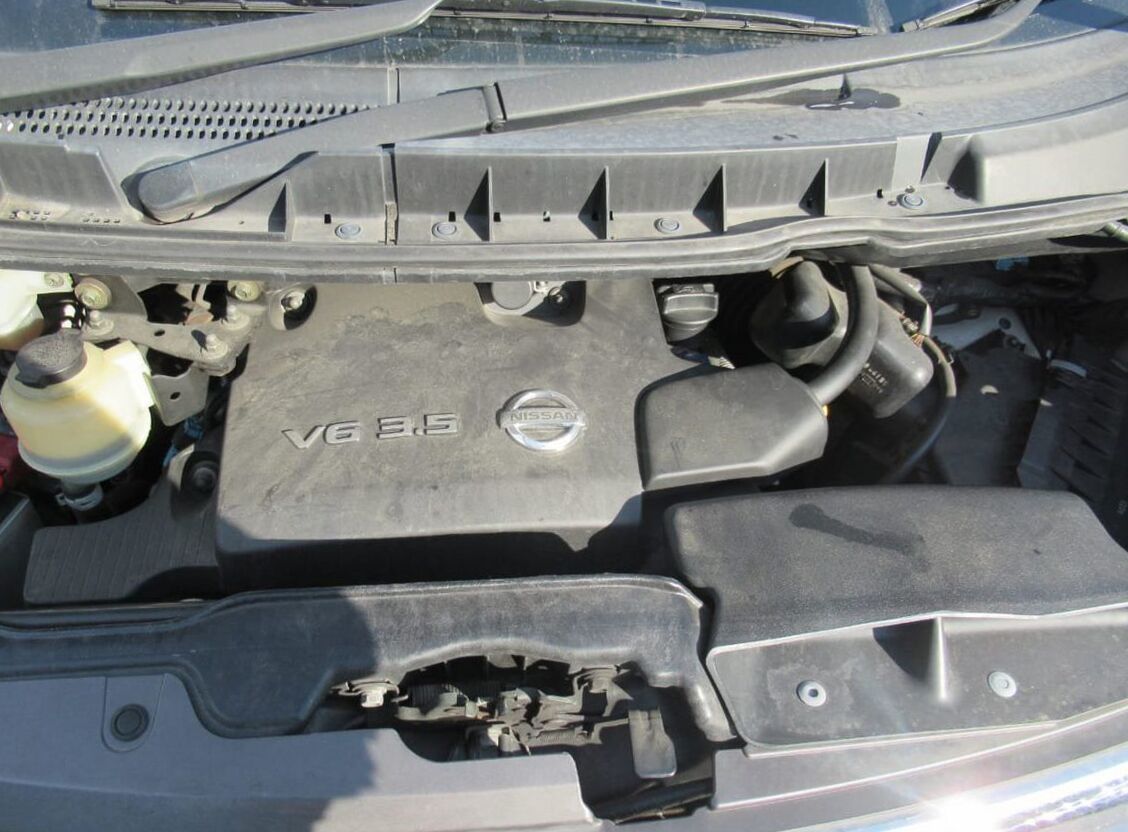

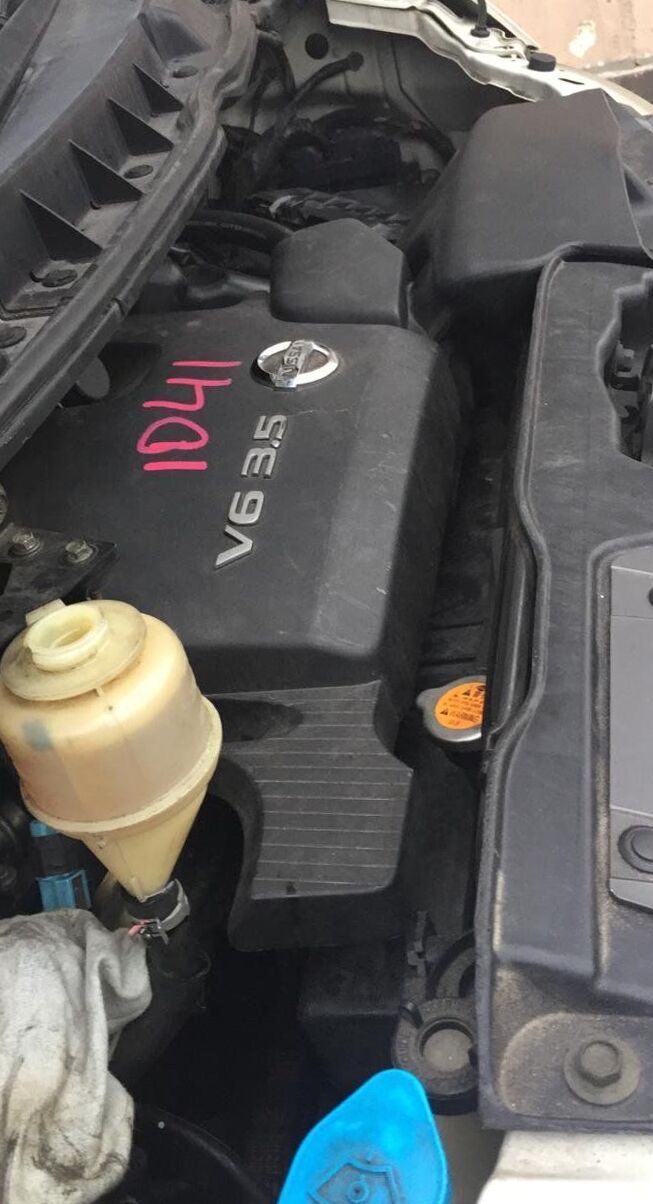

| Engine name | VQ35DE |
| Fuel | High octane premium gasoline |
| Engine type | V6 |
| Has turbo | no |
| Max power, hp | 240 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 240(177)/6000 |
| Max torque, N*m | 353 |
| Max torque RPM, rpm | 3200 |
| Max torque, N*m (kg*m) / rpm | 353 (36) / 3200 |
| Actuator valves | DOHC |
| Variable cylinder system | no |
| Max power, kw (ps) / rpm | 177?240?/6000 |
| Max torque, N*m (kg*m) / rpm (carsensor) | 353?36?/3200 |
| Start stop system | no |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4860 |
| Exterior width, mm | 1815 |
| Exterior height, mm | 1910 |
| Exterior size (L x W x H), mm | 4860x1815x1910?mm? |
Interior dimensions | |
| Capacity | 8 |
| Seat rows | 3 |
| Interior size (L x W x H), mm | 2920x1665x1325?mm? |
| Interior length, mm | 2920 |
| Interior width, mm | 1665 |
| Interior height, mm | 1325 |
Chassis dimensions | |
| Wheel base, mm | 2950 |
| Front axle length, mm | 1535 |
| Rear axle length, mm | 1540 |
| Turning radius, m | 5.7 |
| Front/rear axis length | 1535/1540?mm? |
| Wheel spacing front | 1535 |
| Wheel spacing rear | 1540 |
Weight and permissible load | |
| Mass, kg | 2170 |
| Total weight | 2610 |
Volumes | |
| Fuel tank capacity, l | 76 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Independent, spring multi-link |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |
Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |
Tires | |

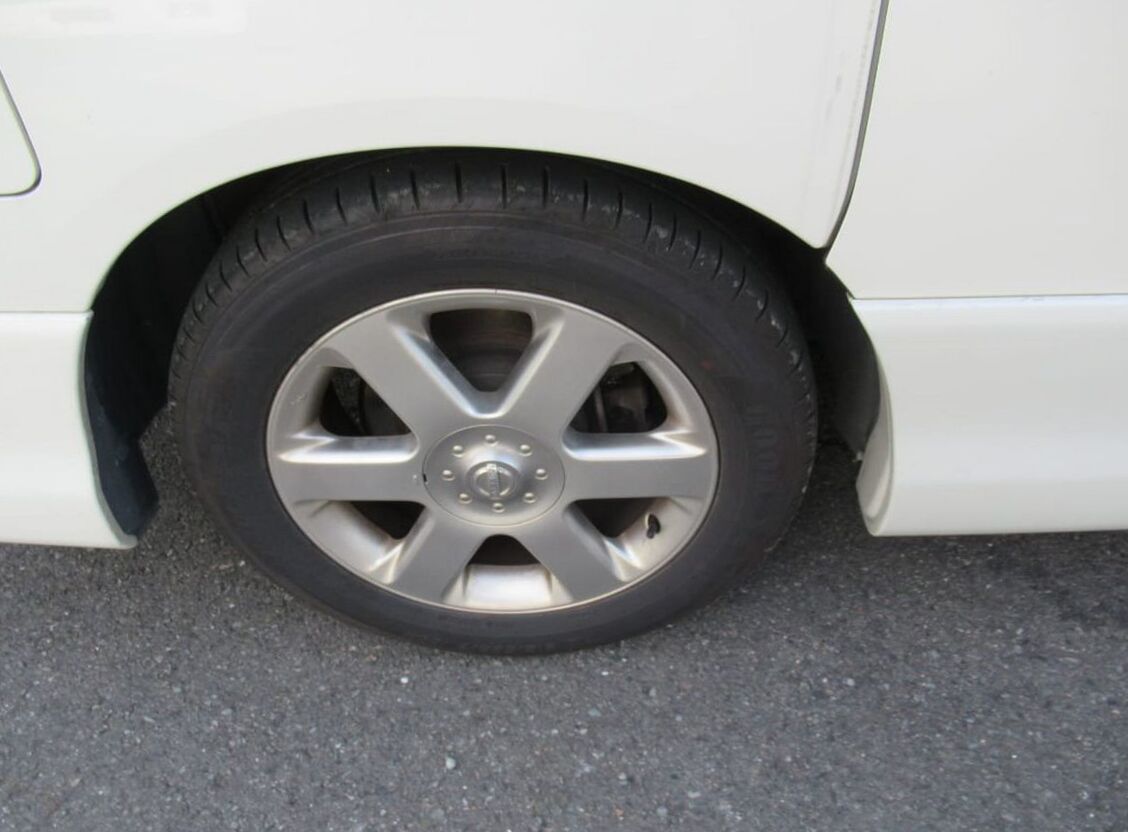

| Front wheels | 215/60R17 |
| Rear wheels | 215/60R17 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
| Brakes equipment | no |
Exterior | |
Headlights | |
| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |

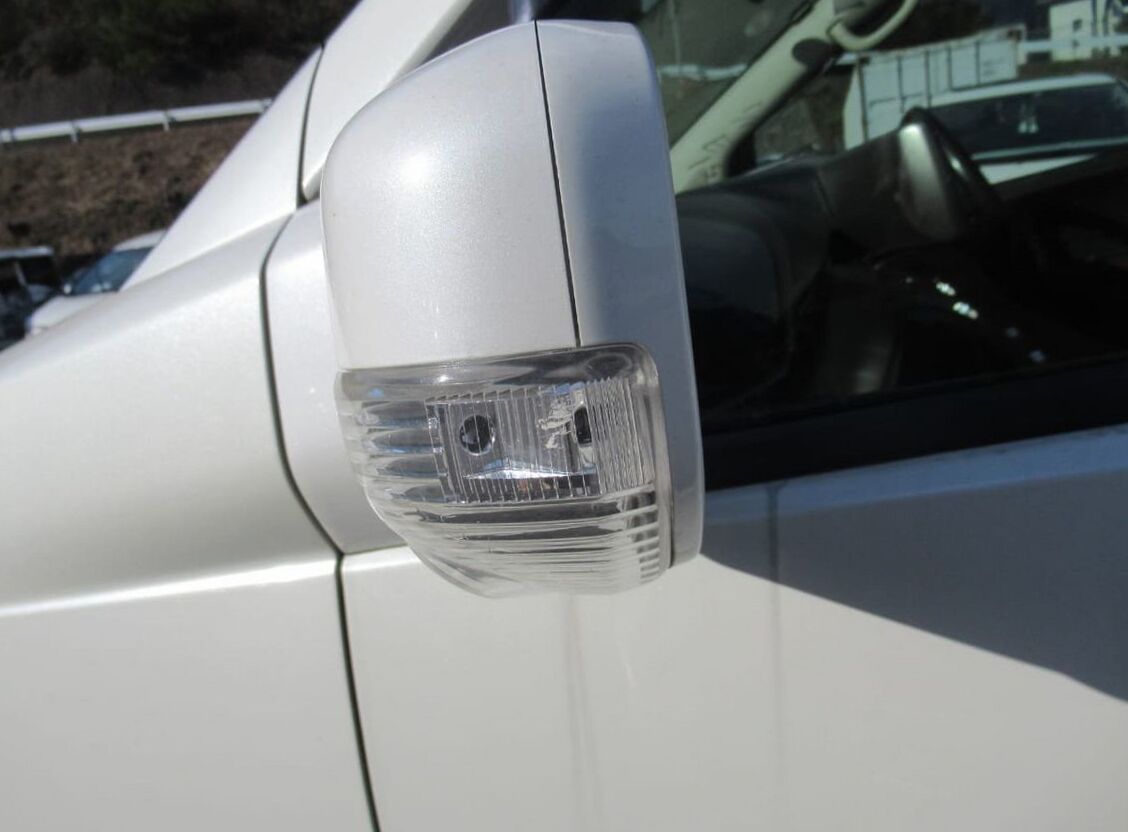

Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | no |
| Sliding electric door | no |
| Sliding electric doors | yes |
| Door easy closer | yes |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
| Soft top | no |
| Metal top | no |
| Canvas top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | yes |
| Rear spoiler | yes |
Body color | |
| Colors | 2624 2630 |
Interior | |
Steering wheel and center panel | |
| Engine start button | yes |
Interior design | |
| Water-repellent | no |
| Leather seat | yes |
| Antibacterial repellent | yes |

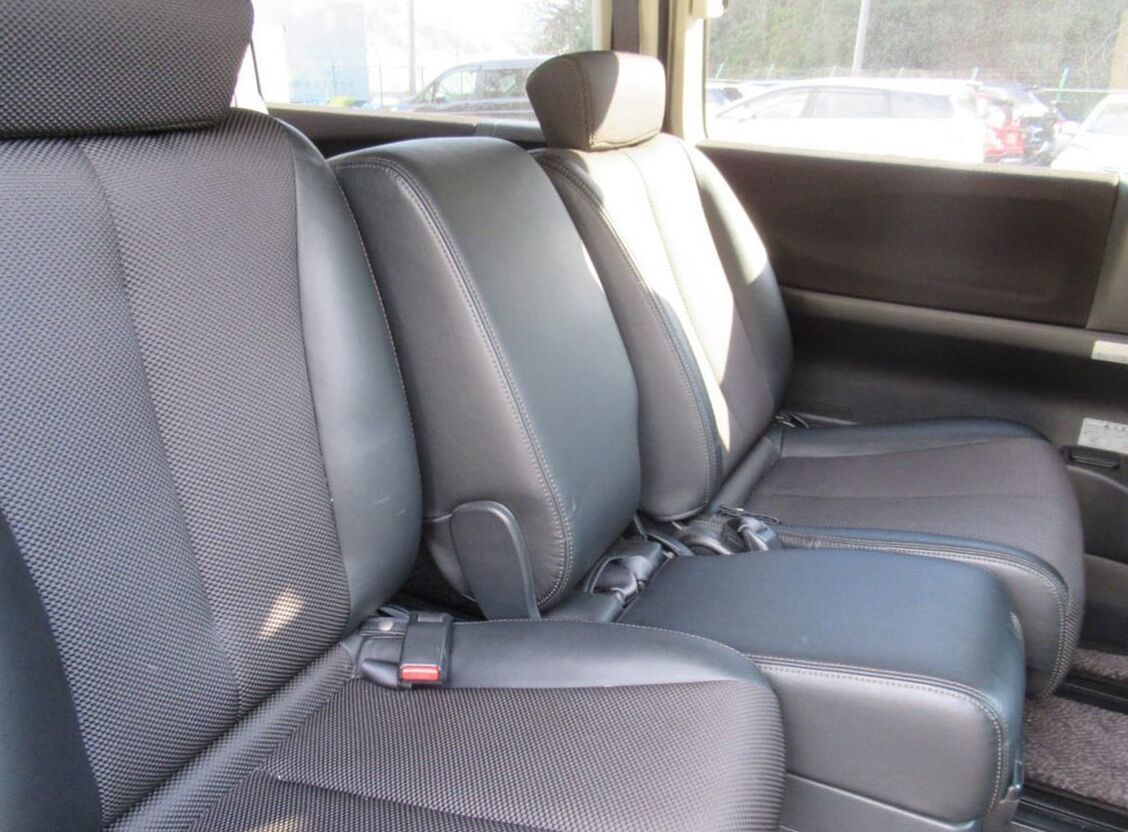

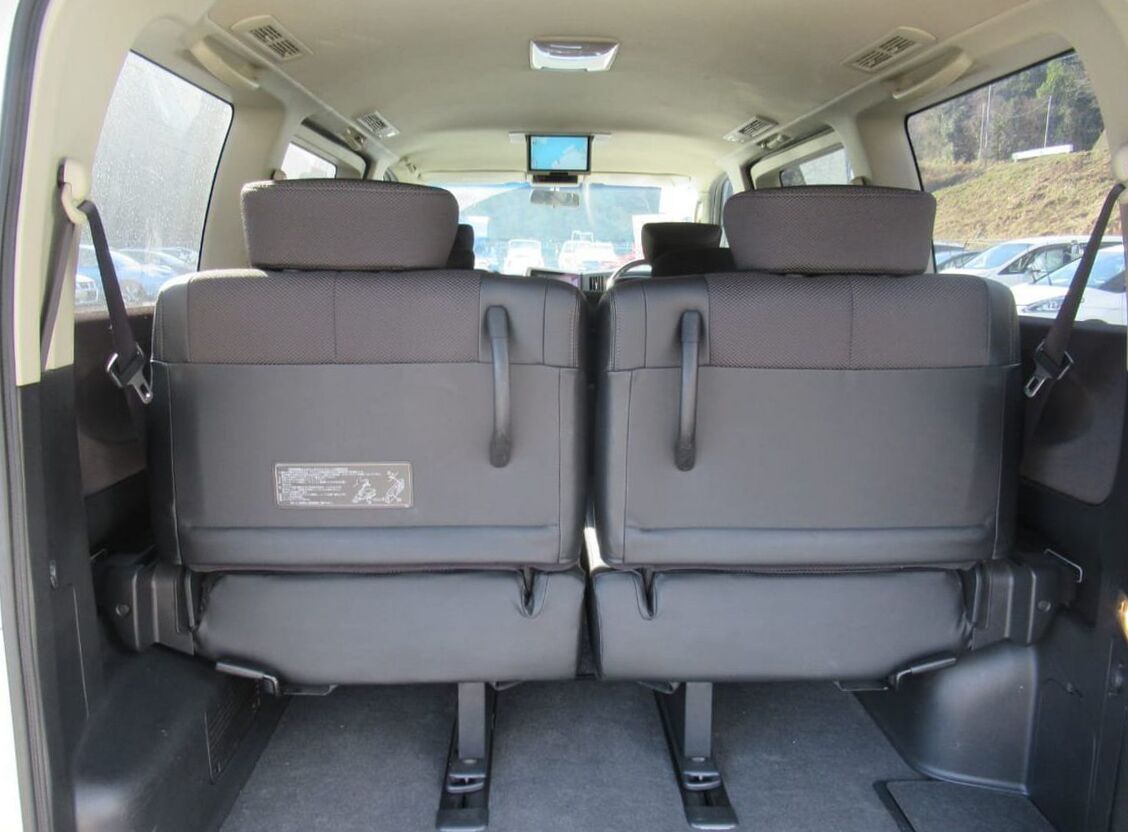

Seats | |
| Bucket seat | no |
| 2nd row | adds up to a 40/20/40 ratio |

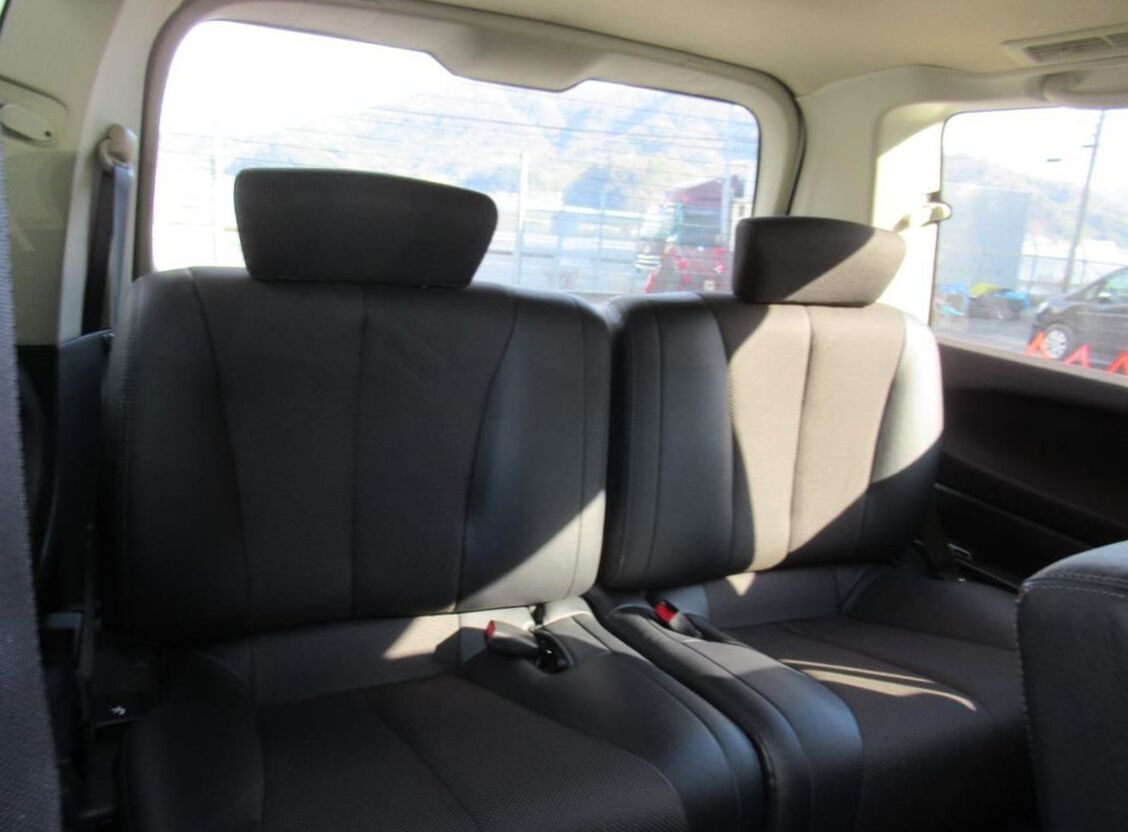

| 3nd row | 50/50 ratio fold seat |
| Seat lifter | yes |
| Full flat seats | yes |
| Removable seats | no |
| Ottoman seat | yes |
| Front bench seat | no |
| Walk throught | yes |
| 2nd row throught | yes |
Electric interior package | |
| Power adjustable driver seat | yes |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |

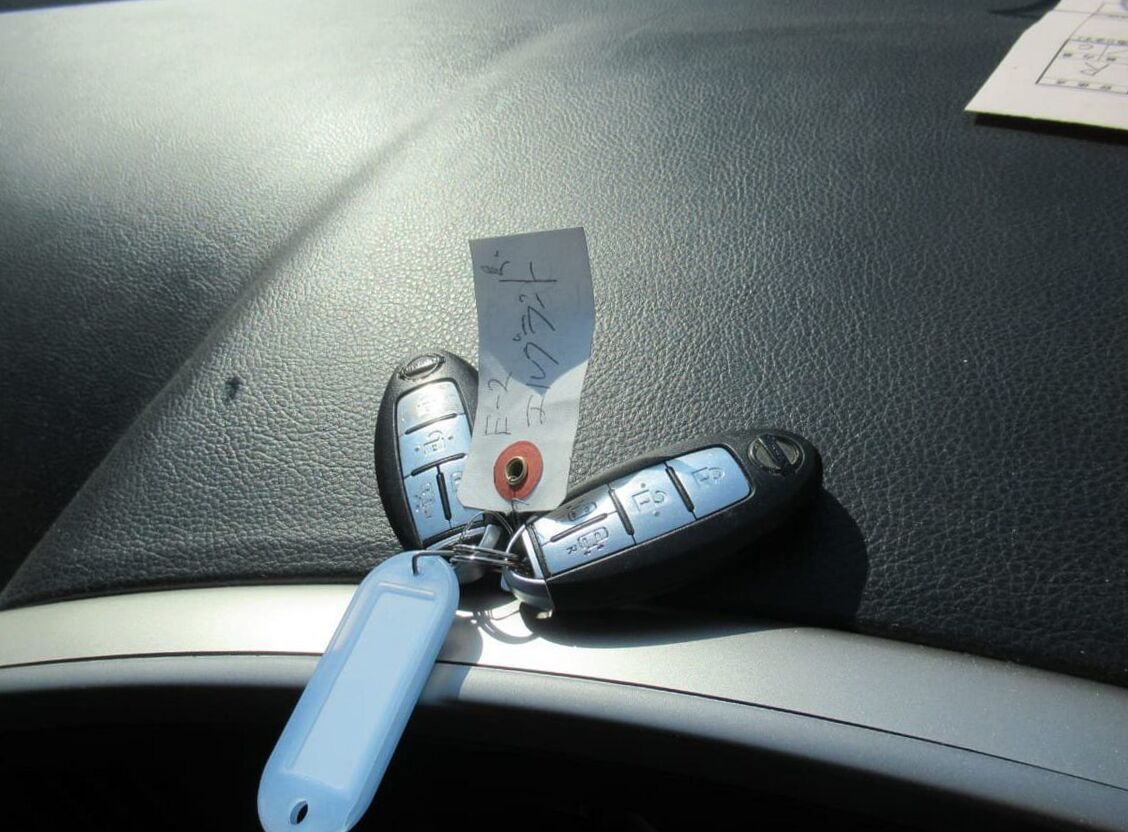

| Keyless enter | yes |
| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | no |
| Curtain airbags | no |
| 2 airbags | no |
Children safety | |
| isofix bar | no |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | yes |
| Road Service | |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | option |
| Distance control system | option |
| Intelligent AFS | yes |
| Night vision | no |
| Parktronic | yes |
| Intelligent parking assist | no |
| Collision mitigation system | option |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | no |
| Odor absorber | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | yes |
| DVD-audio | yes |
| MD palyer | no |
| Audio HDD | yes |
| Speaker | yes |

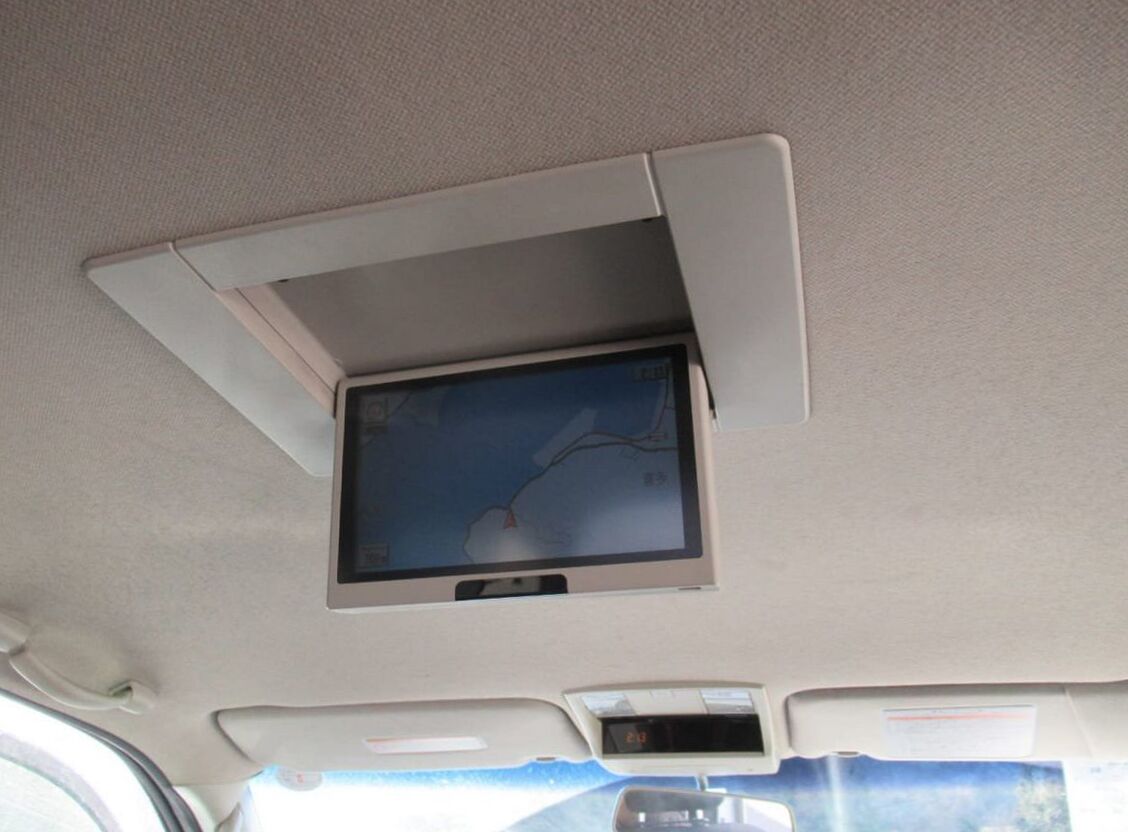

| Rear entertainment system | yes |
Navigation and video equipment | |

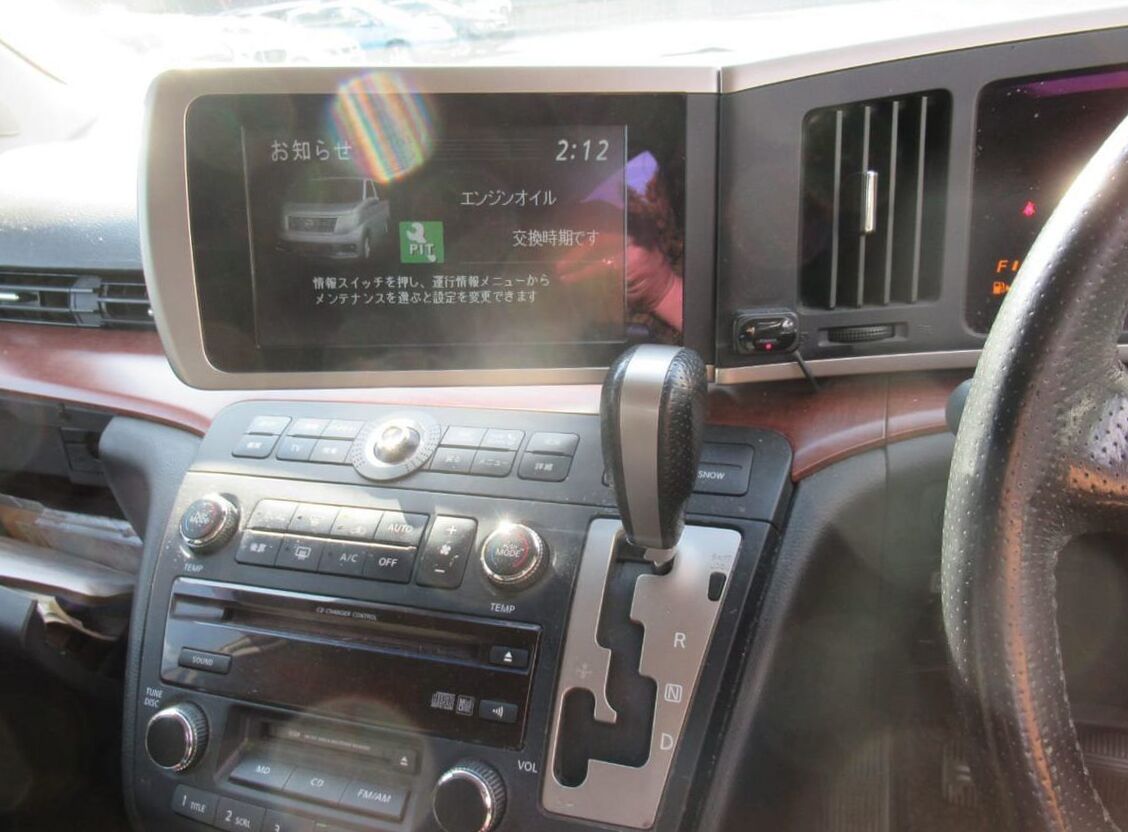

| Full color LCD display | yes |
| Navigation system | yes |
| Optional navigation system | no |
| Parking assist system | yes |
| Front monitor | yes |
| Sides monitors | yes |
| Back monitor | yes |
Additional amenities | |
| Lagage box | yes |
| Etc | no |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
2009 Nissan Elgrand II CBA-NE51 3.5 350 Highway Star black Leather urban selection V 4WD (240 Hp) specs
|
In Hong Kong presently (2007), 2 models are offered, the Elgrand XL and the Elgrand Highway Star which is an eight passenger variant. The Elgrand is packed with options including the AFS (Active Front Lighting System) that can also be found in the third generation Toyota Previa/ Estima.The Elgrand comes in 6 different colors and is equipped with twin sunroofs and Xenon headlamps with the Auto on-off system. The base price of both the Elgrand XL and the Highway Star are the same at $486,800 Hong Kong Dollars. The exterior of the Elgrand has changed a lot since its predecessor and is now equipped with remote controlled electronic doors, side mirrors with signal lights, a rear roof spoiler, and 16 (XL) or 17 (HWS) inch Aluminium Alloy rims. The new front styling (including new chrome front grill) gives the Elgrand an enhanced sporty look. The interior features include captain seats, a nine speaker Bose sound system, and a DVD player with a nine inch screen. The Elgrand is also equipped with an eight inch LCD monitor at the front in the dashboard that provides Vehicle Information and is part of the Vehicle Information System (also known as VIS). Both versions also come with a heated drivers seat and a heated front passenger's seat as well. Electronic curtains can also be found on the Elgrand along with a genuine wood-grained leather steering wheel. » Read More About Nissan Elgrand |
