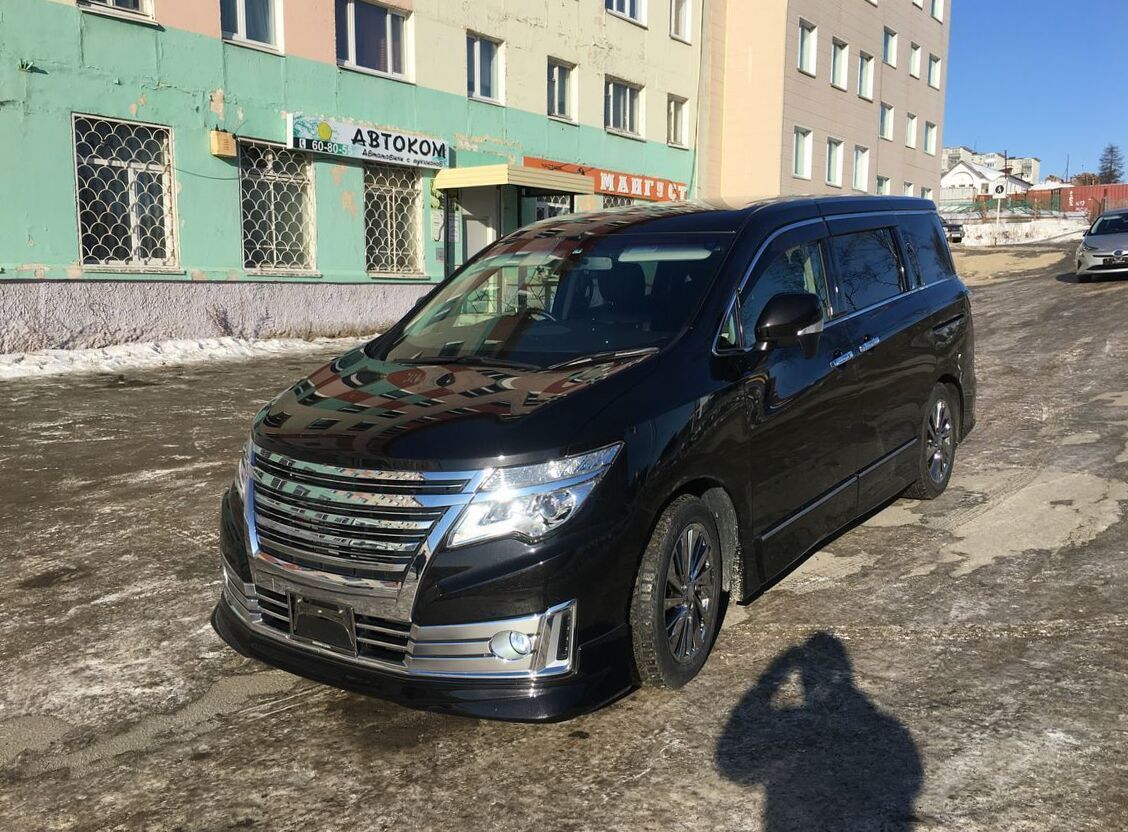

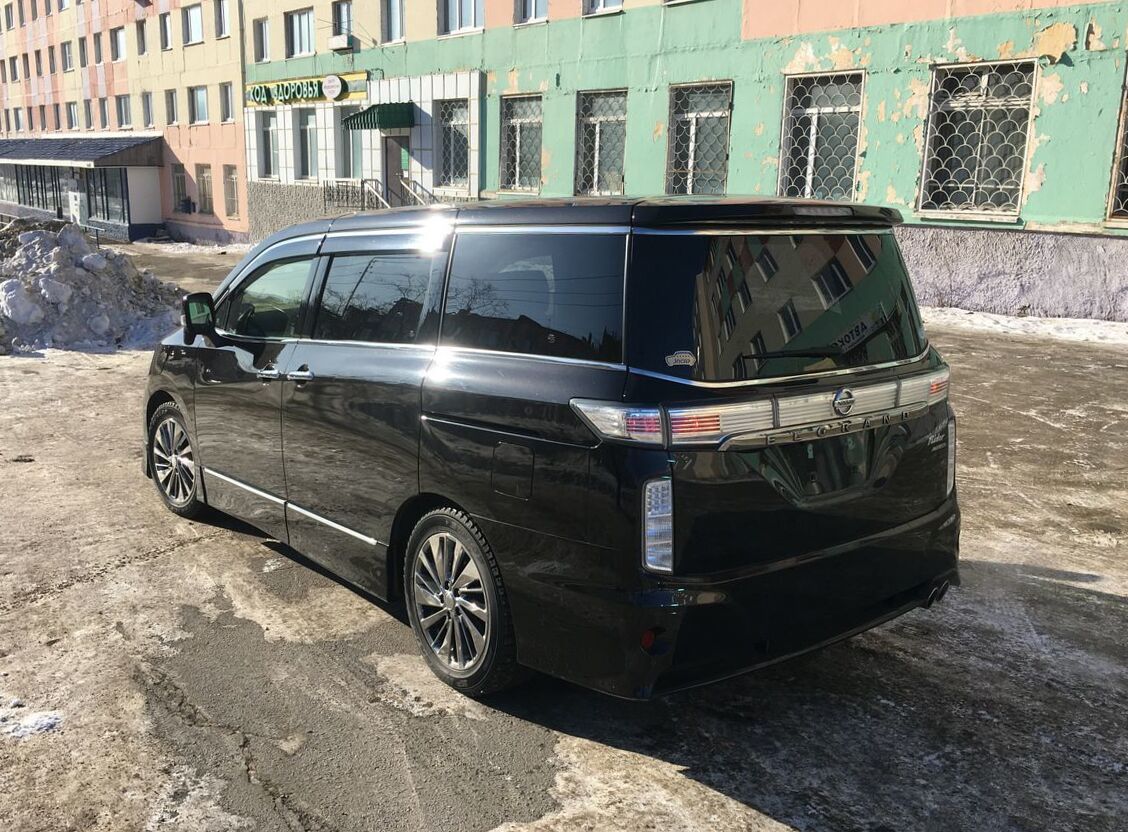

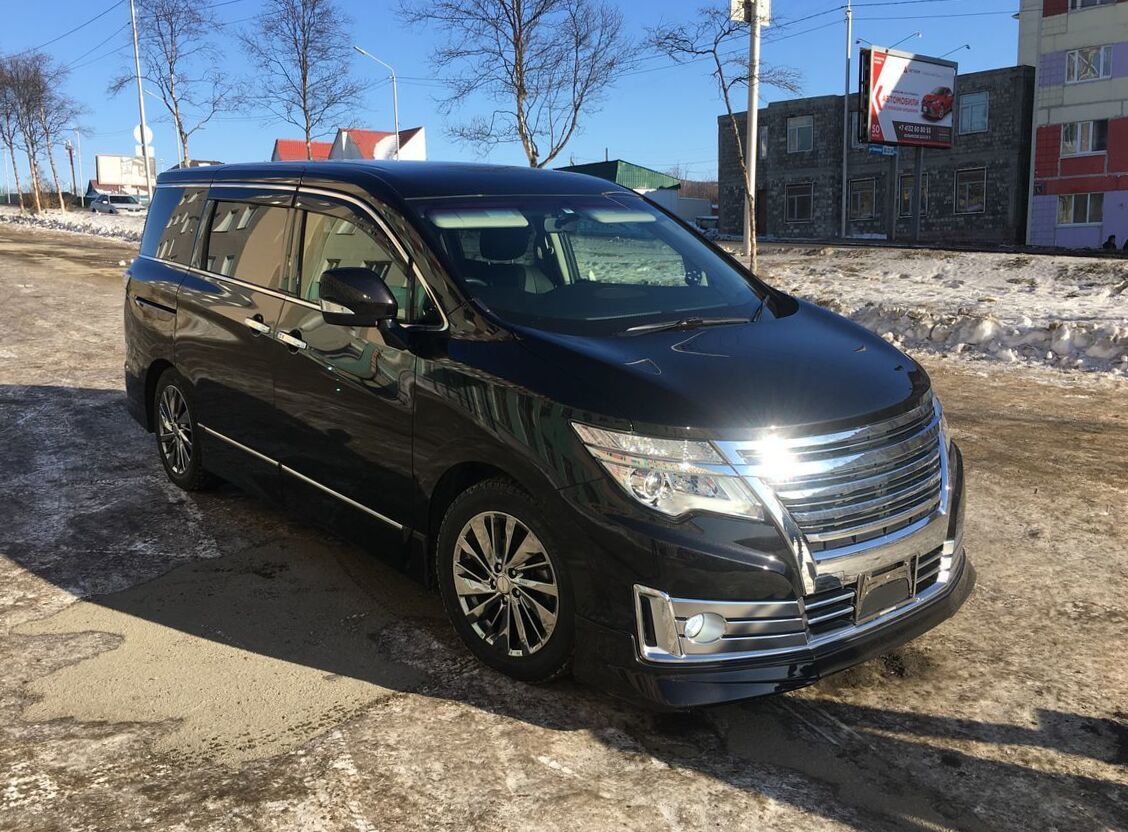

2017 Nissan Elgrand III 2.5 250 Highway Star S 4WD (7-Seater)
Nissan Elgrand Problems
Cutting off
1988, When engange in gear it appears the load
overpower the engine and cutts off.but when put...
Gear box problem
1997, Faling to drive , rerving while not
engaging drive gear . New Dextron ATF was added
to t...
Radio and back up cam etc.
2002, my sound system was working .then it
stopped ..now my backup cam plus radio, dvd
arent ...
| Body type | Minivan |
|---|---|
| Power | 170 Hp |
| Engine Displacement | 2500 cm3 or 2.5L or 152.5 cu-in |
| Color | black |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 44738 Miles |
| Vin | 020*** |
| Price (out of date) | $34806 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2017 Nissan Elgrand III? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Nissan Elgrand Minivan 2017? | 9.8 l/100 km |
| How much power, Nissan Elgrand DBA-TNE52 2017? | 170 Hp |
| What is the engine size, 2017 Nissan Elgrand 2.5 250 Highway Star S 4WD (7-Seater)? | 2.5L or 2488cm3 |
| How many gears, What type is the gearbox, Nissan Elgrand III 2017 Minivan 2.5 250 Highway Star S 4WD (7-Seater) (170 Hp)? | Variator |
| What is the drivetrain, 2017 Nissan Elgrand Minivan 2.5 250 Highway Star S 4WD (7-Seater) (170 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2017 Nissan Elgrand III? | 4945 mm |
| How wide is the vehicle, Nissan Elgrand Minivan 2017? | 1850 mm |
Nissan Elgrand III DBA-TNE52 2.5 250 Highway Star S 4WD (7-Seater) (170 Hp) 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2016 |
| Production end year | 2018 |
| Drive type | All wheel drive (4x4) |
| Frame type | Minivan |
| Transmission type | Variator |
| Engine volume, cc | 2488 |
| Frame name | DBA-TNE52 |
| Clearance, mm | 150 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | yes |
| Steering locaton | right |
Vehicle generation | |
| Generation name | E52 |
| Generation number | 3 |
| Facelift number | 1 |
| Production start year | 2014 |
| Production end year | 2020 |
Engine, transmission and steering specs | |

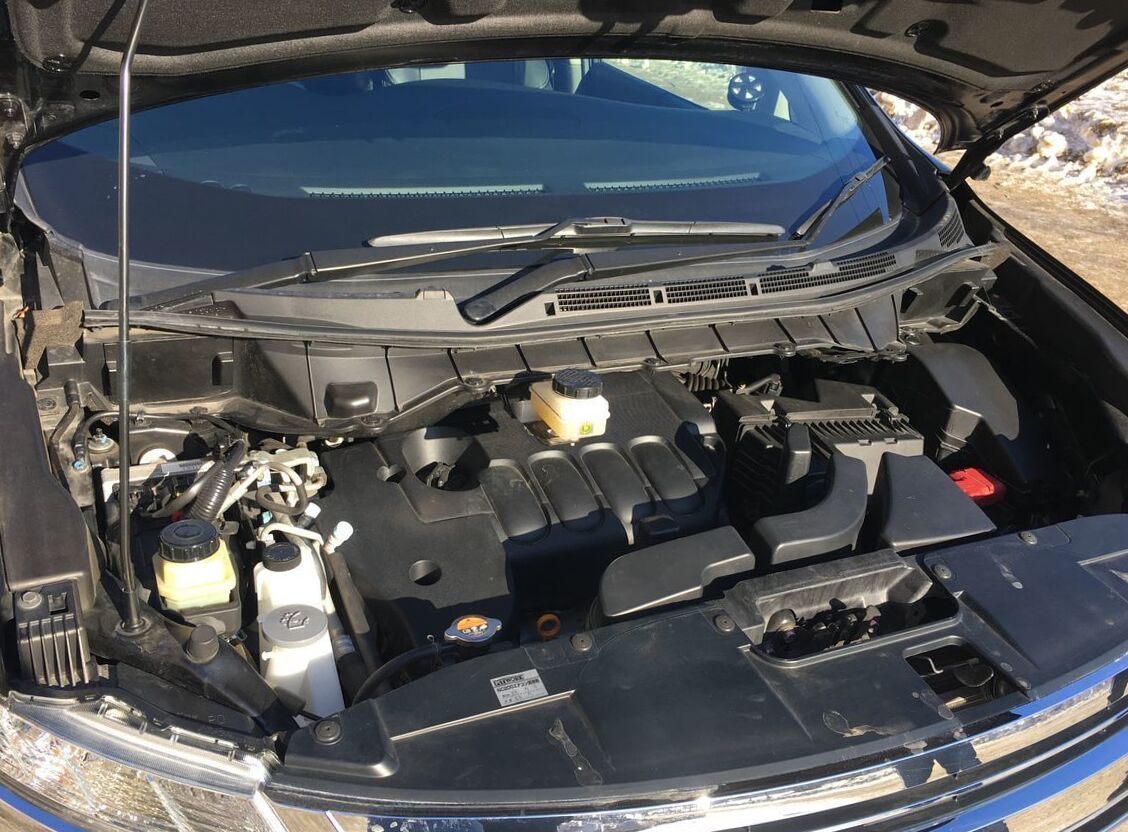

Engine specs | |
| Engine name | QR25DE |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Max power, hp | 170 |
| Max power RPM, rpm | 5600 |
| Max power, hp (kWt) / rpm | 170 (125) / 5600 |
| Max torque, N*m | 245 |
| Max torque RPM, rpm | 3900 |
| Max torque, N*m (kg*m) / rpm | 245 (25) / 3900 |
| Compression ratio | 9.6 |
| Bore, mm | 89 |
| Stroke, mm | 100 |
| Engine additional info | VVT, electronic fuel injection system |
| Eco type | 2005 emission regulation 75% reduction |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2015 fuel consumption standard +5% |
| Combined | 9.8 |
Transmission | |
| Range gear ratio | 2.349 - 0.394 |
| Rear gear ratio | 1.75 |
| Main gear ratio | 6.12 |
| Shifter position | On the dashboard |
| Manual mode | yes |
Steering | |
| Steereing gear type | Gear rail |
| Electro-hydraulic power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4945 |
| Exterior width, mm | 1850 |
| Exterior height, mm | 1815 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior length, mm | 3025 |
| Interior width, mm | 1580 |
| Interior height, mm | 1300 |
Chassis dimensions | |
| Wheel base, mm | 3000 |
| Front axle length, mm | 1600 |
| Rear axle length, mm | 1600 |
| Turning radius, m | 5.7 |
| Wheel spacing front | 1600 |
| Wheel spacing rear | 1600 |
Weight and permissible load | |
| Mass, kg | 2000 |
| Total weight | 2385 |
Volumes | |
| Fuel tank capacity, l | 73 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Independent, spring multi-link |
| Sport suspension | no |
| Low down | no |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |

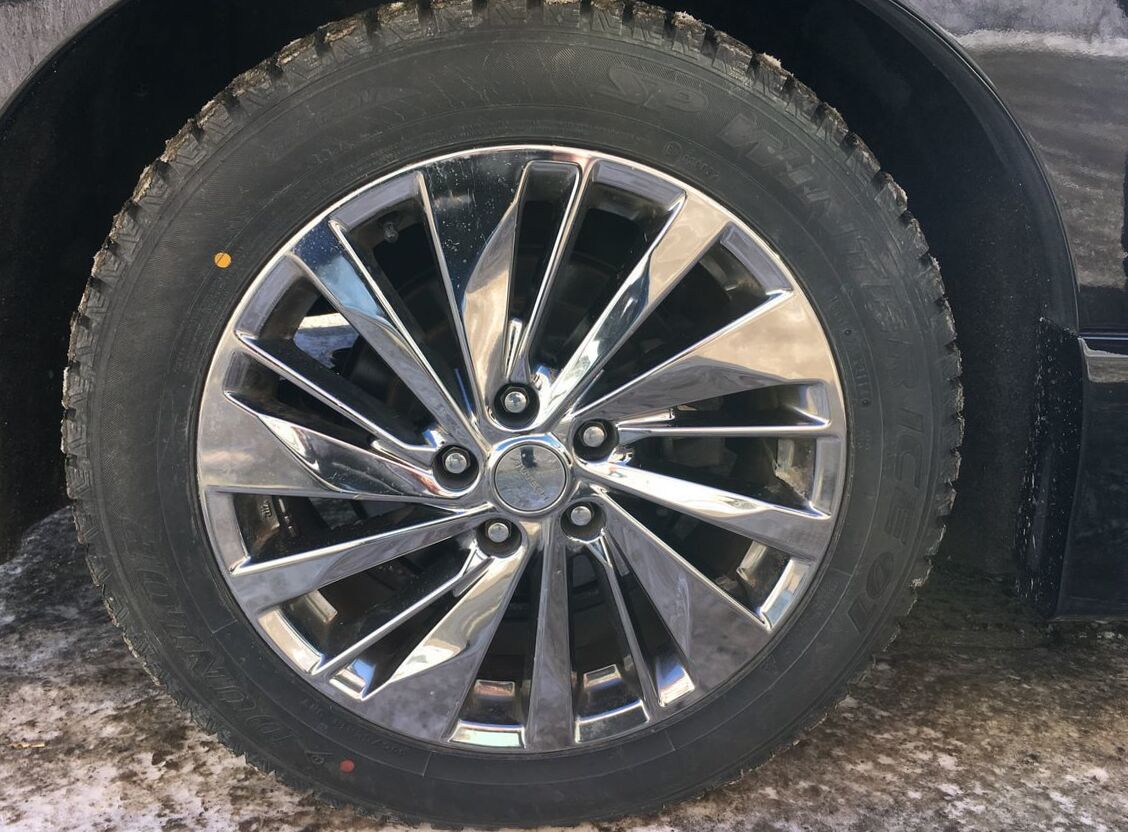

| Front wheels | 225/55R18 |
| Rear wheels | 225/55R18 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
| Parking brake | Foot |
| Brake front search | 1 |
| Rear brake | 1 |
| Parking brake new first | Foot |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Led lights | yes |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| autocorrected mirrors | no |
| Door mirrors heating | yes |
Doors | |
| Sliding doors | yes |
| Sliding electric door | yes |
| Sliding electric doors | option |
| Door easy closer | yes |
| Chrome door handles | yes |
| Power rear door | option |
| Trunk closer | yes |

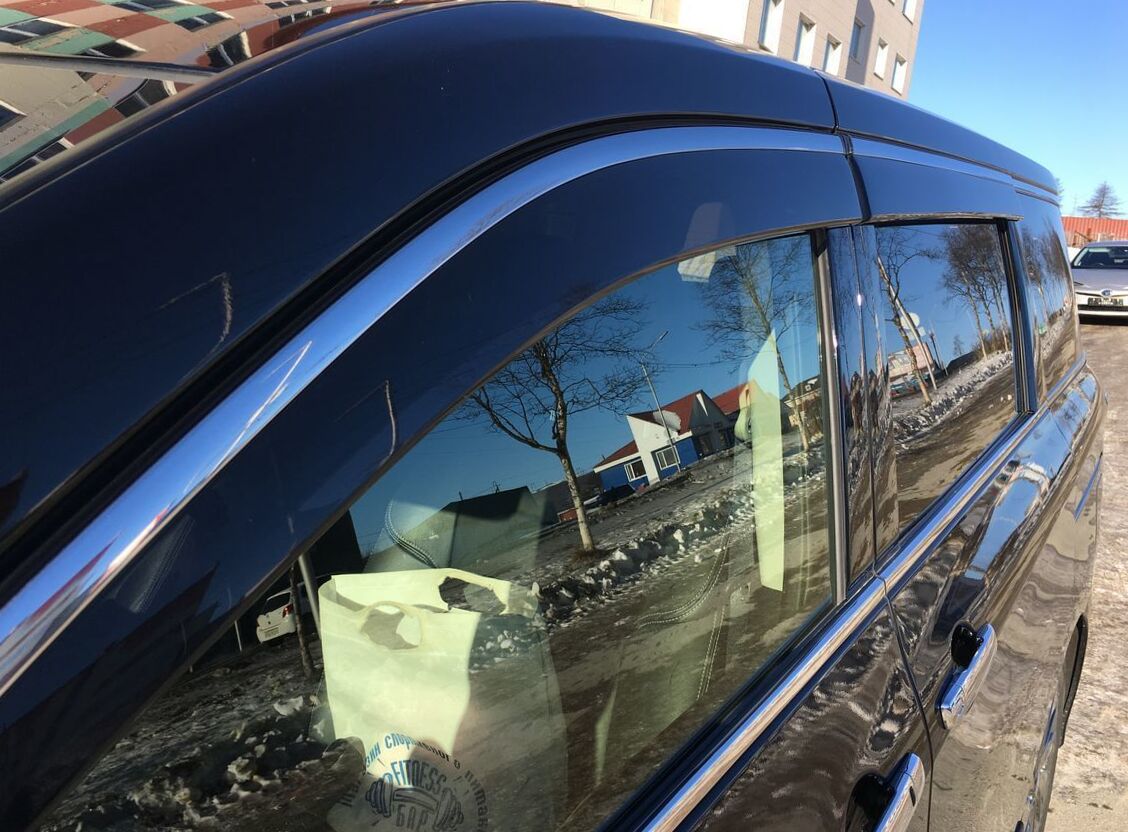

Windows | |
| Privacy glass | yes |
| Windshield top toning | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | no |
| Twin sunroof | no |
Accessories | |
| Front spoiler | yes |
| Rear spoiler | yes |
| Back wiper | yes |
Interior | |

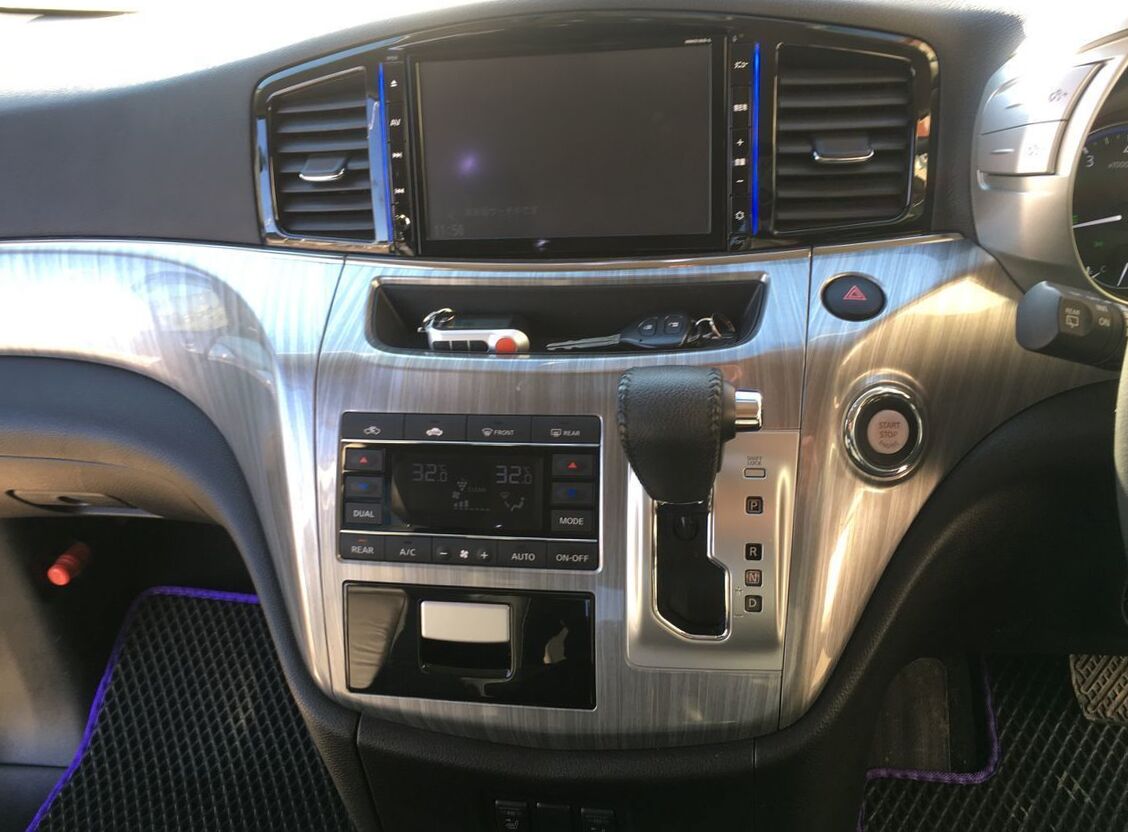

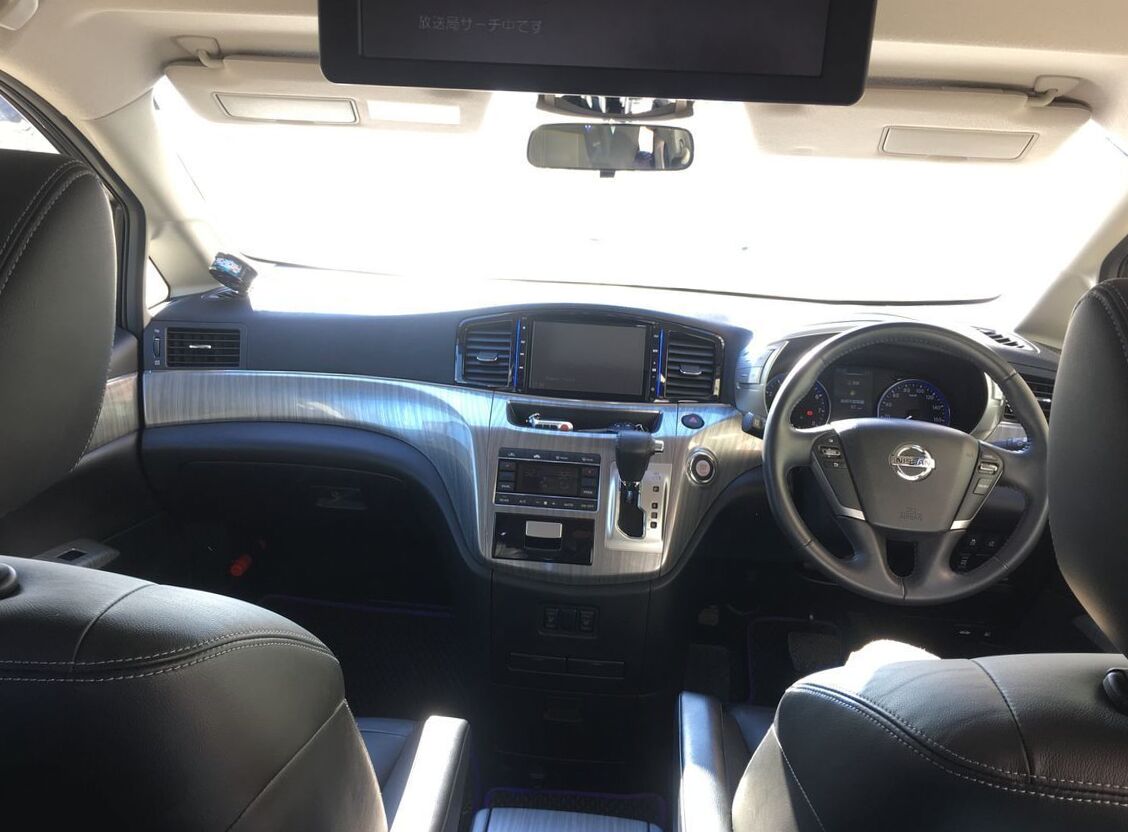

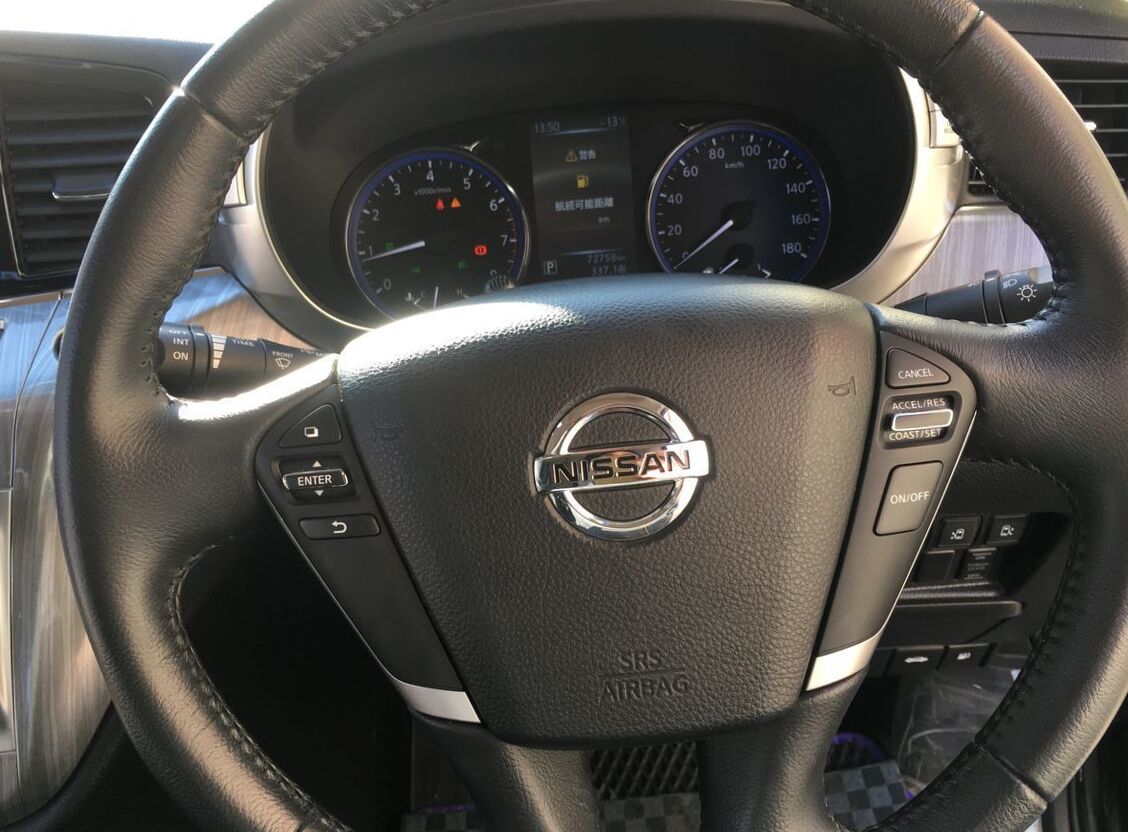

Steering wheel and center panel | |
| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | option |
| Utility color display | 5" |
| Env temp | yes |
| Engine start button | yes |
Interior design | |
| Cloth upholstery | no |
| Leather upholstery | no |
| Combined obivka Salon | yes |

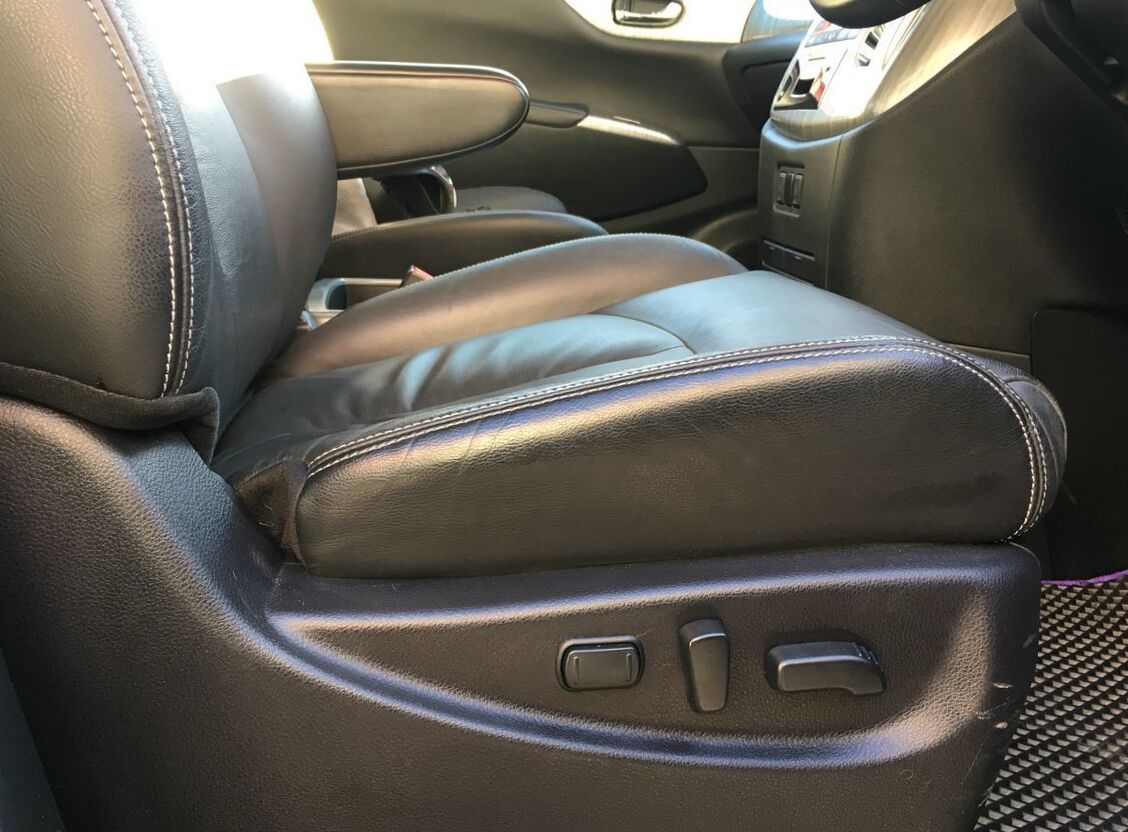

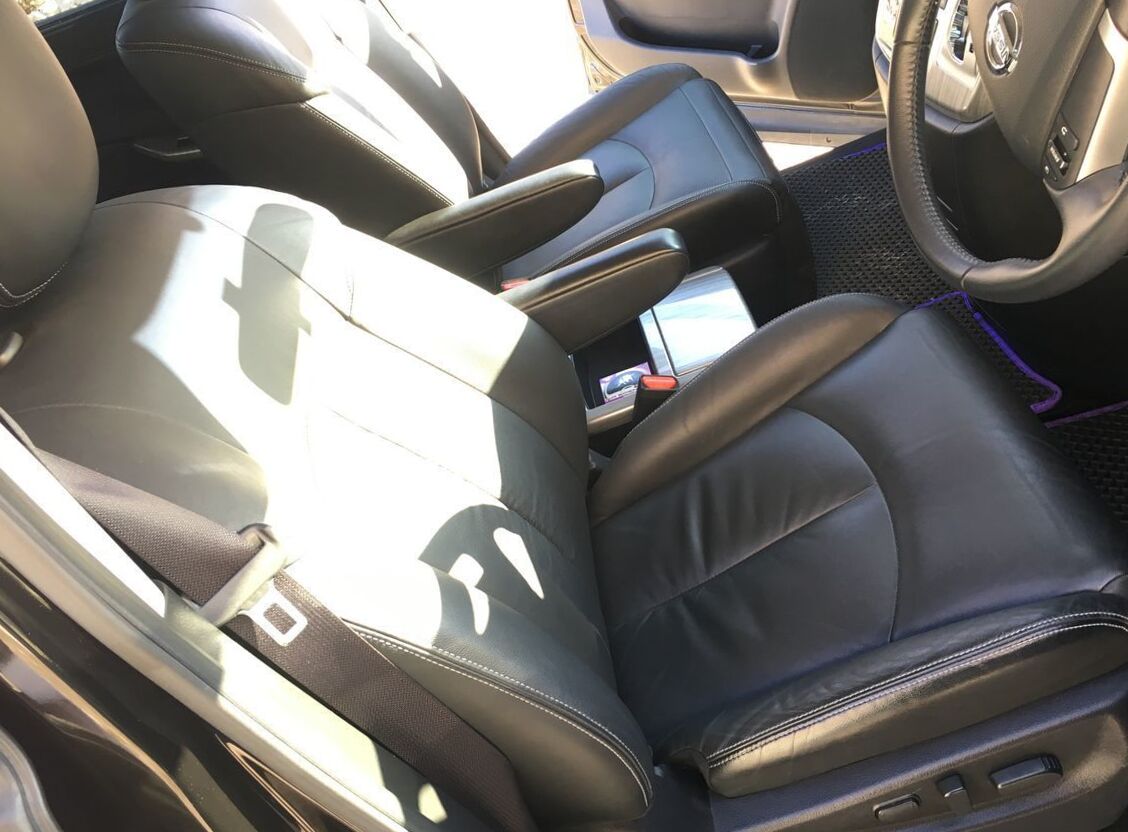

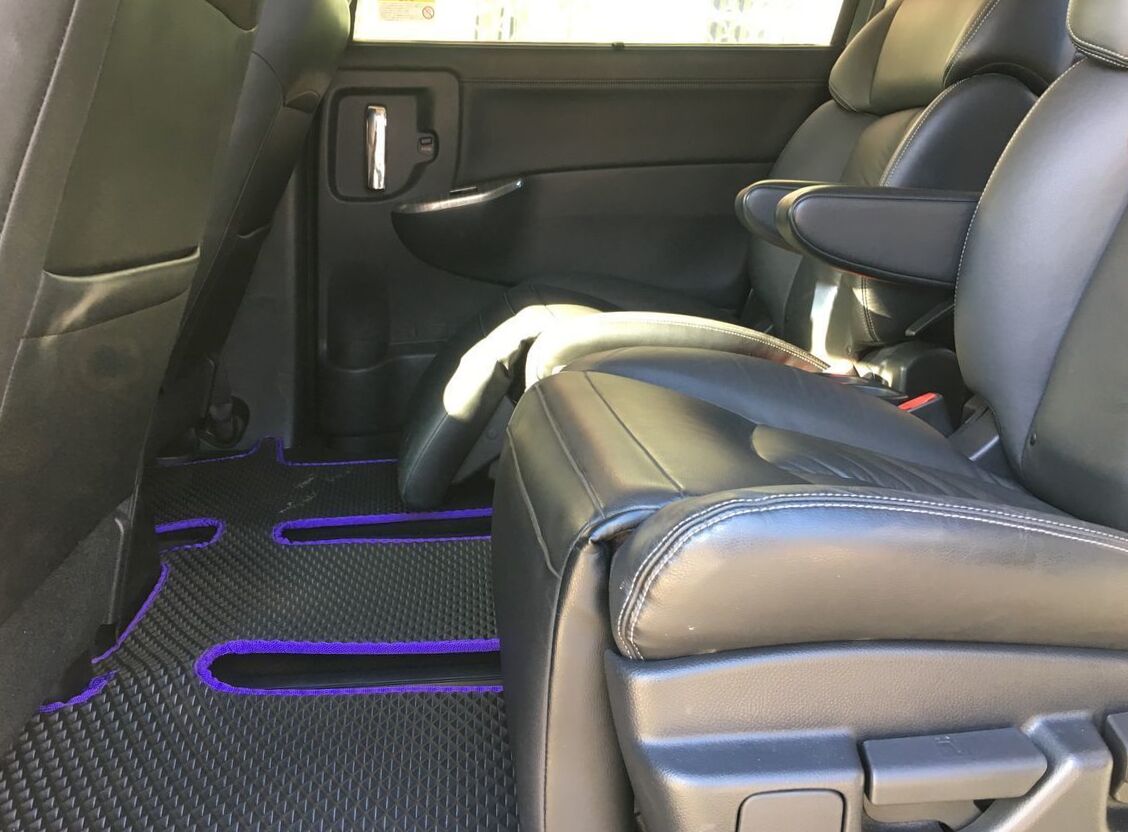

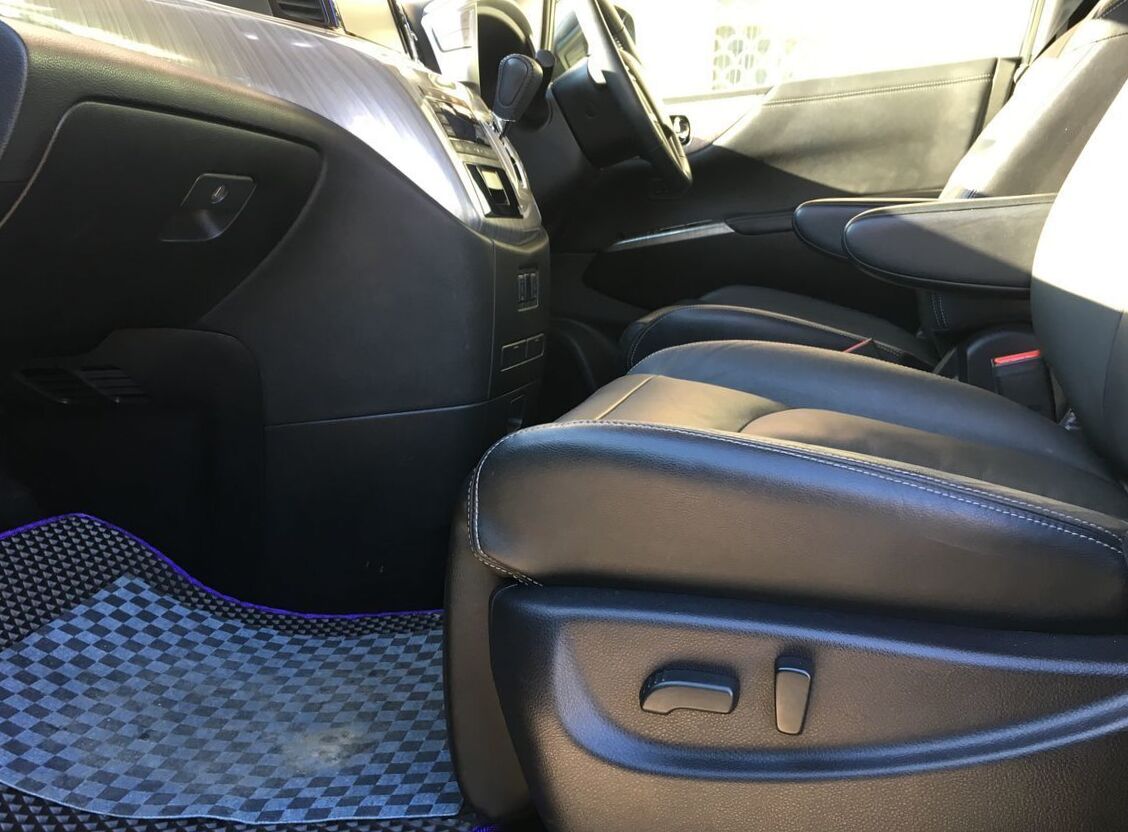

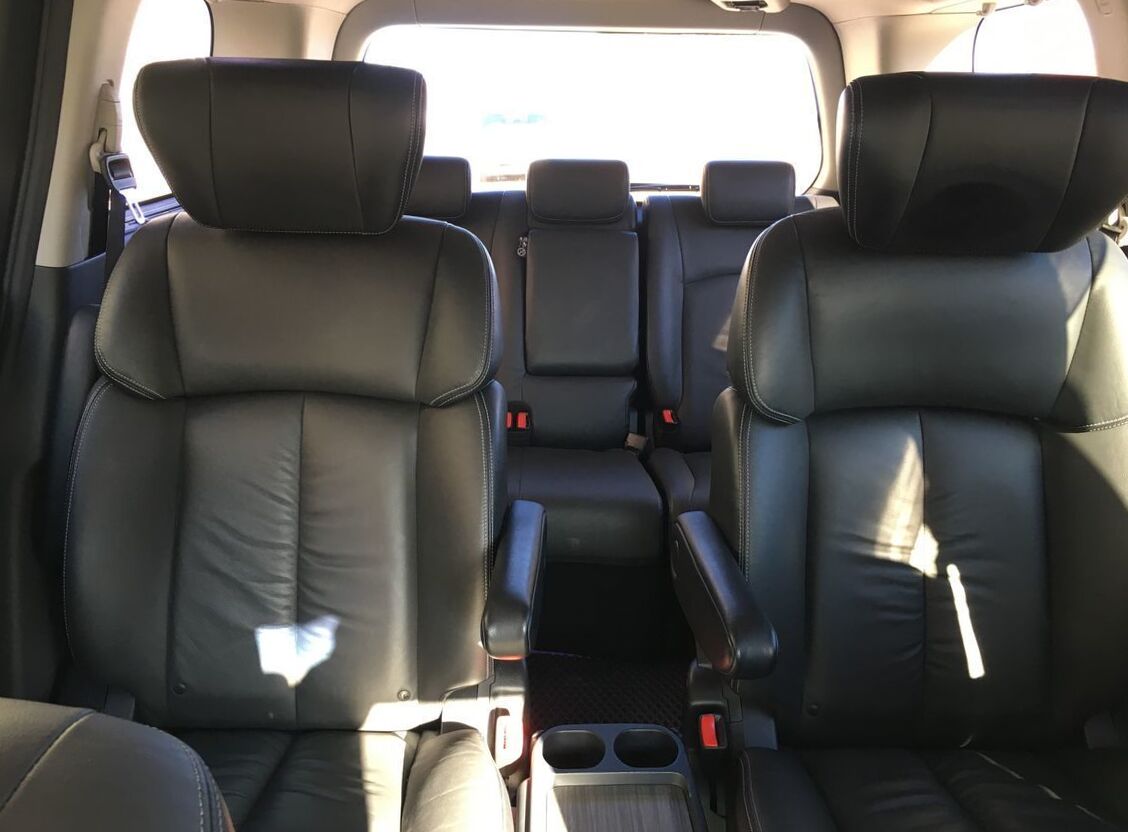

Seats | |

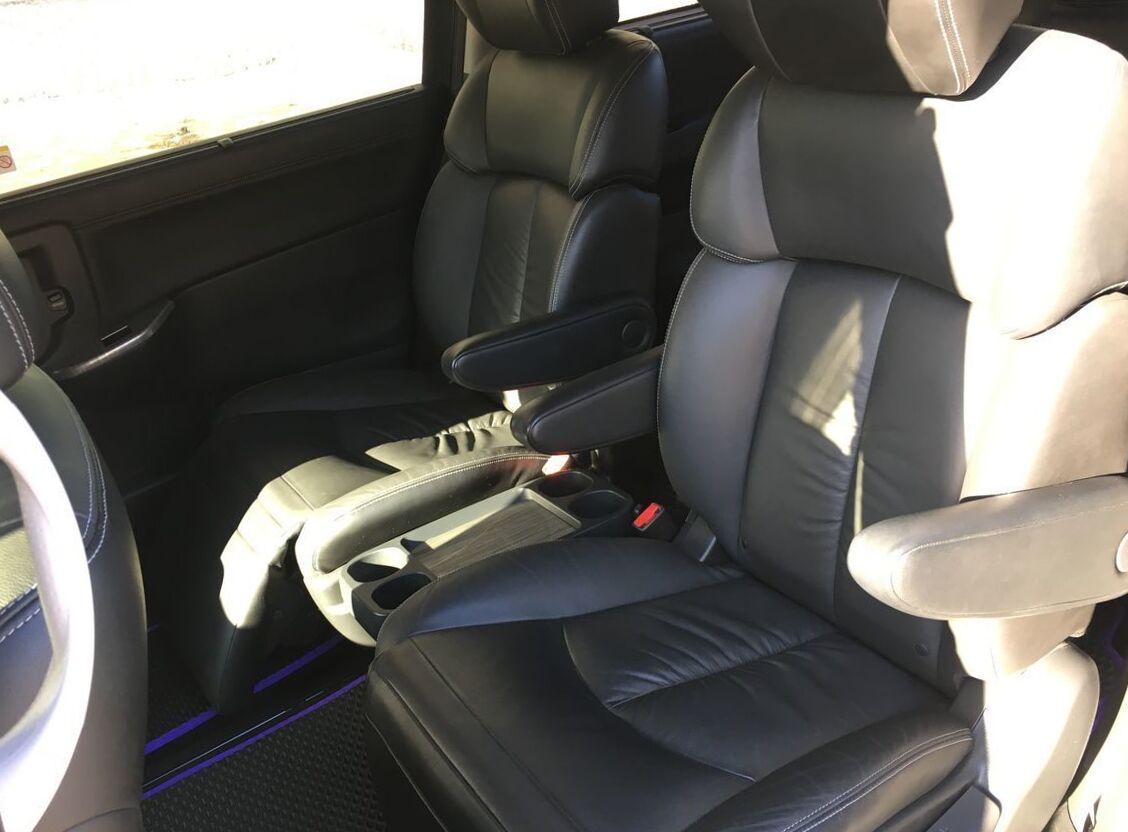

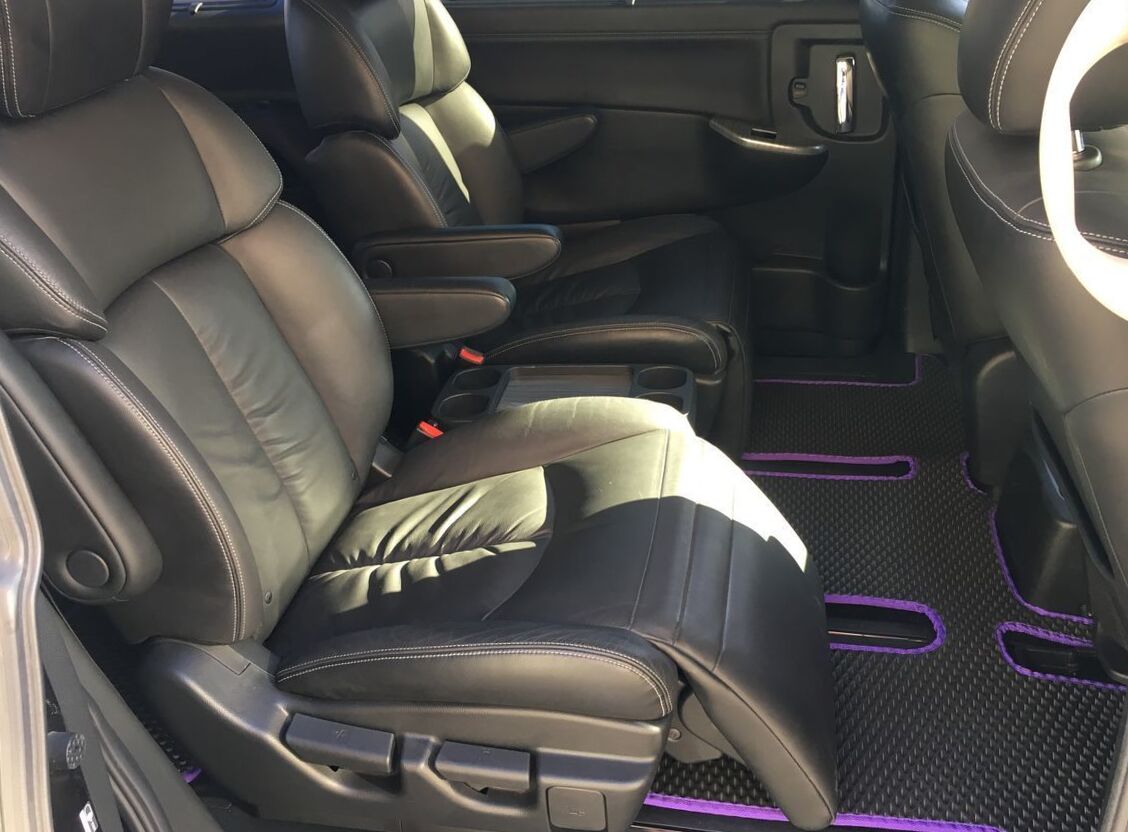

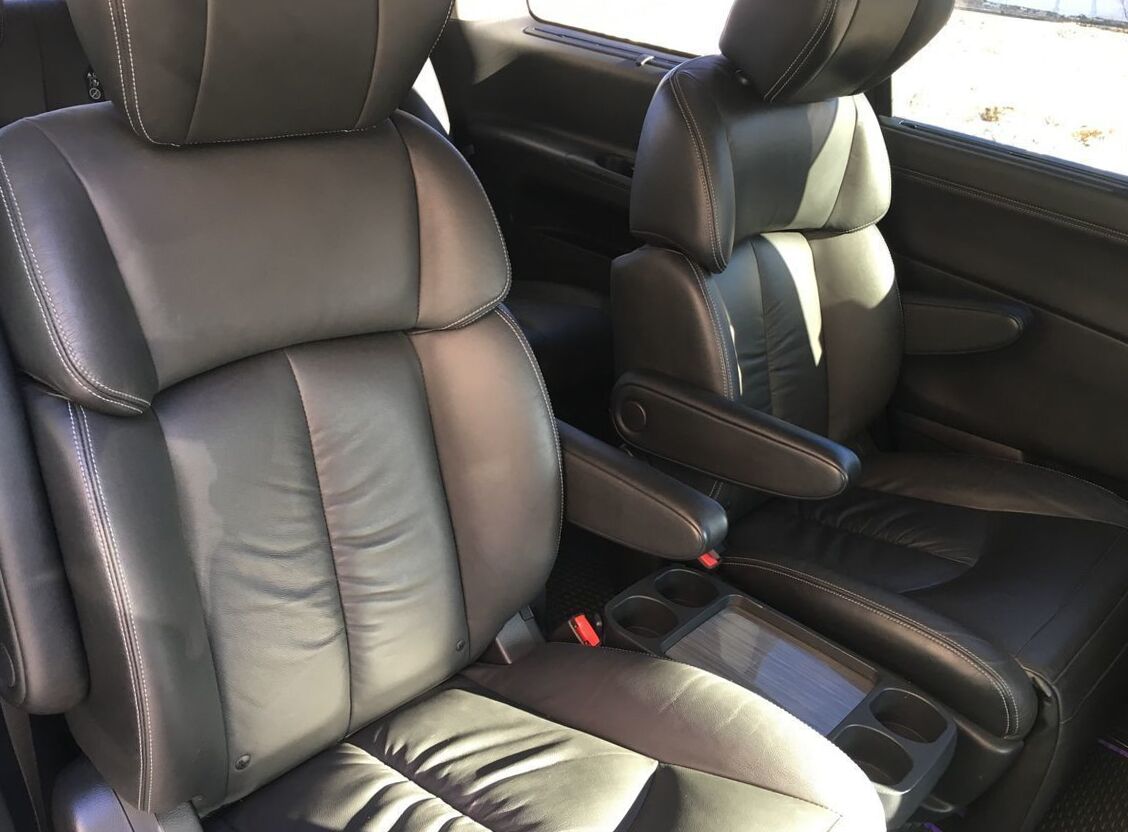

| 2nd row | two individual seats |

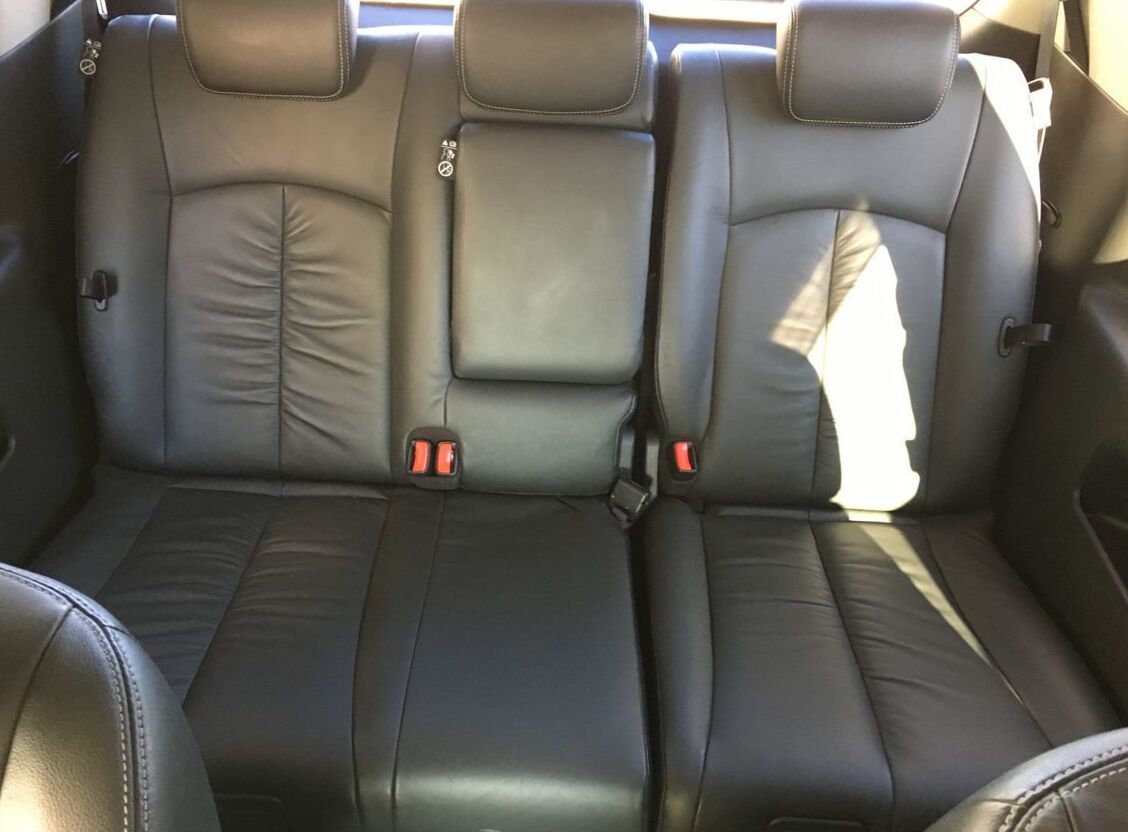

| 3nd row | 60/40 ratio fold seat |
| Seat lifter | yes |
| Ottoman seat | yes |
| Headrests for seats | 7 |
| Separating armrest front | yes |
| Separating armrest rear | yes |
| Seats pockets | yes |
| Walk throught | yes |
| 2nd row throught | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
Additional interior equipment | |
| Holders for bottles in doors | yes |
| AC plug | option |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Lane Keep Assist | no |
| Cruise control | yes |
| Distance control system | no |
| Ai shift | option |
| Autolock doors | yes |
| Control system of a headlight | no |
| Intelligent AFS | yes |
| Road sign recognition | no |
| Front sonar | option |
| Rear sonars | option |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Part climat equipment | 3 zones |
| Air filter | yes |
Audio systems | |
| Radio | option |
| CD player | option |
| DVD-audio | option |
| Audio HDD | option |
| Hands free | option |
| Speaker | yes |
| Rear entertainment system | option |
| Additional sound equipment | BOSE 5.1 Surround sound system (optional) |
Navigation and video equipment | |
| Full color LCD display | option |
| Navigation system | option |
| Traffic jam assist | option |
| Parking assist system | option |
| Front monitor | option |
| Sides monitors | option |
| Back monitor | option |
Additional amenities | |
| Mirrors in sunshields | yes |
| Illumination in the cabin during landing | yes |
| Lagage box | yes |
| Etc | option |
Car safety | |
| Alarm system | yes |
2017 Nissan Elgrand III DBA-TNE52 2.5 250 Highway Star S 4WD (7-Seater) (170 Hp) specs
|
In Hong Kong presently (2007), 2 models are offered, the Elgrand XL and the Elgrand Highway Star which is an eight passenger variant. The Elgrand is packed with options including the AFS (Active Front Lighting System) that can also be found in the third generation Toyota Previa/ Estima.The Elgrand comes in 6 different colors and is equipped with twin sunroofs and Xenon headlamps with the Auto on-off system. The base price of both the Elgrand XL and the Highway Star are the same at $486,800 Hong Kong Dollars. The exterior of the Elgrand has changed a lot since its predecessor and is now equipped with remote controlled electronic doors, side mirrors with signal lights, a rear roof spoiler, and 16 (XL) or 17 (HWS) inch Aluminium Alloy rims. The new front styling (including new chrome front grill) gives the Elgrand an enhanced sporty look. The interior features include captain seats, a nine speaker Bose sound system, and a DVD player with a nine inch screen. The Elgrand is also equipped with an eight inch LCD monitor at the front in the dashboard that provides Vehicle Information and is part of the Vehicle Information System (also known as VIS). Both versions also come with a heated drivers seat and a heated front passenger's seat as well. Electronic curtains can also be found on the Elgrand along with a genuine wood-grained leather steering wheel. » Read More About Nissan Elgrand |
