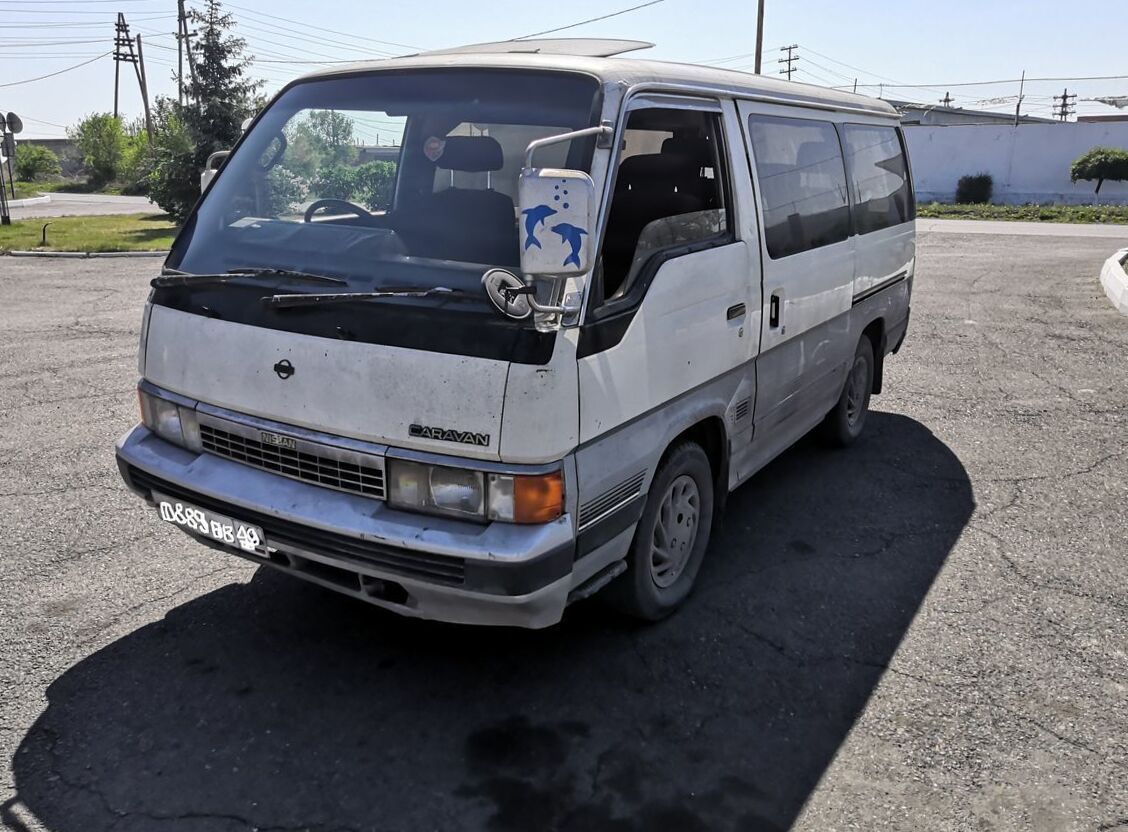

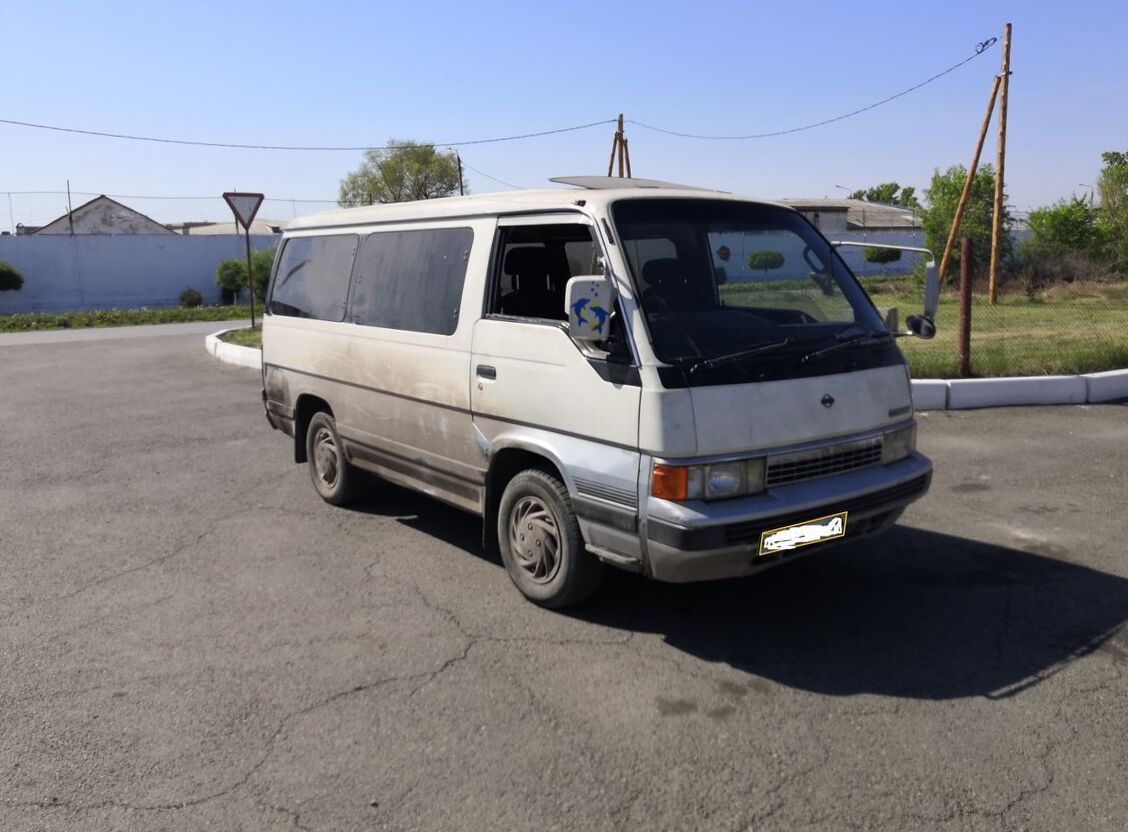

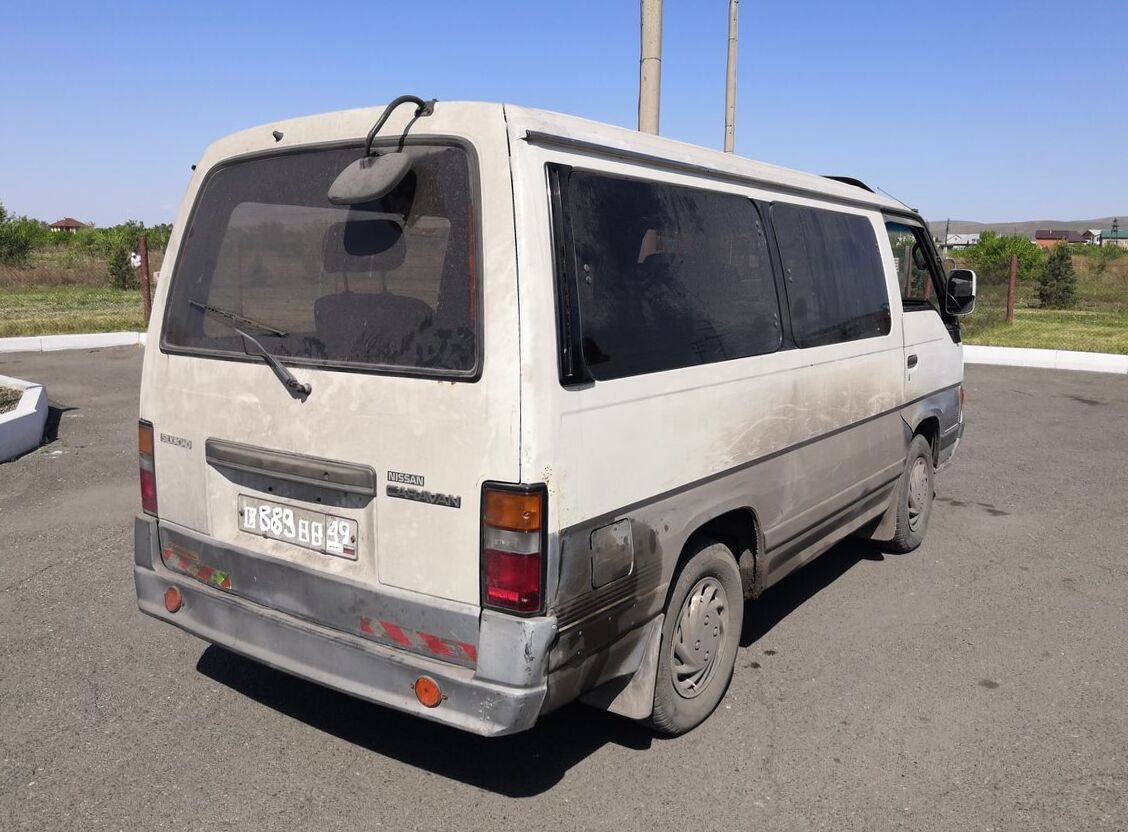

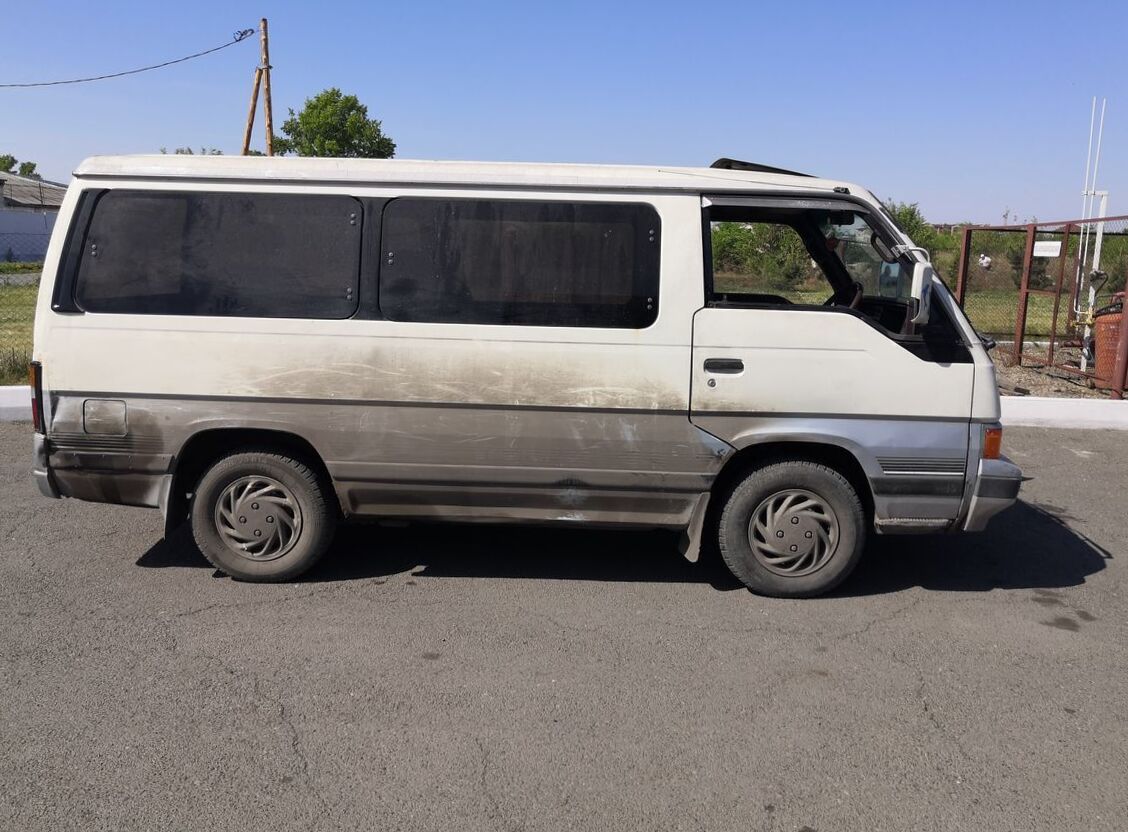

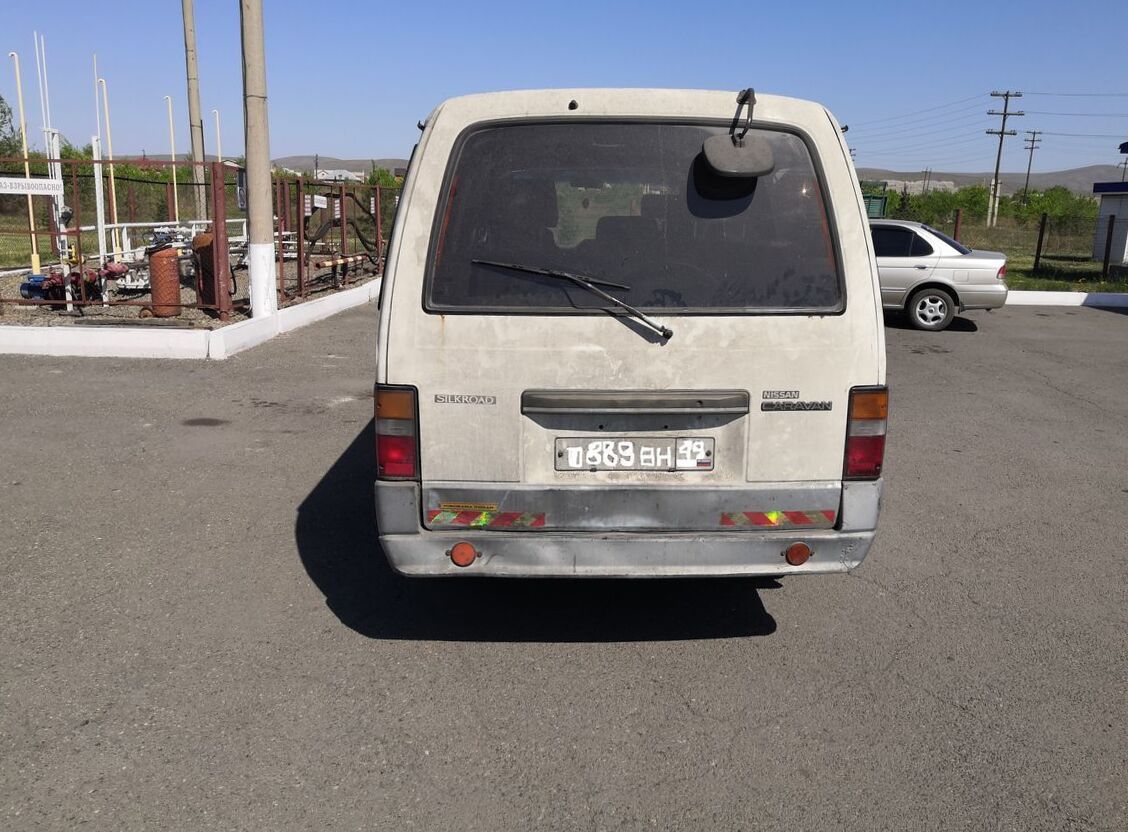

1990 Nissan Homy IV 2.0DT Coach Abbey Road planeta roof
Nissan Homy Problems
Gear box
1996, giving me problem with gearbox keeps on
burning the gearbox i bought a gear box and it
d...
Suspension
1992, Front suspension new shocks all round
still very bouncy on front rear feels good.
Can�...
Mags & tires
1994, I'M looking for mags with tires
which is fitted to Homy 1994 model. May I know
what...
| Body type | Minivan |
|---|---|
| Power | 79 Hp |
| Engine Displacement | 2000 cm3 or 2L or 122 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Diesel |
| Drive wheel | FR or RR |
| Mileage | 218722 Miles |
| Vin | KSE24-****93 |
| Price (out of date) | $2186 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 1990 Nissan Homy IV? | Minivan, 8 Seats, 4 Doors |
| How much power, Nissan Homy Minivan 1990? | 79 Hp |
| What is the engine size, Nissan Homy Q-KSE24 1990? | 2L or 1952cm3 |
| How many gears, What type is the gearbox, 1990 Nissan Homy 2.0DT Coach Abbey Road planeta roof? | Automatic transmission 4 |
| What is the drivetrain, Nissan Homy IV 1990 Minivan 2.0DT Coach Abbey Road planeta roof (79 Hp)? | Rear |
| How long is this vehicle, 1990 Nissan Homy Minivan 2.0DT Coach Abbey Road planeta roof (79 Hp)? | 4520 mm |
| How wide is the vehicle, 1990 Nissan Homy IV? | 1690 mm |
Nissan Homy IV Q-KSE24 2.0DT Coach Abbey Road planeta roof (79 Hp) 1988, 1989, 1990 Specs
General information | |
|---|---|
| Complectation name | 2.0DT Coach Abbey Road planeta roof |
| Production start year | 1988 |
| Production end year | 1990 |
| Price of new car in Tokyo, yen | 2179000 |
| Drive type | Rear |
| Frame type | Minivan |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1952 |
| Frame name | Q-KSE24 |
| Clearance, mm | 185 |
| Manufacturing country | Japan |
| Doors | 4 |
| Right hand drive | yes |
| Left hand drive | no |
Vehicle generation | |
| Generation name | E24 |
| Generation number | 4 |
| Production start year | 1986 |
| Production end year | 1990 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | LD20T-II |
| Fuel | Diesel |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 79 |
| Max power RPM, rpm | 4400 |
| Max power, hp (kWt) / rpm | 79 (58) / 4400 |
| Max torque, N*m | 167 |
| Max torque RPM, rpm | 2400 |
| Max torque, N*m (kg*m) / rpm | 167 (17) / 2400 |
| Compression ratio | 21.3 |
| Bore, mm | 85 |
| Stroke, mm | 86 |
| Actuator valves | SOHC |
Fuel consumption | |
| Fuel consumption (60 km/h mode), l/100km | 5.7 |
Transmission | |
| 1st gear ratio | 2.842 |
| 2nd gear ratio | 1.542 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.686 |
| Rear gear ratio | 2.4 |
Steering | |
| Power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4520 |
| Exterior width, mm | 1690 |
| Exterior height, mm | 1955 |
Interior dimensions | |
| Capacity | 8 |
| Seat rows | 3 |
| Interior length, mm | 3275 |
| Interior width, mm | 1535 |
| Interior height, mm | 1305 |
Chassis dimensions | |
| Wheel base, mm | 2375 |
| Front axle length, mm | 1450 |
| Rear axle length, mm | 1415 |
| Turning radius, m | 4.8 |
| Wheel spacing front | 1450 |
| Wheel spacing rear | 1415 |
Weight and permissible load | |
| Mass, kg | 1720 |
Volumes | |
| Fuel tank capacity, l | 65 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent on double wishbones |
| Rear stablilizer | yes |
| Rear suspension | Dependent, spring loaded |
| LSD | no |
Wheel rims | |
| Aluminium wheel | option |
Tires | |
| Front wheels | 205SR14 |
| Rear wheels | 205SR14 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Brake front search | 1 |
| Rear brake | 2 |
Exterior | |
Headlights | |
| Xenon lamps | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Additional stop light | no |
| Cornering lamps | no |
Side mirrors | |
| Power adjustable door mirrors | yes |
Windows | |
| Ultraviolet glass protection | no |

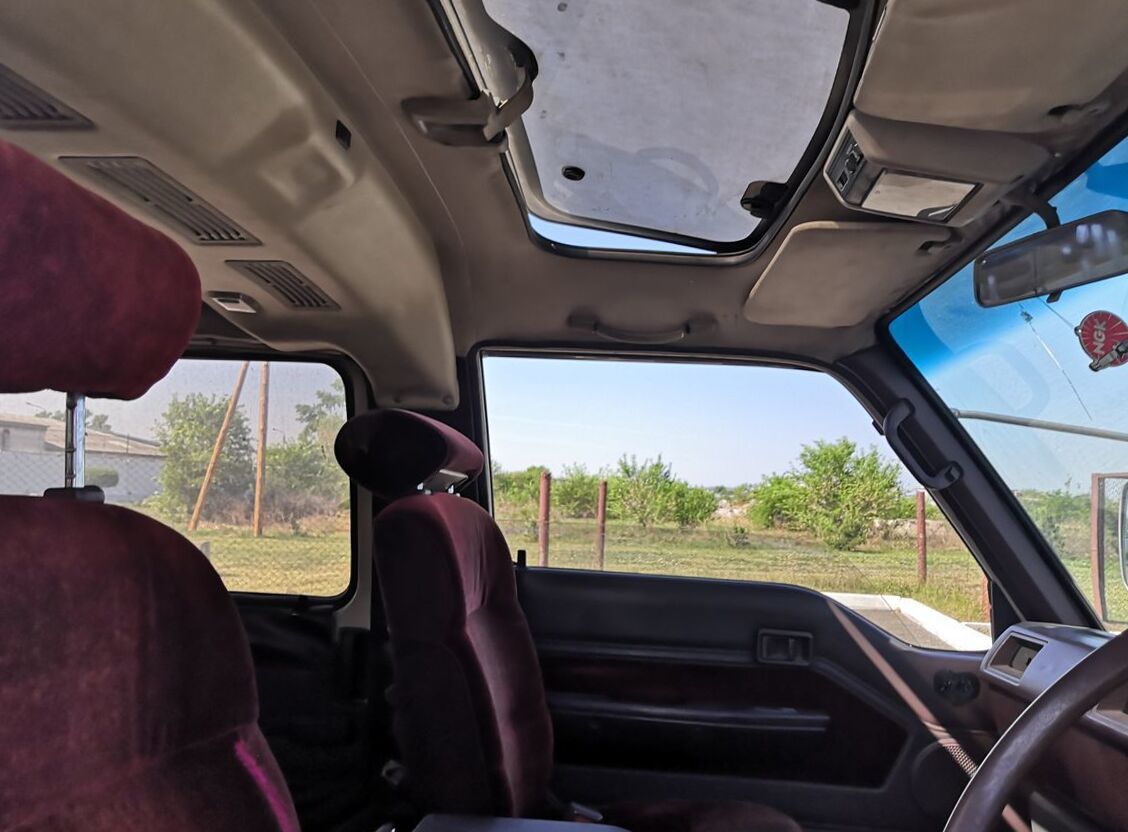

Roof | |
| Sunroof | no |
| Tilt sunroof | yes |
| Twin sunroof | yes |
Accessories | |
| Roof rail | no |
| Front spoiler | no |
| Rear spoiler | no |
| Back wiper | yes |
Body color | |
| Colors | 6 1303 1311 1312 |
Interior | |

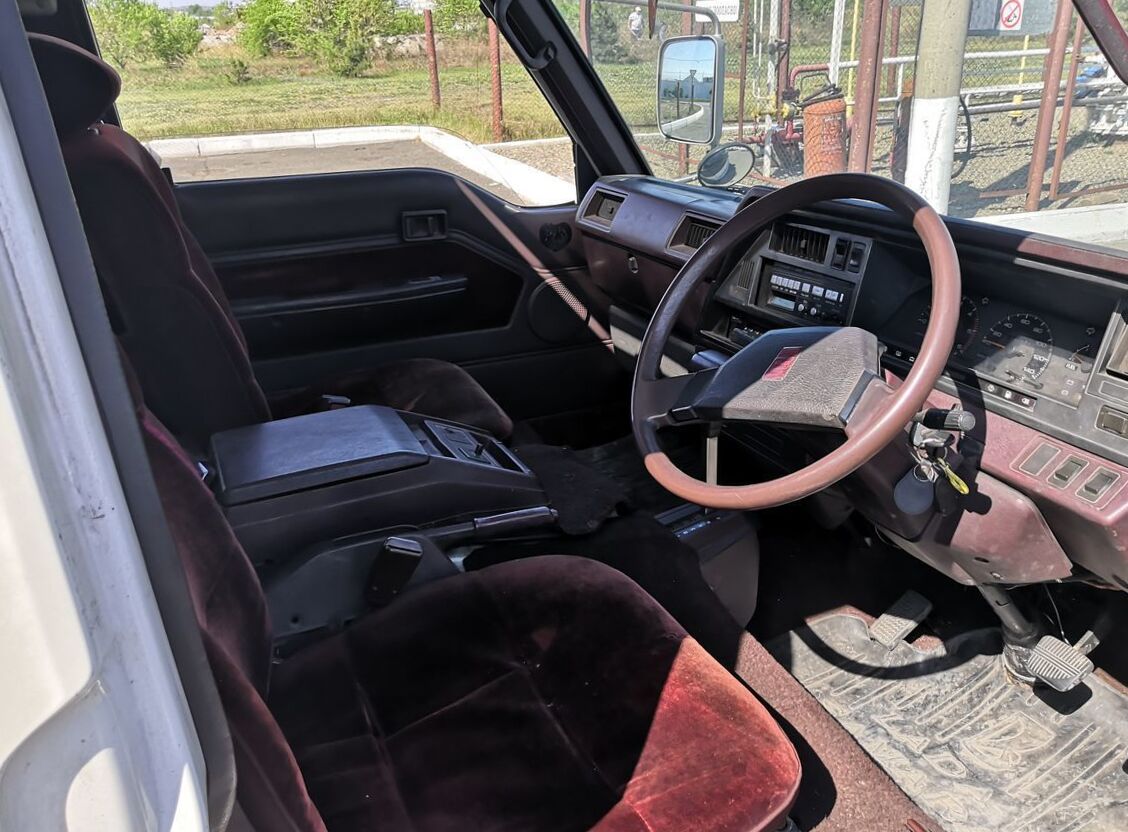

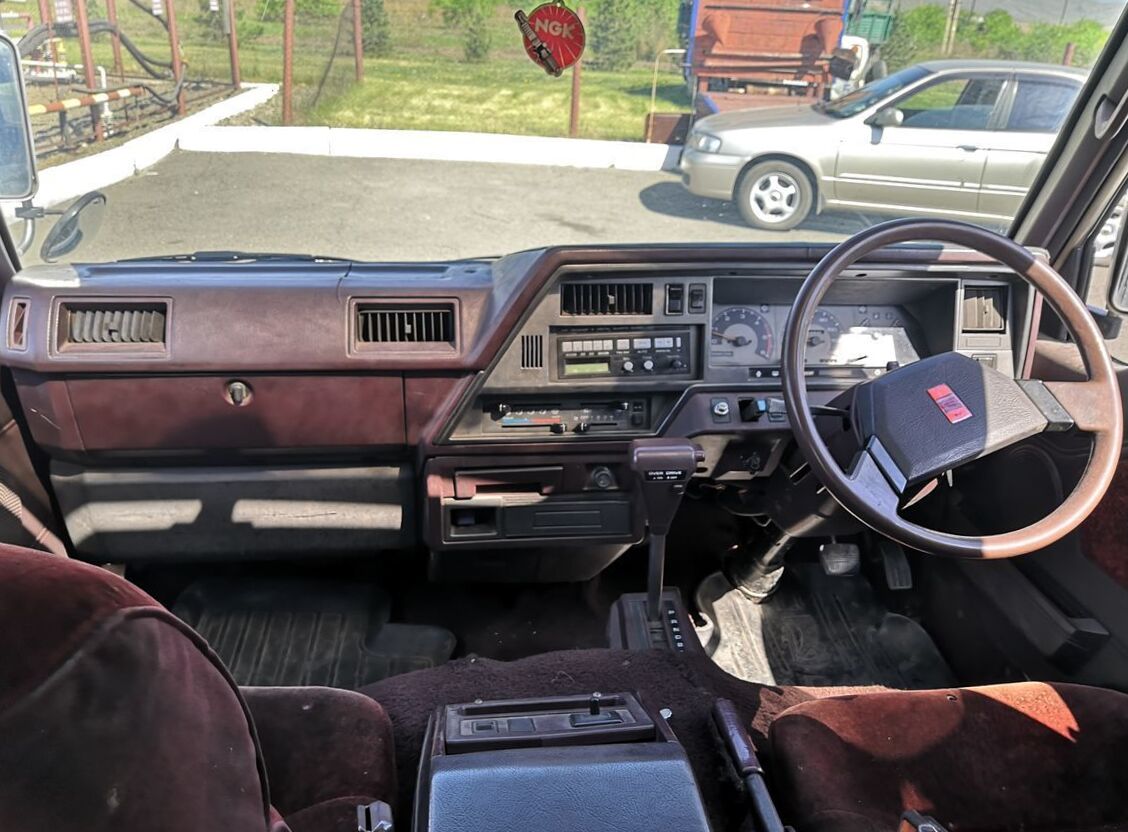

Steering wheel and center panel | |
| Leather winding | no |
| Telescopic steering | no |
| Tilt steering | yes |
| Tachometer | yes |
Interior design | |
| Leather seat | no |
| Wood panel | no |

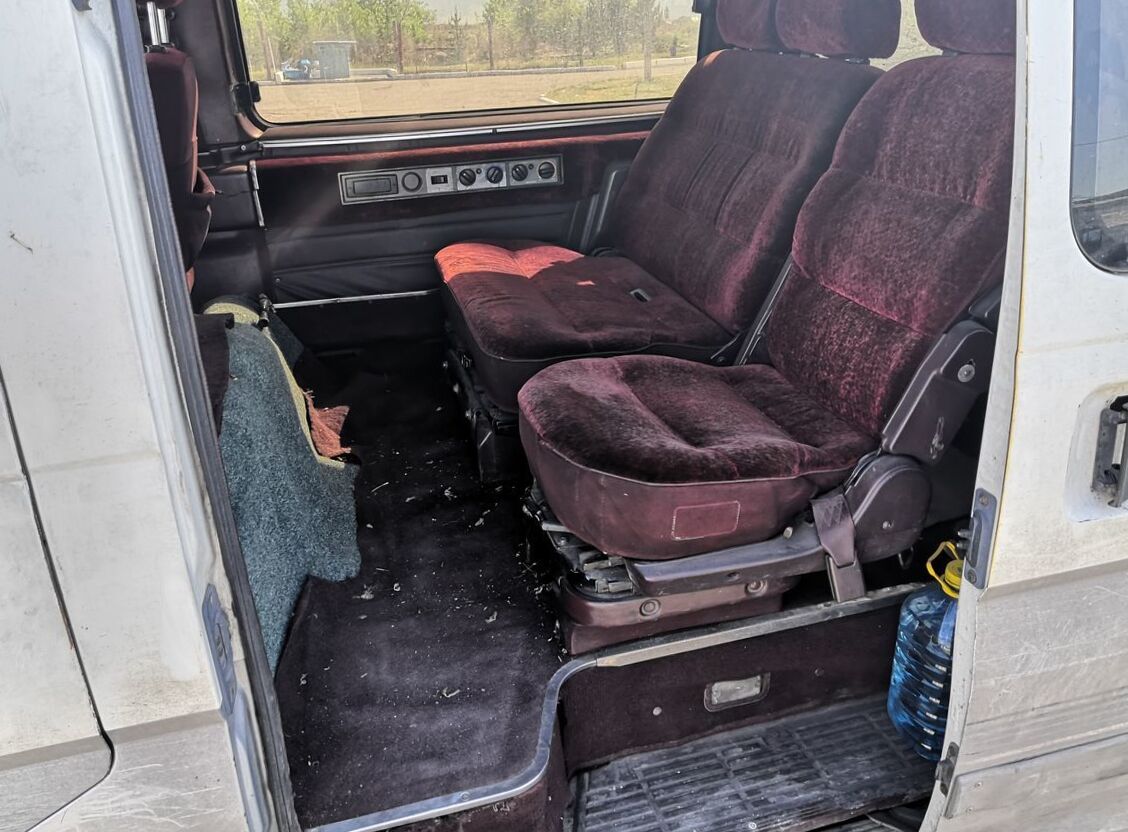

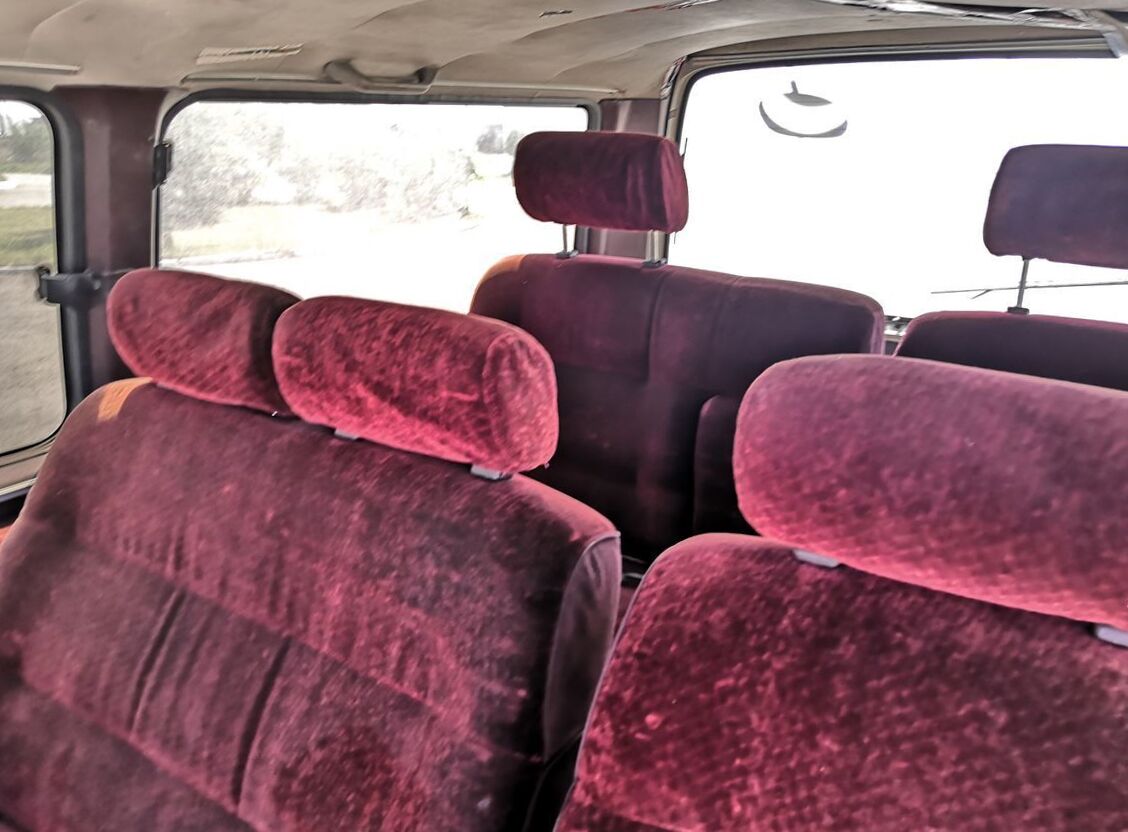

Seats | |
| Reclining seats | yes |
| Removable seats | yes |
| Turning seats | yes |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Power ajustable back seat | no |
| Centralized door lock | yes |
| Keyless enter | no |
| Power window | yes |
| Central power window control | no |
Safety | |
Airbags | |
| Drivers airbag | no |
| Passengers airbag | no |
| Side airbag | no |
Children safety | |
| Child car restraints | no |
Active and passive safety | |
| Durable frame | no |
| Side impact bar | no |
| 3 point safety belt | no |
| Safety belt pretensioner | no |
| Safety belt limiter | no |
Electronic security and traffic control systems | |
| Break assist | no |
| traction control | no |
| Cruise control | no |
Amenity | |
Microclimate | |
| Cooler | no |
| Automatic air conditioning | no |
| Twin conditioning system | option |
| Air purifier | no |
Audio systems | |
| Radio | yes |
| Autoreverse casette | no |
| CD player | no |
| CD changer | no |
| MD palyer | no |
| MD changer | no |
Navigation and video equipment | |
| Parking assist system | no |
1990 Nissan Homy IV Q-KSE24 2.0DT Coach Abbey Road planeta roof (79 Hp) specs
|
From 1986 until 1987, a KD-ARE24 chassis was used. The 1988 to 1997 models used the E24 chassis, models from 1998 onward use the TA-QGE25 chassis and VWE25 chassis. Currently, the Caravan outsells the Toyota Hiace since 2004. One main reason is due it having more power and cargo room. E20 / E21 / E22 The Urvan was a transporter vehicle manufactured by Datsun with 3, 5, 7 and up to 10 seats (minibus). It was especially popular in Europe, and was again very popular in Fire Departments and as ambulances in certain countries. It had a somewhat difficult handling, as it was heavy to steer, and did not come with power steering. Also, the gear shifter was located at the floor and went all the way up to the height of the hand, and had a slight curve. The gear shifter was nearly 80 centimetres long, so it was somewhat clumsy to shift, but it came with 5 gears, unusual in Europe at that time. It was delivered with a 1.6 litre (1596 cc) engine, a 1.8 litre (1798 cc) engine and a 2.0 litre (1998 cc) engine. It was produced from 1978 to 1983, when the Datsun brand ceased. The Urvan was rebadged into Nissan Vanette in 1984. » Read More About Nissan Homy |
