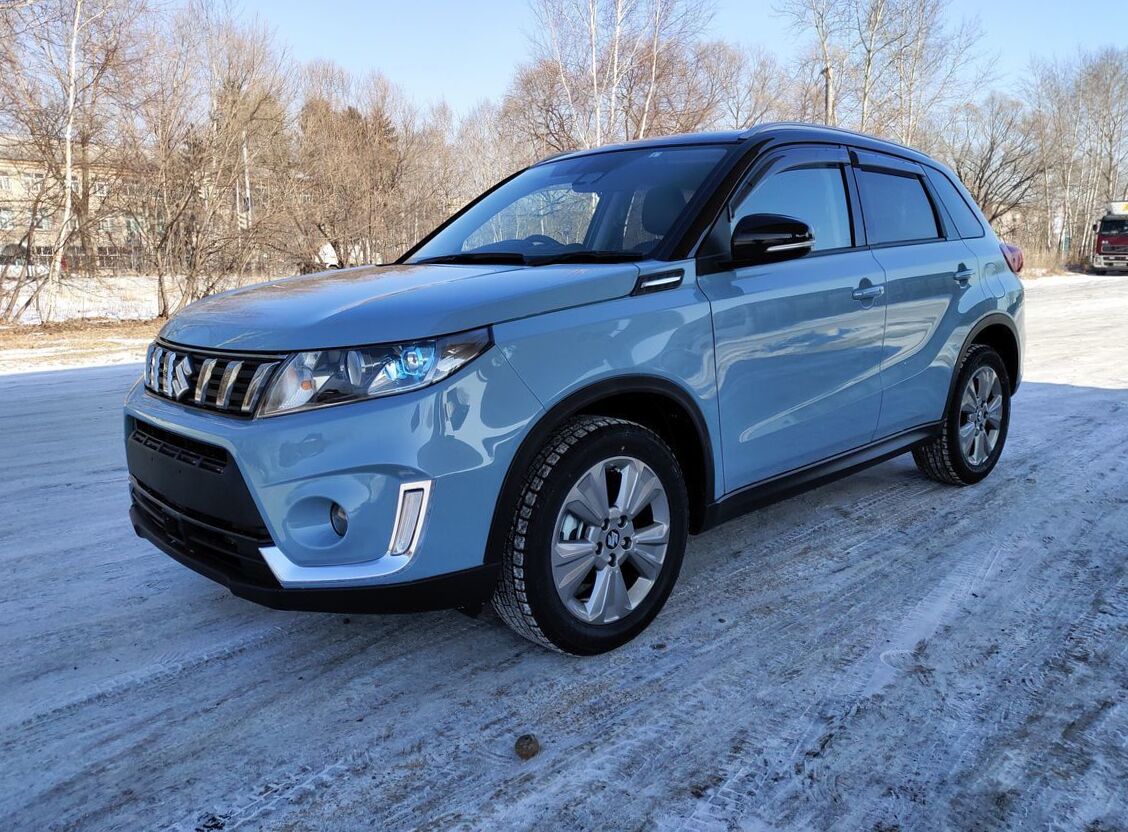

2019 Suzuki Escudo IV 1.4 Turbo 4WD
Suzuki Escudo Problems
Dust leak through transmission shifter unit
2006, Every time I'm on gravel or earth
roads the car let's in dust through the
tran...
AC
1999, Ac compressor relay socket negative line
not coming....ac panel is showing ac it working...
Replacement Parts
1989, The ECU completely burnt. The car wont
Start after the ECU burnt. It therefore needs
to ...
| Body type | SUV |
|---|---|
| Power | 136 Hp |
| Engine Displacement | 1400 cm3 or 1.4L or 85.4 cu-in |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Vin | 777*** |
| Price (out of date) | $17913 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2019 Suzuki Escudo IV? | SUV, 5 Seats, 5 Doors |
| What is the fuel economy, Suzuki Escudo SUV 2019? | 6.3 l/100 km |
| How much power, Suzuki Escudo 4BA-YEA1S 2019? | 136 Hp |
| What is the engine size, 2019 Suzuki Escudo 1.4 Turbo 4WD? | 1.4L or 1371cm3 |
| How many gears, What type is the gearbox, Suzuki Escudo IV 2019 SUV 1.4 Turbo 4WD (136 Hp)? | Automatic transmission 6 |
| What is the drivetrain, 2019 Suzuki Escudo SUV 1.4 Turbo 4WD (136 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2019 Suzuki Escudo IV? | 4175 mm |
| How wide is the vehicle, Suzuki Escudo SUV 2019? | 1775 mm |
Suzuki Escudo IV 4BA-YEA1S 1.4 Turbo 4WD (136 Hp) 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Specs
General information | |
|---|---|
| Production start year | 2018 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 6 |
| Engine volume, cc | 1371 |
| Frame name | 4BA-YEA1S |
| Clearance, mm | 185 |
| Manufacturing country | Hungary |
| Doors | 5 |
| Steering locaton | right |
Engine, transmission and steering specs | |
Engine specs | |

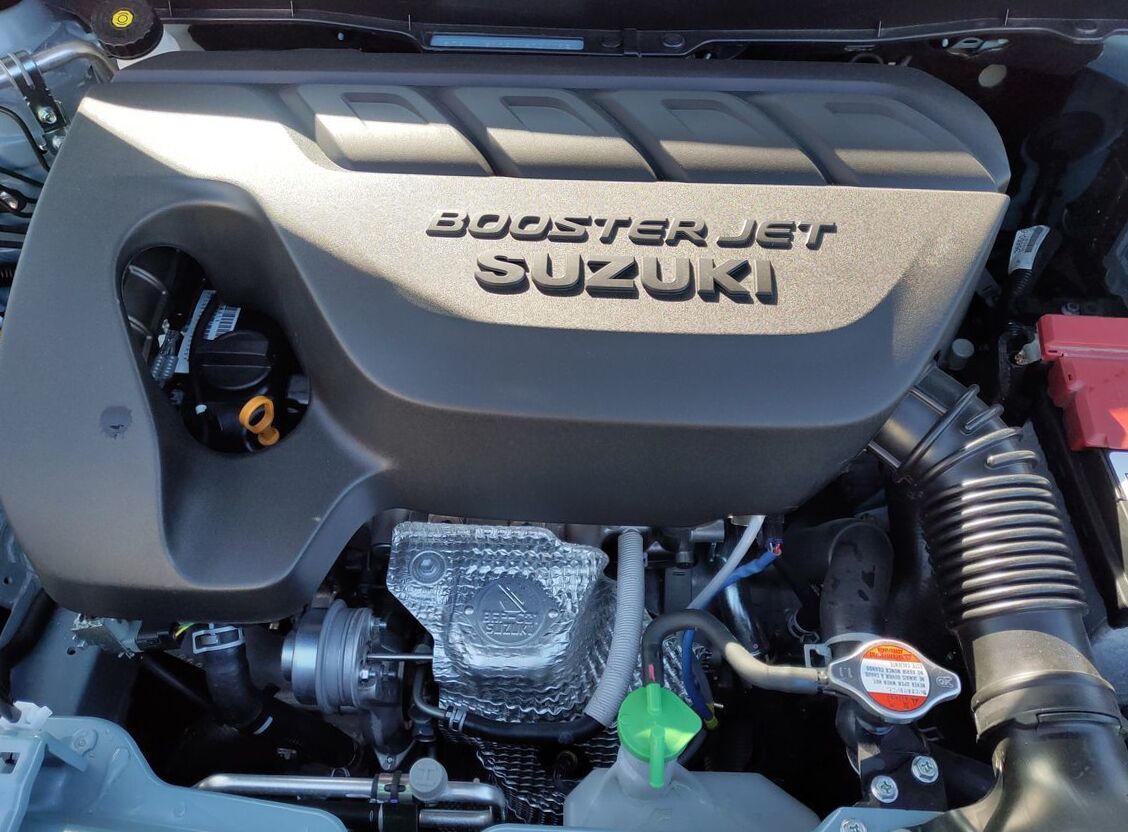

| Engine name | K14C |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 136 |
| Max power RPM, rpm | 5500 |
| Max power, hp (kWt) / rpm | 136 (100) / 5500 |
| Max torque, N*m | 210 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 210 (21) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 9.9 |
| Bore, mm | 73 |
| Stroke, mm | 81.9 |
| Engine additional info | VVT, electronic fuel injection system |
| Eco type | Reduction of toxic emissions by 25% according to the standard of 2018 |
| Start stop system | yes |
Fuel consumption | |
| City | 8.3 |
| Country side | 5.5 |
| Combined | 6.3 |
| Co2 emission | 145 |
Transmission | |
| 1st gear ratio | 4.044 |
| 2nd gear ratio | 2.37 |
| 3rd gear ratio | 1.555 |
| 4th fear ratio | 1.159 |
| 5th gear ratio | 0.851 |
| 6th gear ratio | 0.672 |
| Rear gear ratio | 3.192 |
| Main gear ratio | 3.501 |
| Shifter position | On the floor. |
| Manual mode | yes |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4175 |
| Exterior width, mm | 1775 |
| Exterior height, mm | 1610 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 1960 |
| Interior width, mm | 1480 |
| Interior height, mm | 1265 |
Chassis dimensions | |
| Wheel base, mm | 2500 |
| Turning radius, m | 5.2 |
| Wheel spacing front | 1535 |
| Wheel spacing rear | 1505 |
Weight and permissible load | |
| Mass, kg | 1220 |
Volumes | |
| Fuel tank capacity, l | 47 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |

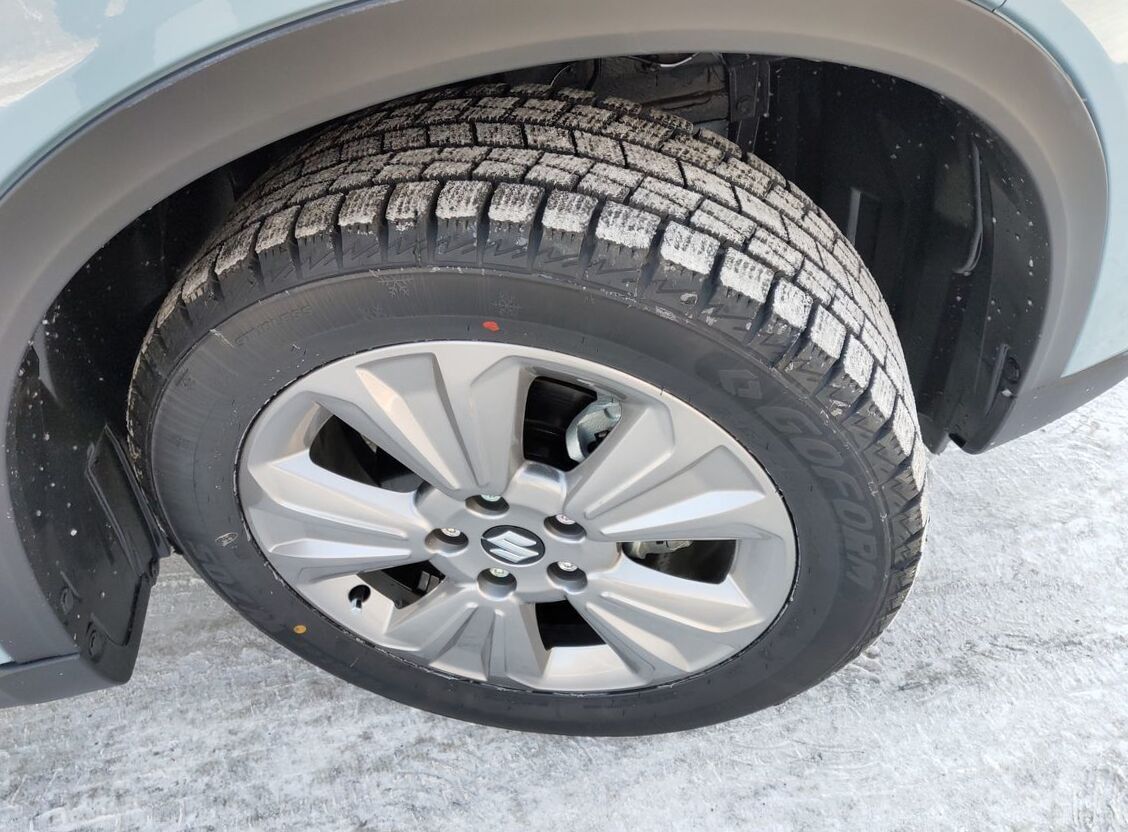

| Front wheels | 215/55R17 |
| Rear wheels | 215/55R17 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Parking brake | manual |
| Parking brake new first | manual |
Exterior | |

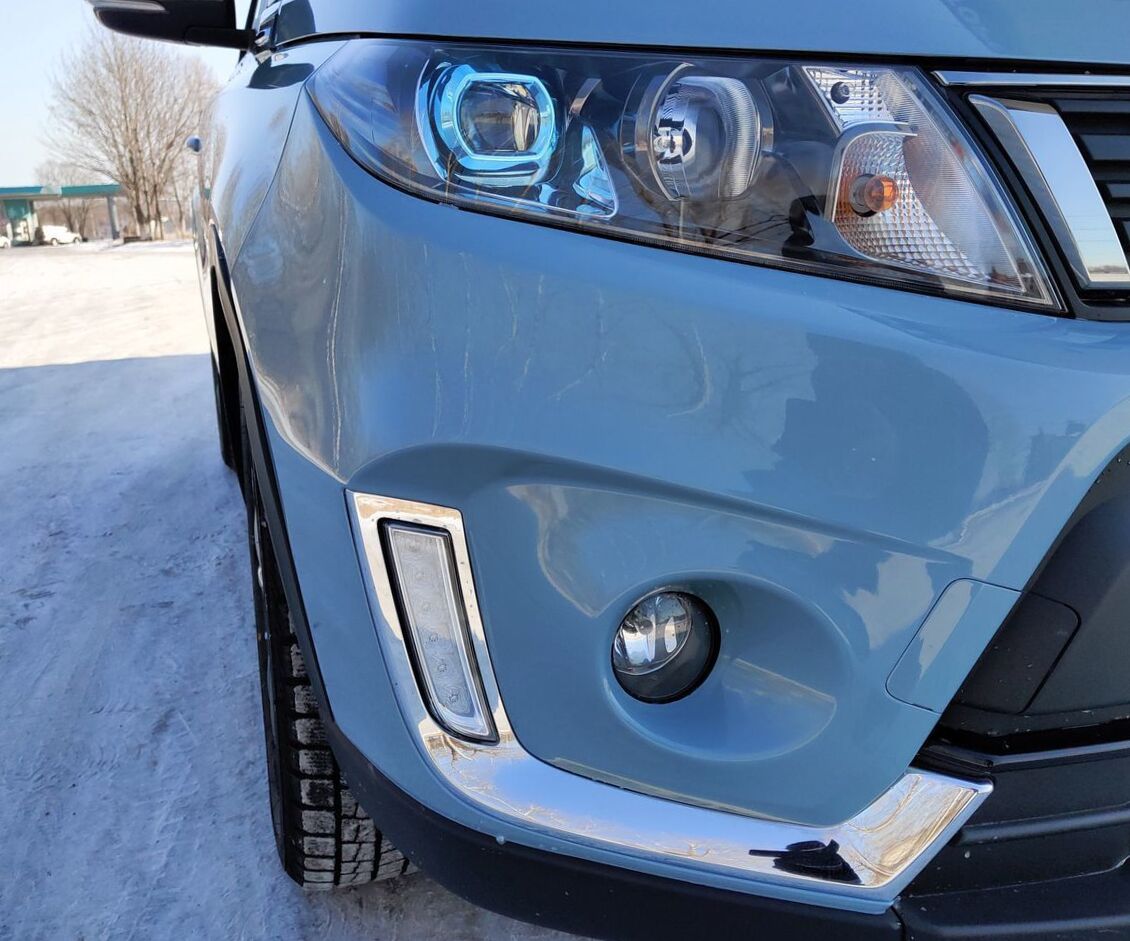

Headlights | |

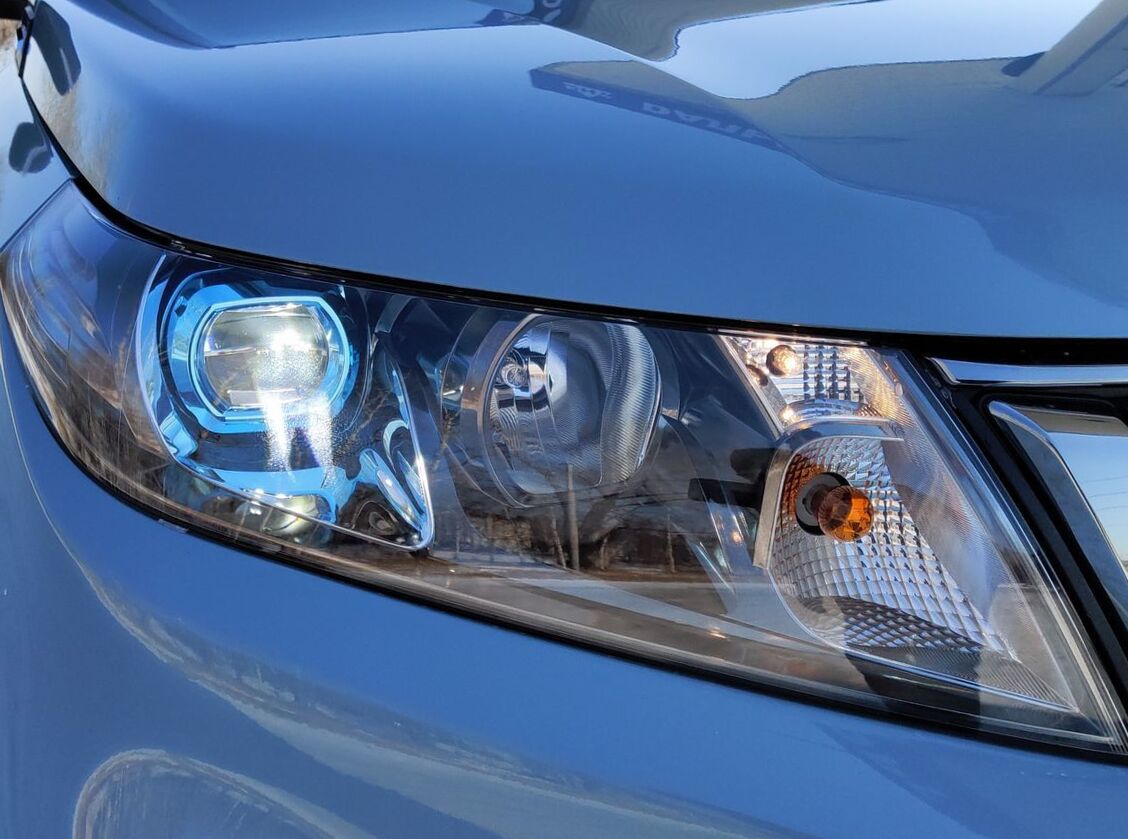

| Led lights | yes |
| Front fog lamps | yes |

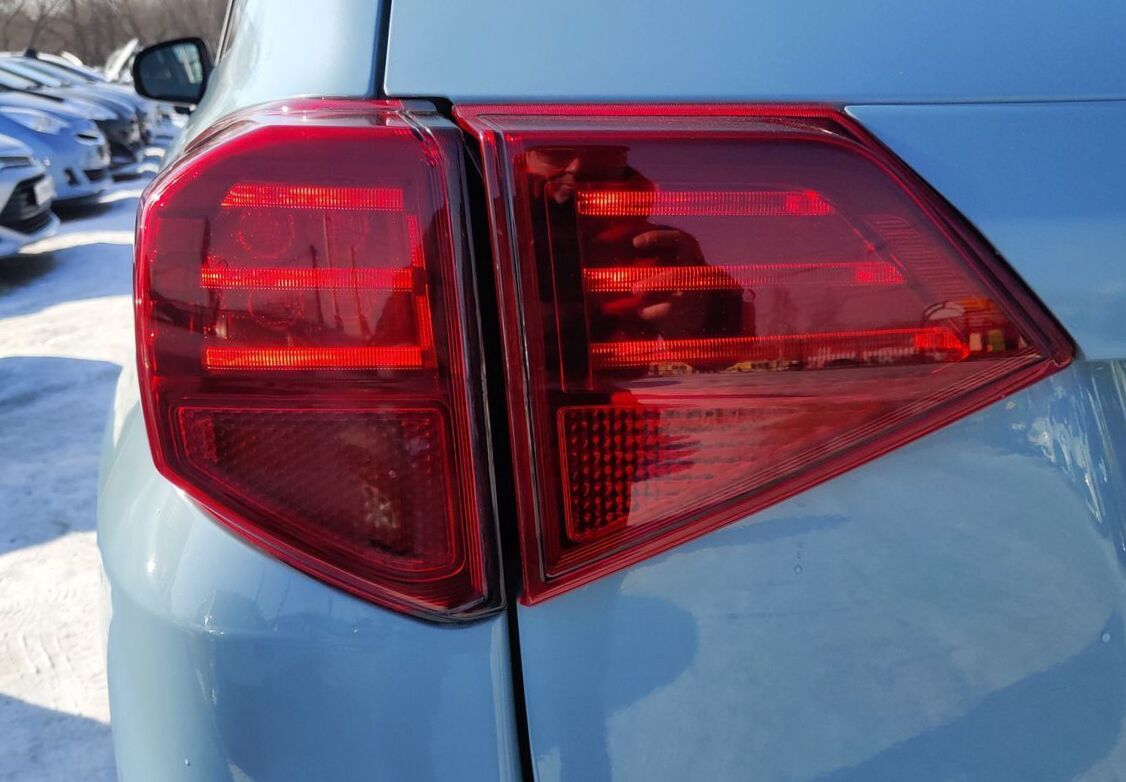

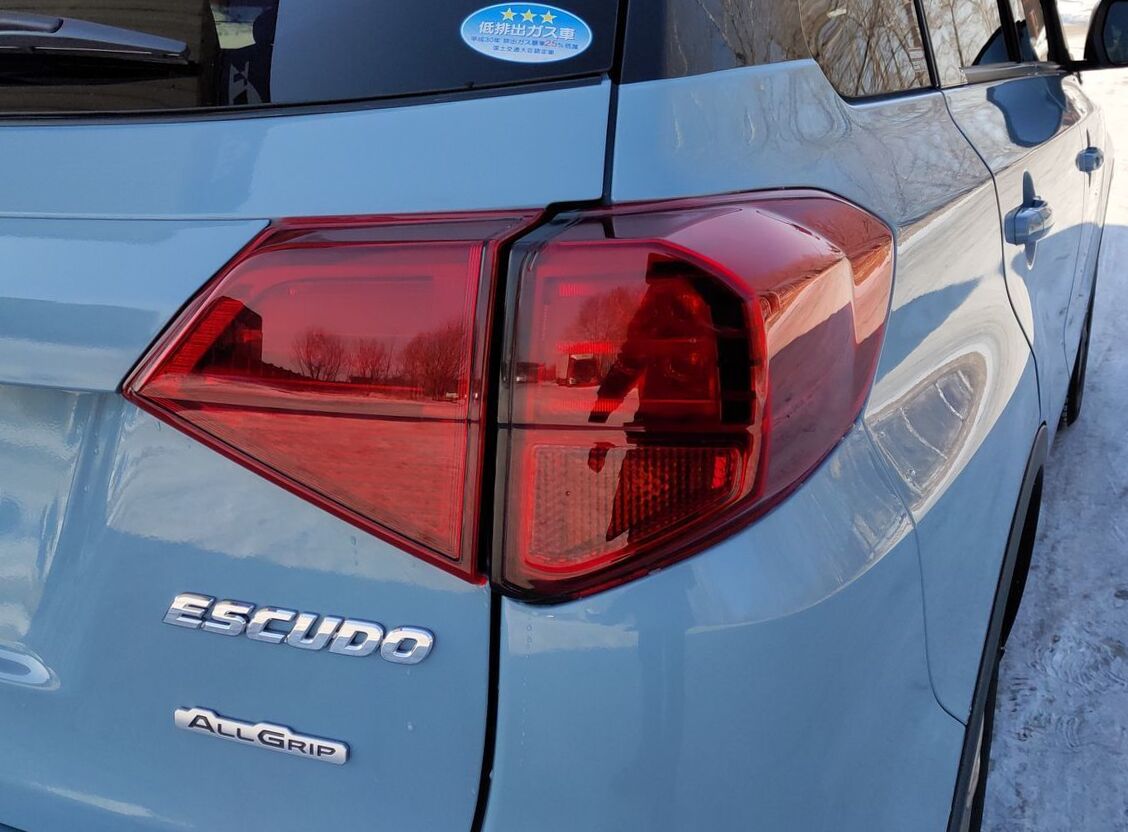

| Led backlights | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | yes |

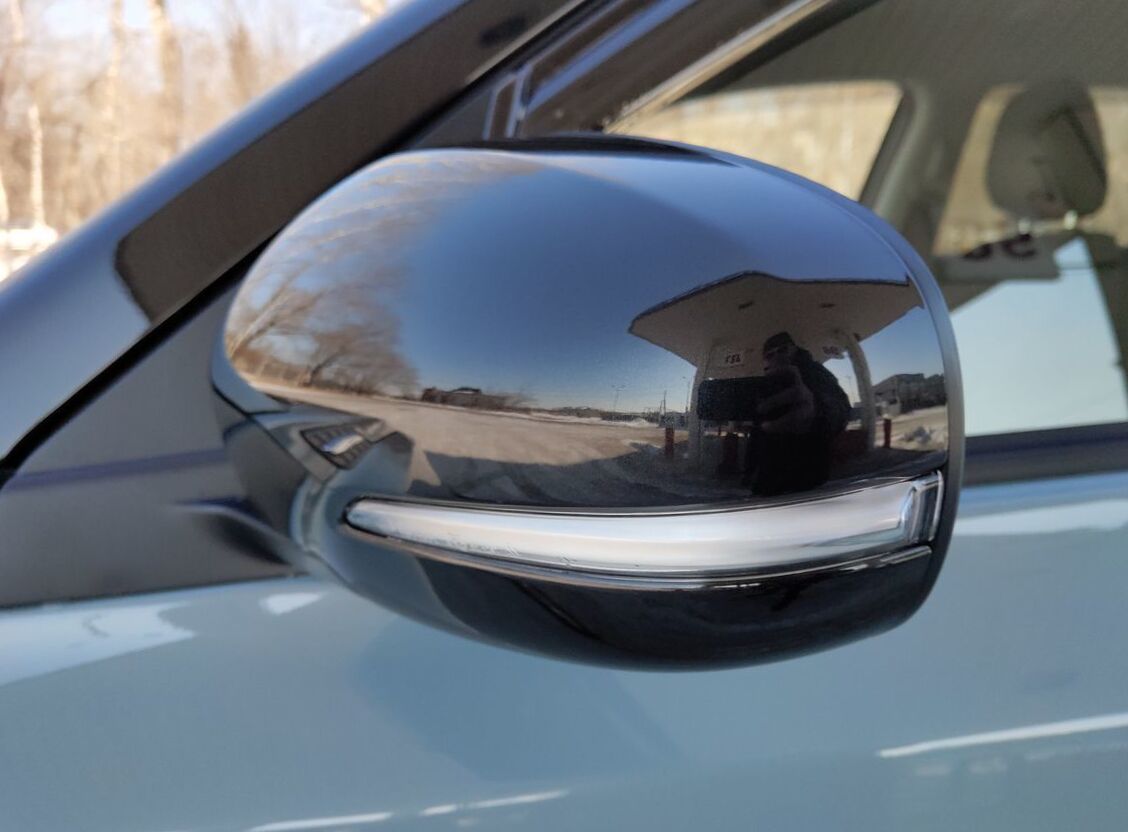

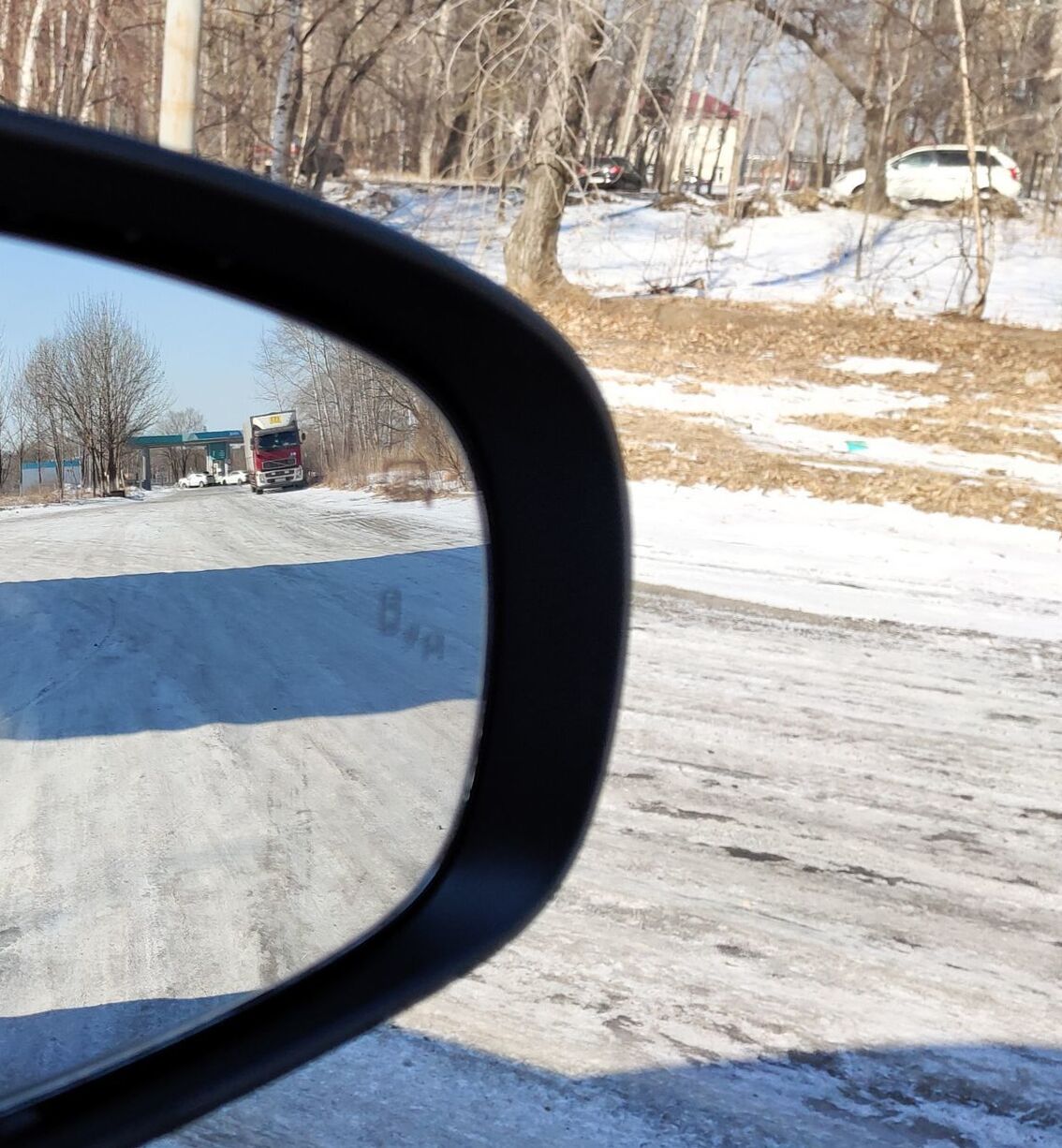

Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |

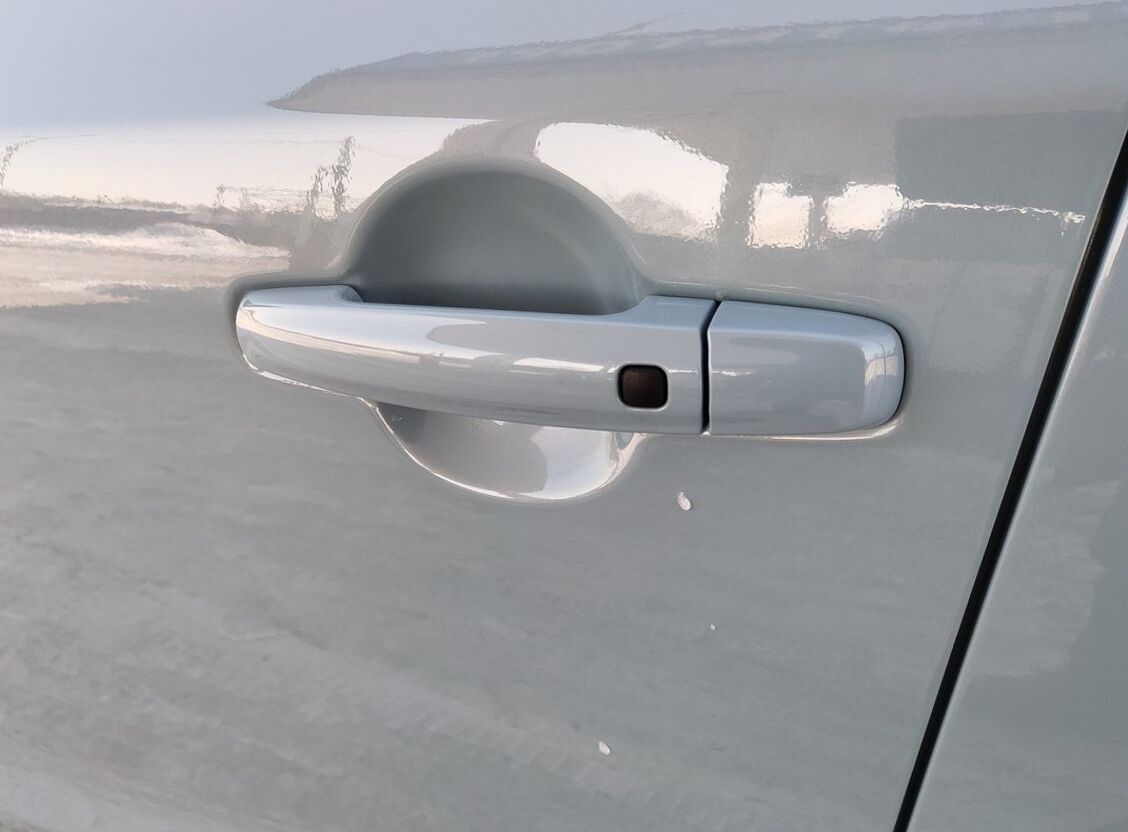

| Door handles in body color | yes |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |

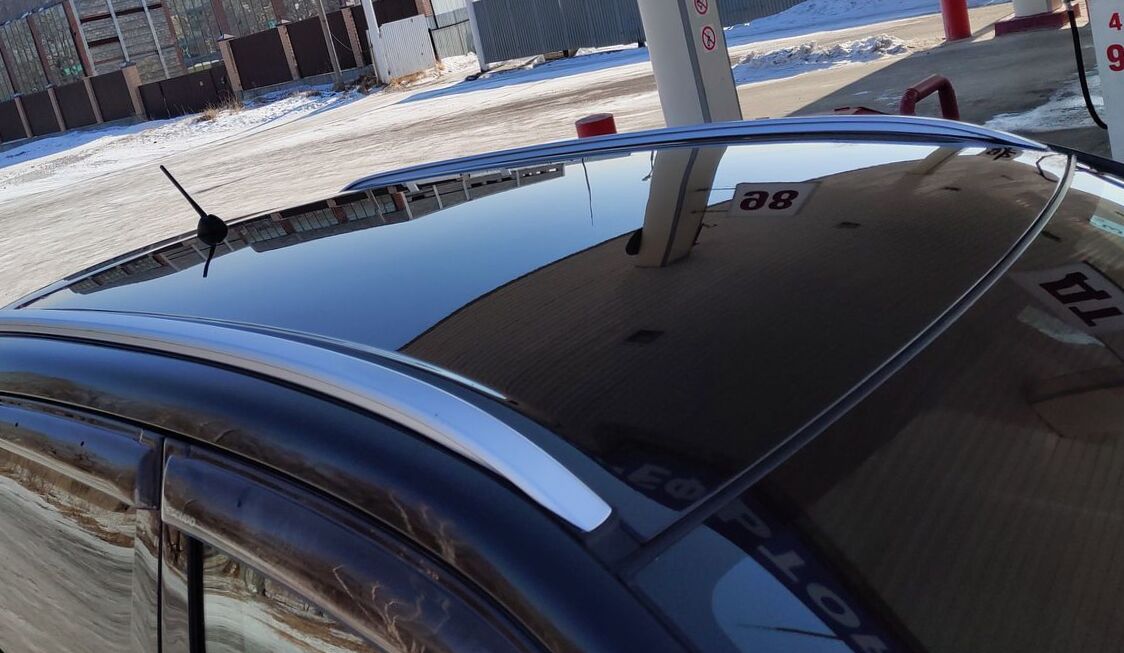

| Roof rail | yes |
| Back wiper | yes |

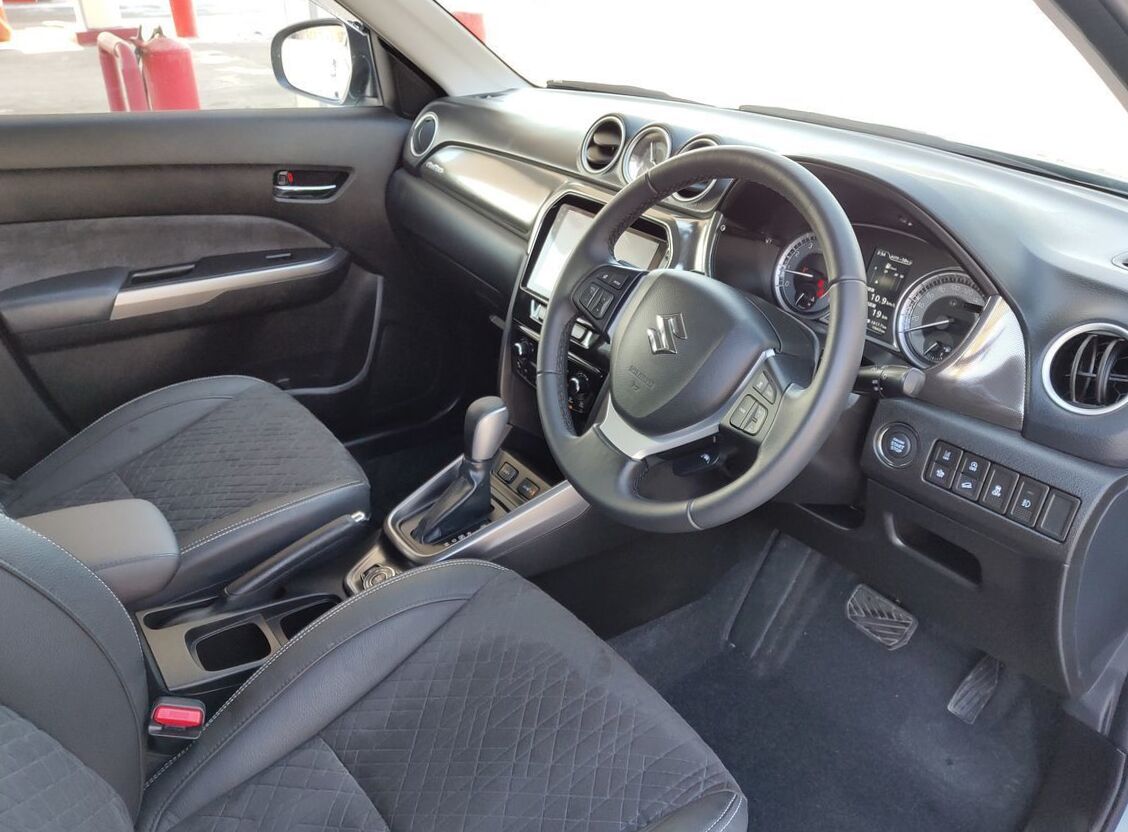

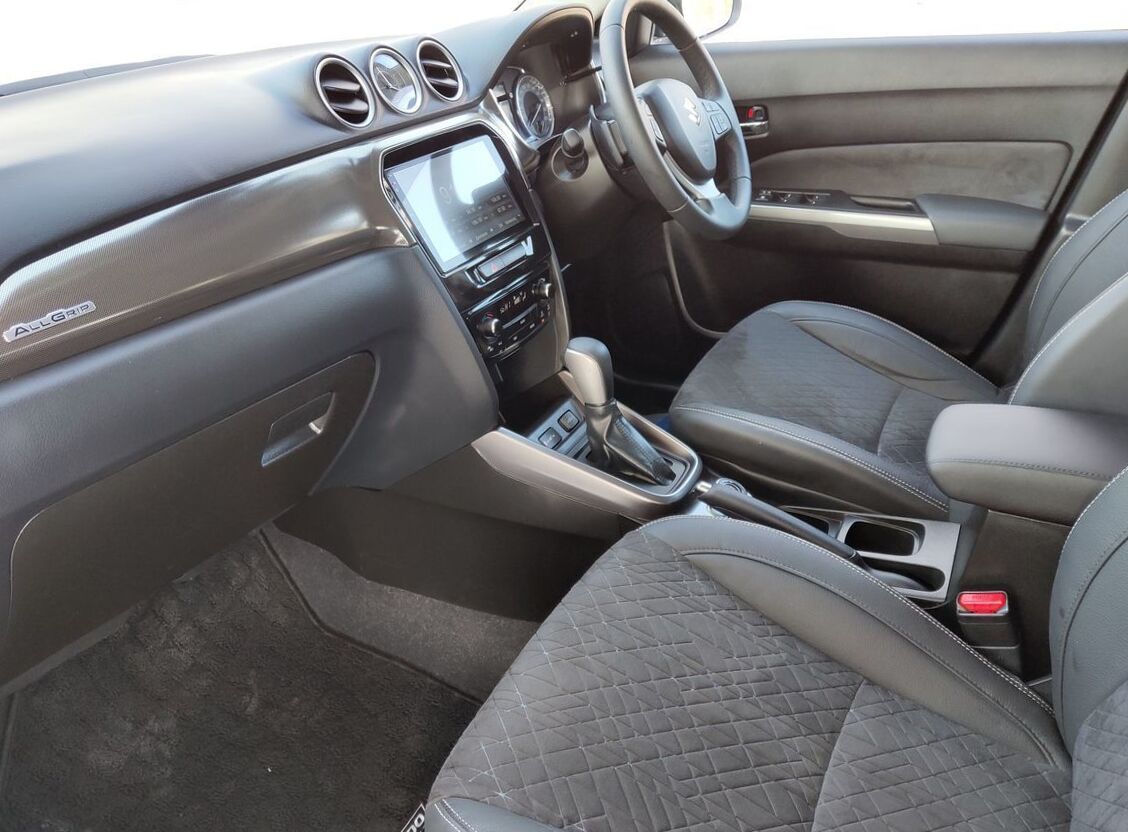

Interior | |
Steering wheel and center panel | |
| Leather winding | yes |
| Telescopic steering | yes |
| Tilt steering | yes |

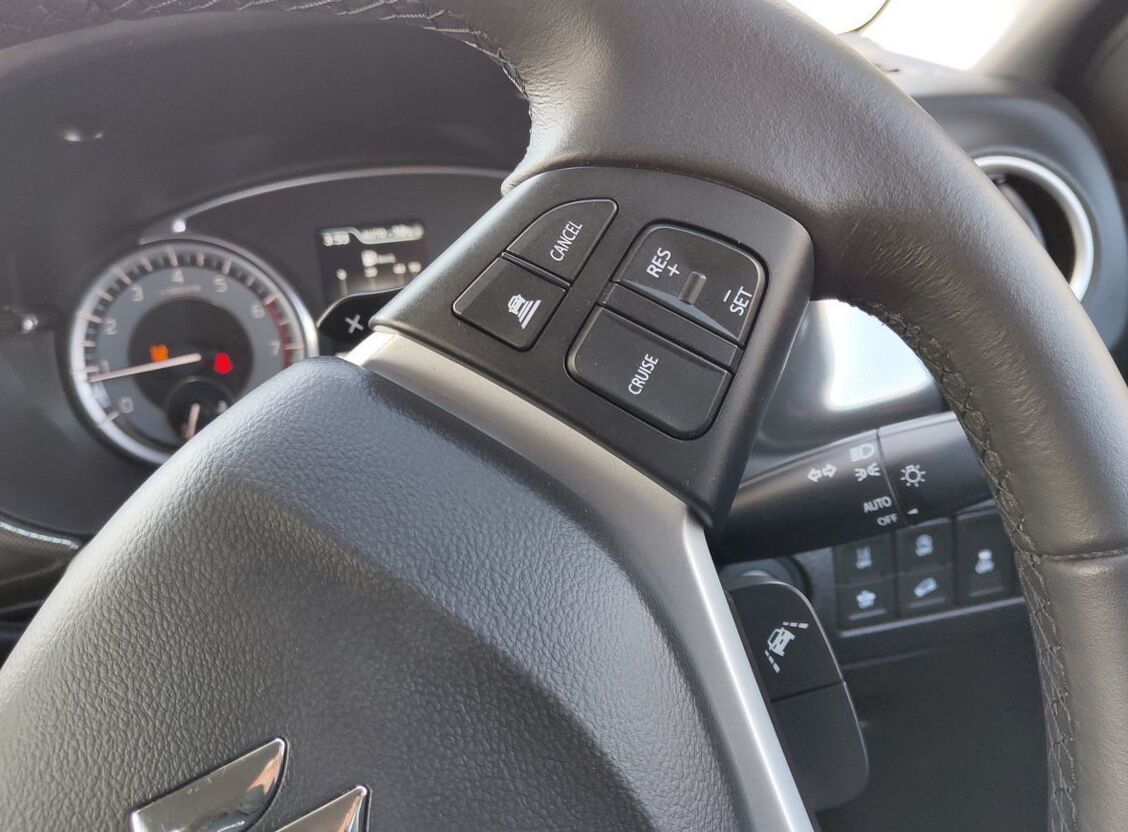

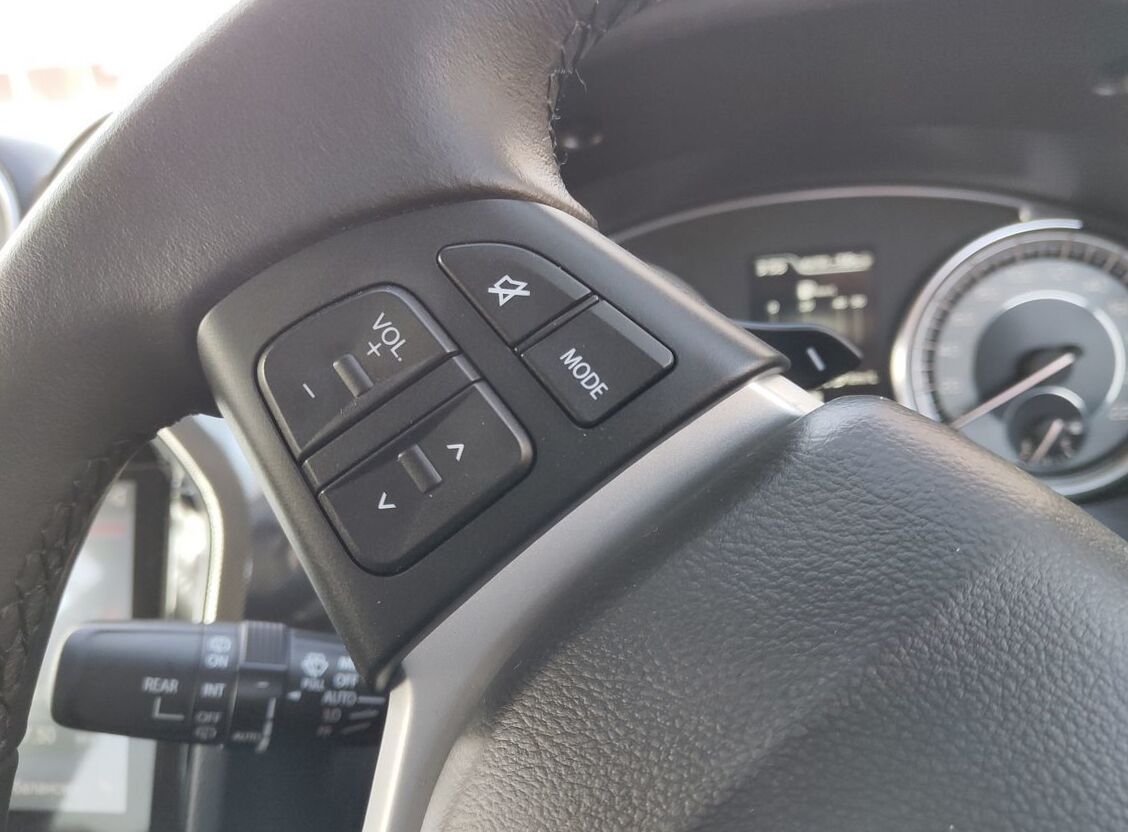

| Audio control on steering wheel | yes |
| Utility color display | yes |

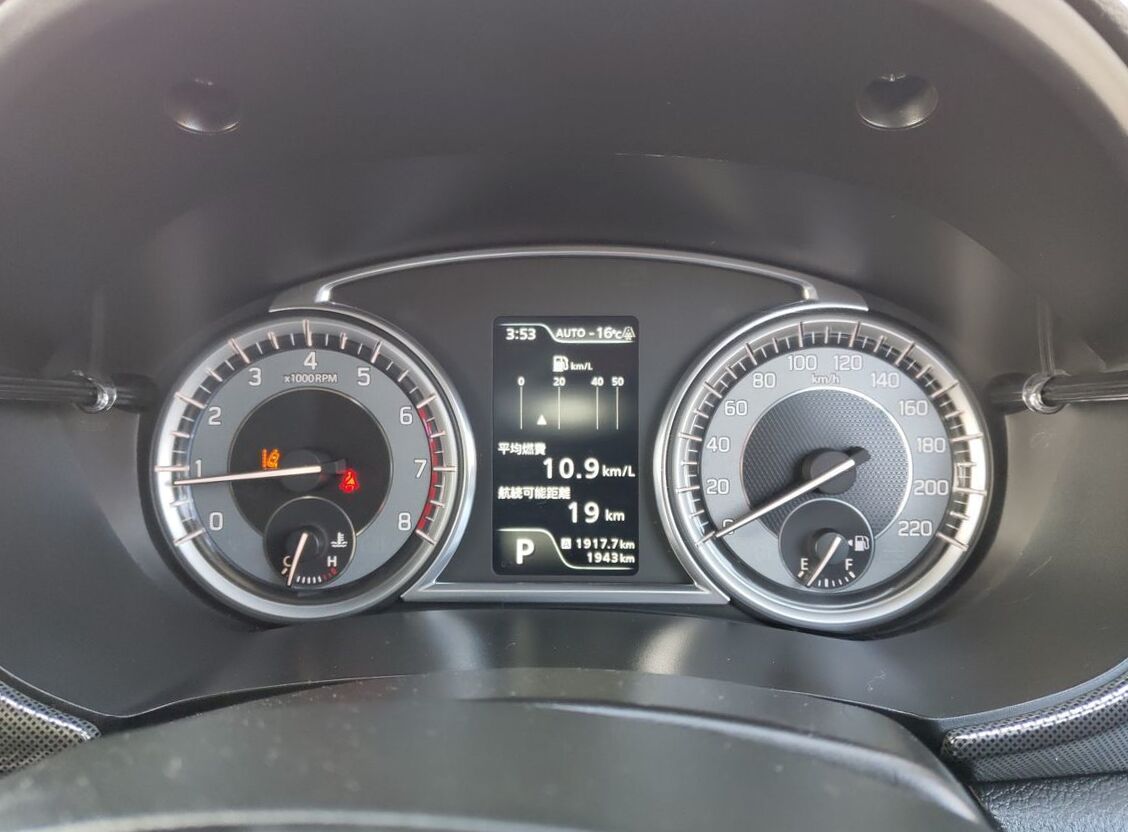

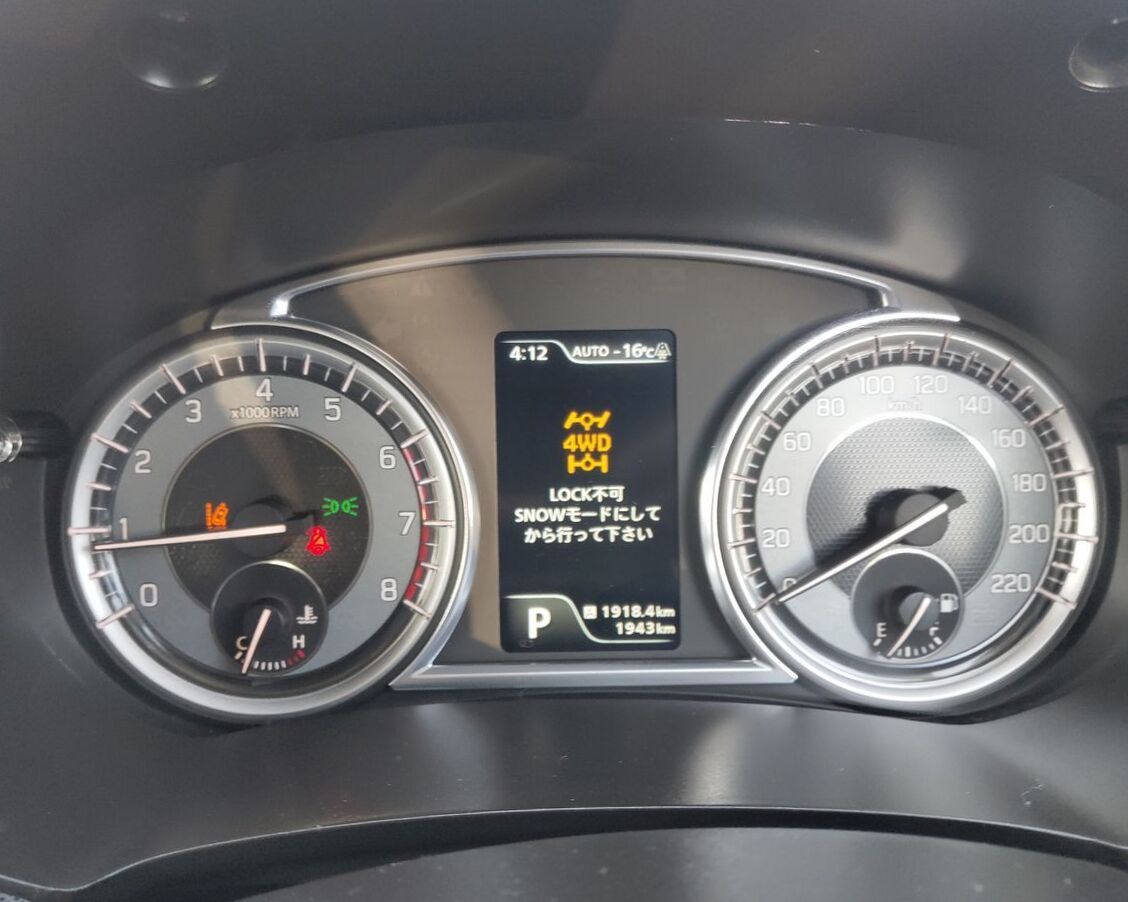

| Tachometer | yes |
| Env temp | yes |
| Engine start button | yes |
Interior design | |
| Combined obivka Salon | yes |

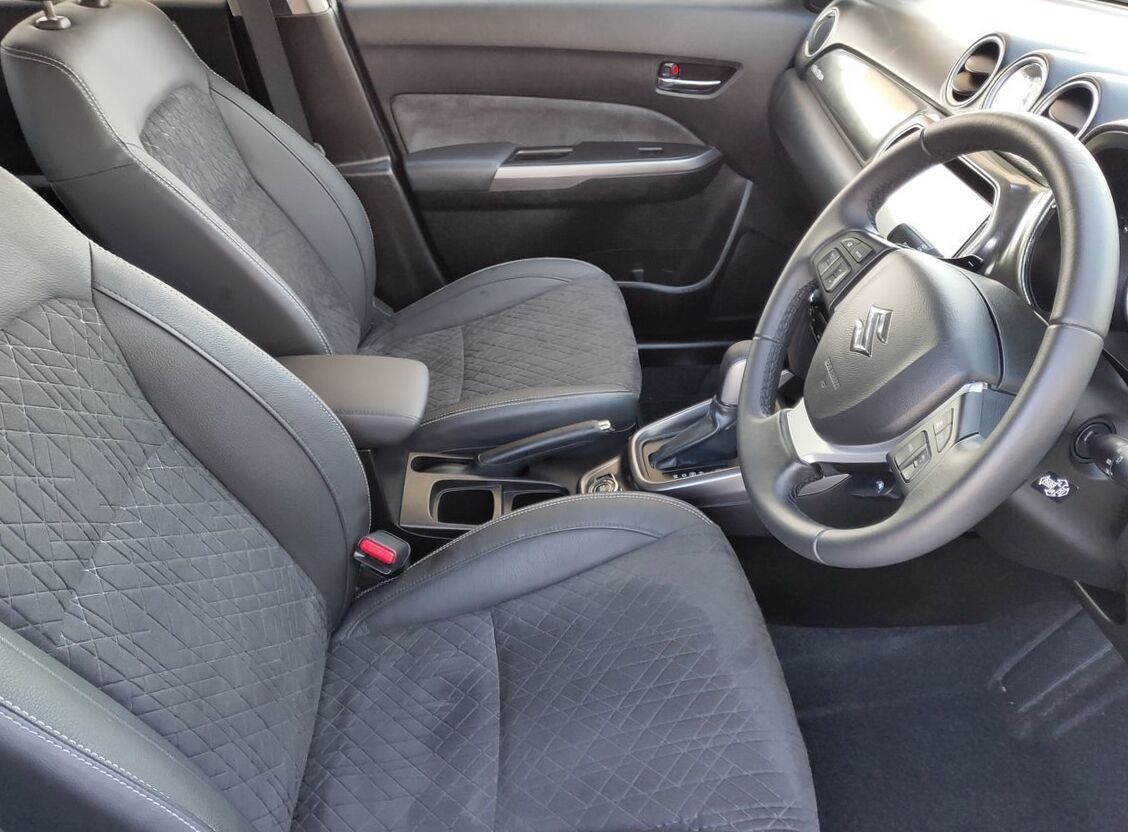

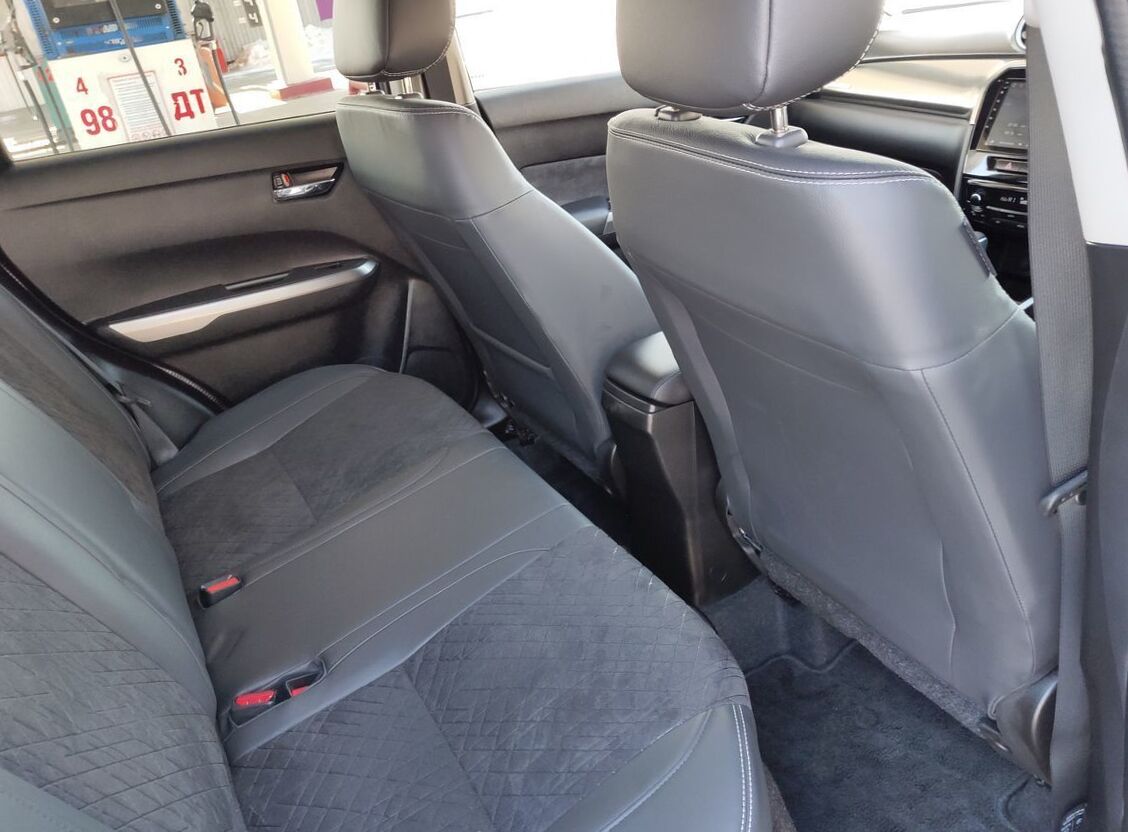

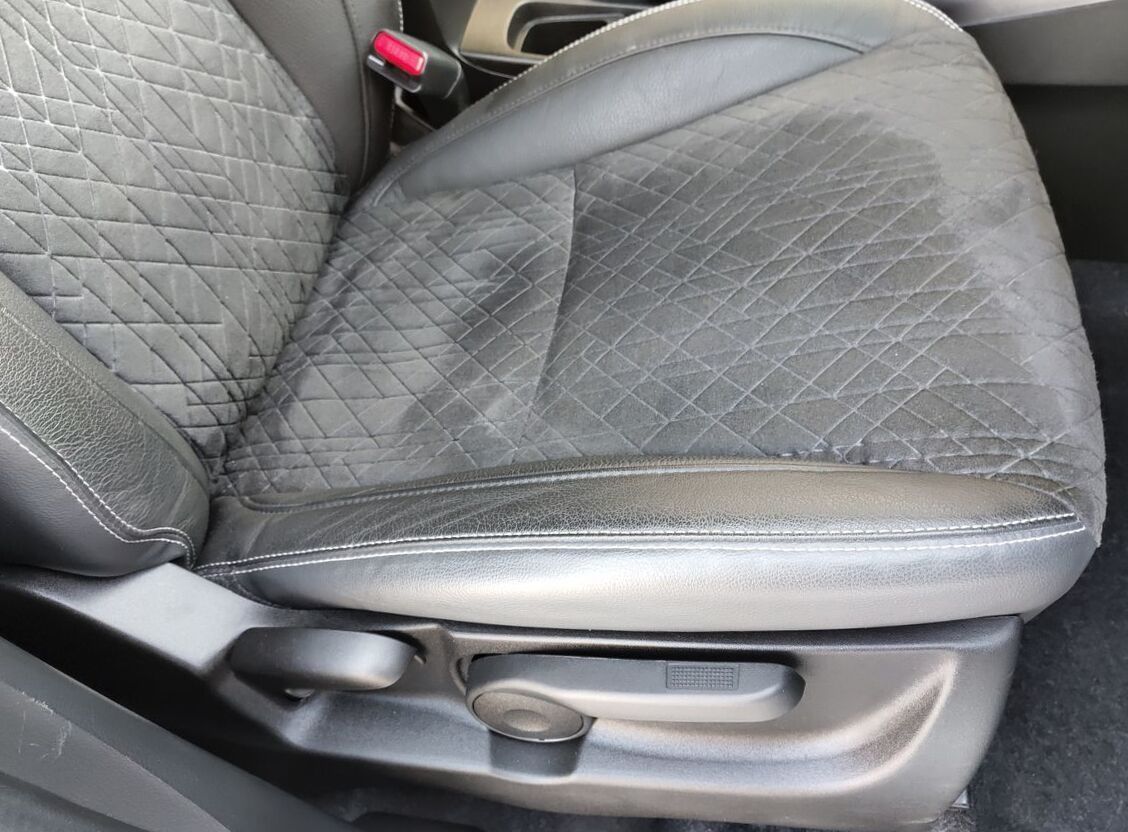

Seats | |
| 2nd row | 60/40 ratio fold seat |
| Seat lifter | yes |
| Headrests for seats | 5 |
| Separating armrest front | yes |
| Seats pockets | yes |
Electric interior package | |

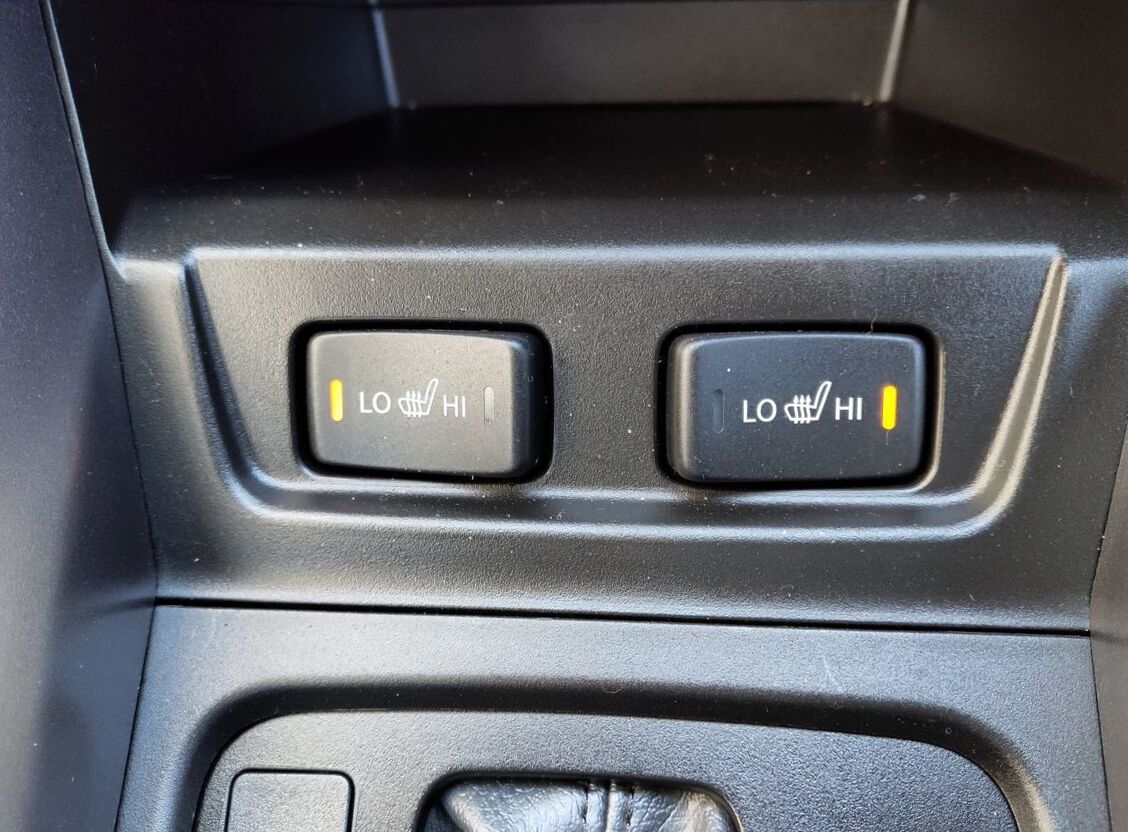

| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
Additional interior equipment | |
| Holders for bottles in doors | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | yes |
| Curtain airbags | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Active headrest | yes |
| Side impact bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Down hill assist | yes |
| Hill-start assist control system | yes |
| Damping Control System | yes |
| Lane Keep Assist | yes |
| Cruise control | yes |
| Distance control system | yes |
| Blind zone monitoring | yes |
| Collision mitigation system | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Air filter | yes |

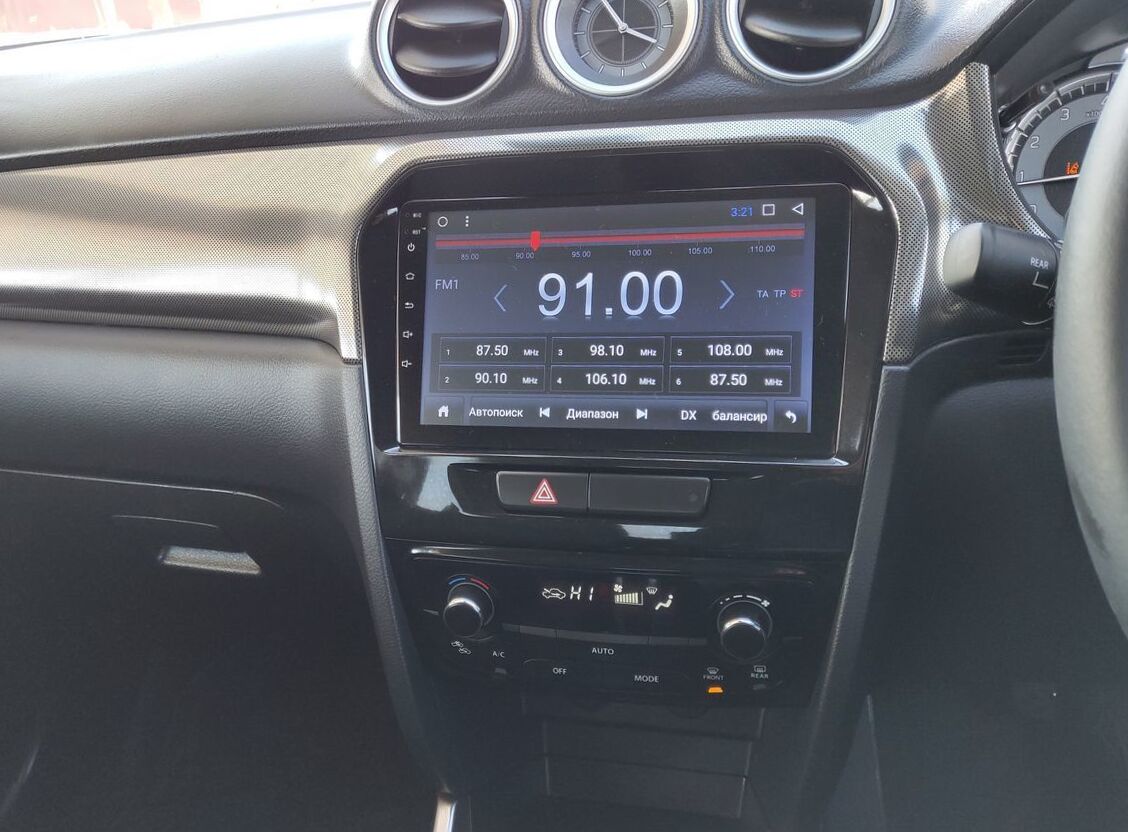

Audio systems | |
| Additional sound equipment | 6 speakers |
Additional amenities | |
| Antidazzle rearview mirror | no |
| Mirrors in sunshields | yes |
| Lagage box | yes |
| Blind in luggage compartment | yes |
| Onboard computer | yes |
Car safety | |
| Alarm system | yes |
| Security alarm | yes |
2019 Suzuki Escudo IV 4BA-YEA1S 1.4 Turbo 4WD (136 Hp) specs
|
The Sidekick was sold in various badges such as the Geo Tracker (Chevrolet Tracker after 1998) in the United States, and as the GMC Tracker, Chevrolet Tracker, Asüna Sunrunner and Pontiac Sunrunner in Canada. It was also sold as the Santana 300 and 350 in Spain. In the Japanese home market, it was variously sold also with Mazda badge. The 1st Generation Escudo was sold in Mexico as the Chevrolet Vitara. The 2nd Generation is currently sold in Mexico as the Chevrolet Tracker, as the Chevrolet Grand Vitara in other Central and South American countries, while in Argentina, Uruguay, Paraguay and Chile is sold as the Suzuki Grand Vitara. The original 1989 North American Sidekick was available as a 2-door convertible or hardtop, in 1.3 liter JA and more powerful 4-wheel-drive JX & JLX trims. An 80hp (60kW) 1.6 liter, 8-valve, 4-cylinder engine was available on the JX & JLX. 1990 brought the deletion of the upscale JLX version. In 1991, a 4-door Sidekick with a lengthened wheelbase was introduced and the following year a 95hp (71kW), 1.6 liter, 16-valve engine was introduced. 1991 also brought the introduction of rear antilock brakes. The original Sidekick was updated in 1996 with a new Sport version available with 120hp (89kW), 1.8 liter 16-valve 4-cylinder engine. The Sport also had dual airbags, 2-tone paint and 16" Alloy wheels. » Read More About Suzuki Escudo |
