2020 Suzuki Jimny IV 1.5 AT GLX
Suzuki Jimny Problems
Rough idle and steering wheel instability
2007, Rough idling with back firing at times
and slow progresion up hills ,at times. Also
sch...
Dont have spark with new coils
1998, bought this car not running so history
unknown but the fuel pump work when key is on,
st...
Pls help me
1999, my suzuki jimmy 1999 is automatic but wen
i go in drive it is not changing out at all so...
| Body type | SUV 3 Doors |
|---|---|
| Power | 102 Hp |
| Engine Displacement | 1500 cm3 or 1.5L or 91.5 cu-in |
| Color | silver |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Vin | 680*** |
| Price (out of date) | $25975 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2020 Suzuki Jimny IV? | SUV, 4 Seats, 3 Doors |
| How fast is the car, 2020 Suzuki Jimny 1.5 AT GLX? | 140 km/h |
| How much power, Suzuki Jimny IV 2020 SUV 1.5 AT GLX (102 Hp)? | 102 Hp |
| What is the engine size, 2020 Suzuki Jimny SUV 1.5 AT GLX (102 Hp)? | 1.5L or 1460cm3 |
| How many gears, What type is the gearbox, 2020 Suzuki Jimny IV? | Automatic transmission 4 |
| What is the drivetrain, 2020 Suzuki Jimny 1.5 AT GLX? | All wheel drive (4x4) |
| How long is this vehicle, Suzuki Jimny IV 2020 SUV 1.5 AT GLX (102 Hp)? | 3480 mm |
| How wide is the vehicle, 2020 Suzuki Jimny SUV 1.5 AT GLX (102 Hp)? | 1645 mm |
| What is the gross weigh, 2020 Suzuki Jimny IV? | 1435 kg |
| How much trunk (boot) space, 2020 Suzuki Jimny 1.5 AT GLX? | 85 l |
Suzuki Jimny IV 1.5 AT GLX (102 Hp) 2019, 2020, 2021, 2022, 2023, 2024, 2025 Specs
General information | |
|---|---|
| Production start year | 2019 |
| Drive type | All wheel drive (4x4) |
| Frame type | SUV |
| Transmission type | Automatic transmission 4 |
| Engine volume, cc | 1460 |
| Max speed | 140 |
| Clearance, mm | 210 |
| Manufacturing country | Japan |
| Doors | 3 |
| Winter complectation | yes |
| Warranty | 3 years or 100,000 km |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | K15B |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | no |
| Max power, hp | 102 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 102 (75) / 6000 |
| Max torque, N*m | 130 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 130 (13) / 4000 |
| Valves per cylinder | 4 |
| Compression ratio | 10 |
| Bore, mm | 74 |
| Stroke, mm | 85 |
| Engine additional info | VVT, distributed injection |
| Eco type | Euro-5 |
Transmission | |
| 1st gear ratio | 2.875 |
| 2nd gear ratio | 1.568 |
| 3rd gear ratio | 1 |
| 4th fear ratio | 0.697 |
| Rear gear ratio | 2.3 |
| Main gear ratio | 4.091 |
Steering | |
| Power steering | no |
| Electric power steering | yes |
| Steereing gear type | Ball nut screw |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3480 |
| Exterior width, mm | 1645 |
| Exterior height, mm | 1725 |
Interior dimensions | |
| Capacity | 4 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2250 |
| Turning radius, m | 4.9 |
| Wheel spacing front | 1395 |
| Wheel spacing rear | 1405 |
Weight and permissible load | |
| Mass, kg | 1110 |
| Max capacity | 325 |
| Max. weight | 1435 |
Volumes | |
| Fuel tank capacity, l | 40 |

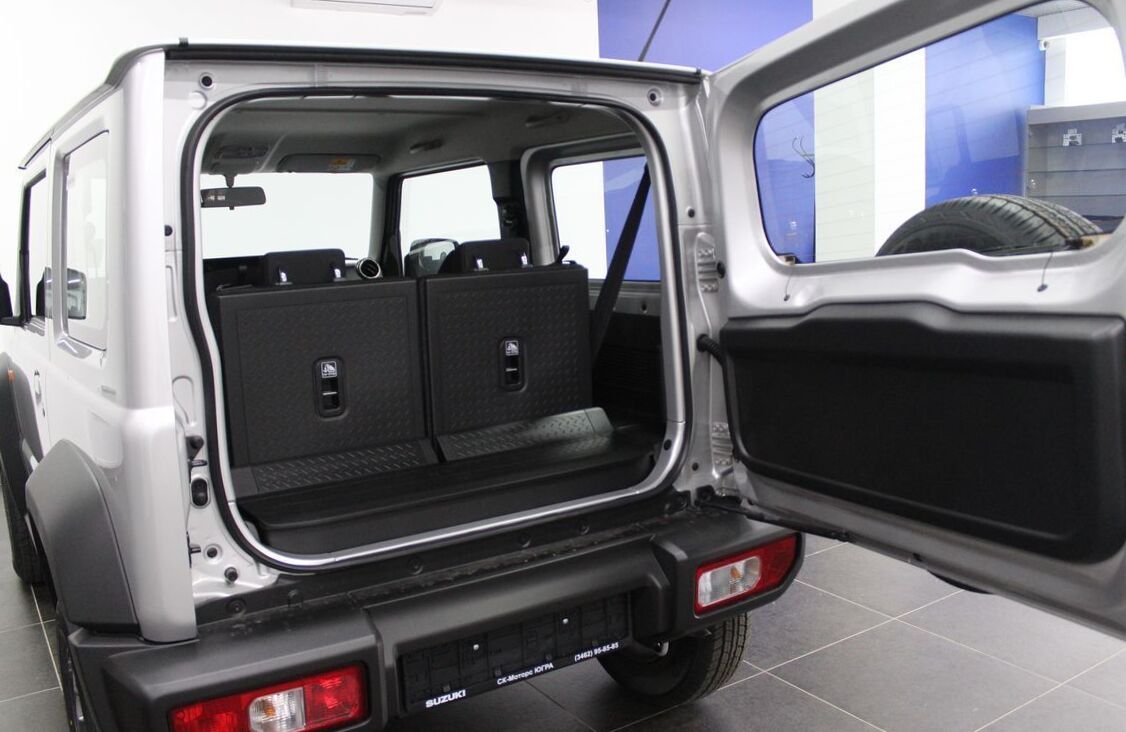

| Trunk volume | 85 |
Other | |
| Addinfo | Wheel arch extensions;Luggage compartment organizer |
Suspension specs | |
Suspension specs | |
| Front suspension | Dependent, spring loaded |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | yes |
| Front wheel disk | 15X5.5J |
| Rear wheel disk | 15X5.5J |
Tires | |
| Front wheels | 195/80 R15 |
| Rear wheels | 195/80 R15 |
Brakes | |
| Front brake | Discs |
| Rear brake | drum brakes |
Exterior | |
Headlights | |
| Halogen headlights | no |
| Led lights | yes |
| Head lights washer | yes |
| Front fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | no |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Door handles in body color | yes |
Windows | |
| Privacy glass | yes |
| Termoglass | yes |
| Rear glass heat | yes |
Accessories | |
| Roof rail | option |
| Bumpers | unpainted |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |
Interior | |

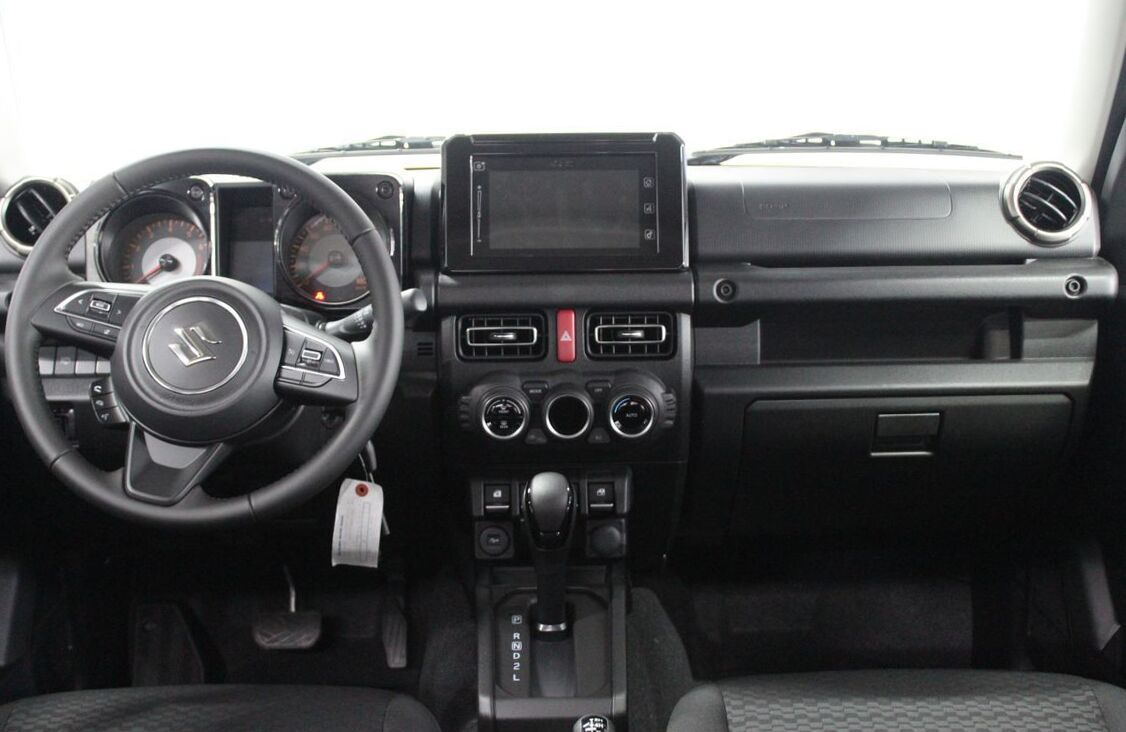

Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | no |
| Tilt steering | yes |
| Audio control on steering wheel | yes |
| Tachometer | yes |

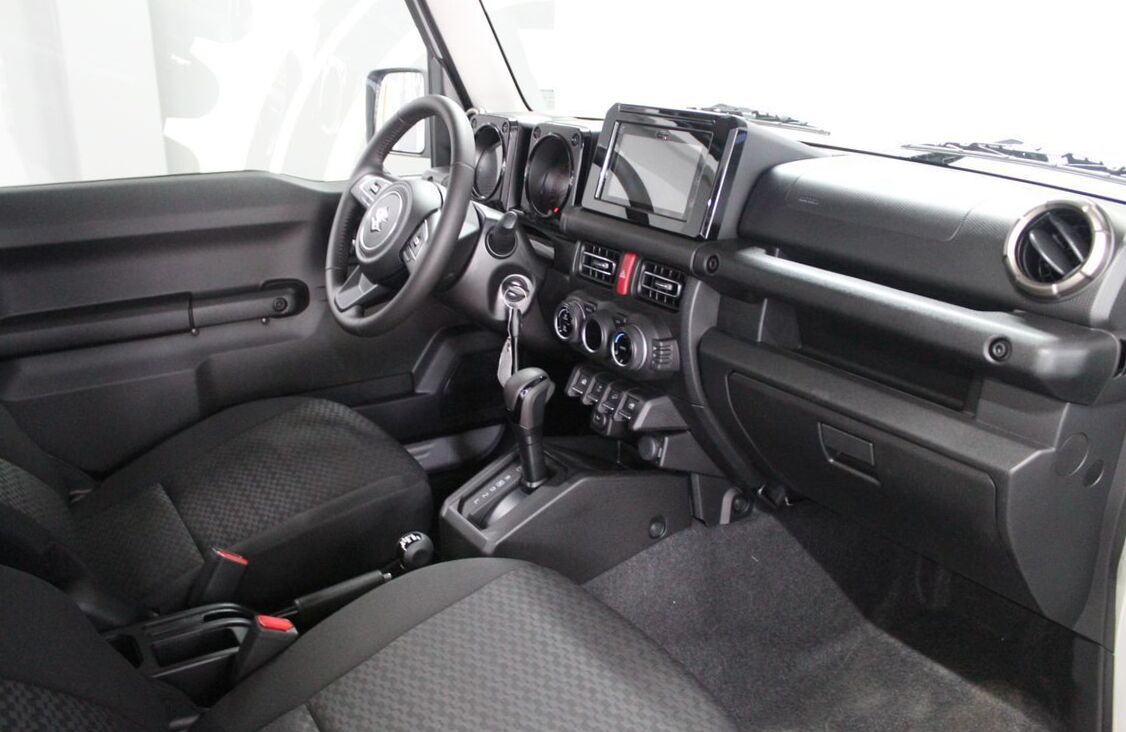

Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | no |
| Panels | Finishing of the Automatic transmission knob in royal lacquer |
Seats | |
| 2nd row | 50/50 ratio fold seat |
| Headrests for seats | 4 |
Electric interior package | |
| Power ajustable front seat | no |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Head light managment | no |
Additional interior equipment | |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Glonass | yes |
| Side impact bar | yes |
| 3 point safety belt | yes |
| Safety belt pretensioner | yes |
| Safety belt limiter | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | yes |
| Down hill assist | yes |
| Hill-start assist control system | yes |
| Cruise control | yes |
| System tire pressure monitoring | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | yes |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| MP3 Support | yes |
| Hands free | yes |
| Additional sound equipment | 2 speakers |
Navigation and video equipment | |
| Full color LCD display | 7" touchscreen |
| Navigation system | yes |
Additional amenities | |
| Antidazzle rearview mirror | no |
| Mirrors in sunshields | yes |
| Onboard computer | yes |
Car safety | |
| Immobilizer | yes |
Driver Kit | |
| Spare tire | yes |
2020 Suzuki Jimny IV 1.5 AT GLX (102 Hp) specs
|
The Jimny's vacuum-locking hubs allow the vehicle to be shifted from 2WD to 4WD while travelling at up to 100km/ h (62mph). Shifting to low range requires the vehicle to be stopped, but there is no need to exit the vehicle. Newer Jimnys feature electronic "push-button" selectable four-wheel drive. The Jimny features large windows, giving excellent visibility, apart from a rather serious blind spot caused by the oversized "B" pillar. The large amount of glass also creates a greenhouse effect, and the Jimny comes with air conditioning as a standard feature in some regions. Two models of the Jimny are available in some markets, the standard hard top, and a canvas roofed "Cabrio" version. Both models come in JX and JLX specifications. These are fairly standard designations across the Suzuki off road range, with the JLX being the fully-optioned "luxury" version. In the case of the Jimny, the JLX adds roof rails, power steering, power windows, electronically adjustable exterior mirrors, and several interior comfort improvements. Both models are available in 5 speed manual or 4 speed automatic gearbox. There is also a 2WD option, only available in 5 speed manual. » Read More About Suzuki Jimny |
