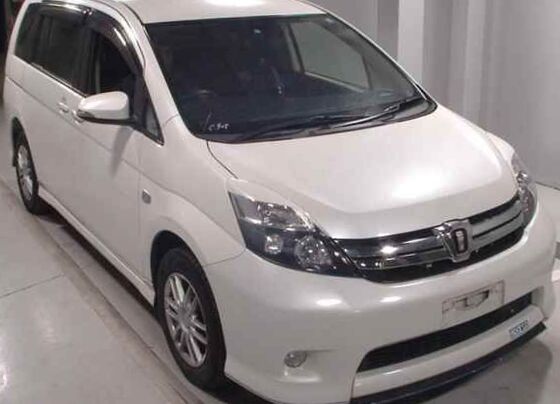

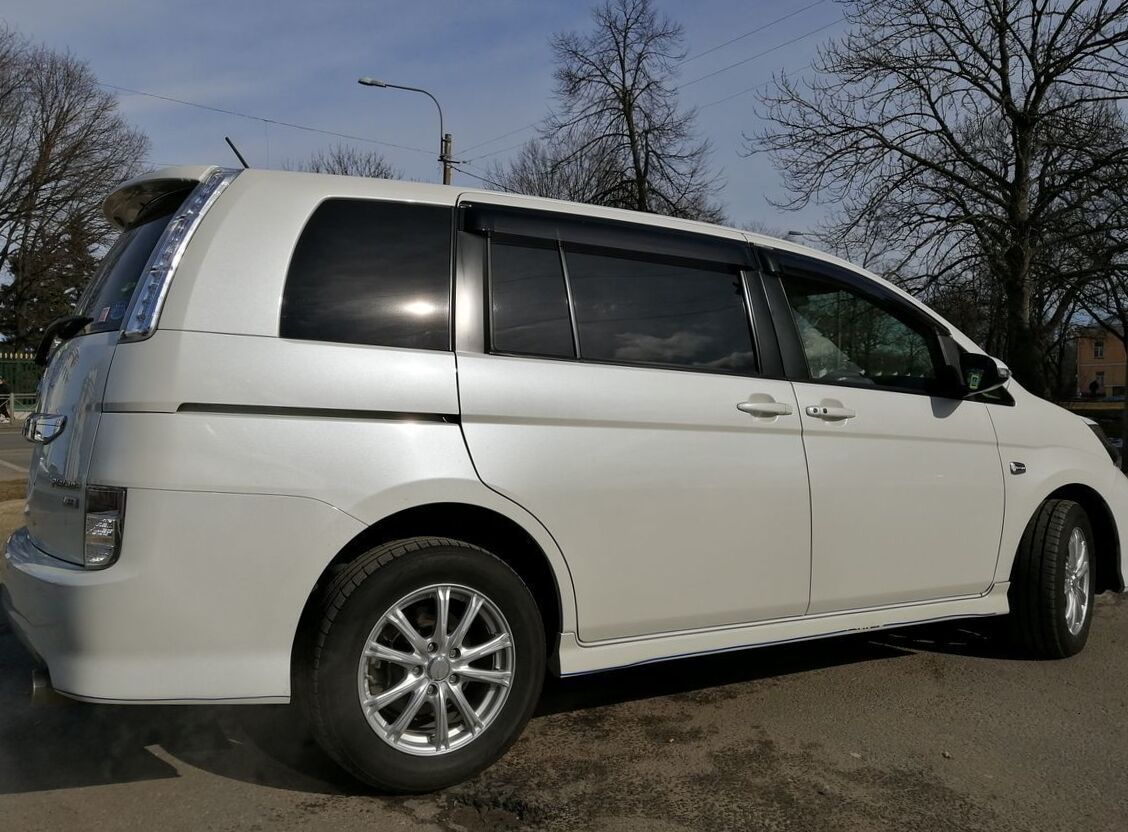

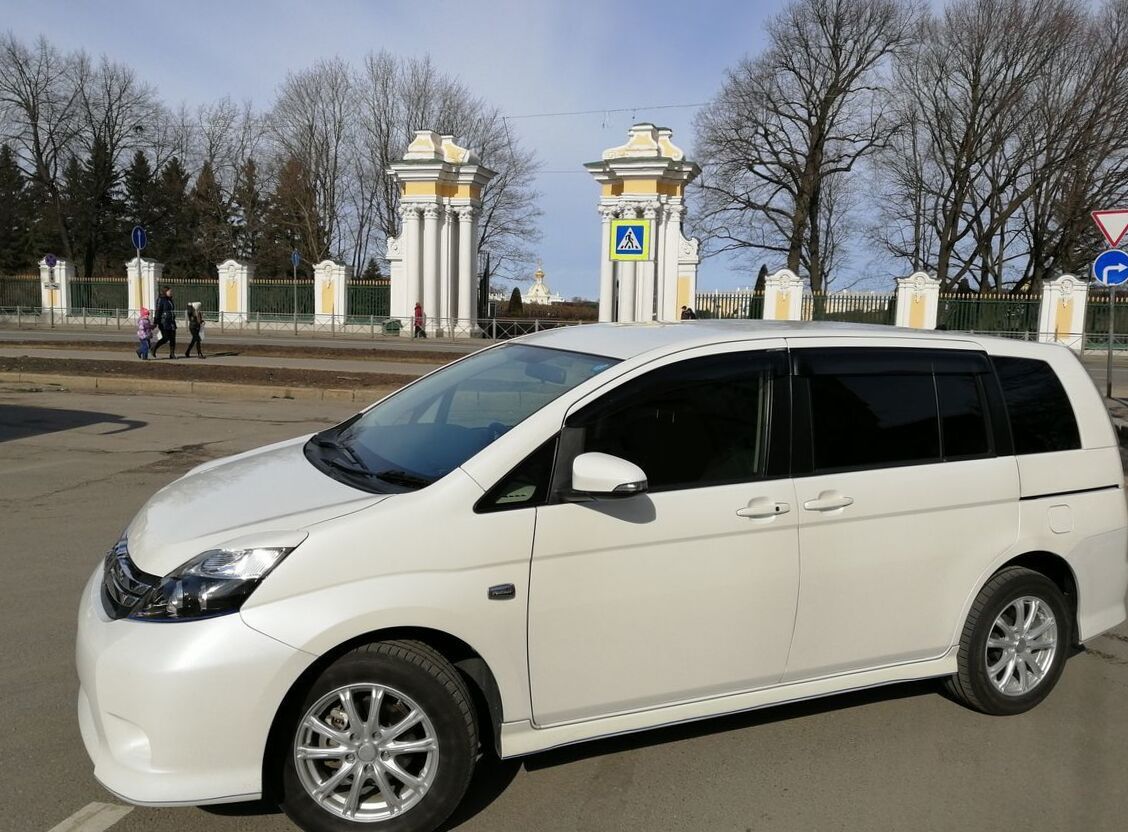

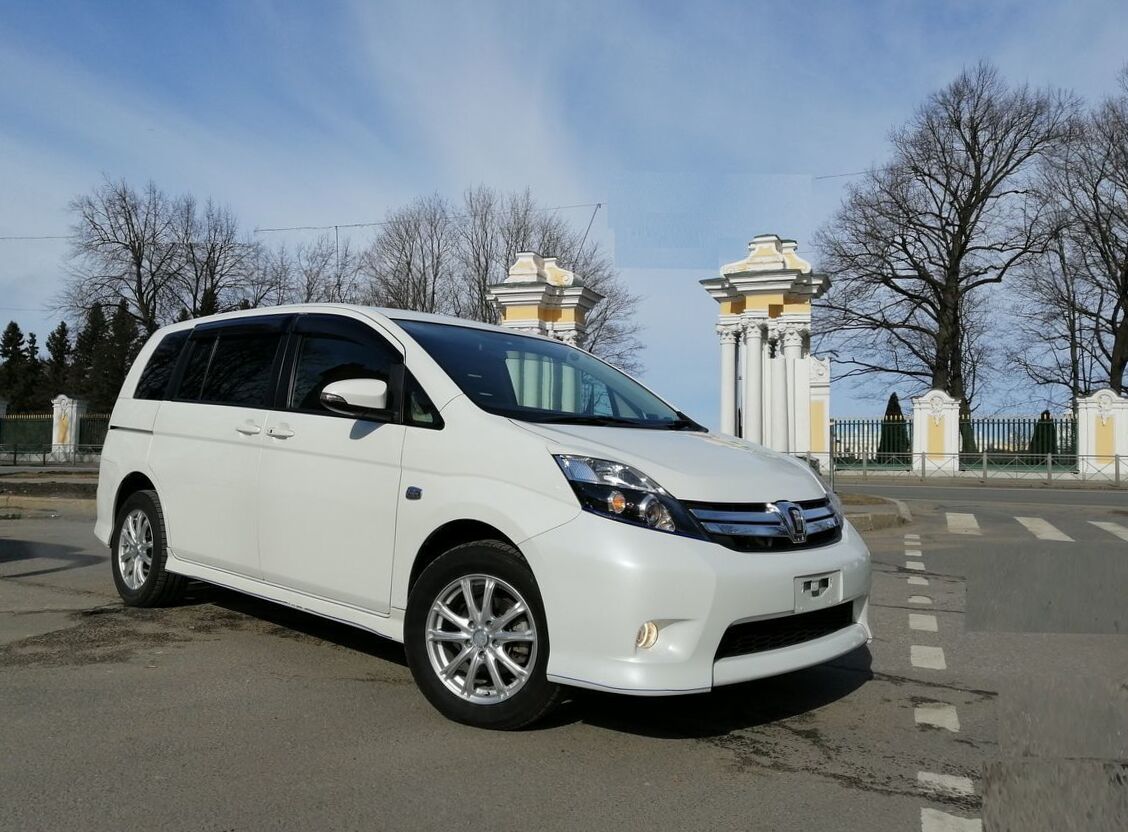

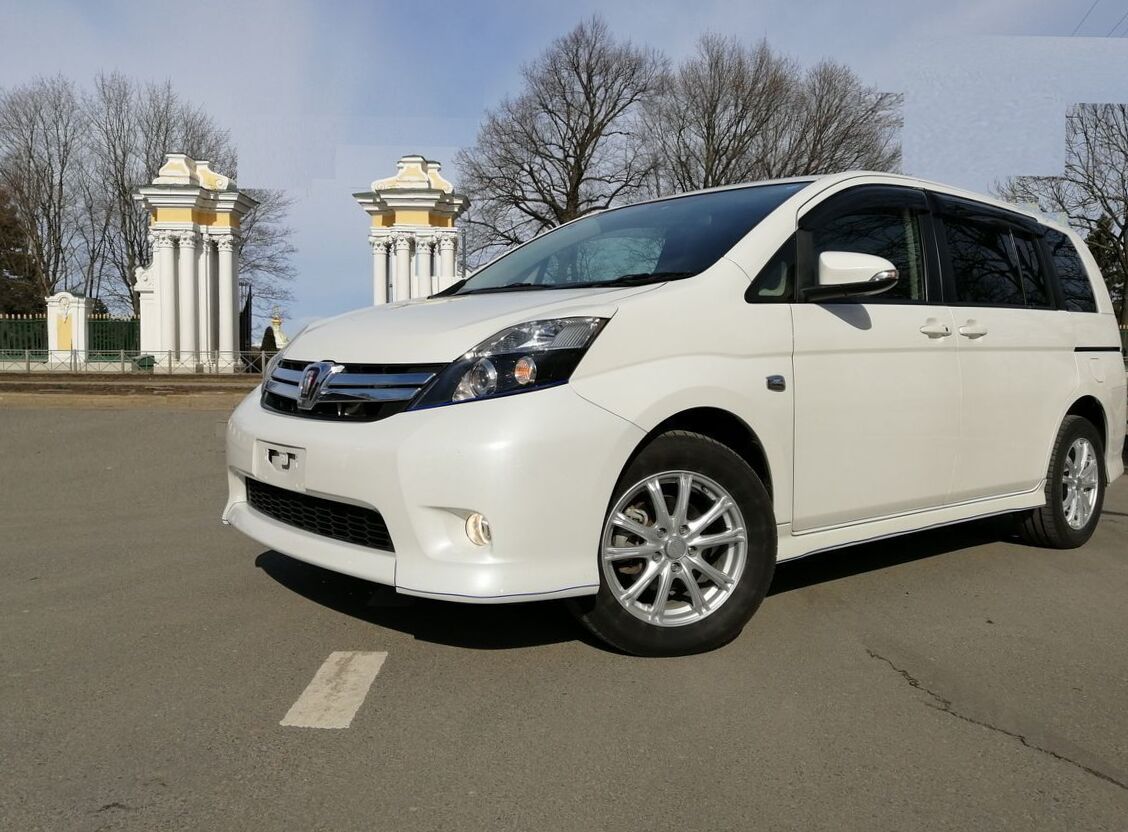

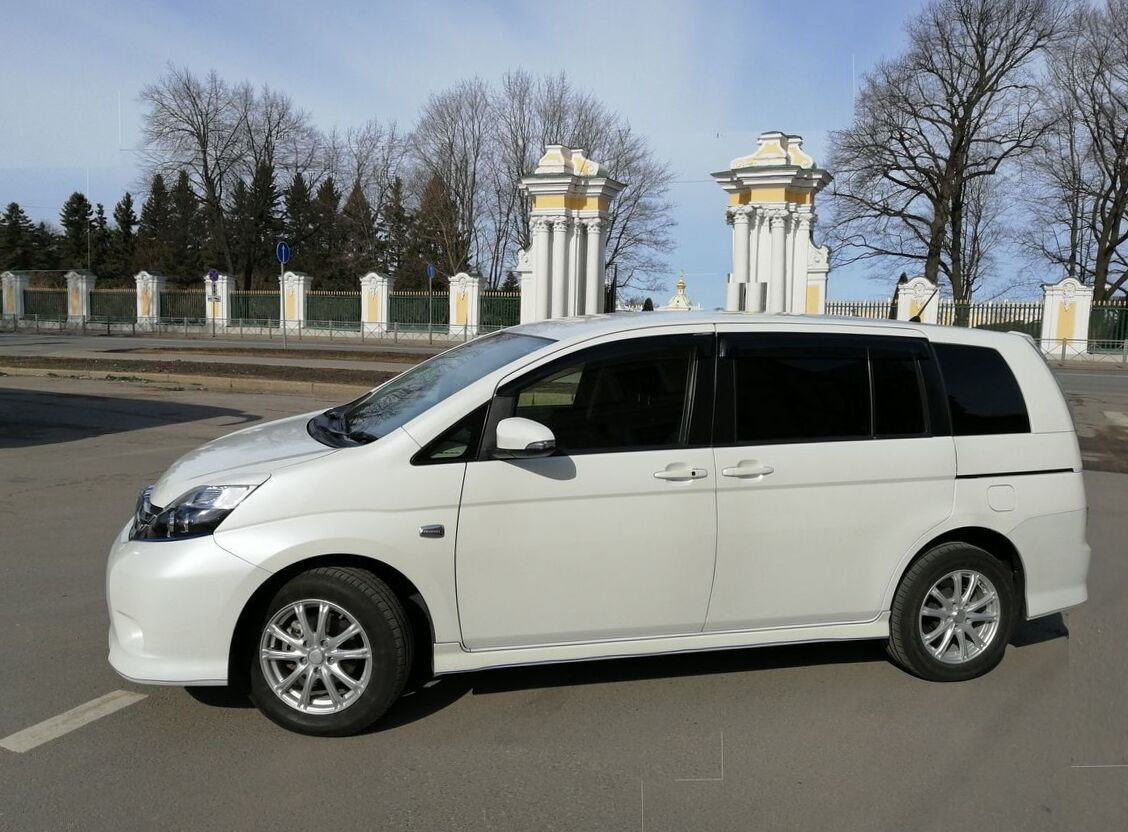

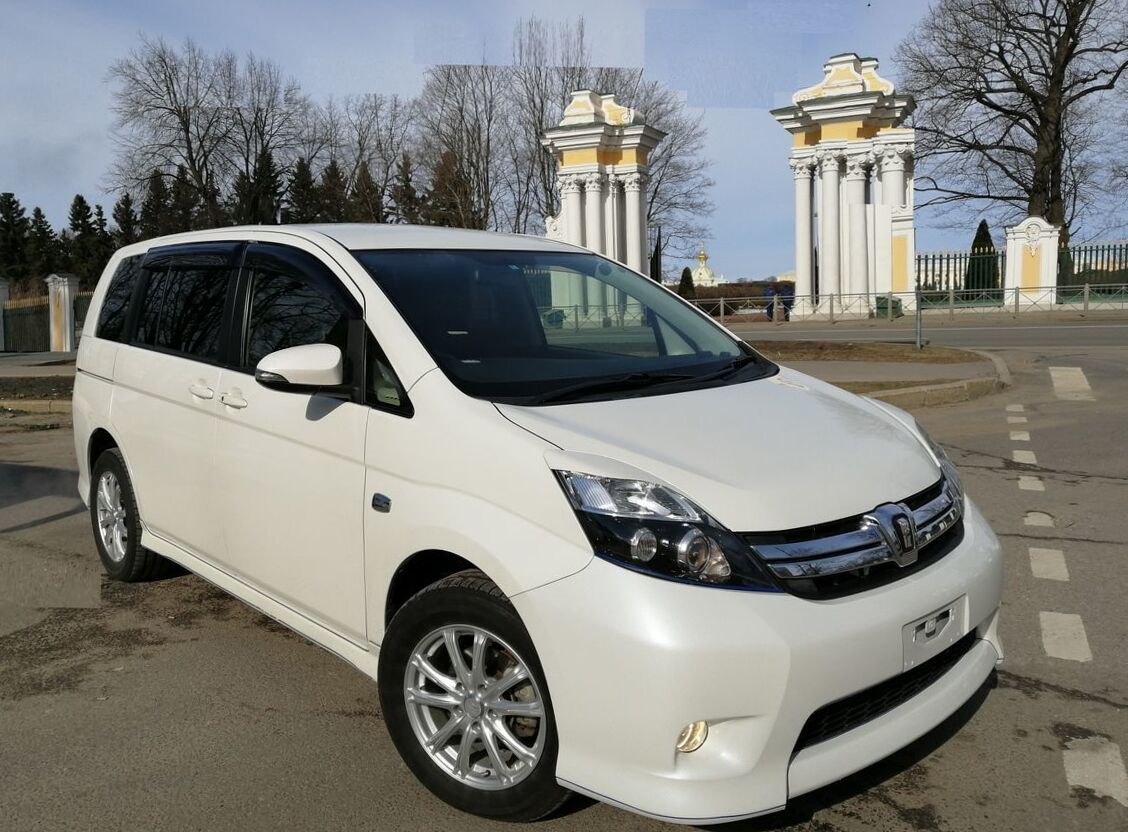

2014 Toyota Isis 1.8 Platana V Selection 4WD
More photos of Toyota Isis
Toyota Isis Problems
4WD Service light ever on and Engine check is a...
2011, The Vehicle is not performing well. The
4WD Service light is ever on and Engine check ...
Bad idling and low speed
2007, The car have bad idling and when
accelerating the speed does not increase and
the engine...
Lovemore Dhodho
2006, When I put battery is flashing park
lights but not starting window not working also
but ...
Toyota Isis Problems
4WD Service light ever on and Engine check is a...
2011, The Vehicle is not performing well. The
4WD Service light is ever on and Engine check ...
Bad idling and low speed
2007, The car have bad idling and when
accelerating the speed does not increase and
the engine...
Lovemore Dhodho
2006, When I put battery is flashing park
lights but not starting window not working also
but ...
| Body type | Minivan |
|---|---|
| Power | 130 Hp |
| Engine Displacement | 1800 cm3 or 1.8L or 109.8 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Vin | ZGM15W-0****51 |
| Price (out of date) | $16169 |
Frequently Asked Questions | |
|---|---|
| What is the body type, Toyota Isis Minivan 2014? | Minivan, 7 Seats, 5 Doors |
| What is the fuel economy, Toyota Isis DBA-ZGM15W 2014? | 7.4 l/100 km |
| How much power, 2014 Toyota Isis 1.8 Platana V Selection 4WD? | 130 Hp |
| What is the engine size, Toyota Isis 2014 Minivan 1.8 Platana V Selection 4WD (130 Hp)? | 1.8L or 1797cm3 |
| How many gears, What type is the gearbox, 2014 Toyota Isis Minivan 1.8 Platana V Selection 4WD (130 Hp)? | Variator |
| What is the drivetrain, Toyota Isis Minivan 2014? | All wheel drive (4x4) |
| How long is this vehicle, Toyota Isis DBA-ZGM15W 2014? | 4640 mm |
| How wide is the vehicle, 2014 Toyota Isis 1.8 Platana V Selection 4WD? | 1710 mm |
Toyota Isis DBA-ZGM15W 1.8 Platana V Selection 4WD (130 Hp) 2013, 2014, 2015, 2016 Specs
General information | |
|---|---|
| Production start year | 2013 |
| Production end year | 2016 |
| Frame type | Minivan |
| Drive type | All wheel drive (4x4) |
| Transmission type | Variator |
| Engine volume, cc | 1797 |
| Frame name | DBA-ZGM15W |
| Clearance, mm | 160 |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
Vehicle generation | |
| Generation name | XM10 |
| Generation number | 1 |
| Facelift number | 2 |
| Production start year | 2009 |
| Production end year | 2017 |
Engine, transmission and steering specs | |

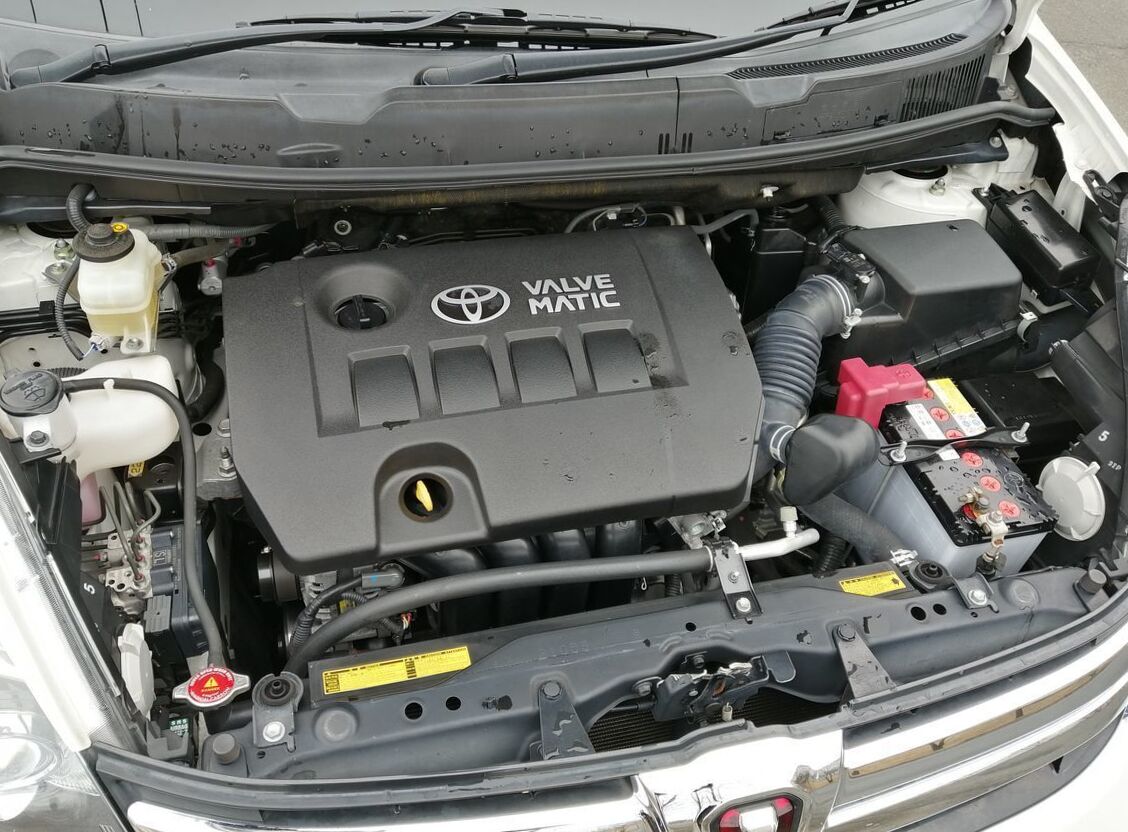

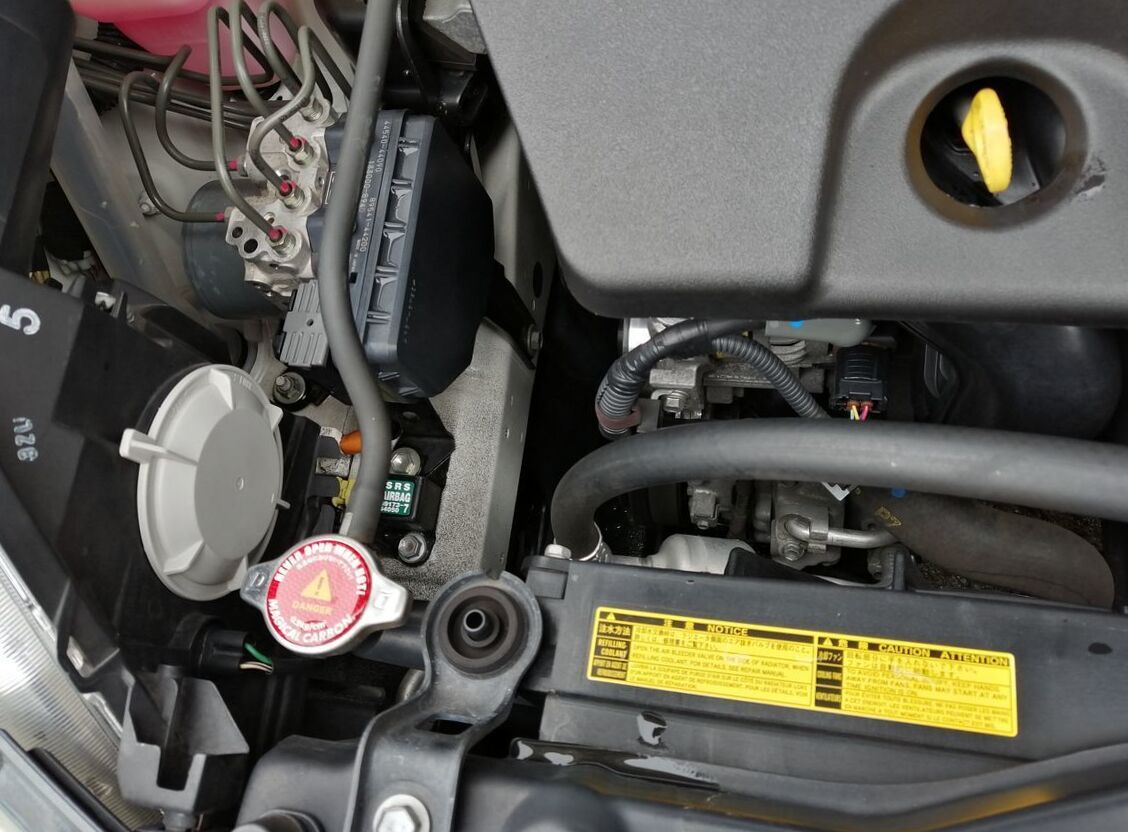

Engine specs | |
| Engine name | 2ZR-FAE |
| Fuel | Petrol (Gasoline) |
| Engine type | 4 cylinder DOHC |
| Max power, hp | 130 |
| Max power RPM, rpm | 6200 |
| Max power, hp (kWt) / rpm | 130 (96) / 6200 |
| Max torque, N*m | 161 |
| Max torque RPM, rpm | 4000 |
| Max torque, N*m (kg*m) / rpm | 161 (16) / 4000 |
| Eco type | 2005 emission regulation 75% reduction |
| Variable cylinder system | no |
| Start stop system | no |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with the 2015 fuel consumption standard |
| Combined | 7.4 |
Transmission | |
| Shifter position | On the dashboard |
Steering | |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
| Steering vgs vgrs | no |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4640 |
| Exterior width, mm | 1710 |
| Exterior height, mm | 1670 |
Interior dimensions | |
| Capacity | 7 |
| Seat rows | 3 |
| Interior length, mm | 2705 |
| Interior width, mm | 1470 |
| Interior height, mm | 1315 |
Chassis dimensions | |
| Wheel base, mm | 2785 |
| Front axle length, mm | 1480 |
| Rear axle length, mm | 1475 |
| Turning radius, m | 5.5 |
| Wheel spacing front | 1480 |
| Wheel spacing rear | 1475 |
Weight and permissible load | |
| Mass, kg | 1540 |
| Total weight | 1925 |
Volumes | |
| Fuel tank capacity, l | 60 |
Suspension specs | |
Suspension specs | |
| Front suspension | Independent, Spring McPherson |
| Rear suspension | Semi-independent, torsion bar |
| Sport suspension | no |
| Low down | no |
| Air suspension | no |
| Cenral diff lock | no |
| LSD | no |
| 4ws | no |

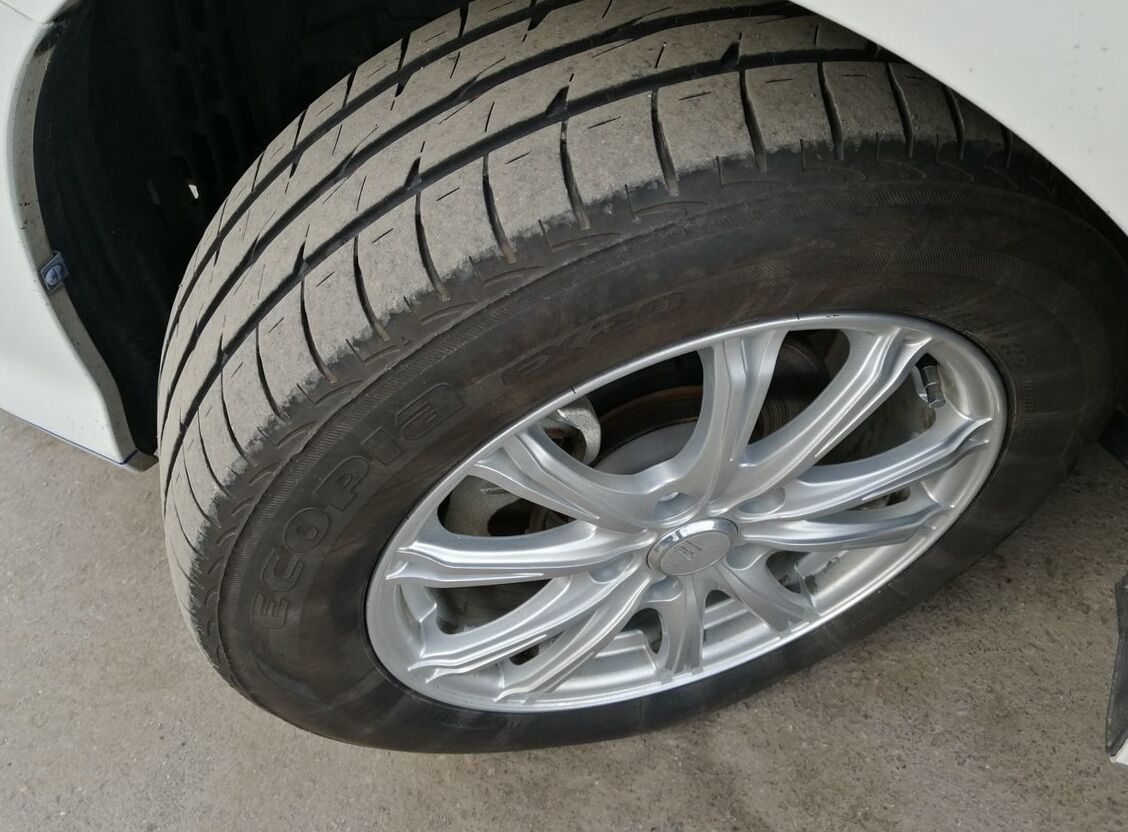

Wheel rims | |
| Aluminium wheel | yes |
| Magnesium wheels | no |

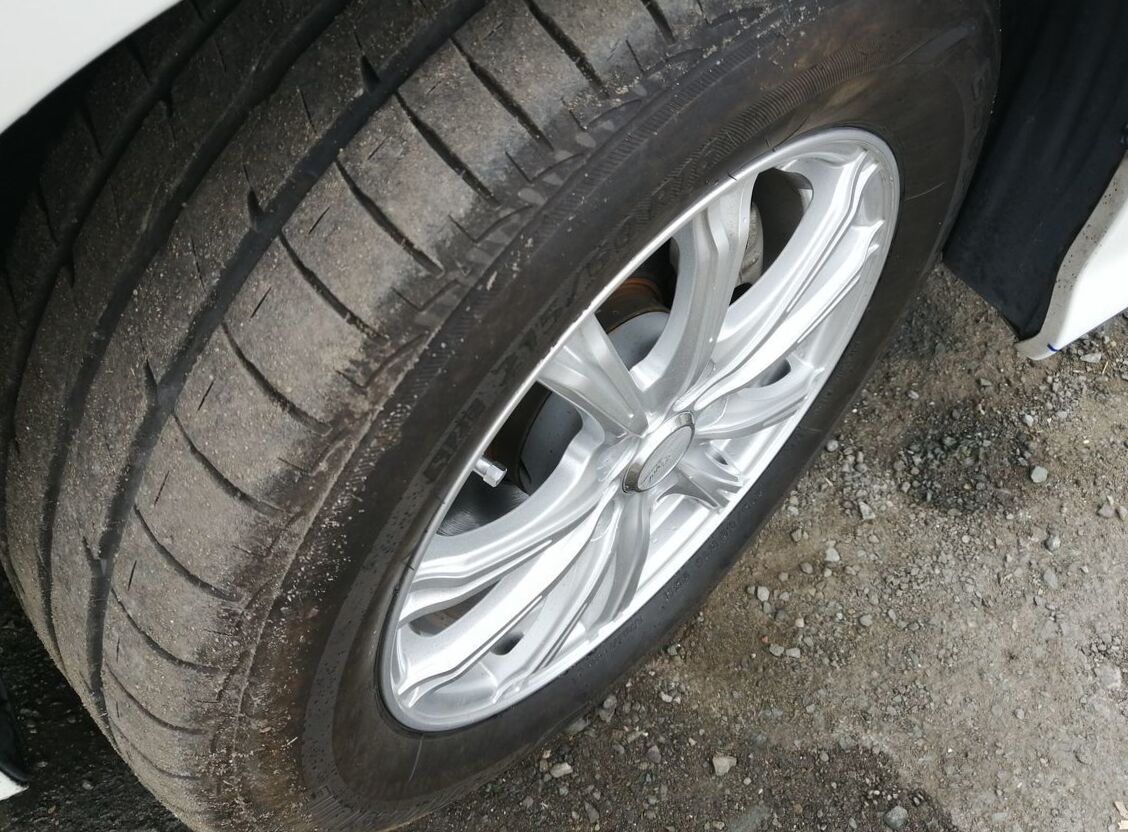

Tires | |
| Front wheels | 195/65R15 |
| Rear wheels | 195/65R15 |
| Run flat tires | no |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Discs |
| Brakes equipment | no |
Exterior | |

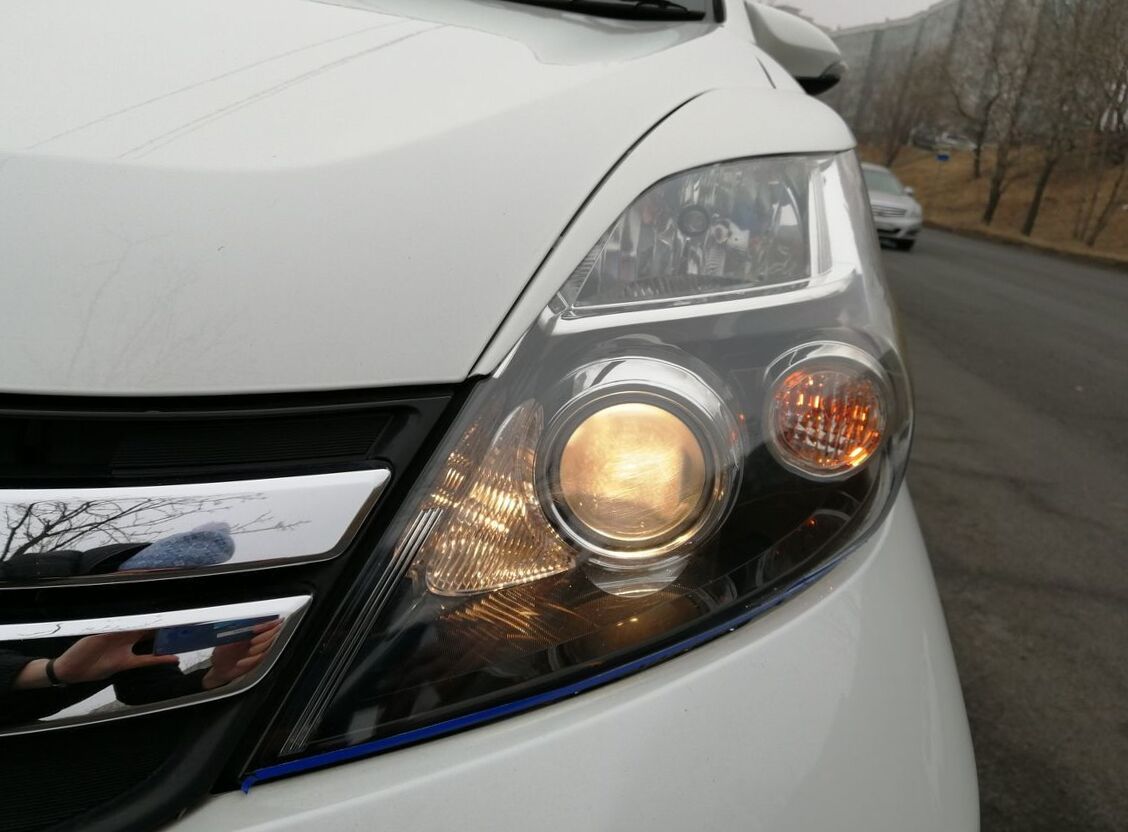

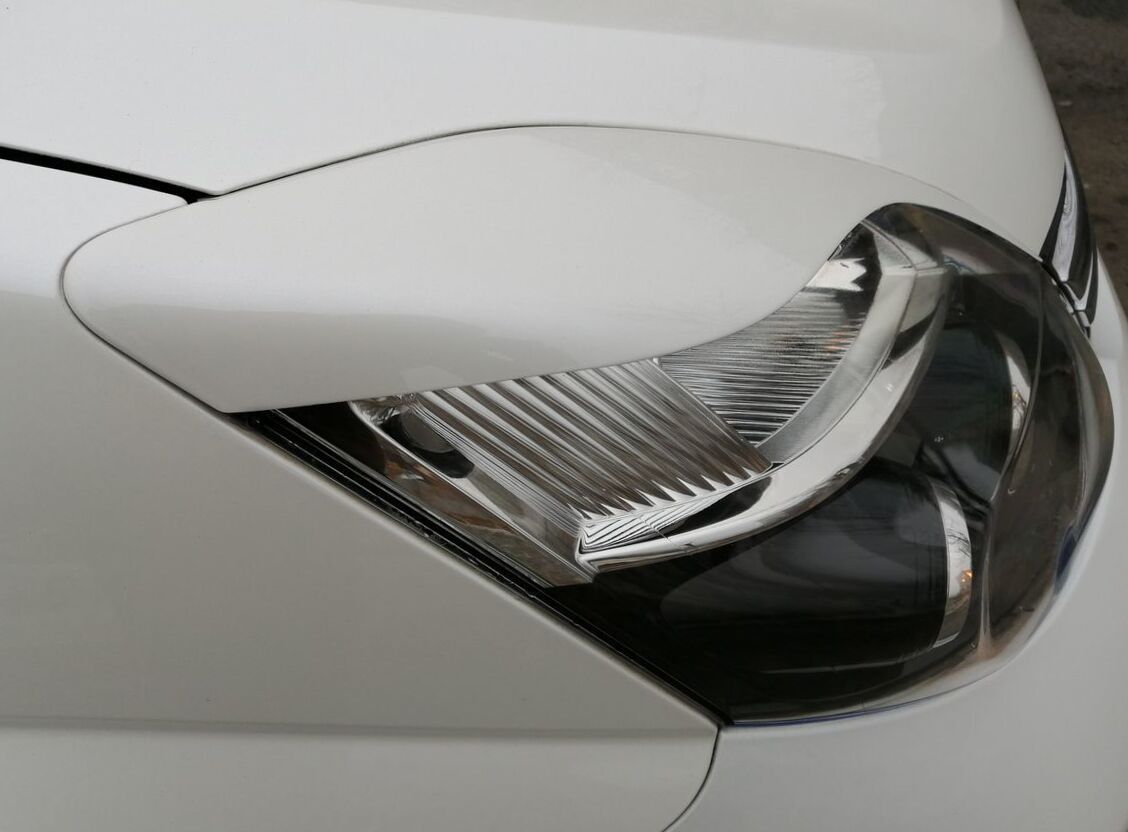

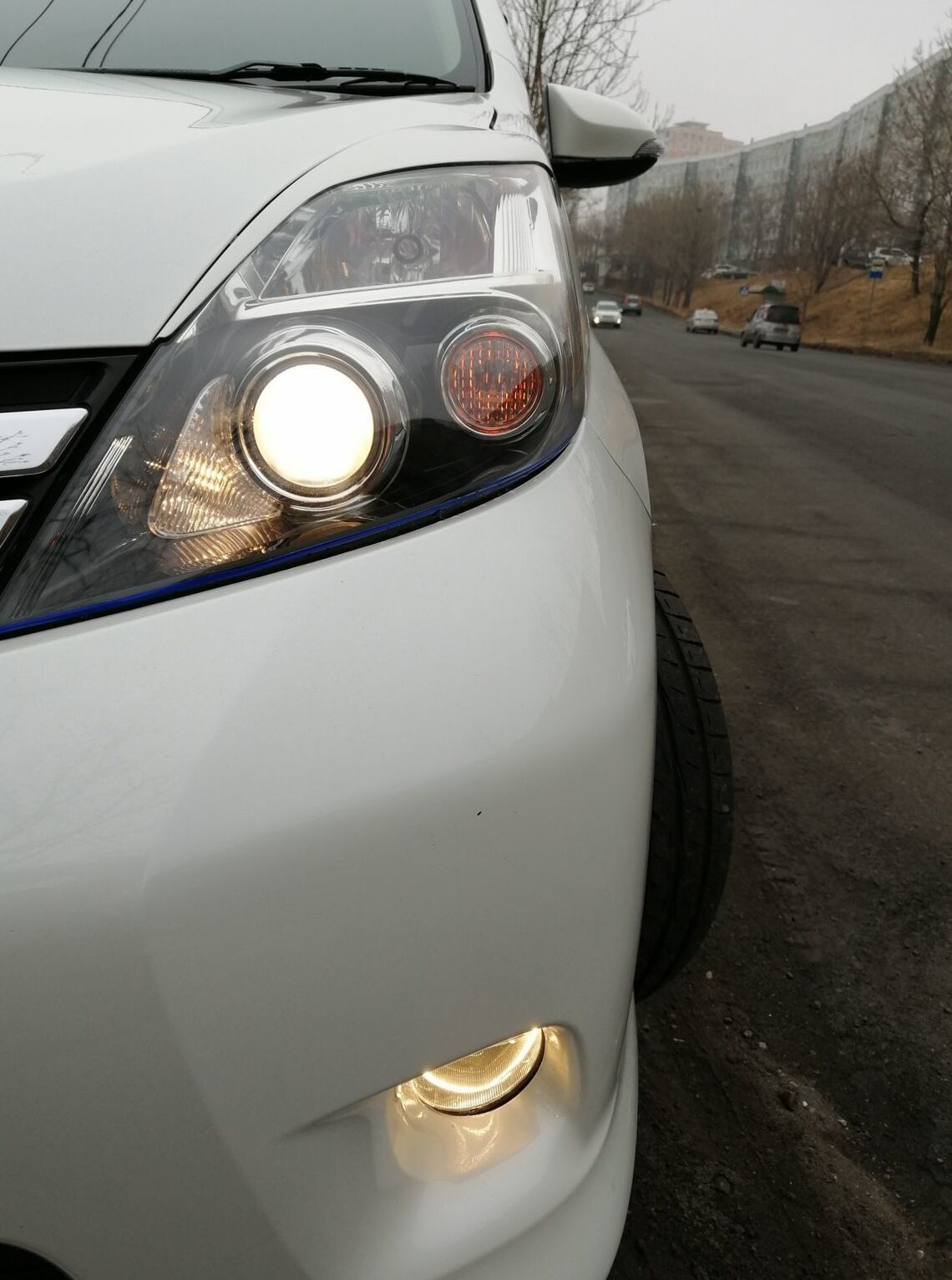

Headlights | |

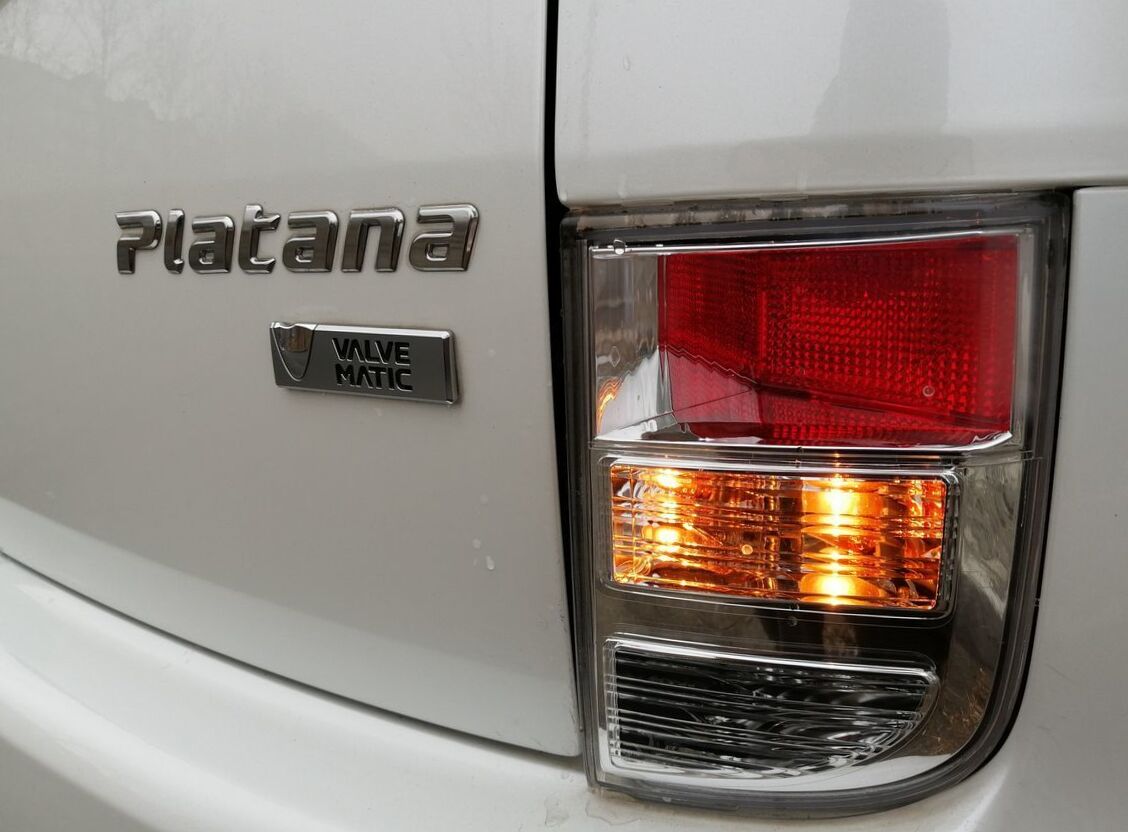

| Xenon lamps | yes |
| Head lights washer | no |
| Front fog lamps | yes |
| Rear fog lamps | no |
| Rain sensor | no |

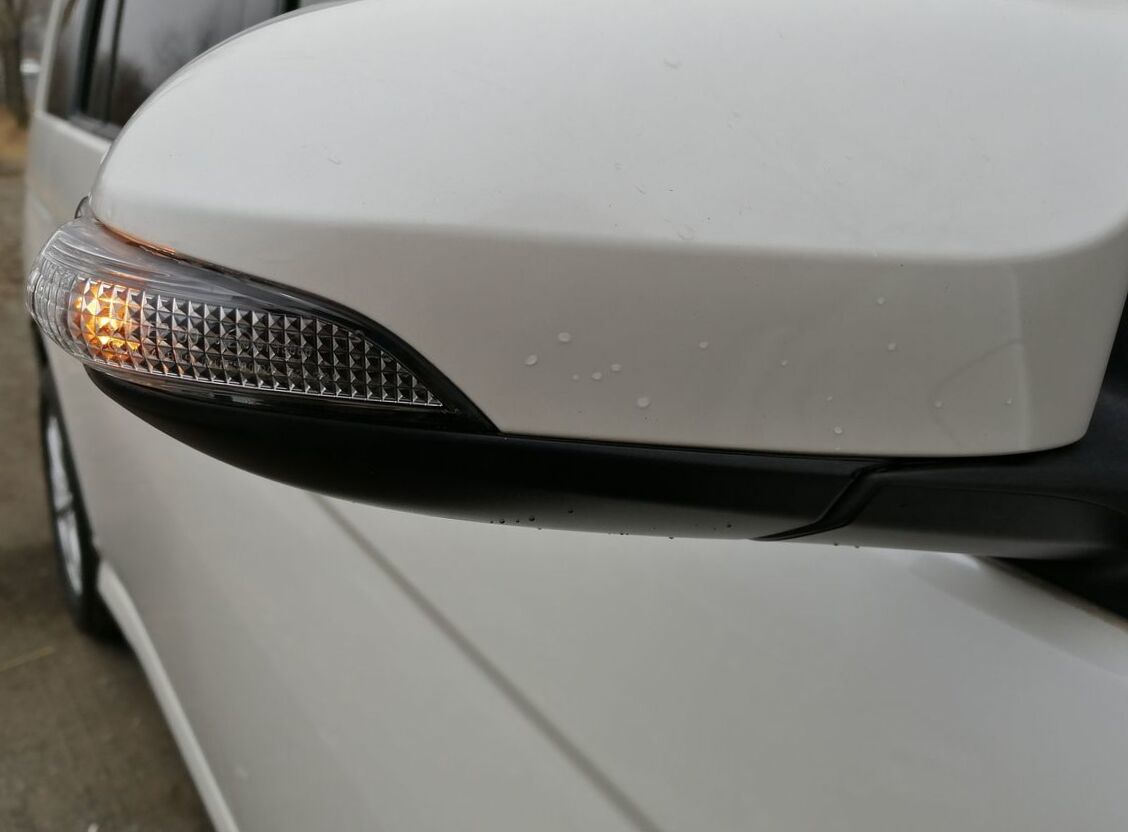

Side mirrors | |
| autocorrected mirrors | no |
Doors | |
| Side sliding door | no |
| Sliding doors | yes |
| Sliding electric door | yes |
| Sliding electric doors | option |
| Door easy closer | yes |
| Power rear door | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
Roof | |
| Sunroof | no |
| Big sunroof | no |
| T bar roof | no |
| Roof equipment | no |
| Targa roof | no |
| Hard top | no |
Accessories | |
| Roof rail | no |
| Front spoiler | yes |
| Rear spoiler | yes |

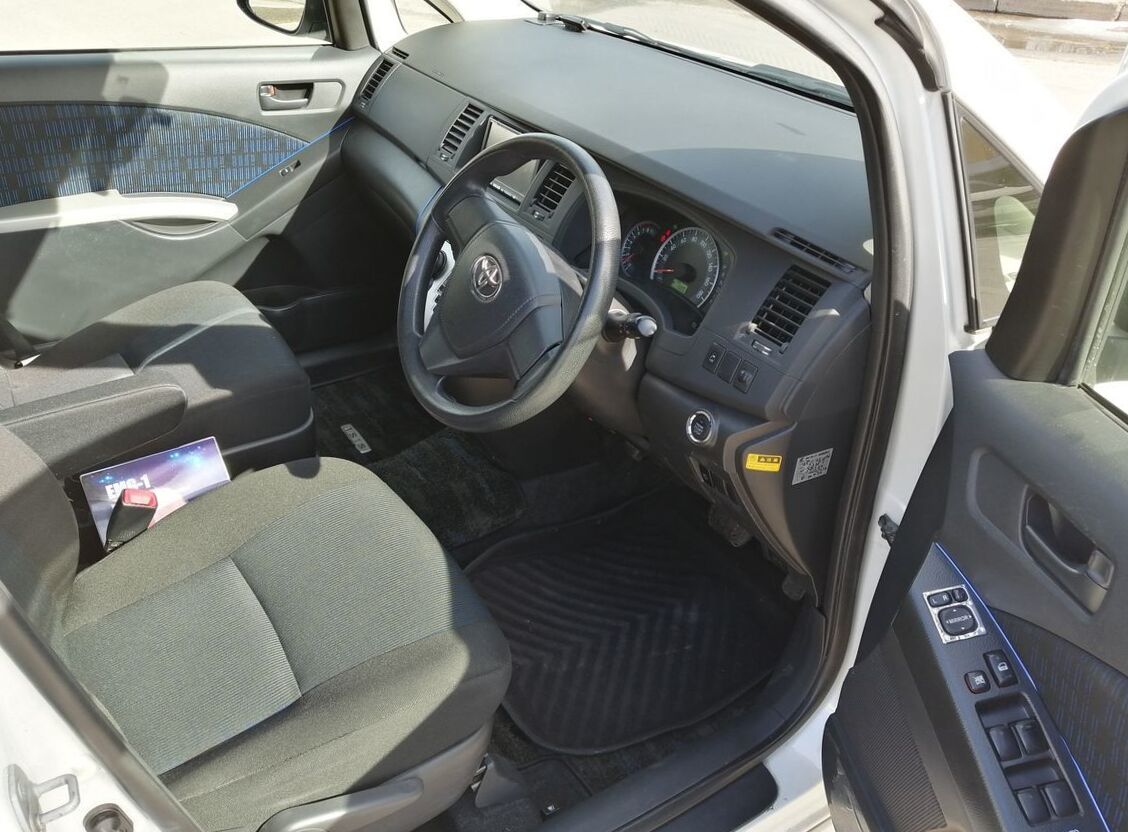

Interior | |
Steering wheel and center panel | |

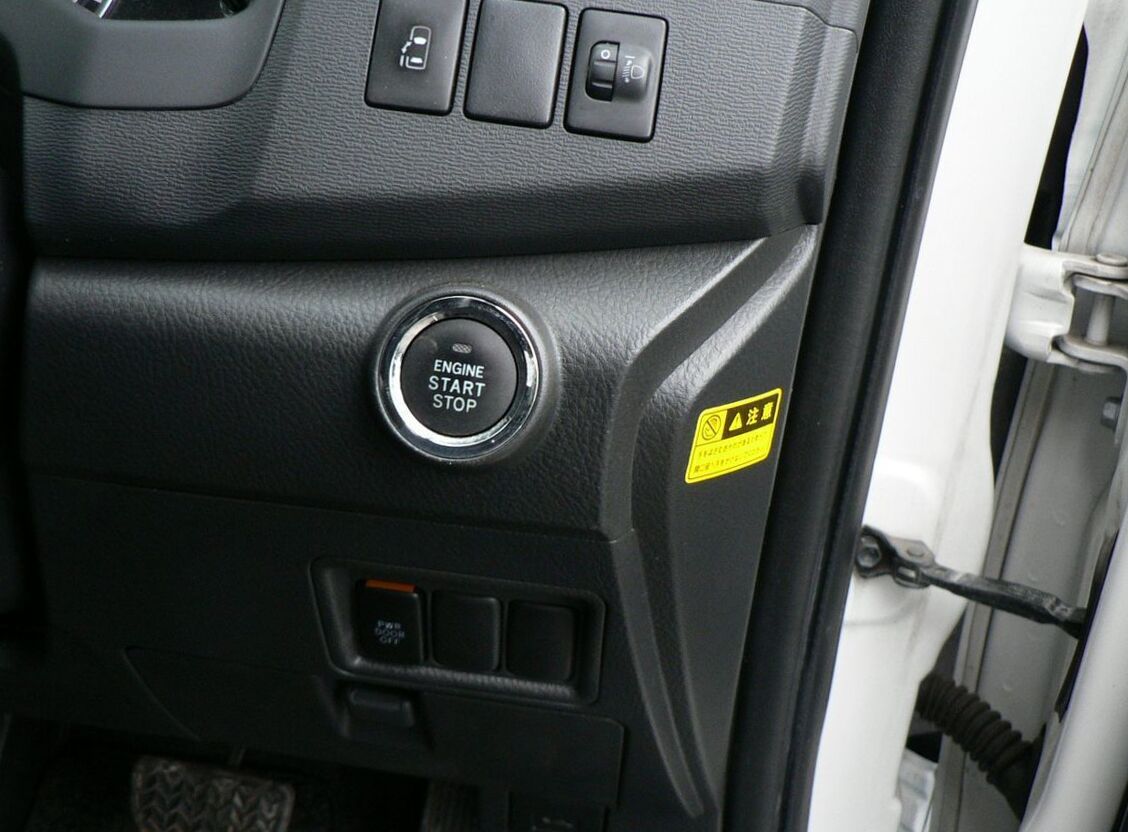

| Engine start button | yes |
Interior design | |
| Water-repellent | no |
| Leather seat | no |
| Antibacterial repellent | no |

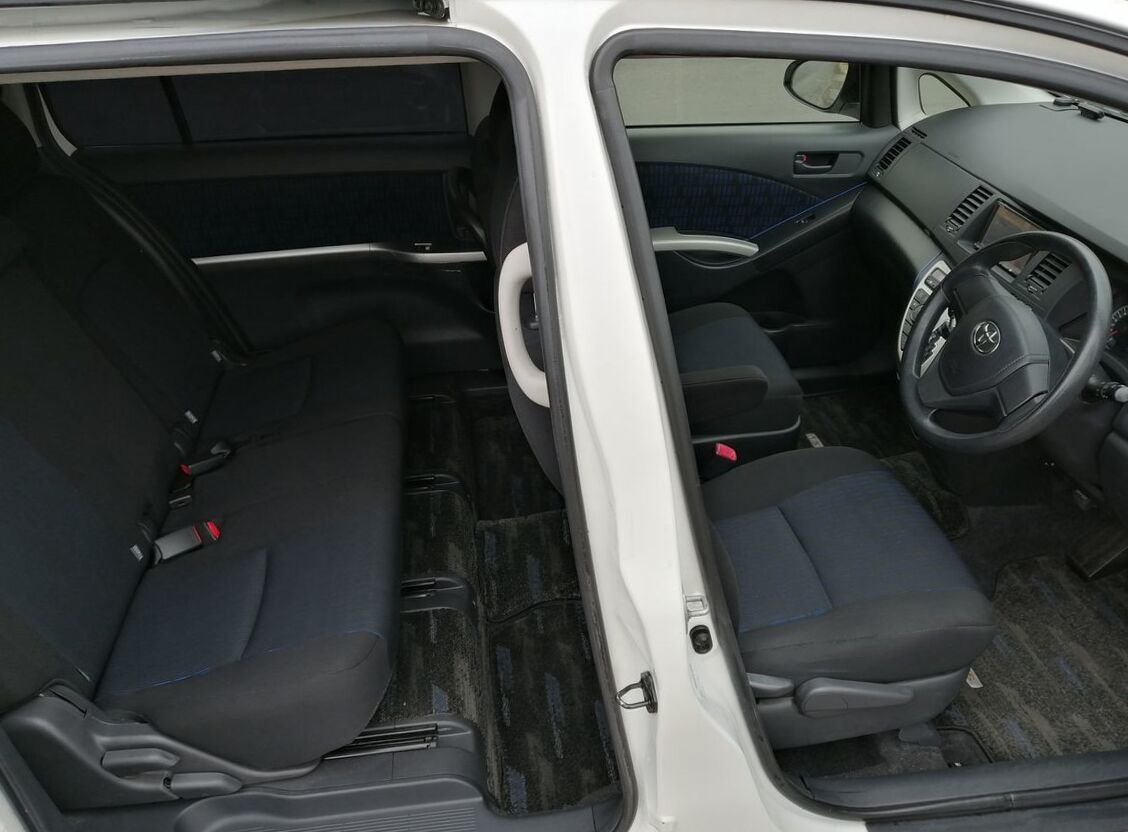

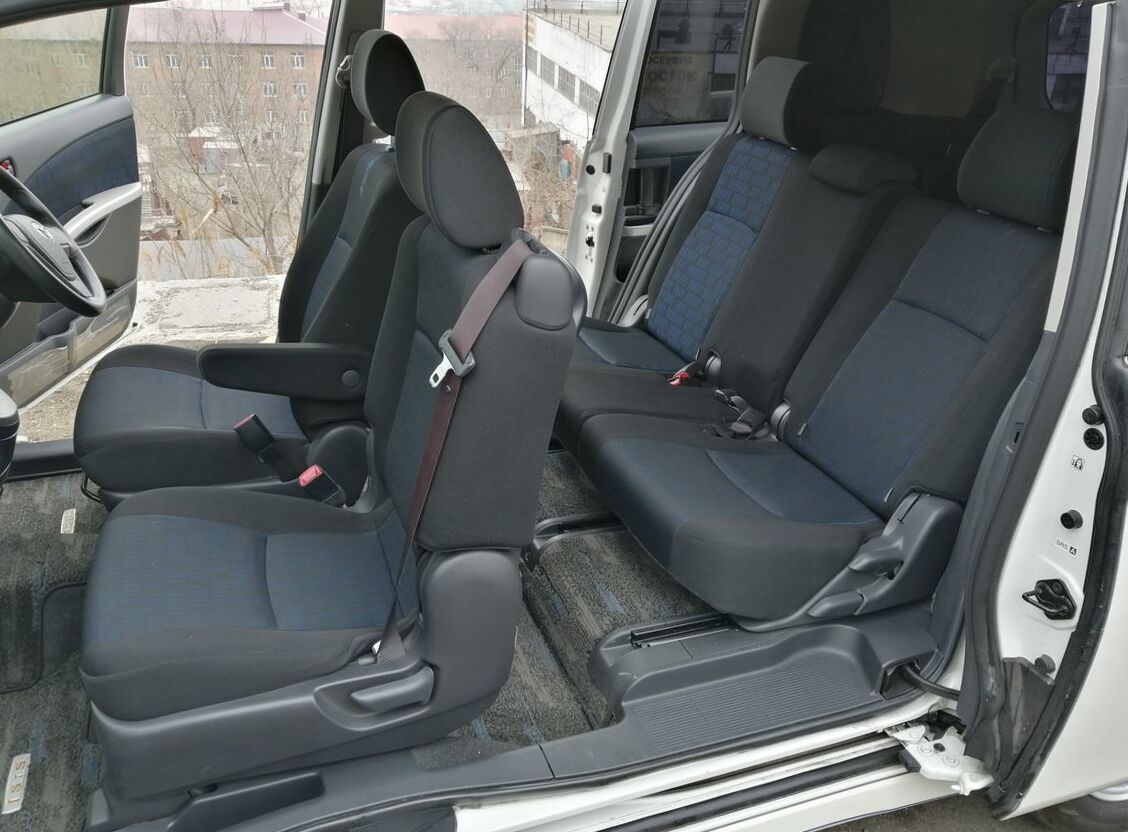

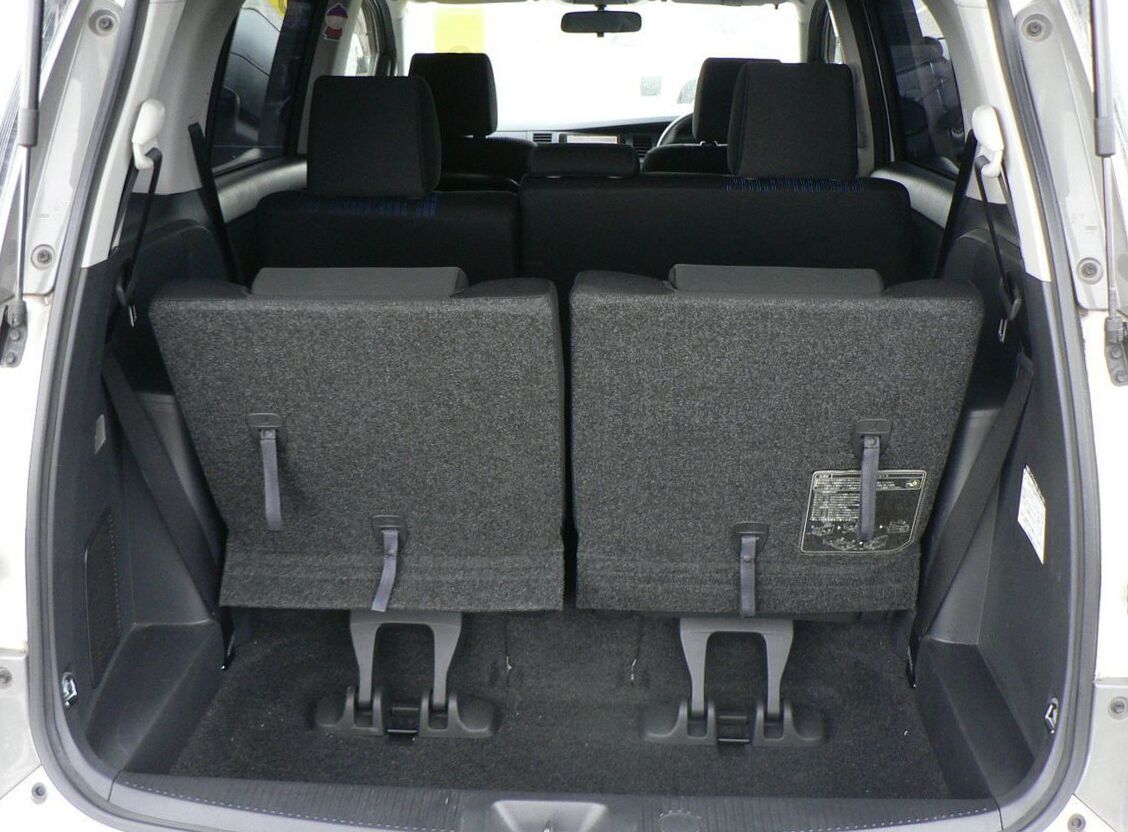

Seats | |
| Bucket seat | no |
| 2nd row | 60/40 ratio fold seat |
| 3nd row | 50/50 ratio fold seat |
| Seat lifter | yes |
| Full flat seats | no |
| Removable seats | yes |
| Ottoman seat | no |
| Front bench seat | no |
| Walk throught | yes |
| 2nd row throught | no |
Electric interior package | |
| Power adjustable driver seat | no |
| Power ajustable front seat | no |
| Adjustable 3rd row | no |
| Front seat heater | no |
| Rear seats heater | no |
| Seat position memory | no |
| Keyless enter | yes |

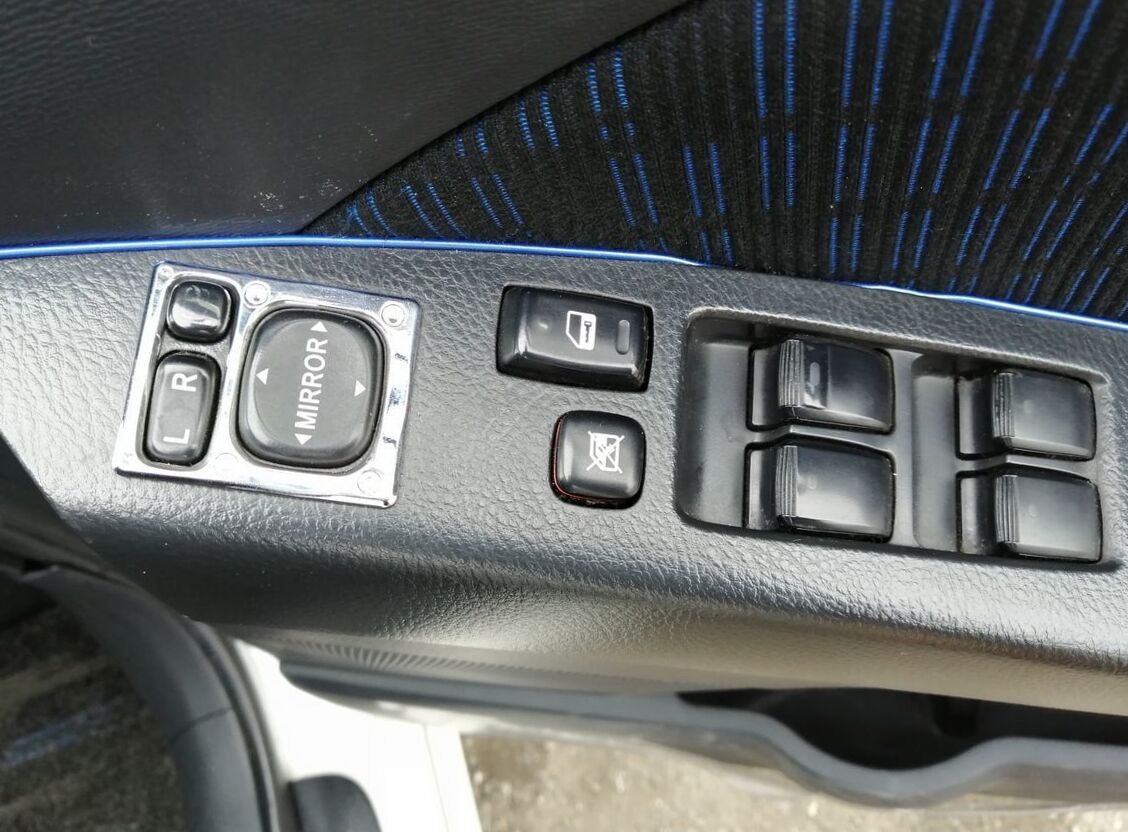

| Power window | yes |
| Stearing wheel heater | no |
Additional interior equipment | |
| AC plug | no |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
| 2 airbags | no |
Children safety | |
| isofix bar | yes |
| Build-in child seat | no |
Active and passive safety | |
| Active headrest | no |
Electronic security and traffic control systems | |
| ABS | yes |
| Break assist | yes |
| ESP | yes |
| traction control | yes |
| Down hill assist | no |
| AYC | no |
| SH-4WD | no |
| Lane Keep Assist | no |
| Cruise control | no |
| Distance control system | no |
| Intelligent AFS | no |
| Night vision | no |
| Parktronic | no |
| Intelligent parking assist | no |
| Collision mitigation system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Air purifier | no |
| Humidifier | no |
| Air filter | yes |
| Odor absorber | no |
Audio systems | |
| Radio | no |
| Autoreverse casette | no |
| CD player | no |
| DVD-audio | no |
| MD palyer | no |
| Audio HDD | no |
| Speaker | yes |
| Rear entertainment system | no |
Navigation and video equipment | |
| Full color LCD display | no |
| Navigation system | no |
| Optional navigation system | no |
| Parking assist system | no |
| Front monitor | no |
| Sides monitors | no |
| Back monitor | no |
Additional amenities | |
| Lagage box | no |
Car safety | |
| Alarm system | yes |
| Security alarm | no |
2014 Toyota Isis DBA-ZGM15W 1.8 Platana V Selection 4WD (130 Hp) specs
|
