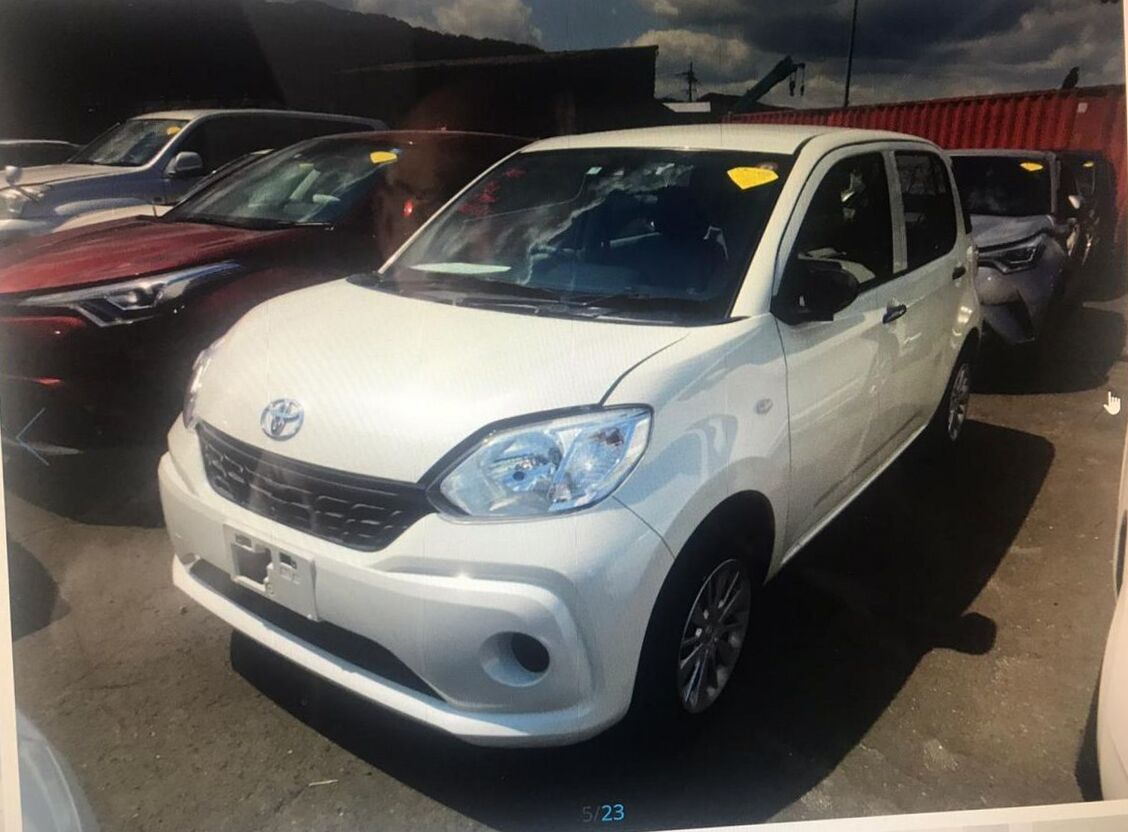

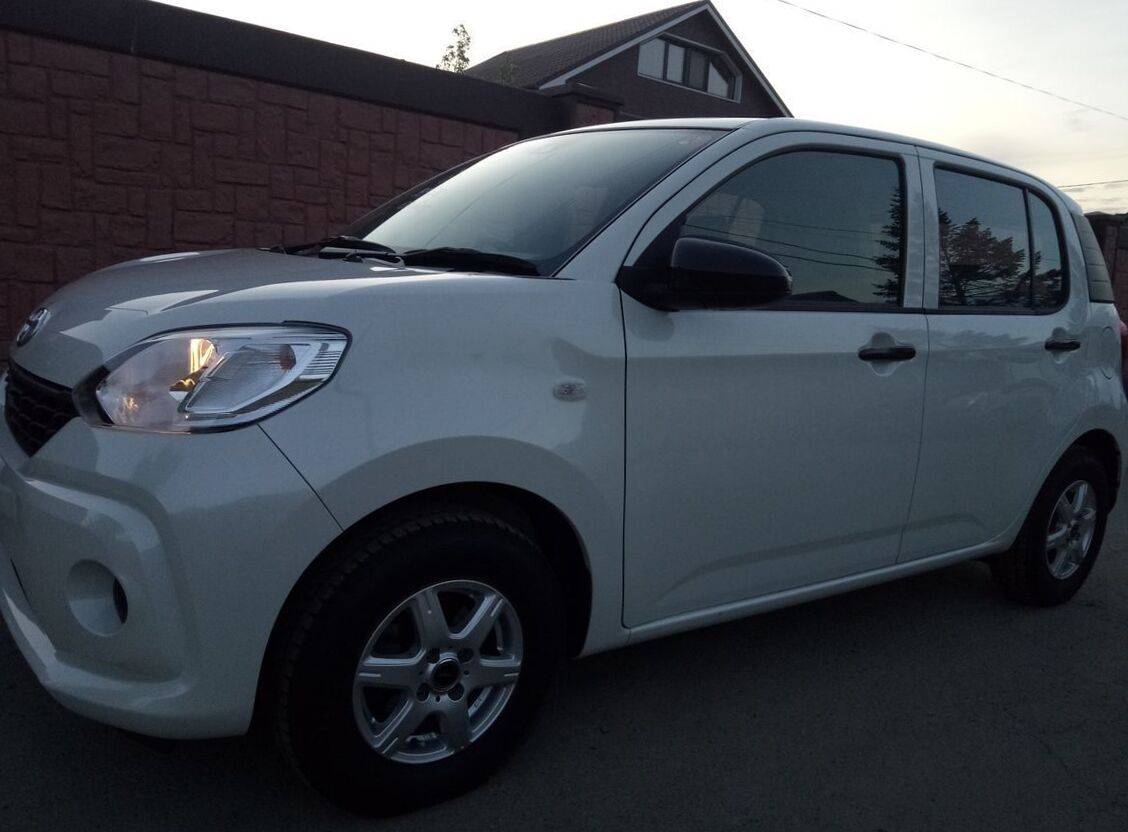

2016 Toyota Passo III 1.0 X S
Toyota Passo Problems
Toyota passo not change gears
2004, Gears not change They fleak on D drive
so they it shows engen cheque light The car
not...
Passo fuel average not showing in meter
2005, I have changed the speed meter of passo
2005 it was not working then the mechanic also
c...
Passo breaks issue
2012, Passo breaks ka issue hai... Aik bar
barish mai passo ki breaks bilkul b nei lag rhy
thy...
| Body type | Hatchback |
|---|---|
| Power | 69 Hp |
| Engine Displacement | 1000 cm3 or 1L or 61 cu-in |
| Color | white |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 33554 Miles |
| Vin | 861*** |
| Price (out of date) | $6037 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2016 Toyota Passo III? | Hatchback, 5 Seats, 5 Doors |
| What is the fuel economy, Toyota Passo Hatchback 2016? | 3.6 l/100 km |
| How much power, Toyota Passo DBA-M700A 2016? | 69 Hp |
| What is the engine size, 2016 Toyota Passo 1.0 X S? | 1L or 996cm3 |
| How many gears, What type is the gearbox, Toyota Passo III 2016 Hatchback 1.0 X S (69 Hp)? | Variator |
| What is the drivetrain, 2016 Toyota Passo Hatchback 1.0 X S (69 Hp)? | Front |
| How long is this vehicle, 2016 Toyota Passo III? | 3650 mm |
| How wide is the vehicle, Toyota Passo Hatchback 2016? | 1665 mm |
| How much trunk (boot) space, Toyota Passo DBA-M700A 2016? | 193 l |
Toyota Passo III DBA-M700A 1.0 X S (69 Hp) 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2016 |
| Production end year | 2018 |
| Drive type | Front |
| Frame type | Hatchback |
| Transmission type | Variator |
| Engine volume, cc | 996 |

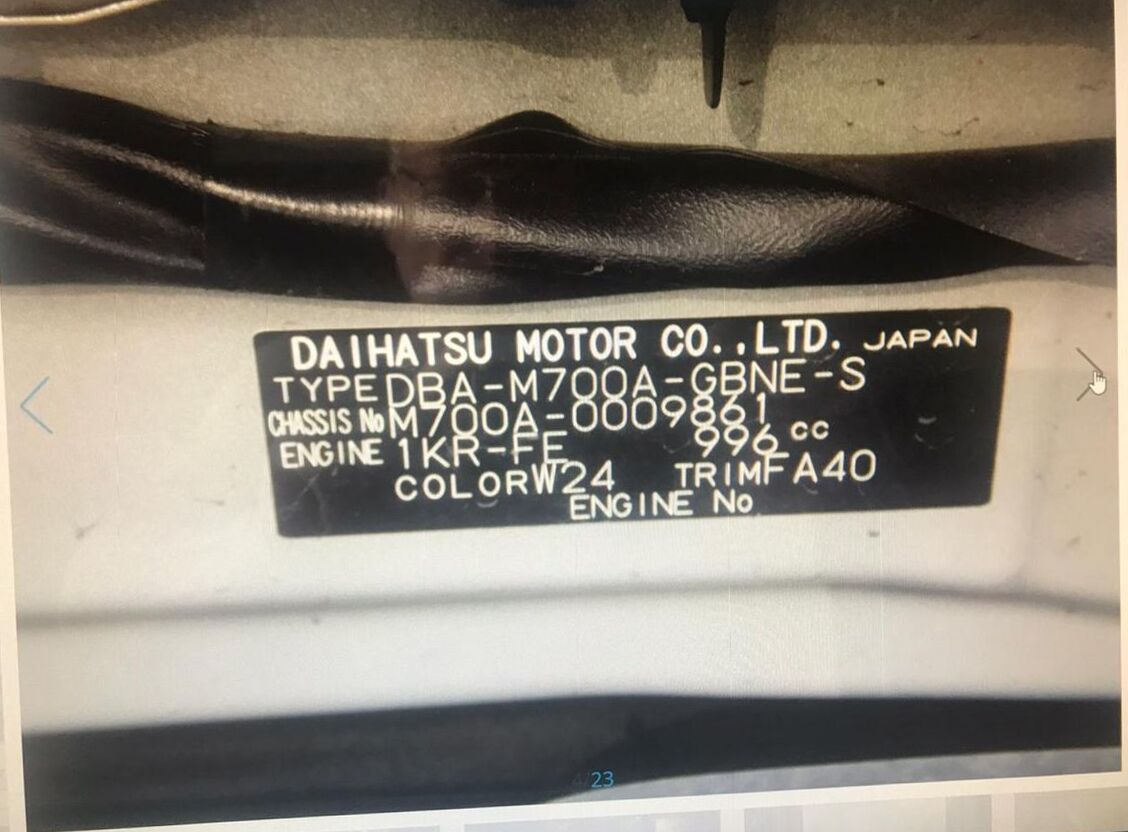

| Frame name | DBA-M700A |
| Clearance, mm | 150 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
Engine, transmission and steering specs | |

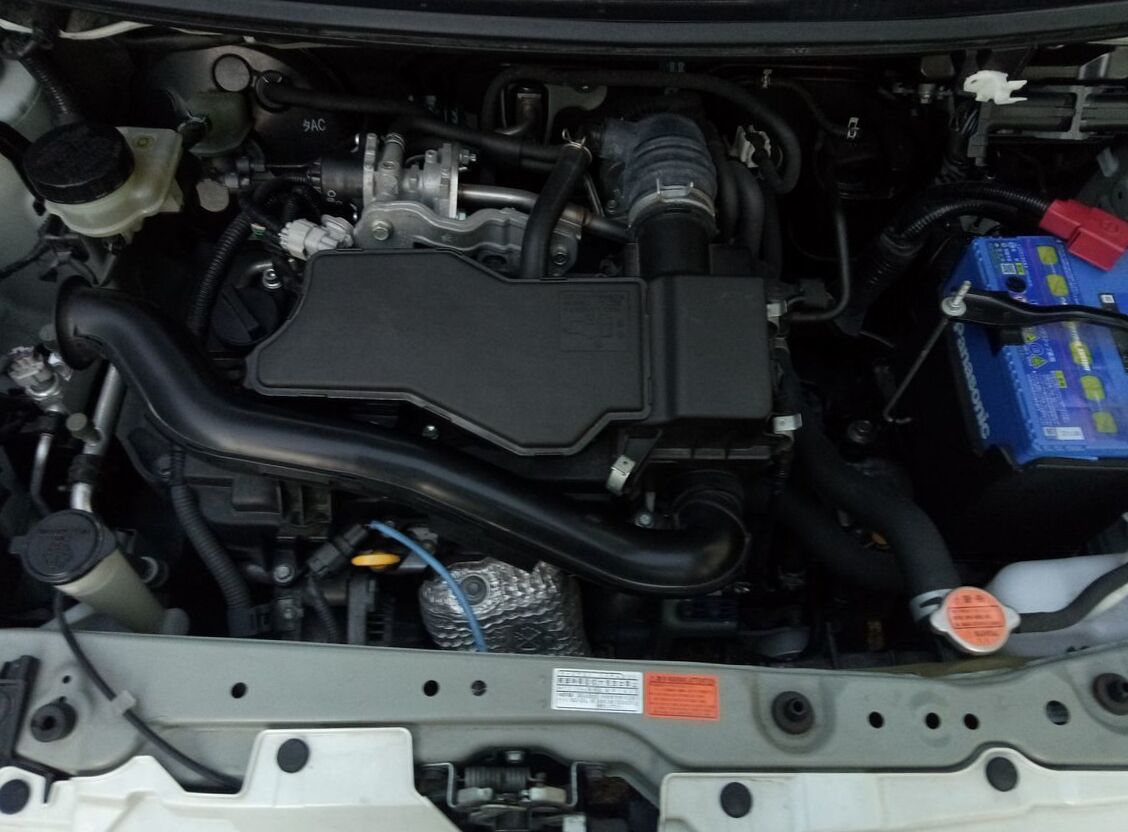

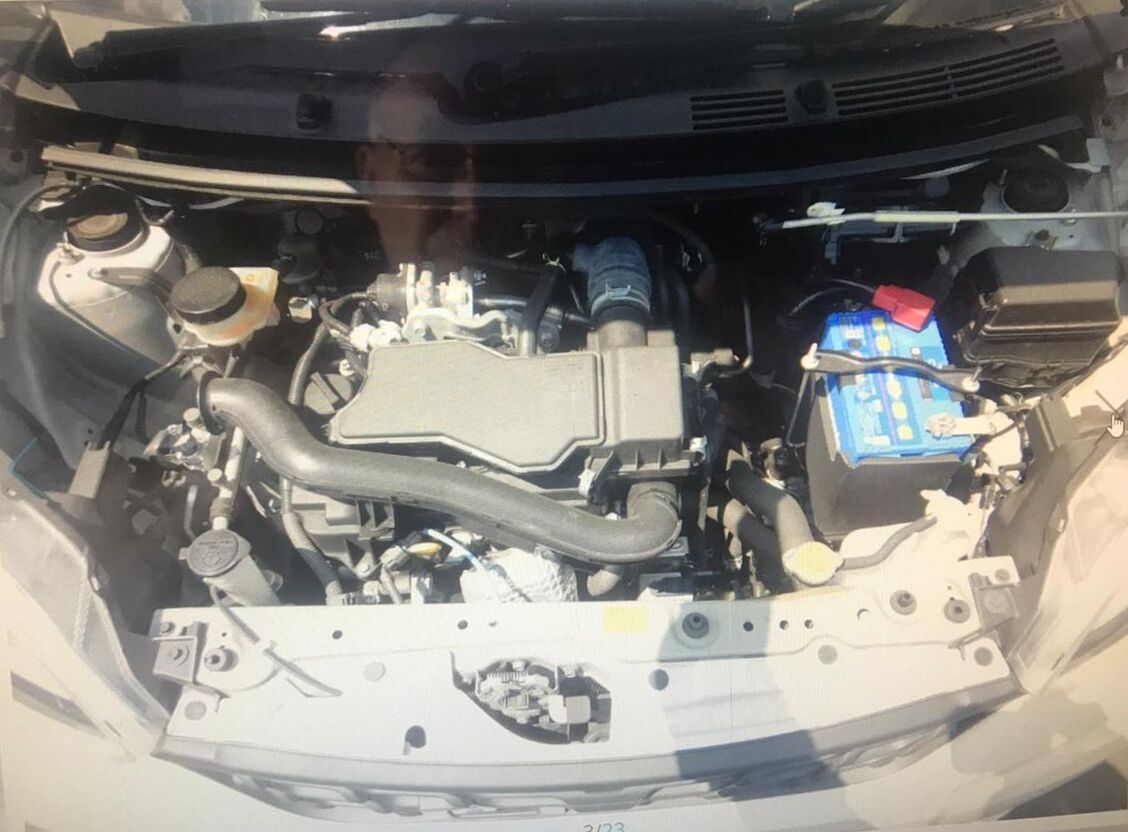

Engine specs | |
| Engine name | 1KR-FE |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Max power, hp | 69 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 69 (51) / 6000 |
| Max torque, N*m | 92 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 92 (9) / 4400 |
| Compression ratio | 12.5 |
| Bore, mm | 71 |
| Stroke, mm | 83.9 |
| Engine additional info | electronic fuel injection system |
| Eco type | 2005 emission regulation 75% reduction |
| Start stop system | yes |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with 2020 fuel consumption standard +10% |
| Combined | 3.6 |
| Co2 emission | 83 |
Transmission | |
| Range gear ratio | 3.327 - 0.628 |
| Rear gear ratio | 2.23 |
| Main gear ratio | 4.272 |
| Shifter position | On the dashboard |
Steering | |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3650 |
| Exterior width, mm | 1665 |
| Exterior height, mm | 1525 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 1975 |
| Interior width, mm | 1420 |
| Interior height, mm | 1270 |
Chassis dimensions | |
| Wheel base, mm | 2490 |
| Front axle length, mm | 1465 |
| Rear axle length, mm | 1475 |
| Turning radius, m | 4.6 |
| Wheel spacing front | 1465 |
| Wheel spacing rear | 1475 |
Weight and permissible load | |
| Mass, kg | 910 |
| Total weight | 1185 |
Volumes | |
| Fuel tank capacity, l | 36 |

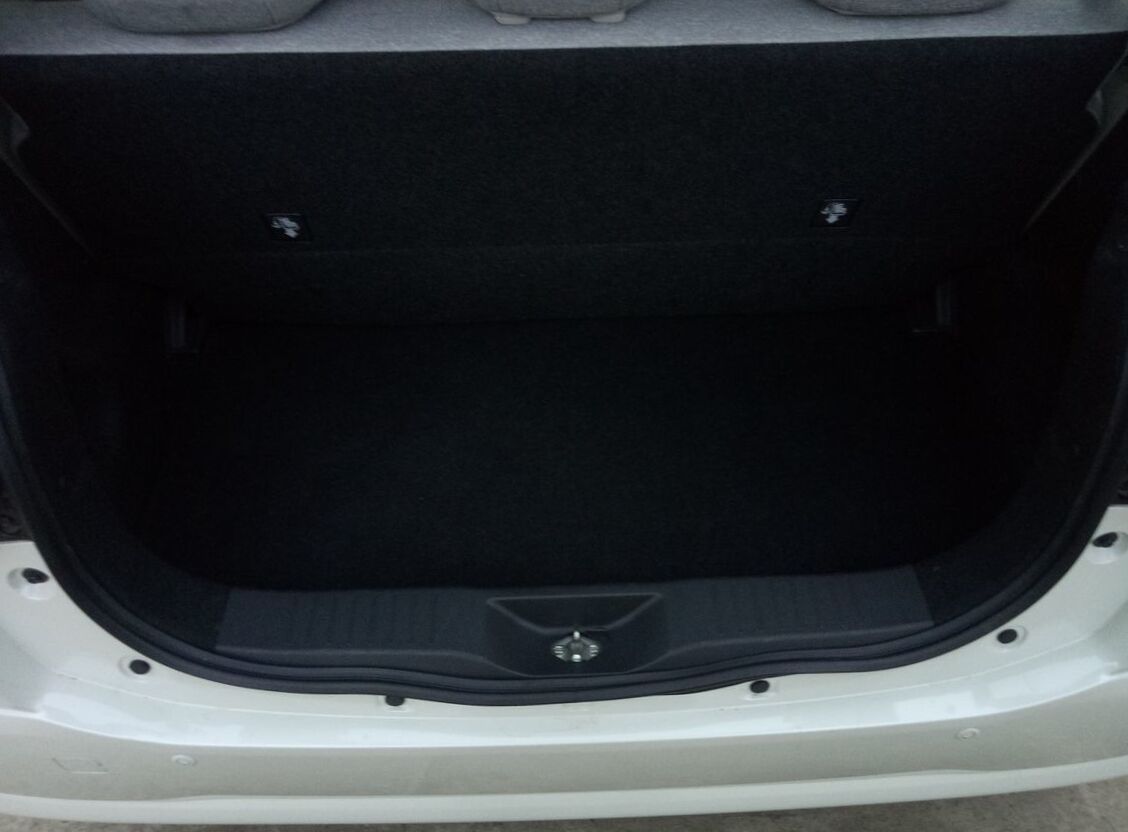

| Trunk volume | 193 |

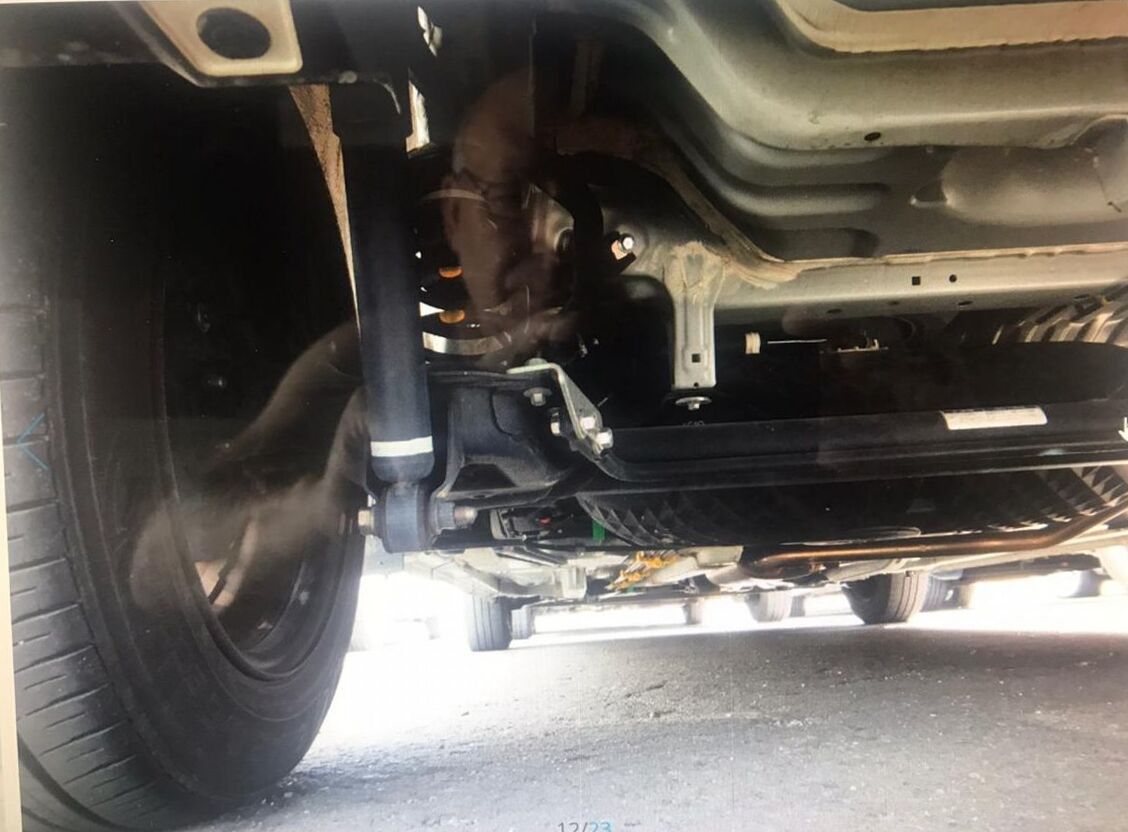

Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |

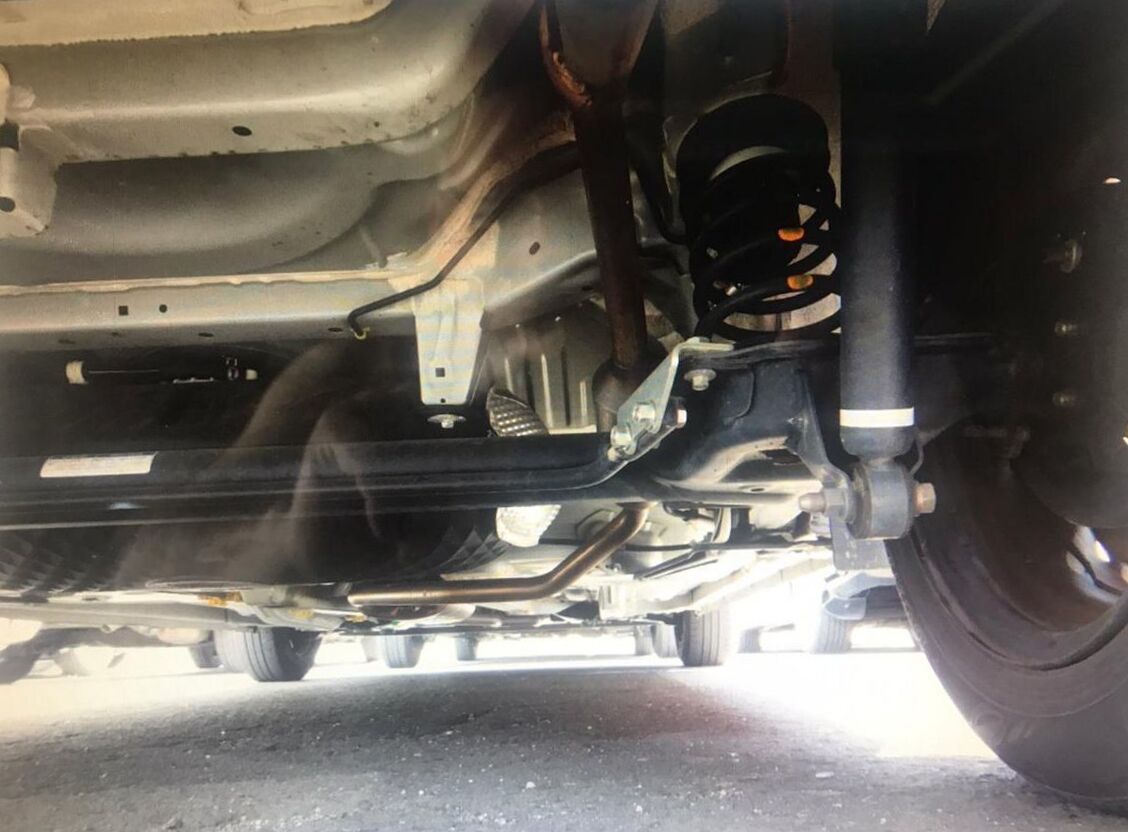

| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |

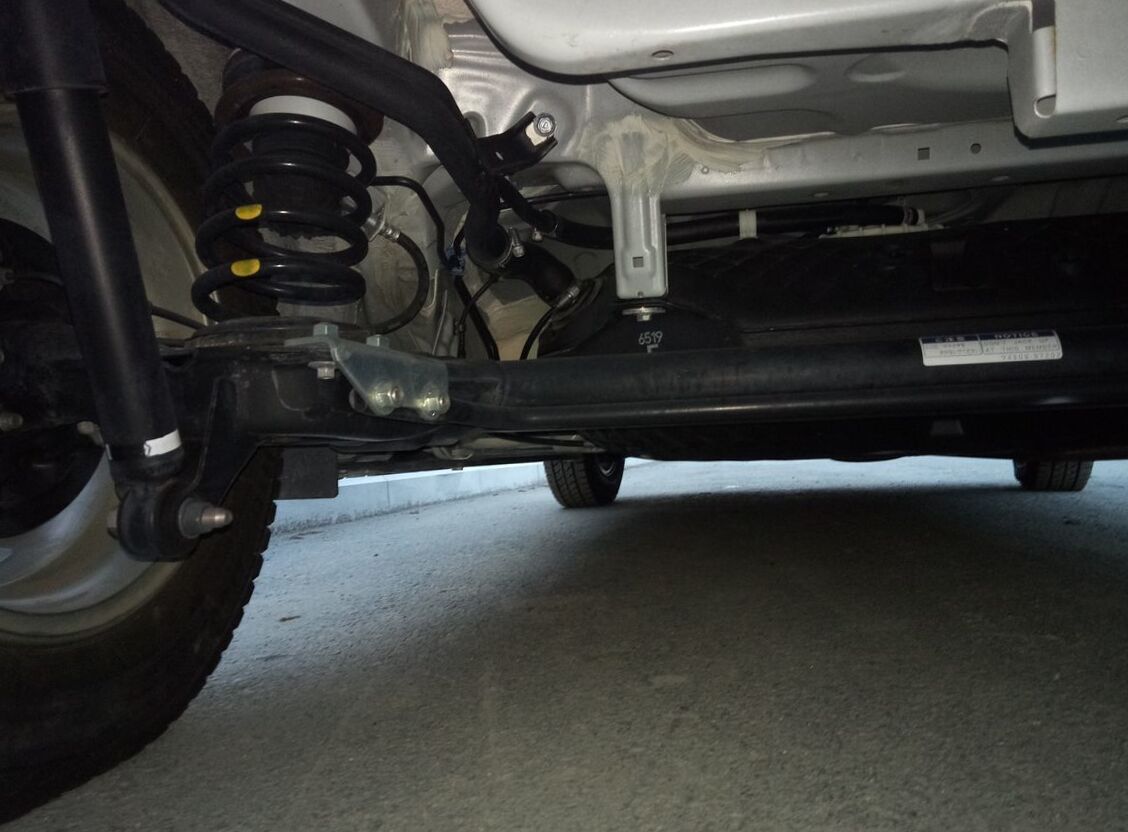

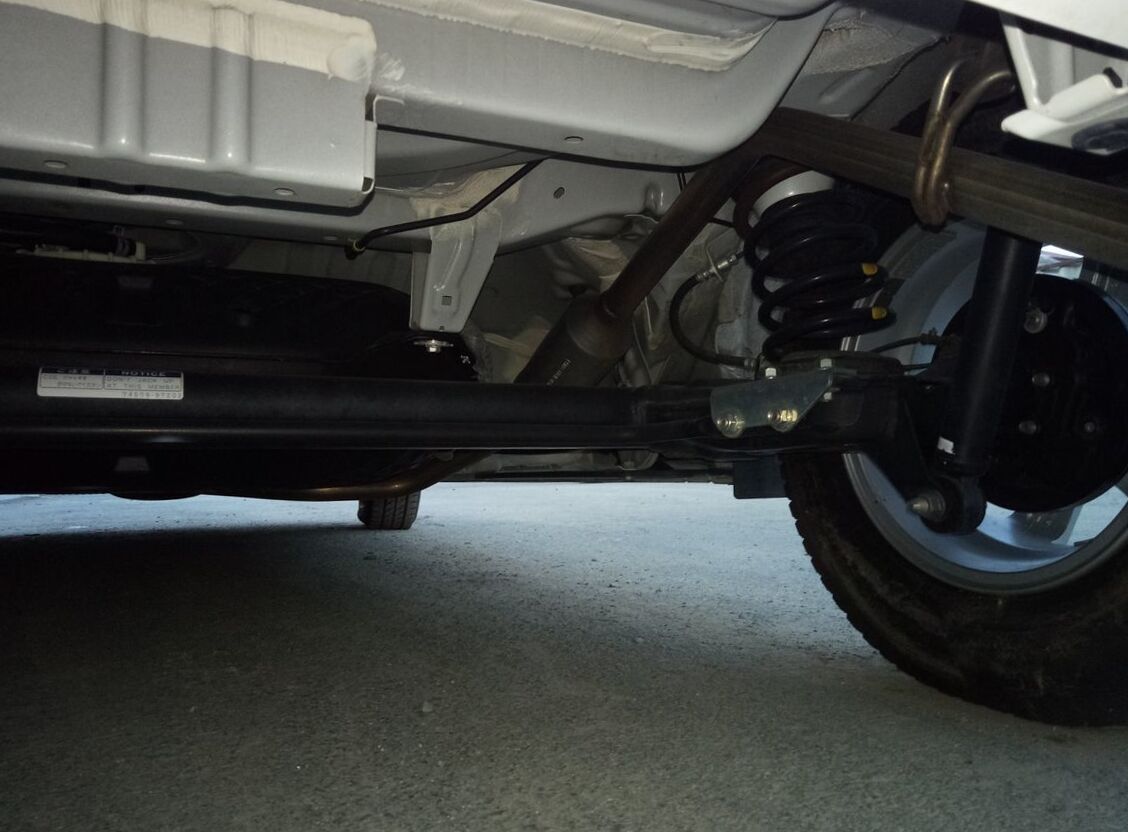

| Rear suspension | Semi-independent, torsion bar |
Wheel rims | |
| Aluminium wheel | no |
Tires | |
| Front wheels | 165/65R14 |
| Rear wheels | 165/65R14 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Parking brake | Foot |
| Parking brake new first | Foot |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Led lights | no |
| Diod fog lights | option |
| Led backlights | yes |
| Additional stop light | yes |
| Light sensor | no |
Side mirrors | |
| Exterior mirrors in body color | no |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
Doors | |
| Door handles in body color | no |
| Chrome door handles | no |
Windows | |
| Privacy glass | no |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |
| Rear spoiler | yes |
| Back wiper | option |
Interior | |
Steering wheel and center panel | |
| Leather winding | no |
| Tilt steering | yes |
| Audio control on steering wheel | option |
| Engine start button | no |

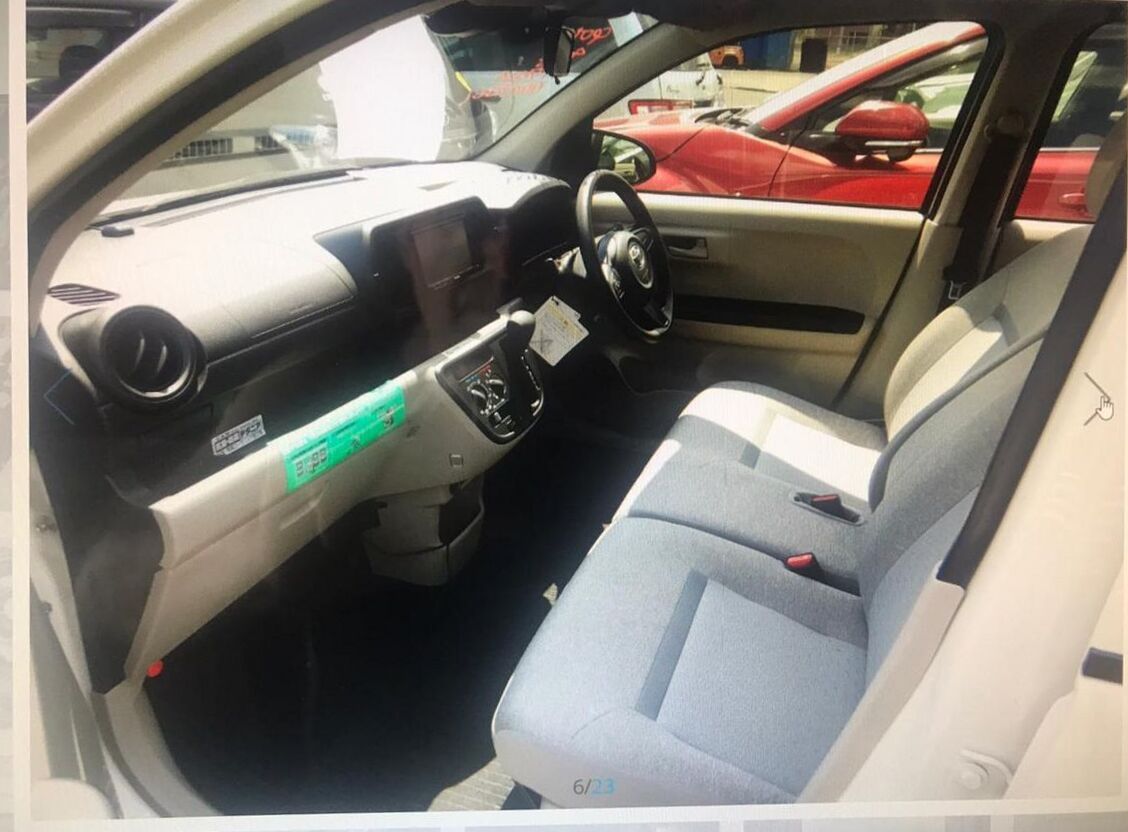

Interior design | |
| Cloth upholstery | yes |
| Combined obivka Salon | no |

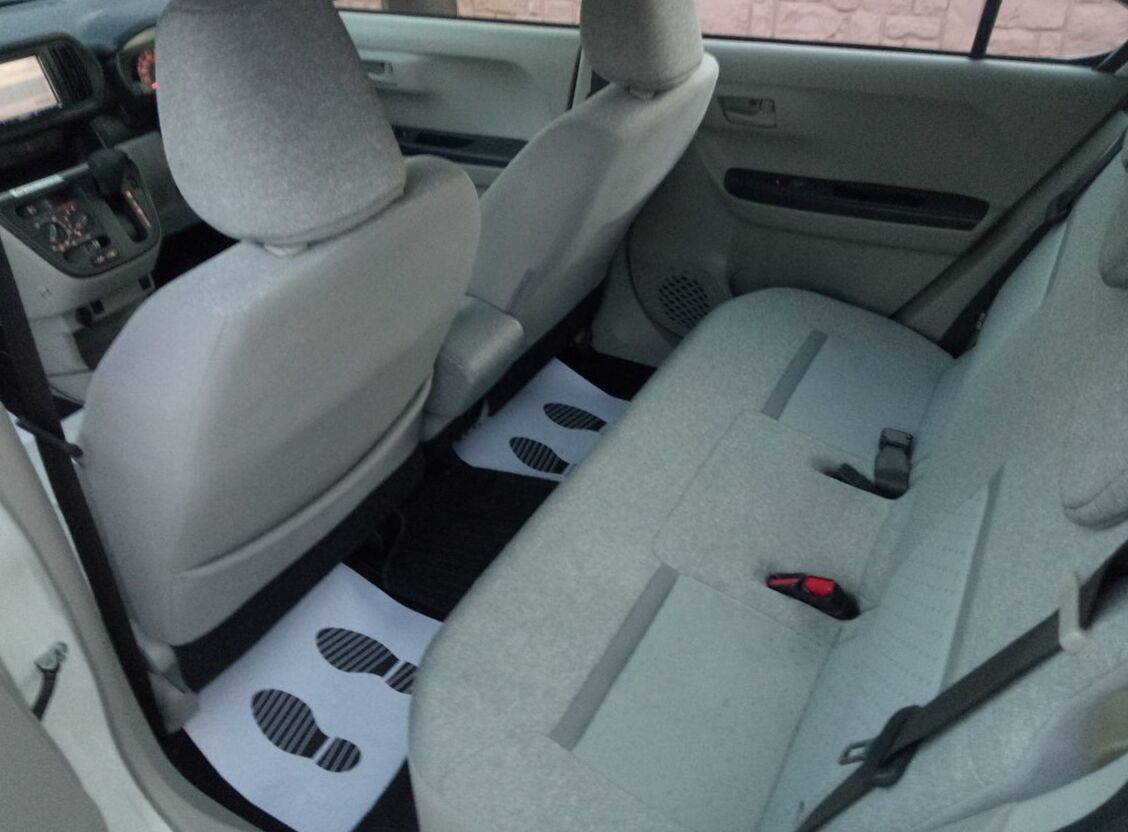

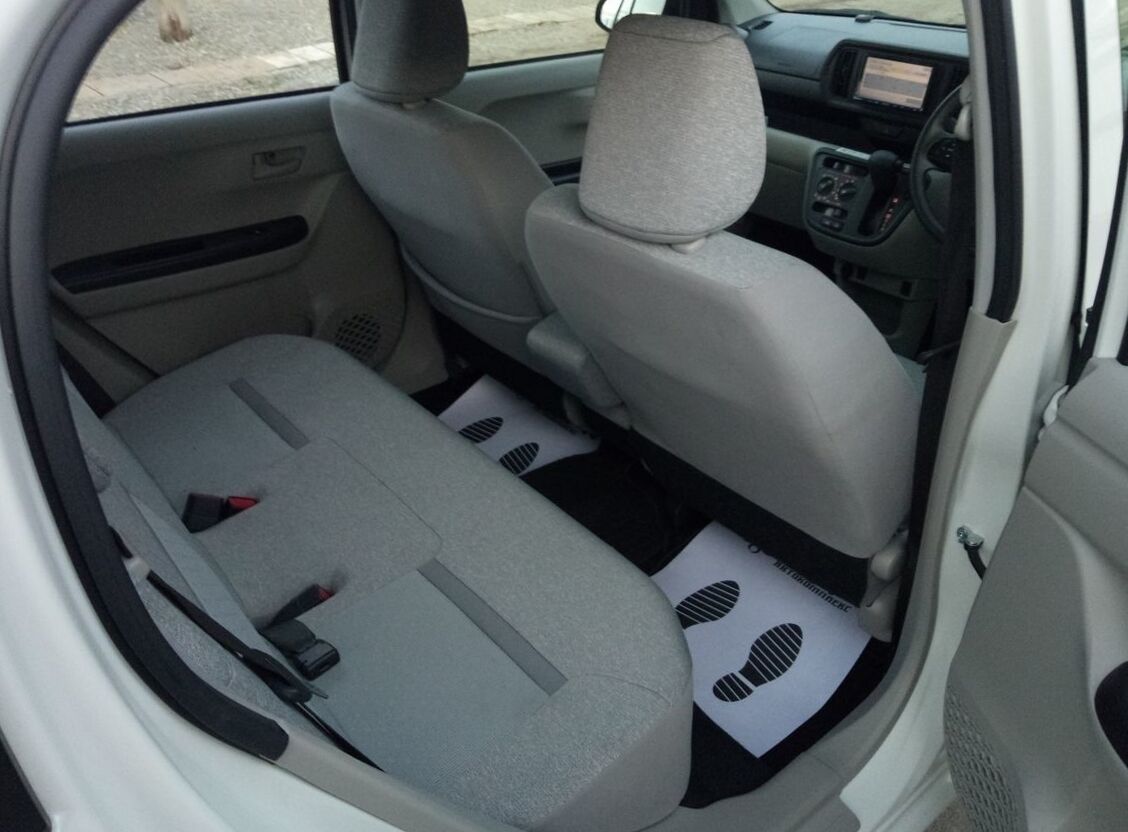

Seats | |
| 2nd row | foldable, backrest is indivisible |
| Seat lifter | no |
| Front bench seat | yes |
| Headrests for seats | 5 |
| Separating armrest front | yes |
| Seats pockets | yes |
Electric interior package | |
| Front seat heater | option |
| Centralized door lock | yes |
| Keyless enter | yes |
| Keyless | no |

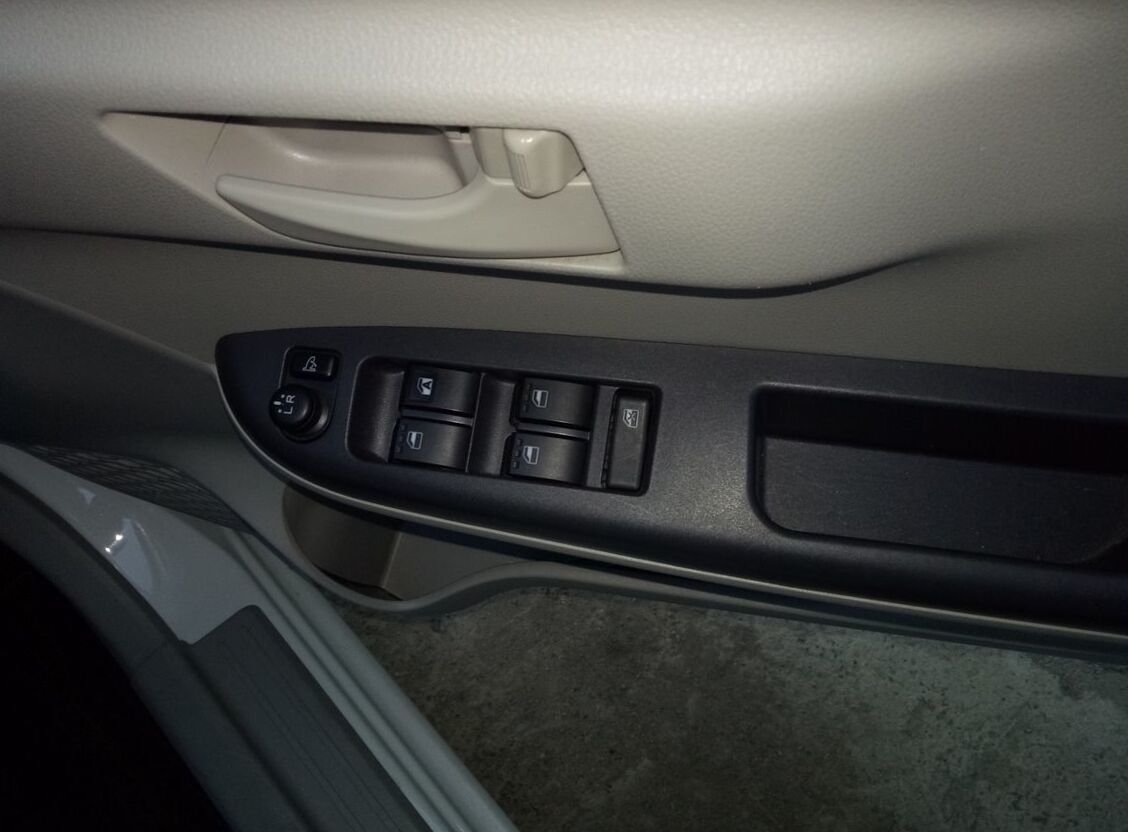

| Power window front | yes |
| Power window rear | yes |
| Front sheeld electro heater | option |
Additional interior equipment | |
| Holders for bottles in doors | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
Children safety | |
| isofix bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Lane Keep Assist | yes |
| Control system of a headlight | no |
| Front sonar | no |
| Rear sonars | no |
| Collision mitigation system | yes |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | no |
| Air filter | yes |
Audio systems | |
| Additional sound equipment | 2 speakers, antenna |
Navigation and video equipment | |
| Front monitor | no |
| Sides monitors | no |

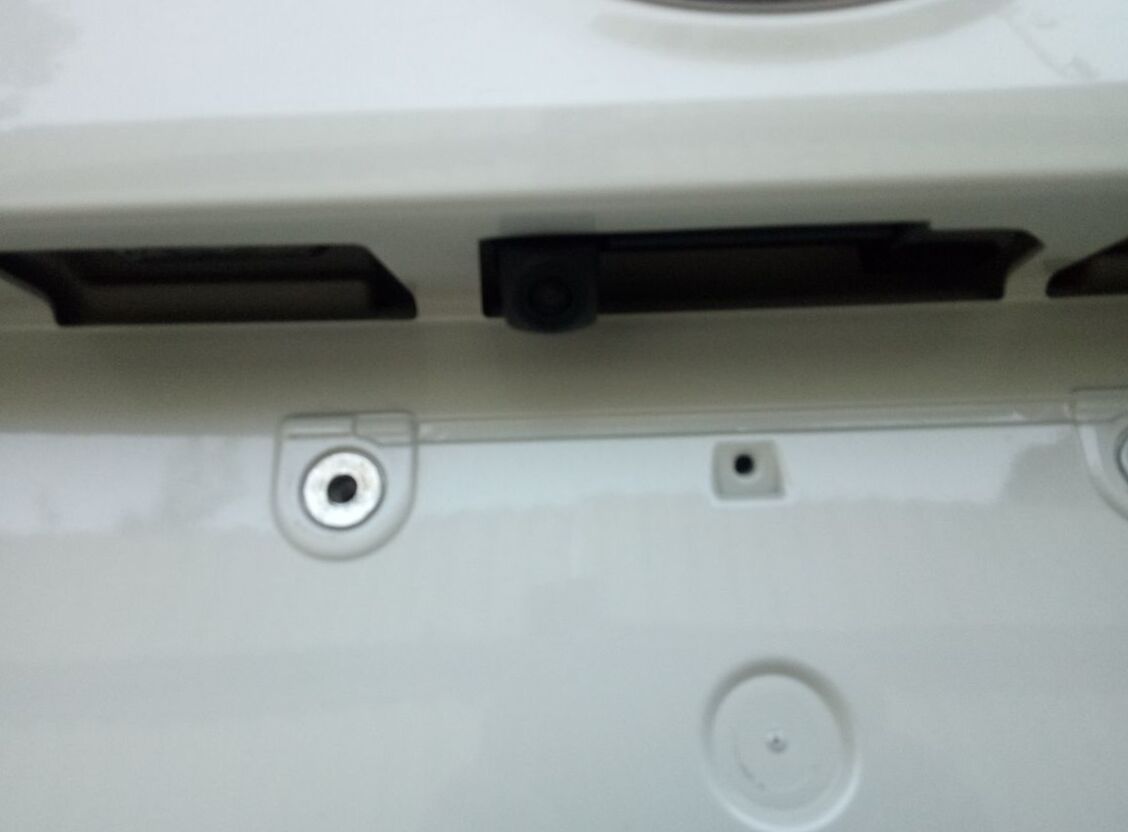

| Back monitor | option |
Additional amenities | |
| Mirrors in sunshields | yes |
| Lagage box | yes |
Car safety | |
| Alarm system | no |
Driver Kit | |

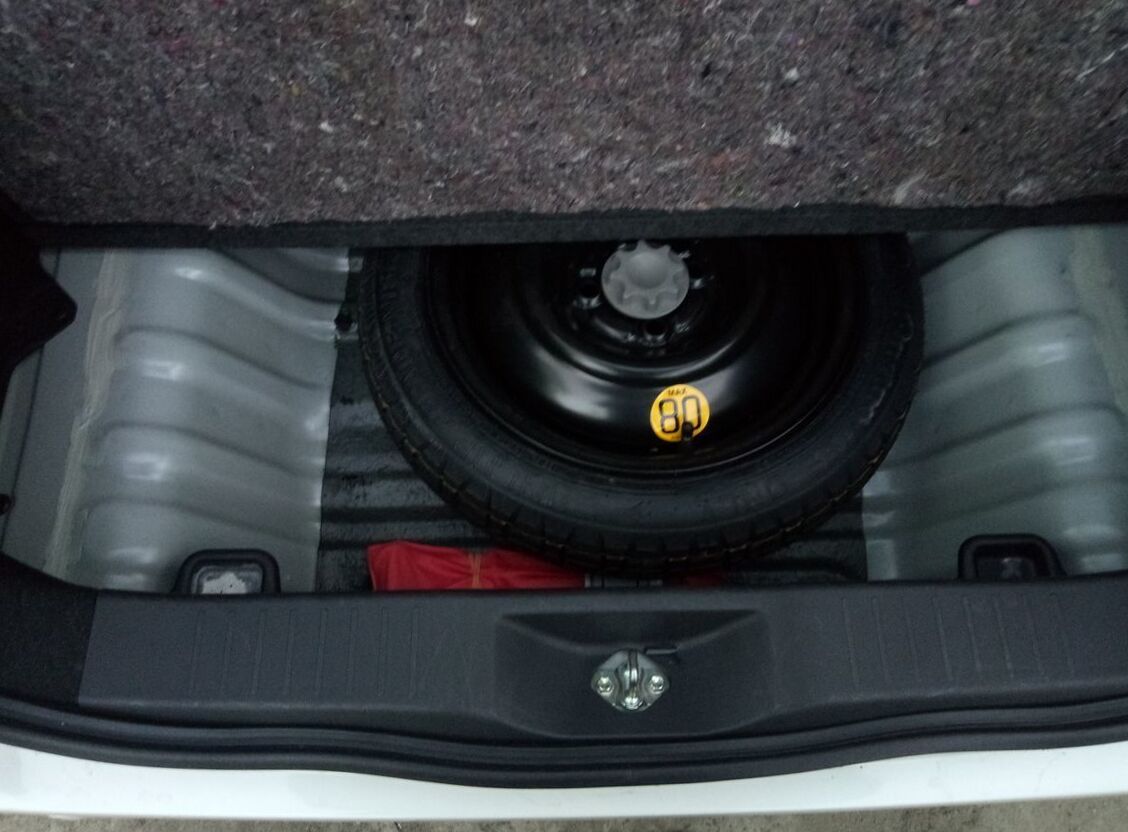

| Spare tyre small | option |
| Jack | yes |
| Balonnik | yes |
2016 Toyota Passo III DBA-M700A 1.0 X S (69 Hp) specs
|
