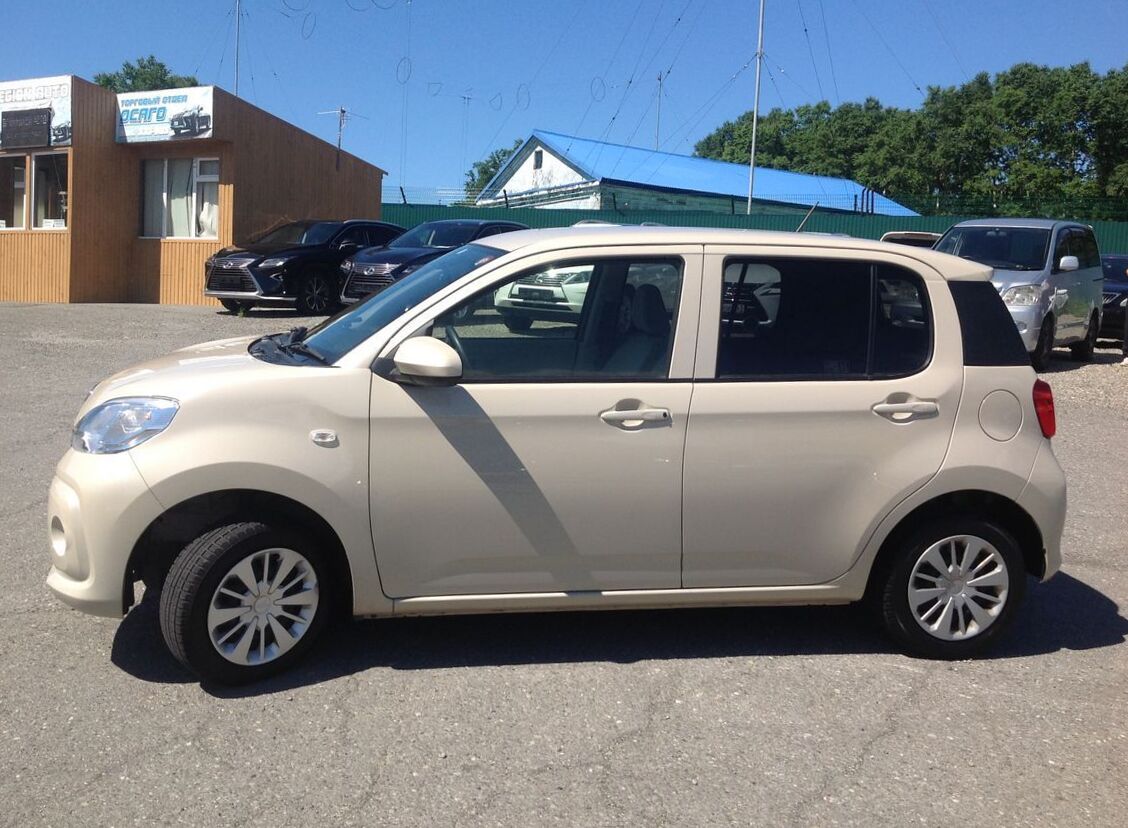

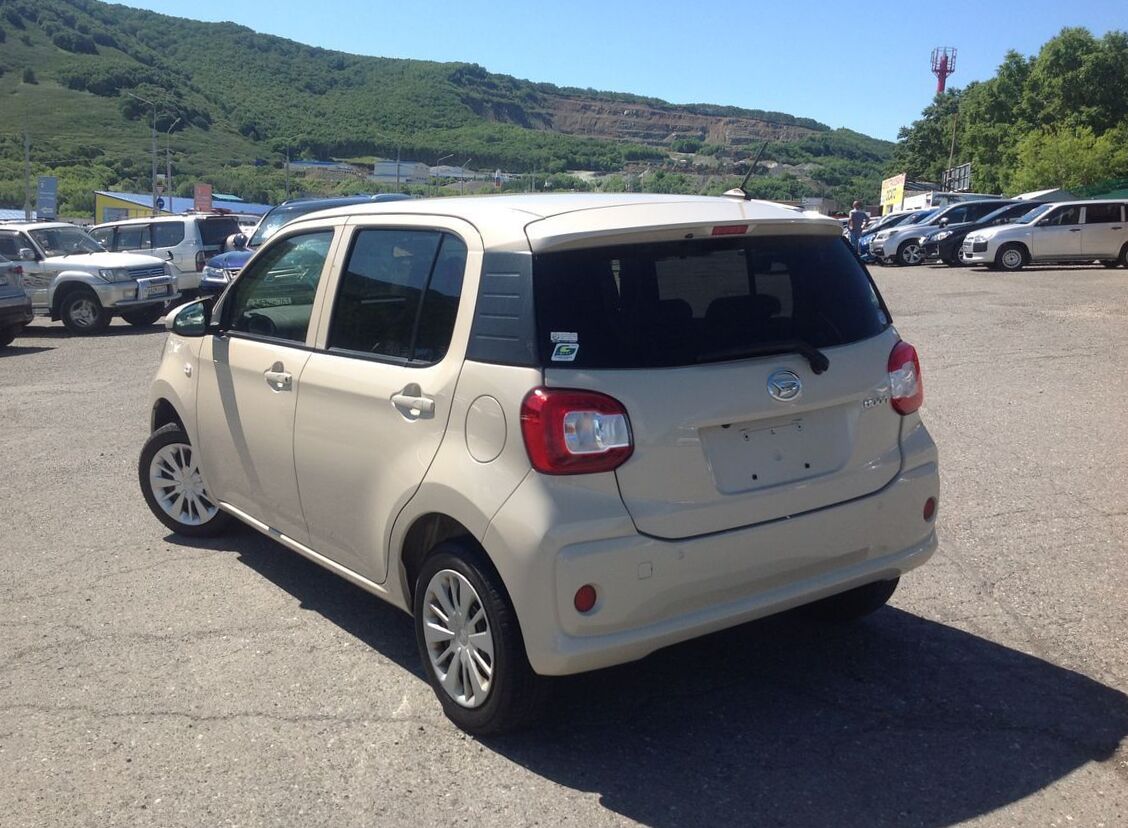

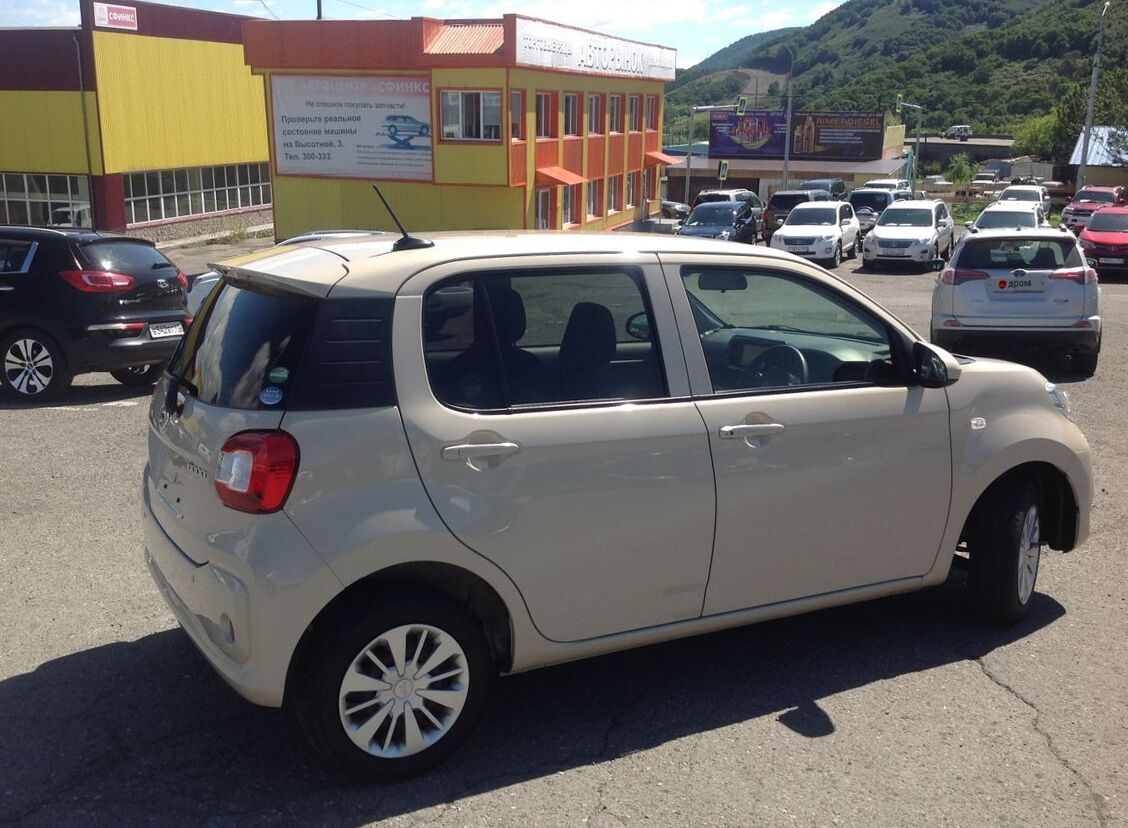

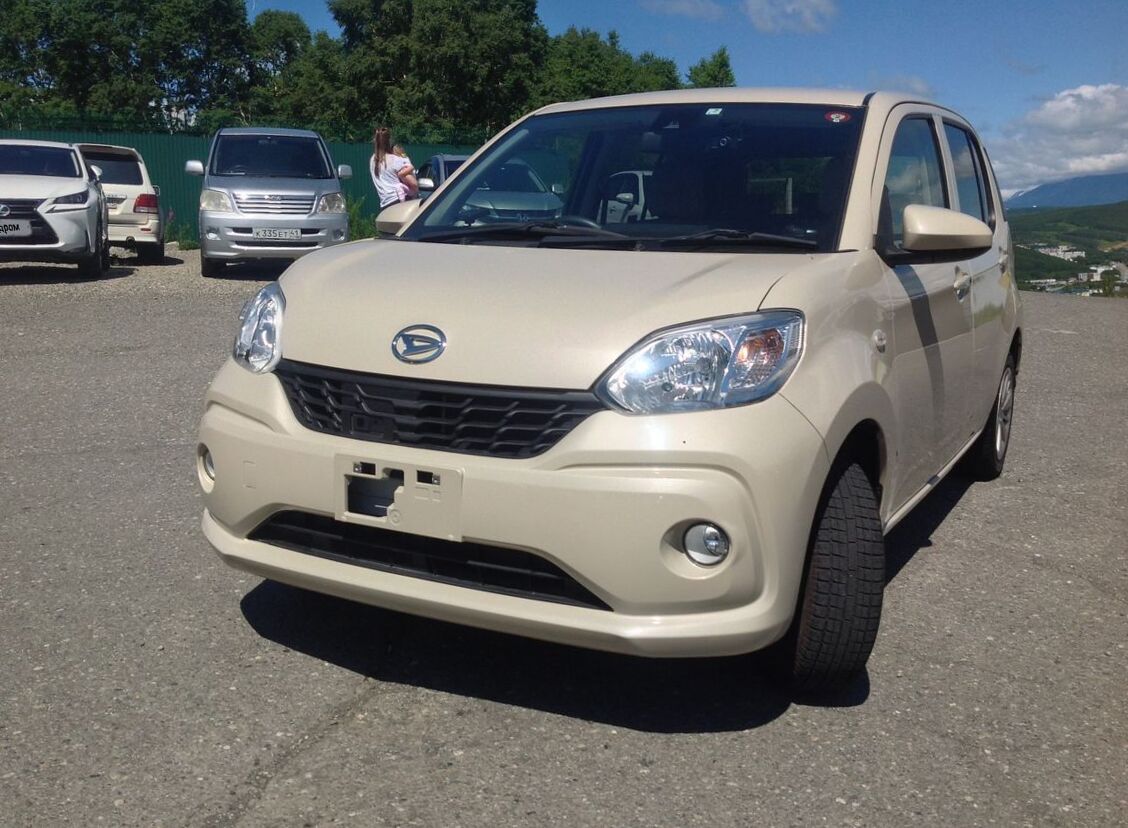

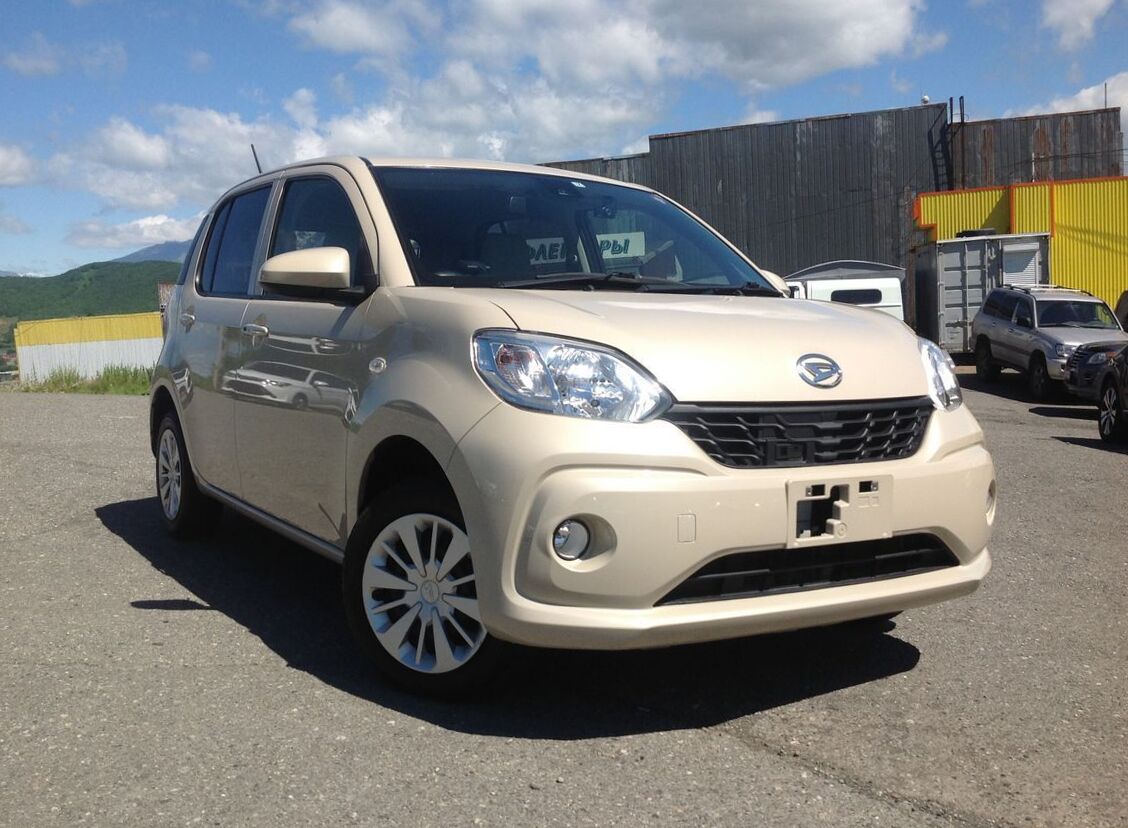

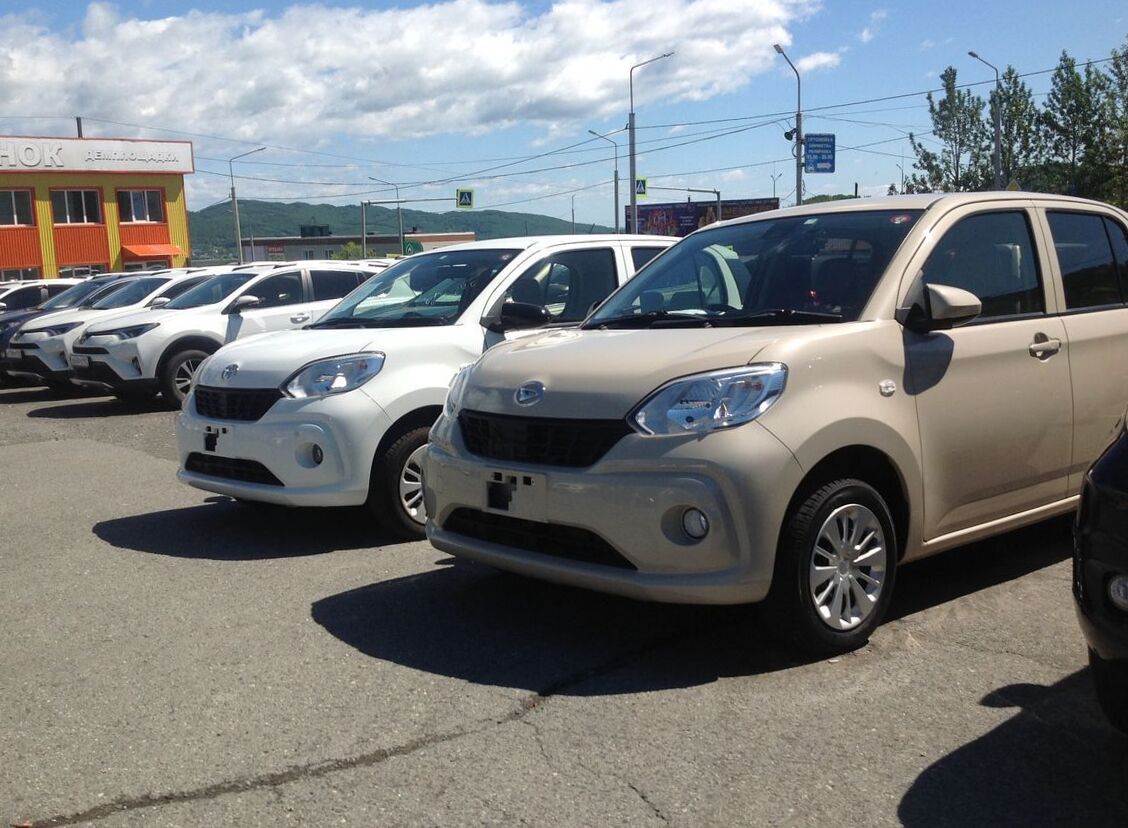

2017 Toyota Passo III 1.0 X G Package 4WD
Toyota Passo Problems
Mods
2017, My passo 2017 is struggling a lot. Please
I need your assistance. I have tried several g...
Trunk locked not opening with central or key
2011, Trunk locked can't open. Central
system opening other doors not trunk. There is
no ...
Low power uphill, jerking when changing gear, o...
2007, Problem with acceleration, Low power
uphill, car Jerks when changing gear, high fuel
con...
| Body type | Hatchback |
|---|---|
| Power | 69 Hp |
| Engine Displacement | 1000 cm3 or 1L or 61 cu-in |
| Color | beige |
| Transmission Gearbox | Automatic |
| Fuel Type | Gasoline |
| Drive wheel | 4WD |
| Mileage | 49088 Miles |
| Vin | 277*** |
| Price (out of date) | $8475 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2017 Toyota Passo III? | Hatchback, 5 Seats, 5 Doors |
| What is the fuel economy, Toyota Passo Hatchback 2017? | 4.1 l/100 km |
| How much power, Toyota Passo DBA-M710A 2017? | 69 Hp |
| What is the engine size, 2017 Toyota Passo 1.0 X G Package 4WD? | 1L or 996cm3 |
| How many gears, What type is the gearbox, Toyota Passo III 2017 Hatchback 1.0 X G Package 4WD (69 Hp)? | Variator |
| What is the drivetrain, 2017 Toyota Passo Hatchback 1.0 X G Package 4WD (69 Hp)? | All wheel drive (4x4) |
| How long is this vehicle, 2017 Toyota Passo III? | 3650 mm |
| How wide is the vehicle, Toyota Passo Hatchback 2017? | 1665 mm |
| How much trunk (boot) space, Toyota Passo DBA-M710A 2017? | 193 l |
Toyota Passo III DBA-M710A 1.0 X G Package 4WD (69 Hp) 2016, 2017, 2018 Specs
General information | |
|---|---|
| Production start year | 2016 |
| Production end year | 2018 |
| Drive type | All wheel drive (4x4) |
| Frame type | Hatchback |
| Transmission type | Variator |
| Engine volume, cc | 996 |
| Frame name | DBA-M710A |
| Clearance, mm | 150 |
| Manufacturing country | Japan |
| Doors | 5 |
| Winter complectation | option |
| Steering locaton | right |
Engine, transmission and steering specs | |

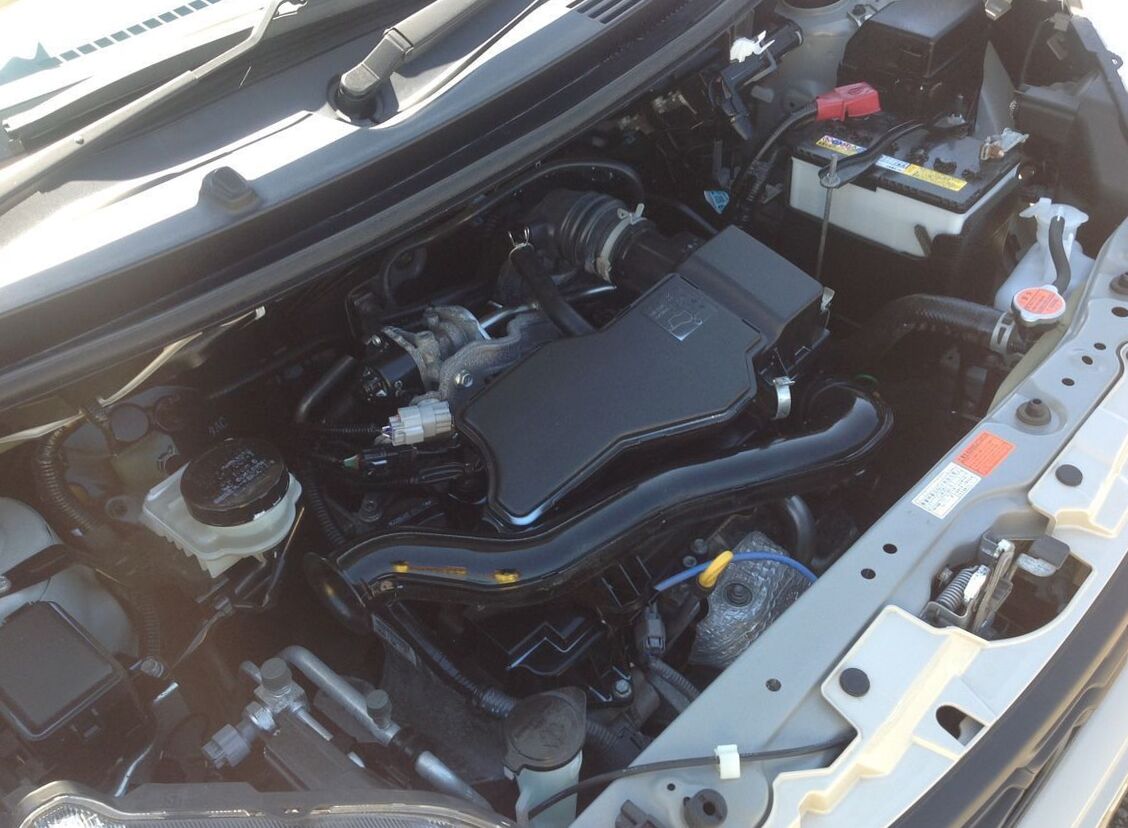

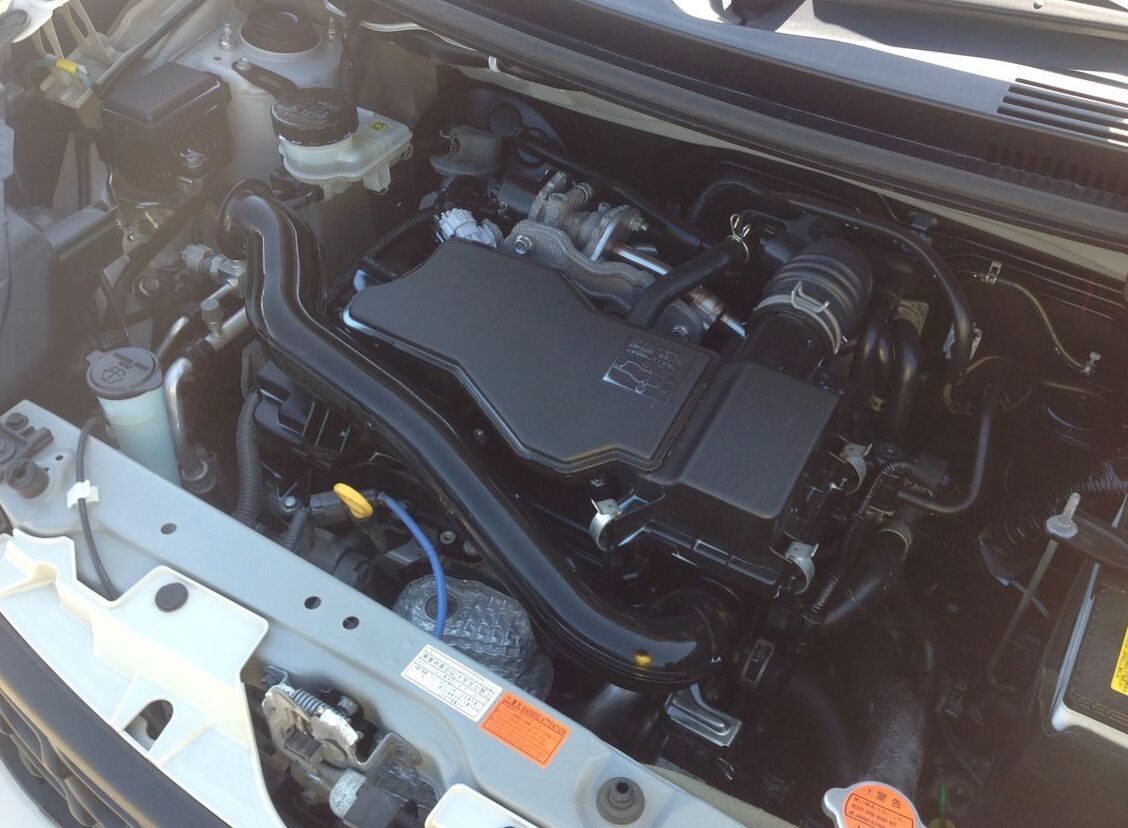

Engine specs | |
| Engine name | 1KR-FE |
| Fuel | Petrol (Gasoline) |
| Engine type | 3 cylinder DOHC |
| Max power, hp | 69 |
| Max power RPM, rpm | 6000 |
| Max power, hp (kWt) / rpm | 69 (51) / 6000 |
| Max torque, N*m | 92 |
| Max torque RPM, rpm | 4400 |
| Max torque, N*m (kg*m) / rpm | 92 (9) / 4400 |
| Compression ratio | 12.5 |
| Bore, mm | 71 |
| Stroke, mm | 83.9 |
| Engine additional info | electronic fuel injection system |
| Eco type | 2005 emission regulation 75% reduction |
| Start stop system | yes |
Fuel consumption | |
| Achieve fuel efficiency standards | Compliance with the 2020 fuel consumption standard |
| Combined | 4.1 |
| Co2 emission | 95 |
Transmission | |
| Range gear ratio | 3.327 - 0.628 |
| Rear gear ratio | 2.23 |
| Main gear ratio | 4.523 |
| Shifter position | On the dashboard |
Steering | |
| Electric power steering | yes |
| Steereing gear type | Gear rail |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 3650 |
| Exterior width, mm | 1665 |
| Exterior height, mm | 1525 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
| Interior length, mm | 1975 |
| Interior width, mm | 1420 |
| Interior height, mm | 1270 |
Chassis dimensions | |
| Wheel base, mm | 2490 |
| Front axle length, mm | 1465 |
| Rear axle length, mm | 1445 |
| Turning radius, m | 4.6 |
| Wheel spacing front | 1465 |
| Wheel spacing rear | 1445 |
Weight and permissible load | |
| Mass, kg | 960 |
| Total weight | 1235 |
Volumes | |
| Fuel tank capacity, l | 38 |

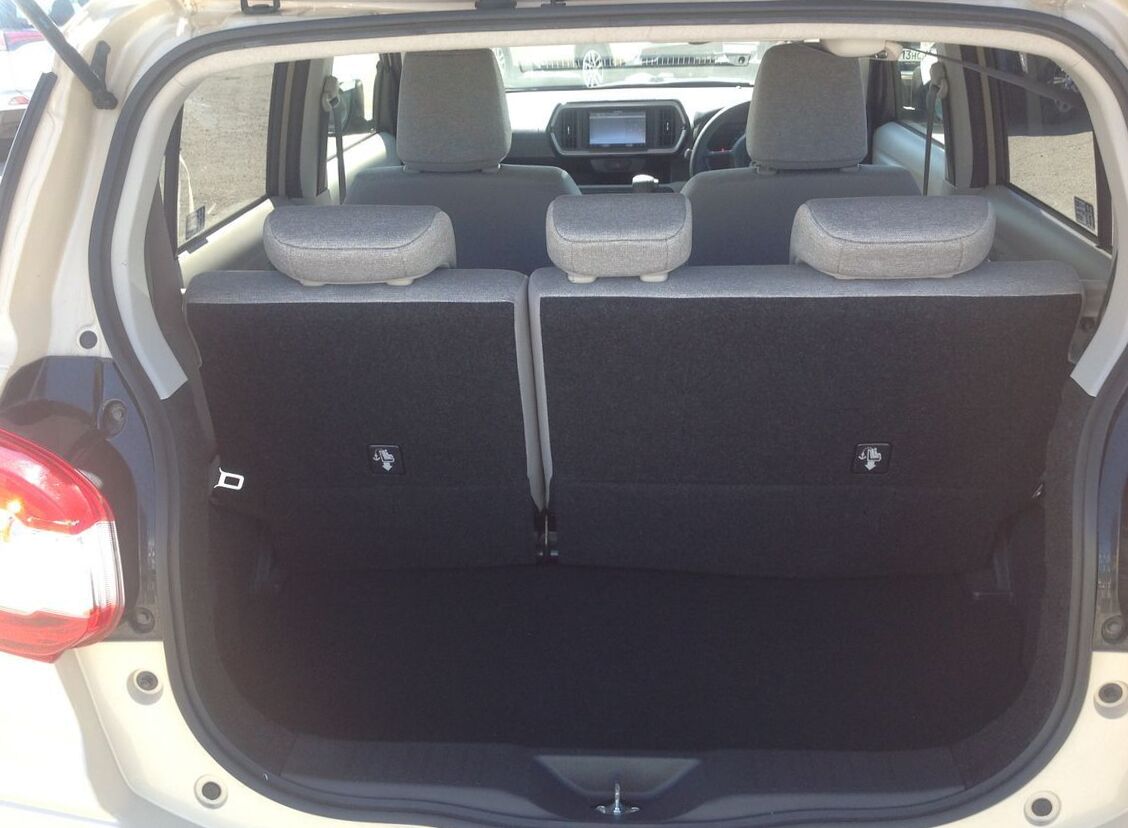

| Trunk volume | 193 |
Suspension specs | |
Suspension specs | |
| Front stabilizer | no |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | no |
| Rear suspension | Dependent, on longitudinal arms |
Wheel rims | |
| Aluminium wheel | yes |
Tires | |
| Front wheels | 165/65R14 |
| Rear wheels | 165/65R14 |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | drum brakes |
| Parking brake | Foot |
| Parking brake new first | Foot |
Exterior | |
Headlights | |
| Halogen headlights | no |
| Led lights | yes |
| Diod fog lights | option |
| Led backlights | yes |
| Additional stop light | yes |
| Light sensor | yes |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Side mirrors with repeaters indicators | no |
| Power adjustable door mirrors | yes |
Doors | |
| Door handles in body color | yes |
| Chrome door handles | no |
Windows | |
| Privacy glass | yes |
| Ultraviolet glass protection | yes |
| Rear glass heat | yes |
Accessories | |
| Rear spoiler | yes |

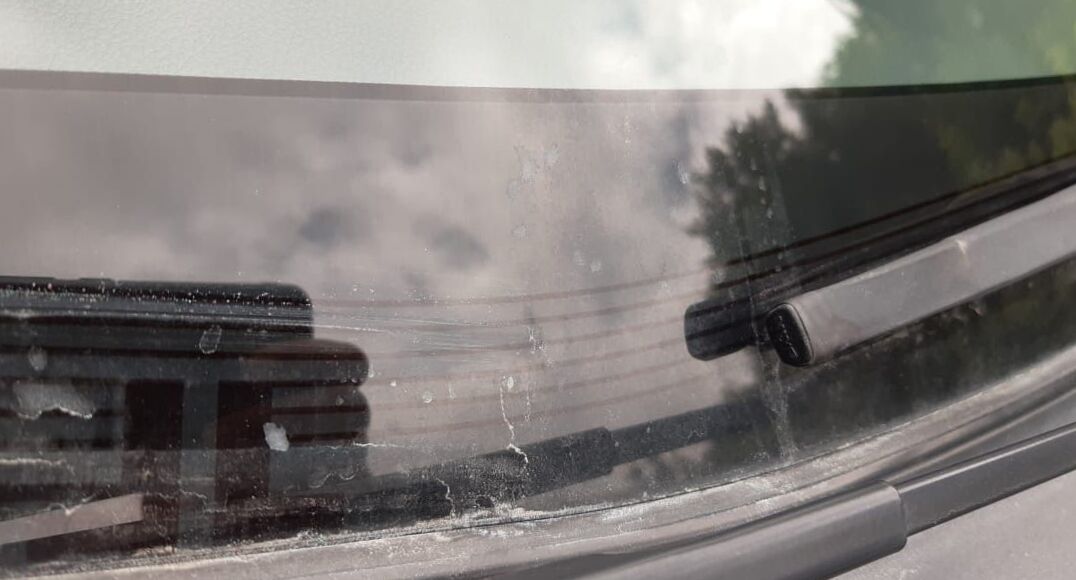

| Back wiper | yes |
Interior | |

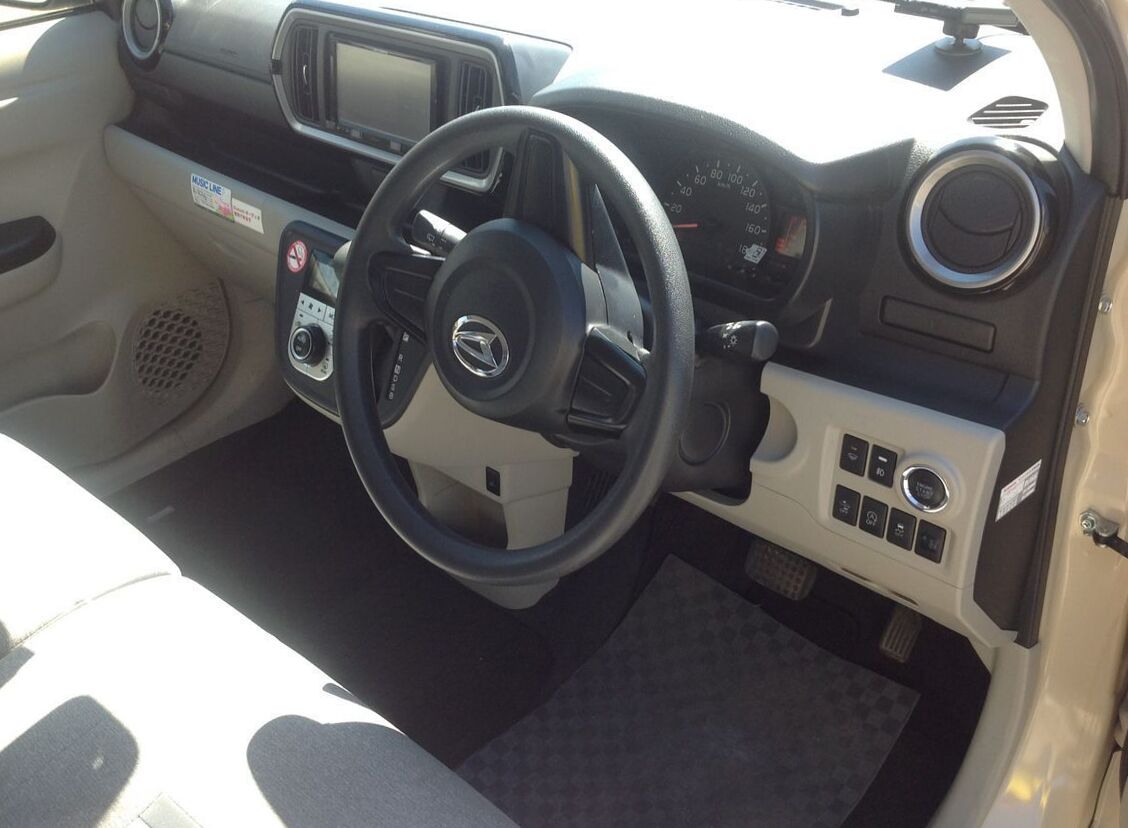

Steering wheel and center panel | |
| Leather winding | yes |
| Tilt steering | yes |
| Audio control on steering wheel | option |

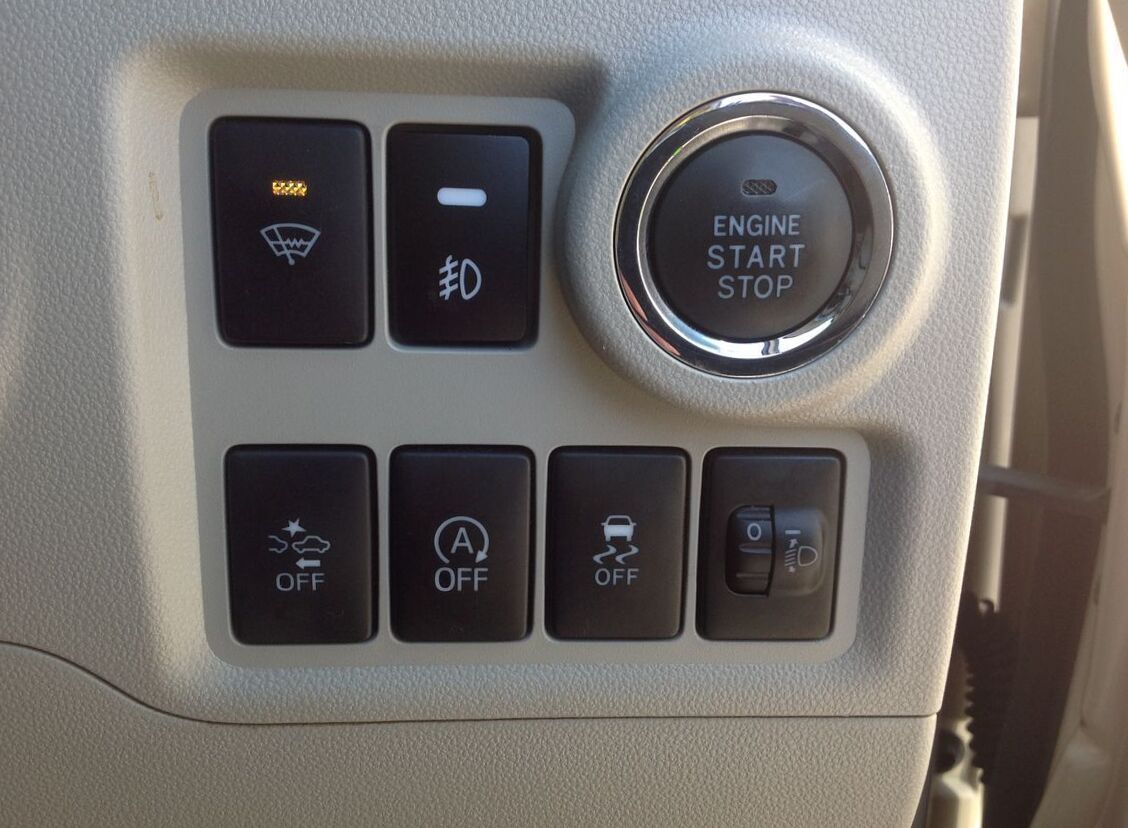

| Engine start button | yes |
Interior design | |
| Cloth upholstery | yes |
| Combined obivka Salon | no |
Seats | |

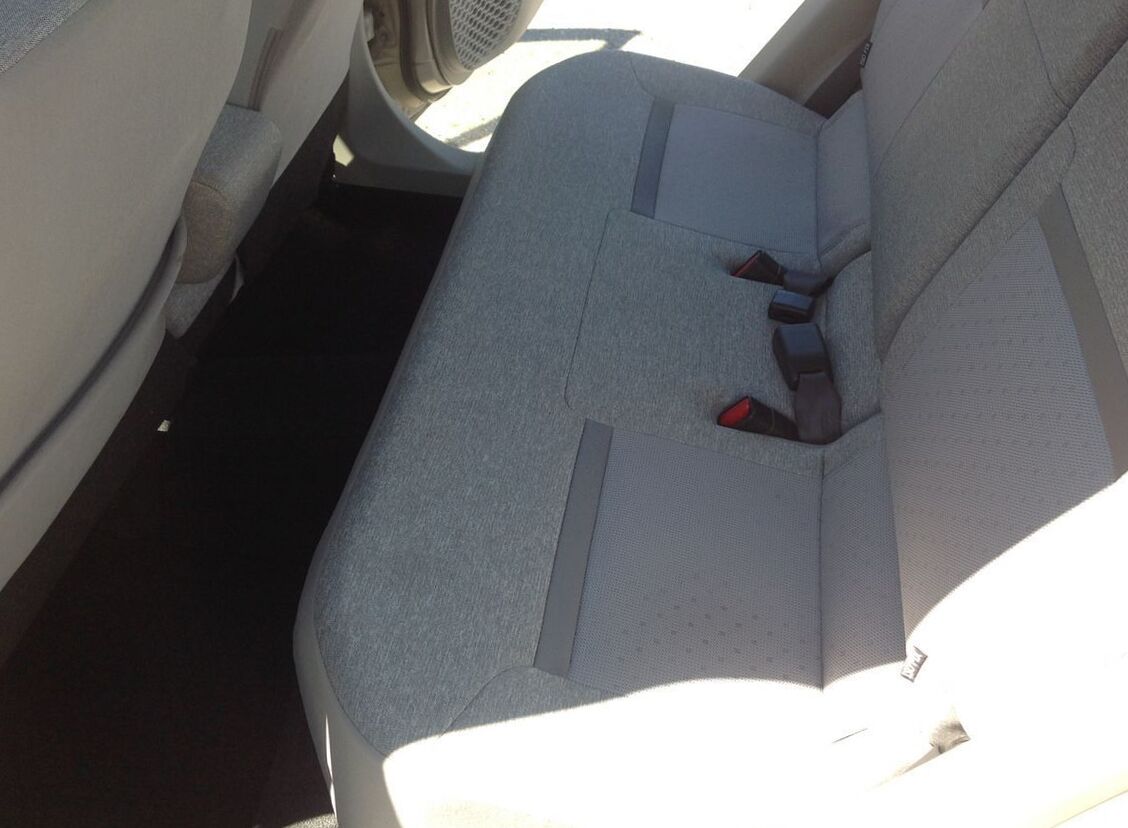

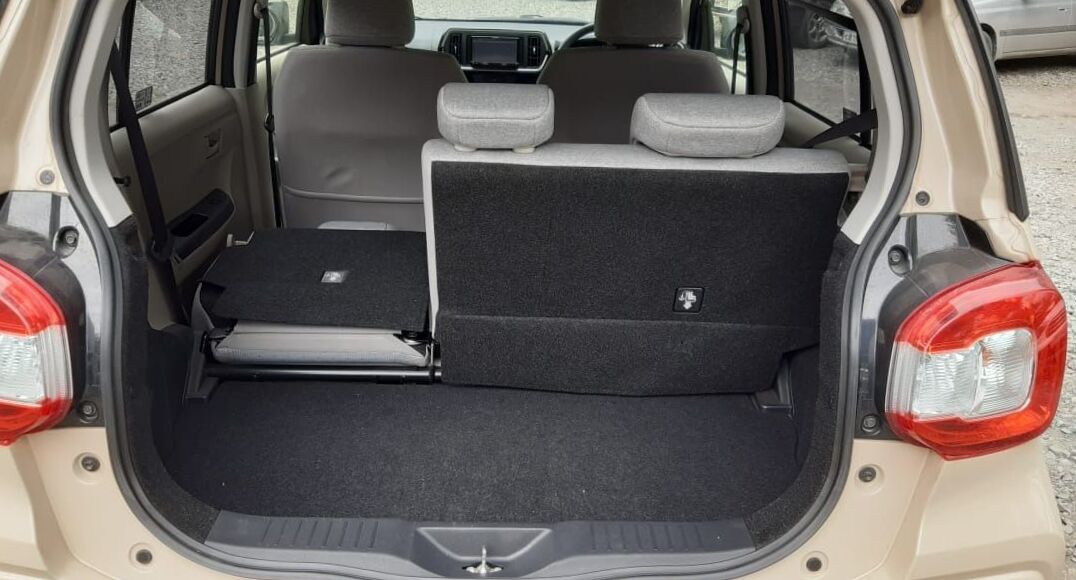

| 2nd row | 60/40 ratio fold seat |
| Seat lifter | yes |

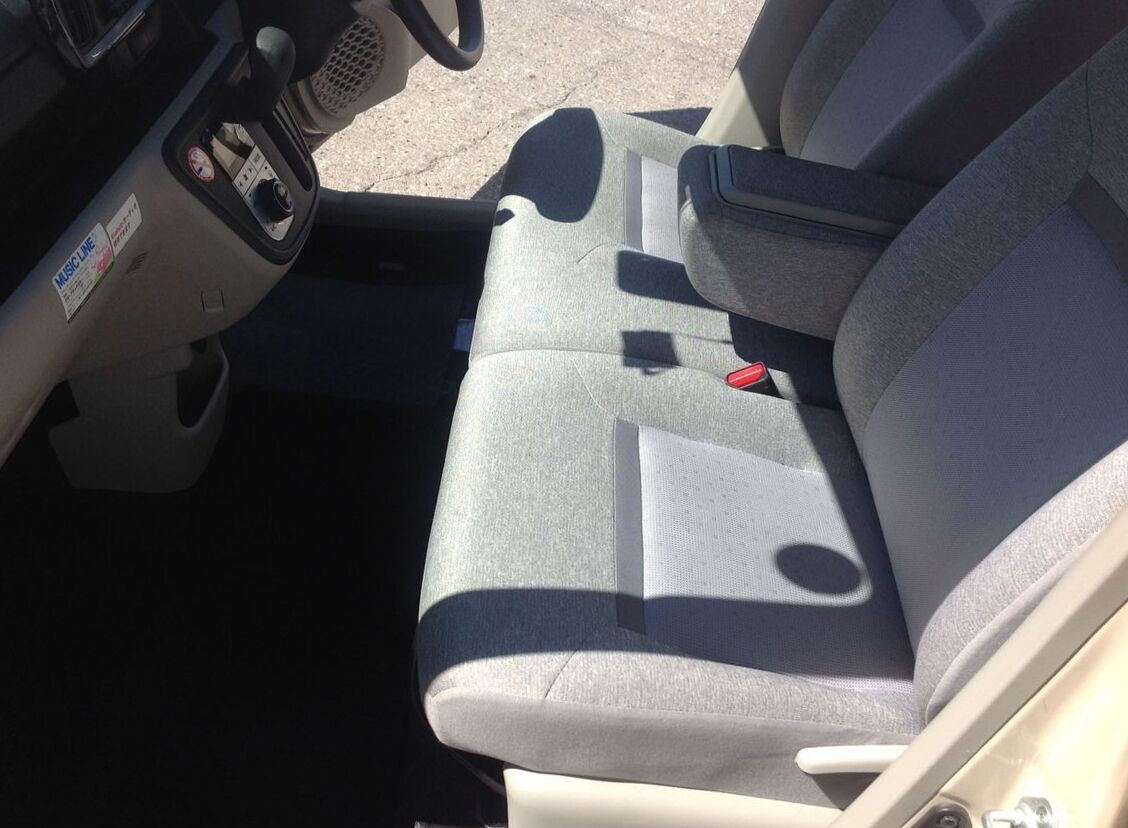

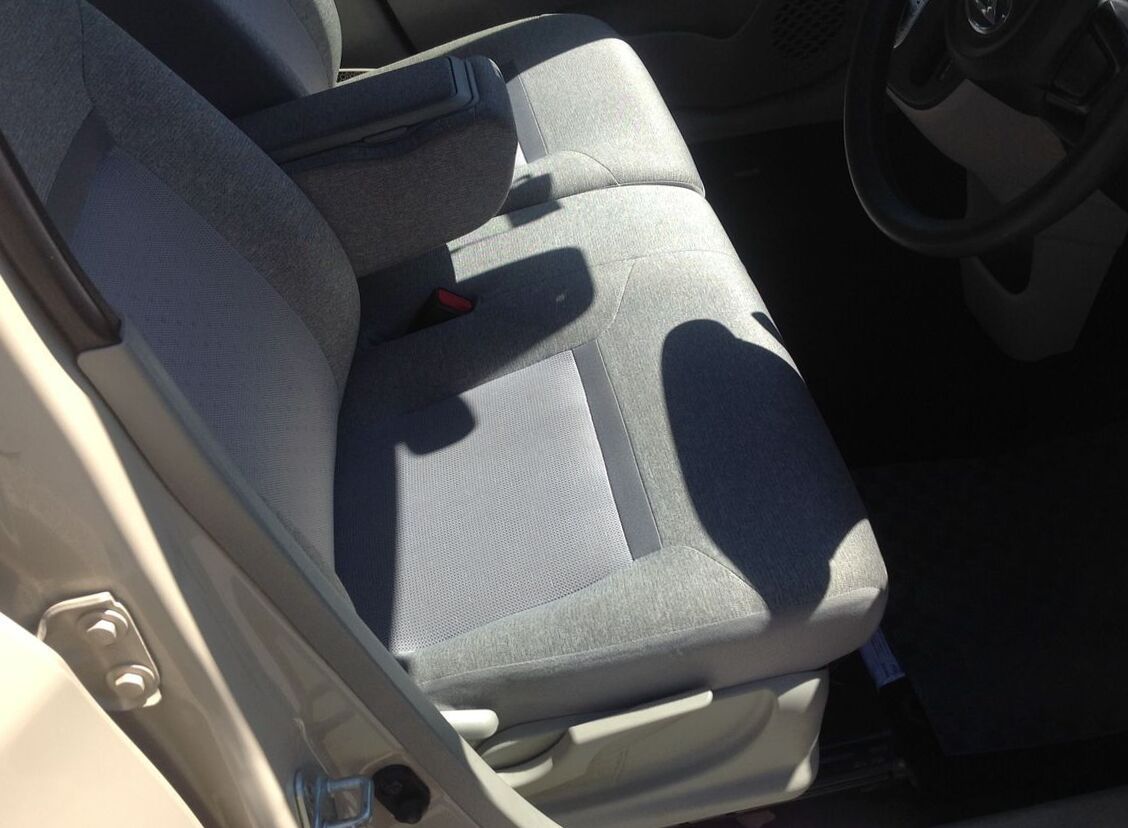

| Front bench seat | yes |
| Headrests for seats | 5 |
| Separating armrest front | yes |
| Seats pockets | yes |
Electric interior package | |

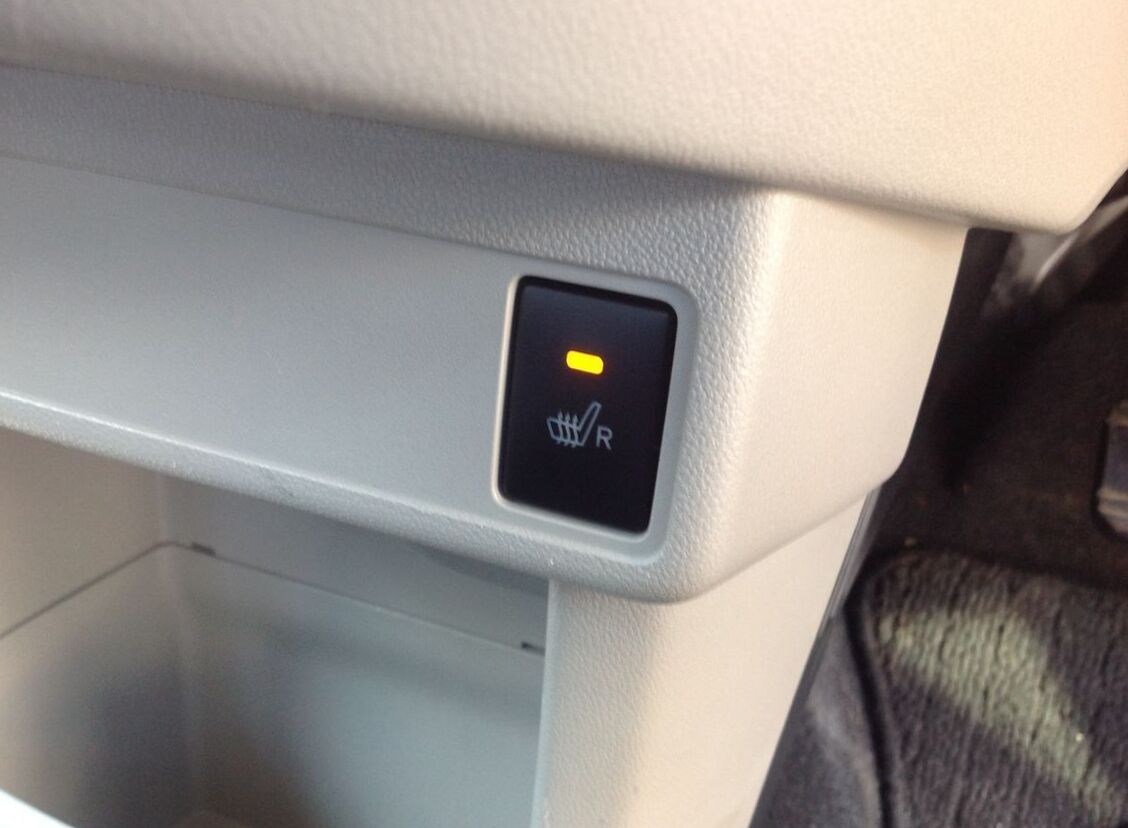

| Front seat heater | option |
| Centralized door lock | yes |

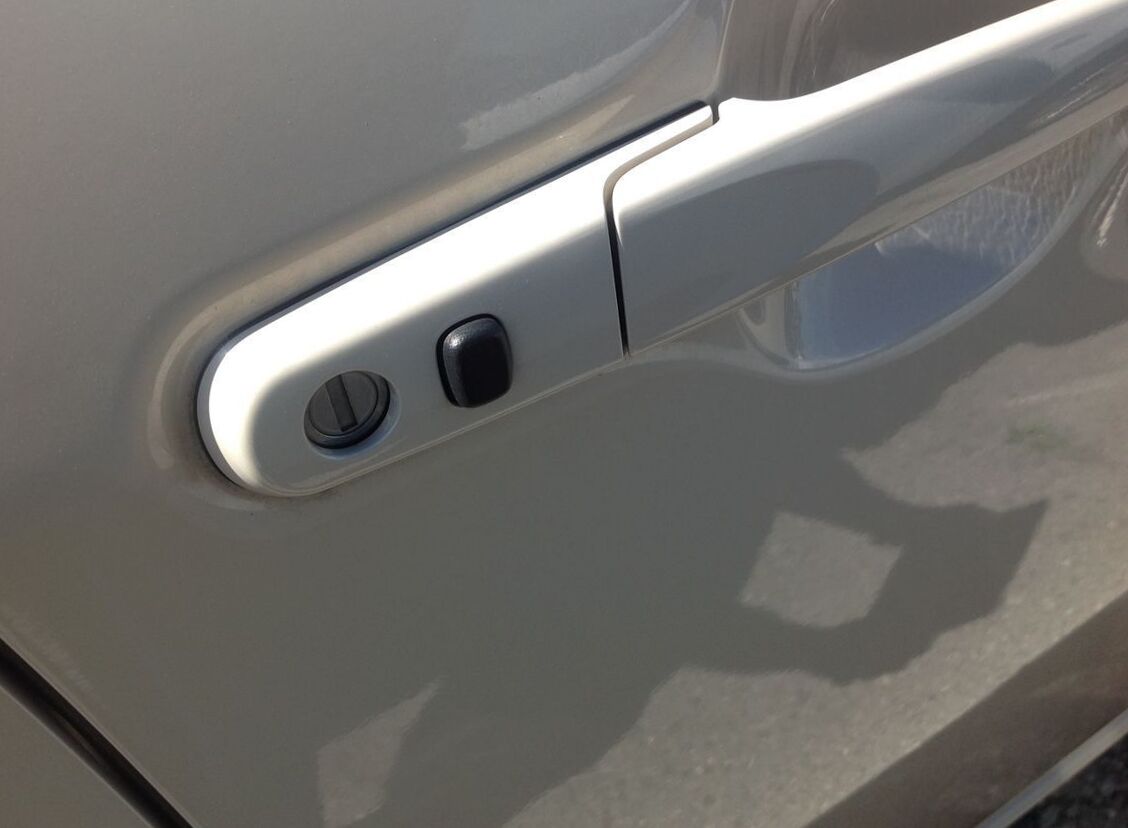

| Keyless enter | yes |

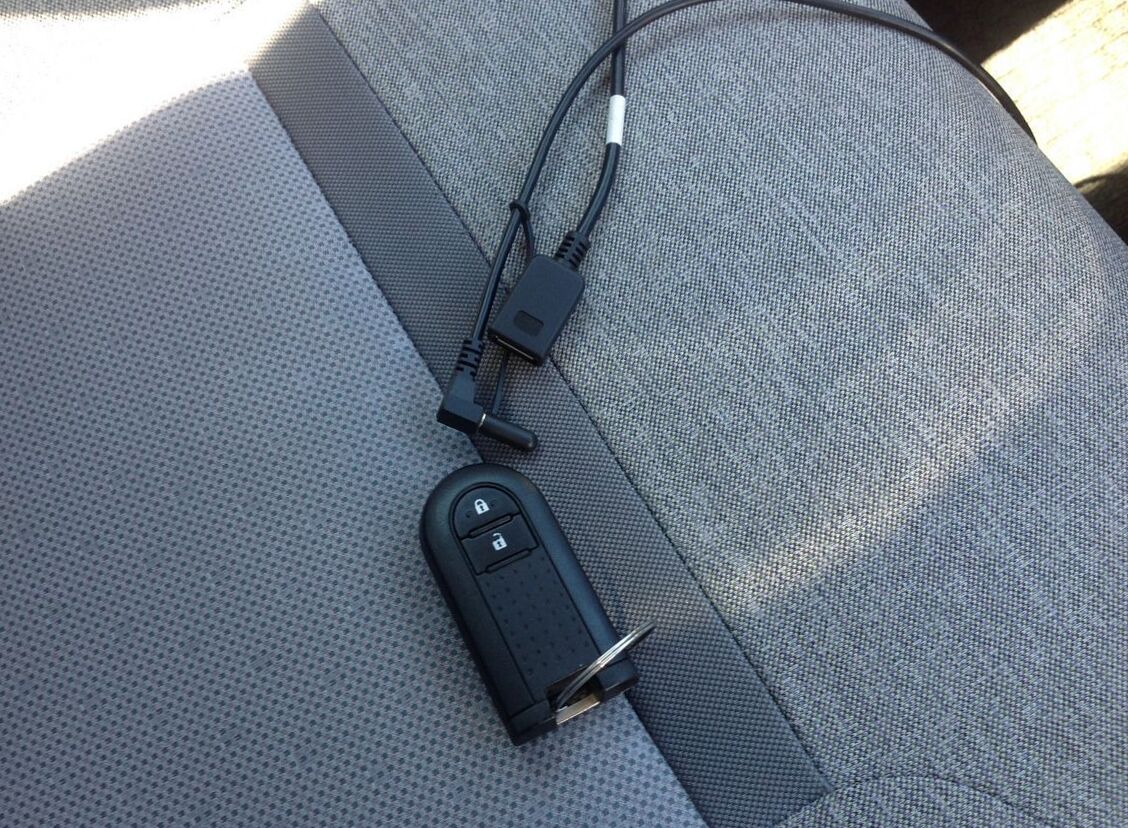

| Keyless | yes |
| Power window front | yes |
| Power window rear | yes |
| Front sheeld electro heater | option |
Additional interior equipment | |
| Holders for bottles in doors | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Side airbag | option |
| Curtain airbags | option |
Children safety | |
| isofix bar | yes |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| Automatic activation of alarm in emergency braking | yes |
| ESP | yes |
| traction control | yes |
| Hill-start assist control system | yes |
| Lane Keep Assist | yes |
| Control system of a headlight | no |
| Front sonar | no |
| Rear sonars | no |
| Collision mitigation system | yes |
Amenity | |
Microclimate | |

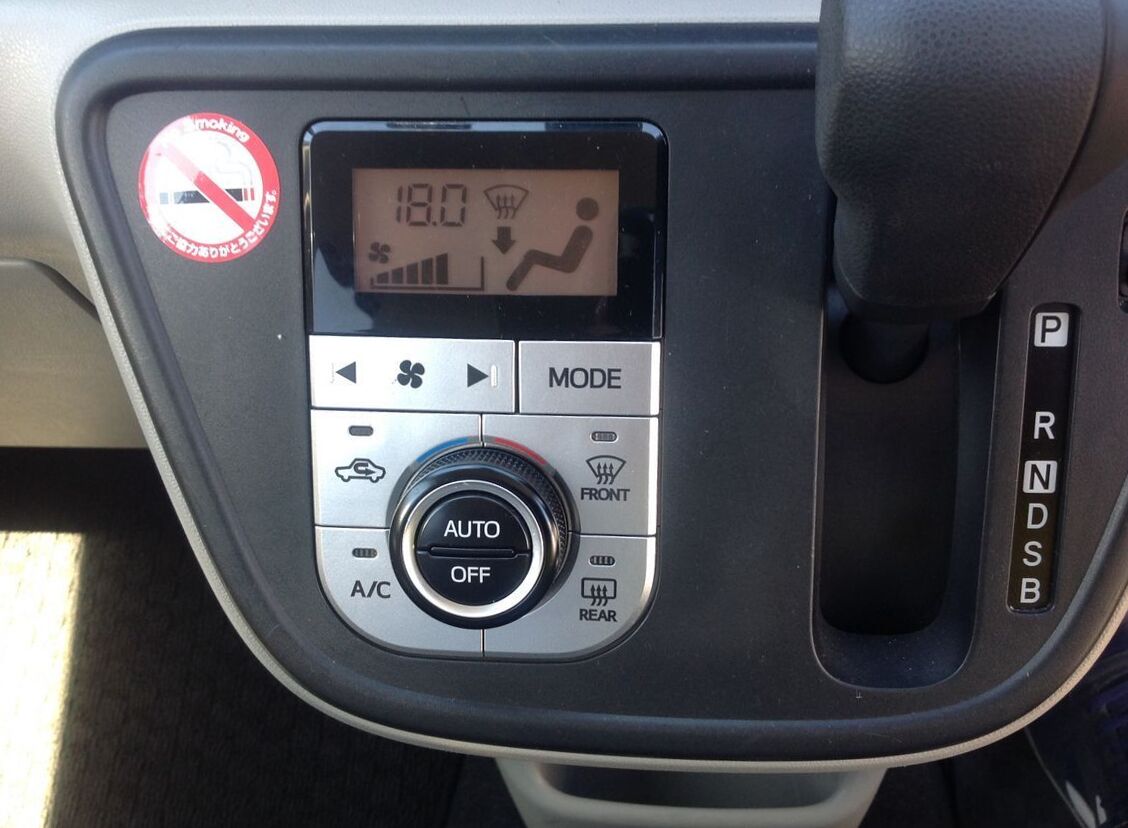

| Air conditioner | yes |
| Automatic air conditioning | yes |
| Air filter | yes |
Audio systems | |
| Additional sound equipment | 4 speakers, antenna |
Navigation and video equipment | |
| Front monitor | no |
| Sides monitors | no |

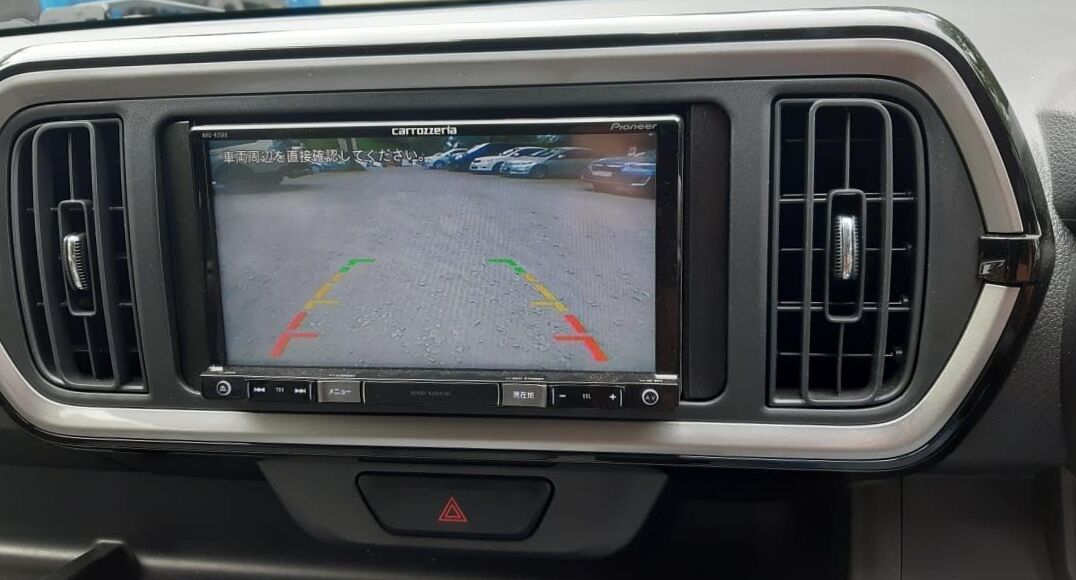

| Back monitor | option |
Additional amenities | |
| Mirrors in sunshields | yes |
| Lagage box | yes |
Car safety | |
| Alarm system | yes |
Driver Kit | |
| Spare tyre small | option |
| Jack | yes |
| Balonnik | yes |
2017 Toyota Passo III DBA-M710A 1.0 X G Package 4WD (69 Hp) specs
|
The 1998 incarnation of the Sirion came with two petrol engines (with multi-point fuel injection): a 1.0 litre 3-cylinder with 54bhp (40kW), and a 1.3 litre 4-cylinder 86bhp (64kW) unit (shared with the Toyota Yaris). Both were available with either a 5-speed manual or an automatic gearbox. As of 2001, 1.3L models have 102bhp (76kW) engines capable of accelerating from 0-60 mph in 9.6 seconds and reaching a top speed of 111mph (179km/ h). This engine is very fuel efficient with an average rating of 49.6 mpg[vague] and the 1.0 model averaging 51.4 mpg. There are two Rally versions of the Sirion: the Rally 2 and the Rally 4; the latter being the four-wheel drive version. The Rally models have a slightly increased engine output of 108bhp (81kW) and boast a class-leading 0-60 time of 8.1 seconds and reaching a top speed of 115mph (185km/ h), giving it 'hot hatch' credibility. The 4Track (or just 4WD in Europe) is the four-wheel drive version of the standard 1.3. The F-Speed model is equipped with Formula-1 style paddle gear changers. » Read More About Toyota Passo |
