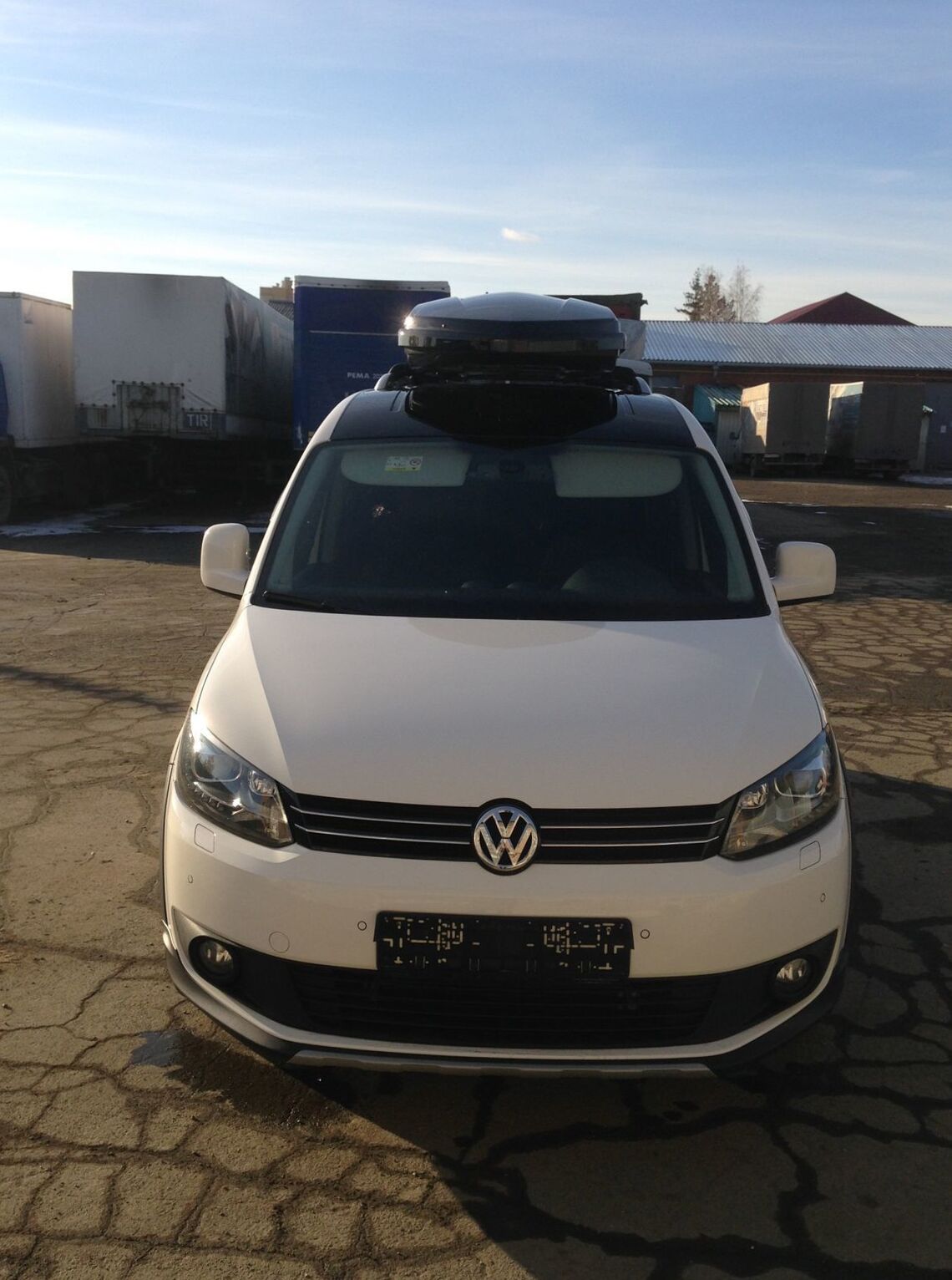

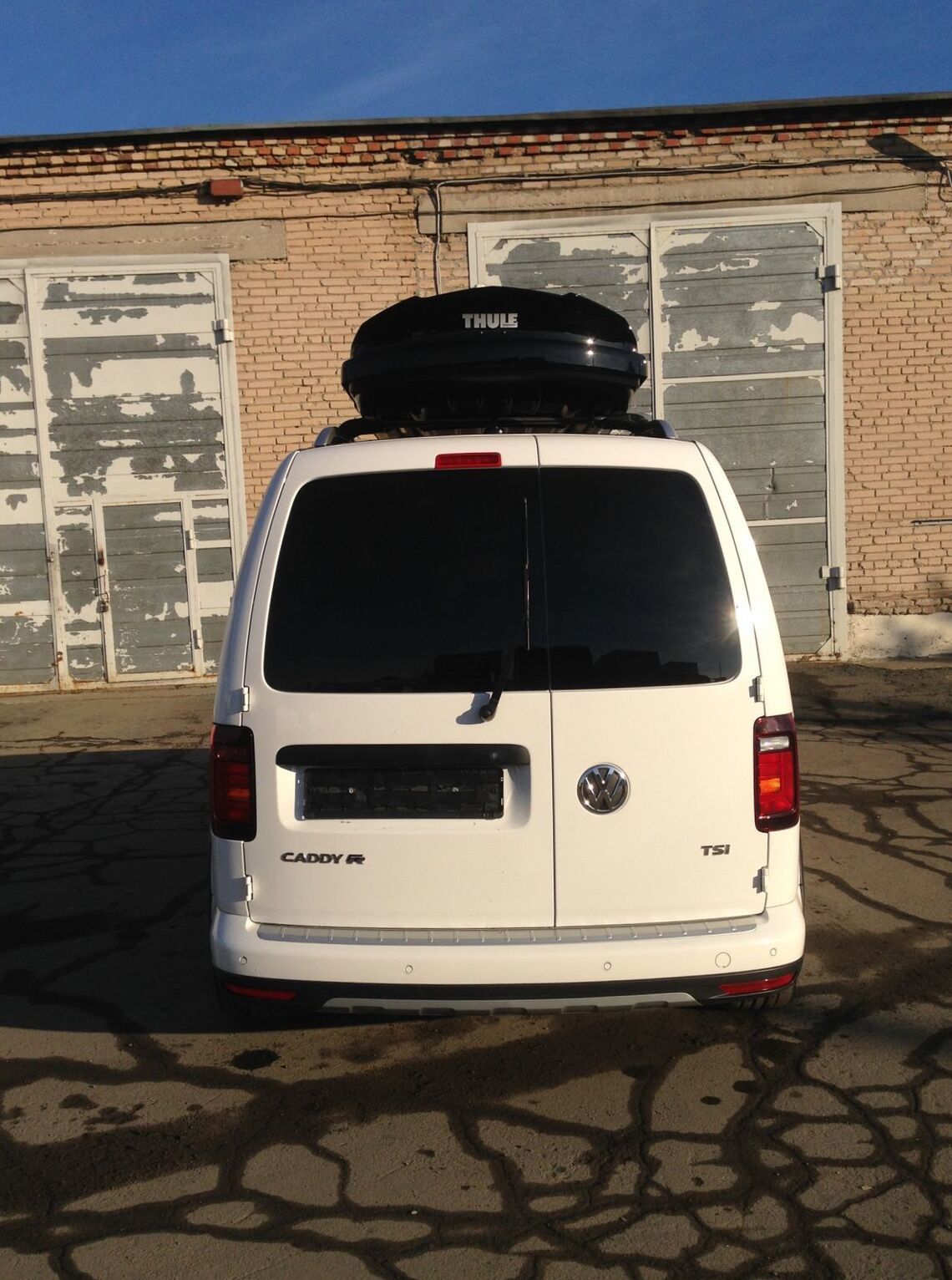

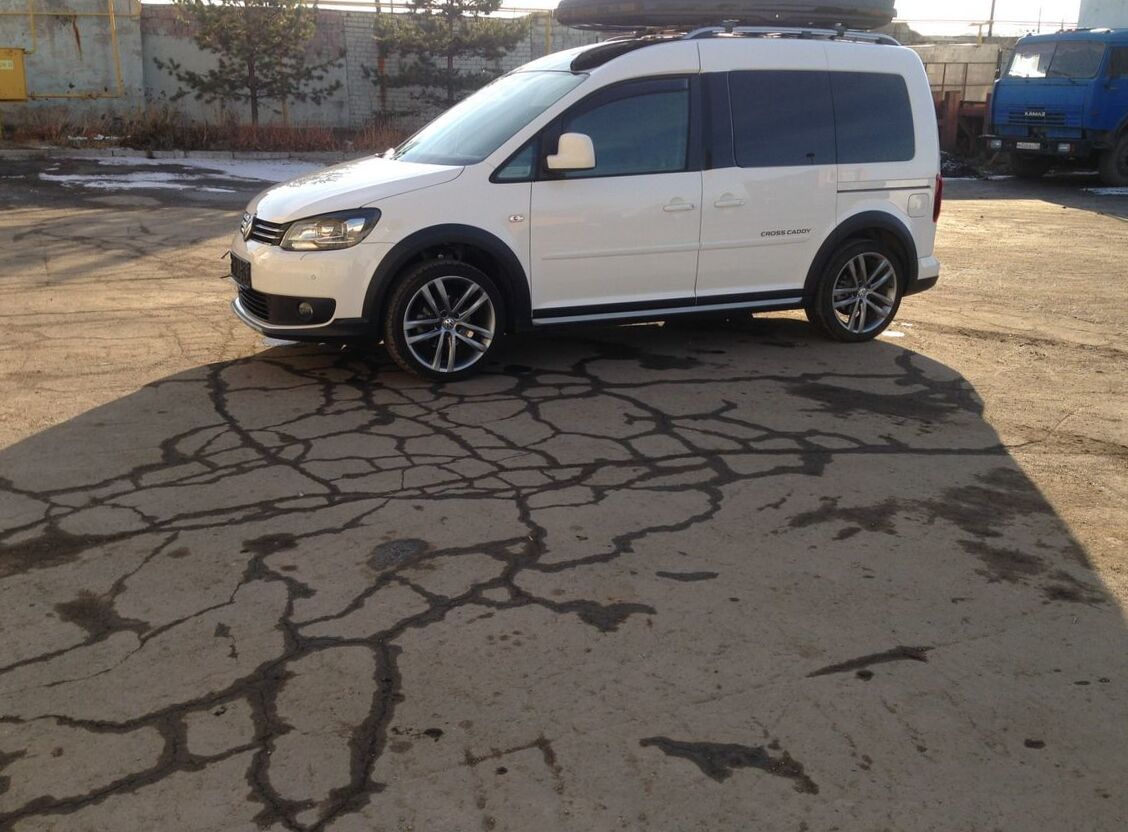

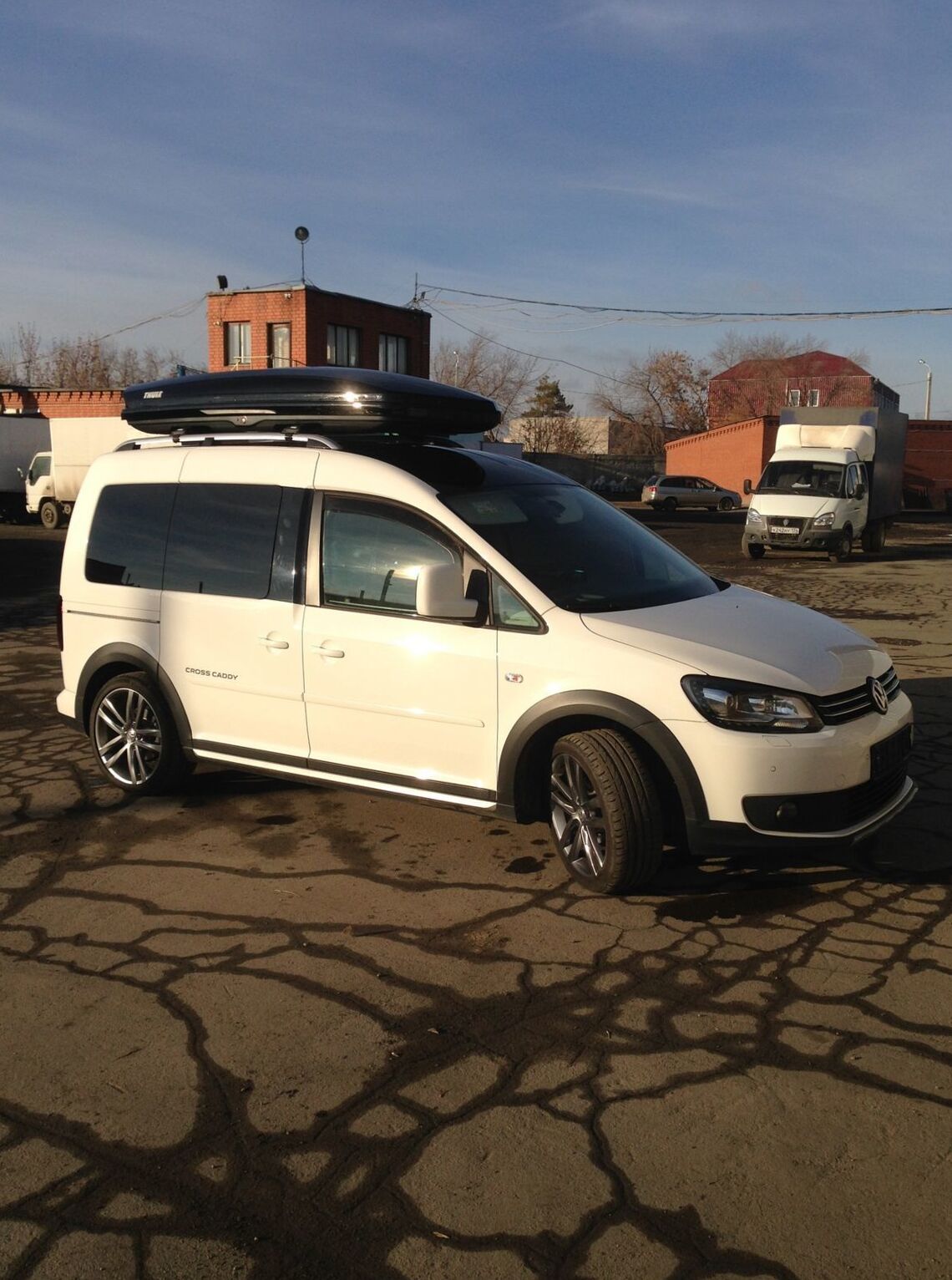

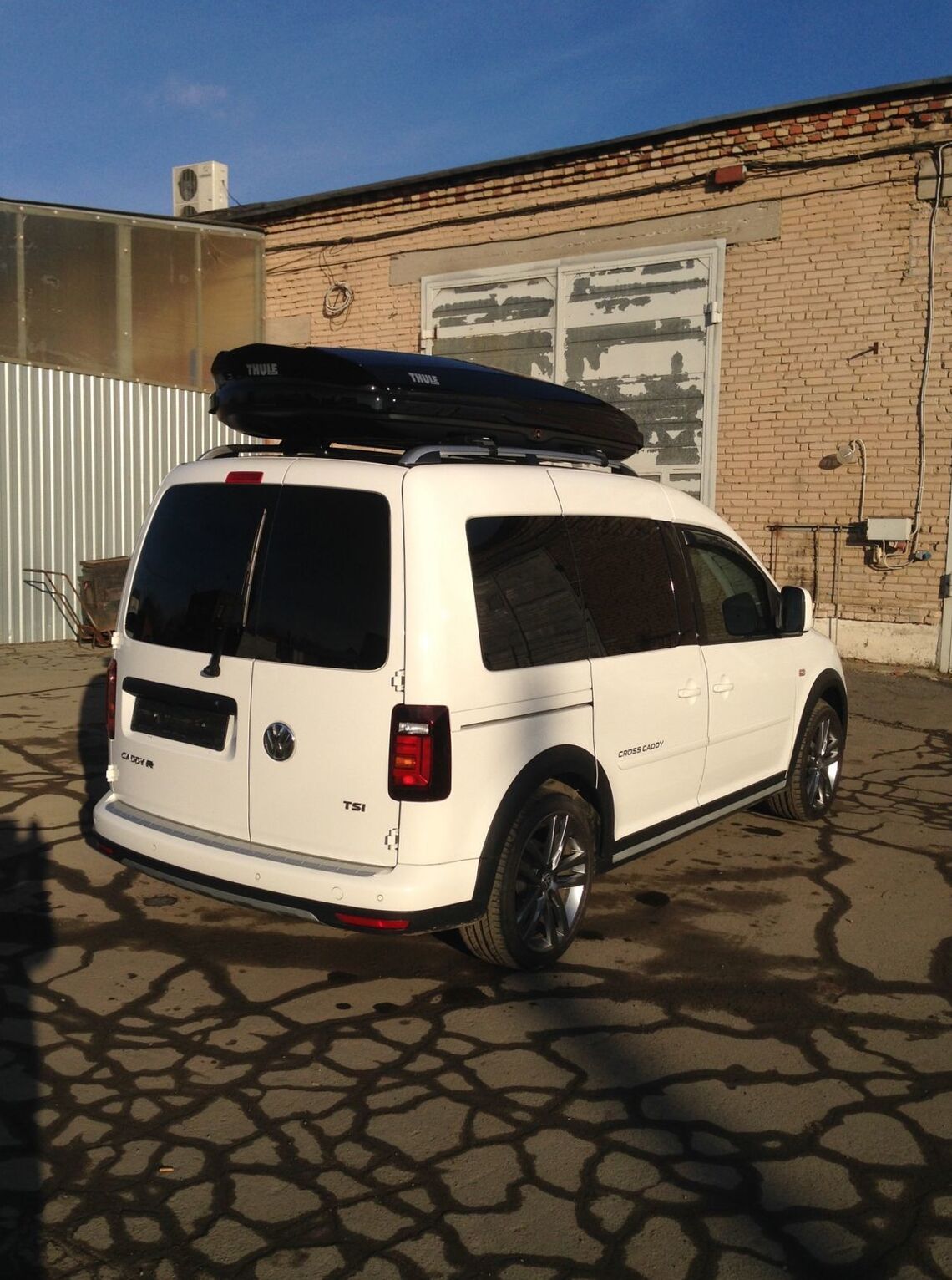

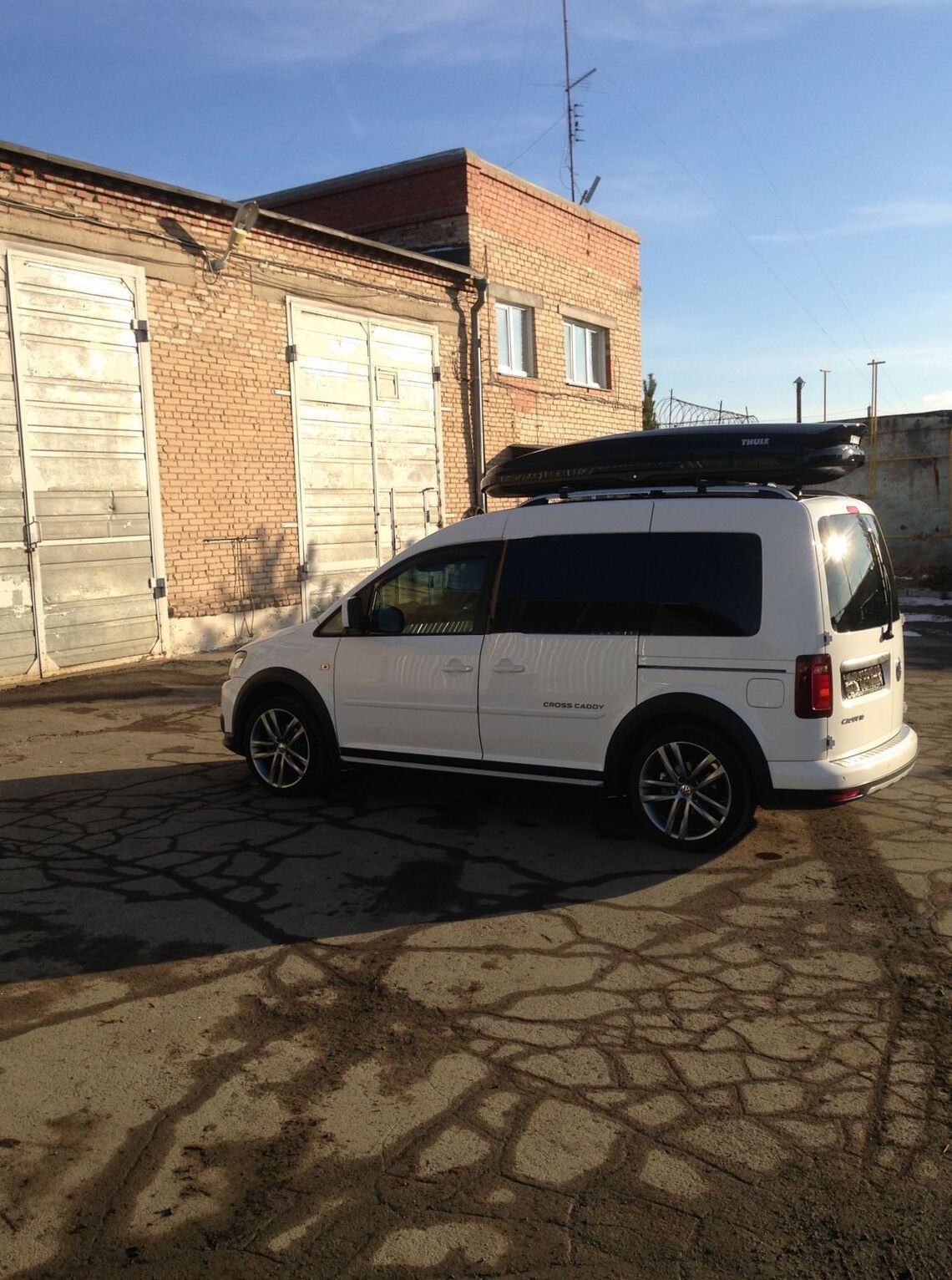

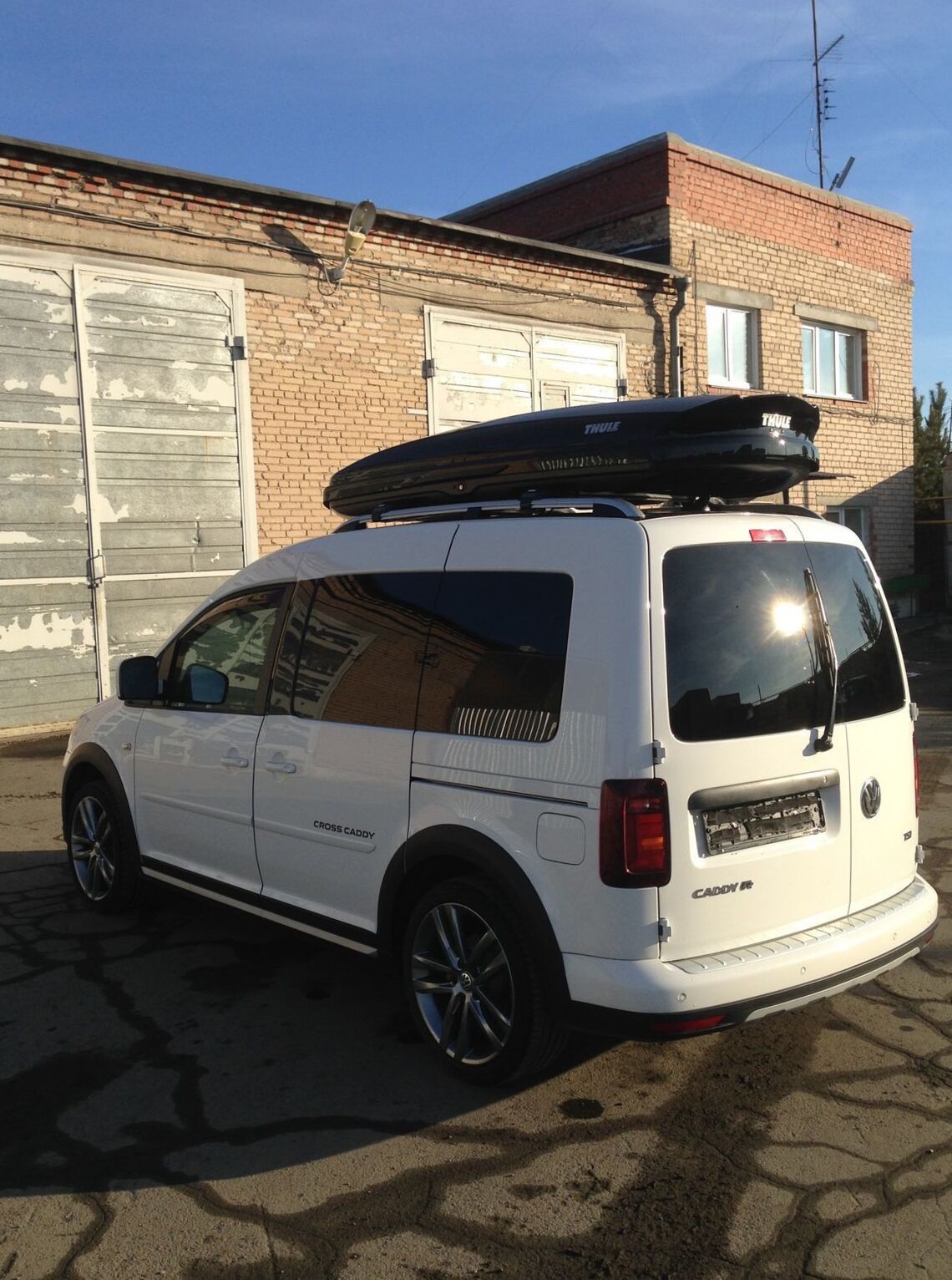

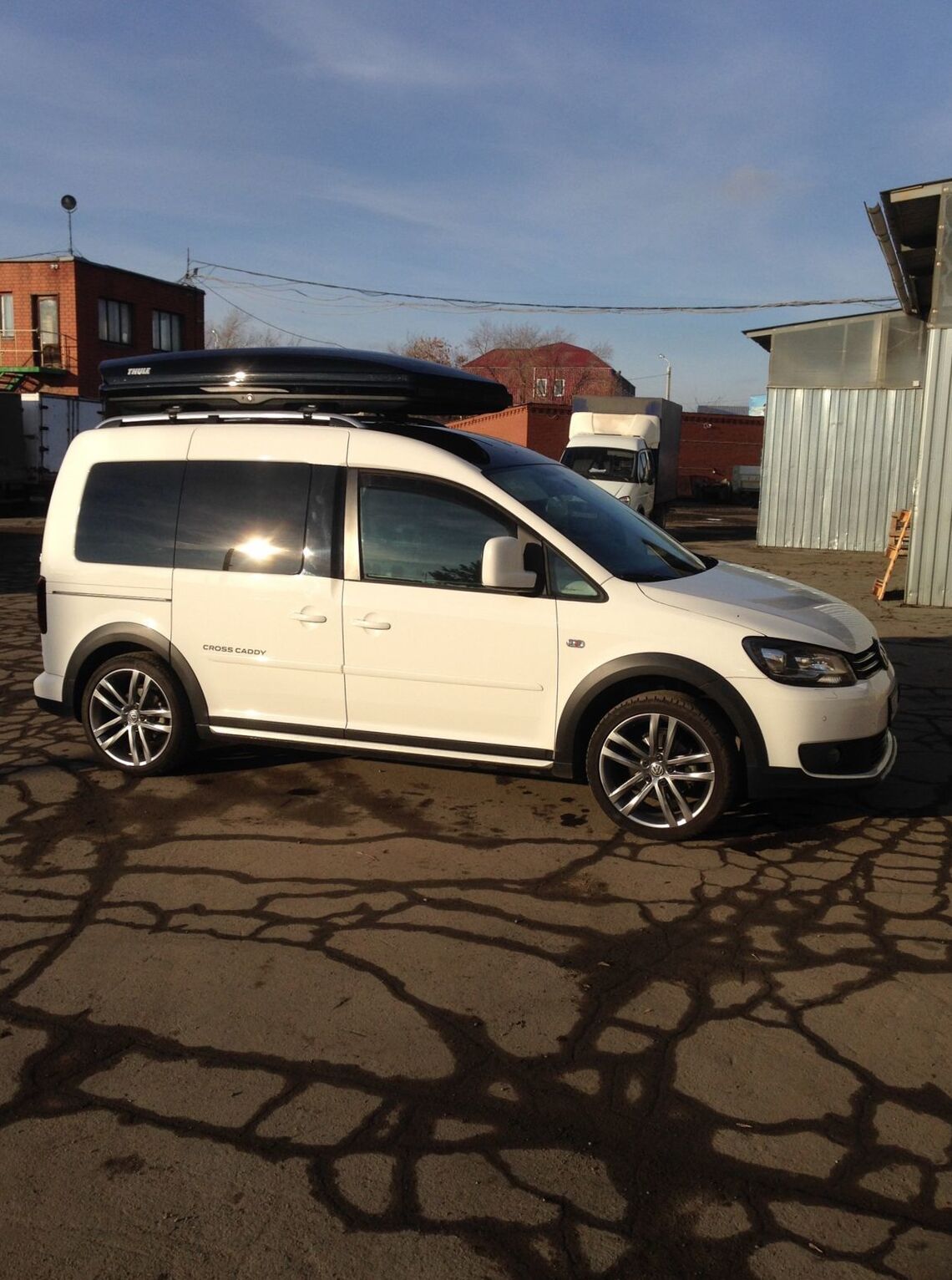

2013 Volkswagen Caddy III 1.2 TSI CrossCaddy
More photos of Volkswagen Caddy
Volkswagen Caddy Problems
Mixes oil with water
2004, my caddy mixes water and oil at the
expansion tank. i tried replaced cylinder head
gaske...
No power
2003, hi,my caddy has no power when i drive at
first,it's like the turbo isn't worki...
Start problem
1996, jag har förlorat koden i startnyckel
hur kan man koppla förbi start spärr...
Volkswagen Caddy Problems
Mixes oil with water
2004, my caddy mixes water and oil at the
expansion tank. i tried replaced cylinder head
gaske...
No power
2003, hi,my caddy has no power when i drive at
first,it's like the turbo isn't worki...
Start problem
1996, jag har förlorat koden i startnyckel
hur kan man koppla förbi start spärr...
| Body type | Minivan |
|---|---|
| Power | 86 Hp |
| Engine Displacement | 1200 cm3 or 1.2L or 73.2 cu-in |
| Color | white |
| Transmission Gearbox | Manual |
| Fuel Type | Gasoline |
| Drive wheel | FF |
| Mileage | 24233 Miles |
| Vin | WV2ZZZ2KZEX****42 |
| Price (out of date) | $23846 |
Frequently Asked Questions | |
|---|---|
| What is the body type, 2013 Volkswagen Caddy III? | Minivan, 5 Seats, 5 Doors |
| What is the fuel economy, Volkswagen Caddy Minivan 2013? | 6.8 l/100 km |
| How fast is the car, Volkswagen Caddy 2KB, 2KJ 2013? | 155 km/h, 0-100 km/h: 14.7 sec |
| How much power, 2013 Volkswagen Caddy 1.2 TSI CrossCaddy? | 86 Hp |
| What is the engine size, Volkswagen Caddy III 2013 Minivan 1.2 TSI CrossCaddy (86 Hp)? | 1.2L or 1197cm3 |
| How many gears, What type is the gearbox, 2013 Volkswagen Caddy Minivan 1.2 TSI CrossCaddy (86 Hp)? | 5 speed Manual |
| What is the drivetrain, 2013 Volkswagen Caddy III? | Front |
| How long is this vehicle, Volkswagen Caddy Minivan 2013? | 4406 mm |
| How wide is the vehicle, Volkswagen Caddy 2KB, 2KJ 2013? | 1794 mm |
| What is the gross weigh, 2013 Volkswagen Caddy 1.2 TSI CrossCaddy? | 2000 kg |
| How much trunk (boot) space, Volkswagen Caddy III 2013 Minivan 1.2 TSI CrossCaddy (86 Hp)? | 750 l |
Volkswagen Caddy III 2KB, 2KJ 1.2 TSI CrossCaddy (86 Hp) 2010, 2011, 2012, 2013, 2014, 2015 Specs
General information | |
|---|---|
| Complectation name | 1.2 TSI CrossCaddy |
| Production start year | 2010 |
| Production end year | 2015 |
| Drive type | Front |
| Frame type | Minivan |
| Transmission type | 5 speed Manual |
| Engine volume, cc | 1197 |
| Frame name | 2KB, 2KJ |
| 0 to 100 time | 14.7 |
| Max speed | 155 |
| Clearance, mm | 146 |
| Manufacturing country | Germany |
| Doors | 5 |
| Winter complectation | yes |
| Warranty | 3 years or 100,000 km |
Vehicle generation | |
| Generation name | 2K |
| Generation number | 3 |
| Facelift number | 1 |
| Production start year | 2010 |
| Production end year | 2015 |
Engine, transmission and steering specs | |
Engine specs | |
| Engine name | CBZA |
| Fuel | Petrol (Gasoline) |
| Engine type | In-line, 4-cylinder |
| Has turbo | yes |
| Turbo type | Turbine |
| Max power, hp | 86 |
| Max power RPM, rpm | 4800 |
| Max power, hp (kWt) / rpm | 86 (63) / 4800 |
| Max torque, N*m | 160 |
| Max torque RPM, rpm | 3500 |
| Max torque, N*m (kg*m) / rpm | 160 (16) / 3500 |
| Valves per cylinder | 4 |
| Compression ratio | 10 |
| Bore, mm | 71 |
| Stroke, mm | 75.6 |
| Engine additional info | direct fuel injection |
| Eco type | Euro-5 |
| Start stop system | no |
Fuel consumption | |
| City | 8.1 |
| Country side | 6 |
| Combined | 6.8 |
| Co2 emission | 158 |
Steering | |
| Power steering | no |
| Electric power steering | yes |
Dimensions | |
Frame dimensions | |
| Exterior length, mm | 4406 |
| Exterior width, mm | 1794 |
| Exterior height, mm | 1822 |
Interior dimensions | |
| Capacity | 5 |
| Seat rows | 2 |
Chassis dimensions | |
| Wheel base, mm | 2681 |
| Turning radius, m | 5.5 |
| Wheel spacing front | 1537 |
| Wheel spacing rear | 1531 |
| Front overhang | 878 |
| Rear overhang | 847 |
Weight and permissible load | |
| Mass, kg | 1500 |
| Max capacity | 500 |
| Max. weight | 2000 |
| Loading height | 575 |
| Front axe load | 1000 |
| Rear axe load | 1200 |
Volumes | |
| Fuel tank capacity, l | 60 |
| Trunk volume | 750 |
Other | |
| Addinfo | Anti-gravel stickers on the outside at the bottom of the sills; Additional dust sealing of the doors; Storage niche on the top of the front panel, open; Storage nets on the inside upholstery of the rear doors; Storage compartment under the front seats |
Suspension specs | |
Suspension specs | |
| Front stabilizer | yes |
| Front suspension | Independent, Spring McPherson |
| Rear stablilizer | yes |
| Rear suspension | Dependent, spring loaded |
Wheel rims | |
| Aluminium wheel | option |
| Disc | 6J x 17 |
Tires | |
| Front wheels | 205/50 R17 93H |
| Rear wheels | 205/50 R17 93H |
Brakes | |
| Front brake | Ventilated discs |
| Rear brake | Ventilated discs |
Exterior | |
Headlights | |
| Halogen headlights | yes |
| Bixenon | option |
| Diod head lights | no |
| Head lights washer | no |
| Front fog lamps | yes |
| Led backlights | no |
| Rear fog lamps | yes |
| Additional stop light | yes |
| Light sensor | yes |
| Rain sensor | option |
Side mirrors | |
| Exterior mirrors in body color | yes |
| Power adjustable door mirrors | yes |
| Door mirrors heating | yes |
Doors | |
| Side sliding door | no |
| Sliding doors | yes |
| Door handles in body color | yes |
| Chrome door handles | no |
Windows | |
| Privacy glass | no |
| Termoglass | yes |
| Rear glass heat | yes |
Roof | |
| Tilt sunroof | no |
Accessories | |
| Roof rail | yes |
| Bumpers | The bumpers are painted in body color, the lower part is unpainted with decorative protection. Grille with glossy lamellae with chrome edging, chrome framing of fog lights |
| Back wiper | yes |
Body color | |
| Metallic paint Body | option |
Interior | |
Steering wheel and center panel | |
| Leather winding | yes |
| Adjustable steering | yes |
| Telescopic steering | yes |
| Tilt steering | yes |
| Audio control on steering wheel | option |
| Tachometer | yes |
Interior design | |
| Cloth upholstery | yes |
| Leather upholstery | option |
| Combined obivka Salon | no |
Seats | |
| Front seats ajust | Height-adjustable driver's seat |
| 2nd row | adds up to a ratio of 2+1 |
| 3nd row | foldable, backrest indivisible (optional) |
| Loin reliance | yes |
| Separating armrest front | yes |
| Mats | option |
Electric interior package | |
| Power ajustable front seat | no |
| Front seat heater | yes |
| Centralized door lock | yes |
| Keyless enter | yes |
| Power window front | yes |
| Front sheeld electro heater | no |
| Injectors heat | yes |
Additional interior equipment | |
| Cooled glovebox | no |
| Smokers packet | option |
| AC plug | yes |
Safety | |
Airbags | |
| Drivers airbag | yes |
| Passengers airbag | yes |
| Passenger airbag deactivation function with | yes |
| Side airbag | yes |
| Curtain airbags | no |
Children safety | |
| isofix bar | yes |
Active and passive safety | |
| Glonass | no |
Electronic security and traffic control systems | |
| ABS | yes |
| Electronic Brake Distribution | yes |
| Break assist | yes |
| ESP | yes |
| Hill-start assist control system | yes |
| Cruise control | yes |
| Function "Take me home" | yes |
| Control system of a headlight | no |
| Dynamic cornering light | option |
| Blind zone monitoring | no |
| Tires indicator | yes |
| Front sonar | option |
| Rear sonars | option |
| Intelligent parking assist | option |
| Driver tired system | no |
Amenity | |
Microclimate | |
| Air conditioner | yes |
| Automatic air conditioning | option |
| Air filter | yes |
Audio systems | |
| Radio | yes |
| CD player | yes |
| MP3 Support | yes |
| Hands free | option |
| Additional sound equipment | 6 speakers, AUX |
Navigation and video equipment | |
| Full color LCD display | 5" (optional) |
| Navigation system | option |
| Back monitor | no |
Additional amenities | |
| Antidazzle rearview mirror | yes |
| Anti-glare effect | no |
| Mirrors in sunshields | yes |
| Blind in luggage compartment | option |
| Onboard computer | option |
Car safety | |
| Immobilizer | yes |
| Security alarm | option |
| Bolt-card | option |
Driver Kit | |
| Spare tire | yes |
2013 Volkswagen Caddy III 2KB, 2KJ 1.2 TSI CrossCaddy (86 Hp) specs
|
Released in 1980, the first Volkswagen Caddy is a light pickup truck, and van based on the Volkswagen Group A1 platform, shared with the small family car Volkswagen Golf Mk1. VW Typ is:
Caddy debuts internationally as a RabbitThe Caddy came into fruition when VW was experimenting with Golf derivatives, a station wagon and a pickup. Volkswagen of America was interested in the pickup, when VW released the Caddy it first was produced at the VW Westmoreland County plant in Pennsylvania from 1979 to 1982. It was known in North America as the VW Rabbit Pickup with trim levels such as LX and Sportruck. The Caddy competed with other mini-pickups such as the Ford Courier and Subaru Brat of that time. Caddy debuts in EuropeThe Caddy nameplate was never used in the USA (since the name is slang for Cadillac motor car division). Its first use was in Europe in 1982 when the Caddy was debuted on the European Market. » Read More About Volkswagen Caddy |
