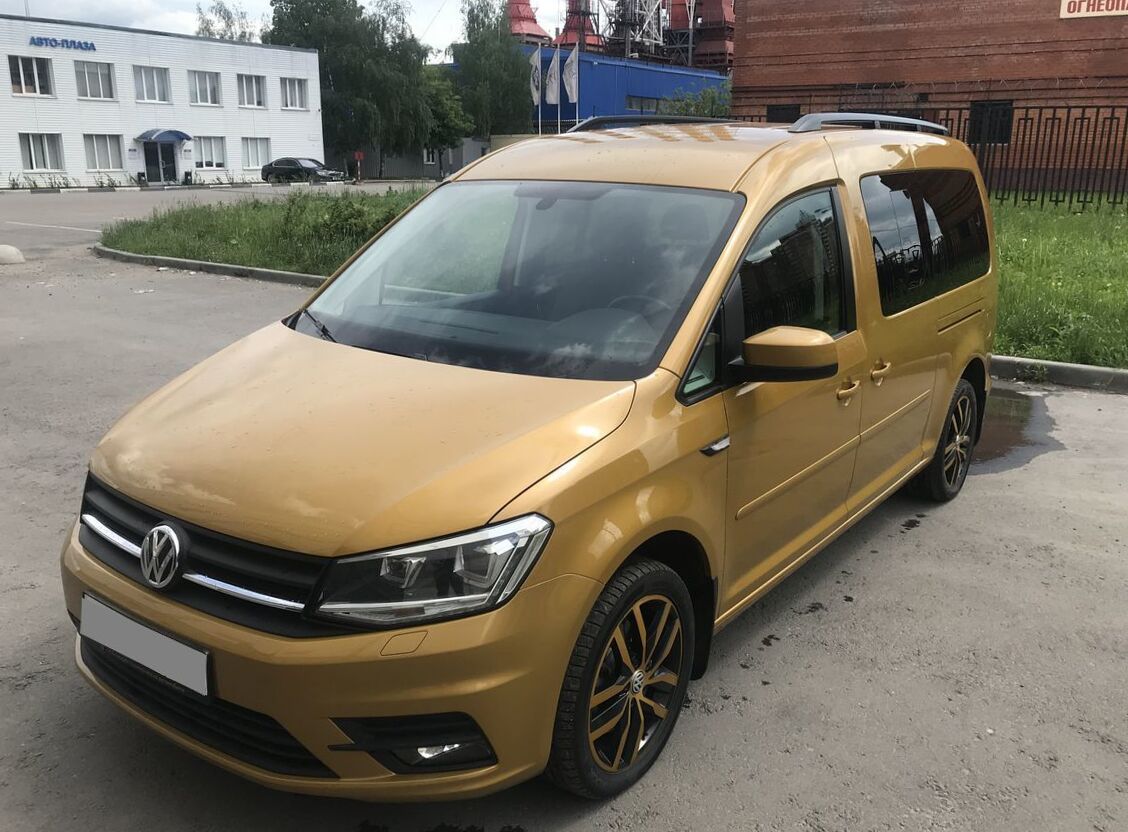

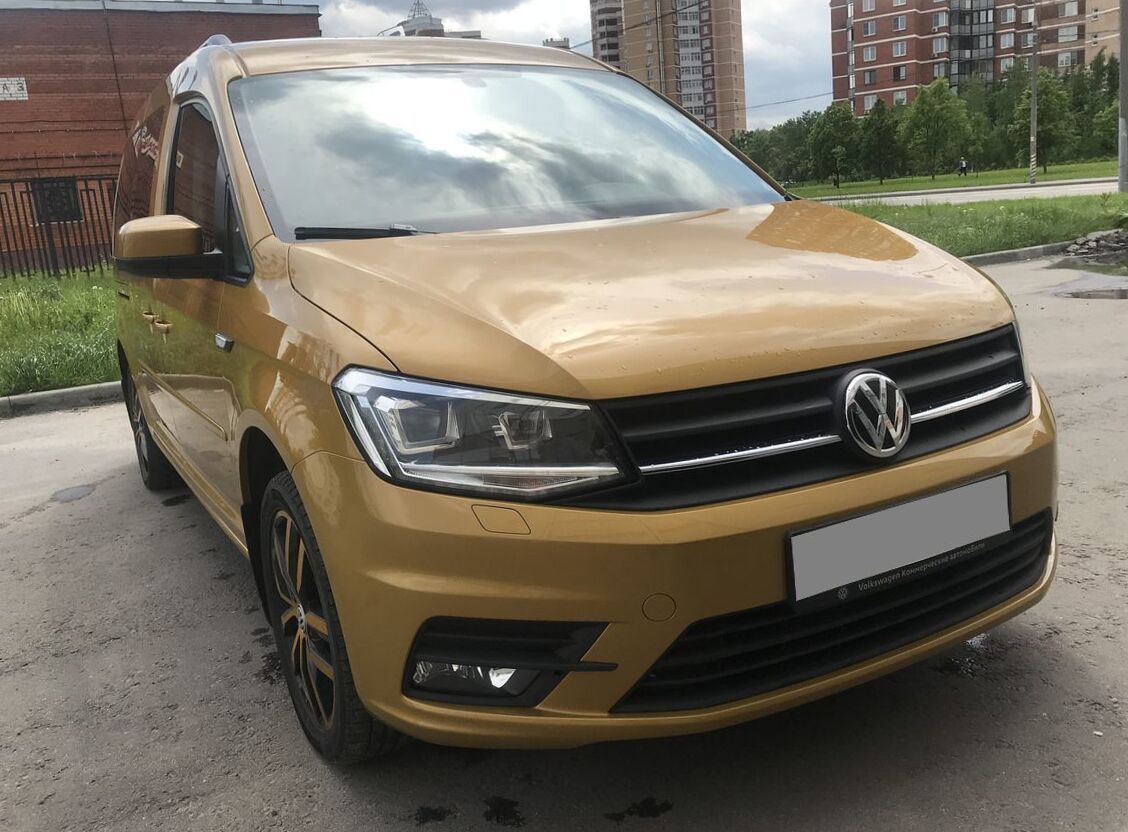

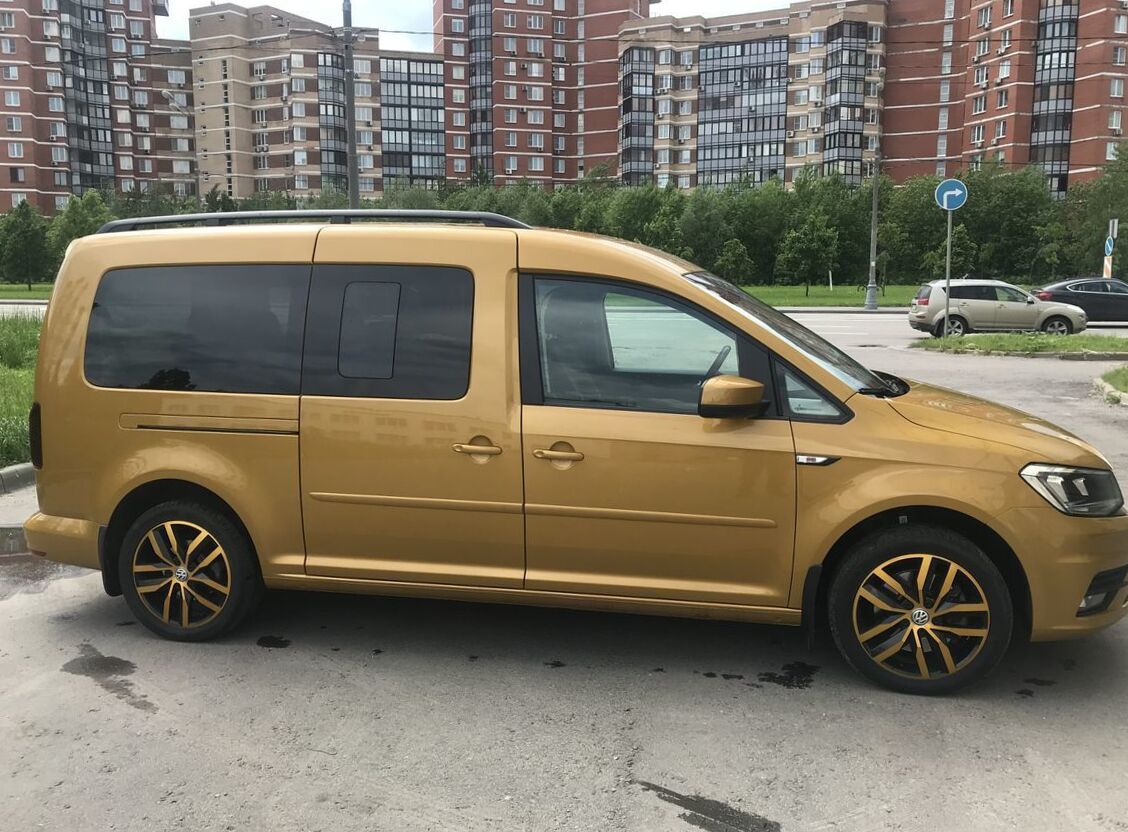

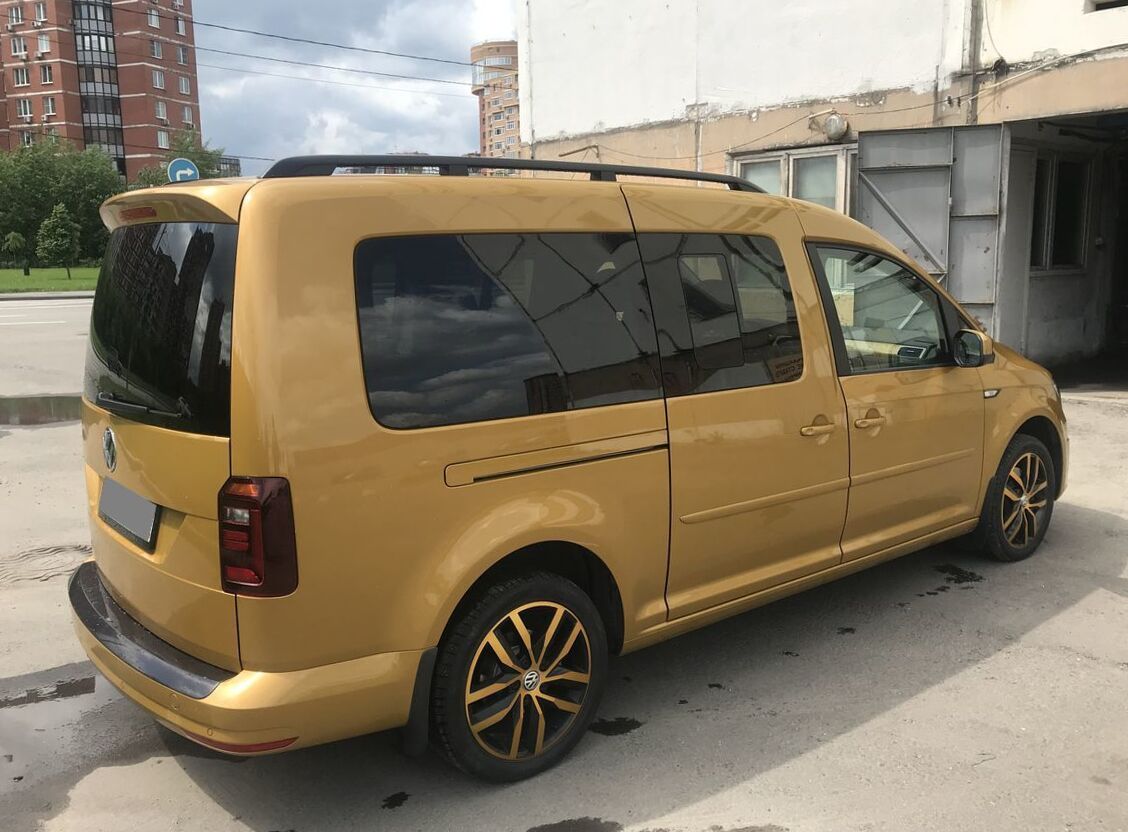

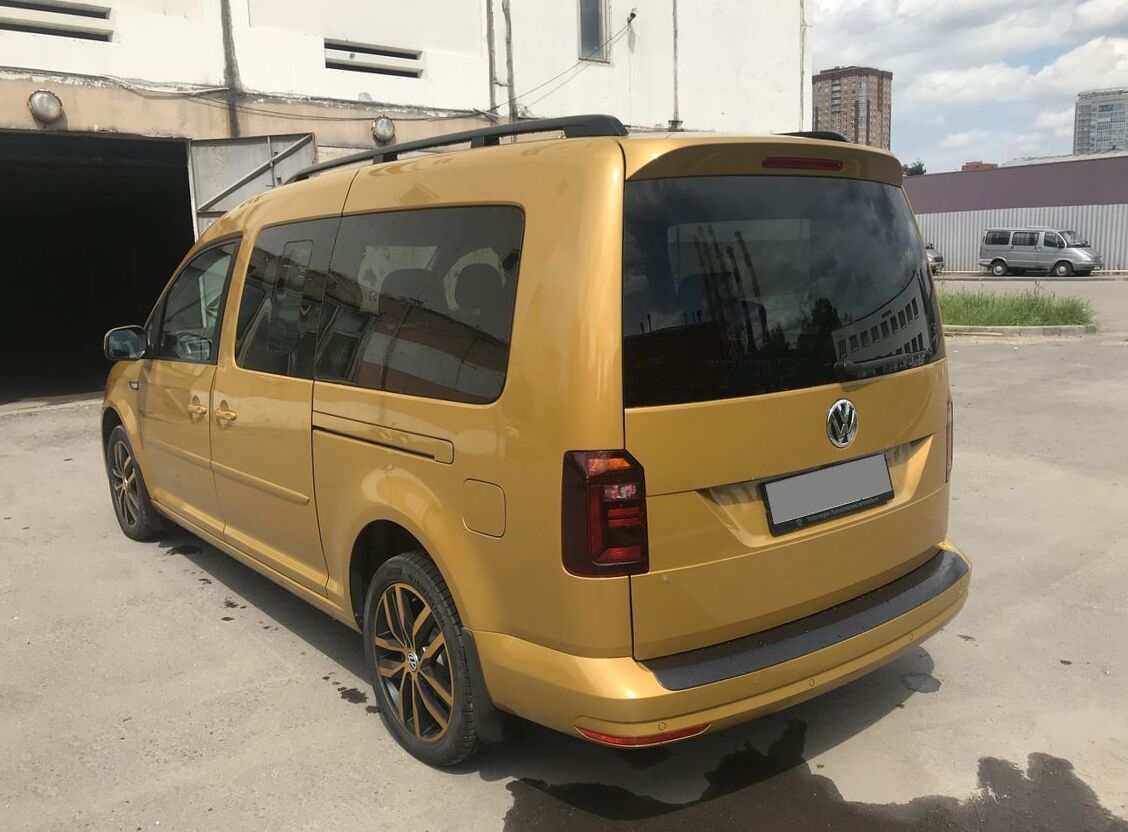

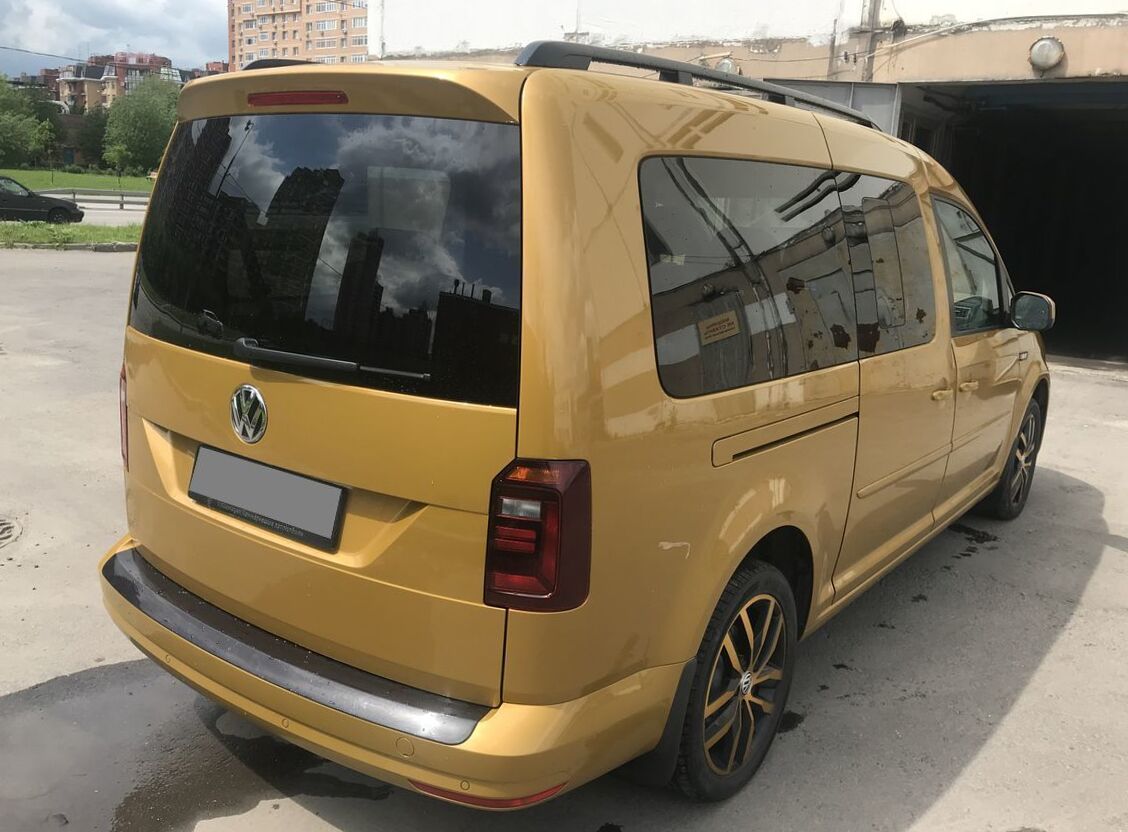

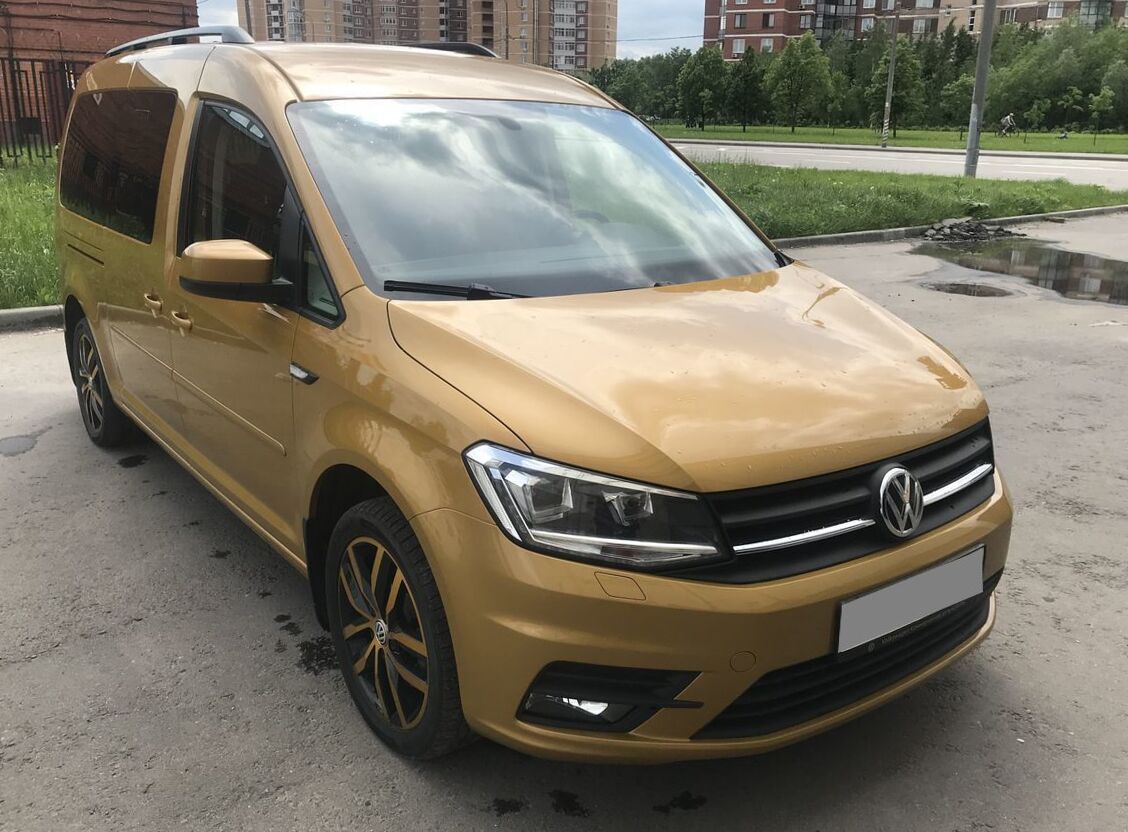

2016 Volkswagen Caddy IV 2.0 TDI DSG Maxi Family


2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)
Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp)

More photos of Volkswagen Caddy

Volkswagen Caddy Problems
Mixes oil with water
2004, my caddy mixes water and oil at the
expansion tank. i tried replaced cylinder head
gaske...
No power
2003, hi,my caddy has no power when i drive at
first,it's like the turbo isn't worki...
Start problem
1996, jag har förlorat koden i startnyckel
hur kan man koppla förbi start spärr...

Body typeMinivan
Power140 Hp
Engine Displacement2000 cm3 or 2L or 122 cu-in
Coloryellow
Transmission GearboxAutomatic
Fuel TypeDiesel
Drive wheelFF
Mileage31441 Miles
VinWV2ZZZ2KZHX****48
Price (out of date)$24446

Frequently Asked Questions

What is the body type, 2016 Volkswagen Caddy IV?Minivan, 5 Seats, 5 Doors
What is the fuel economy, Volkswagen Caddy Minivan 2016?6.3 l/100 km
How fast is the car, Volkswagen Caddy 2K 2016?186 km/h, 0-100 km/h: 10.9 sec
How much power, 2016 Volkswagen Caddy 2.0 TDI DSG Maxi Family?140 Hp
What is the engine size, Volkswagen Caddy IV 2016 Minivan 2.0 TDI DSG Maxi Family (140 Hp)?2L or 1968cm3
How many gears, What type is the gearbox, 2016 Volkswagen Caddy Minivan 2.0 TDI DSG Maxi Family (140 Hp)?Manual Transmission Automatically Shifted 6
What is the drivetrain, 2016 Volkswagen Caddy IV?Front
How long is this vehicle, Volkswagen Caddy Minivan 2016?4878 mm
How wide is the vehicle, Volkswagen Caddy 2K 2016?1794 mm
What is the gross weigh, 2016 Volkswagen Caddy 2.0 TDI DSG Maxi Family?2502 kg
How much trunk (boot) space, Volkswagen Caddy IV 2016 Minivan 2.0 TDI DSG Maxi Family (140 Hp)?1350 l

Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp) 2016, 2017 Specs

General information

Complectation name2.0 TDI DSG Maxi Family
Production start year2016
Production end year2017
Drive typeFront
Frame typeMinivan
Transmission typeManual Transmission Automatically Shifted 6
Engine volume, cc1968
Frame name2K
0 to 100 time10.9
Max speed186
Clearance, mm158
Manufacturing countryGermany
Doors5
Winter complectationyes
Warranty3 years or 100,000 km

Vehicle generation

Generation name2K
Generation number4
Production start year2015
Production end year2020

Engine, transmission and steering specs

Engine specs

Engine nameCFHC
FuelDiesel
Engine typeIn-line, 4-cylinder
Has turboyes
Turbo typeTurbine
Max power, hp140
Max power RPM, rpm4200
Max power, hp (kWt) / rpm140 (103) / 4200
Max torque, N*m320
Max torque RPM, rpm2500
Max torque, N*m (kg*m) / rpm320 (33) / 2500
Valves per cylinder4
Compression ratio16.5
Bore, mm81
Stroke, mm95.5
Engine additional infoCommon-rail direct fuel injection
Eco typeEuro-5
Start stop systemyes

Fuel consumption

City7.6
Country side5.5
Combined6.3
Co2 emission166

Transmission

Manual modeoption

Steering

Power steeringno
Electric power steeringyes

Dimensions

Frame dimensions

Exterior length, mm4878
Exterior width, mm1794
Exterior height, mm1831

Interior dimensions

Capacity5
Seat rows2

Chassis dimensions

Wheel base, mm3006
Turning radius, m6.6
Wheel spacing front1537
Wheel spacing rear1531
Front overhang879
Rear overhang993

Weight and permissible load

Mass, kg1653
Max capacity850
Max. weight2502
Loading height581
Front axe load1175
Rear axe load1250

Volumes

Fuel tank capacity, l60

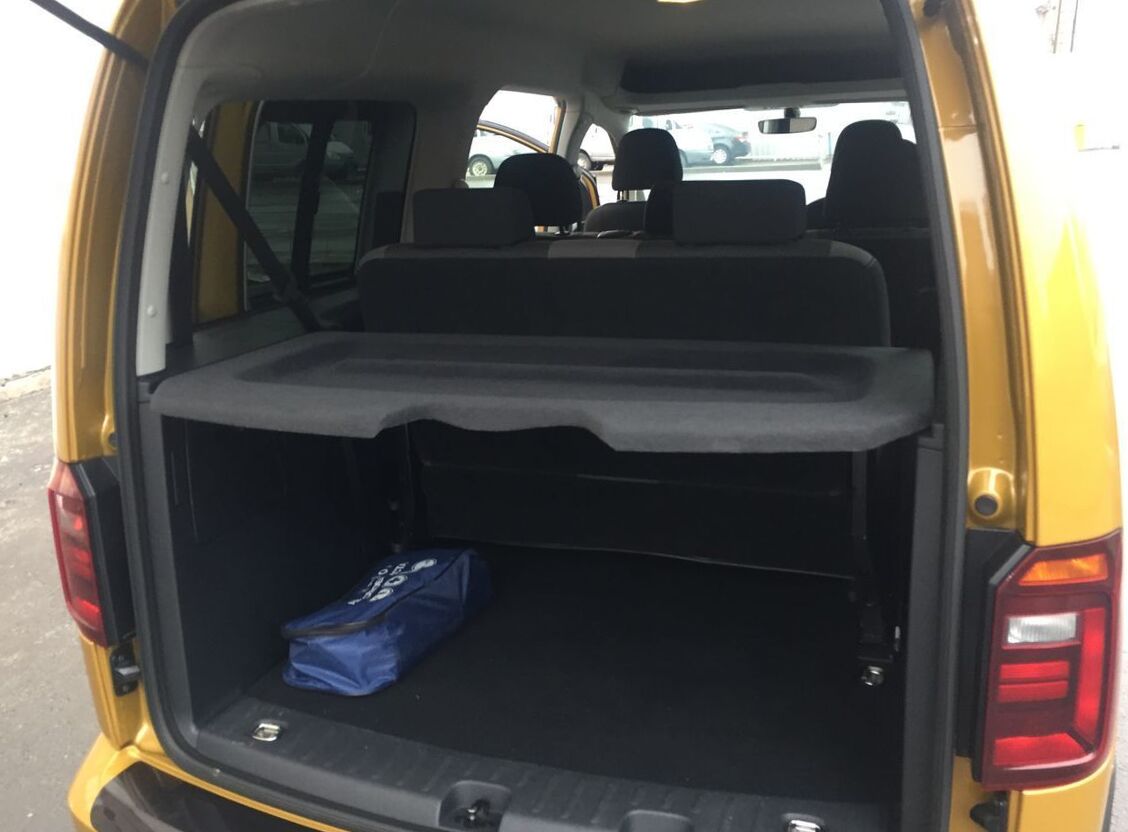

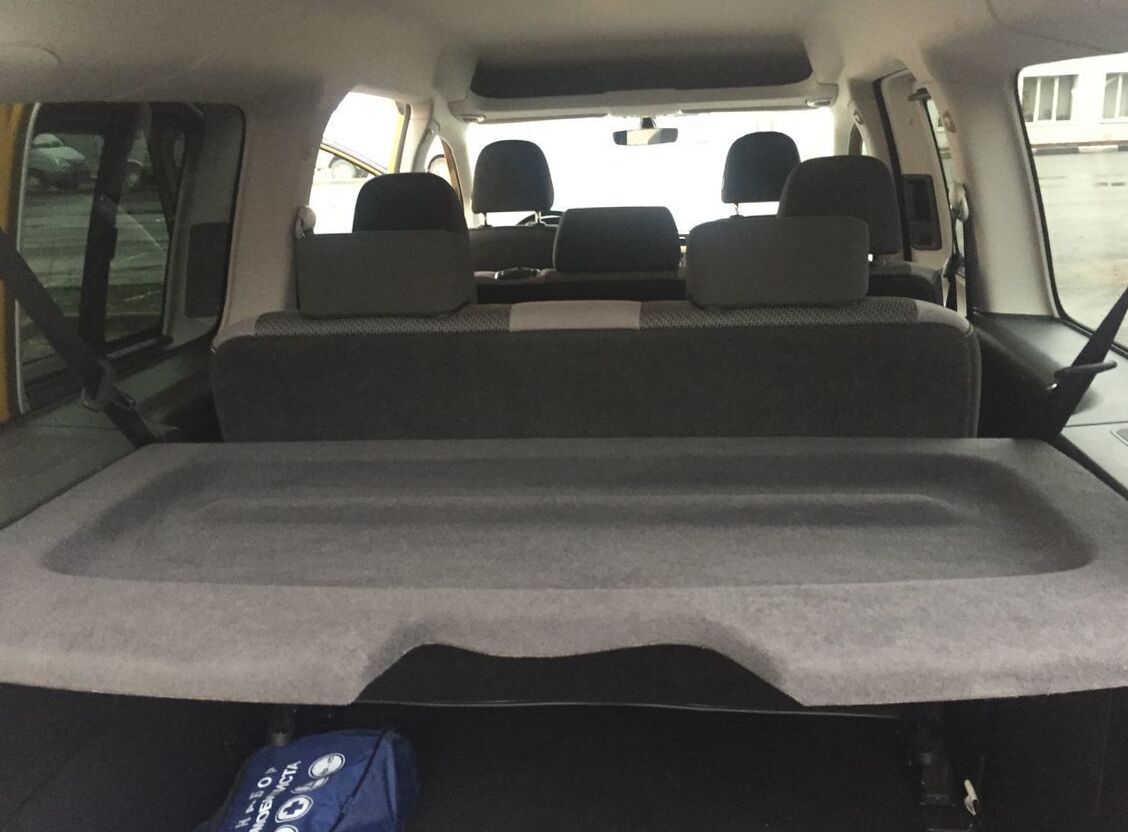

Trunk volume1350

Other

AddinfoTables on the backs of the front seats

Suspension specs

Suspension specs

Front stabilizeryes
Front suspensionIndependent, Spring McPherson
Rear stablilizeryes
Rear suspensionDependent, spring loaded

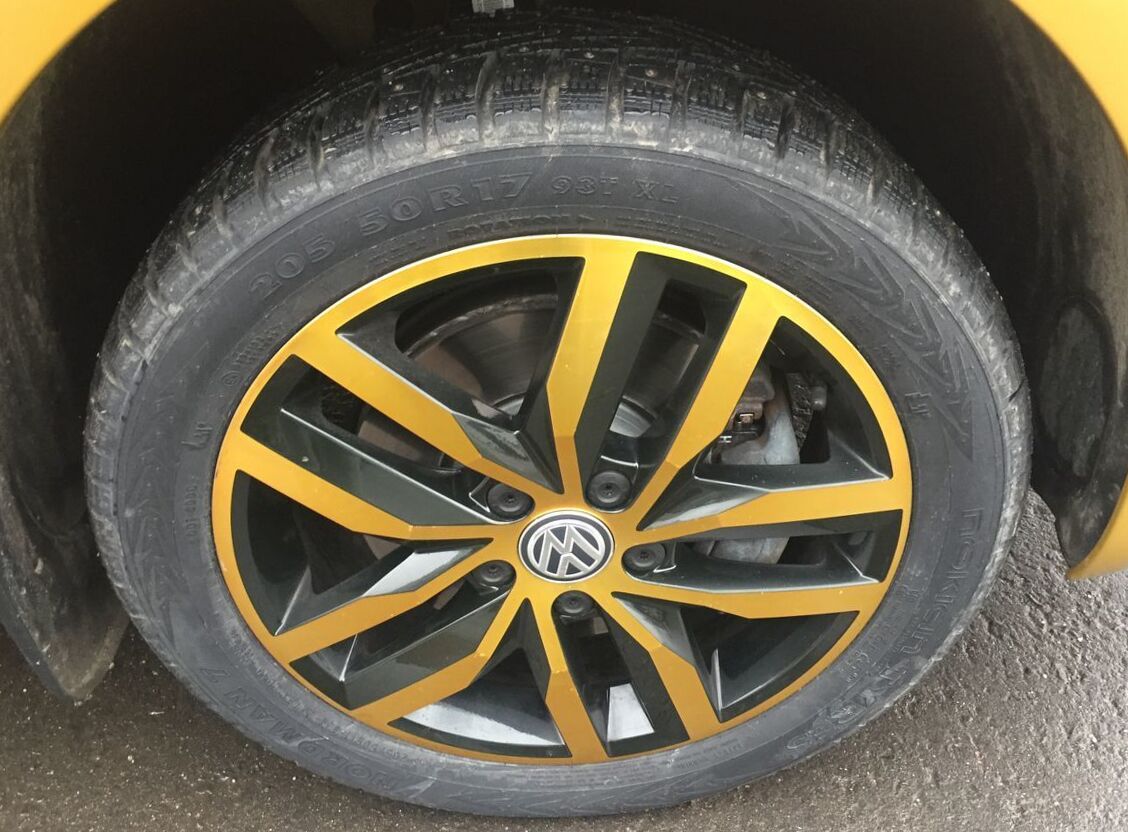

Wheel rims

Aluminium wheeloption
Disc6J x 16

Tires

Front wheels205/55 R16
Rear wheels205/55 R16

Brakes

Front brakeDiscs
Rear brakeDiscs

Exterior

Headlights

Halogen headlightsyes
Bixenonoption
Diod head lightsoption
Head lights washeroption
Front fog lampsoption
Led backlightsoption
Rear fog lampsyes
Additional stop lightyes
Light sensoryes
Rain sensoryes

Side mirrors

Exterior mirrors in body coloryes
Power adjustable door mirrorsoption
Door mirrors heatingoption

Doors

Side sliding doorno
Sliding doorsyes
Door handles in body coloryes

Windows

Privacy glassoption
Termoglassyes
Rear glass heatyes

Roof

Tilt sunroofno

Accessories

Roof railyes
BumpersFront one - in body color, rear one - unpainted
Back wiperyes

Body color

Metallic paint Bodyoption

Interior

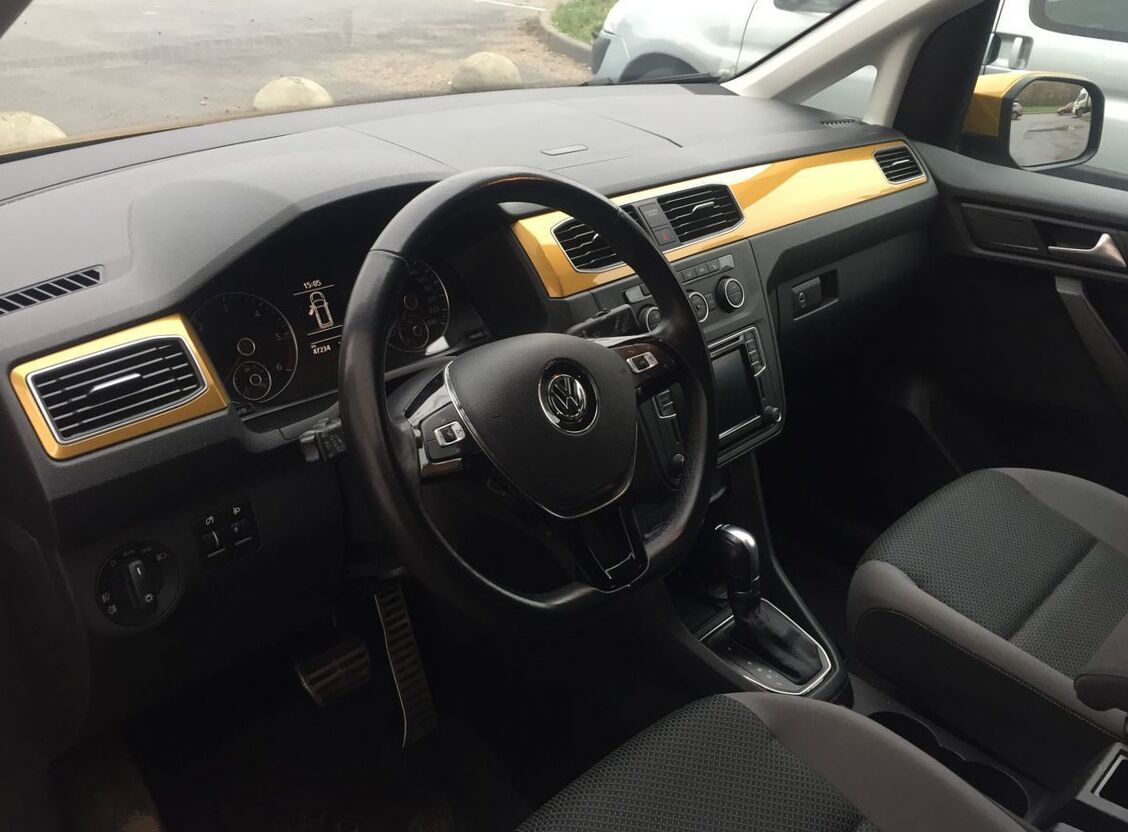

Steering wheel and center panel

Leather windingyes
Adjustable steeringyes
Telescopic steeringyes
Tilt steeringyes
Audio control on steering wheelyes
Utility color displayoption
Tachometeryes

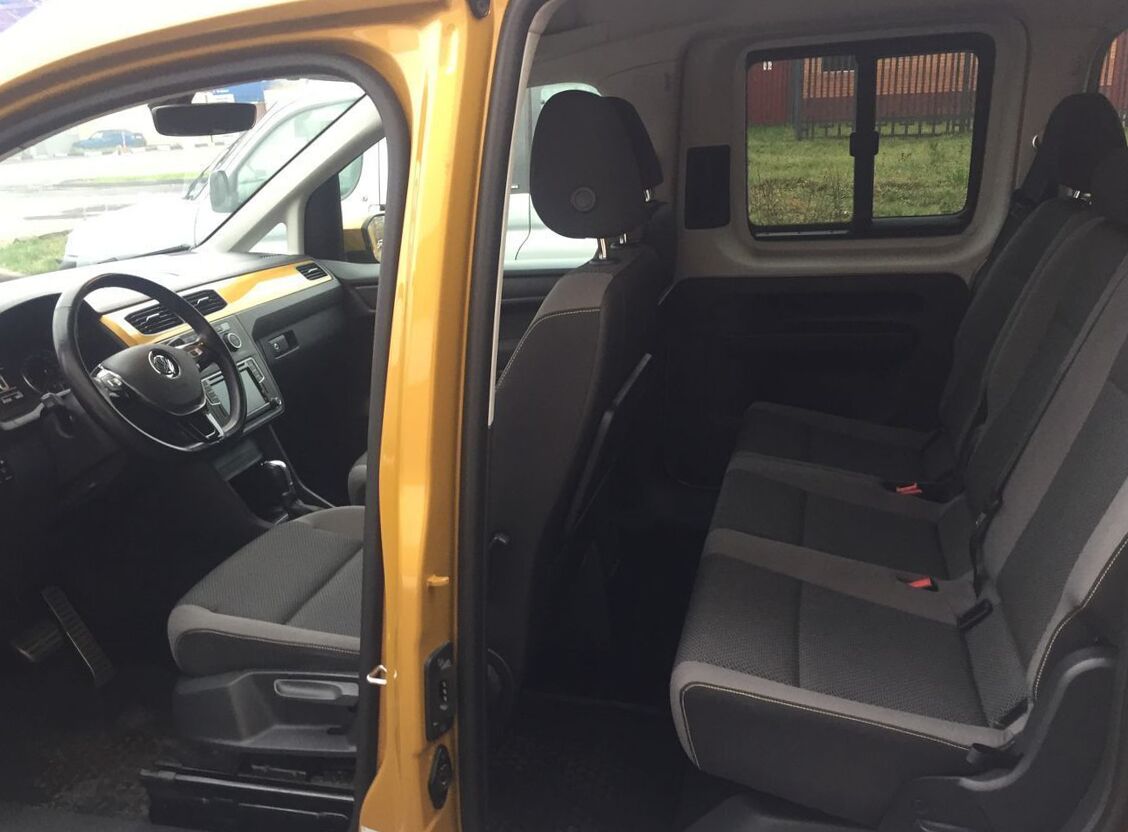

Interior design

Cloth upholsteryyes
Leather upholsteryno
Combined obivka Salonno
PanelsFront panel decor: Royal lacquer color `Cyclon Midi

Seats

Front seats ajustFront seats are height-adjustable
2nd rowadds up to a ratio of 2+1
3nd rowfoldable, backrest indivisible (optional)
Loin relianceyes
Separating armrest frontyes
Matsoption

Electric interior package

Power ajustable front seatno
Front seat heateryes
Rear seats heaterno
Centralized door lockyes
Keyless enteryes
Power window frontyes
Stearing wheel heateroption
Front sheeld electro heateryes
Injectors heatyes

Additional interior equipment

Cooled gloveboxyes
Smokers packetoption
AC plugyes

Safety

Airbags

Drivers airbagyes
Passengers airbagyes
Passenger airbag deactivation function withyes
Side airbagyes
Curtain airbagsoption

Children safety

isofix baryes

Active and passive safety

Glonassoption

Electronic security and traffic control systems

ABSyes
Electronic Brake Distributionyes
Break assistyes
ESPyes
Hill-start assist control systemyes
Lane Keep Assistoption
Cruise controloption
Function "Take me home"yes
Control system of a headlightoption
Dynamic cornering lightoption
Tires indicatoryes
Front sonaroption
Rear sonarsoption
Intelligent parking assistoption
Driver tired systemoption

Amenity

Microclimate

Air conditioneryes
Automatic air conditioningoption
Part climat equipment2 zones (optional)
Air filteryes

Audio systems

Radioyes
CD playeryes
MP3 Supportyes
Hands freeyes
Additional sound equipment6 speakers, AUX, USB

Navigation and video equipment

Full color LCD display5" / 6.33" (optional)
Navigation systemoption
Back monitoryes

Additional amenities

Antidazzle rearview mirroryes
Anti-glare effectno
Mirrors in sunshieldsyes
Blind in luggage compartmentoption
Onboard computeryes

Car safety

Immobilizeryes
Security alarmoption
Bolt-cardoption

Driver Kit

Spare tireyes


2016 Volkswagen Caddy IV 2K 2.0 TDI DSG Maxi Family (140 Hp) specs

The name Volkswagen Caddy has been used by the Volkswagen Group to describe four different Caddy models:

  • Typ 14 was derived from the Volkswagen Golf Mk1,
  • Typ 9U was derived from the Škoda Felicia pick-up,
  • Typ 9K was derived from the Volkswagen Polo Mk3 (VW Caddy) / SEAT Ibiza (SEAT Inca) platform,
  • Typ 2K was derived from the Volkswagen Touran platform with Golf Mk5 front suspension.


Released in 1980, the first Volkswagen Caddy is a light pickup truck, and van based on the Volkswagen Group A1 platform, shared with the small family car Volkswagen Golf Mk1.

VW Typ is:

  • 147 = LHD
  • 148 = RHD

Caddy debuts internationally as a Rabbit

The Caddy came into fruition when VW was experimenting with Golf derivatives, a station wagon and a pickup.

Volkswagen of America was interested in the pickup, when VW released the Caddy it first was produced at the VW Westmoreland County plant in Pennsylvania from 1979 to 1982.

It was known in North America as the VW Rabbit Pickup with trim levels such as LX and Sportruck.

The Caddy competed with other mini-pickups such as the Ford Courier and Subaru Brat of that time.

Caddy debuts in Europe

The Caddy nameplate was never used in the USA (since the name is slang for Cadillac motor car division). Its first use was in Europe in 1982 when the Caddy was debuted on the European Market.
