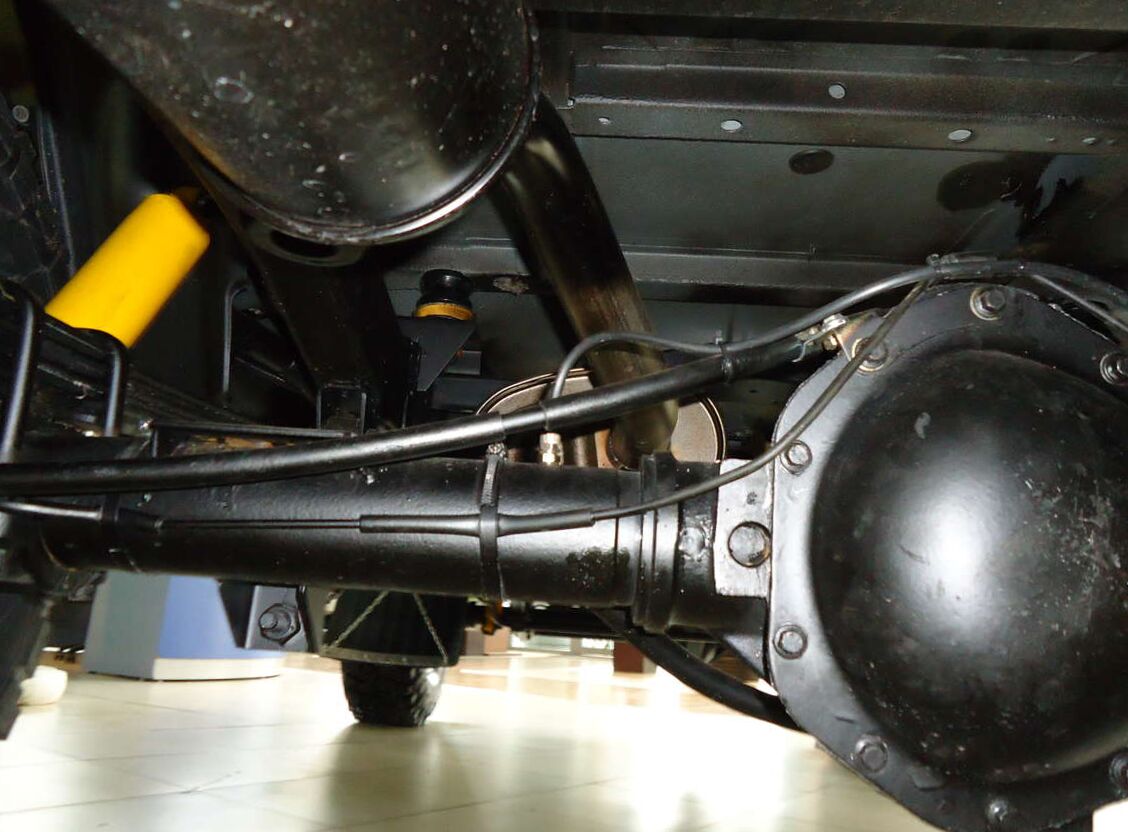

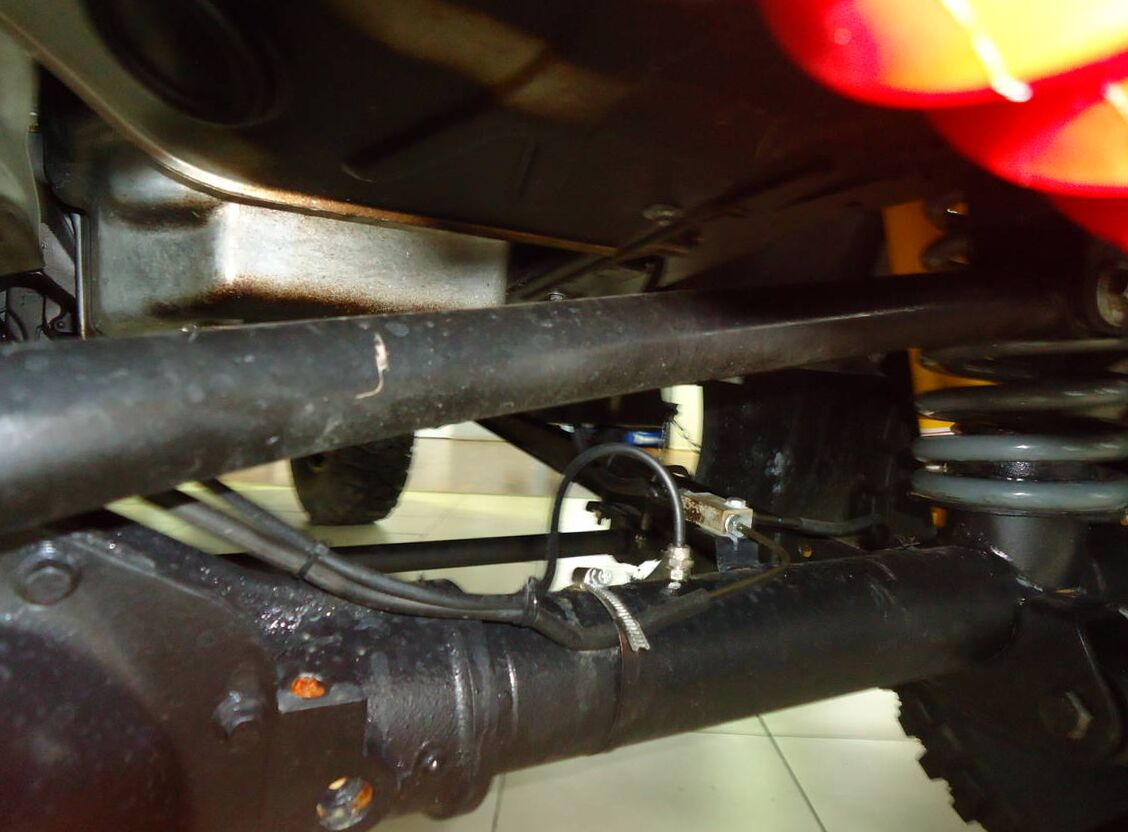

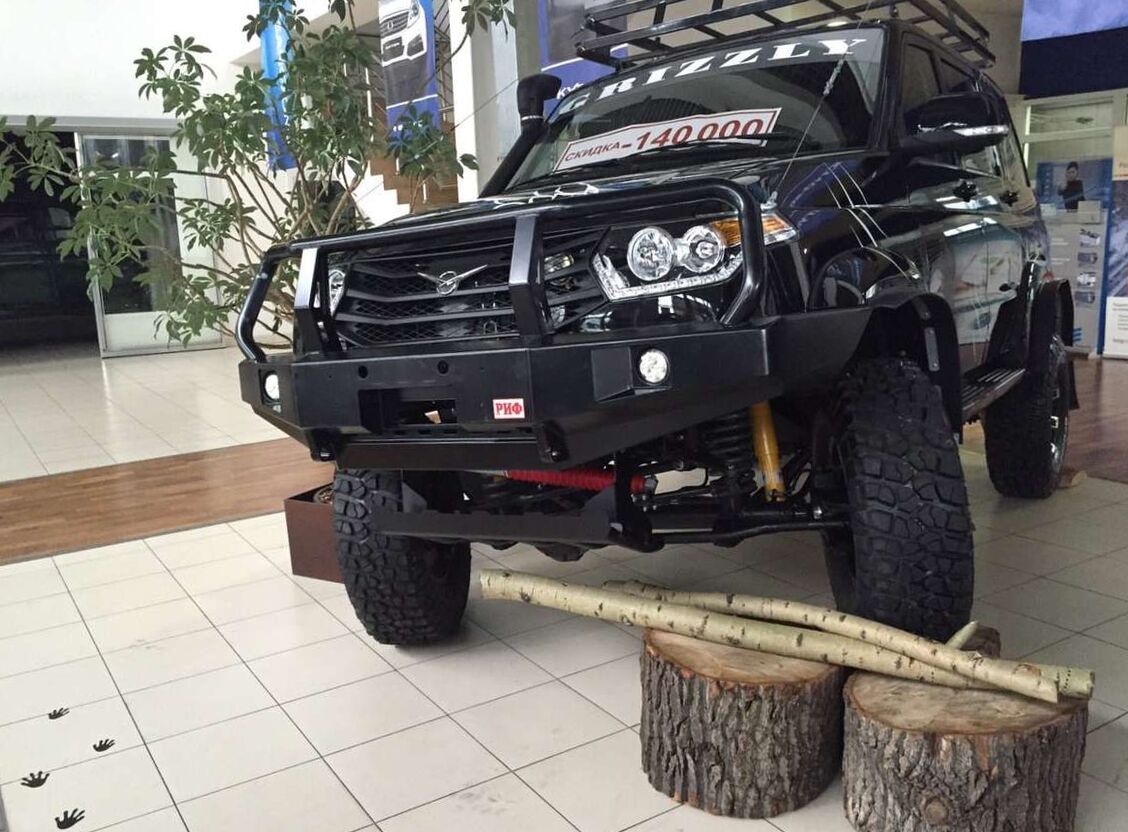

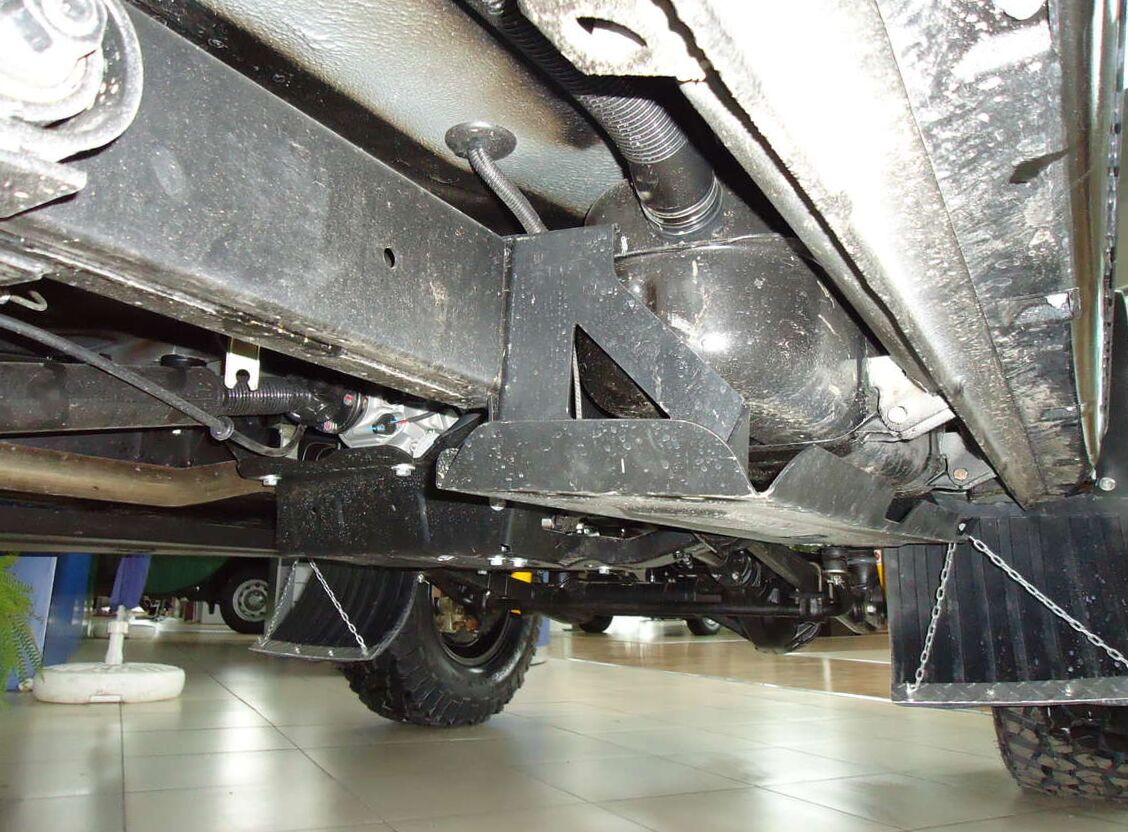

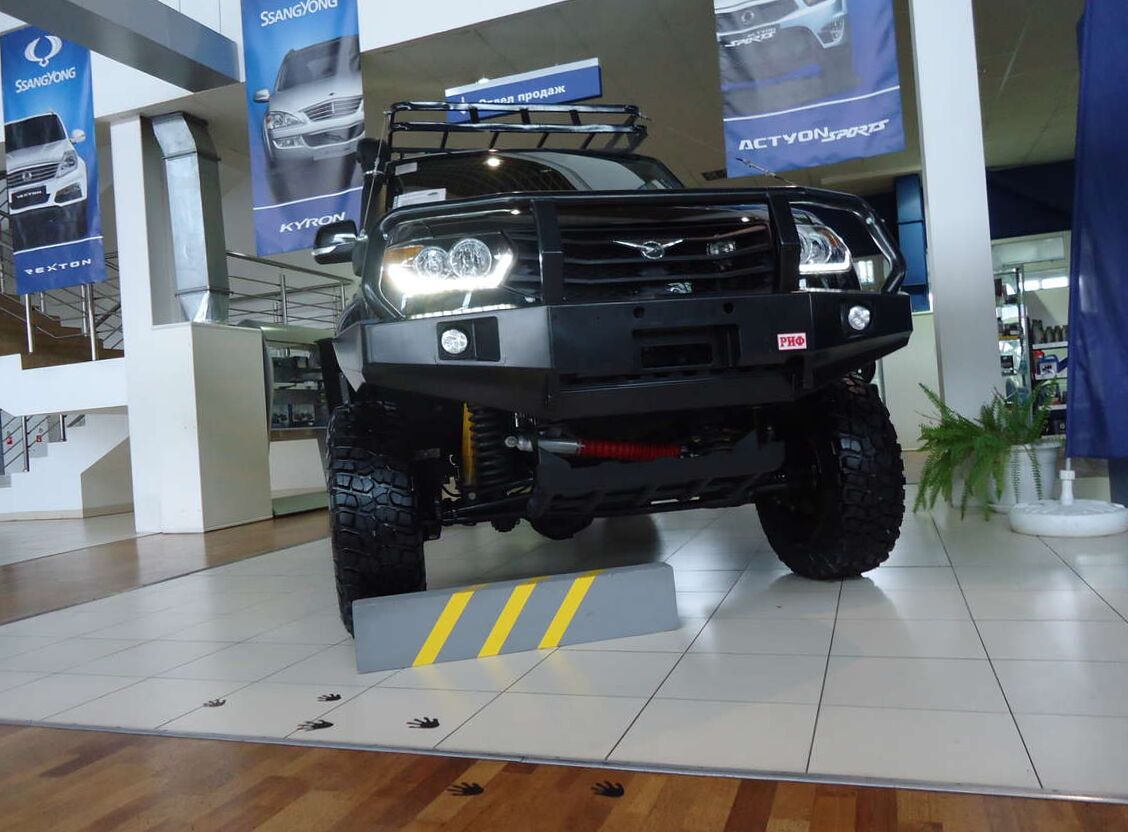

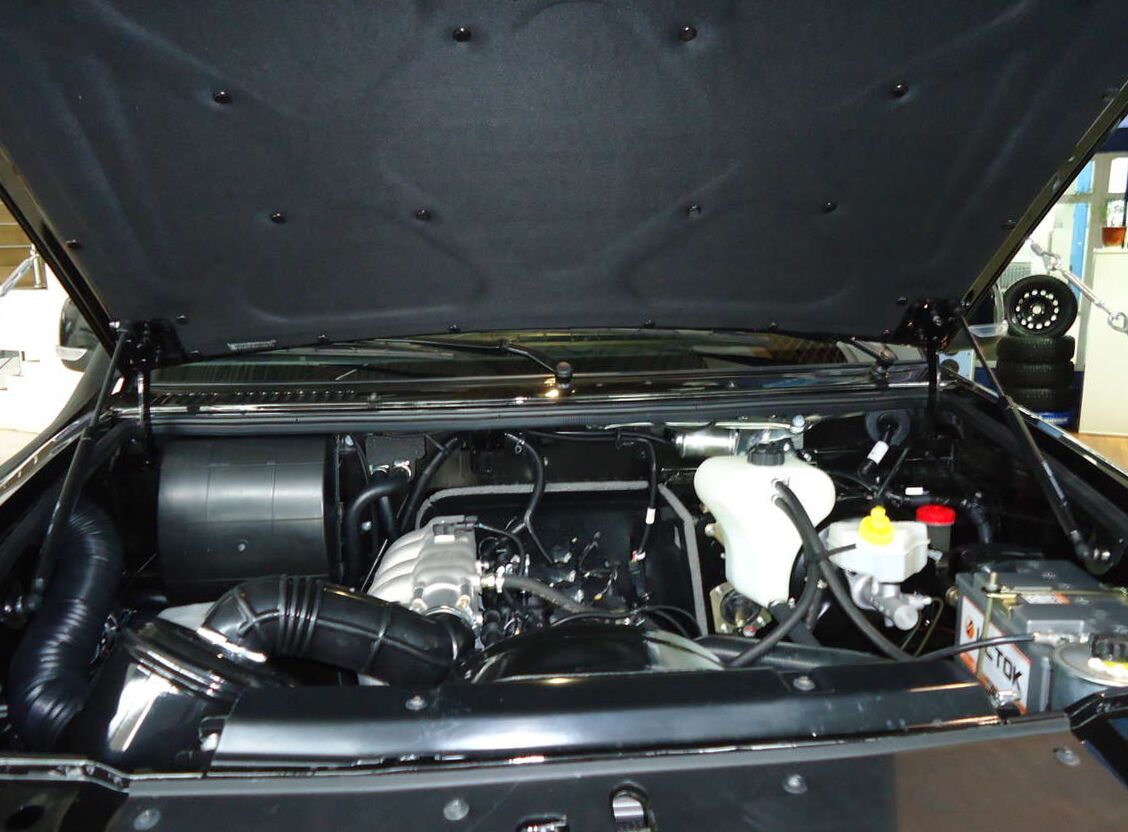

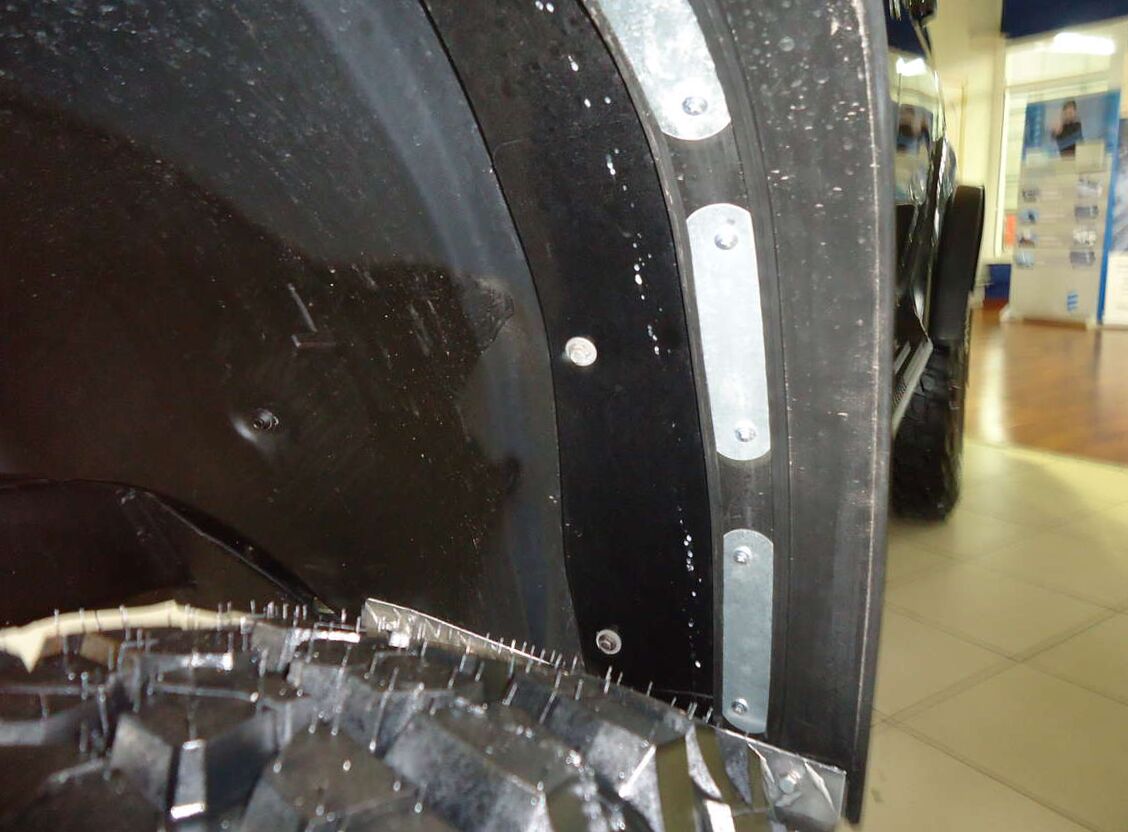

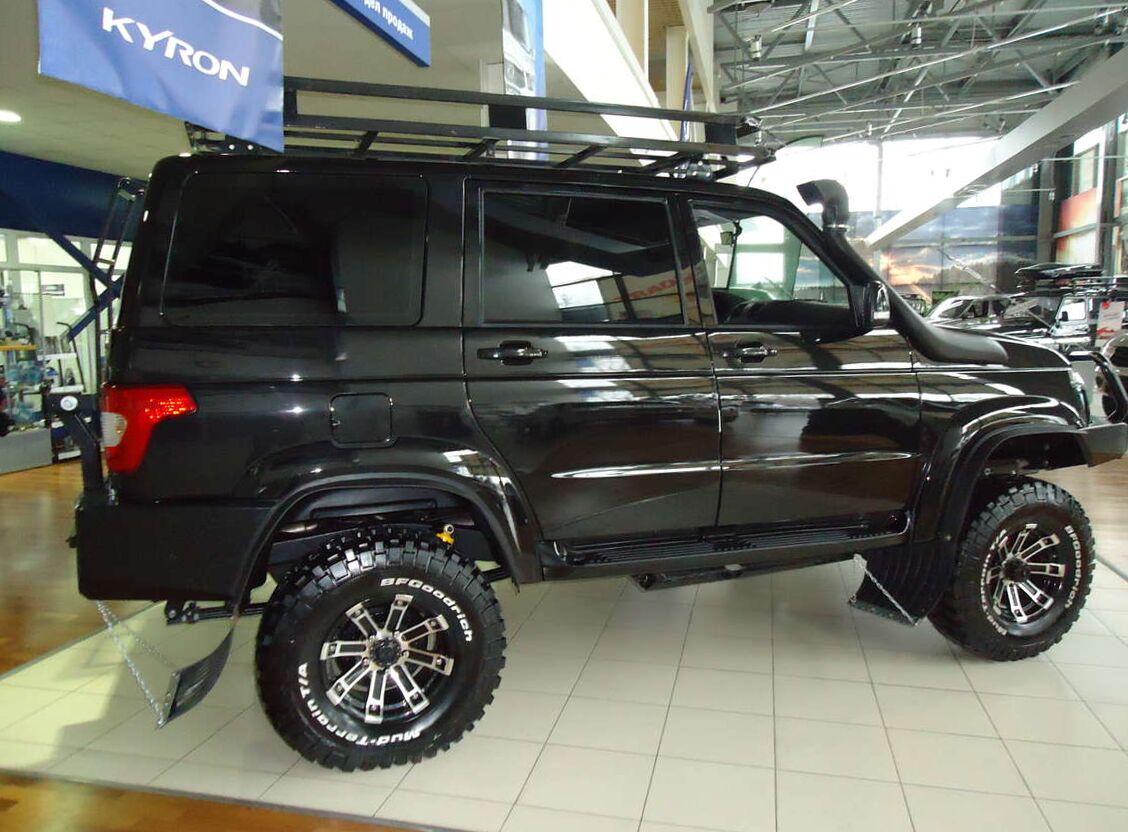

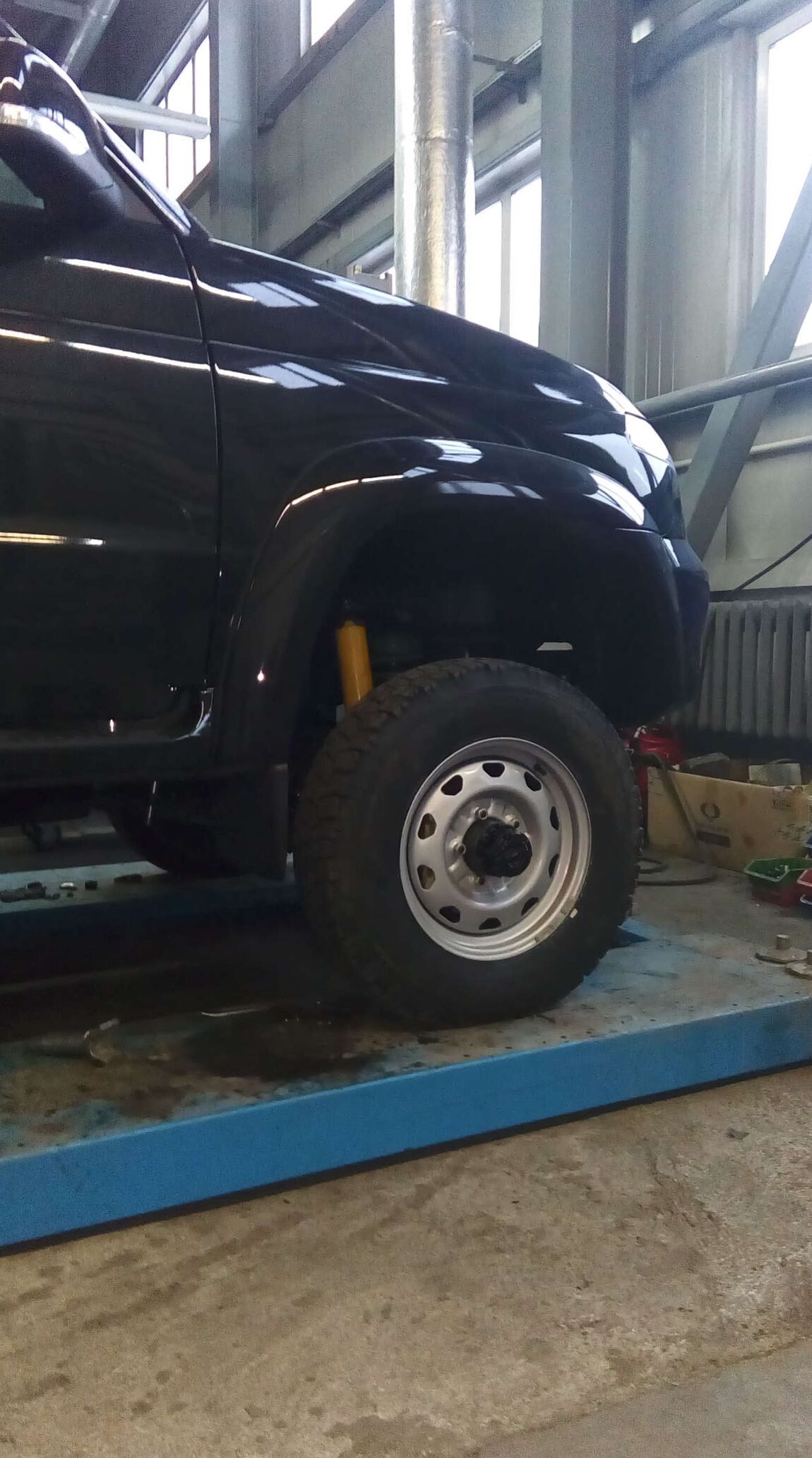

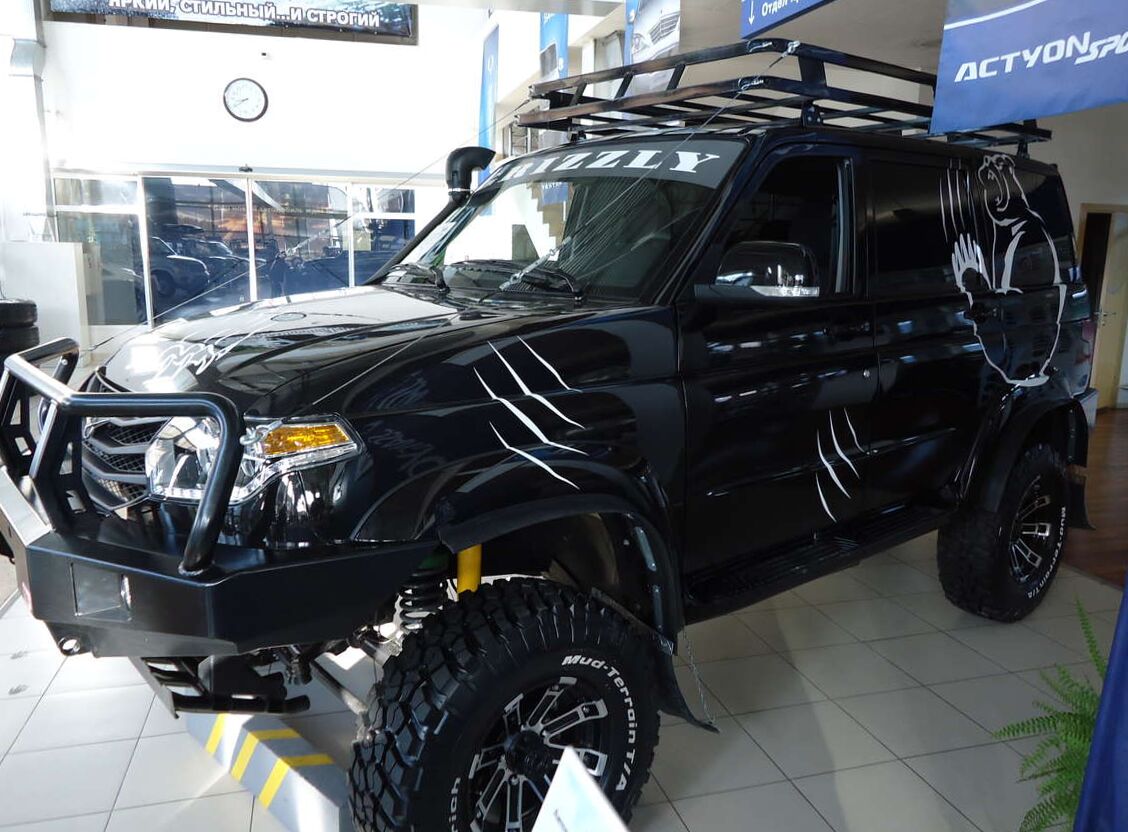

More photos of UAZ Patriot

Body typeSUV
Engine Displacement2700 cm3 or 2.7L or 164.7 cu-in
Colorblack
Transmission GearboxManual
Fuel TypeGasoline
Drive wheel4WD
Price (out of date)$18085

Frequently Asked Questions

What is the body type, UAZ Patriot SUV 2016?SUV, 5 Seats, 5 Doors
How fast is the car, UAZ Patriot 3163 2016?150 km/h, 0-100 km/h: 20 sec
How much power, 2016 UAZ Patriot 2.7 MT Classic?128 Hp
What is the engine size, UAZ Patriot 2016 SUV 2.7 MT Classic (128 Hp)?2.7L or 2693cm3
How many gears, What type is the gearbox, 2016 UAZ Patriot SUV 2.7 MT Classic (128 Hp)?5 speed Manual
What is the drivetrain, UAZ Patriot SUV 2016?All wheel drive (4x4)
How long is this vehicle, UAZ Patriot 3163 2016?4750 mm
How wide is the vehicle, 2016 UAZ Patriot 2.7 MT Classic?1900 mm
What is the gross weigh, UAZ Patriot 2016 SUV 2.7 MT Classic (128 Hp)?2650 kg
How much trunk (boot) space, 2016 UAZ Patriot SUV 2.7 MT Classic (128 Hp)?1200 l

UAZ Patriot 3163 2.7 MT Classic (128 Hp) 2015, 2016 Specs

General information

Complectation name2.7 MT Classic
Production start year2015
Production end year2016
Drive typeAll wheel drive (4x4)
Frame typeSUV
Transmission type5 speed Manual
Engine volume, cc2693
Frame name3163
0 to 100 time20
Max speed150
Clearance, mm210
Manufacturing countryRussia
Diler name2.7 MT Classic
Doors5
Winter complectationno
Warranty3 years or 100,000 km

Vehicle generation

Generation nameUAZ-3163
Generation number1
Facelift number1
Production start year2014
Production end year2016

Engine, transmission and steering specs

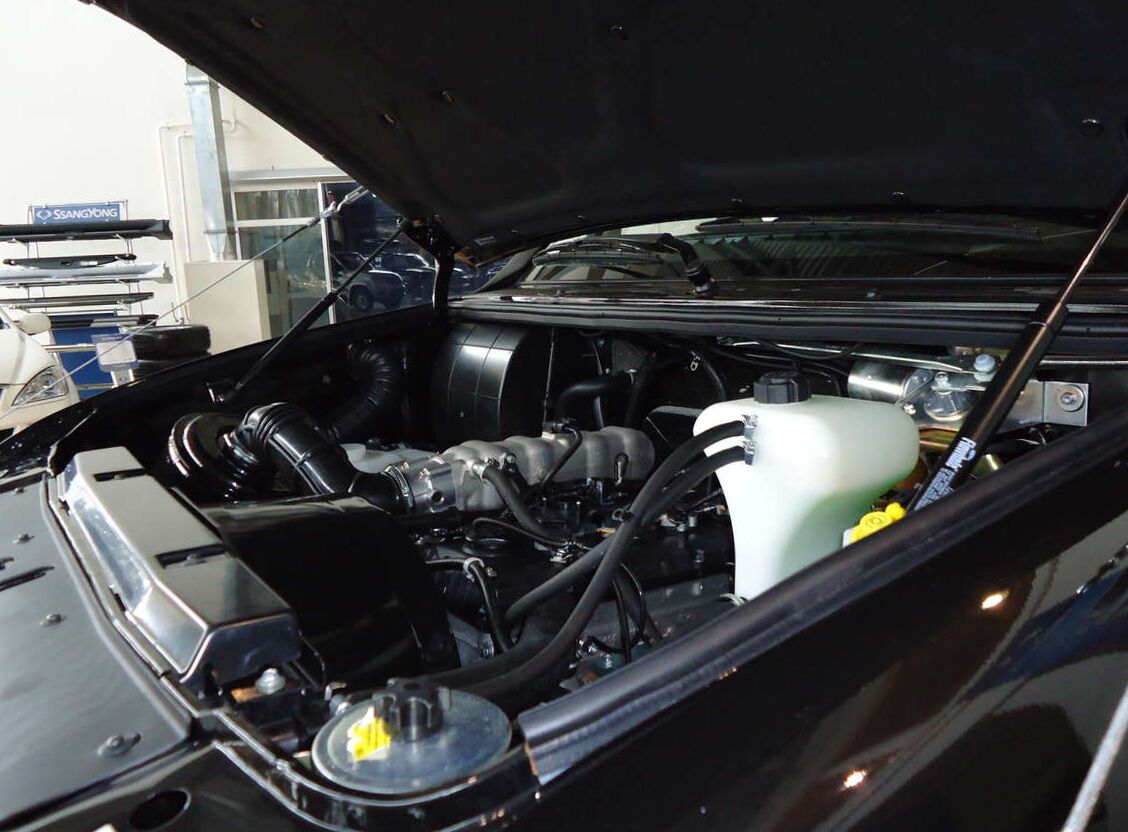

Engine specs

Engine nameZMZ-40905
FuelPetrol (Gasoline)
Engine typeIn-line, 4-cylinder
Has turbono
Max power, hp128
Max power RPM, rpm4600
Max power, hp (kWt) / rpm128 (94) / 4600
Max torque, N*m210
Max torque RPM, rpm2500
Max torque, N*m (kg*m) / rpm210 (21) / 2500
Valves per cylinder4
Compression ratio9
Bore, mm95.5
Stroke, mm94
Engine additional infodistributed fuel injection
Eco typeEuro-4

Fuel consumption

Country side11.5

Transmission

1st gear ratio4.155
2nd gear ratio2.265
3rd gear ratio1.428
4th fear ratio1
5th gear ratio0.88
Rear gear ratio3.827

Steering

Power steeringyes

Dimensions

Frame dimensions

Exterior length, mm4750
Exterior width, mm1900
Exterior height, mm1910

Interior dimensions

Capacity5
Seat rows2

Chassis dimensions

Wheel base, mm2760
Wheel spacing front1600
Wheel spacing rear1600

Weight and permissible load

Mass, kg2125
Max capacity525
Max. weight2650

Volumes

Fuel tank capacity, l72
Trunk volume1200

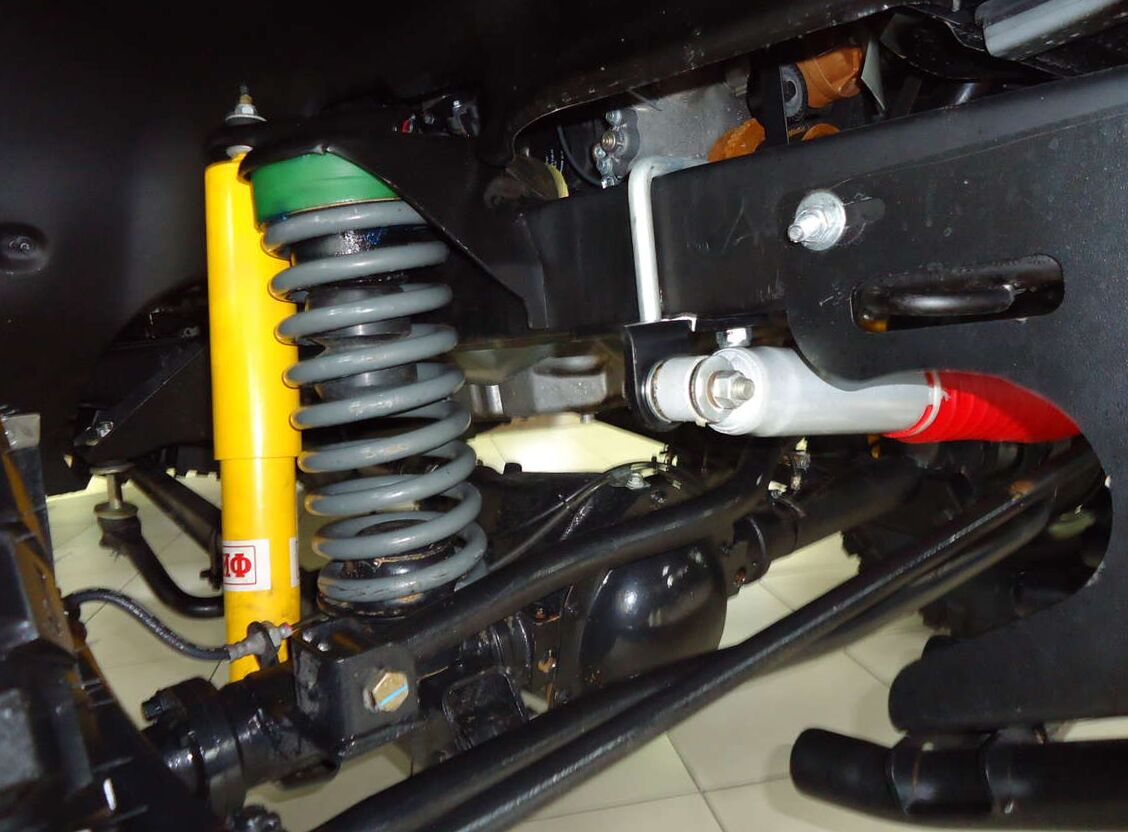

Suspension specs

Suspension specs

Front stabilizeryes

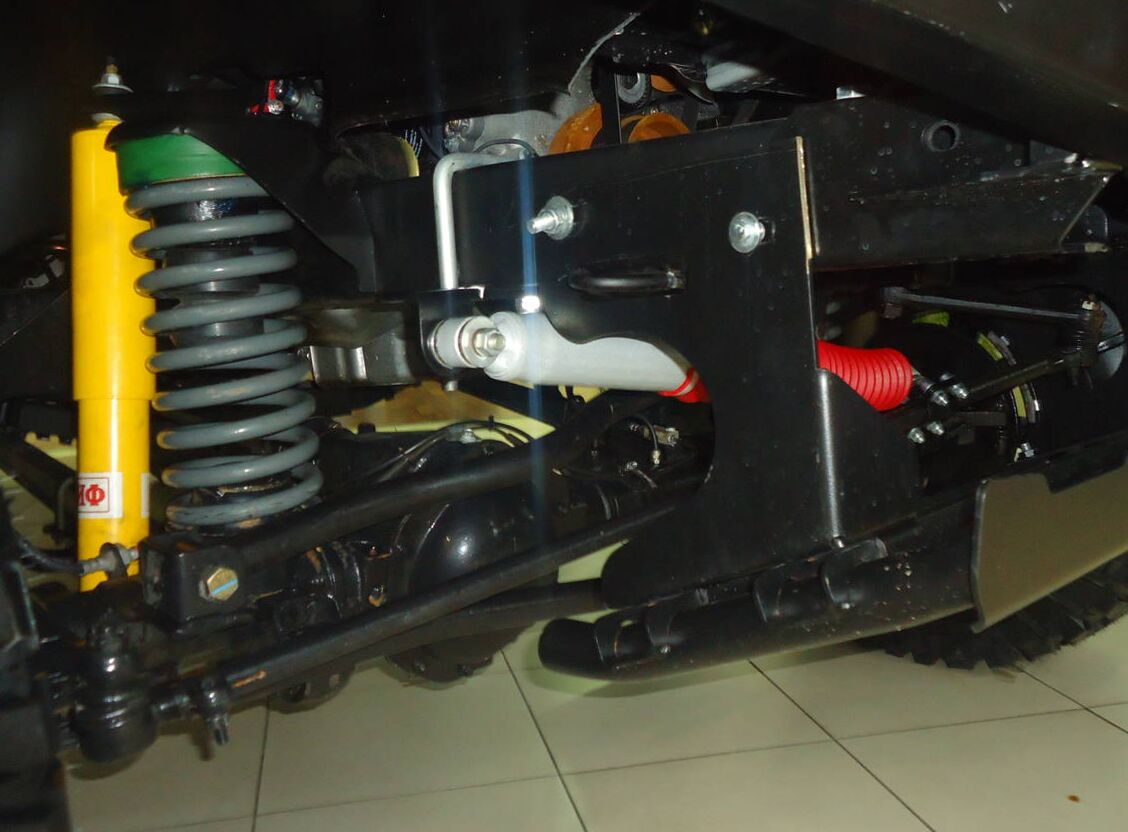

Front suspensionDependent, spring loaded
Rear stablilizeryes
Rear suspensionDependent, spring loaded

Wheel rims

Aluminium wheelno
Disc16"

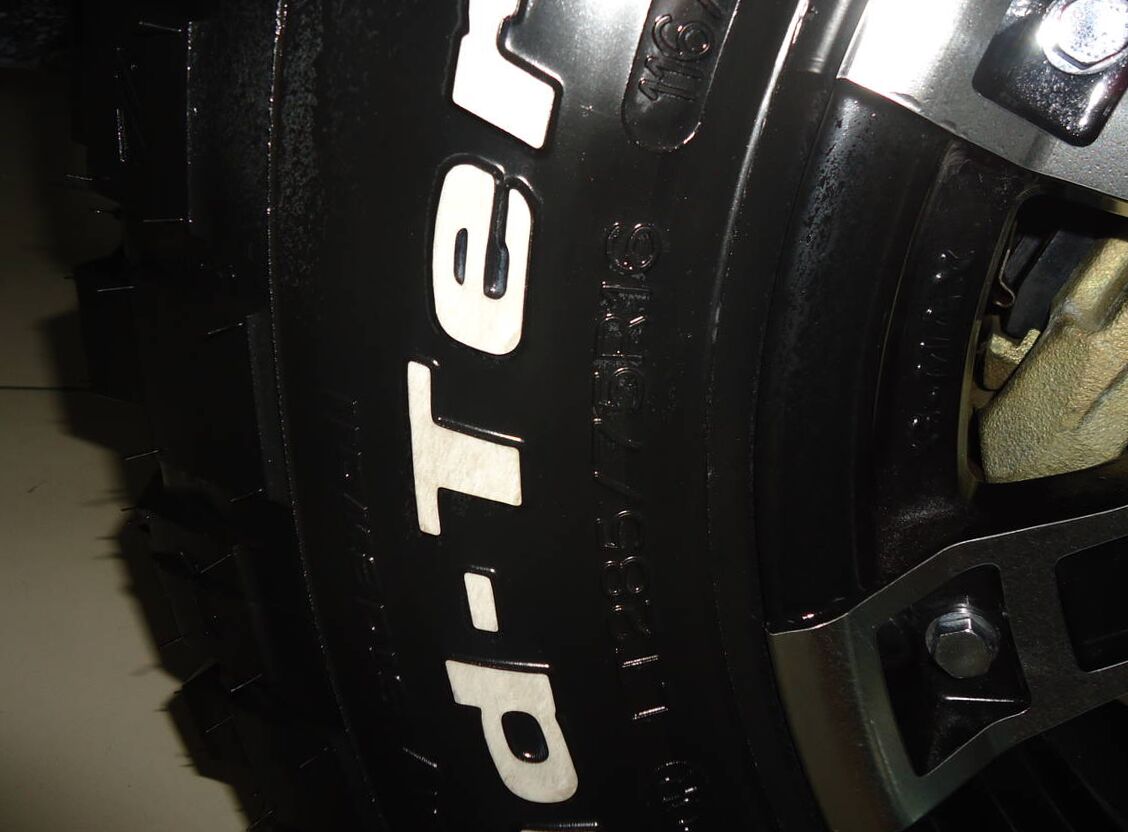

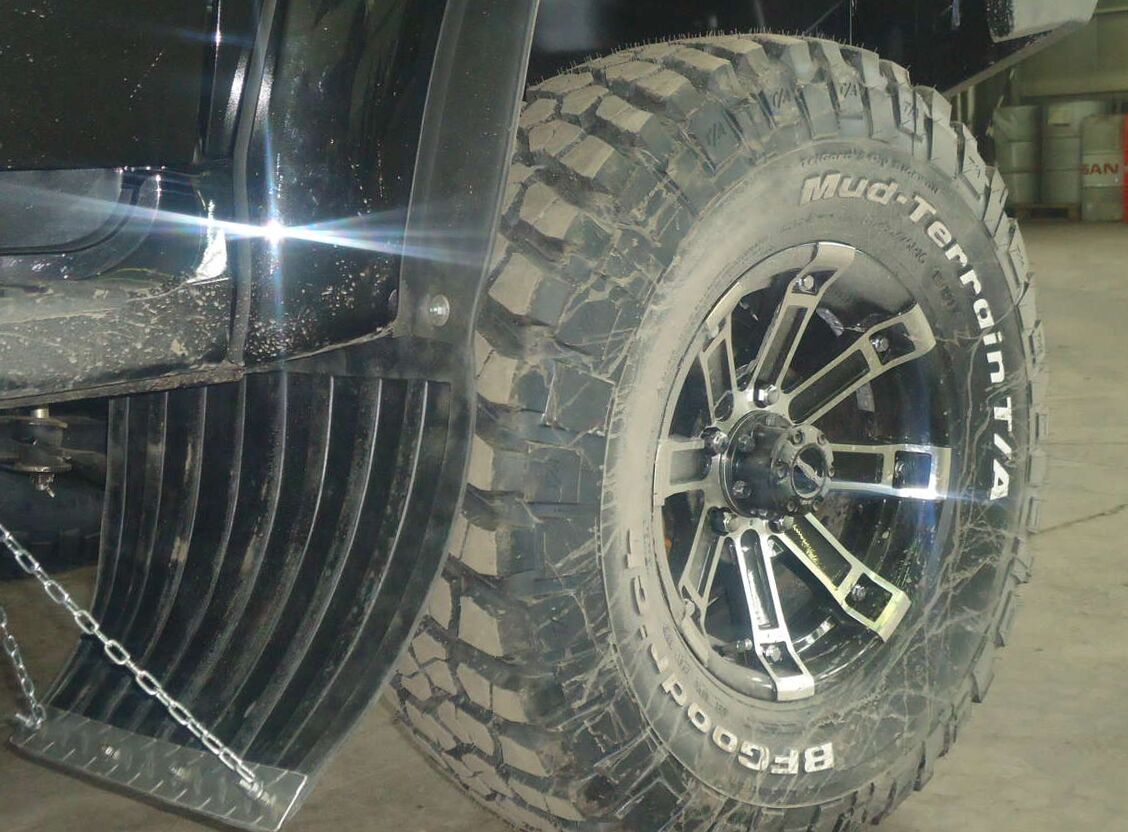

Tires

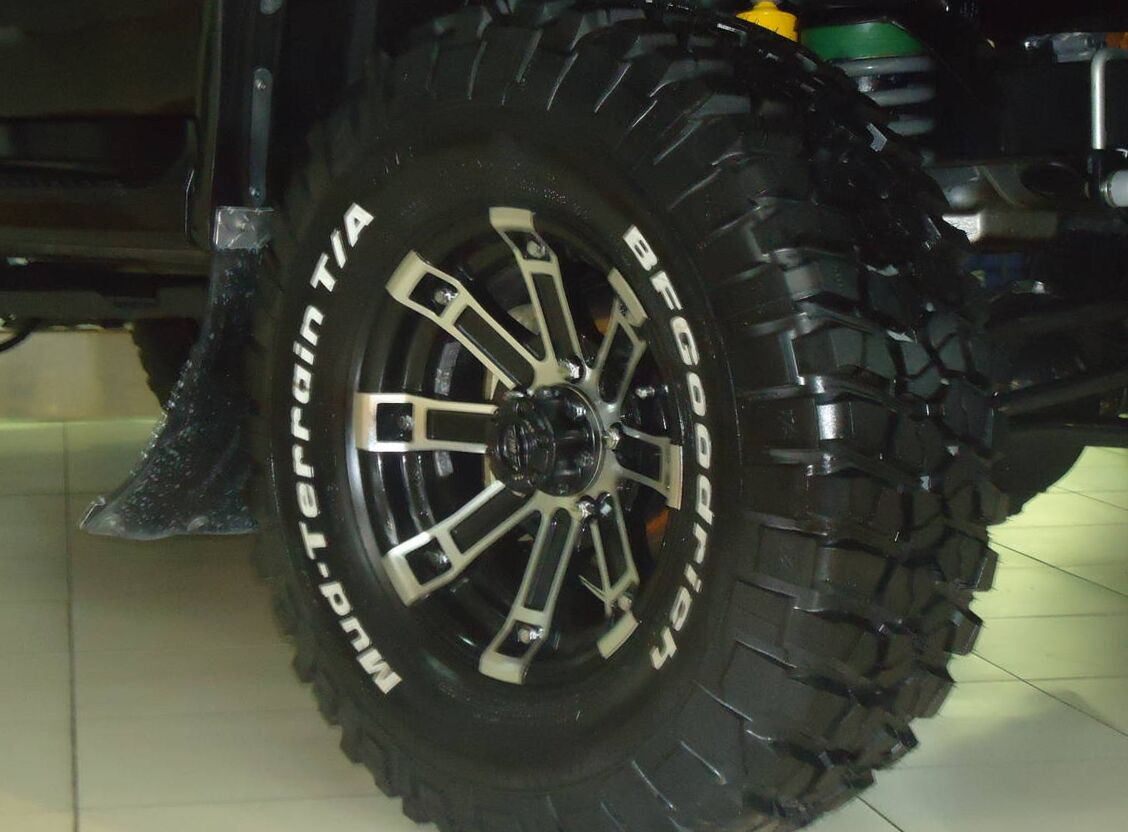

Front wheels225/75 R16
Rear wheels225/75 R16

Brakes

Front brakeDiscs
Rear brakedrum brakes

Exterior

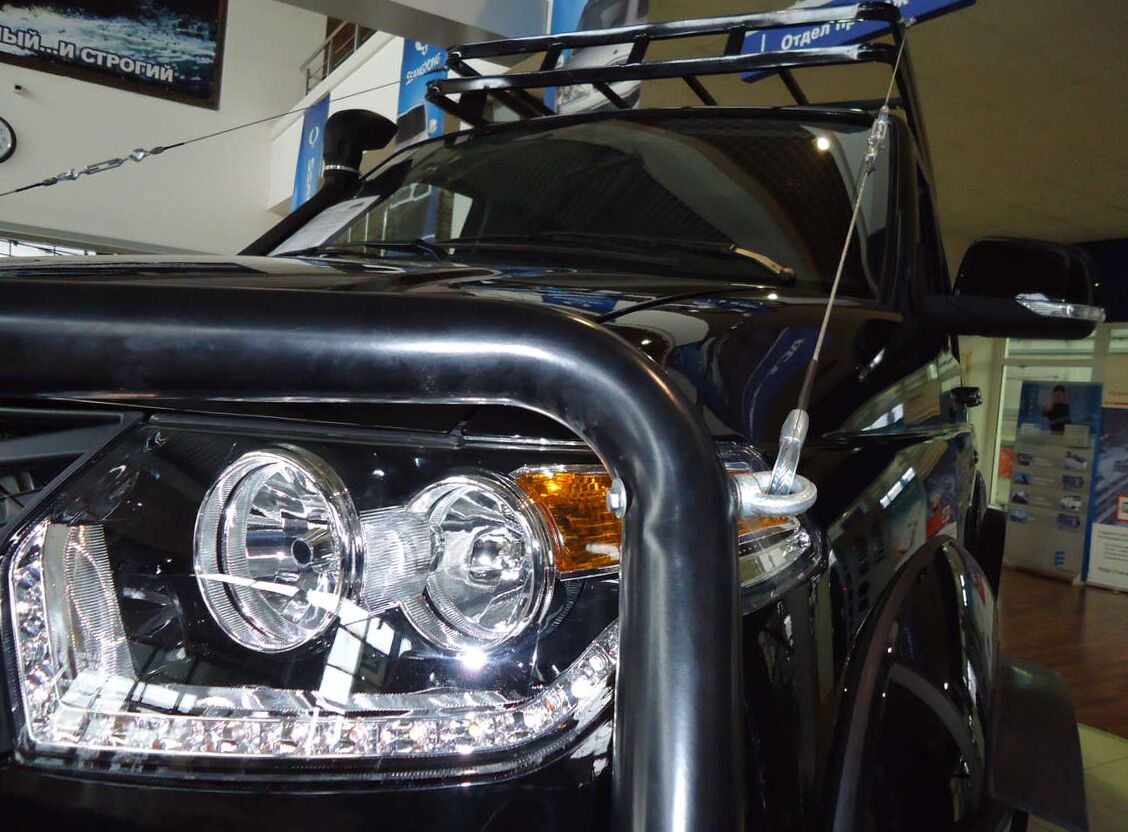

Headlights

Halogen headlightsyes
Diod head lightsyes
Front fog lampsno
Additional stop lightyes

Side mirrors

Exterior mirrors in body coloryes
Side mirrors with repeaters indicatorsyes
Power adjustable door mirrorsyes
Door mirrors heatingyes

Doors

Door handles in body coloryes

Windows

Privacy glassno
Termoglassyes
Rear glass heatyes

Accessories

Roof railno
Rear spoilerno
Bumperspainted in body color
Back wiperyes
Rear mudflapsyes

Body color

Metallic paint Bodyyes

Interior

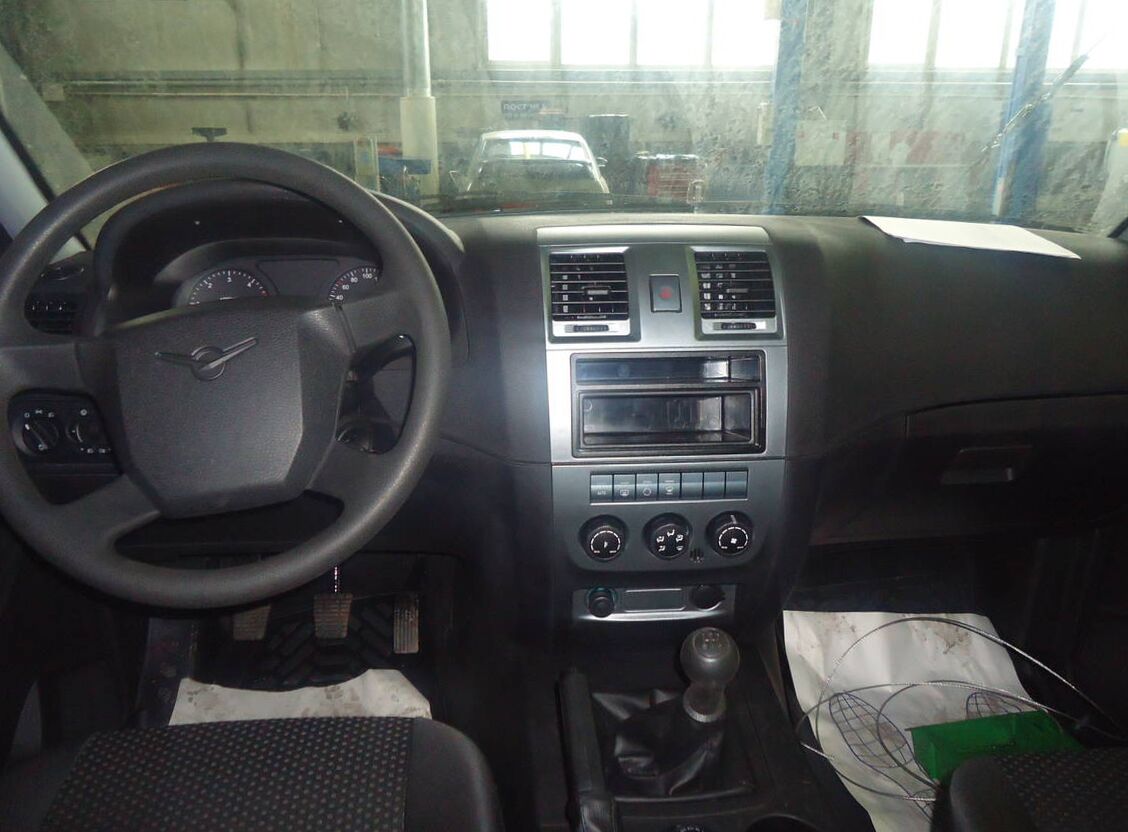

Steering wheel and center panel

Leather windingno
Adjustable steeringyes
Telescopic steeringno
Tilt steeringyes
Audio control on steering wheelno
Env tempno

Interior design

Cloth upholsteryyes
Leather upholsteryno
Combined obivka Salonno

Seats

Front seats ajustadjustable in 4 directions
2nd row60/40 ratio fold seat
Loin relianceno
Headrests for seats4
Separating armrest frontyes
Separating armrest rearno
Seats pocketsyes
Matsno

Electric interior package

Front seat heaterno
Rear seats heaterno
Centralized door lockyes
Keyless enterno
Power window frontyes
Power window rearyes
Stearing wheel heaterno
Front sheeld electro heaterno

Additional interior equipment

Cooled gloveboxno
AC plugyes

Safety

Airbags

Drivers airbagno
Passengers airbagno

Children safety

isofix baryes

Active and passive safety

Safety belt pretensionerno

Electronic security and traffic control systems

ABSno
Electronic Brake Distributionno
Break assistno
ESPno
traction controlno
Hill-start assist control systemno
Cruise controlno
Front sonarno
Rear sonarsno

Amenity

Microclimate

Air conditionerno
Automatic air conditioningno

Audio systems

Radiono
MP3 Supportno
Hands freeno
Additional sound equipmentAudio Prep

Navigation and video equipment

Full color LCD displayno
Navigation systemno
Back monitorno

Additional amenities

Antidazzle rearview mirrorno
Mirrors in sunshieldsyes
Blind in luggage compartmentno
Onboard computeryes
LightSalon

Car safety

Immobilizeryes
Security alarmno

Driver Kit

Spare tireyes


2016 UAZ Patriot 3163 2.7 MT Classic (128 Hp) specs

UAZ (УАЗ), Ulyanovsky Avtomobilny Zavod (Ульяновский Автомобильный Завод) is an automobile manufacturer based in Ulyanovsk, Russia which makes SUVs, buses and trucks. Production started in 1941.

Creation

In 1941, after the start of Great Patriotic War, Stalin's government made every effort possible to try to save Soviet industry from being captured by the German army. So, in 1941, because of rapid advances by the Germans on Moscow, a decision was made to relocate ZIS - a Moscow car and freighter manufacturing plant - further away from the front line. Such a place was Ulyanovsk, a town in Volga region with existing infrastructure and skilled workers, but out of reach of German army. At that time, the plant was considered a subsidiary of ZIS. By 1942, the production of artillery shells and cars began.


In 1943, when the prospect of Germans winning the war was less likely, a decision was made to separate the relocated plant from ZIS. This was a part of general after-war policy conducted by Stalin's government in which relocated plants were separated into different units, since all the required buildings had already been erected. The existing plants before relocation were filled with (often - German) equipment, thus bursting the industry.

A logical choice for the newly created plant was to produce military and paramilitary cars, mostly due to its distance from the border. Therefore, in mid-1950es the production of the only Soviet offroad car, GAZ-69, was moved to Ulyanovsk. This car marked a beginning of a famous line of offroad vehicles manufactured by the plant.

Golden age

By mid-60es, the new management of the plant completed development of first original [U]AZ cars. The GAZ-69 offroad vehicle was replaced by UAZ-469. UAZ-469 was very similar in design to the original Jeep - a sturdy, but not-so-comfortable car that was able to drive in virtually any terrain and was easy to fix. The Uaz-469 reached legendary status for its reliability and off-road ability. The car didn't enter the personal use market until late 80s and was reserved for police forces and paramilitary (its commercially-available analog was produced by LuAZ, which was too close to border to be associated with the military).
